This set includes one Diopter Stage, one Diopter Adapter and three Diopter Frames including all pouches. With this set rentals could offer their diopter set (+0.5, +1, +2 each in a Diopter Frame and +3 in a Diopter Stage) for best storage to avoid any damages on the glass.K2.0013740 3x Diopter Frame 138mmK2.0014745 1x Diopter Stage 138mmK2.0014357 1x Diopter Adapter 138mm to 4.5inK2.0020158 3x Pouch Rota Pola 4x5/Diopter Frame 138K2.0020157 1x Pouch Diopter Stage 138
This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.For use with 15mm studio rod system.
This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module that allows 10° up and down adjustments to avoid unwanted reflections.For use with 19mm studio rod system.
The Extra Rotatable Filter Stage gives the possibility to rotate an additional 6.6x6.6 filter 360°. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without the need for any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly.
The carbon fiber Side Flags, each including one extendable wing to prevent possible image quality loss caused by stray light. The combination of top and side flags will fold flat allowing the LMB 6x6 to be stored easily without detaching any components. Please note that K2.0013825 LMB Flag Holders are required.
The diopter stage can be used at the back of a 6.6x6.6 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 6x6 and LMB-6.
The carbon fiber Top, Bottom Flag including two extendable wings to prevent possible image quality loss caused by stray light. It can be fitted to the top or at the bottom of the LMB 6x6 Basic Module and will cover the opening of the sunshade 100% for best protection during a break.
The module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.It can be mounted directly in 15mm rods. In combination with the LMB 19mm Studio Rod Adapter (K2.0013432) or LMB 15mm Studio Rod Adapter (K2.0013440) it fits to both Studio Rod Support standards 19 and 15mm.
A set of two carbon fiber side flags, each extendable on the top. Please note that K2.0013825 LMB Flag Holders are required.
includes:K2.66150.0 1x Side Flag leftK2.66148.0 1x Side Flag rightK2.66134.0 2x Side Flag Holder
An optional 360° rotatable third filter stage for the LMB 4x5, with integrated tray catcher. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters.
The diopter stage can be used at the back of a 4x5.65 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 4x5, LMB-25, LMB-15 and LMB-5.
The diopter frame allows 6 inch diopters of up to +1 and in combinations with the Diopter Adapter 6in to 138mm, up to +2 Diopter. The frame is compatible with the ARRI LMB 6x6, LMB-6 and SMB-1. The frame has the width of two 6.6x 6.6 filter frames and fits into a 2- or 3-filter stage. A safety mechanism prevents the diopter from falling out of the frame during exchange, while two 1/4 threads permit the frame to be attached to an articulating arm.
The Extra Non-Rotatable Filter Stage makes it possible to use an additional 6.6x6.6 filter. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without using any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp, or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly. The LMB 6x6 sunshade can be mounted directly to the front of the filter stage.
A carbon fiber flag, with two extensions,which can be mounted at the top or the bottom of the LMB 4x5 – compatible with LMB-5, LMB-15, and LMB-25.
The diopter frame allows 138 mm diopters of up to +2 to be used in a lightweight matte box such as the ARRI LMB 4x5 or LMB-25. The frame has the width of two 4x 5.65 filter frames and fits into a 2- or 3-filter stage. A safety mechanism prevents the diopter from falling out of the frame during exchange, while two 1/4 threads permit the frame to be attached to an articulating arm. Note: Limited clearance with some +2 Diopters.
An optional non-rotatable third filter stage for the LMB 4x5. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters. The LMB 4x5 sunshade can be mounted directly to the front of the filter stage.
includes:K2.0033772 1x Flexible Sunshade LMB 4x5K2.0036441 1x LMB Side Flag Holders
A tool-less screw in 15 mm studio support adapter Compatible with following products:K2.0013427 LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 LMB 4x5 Swing Away Tilt ModuleK2.0019275 LMB 6x6 Clamp Adapter 143mmK2.0019156 LMB 6x6 Clamp Adapter 165mmK2.0019085 LMB 6x6 Tilt and Flex Adapter 80-156mm
A tool-less screw in 19 mm studio support adapter Compatible with following products:K2.0013427 LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 LMB 4x5 Swing Away Tilt ModuleK2.0019275 LMB 6x6 Clamp Adapter 143mmK2.0019156 LMB 6x6 Clamp Adapter 165mmK2.0019085 LMB 6x6 Tilt and Flex Adapter 80-156mm
The Tilt and Flex Adapter is a flexible rubber donut compatible with lens diameters from above 80mm to less than 156mm. It works perfectly with lenses where lens elements are extending and can compensate the tilting angle when using the Swing Away Tilt Modules from the LMB 6x6. An interface for both LMB 15mm and LMB 19mm Studio Rod Adapters is integrated at the bottom.
A set of 5 hard mattes with different spherical openings that can be clicked into the sunshade of the LMB 6x6 to prevent image quality loss caused by stray light.
A set of 5 hard mattes with different anamorphic openings that can be clicked into the sunshade of the LMB 6x6 to prevent image quality loss caused by stray light.
A flexible rubber donut adapter to use with lenses from small to large diameters (62-143mm), for use with LMB 4x5 swing-away tilt module or with lenses where lens elements are extending. The LMB 4x5 15 mm LWS console can be mounted either on top or at the bottom. Compatible with LMB-25, LMB-5, LMB-15.
This set of Mattes includes 5 Mattes and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.
This set of Mattes includes 5 anam. Mattes and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.
A pair of flag holders that can be mounted on the top, bottom, or sides of the LMB 4x5 and LMB 6x6. Also compatible with LMB-25 and LMB-6 (top).

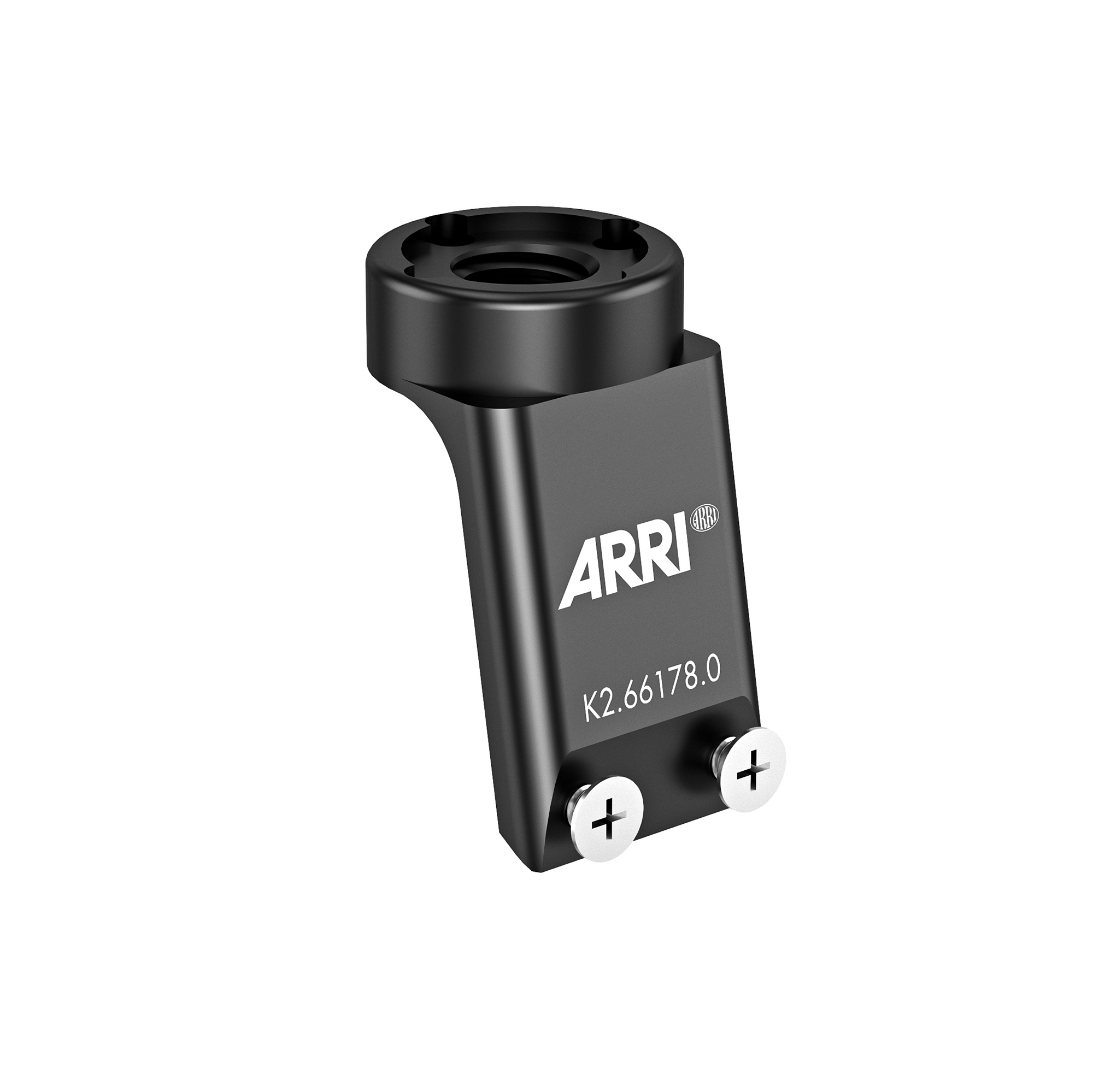

For 3/8 inch accessories such as ultrasonic devices-compatible with LMB 4x5 / LMB 6x6 / LMB-25 / LMB-6 with the additional sliding possibility for a perfect positioning.

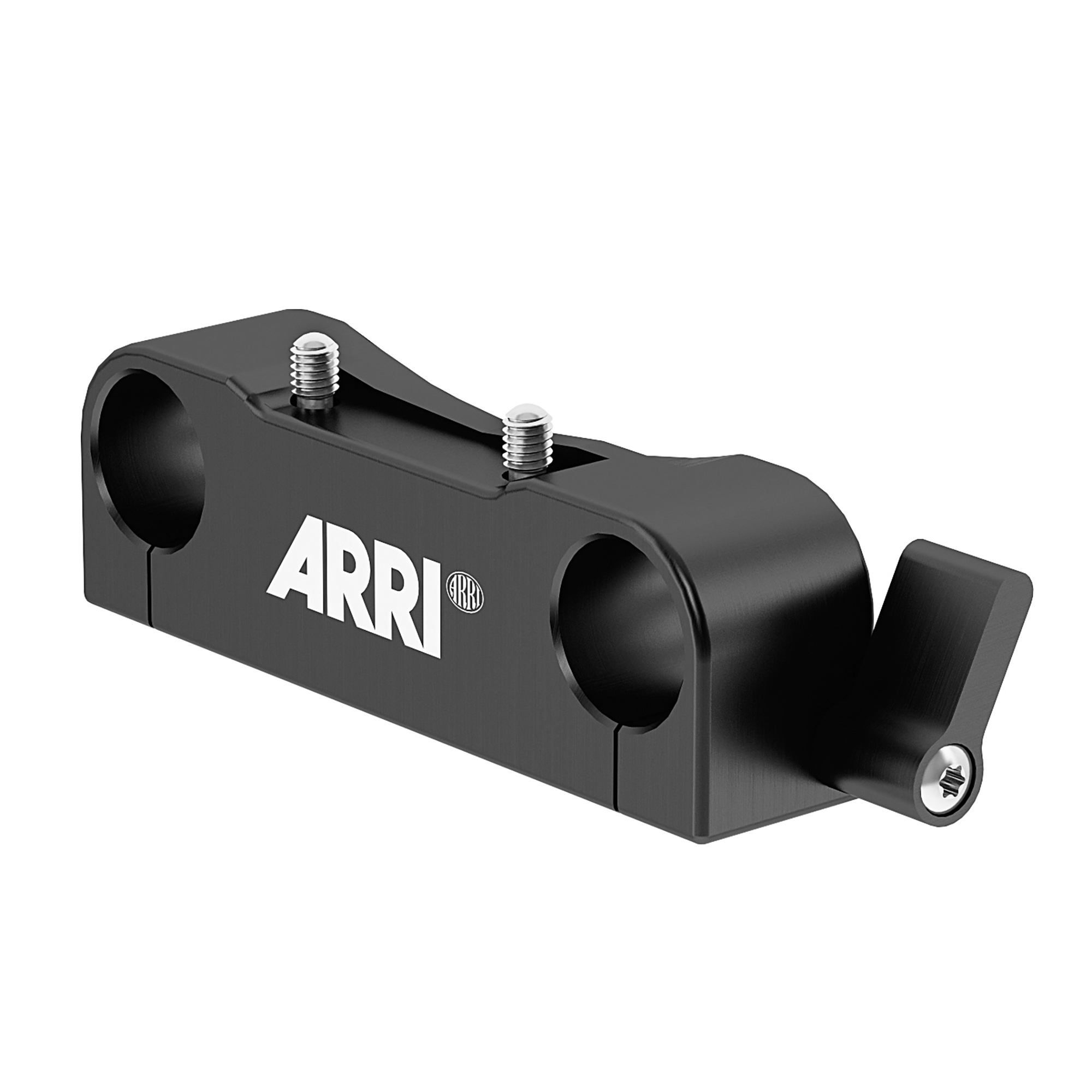

A screw-in standard 15 mm lightweight support console.Compatible with: LMB 4x5 143 mm clamp adapterLMB 4x5 Tilt and Flex Adapter

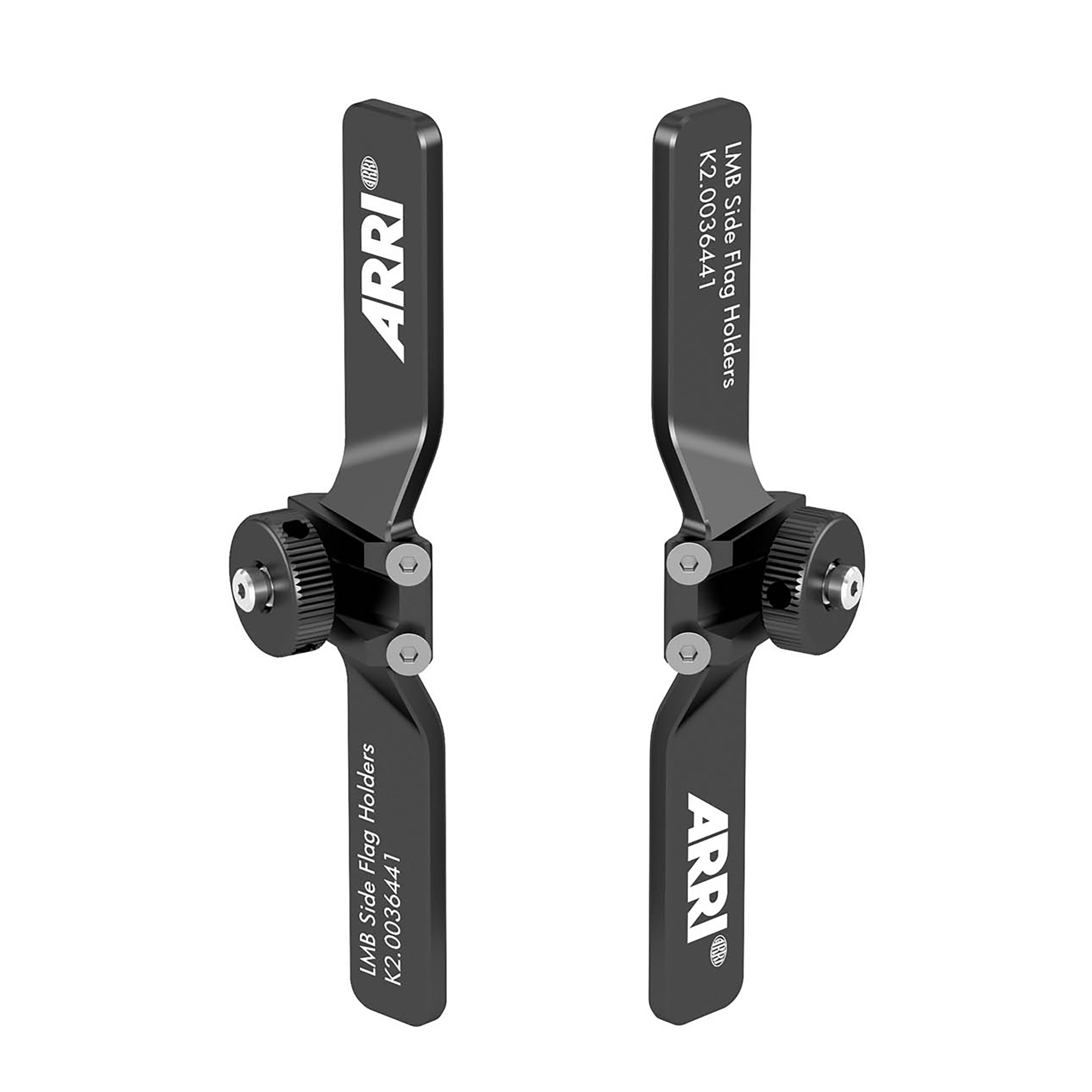

Designed for K2.0033772 Flexible Sunshade LMB 4x5.The LMB side flag holders, which are an alternative to the existing small ones used with the LMB 4x5, offer more real estate at the top and the bottom. Filter tags, which are quite often attached to the sunshade, will not stick to rubber but perfectly to the extended space on the new LMB side flag holders.

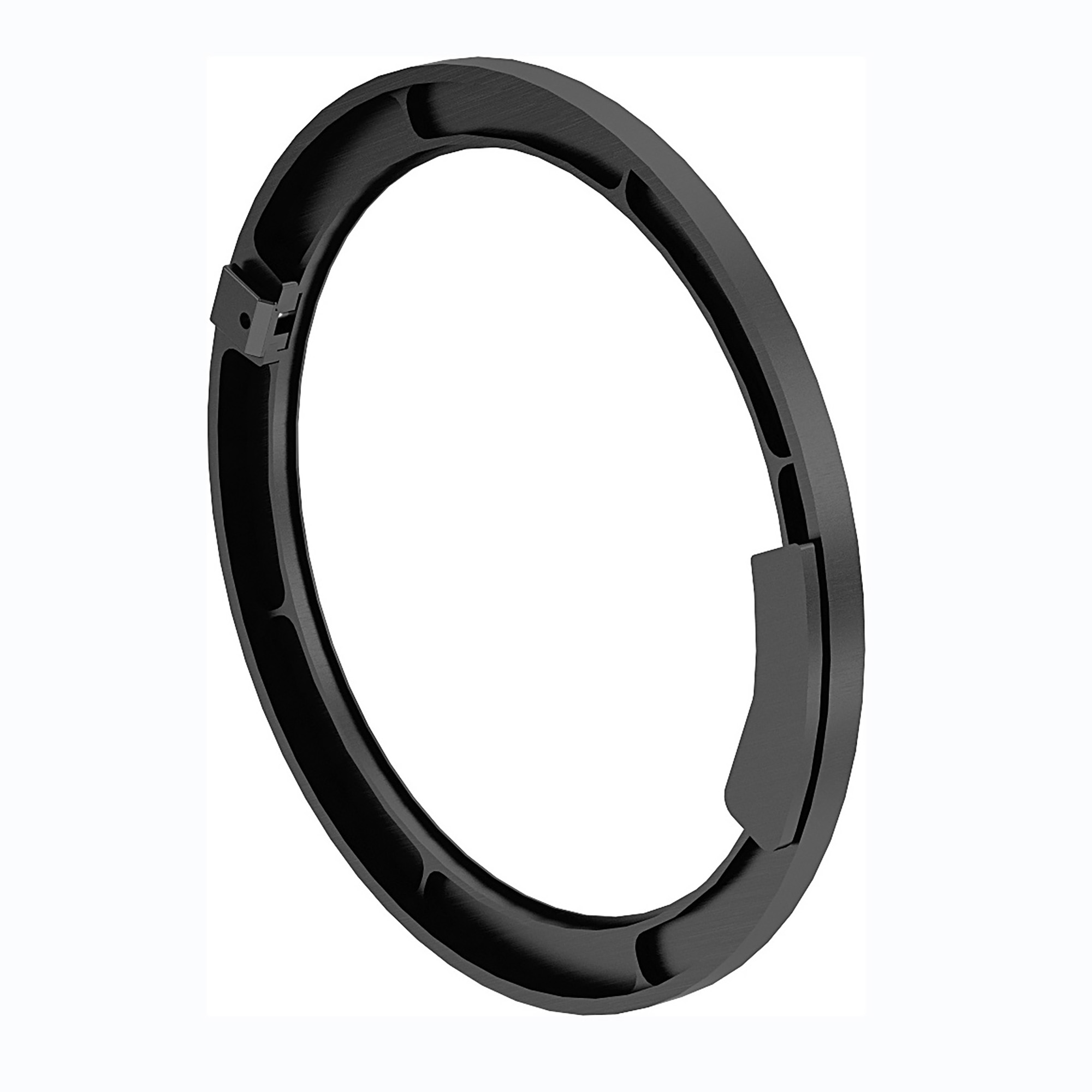

The diopter adapter is compatible with both diopter stage and diopter frame 138mm and allows the use of 4,5 inch close-up diopters.

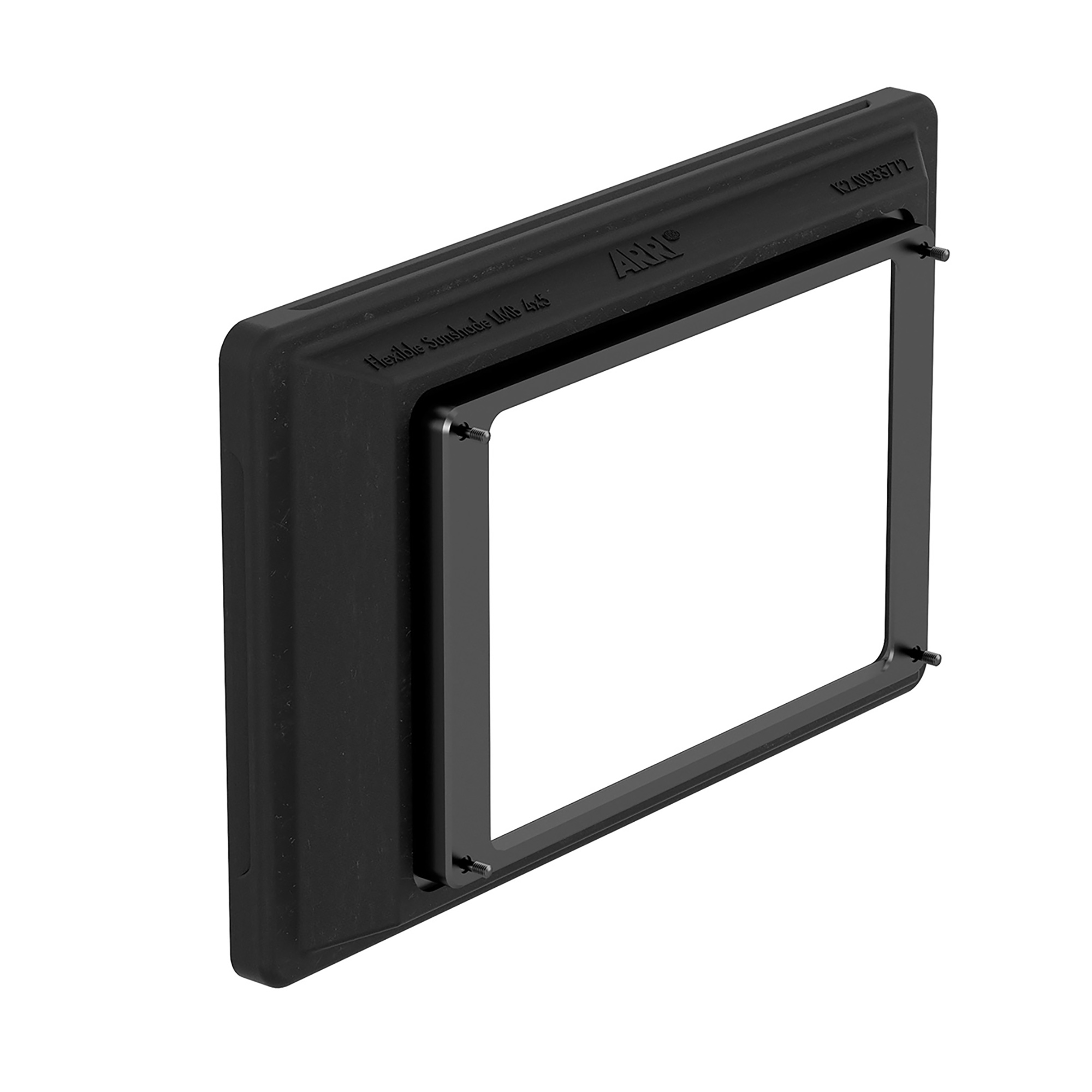

The Flexible Sunshade is an alternative to the existing sunshade for the LMB 4x5 out of plastic. The rubber part can be detached in seconds without using any tools. The dimensions of the Flexible Sunshade are exactly the same as those of the plastic sunshade so the same hard mattes from the LMB 4x5 (spherical and anamorphic) can be used.Please use the LMB Side Flag Holders (K2.0036441) in combination with the Flexible Sunshade.
For 3/8 inch accessories such as ultrasonic devices – compatible with LMB 4x5 / LMB 6x6 / LMB-25 / LMB-6.
