PCA: Mechanical Accessories - Matte Boxes

The LMB 6x6 19 mm Studio 3-Stage Set includes all the components of the modular LMB 6x6, and can be fitted without any additional tools. It includes mountings for clamping-on, and for 19 mm rods. It also comes with flexible filter stages – both rotatable and non-rotatable – for up to three filters, including an extreme lightweight single filter option for use with gimbals. An optional swing-away system allows lens changes to be made quickly. A 10° up and down tilt mechanism helps avoid unwanted reflections. To further reduce stray light there is a choice of different matte sets, and top and side flags which fold completely flat for swift and convenient storage. The LMB 6x6 comes with a flexible rubber “donut” which allows for use with optics of different diameters and stills or vintage lenses. A sliding accessory mount provides optimized usage of distance measurement tools. All LMB 6x6 Sets (except the clamp adapter set) are delivered in a foam insert that fits perfectly into a Pelican 1637 case. includes:K2.0019218 1x LMB 6x6 Basic ModuleK2.0019133 1x LMB 6x6 Extra Non-Rotatable Filter StageK2.0019178 1x LMB 6x6 Top, Bottom FlagK2.0019085 1x LMB 6x6 Tilt and Flex Adapter 80-156mmK2.0013432 1x LMB 19mm Studio Rod AdapterK2.0019159 1x LMB 6x6 Extra Rotatable Filter StageK2.0019083 1x LMB 6x6 Swing Away Tilt Mod. 19mm StudioK2.0019216 1x LMB 6x6 Side FlagsK2.0013825 2x LMB Flag HoldersK2.0013014 1x LMB Accessory AdapterK2.0019253 1x LMB 6x6 Set of Mattes sphericalK2.0019258 1x LMB 6x6 Set of Mattes anamorphicK2.0023162 1x LMB 6x6 Foam Insert

The LMB 4x5 set to fulfill all needs with the most modular matte box – from single stage, to three stage, to bottom and top lightweight mounted, to the full-blown version with swing-away tilt module, all carbon fiber flags (top and side) and both extra filter stages (rotatable and non-rotatable). The weight of the whole Set is 2272g. The LMB 4x5 Pro Set comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Pelican 1560 case.Note: 19 mm, 15 mm studio rod adapters and rod adapters have to be ordered separately.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013427 1x LMB 4x5 15mm Lightweight Support ConsoleK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013460 1x LMB 4x5 Extra Rotatable Filter StageK2.0013447 1x LMB 4x5 Swing Away Tilt ModuleK2.0013750 1x LMB 4x5 Side FlagsK2.0013825 2x LMB Flag HoldersK2.0000069 1x LMB 4x5 Set of Mattes sphericalK2.0007992 1x LMB 4x5 Set of Mattes anamorphicK2.0013014 1x LMB Accessory Adapter

The Upgrade Set LMB-25 to LMB 4x5 Pro comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Pelican 1560 case.To upgrade the LMB-25 to the full pro set of the LMB 4x5.includes:K2.0013825 2x LMB Flag HoldersK2.0015140 1x LMB 4x5 Backplate with filter guidesK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013460 1x LMB 4x5 Extra Rotatable Filter StageK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0013427 1x LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 1x LMB 4x5 Swing Away Tilt ModuleK2.0013750 1x LMB 4x5 Side FlagsK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013014 1x LMB Accessory Adapter

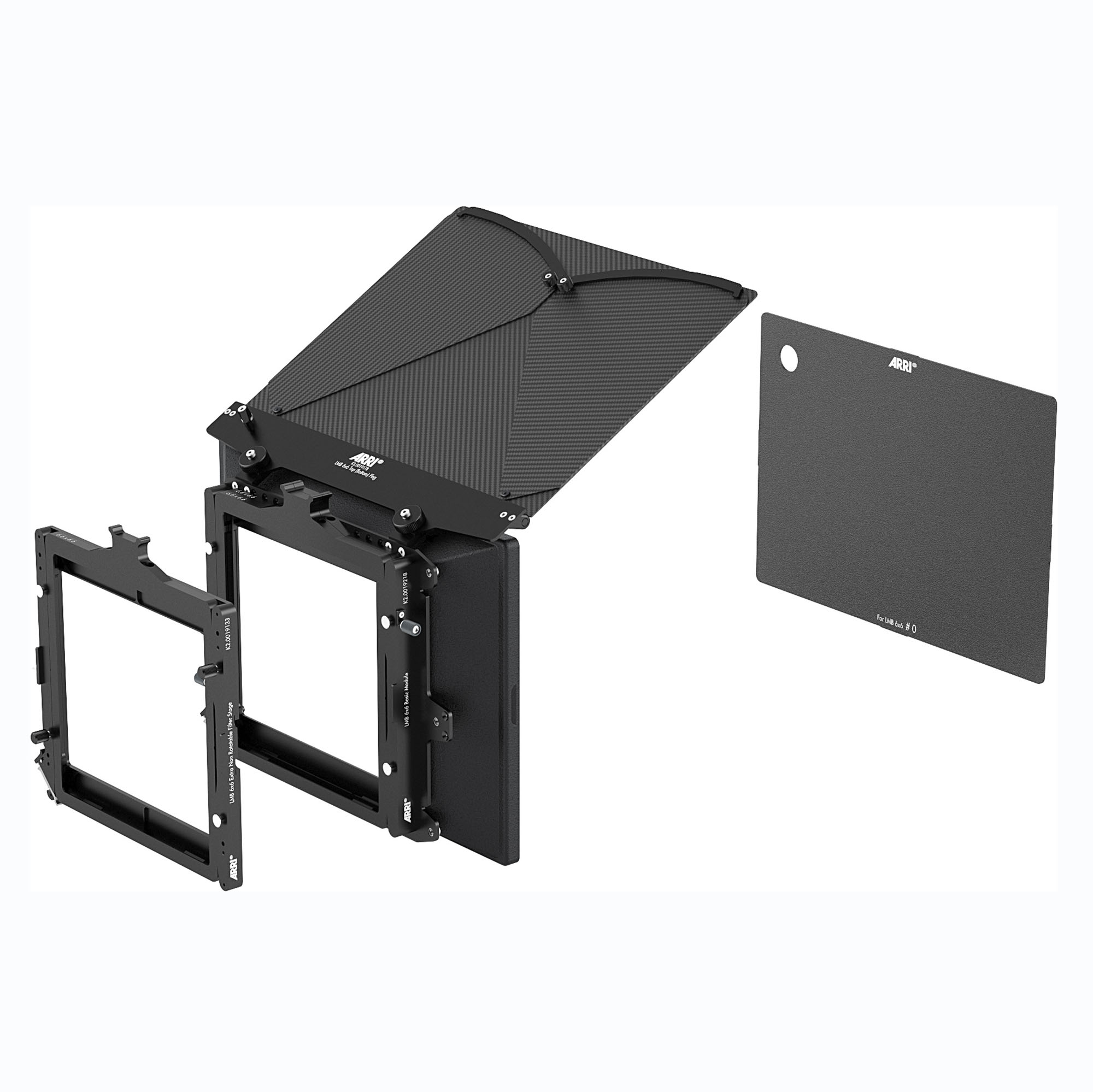

The entry-level set is made up of the basic components of the modular LMB 6x6 for clamp-on mounting, with flexible filter stages for up to three filters. This includes an extreme lightweight single filter option for use with gimbals. To reduce stray light there is a top flag with extendable wings which folds completely flat for swift and convenient storage. Clamp adapters, which come in a range of different sizes, are available separately. All LMB 6x6 Sets (except the clamp adapter set) are delivered in a foam insert that fits perfectly into a Peli Case 1637.includes:K2.0019218 1x LMB 6x6 Basic ModuleK2.0019133 1x LMB 6x6 Extra Non-Rotatable Filter StageK2.0019178 1x LMB 6x6 Top, Bottom FlagK2.0023162 1x LMB 6x6 Foam Insert

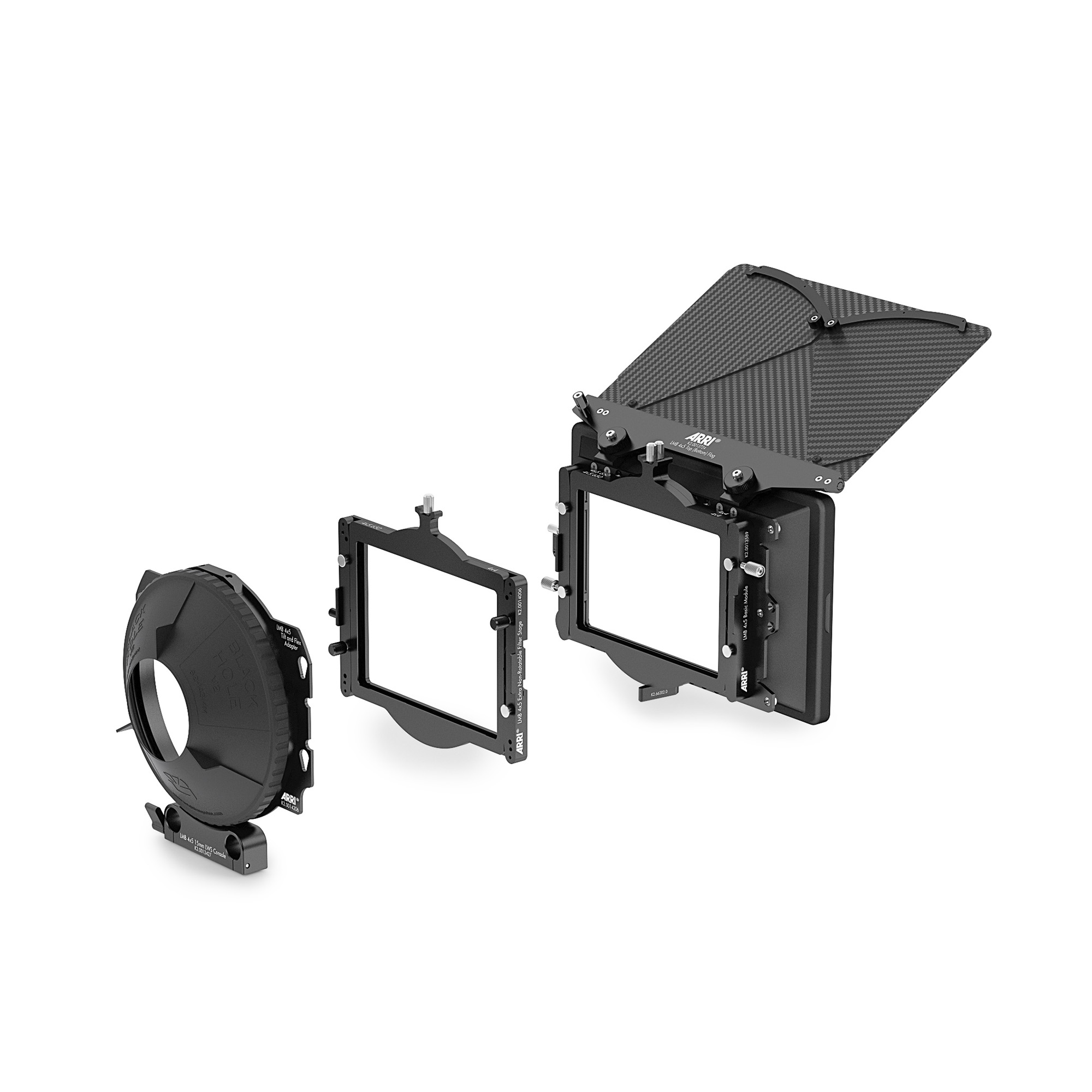

The LMB 4x5 set for 15 mm lightweight support and a universal flexible adapter to fit almost all lens diameters, including a non-rotating filter stage, a carbon fiber top flag, and a tray catcher. The weight of this configuration is approx 893.Note: 19 mm, 15 mm studio rod adapters and clamp adapter have be ordered separately. The LMB 4x5 15mm LWS Set 3-stage comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Peli Case 1560.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013427 1x LMB 4x5 15mm Lightweight Support Console

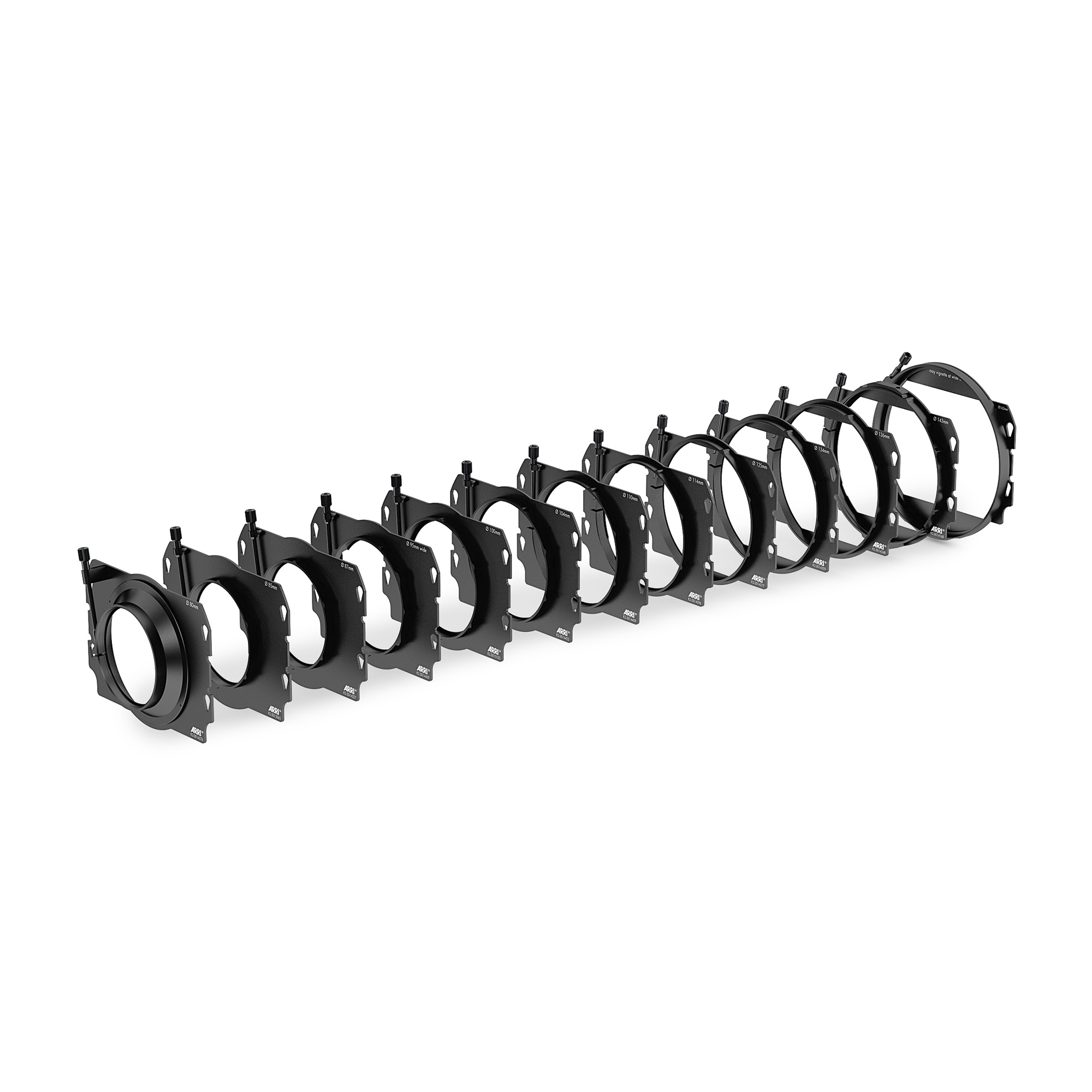

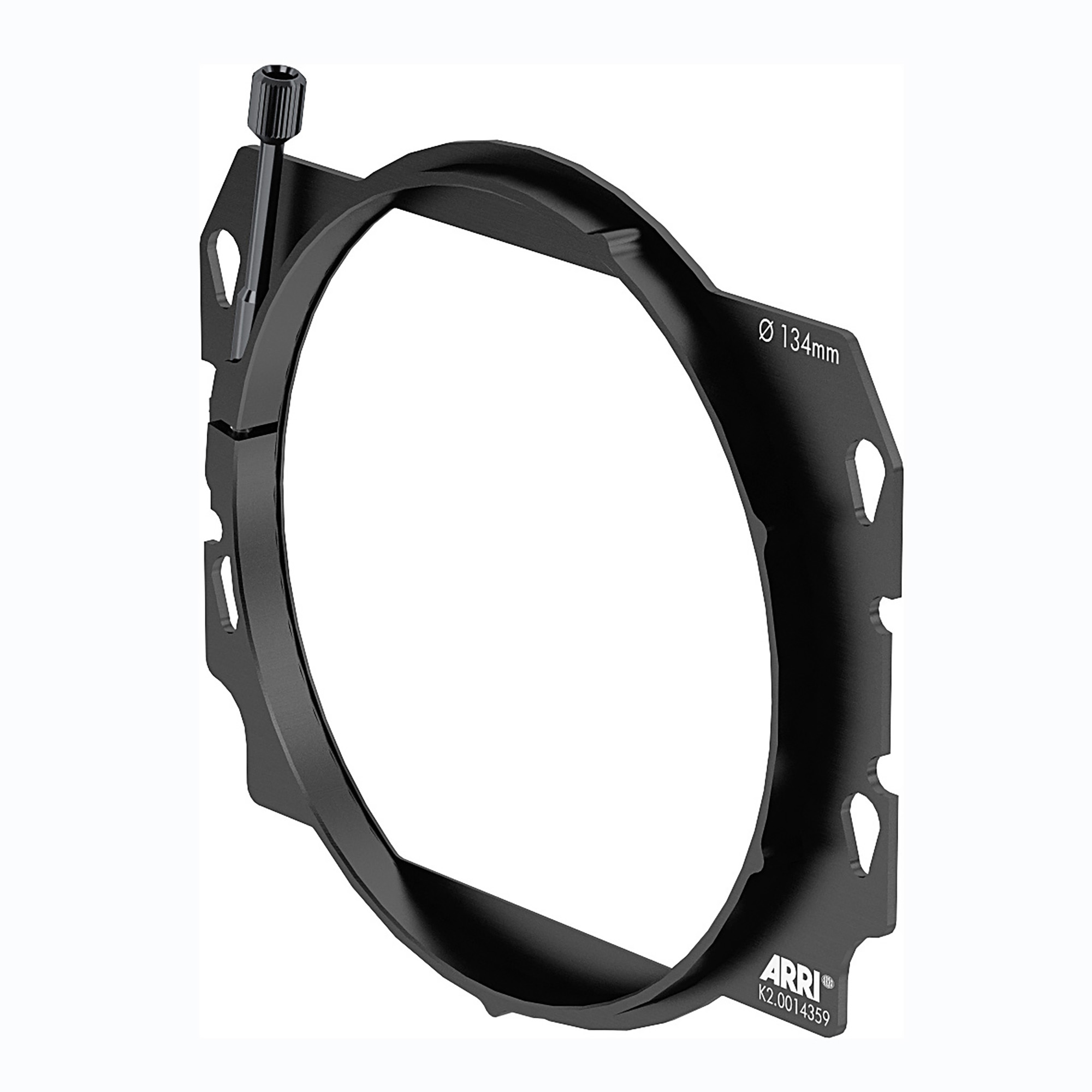

A set with all 14 existing LMB 4x5 clamp adapters.includes:K2.0015075 1x LMB 4x5 Clamp Adapter 162mmK2.0039254 1x LMB 4x5 Clamp Adapter 156mmK2.0014168 1x LMB 4x5 Clamp Adapter 143mmK2.0014348 1x LMB 4x5 Clamp Adapter 136mmK2.0014359 1x LMB 4x5 Clamp Adapter 134mmK2.0014377 1x LMB 4x5 Clamp Adapter 125mmK2.0014396 1x LMB 4x5 Clamp Adapter 114mmK2.0014409 1x LMB 4x5 Clamp Adapter 110mmK2.0014422 1x LMB 4x5 Clamp Adapter 104mmK2.0015103 1x LMB 4x5 Clamp Adapter 100mmK2.0014439 1x LMB 4x5 Clamp Adapter 95mmK2.0014227 1x LMB 4x5 Clamp Adapter 87mmK2.0015065 1x LMB 4x5 Clamp Adapter 85mmK2.0014376 1x LMB 4x5 Clamp Adapter 80mm

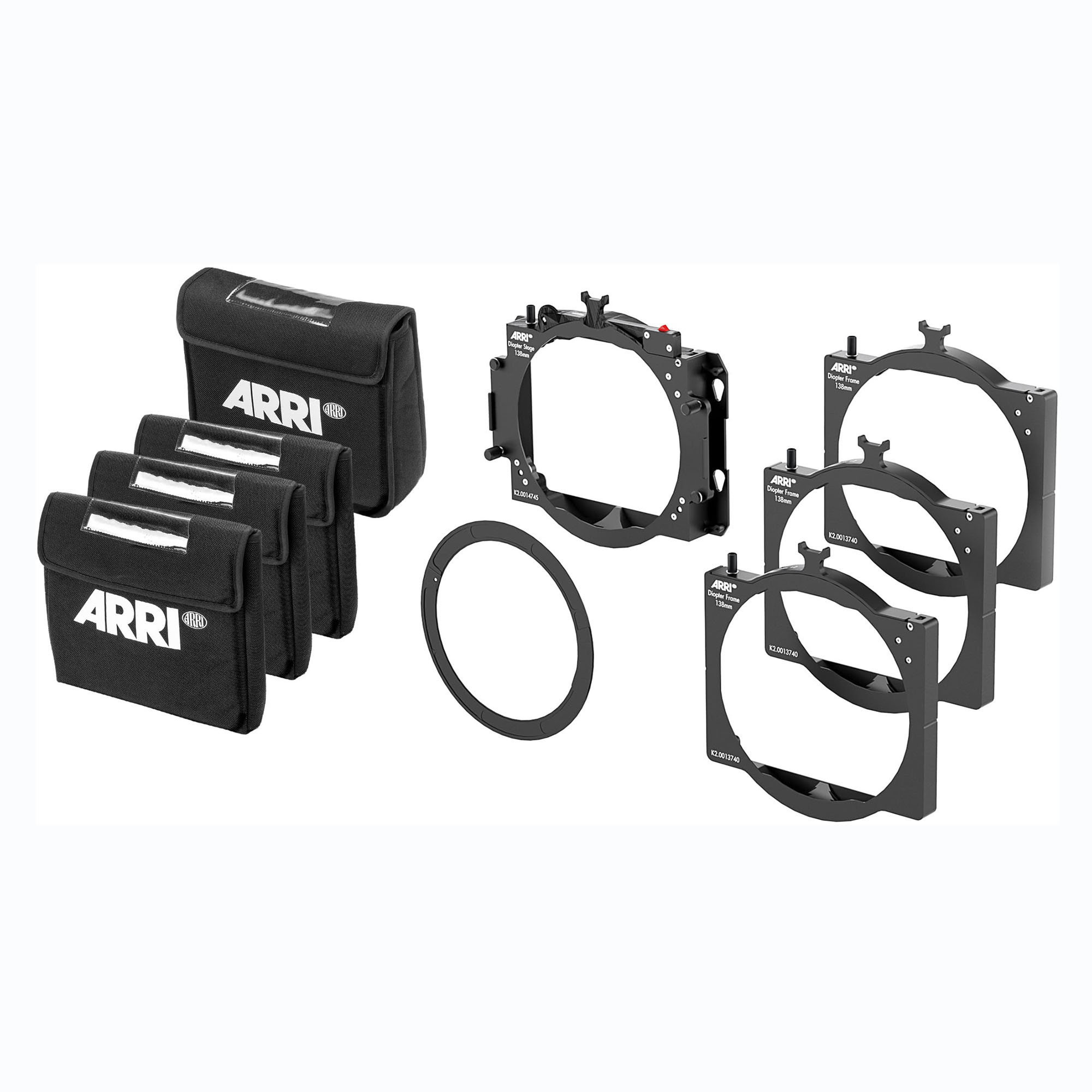

This set includes one Diopter Stage, one Diopter Adapter and three Diopter Frames including all pouches. With this set rentals could offer their diopter set (+0.5, +1, +2 each in a Diopter Frame and +3 in a Diopter Stage) for best storage to avoid any damages on the glass.K2.0013740 3x Diopter Frame 138mmK2.0014745 1x Diopter Stage 138mmK2.0014357 1x Diopter Adapter 138mm to 4.5inK2.0020158 3x Pouch Rota Pola 4x5/Diopter Frame 138K2.0020157 1x Pouch Diopter Stage 138

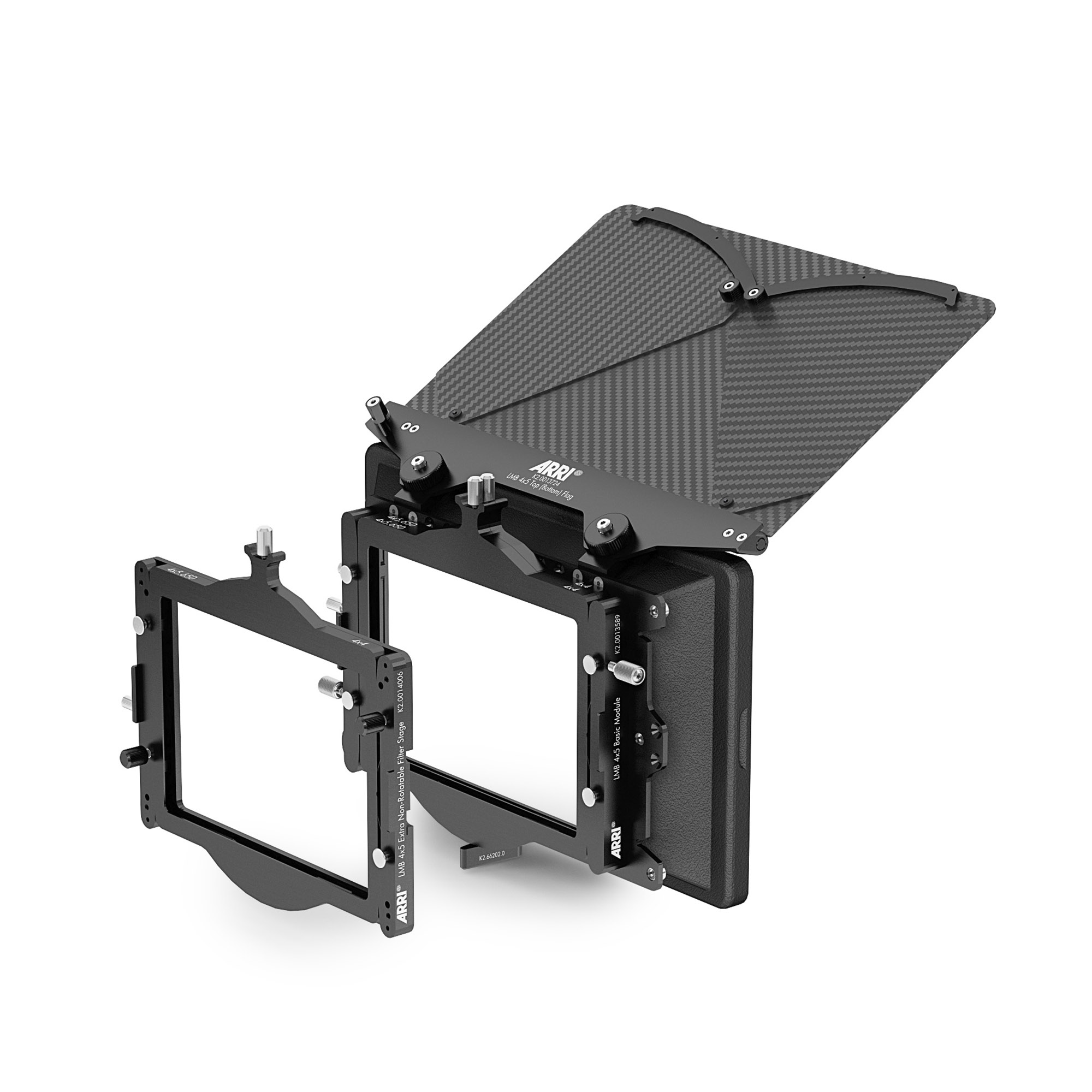

The LMB 4x5 set for clamp-on use with an additional non-rotating filter stage, a carbon fiber top flag, and a tray catcher. The weight of this configuration is approx 707g. The LMB 4x5 Clamp-On Set 3-stage comes in the LMB 4x5 Foam Insert (K2.0023149) that perfectly into any kind of Peli Case 1560.Note: Clamp adapters have to be ordered seperately.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter Stage

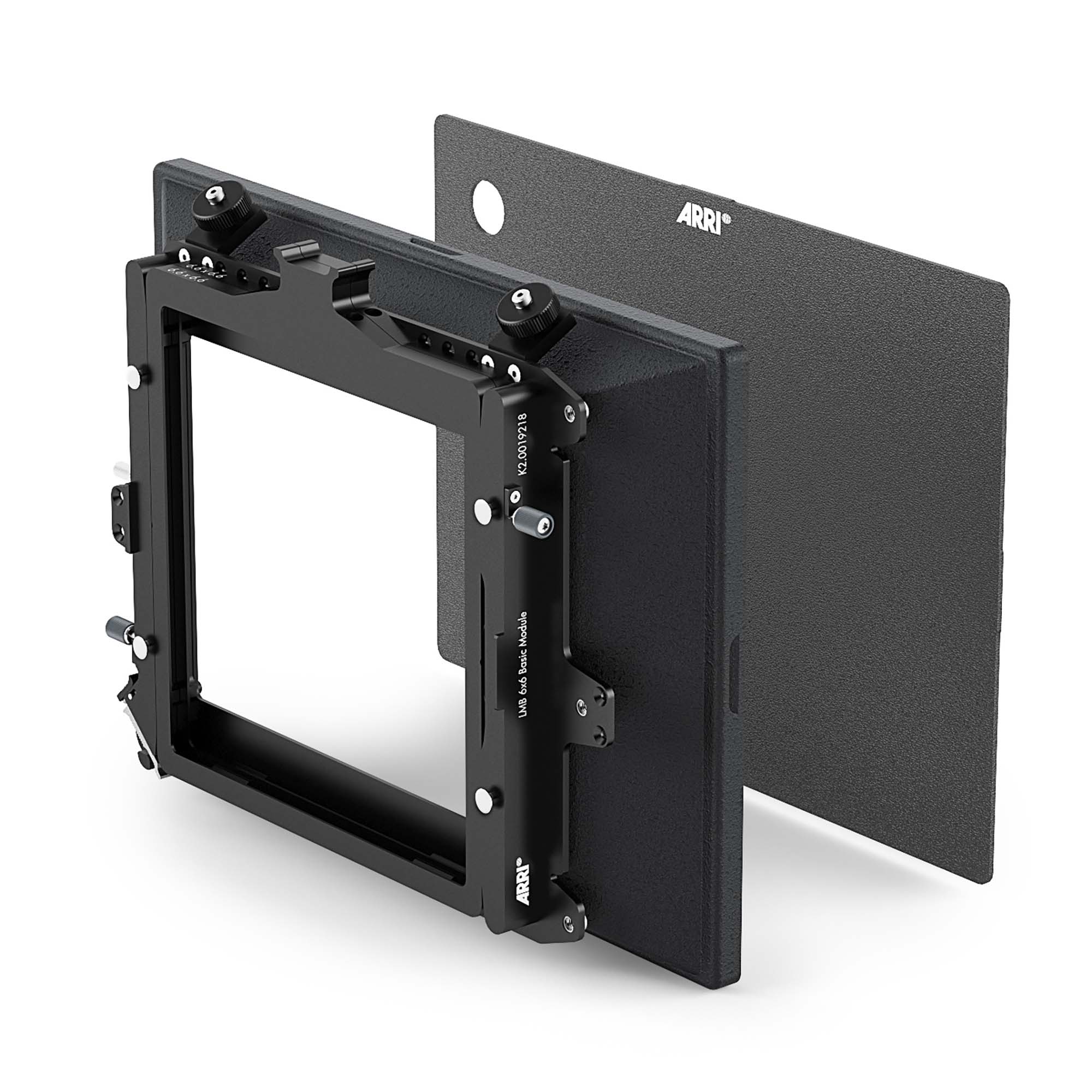

The Basic Module is the heart of the LMB 6x6 system. Two 6.6x6.6 filters can be fitted. Each filter frame is secured with an extra tray catcher which holds them perfectly in place. The matte 0 offers the possibility to protect your lens against dust and dirt during a break and can be clipped into the sunshade easily. All additional components of the LMB 6x6 can be used with the basic module.includes: 1x Sunshade, 1x Backplate with Filter Guides, 2x Filter Frame 6.6 inch x 6.6 inch with integrated Tray Catcher, 2x Top Flag Holder1x Matte 0

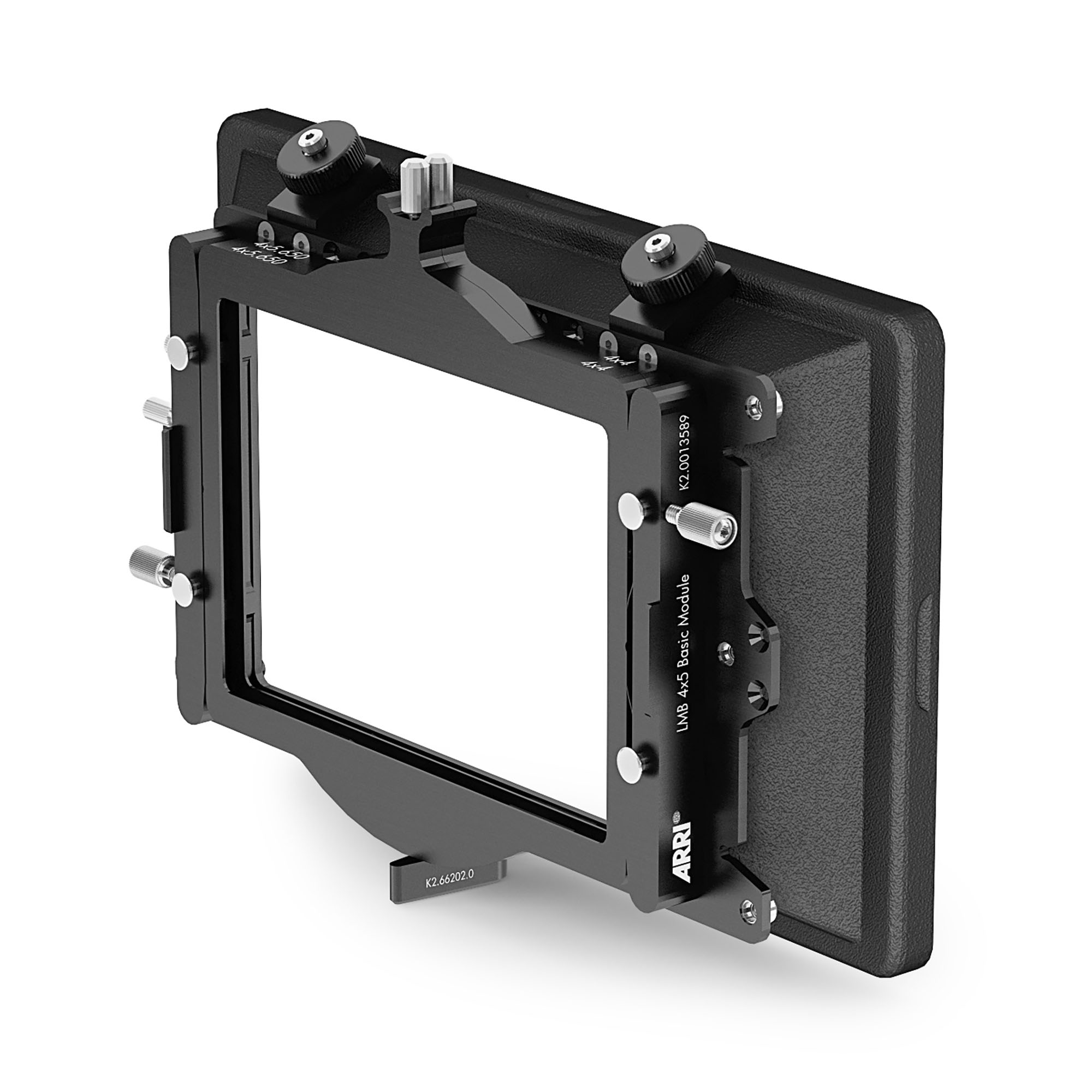

The basic module is the starting point for the modular LMB 4x5 matte box. By just adding a clamp adapter it offers a clip-on version which can be extended by adding other LMB 4x5 parts. Includes: 1x Sunshade, 1x Backplate with Filter Guides, 2x Filter Frame 4 x 5,56, 1x Tray Catcher, 2x Top Flag Holder, 1x Mask 0

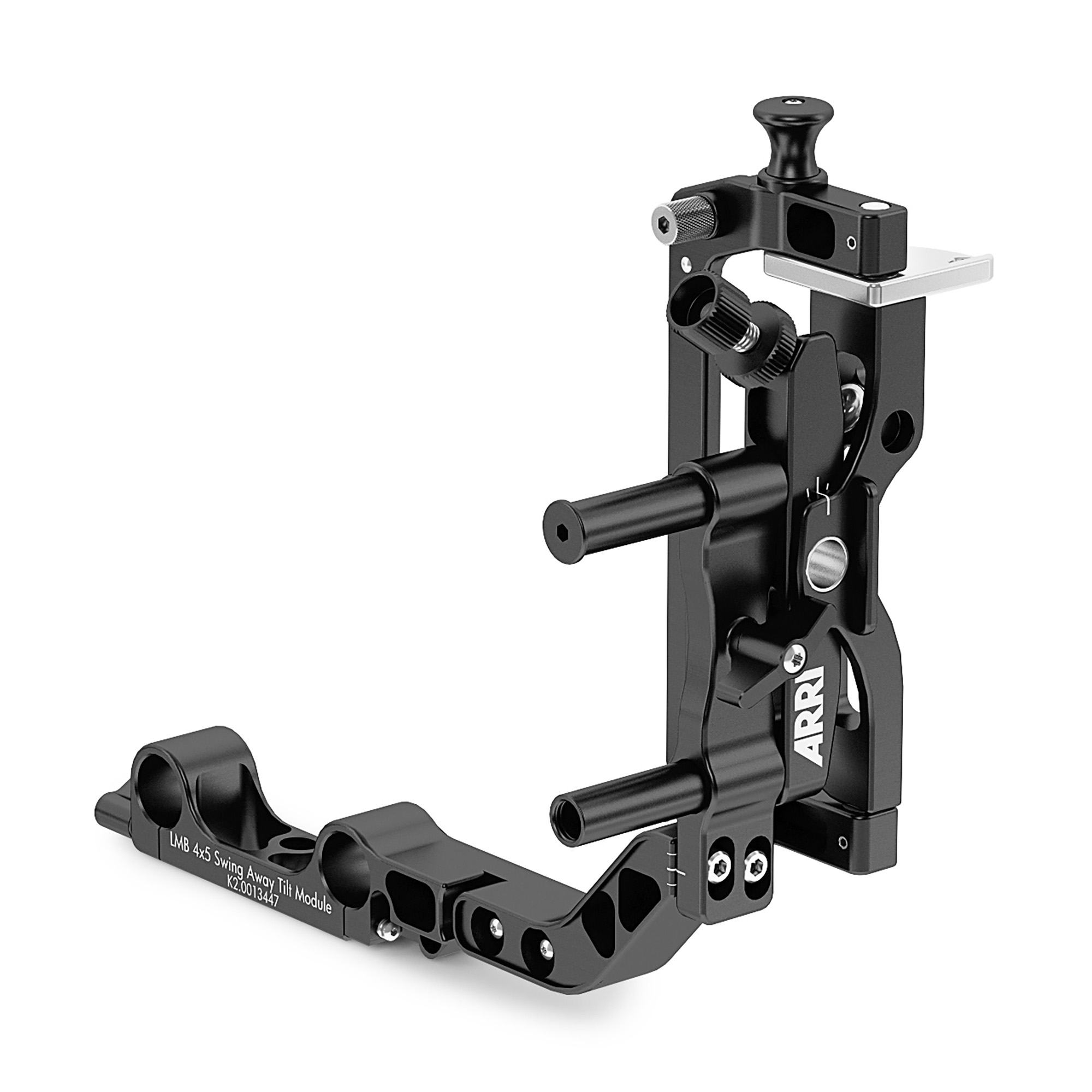

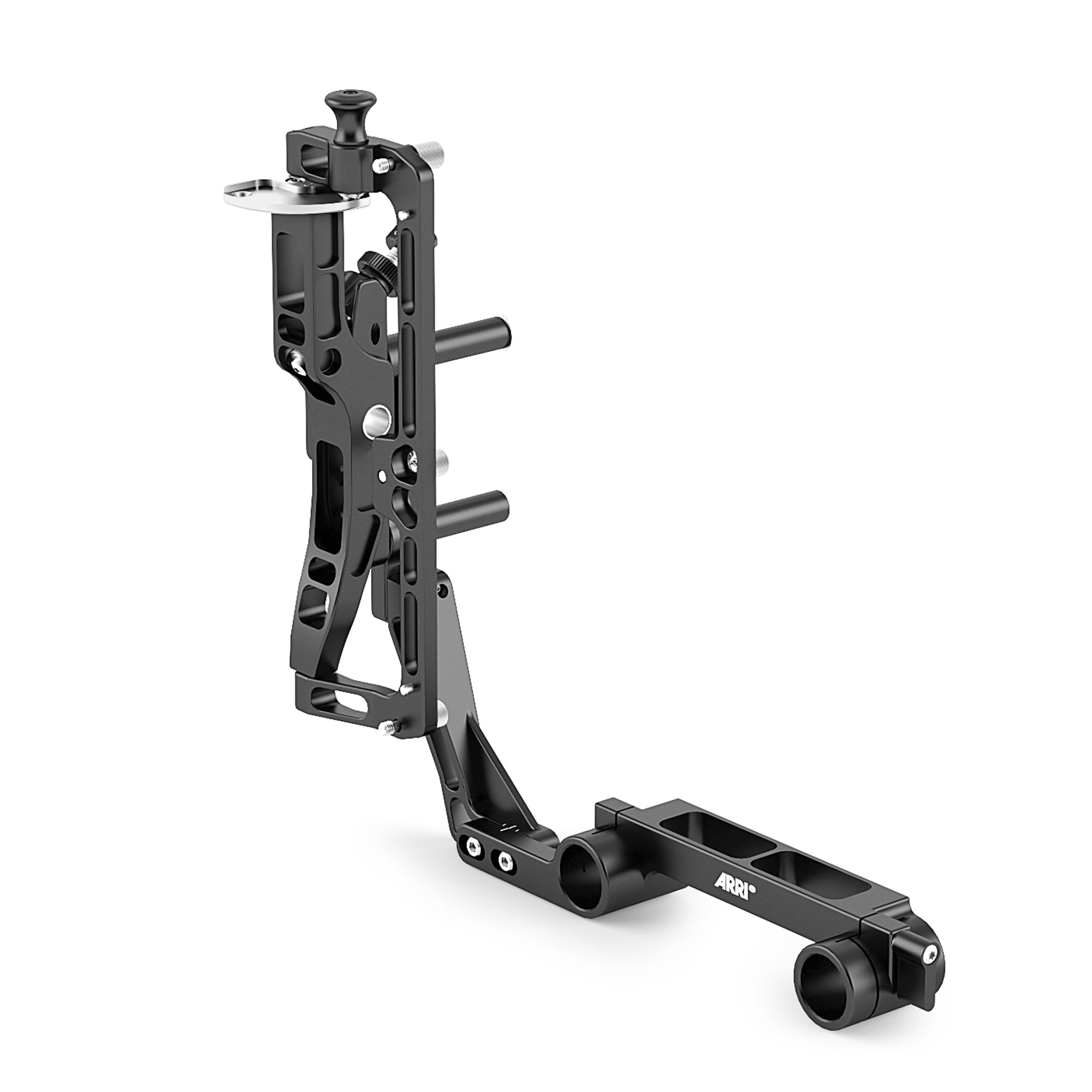

This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.For use with 15mm studio rod system.

This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module that allows 10° up and down adjustments to avoid unwanted reflections.For use with 19mm studio rod system.

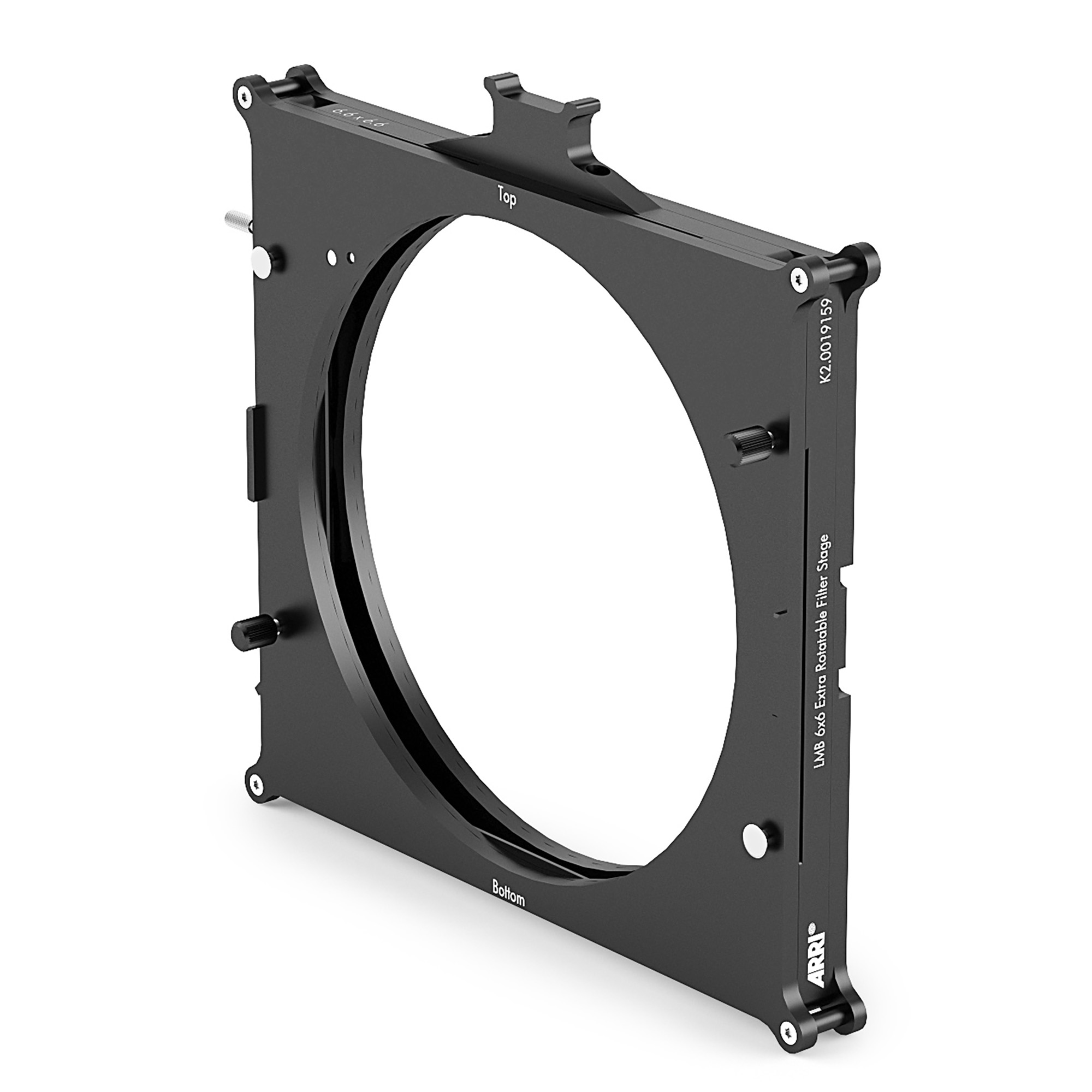

The Extra Rotatable Filter Stage gives the possibility to rotate an additional 6.6x6.6 filter 360°. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without the need for any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly.

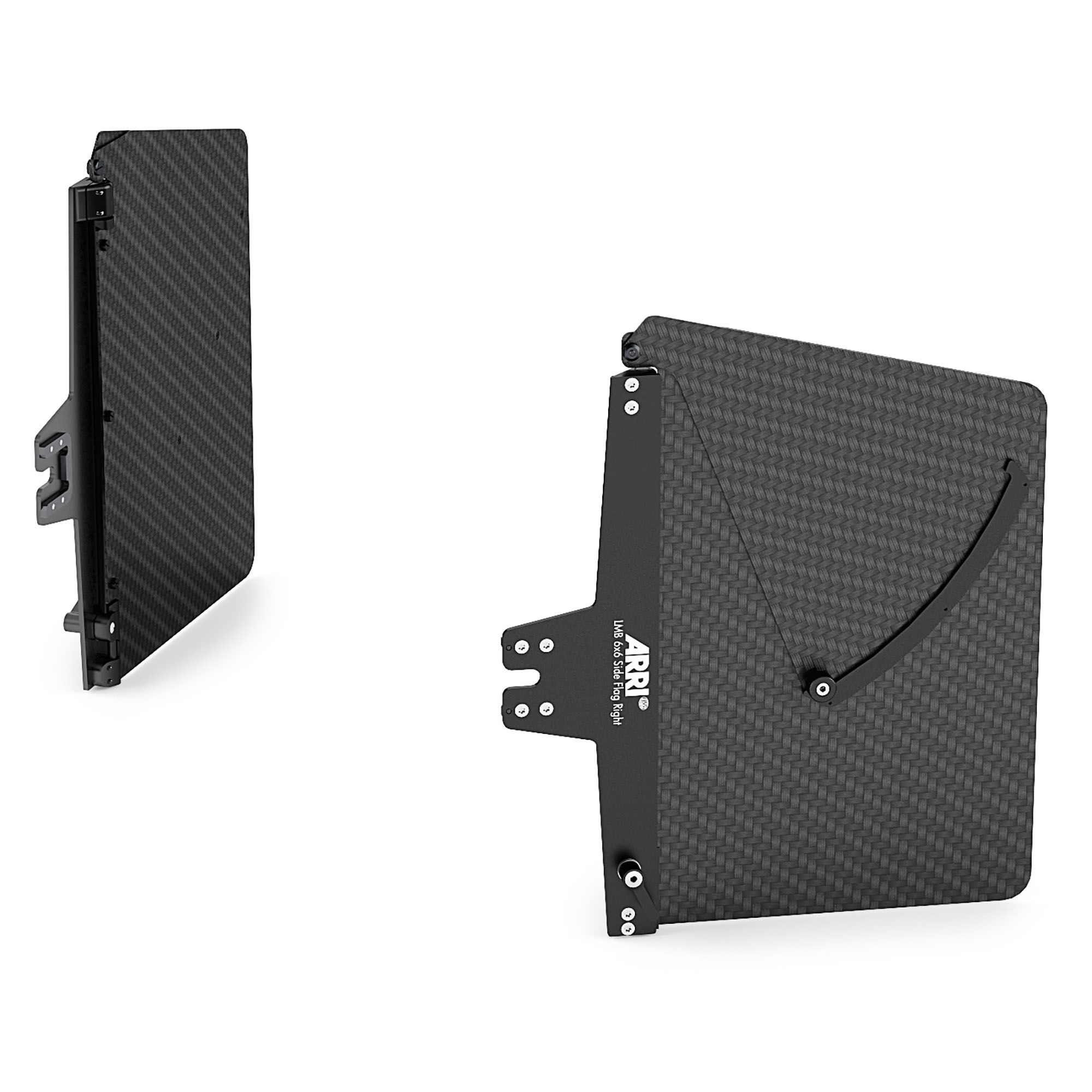

The carbon fiber Side Flags, each including one extendable wing to prevent possible image quality loss caused by stray light. The combination of top and side flags will fold flat allowing the LMB 6x6 to be stored easily without detaching any components. Please note that K2.0013825 LMB Flag Holders are required.

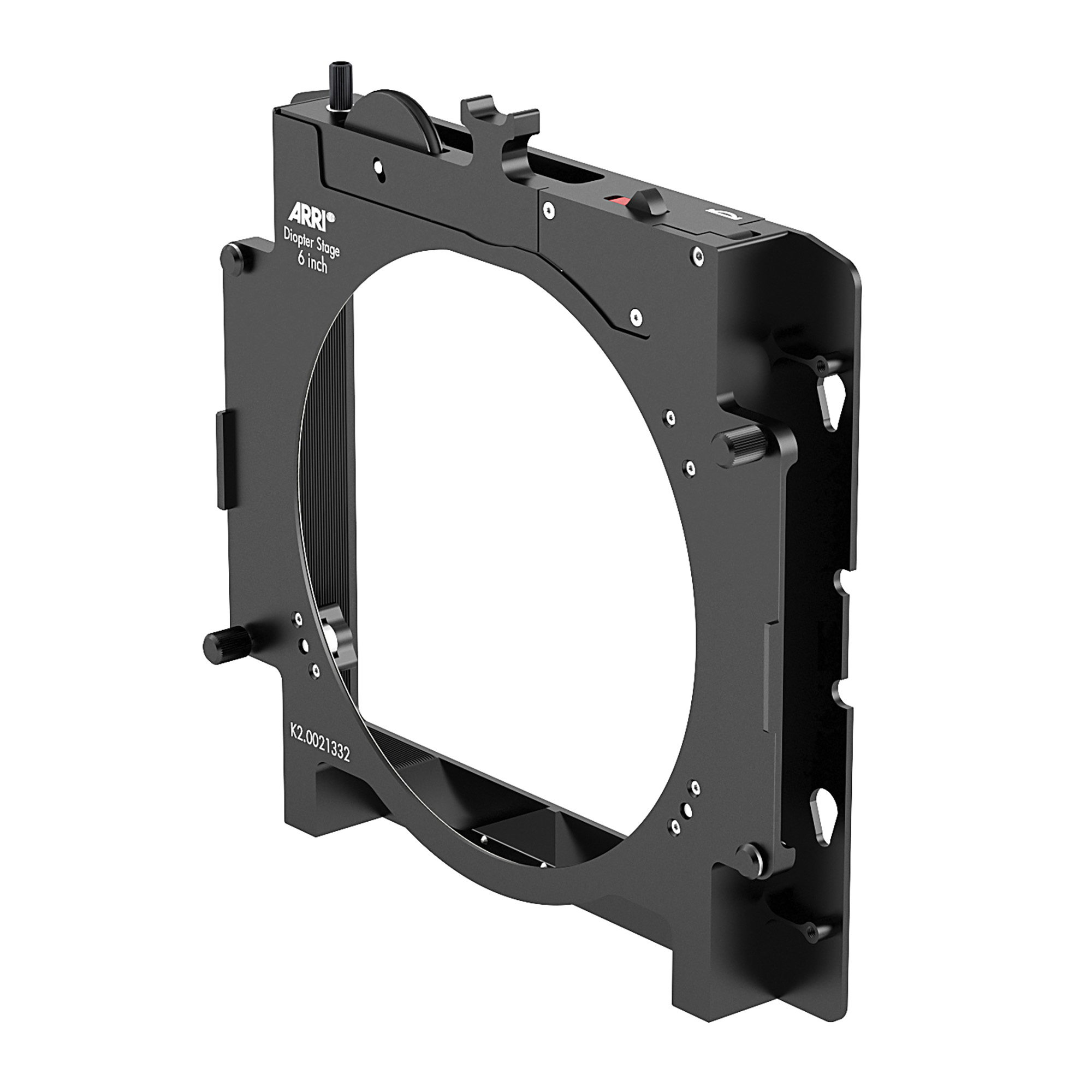

The diopter stage can be used at the back of a 6.6x6.6 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 6x6 and LMB-6.

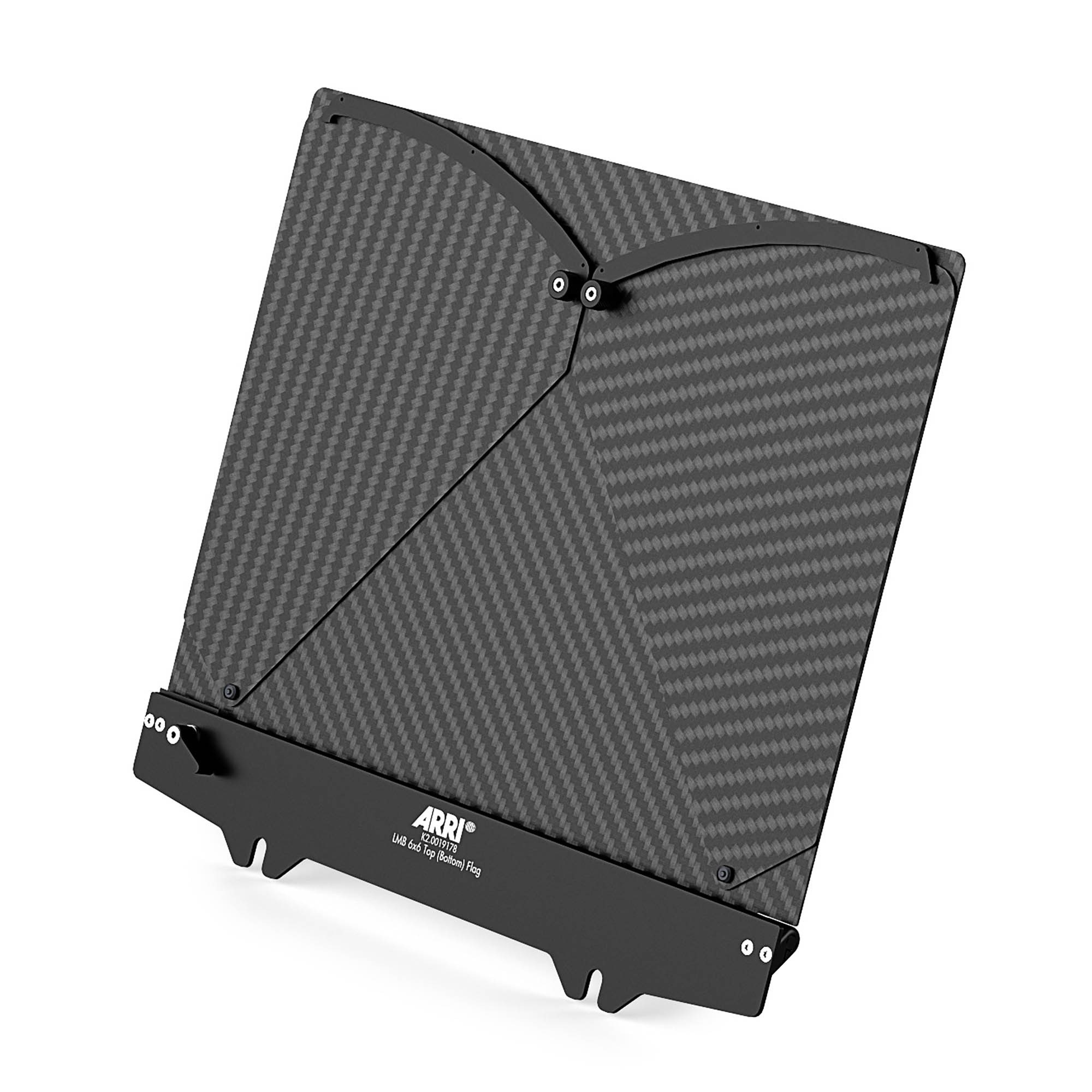

The carbon fiber Top, Bottom Flag including two extendable wings to prevent possible image quality loss caused by stray light. It can be fitted to the top or at the bottom of the LMB 6x6 Basic Module and will cover the opening of the sunshade 100% for best protection during a break.

For Angénieux 25-250 HP with rubber sleeve and connection ring.

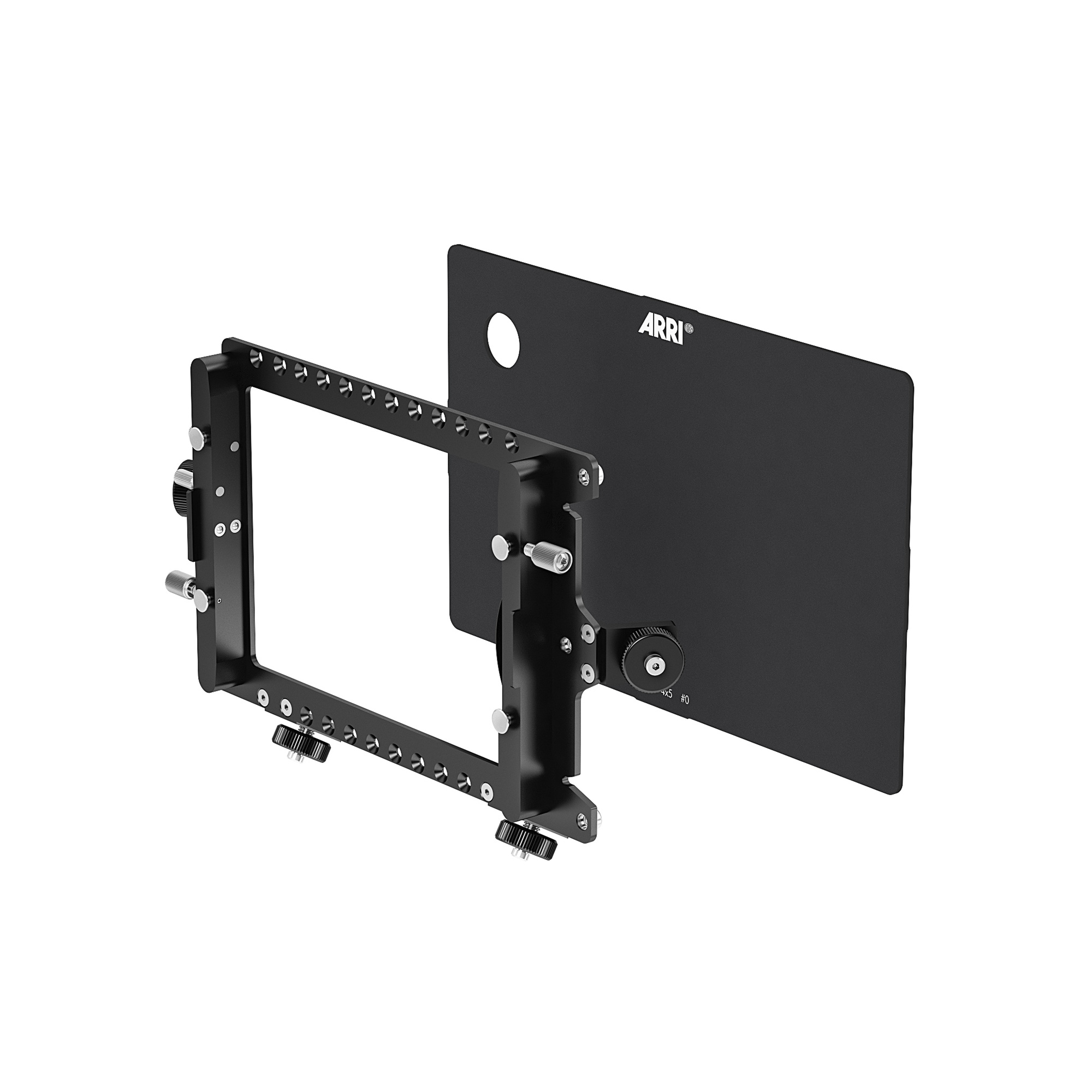

To upgrade the LMB-25 to the platform of the LMB 4x5.includes:K2.0013825 1x LMB Flag HoldersK2.0015140 1x LMB 4x5 Backplate with filter guidesK2.0023149 1x LMB 4x5 Foam Insert

The module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.It can be mounted directly in 15mm rods. In combination with the LMB 19mm Studio Rod Adapter (K2.0013432) or LMB 15mm Studio Rod Adapter (K2.0013440) it fits to both Studio Rod Support standards 19 and 15mm.

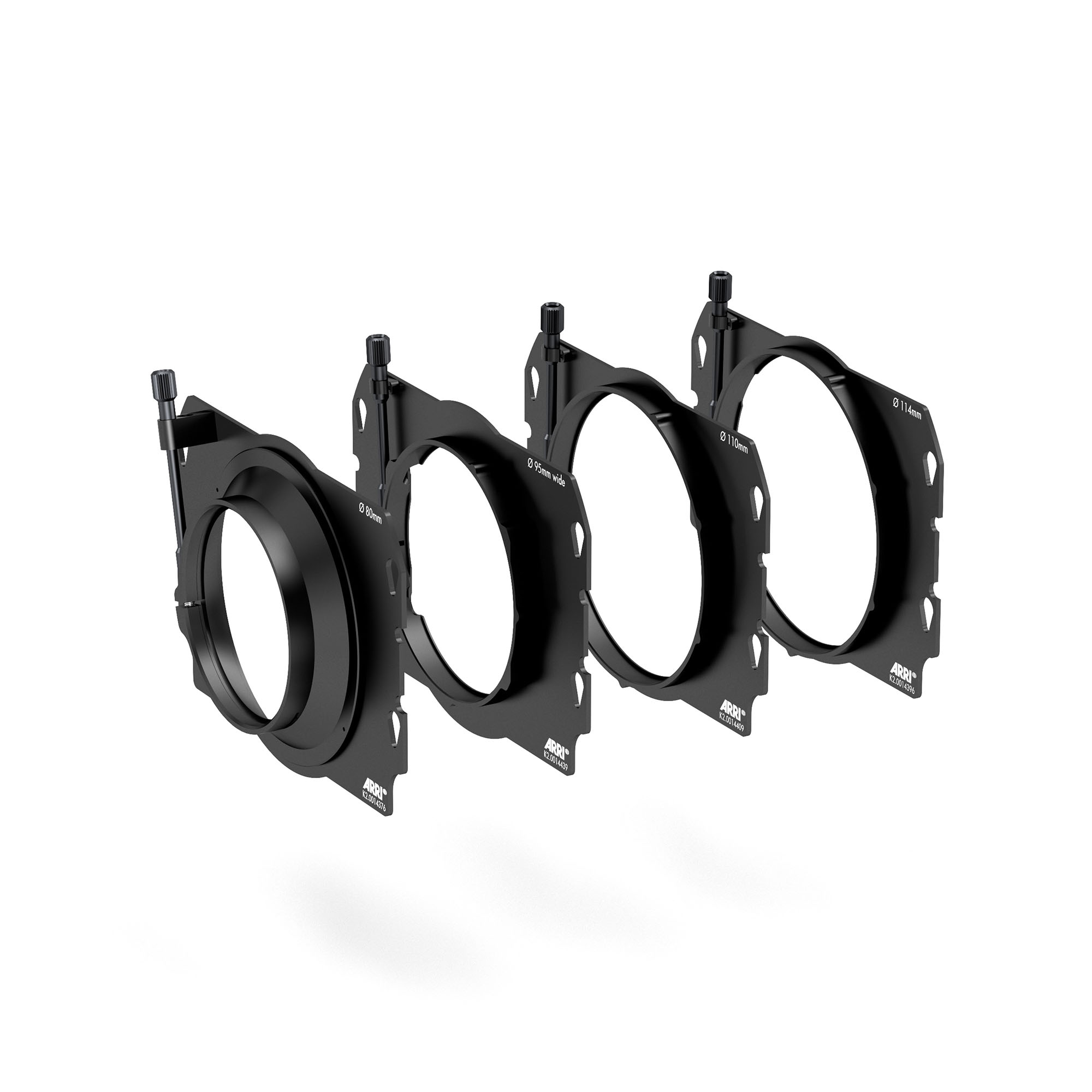

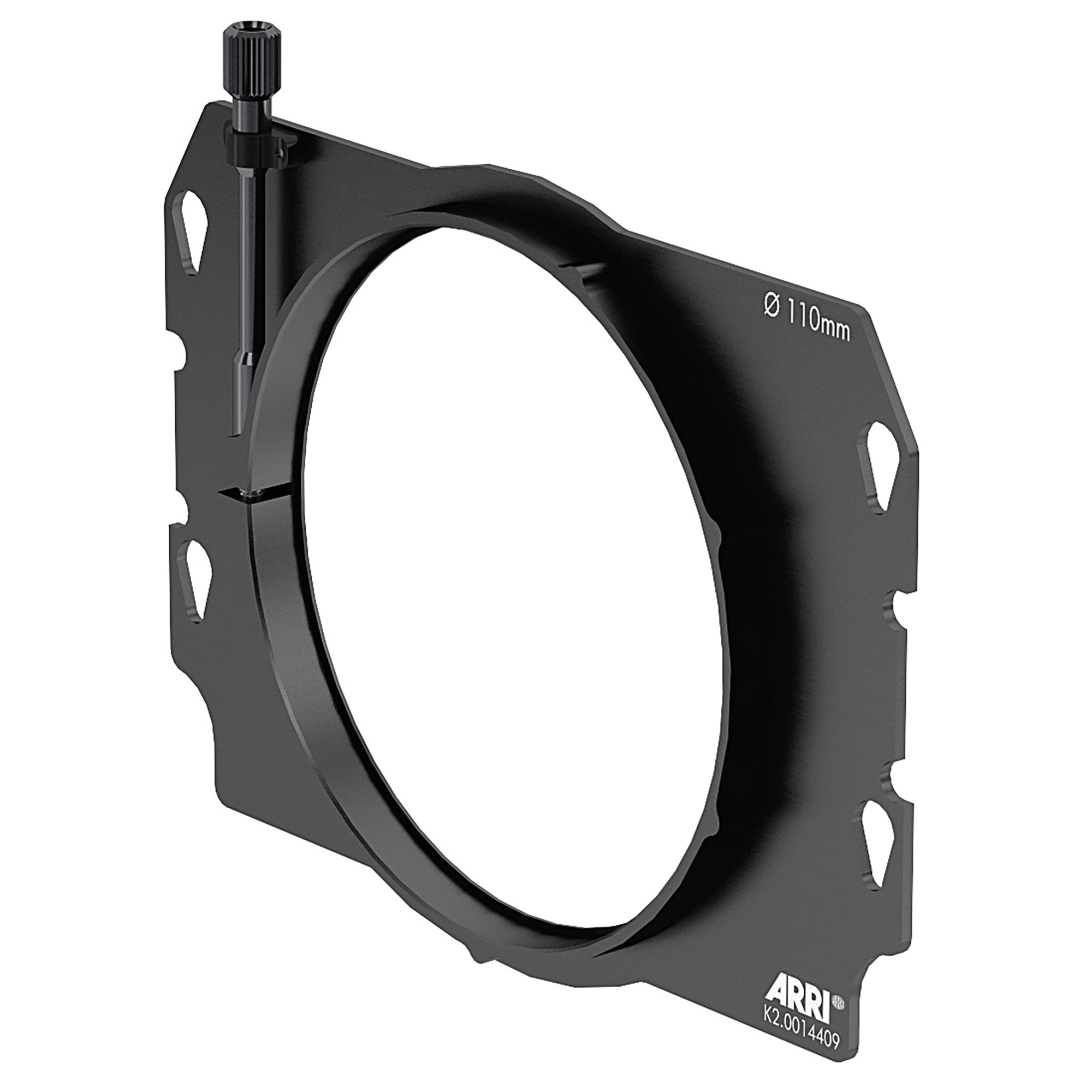

A set with the 4 most popular LMB 4x5 clamp adapters.includes:K2.0014396 1x LMB 4x5 Clamp Adapter 114mmK2.0014409 1x LMB 4x5 Clamp Adapter 110mmK2.0014439 1x LMB 4x5 Clamp Adapter 95mmK2.0014376 1x LMB 4x5 Clamp Adapter 80mm

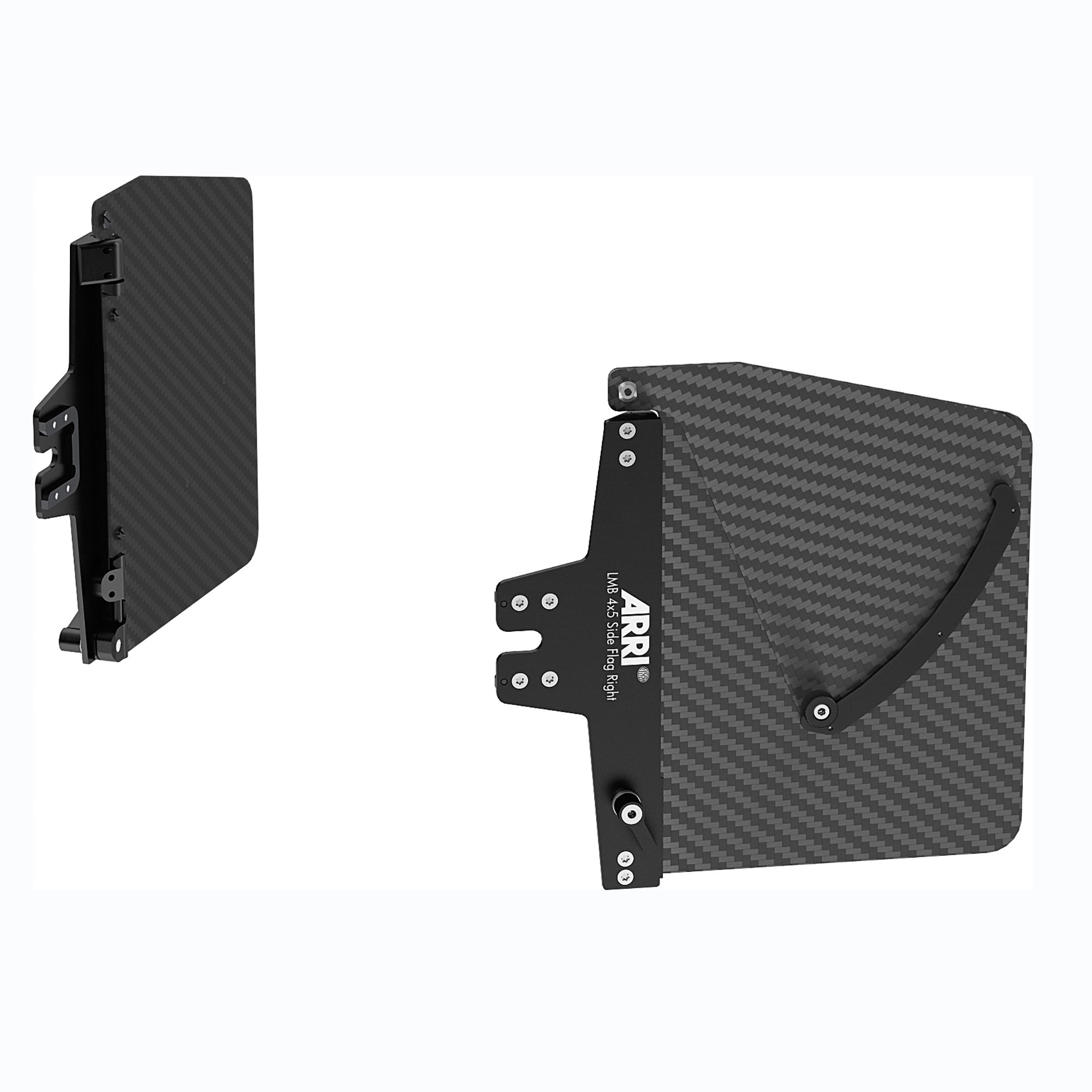

A set of two carbon fiber side flags, each extendable on the top. Please note that K2.0013825 LMB Flag Holders are required.

114 mm back.For one 4x4in/4.5in round filter frame and one 4x5.65in/4x4in frame (filter frame is not incl.). Rear stage fully rotatable.

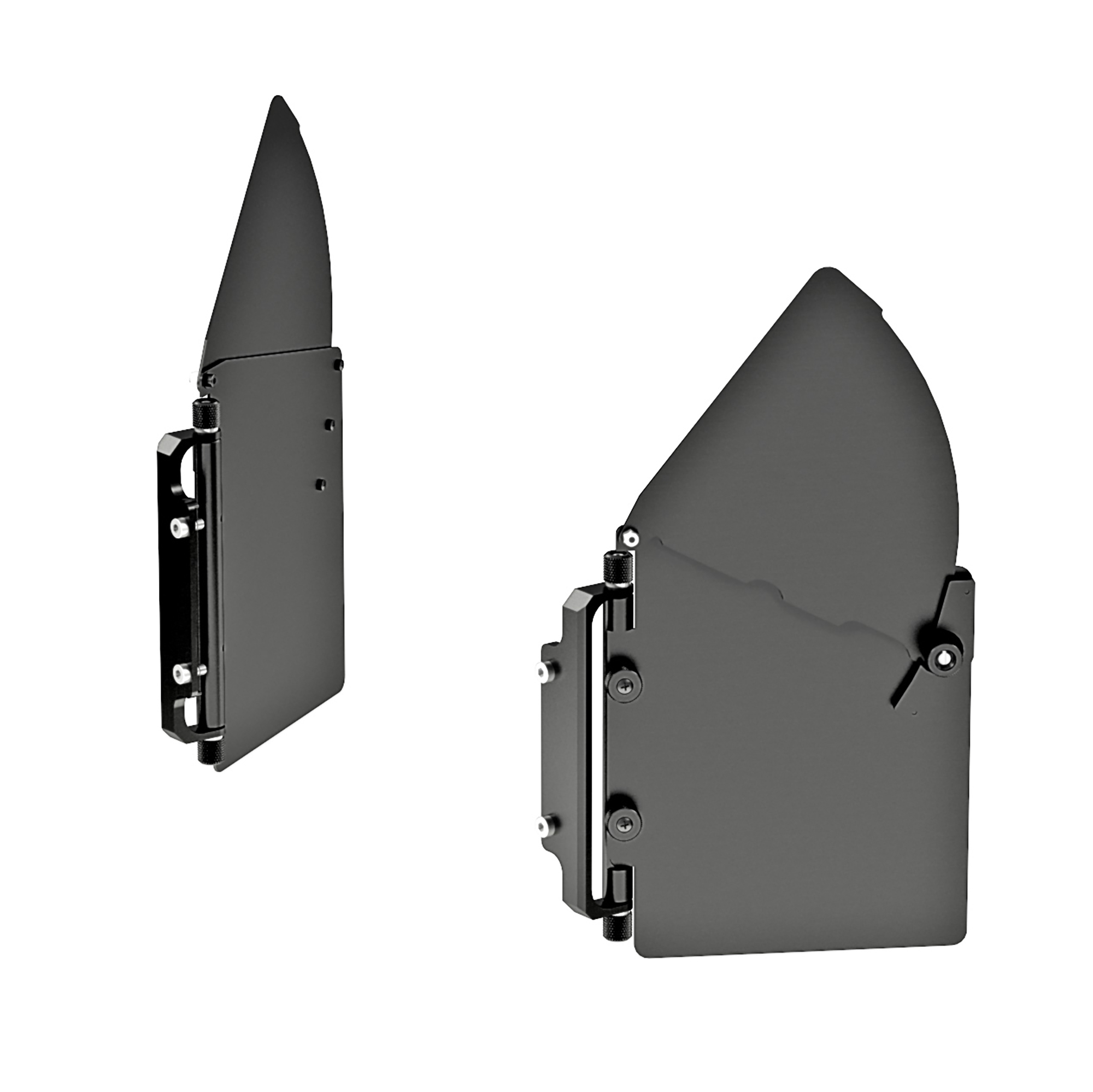

includes:K2.66150.0 1x Side Flag leftK2.66148.0 1x Side Flag rightK2.66134.0 2x Side Flag Holder

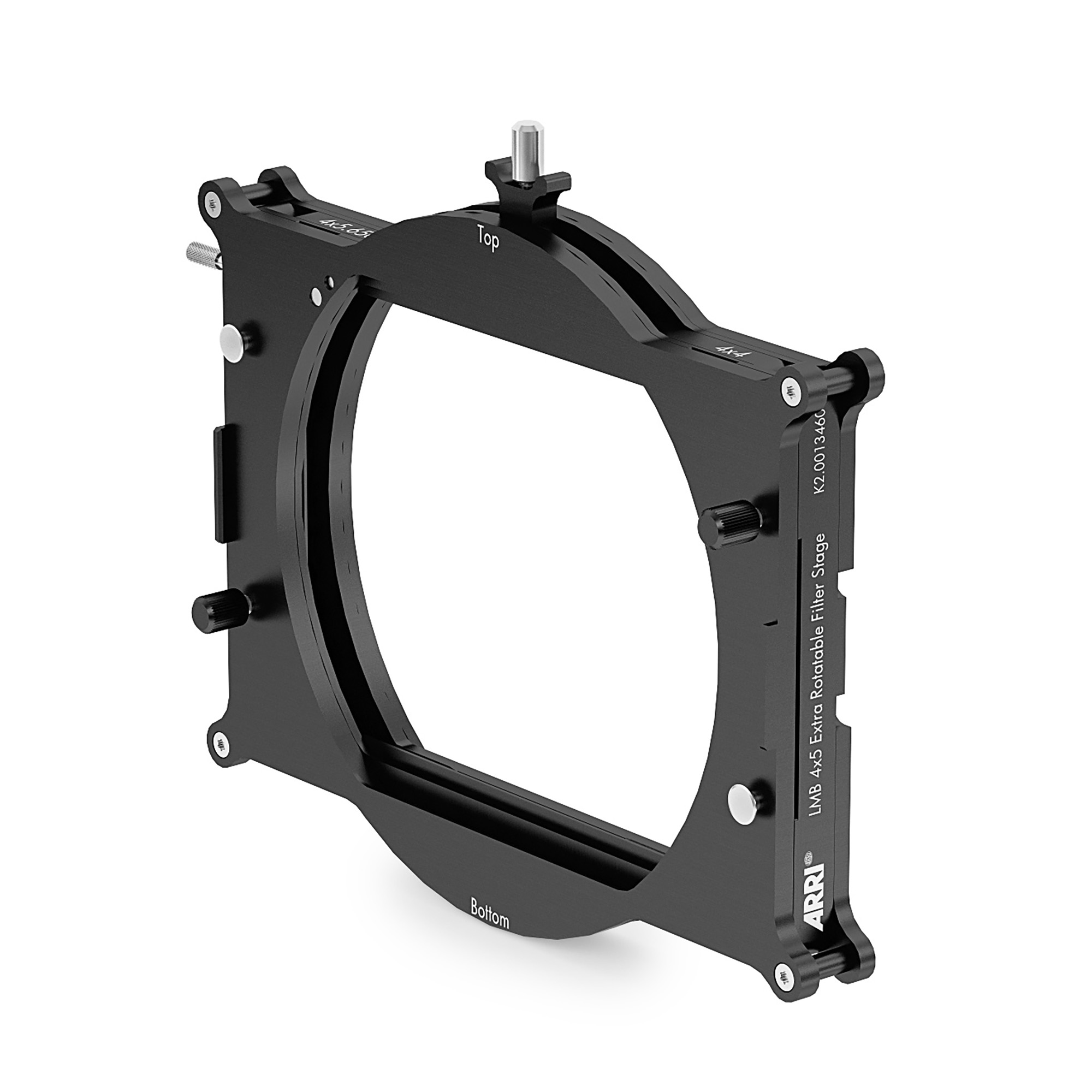

An optional 360° rotatable third filter stage for the LMB 4x5, with integrated tray catcher. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters.

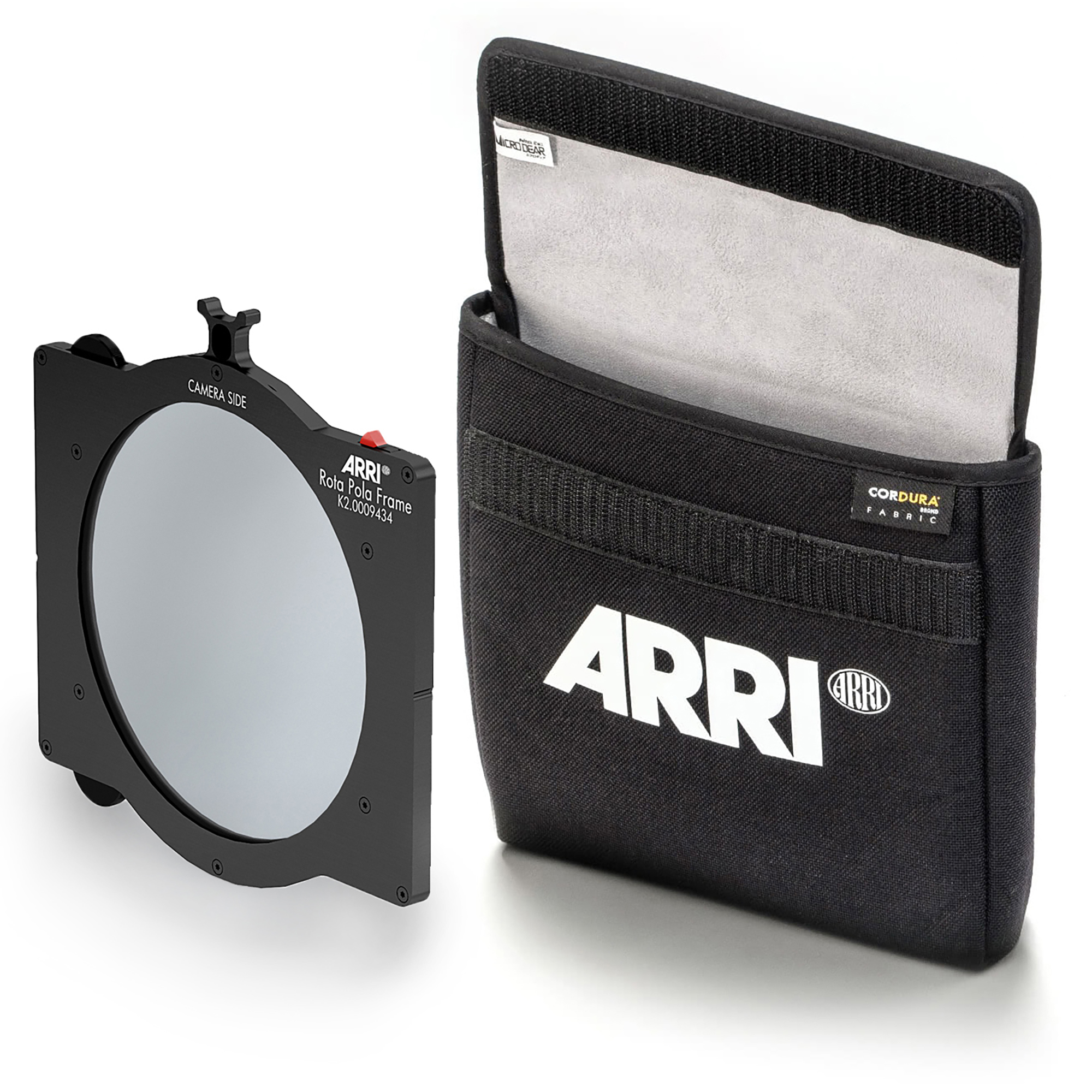

The Rota Pola Filter Frame 4x5.65 has the same width as a regular F4 filter frame and therefore, only takes the space of one filter in a filter stage. Ships in a filter pouch.The usable diameter of the filter is 114,5mm.

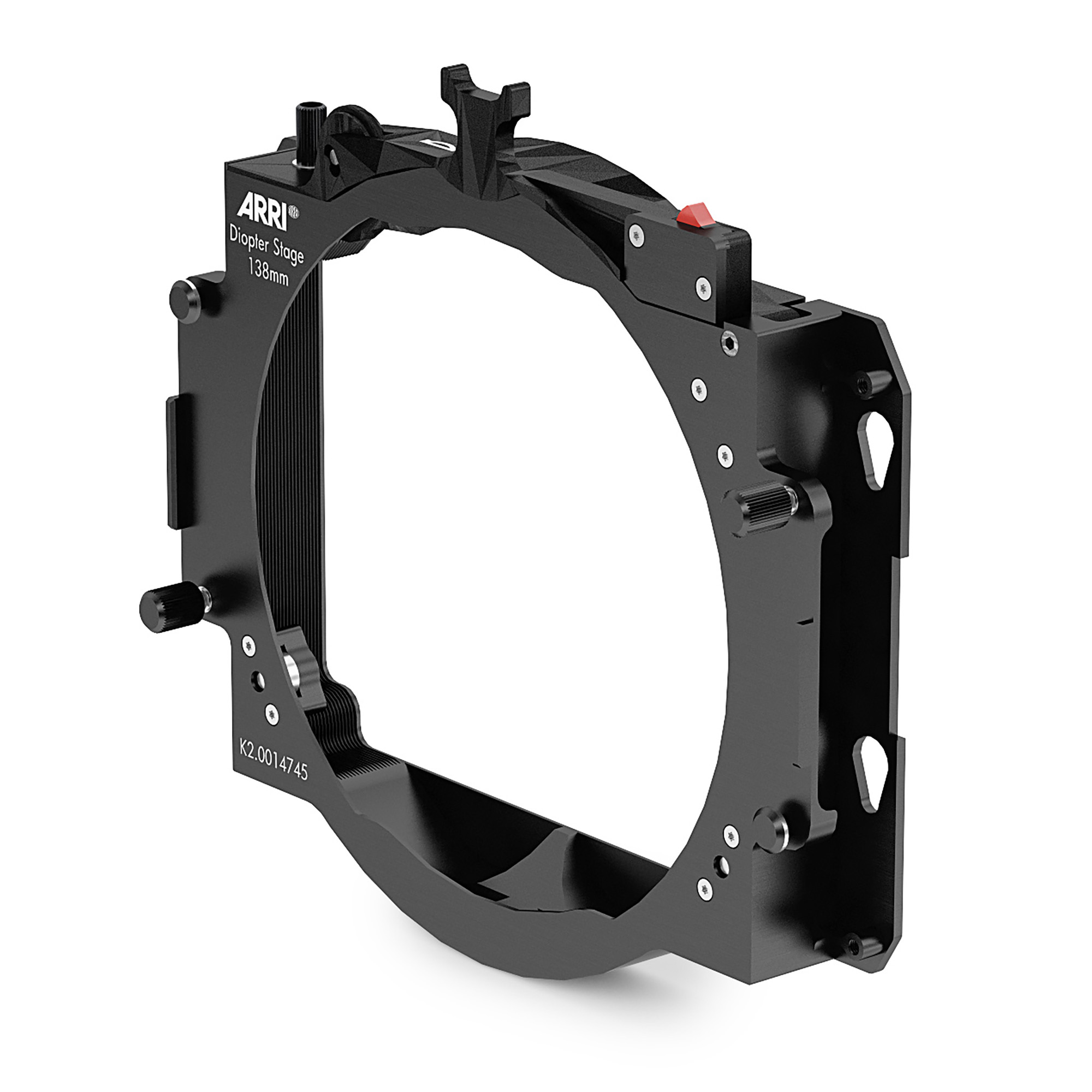

The diopter stage can be used at the back of a 4x5.65 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 4x5, LMB-25, LMB-15 and LMB-5.

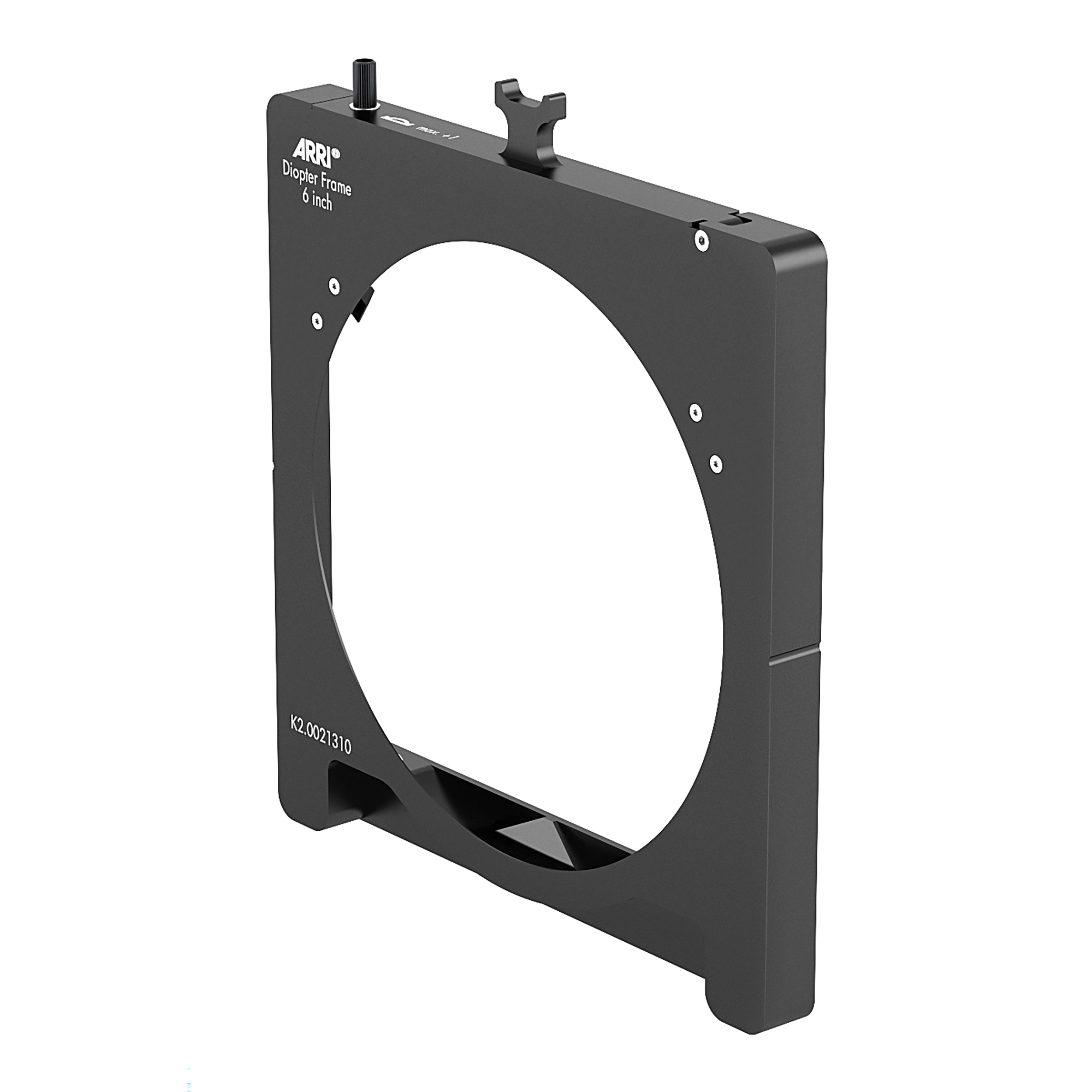

The diopter frame allows 6 inch diopters of up to +1 and in combinations with the Diopter Adapter 6in to 138mm, up to +2 Diopter. The frame is compatible with the ARRI LMB 6x6, LMB-6 and SMB-1. The frame has the width of two 6.6x 6.6 filter frames and fits into a 2- or 3-filter stage. A safety mechanism prevents the diopter from falling out of the frame during exchange, while two 1/4 threads permit the frame to be attached to an articulating arm.

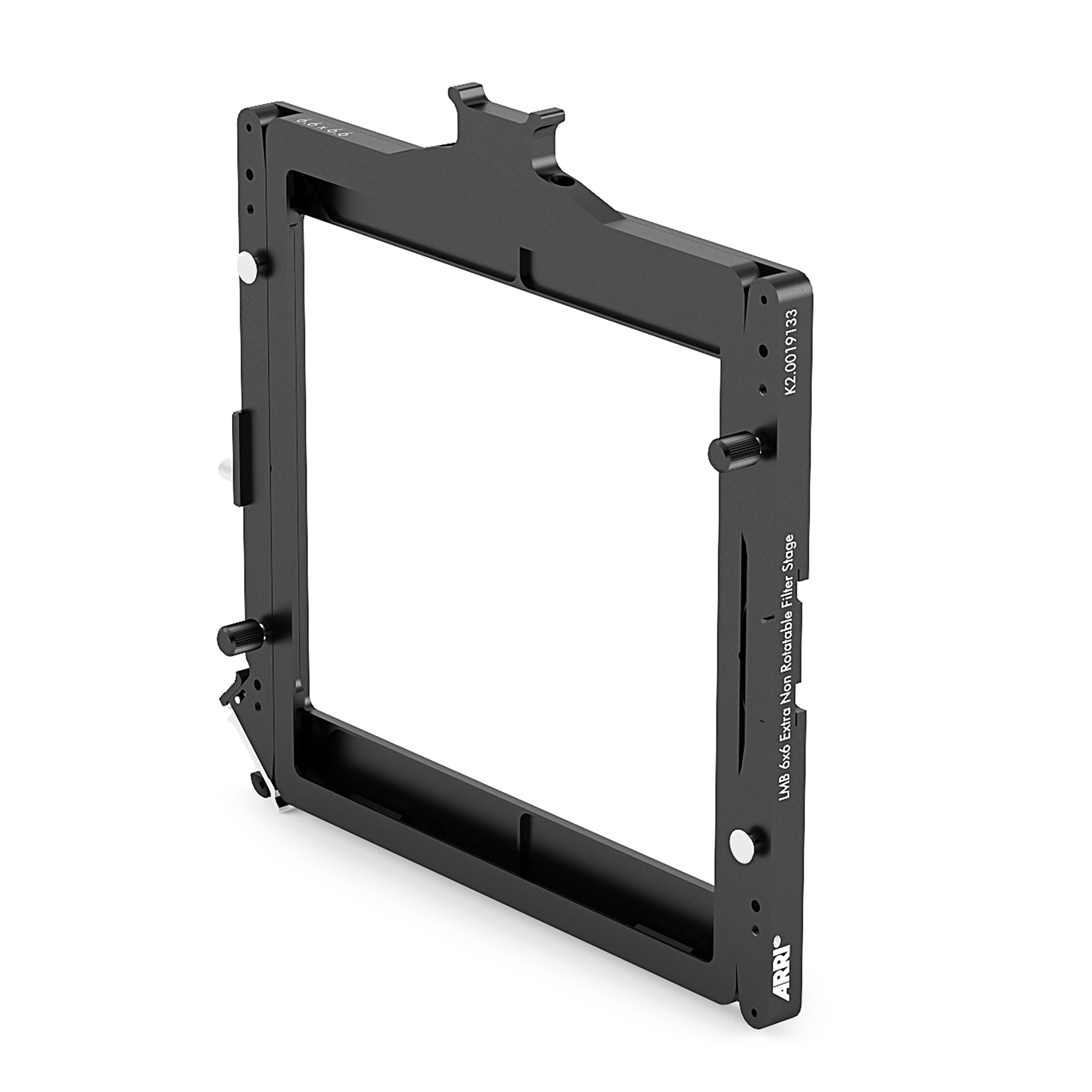

The Extra Non-Rotatable Filter Stage makes it possible to use an additional 6.6x6.6 filter. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without using any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp, or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly. The LMB 6x6 sunshade can be mounted directly to the front of the filter stage.

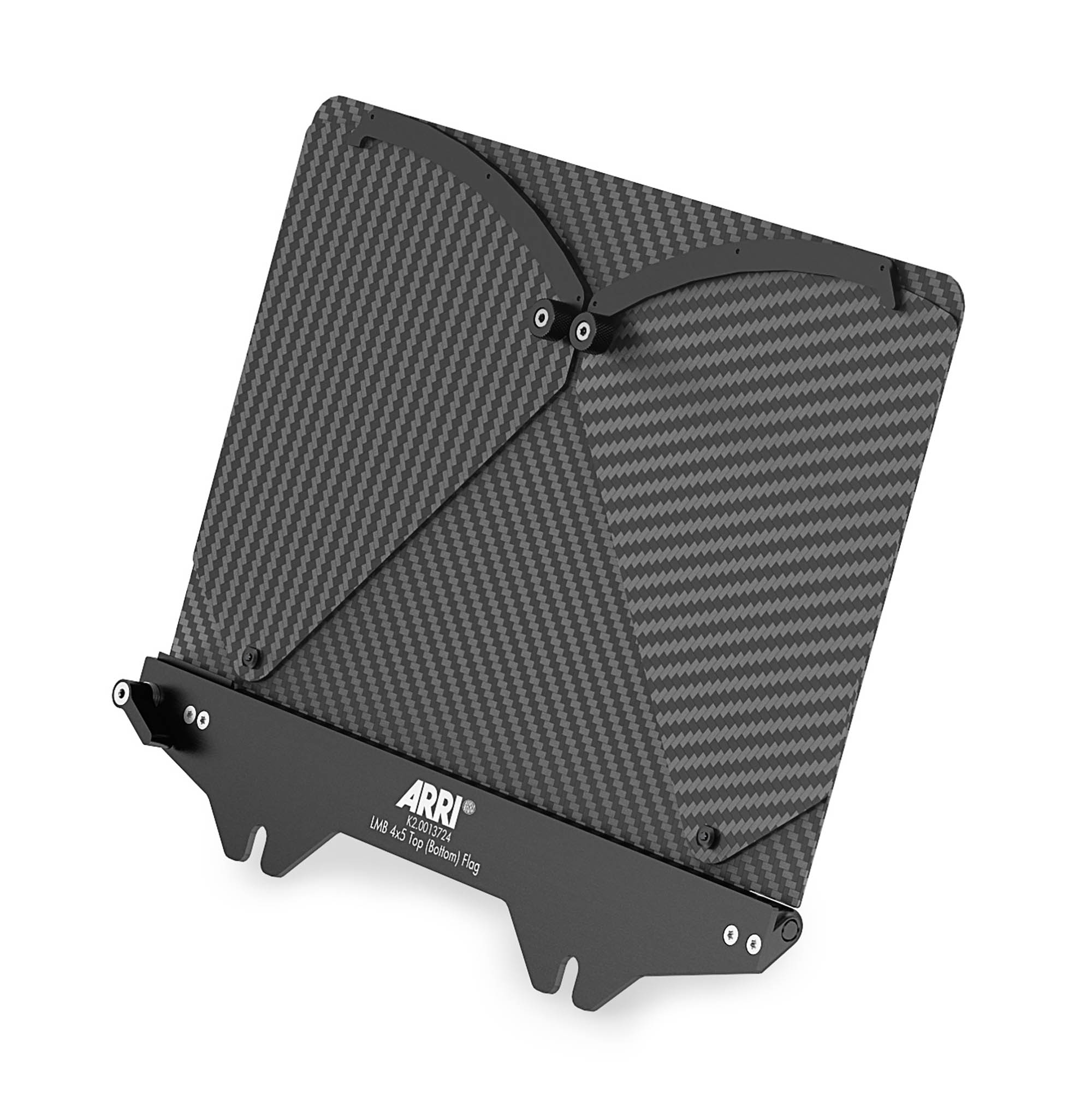

A carbon fiber flag, with two extensions,which can be mounted at the top or the bottom of the LMB 4x5 – compatible with LMB-5, LMB-15, and LMB-25.

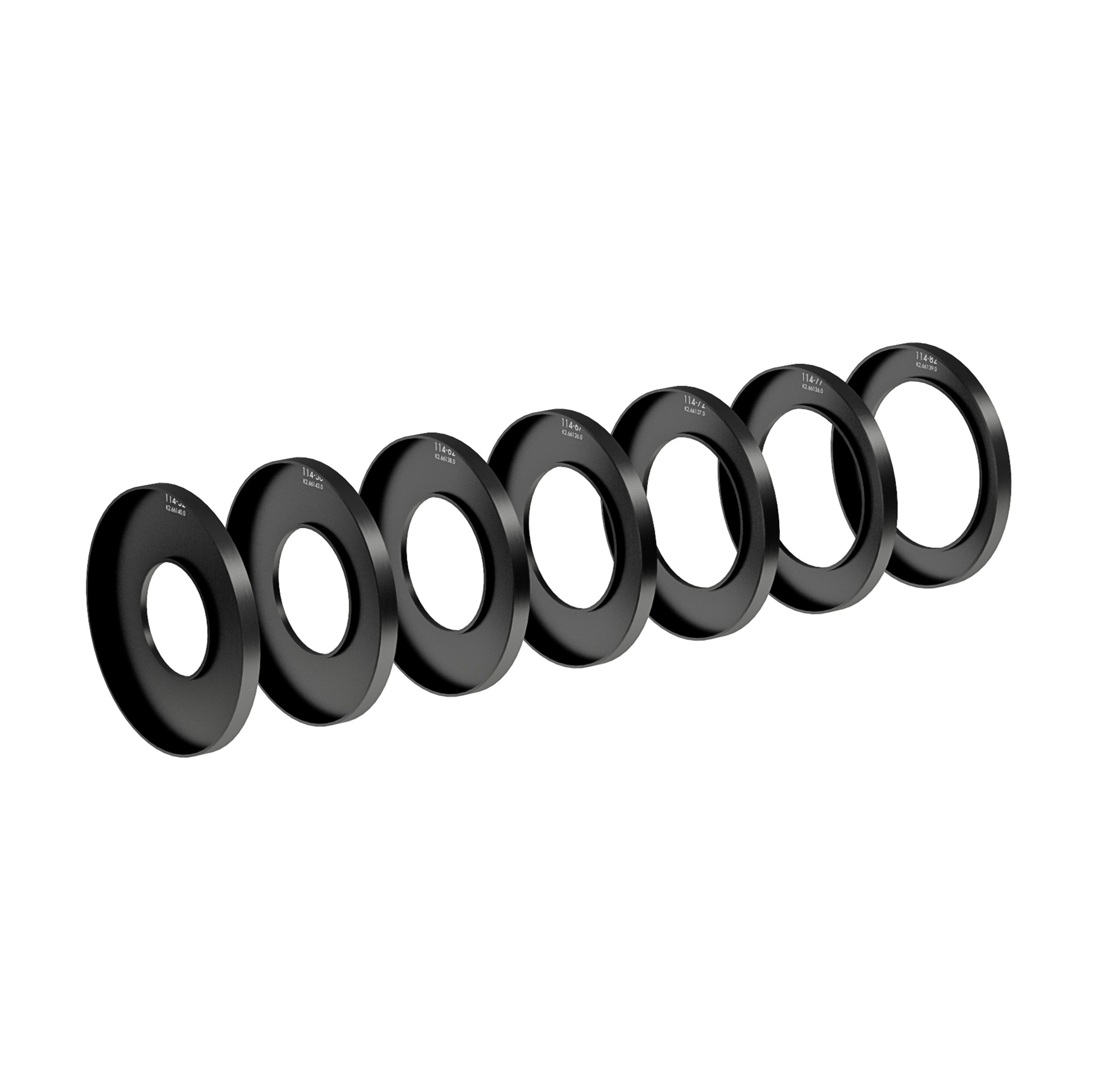

For still photo lenses threads.includes:K2.66140.0 1x Still Lens Clamp-On Ring 52K2.66143.0 1x Still Lens Clamp-On Ring 58K2.66138.0 1x Still Lens Clamp-On Ring 62K2.66126.0 1x Still Lens Clamp-On Ring 67K2.66137.0 1x Still Lens Clamp-On Ring 72K2.66136.0 1x Still Lens Clamp-On Ring 77K2.66139.0 1x Still Lens Clamp-On Ring 82

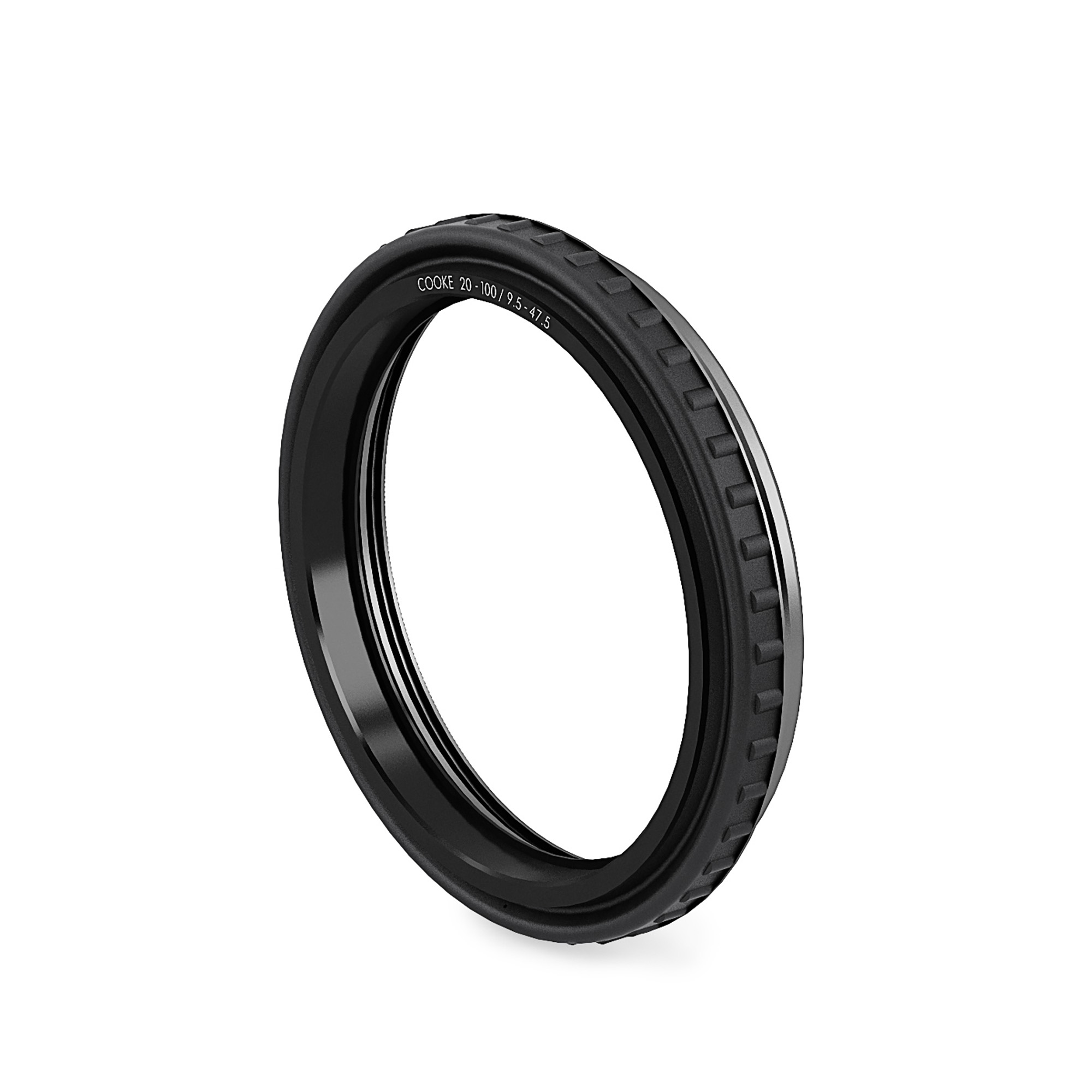

For Cooke 20-100.

For ZEISS Vario Sonnar T2/10-100II, and T2.2/11-110.

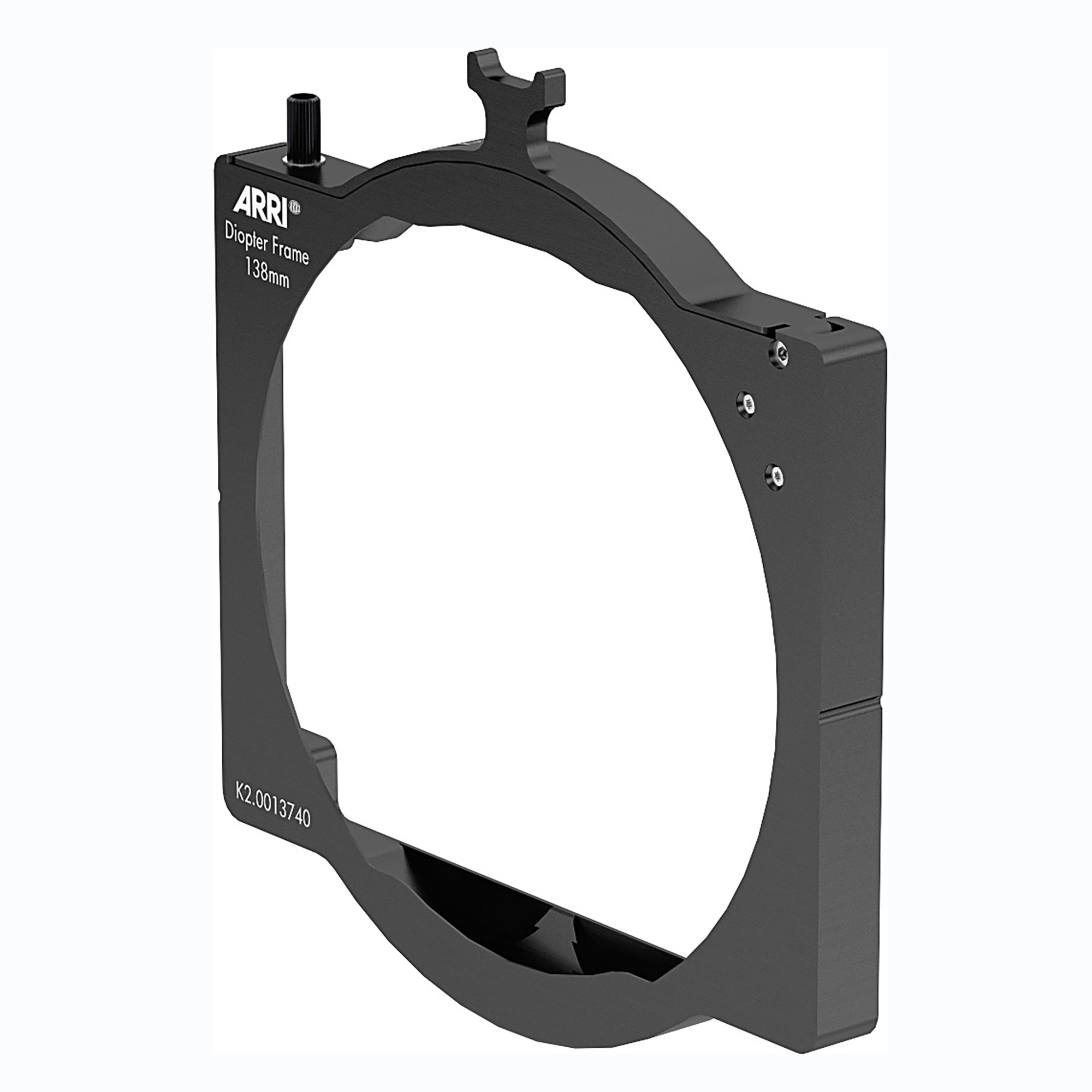

The diopter frame allows 138 mm diopters of up to +2 to be used in a lightweight matte box such as the ARRI LMB 4x5 or LMB-25. The frame has the width of two 4x 5.65 filter frames and fits into a 2- or 3-filter stage. A safety mechanism prevents the diopter from falling out of the frame during exchange, while two 1/4 threads permit the frame to be attached to an articulating arm. Note: Limited clearance with some +2 Diopters.

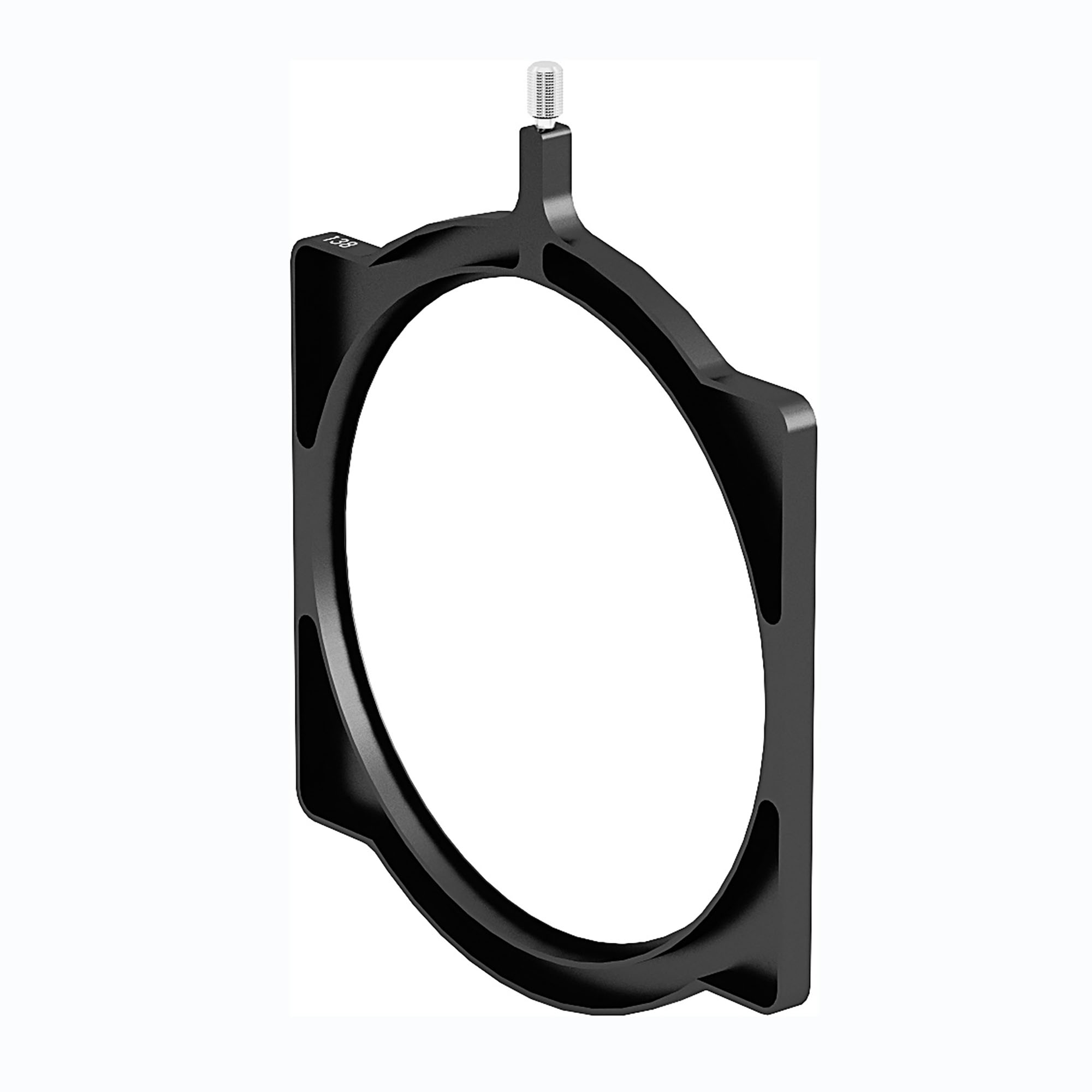

Compatible with SMB-2.For round filter 138 mm.

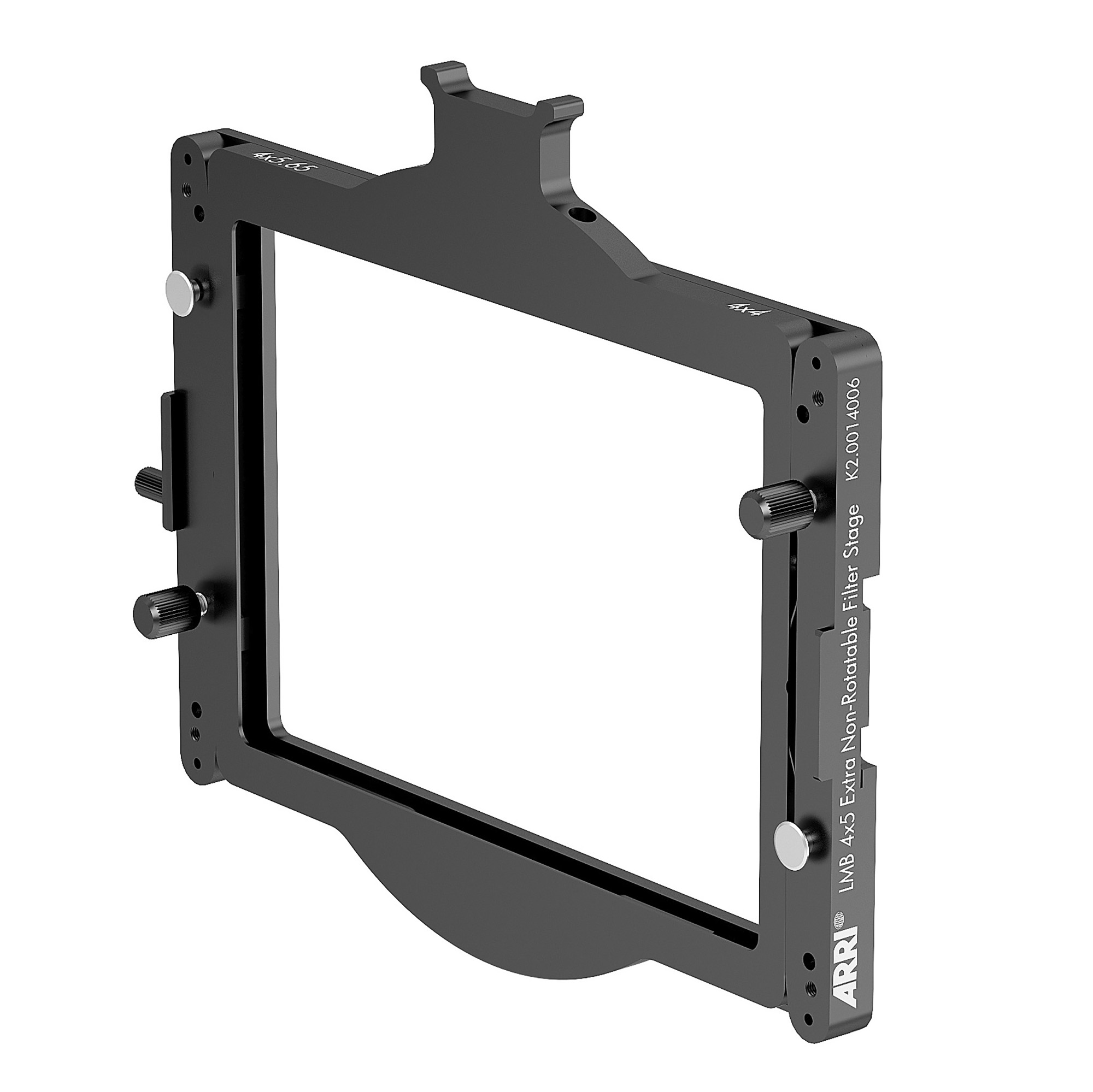

An optional non-rotatable third filter stage for the LMB 4x5. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters. The LMB 4x5 sunshade can be mounted directly to the front of the filter stage.

With rubber sleeve for Master Prime Lenses, UP14 mm, UP180 mm, LDS-UP 14 mm and LDS-UP 180 mm.Takes reduction rings size R4.

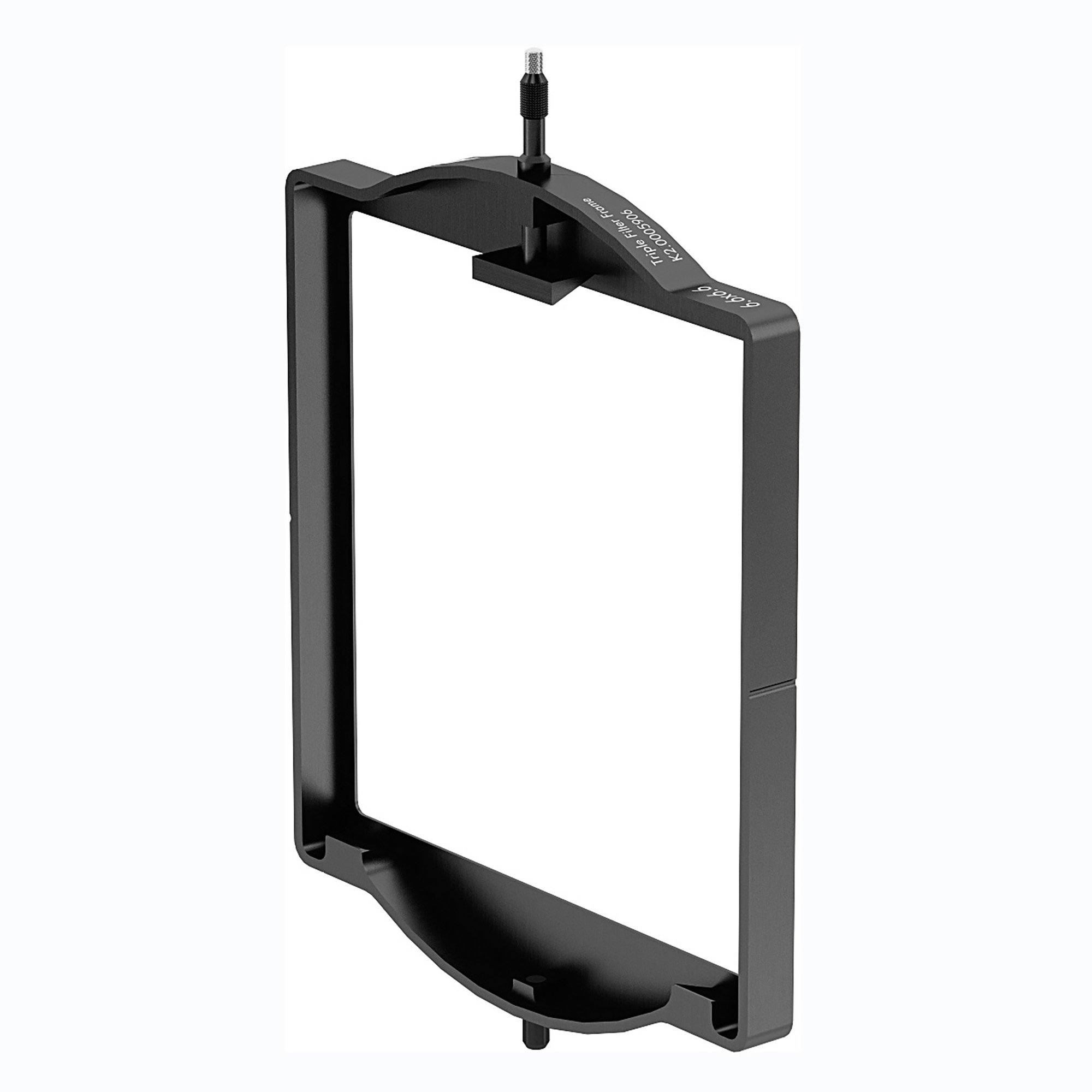

Compatible with LMB 6x6, LMB-6 and SMB-1.The triple filter frames accommodate two or three filters in a single filter frame taking two regular matte box slots and prevent unwanted reflections between glass filter surfaces. Although compatible with some legacy ARRI matte boxes, the triple filter frame achieves maximum benefits when used in combination with the tilting matte box SMB-1. Fits in a 2-stage slot of a filter stage.

For Ultra Primes 16-135 mm with rubber sleeve and connection ring. Not for use with wide-angle video zooms.

For VP1, VP2, VP3, Cooke 18-100 and Cinetal 25-250. Takes reduction rings size R8.

Compatible with Master Prime Lenses, UP 14 mm, UP 180 mm, LDS-UP 14 mm and LDS-UP 180 mm. Takes reduction rings size R4.

2-part bellow ring (R1) designed to follow the tilt movement of the SMB-1. Compatible with all R8 screw-on rings (and R4 screw-on rings via K2.66095.0).

2-part bellow ring (R2) designed to follow the tilt movement of the SMB-2. Compatible with all R4 screw-on rings.

Compatible with SMB-2.Filter orients vertically when inserted from above.

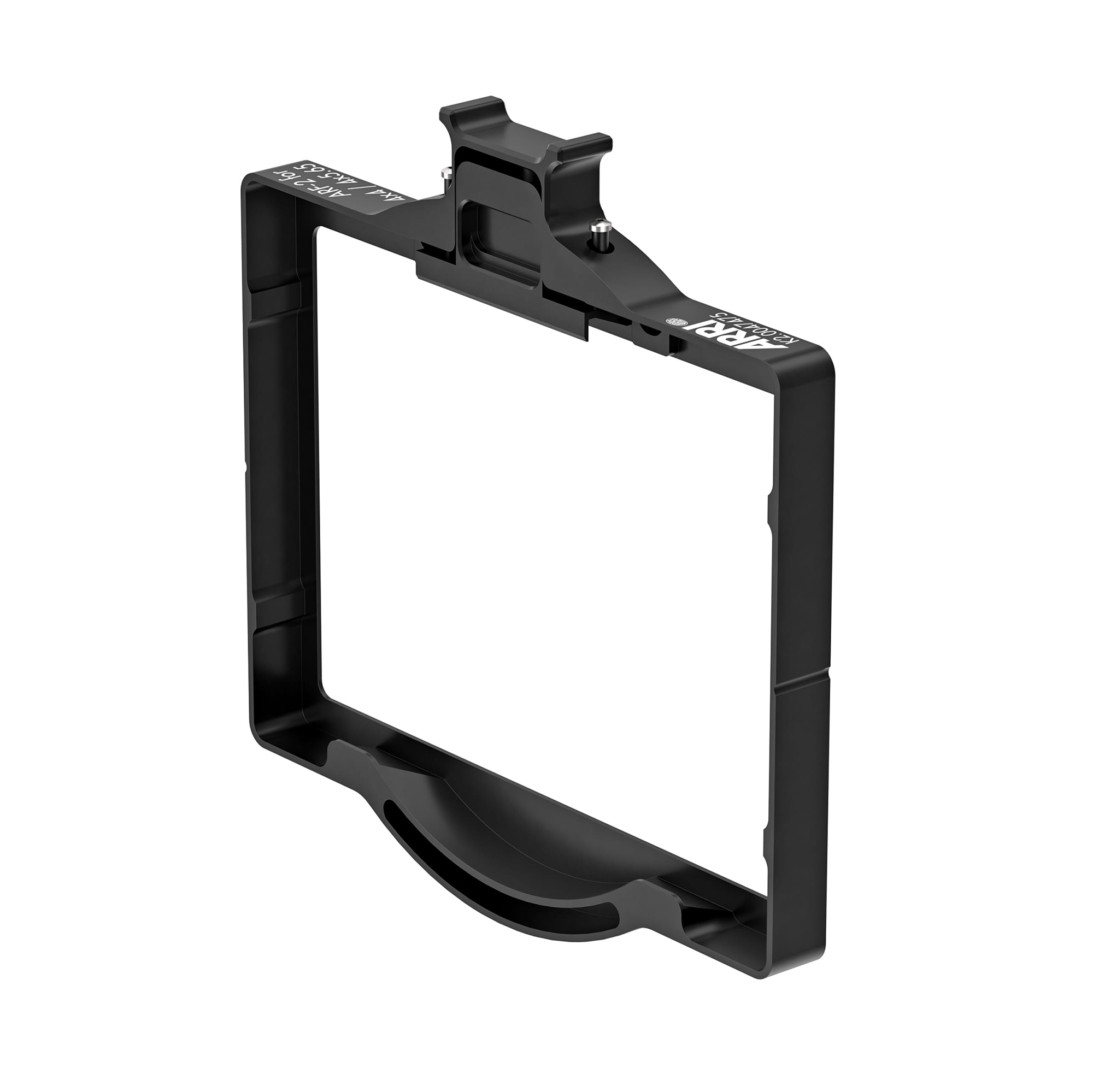

Compatible with LMB 4x5 and LMB-25.Allows one or two glass filters to be stacked and angled, providing a quick and elegant solution for reducing unwanted reflections. Fits in a 2-stage slot of a filter stage.Includes an enhanced protected opening mechanism that prevents accidental filter release and offers a clear visual indication when a filter is installed.

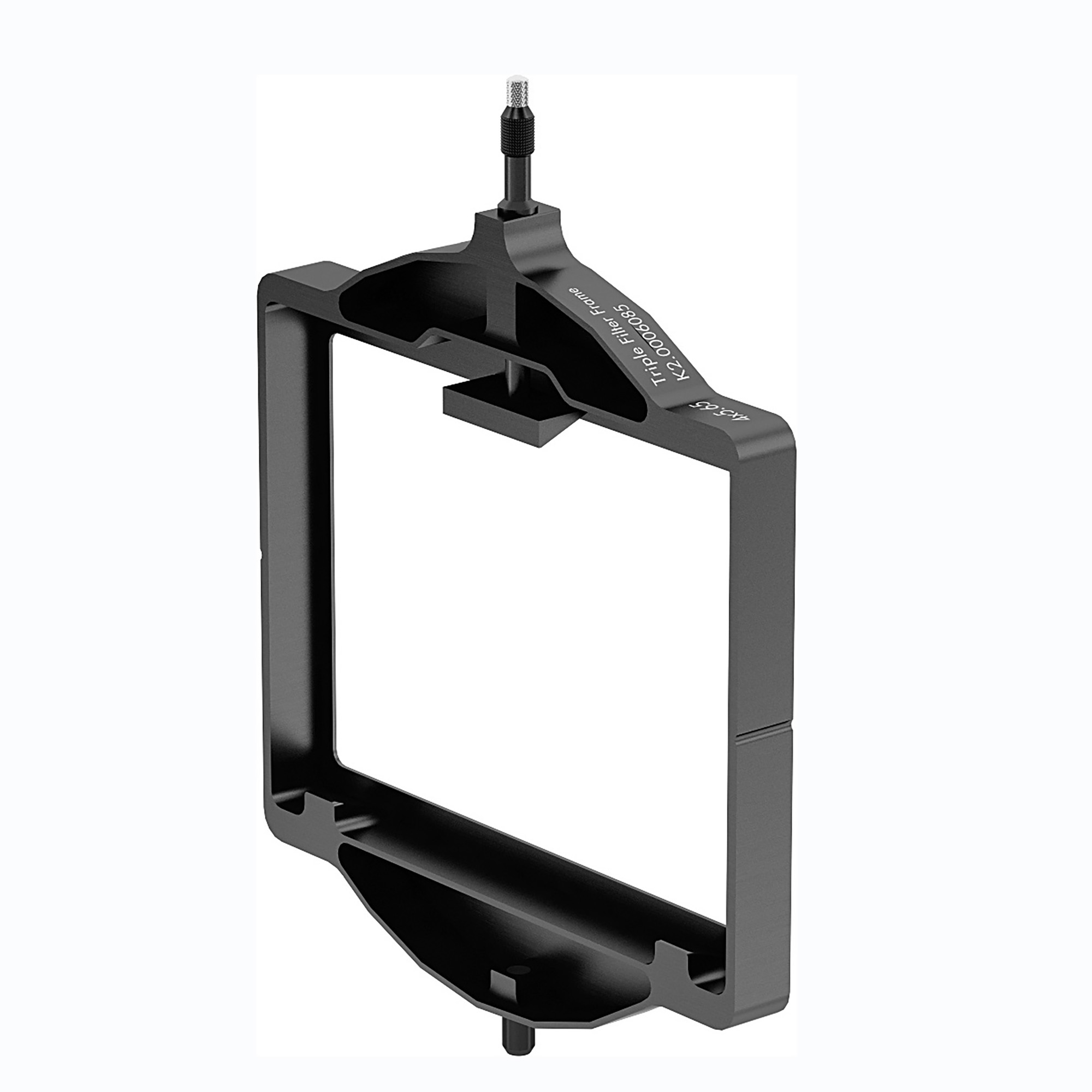

The triple filter frames accommodate two or three filters in a single filter frame taking two regular matte box slots and prevent unwanted reflections between glass filter surfaces. Although compatible with some legacy ARRI matte boxes, the triple filter frame achieves maximum benefits when used in combination with the tilting matte box SMB-2. Fits in a 2-stage slot of a filter stage.

Compatible with SMB-2.

For Zeiss Vario Sonnar.Takes reduction rings size R6.

For ARRI/Fujinon Alura Zooms.

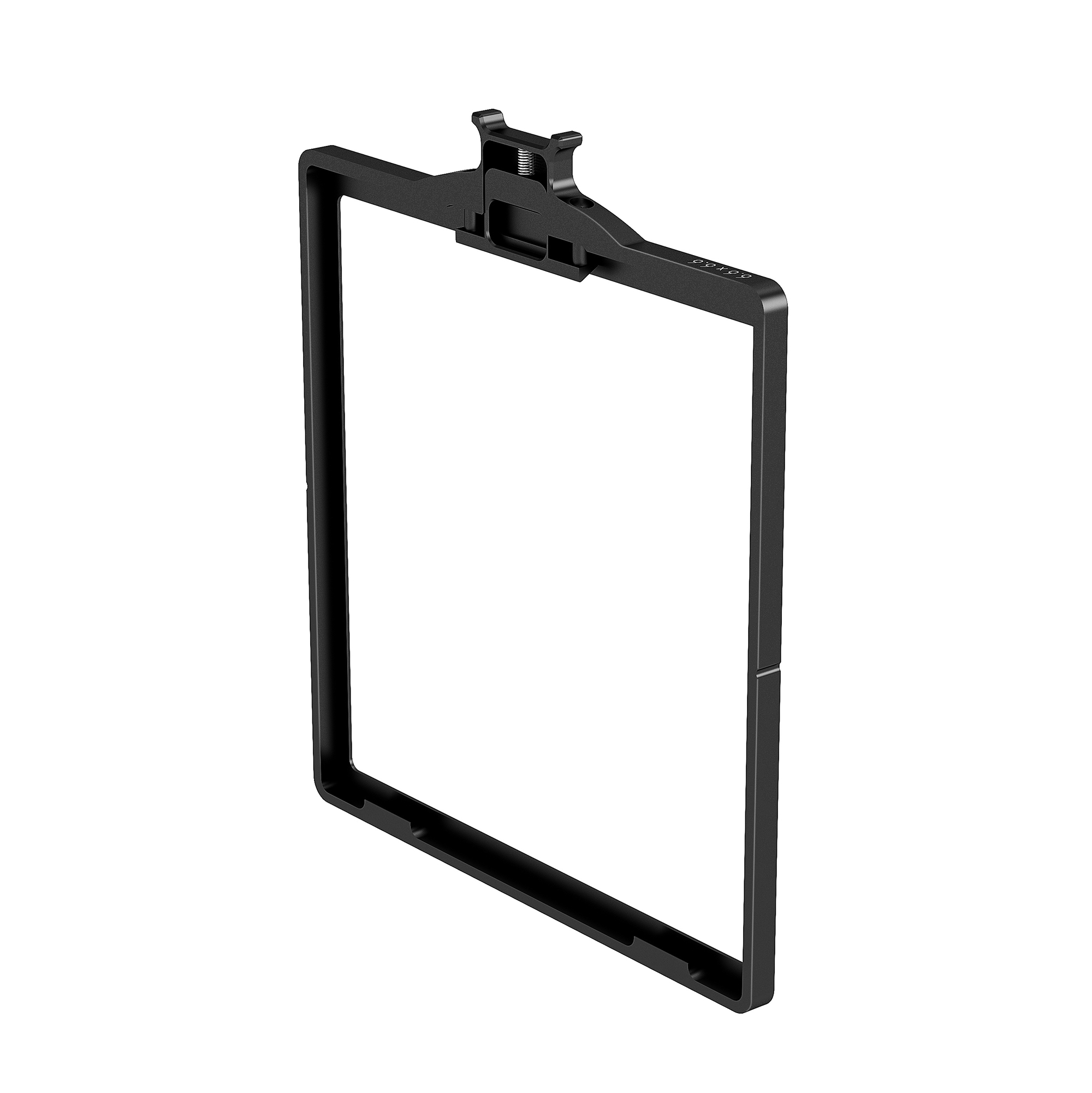

Filter Frame for LMB 6x6 and LMB-6.

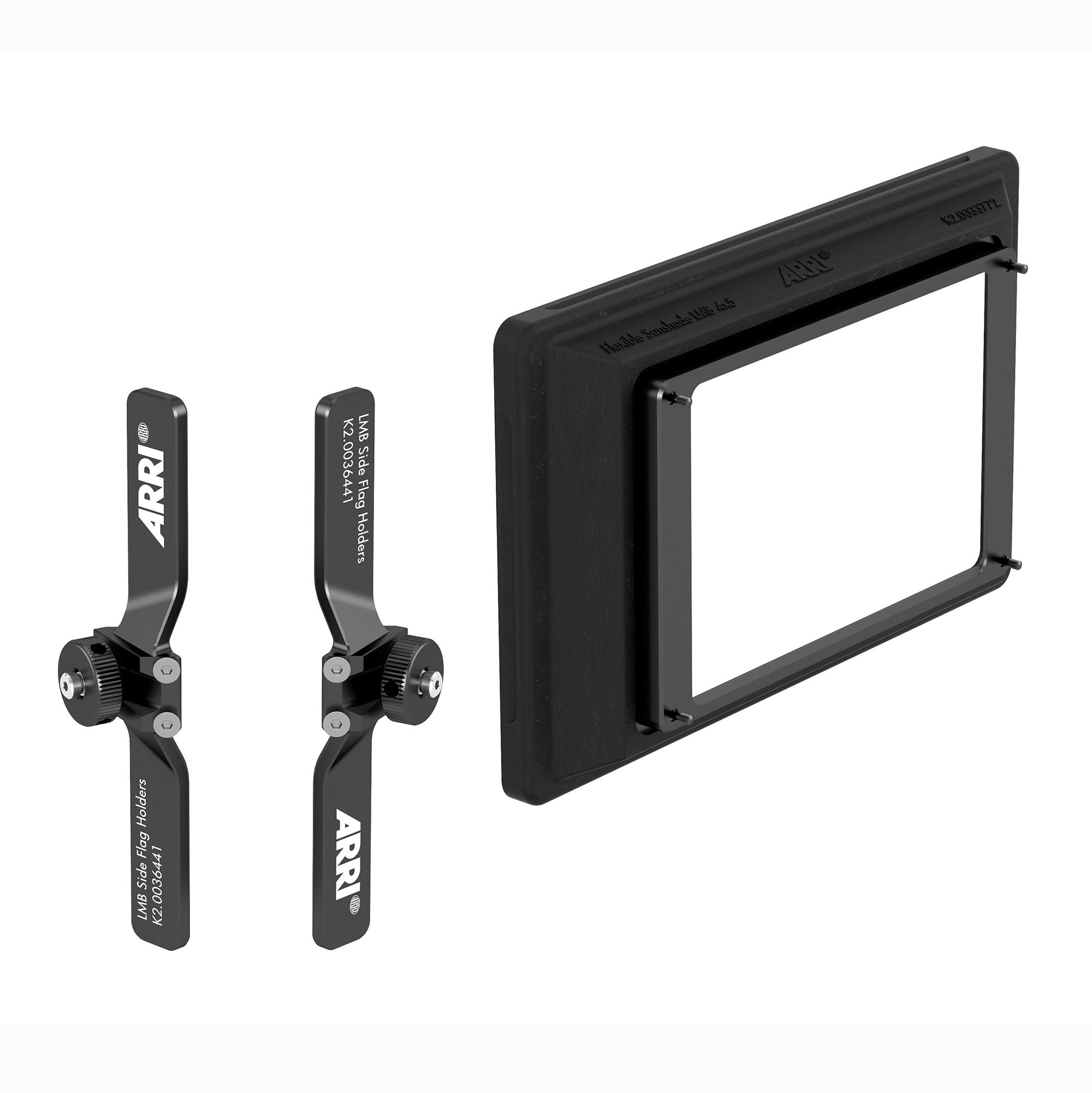

includes:K2.0033772 1x Flexible Sunshade LMB 4x5K2.0036441 1x LMB Side Flag Holders

A tool-less screw in 15 mm studio support adapter Compatible with following products:K2.0013427 LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 LMB 4x5 Swing Away Tilt ModuleK2.0019275 LMB 6x6 Clamp Adapter 143mmK2.0019156 LMB 6x6 Clamp Adapter 165mmK2.0019085 LMB 6x6 Tilt and Flex Adapter 80-156mm

Compatible with SMB-2.

Compatible with SMB-2.Filter orients horizontally when inserted from above.

Compatible with LMB 4x5, LMB-25 and MMB-2.

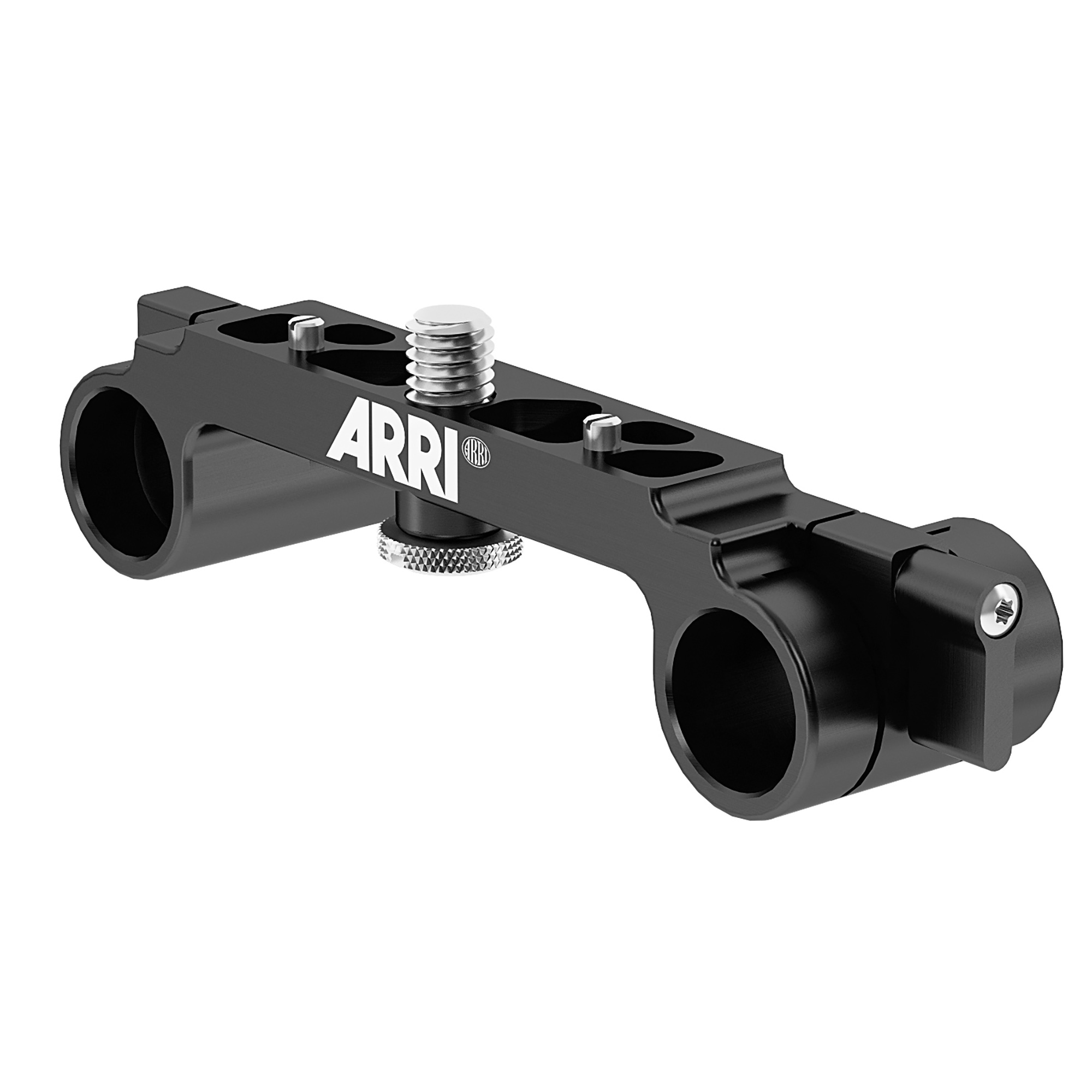

A tool-less screw in 19 mm studio support adapter Compatible with following products:K2.0013427 LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 LMB 4x5 Swing Away Tilt ModuleK2.0019275 LMB 6x6 Clamp Adapter 143mmK2.0019156 LMB 6x6 Clamp Adapter 165mmK2.0019085 LMB 6x6 Tilt and Flex Adapter 80-156mm

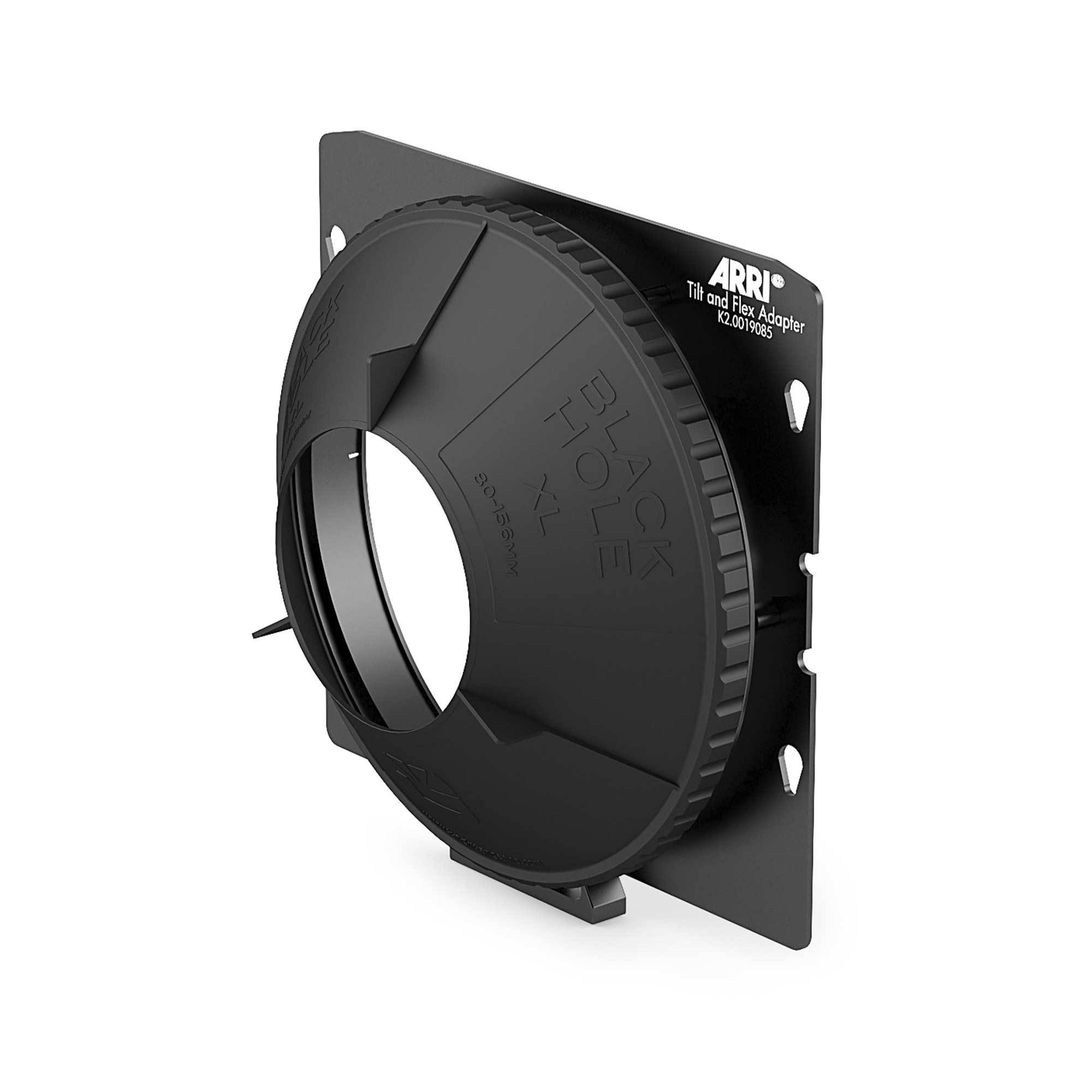

The Tilt and Flex Adapter is a flexible rubber donut compatible with lens diameters from above 80mm to less than 156mm. It works perfectly with lenses where lens elements are extending and can compensate the tilting angle when using the Swing Away Tilt Modules from the LMB 6x6. An interface for both LMB 15mm and LMB 19mm Studio Rod Adapters is integrated at the bottom.

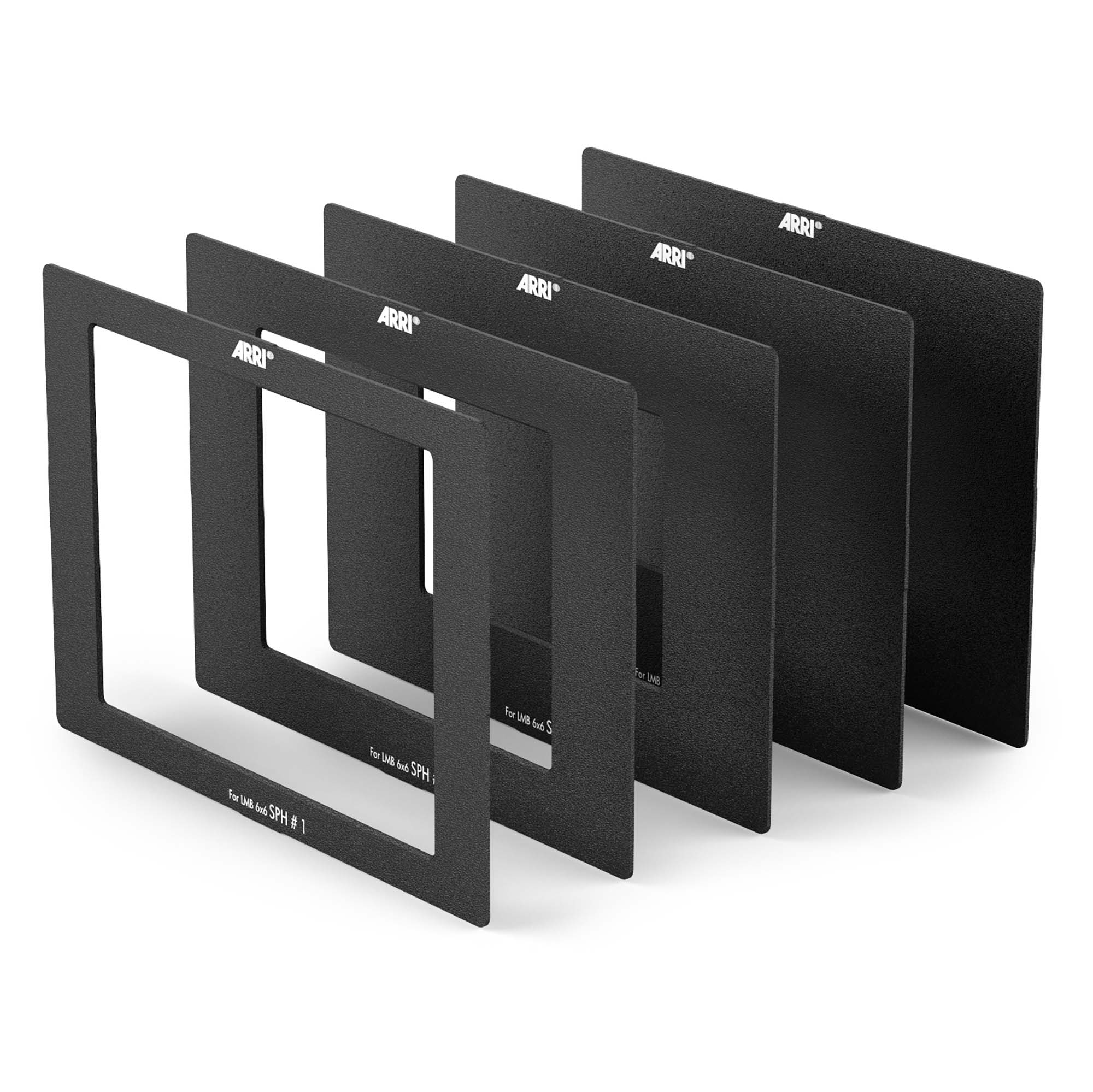

A set of 5 hard mattes with different spherical openings that can be clicked into the sunshade of the LMB 6x6 to prevent image quality loss caused by stray light.

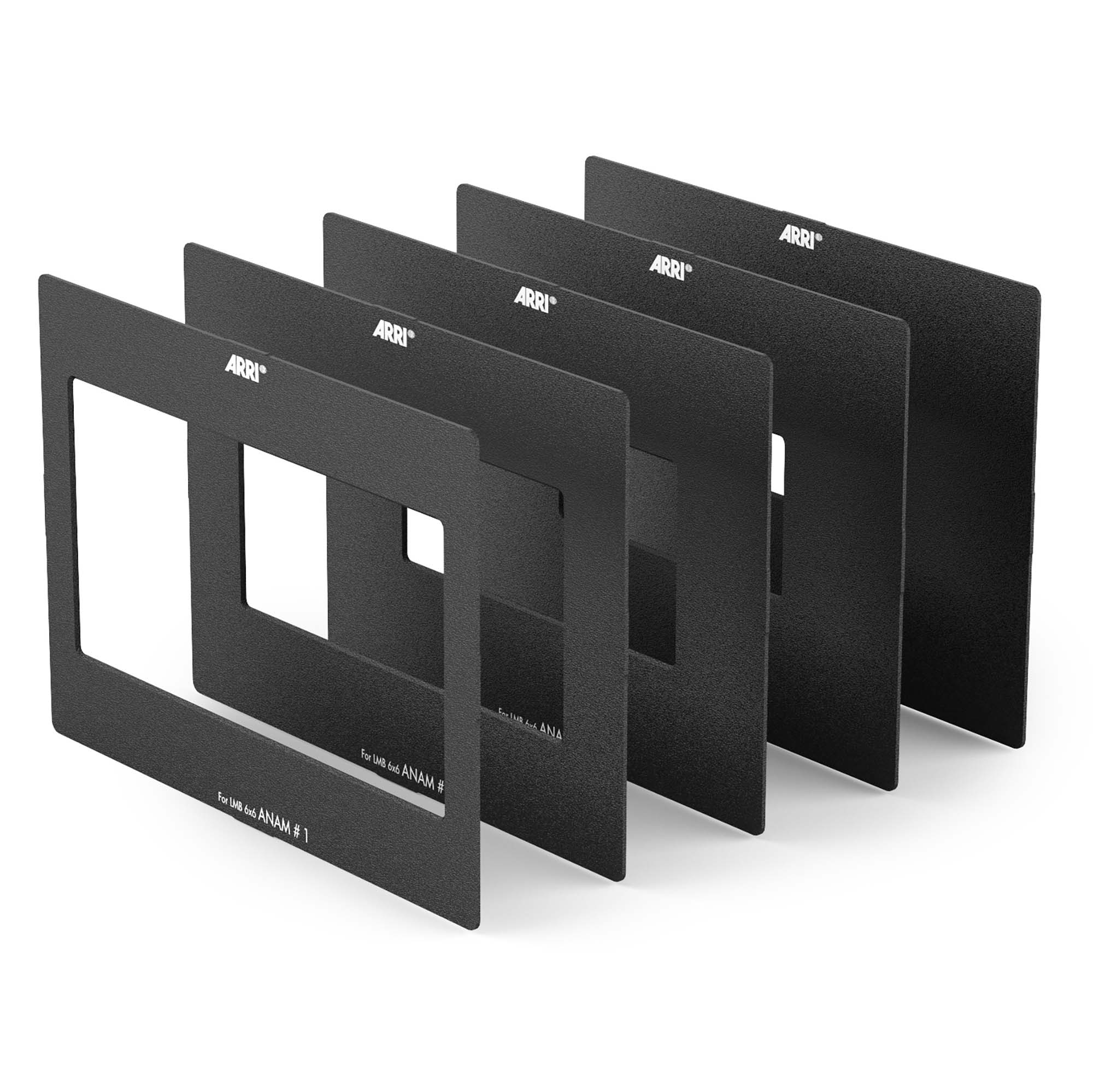

A set of 5 hard mattes with different anamorphic openings that can be clicked into the sunshade of the LMB 6x6 to prevent image quality loss caused by stray light.

Compatible with SMB-2.Filter orients horizontally when inserted from above.

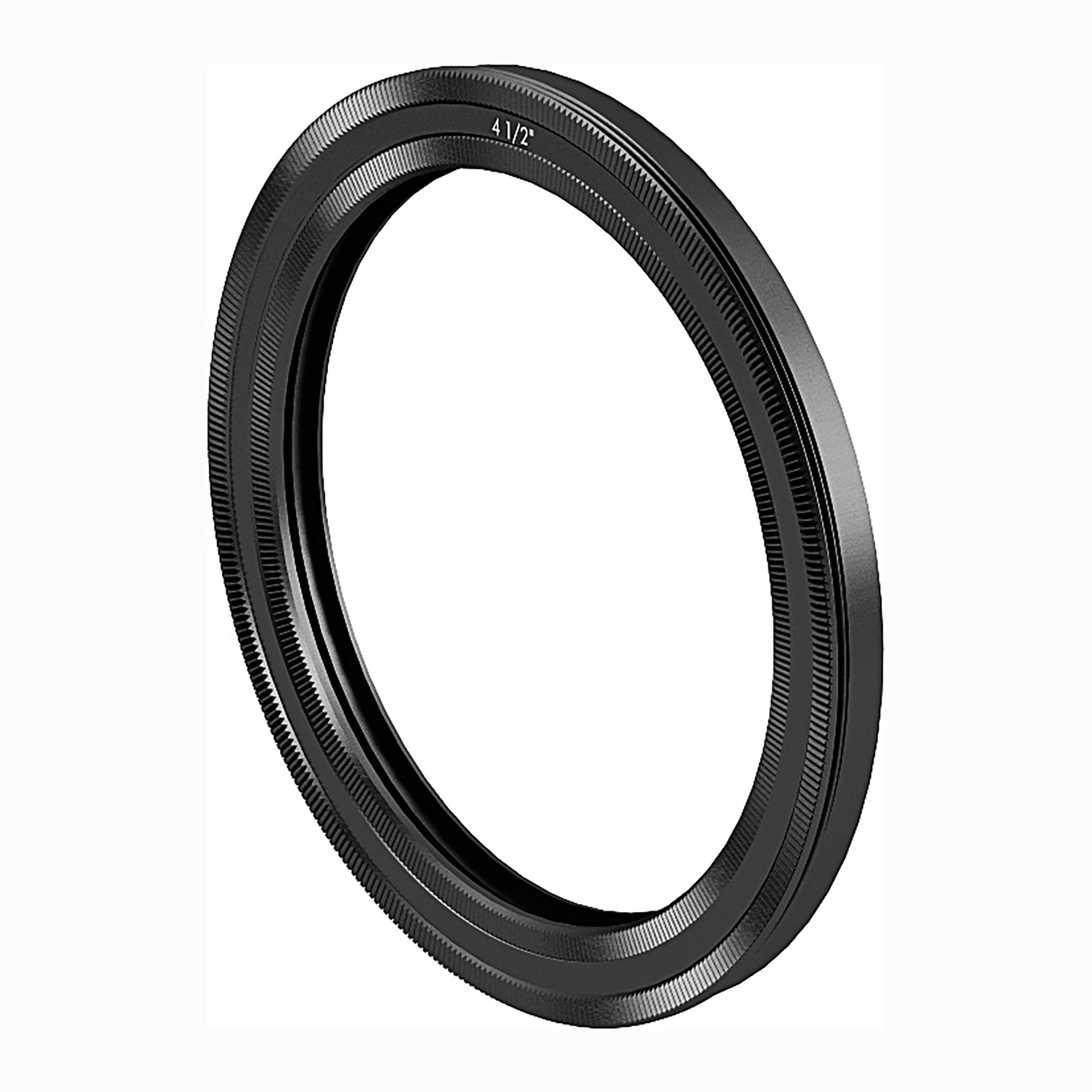

Screws into R1 or R2 138 mm round filter rings and reduces to 4.5 inch round. Includes threaded retaining ring for 4.5 inch round. Not for use with 6 inch filter rings.

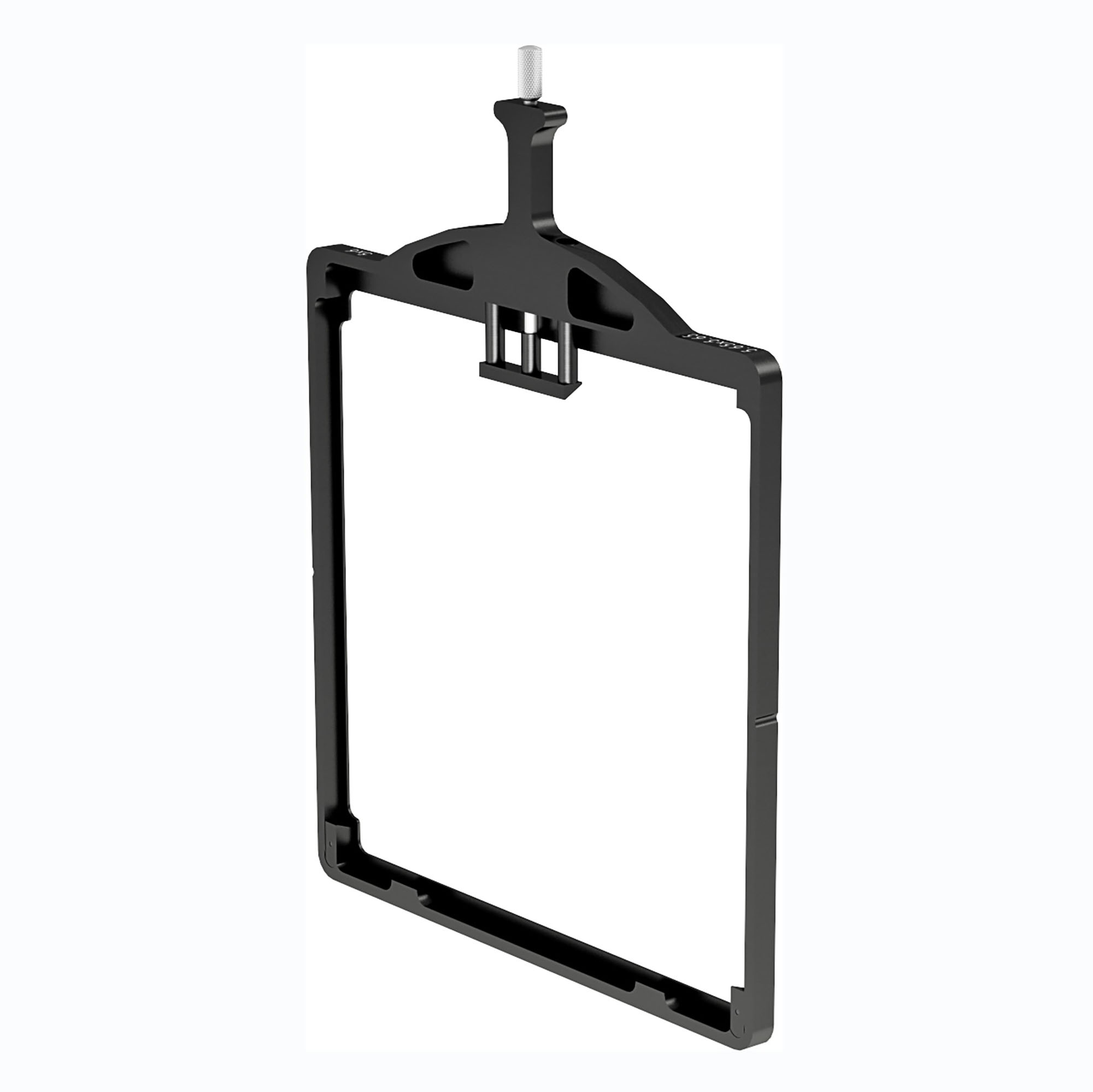

Compatible with MB-20 and MB-28.Accepts 5.65x5.65 filter or 5x6 filter horizontally (5x5.6 filter orients horizontally when inserted from above).

Compatile with SMB-2.Filter orients vertically when inserted from above.

Copatible with MB-20 and MB-28.Filter orients vertically when inserted from above.

Compatible with LMB 4x5, LMB-25 and MMB-2.

For LMB 6x6 and LMB-6. The Adapter is available for the Angenieux Optimo 24-290 and 28-340.

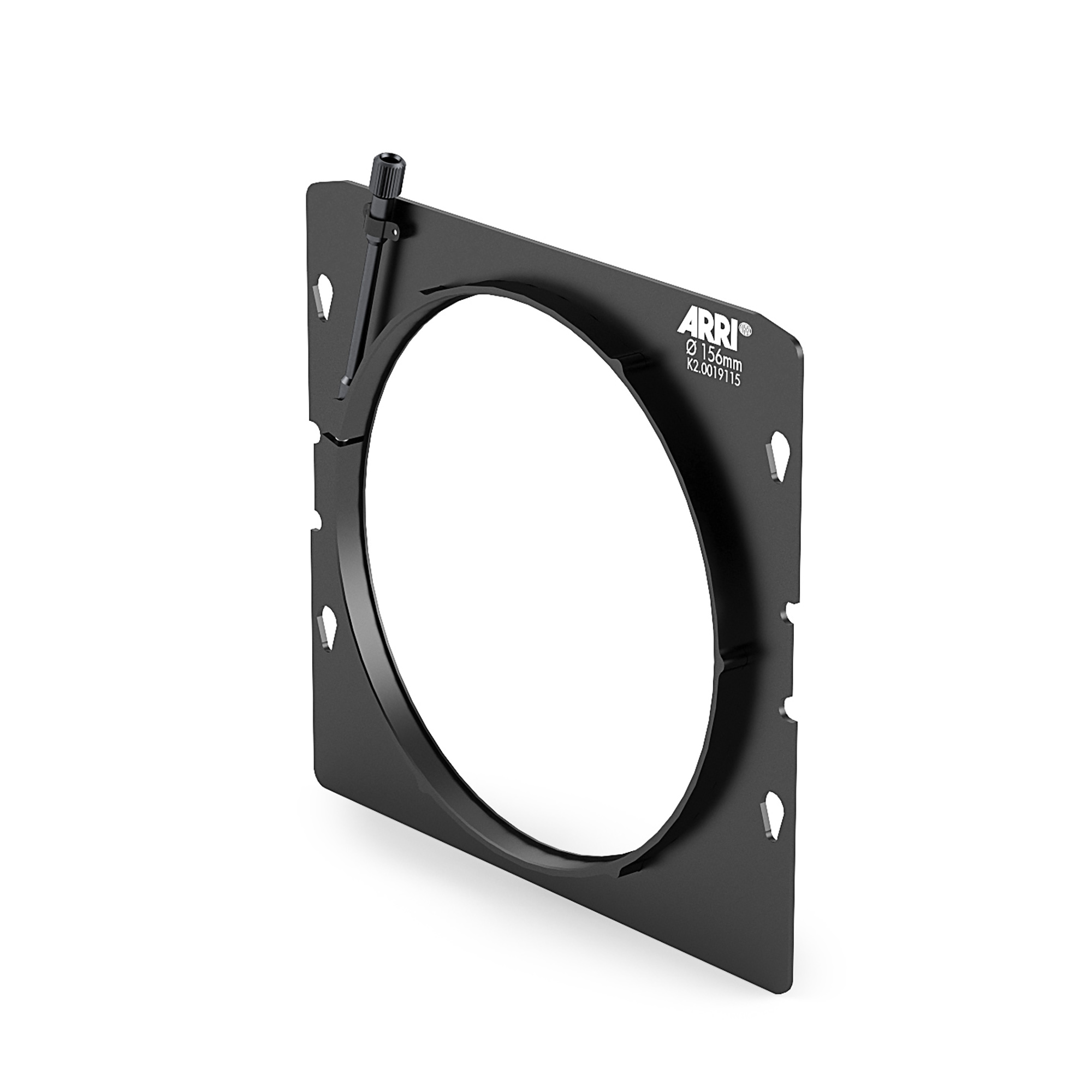

For LMB 6x6 and LMB-6. Fits all 156mm diameter lenses such as the Signature Zoom 16-32 and 65-300mm and all R12 clamp-on reduction rings (please see ring section).

For LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

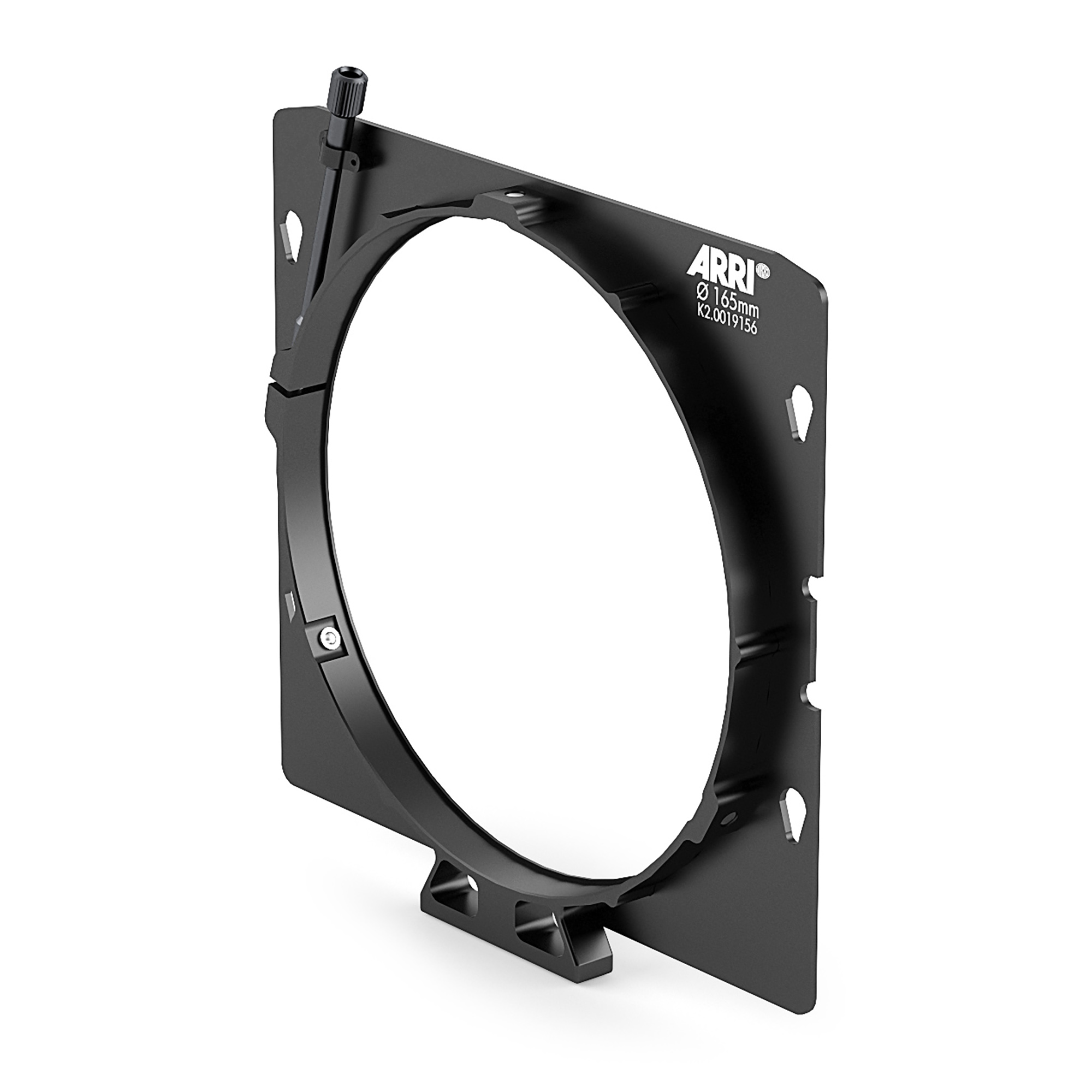

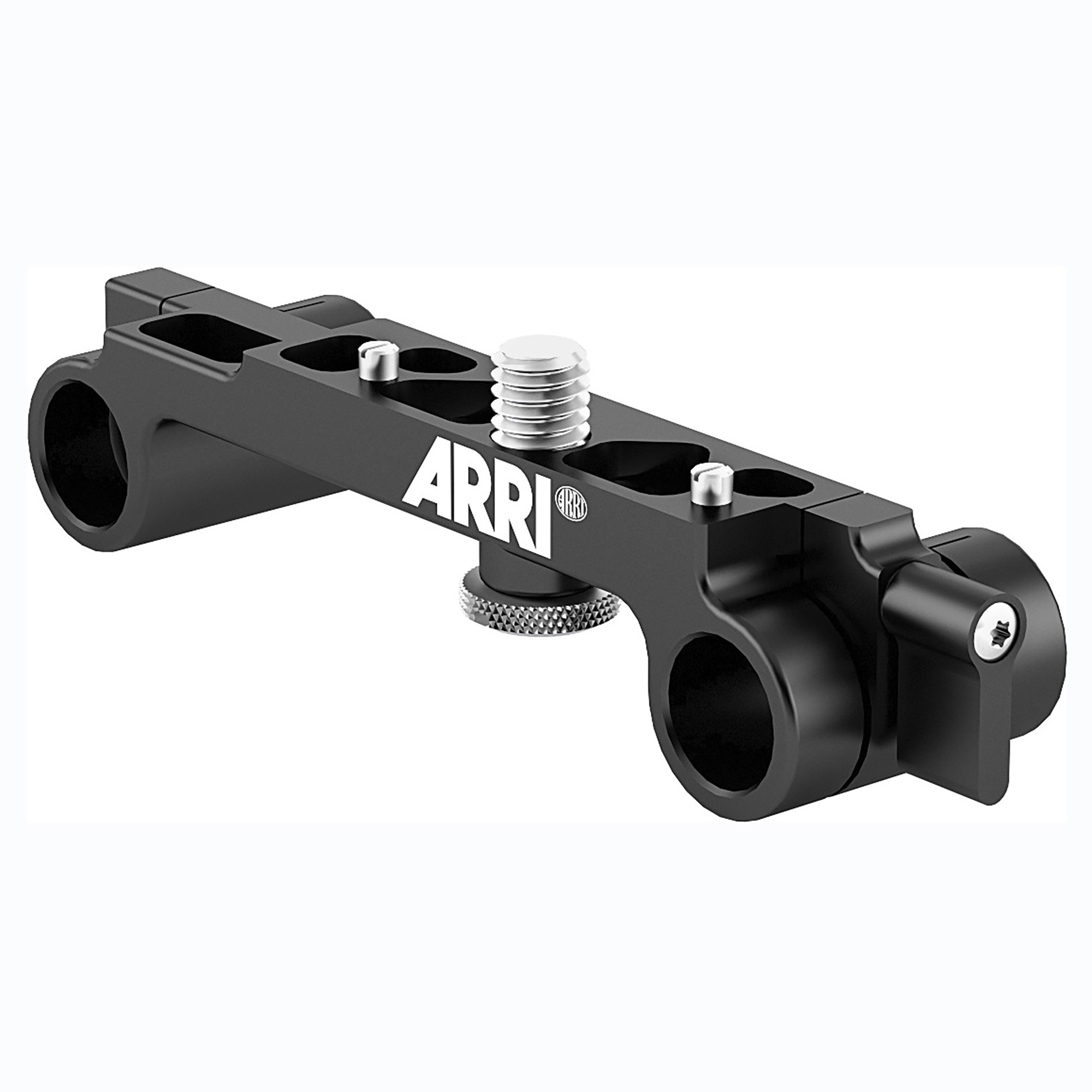

Works with ARRI standard R1 rings when either the LMB 15mm or 19mm Studio Rod Adapter is attached at the bottom of the LMB 6x6 Clamp Adapter 165mm.Compatible with LMB 6x6 and LMB-6.

For LMB 6x6 and LMB-6.

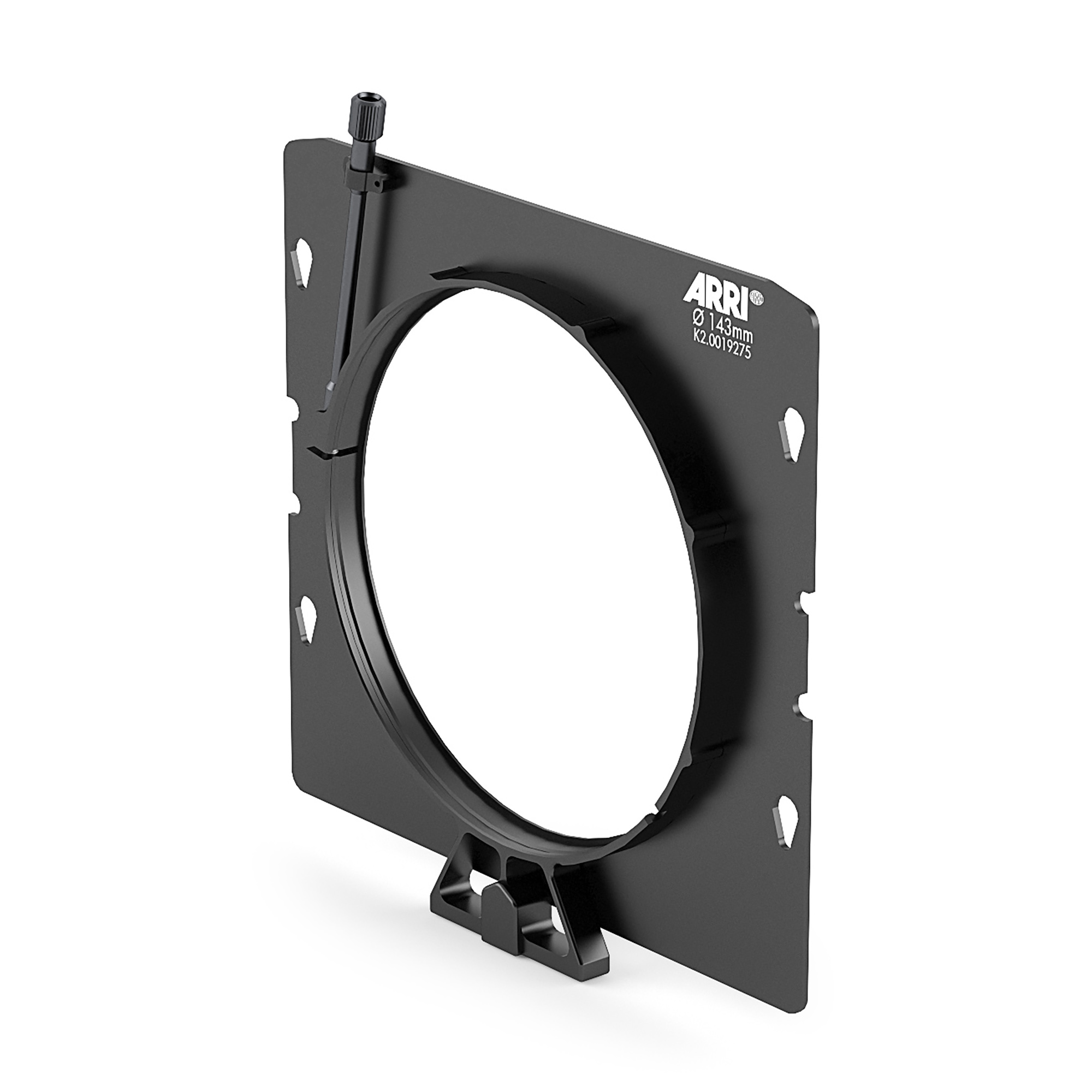

Works with ARRI standard R2 rings when either the LMB 15mm or 19mm Studio Rod Adapter is attached at the bottom of the LMB 6x6 Clamp Adapter 143 mm. Compatible with LMB 6x6 and LMB-6.

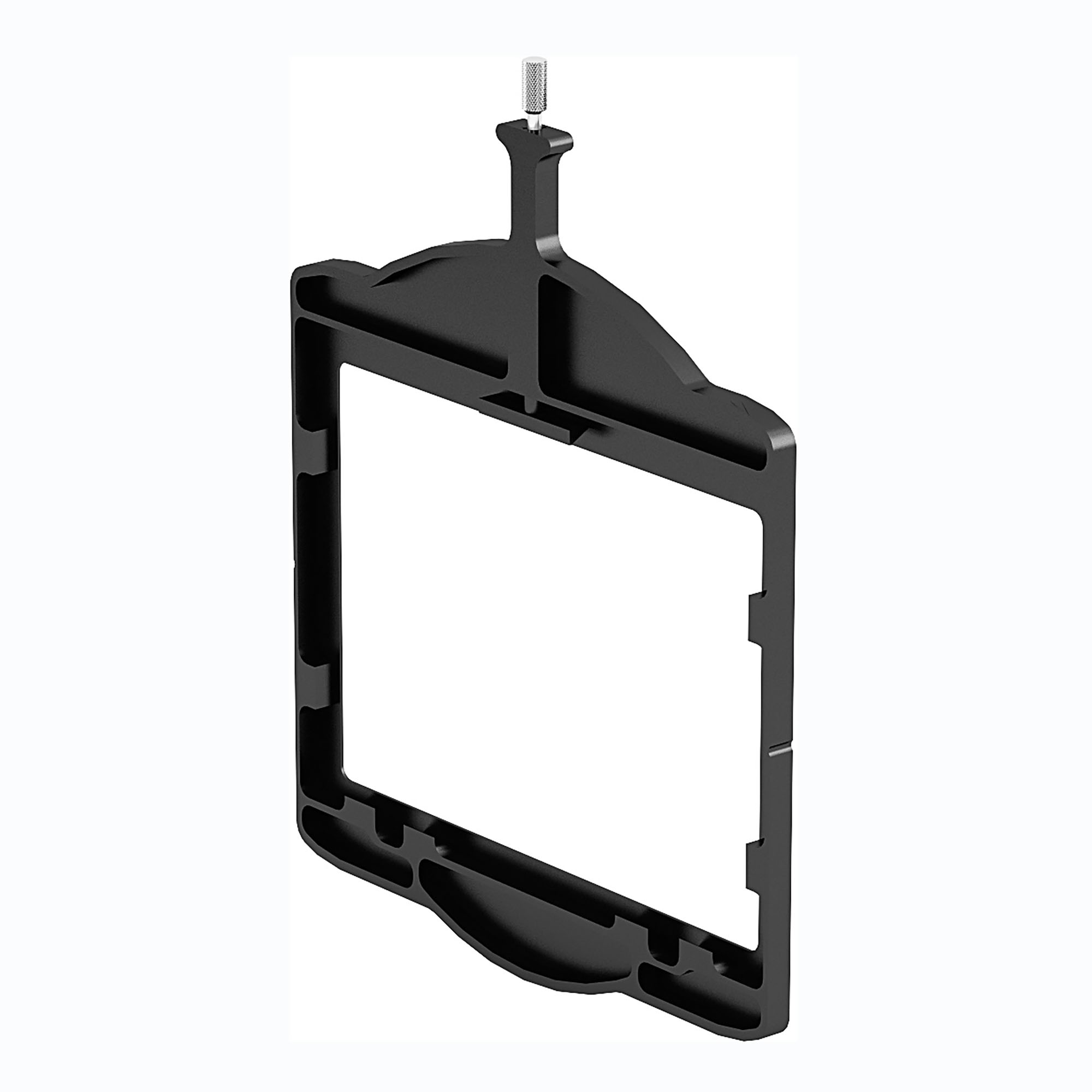

For MB-20 16x9 Wide only.

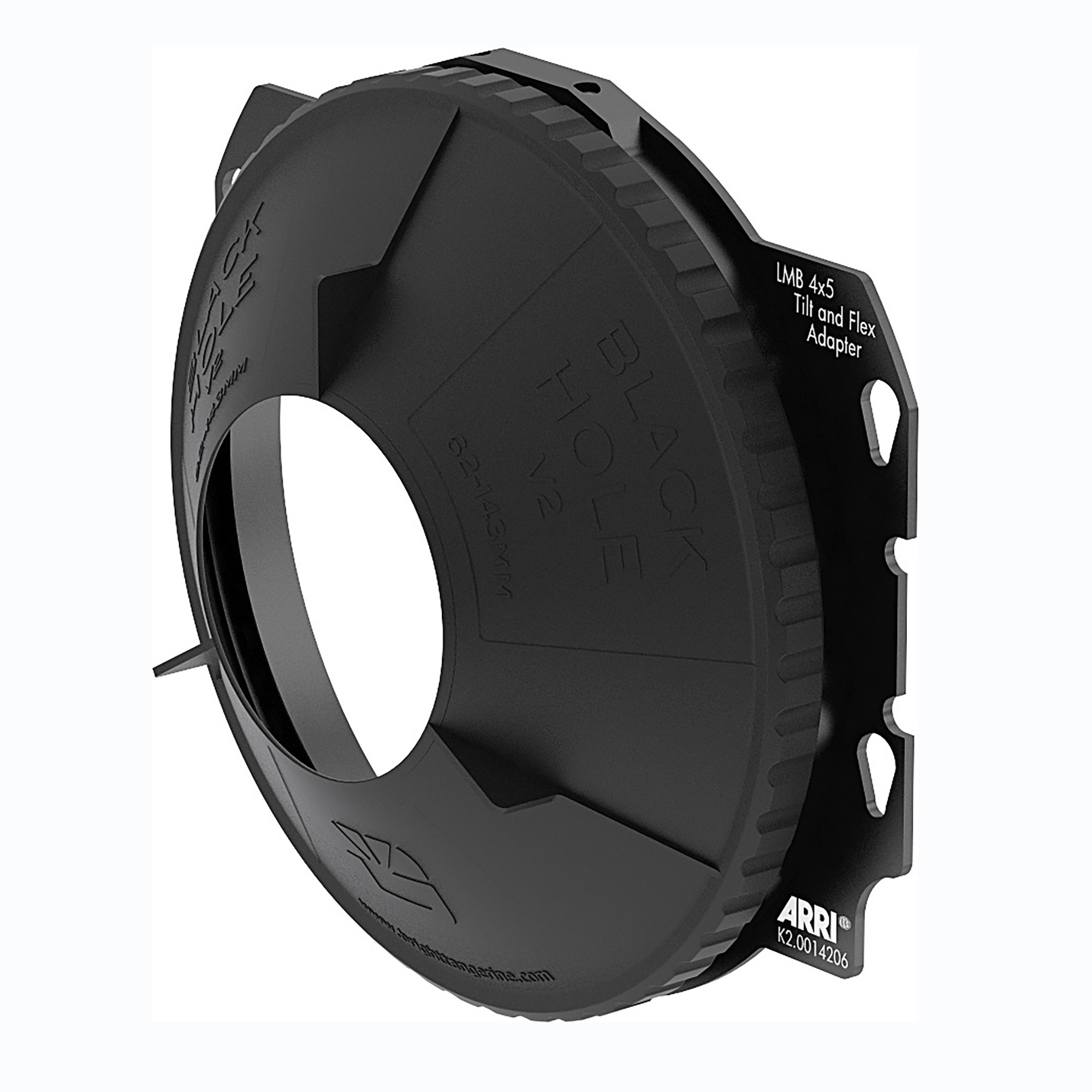

A flexible rubber donut adapter to use with lenses from small to large diameters (62-143mm), for use with LMB 4x5 swing-away tilt module or with lenses where lens elements are extending. The LMB 4x5 15 mm LWS console can be mounted either on top or at the bottom. Compatible with LMB-25, LMB-5, LMB-15.

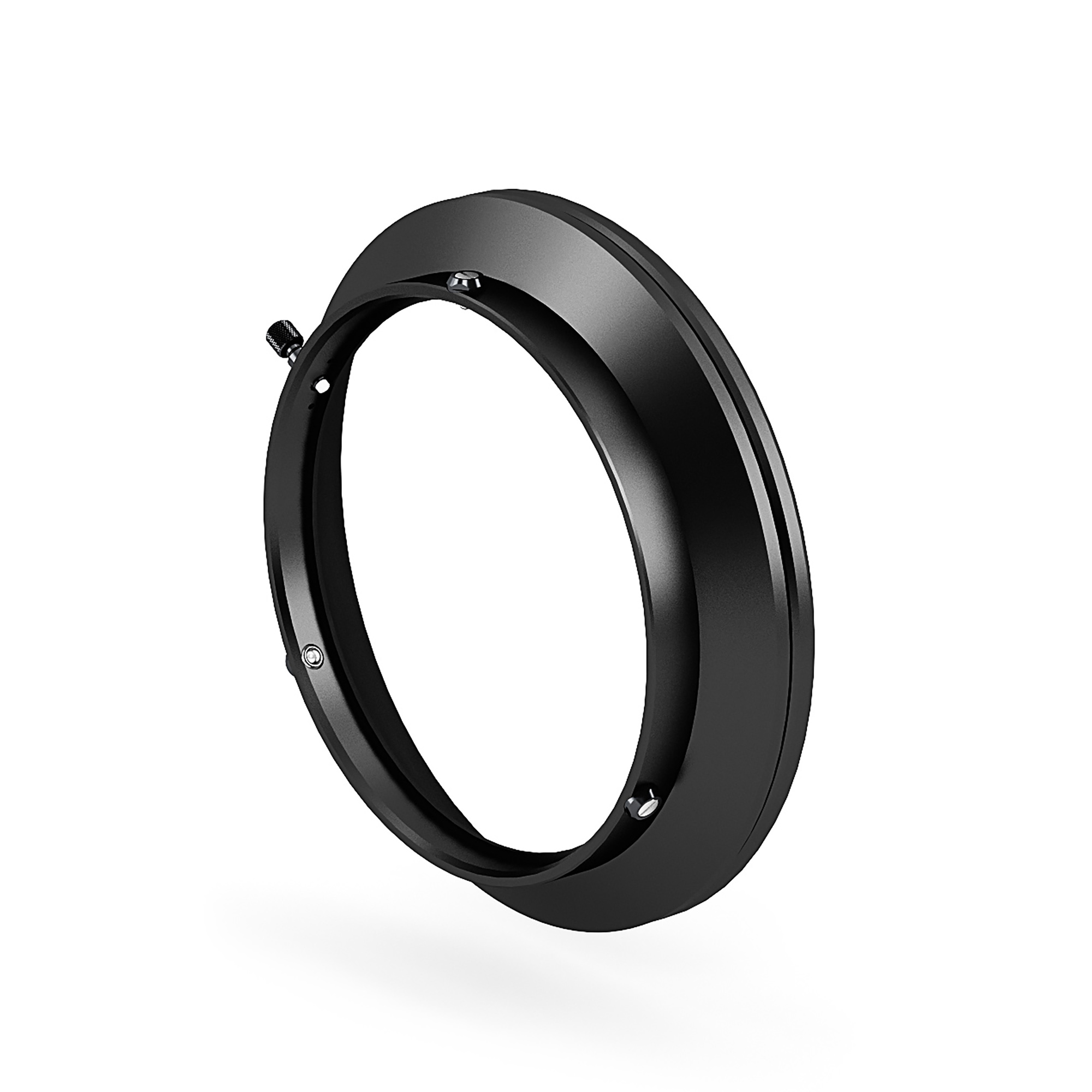

Snaps into size R1 mount and allows use of size R3 rings.

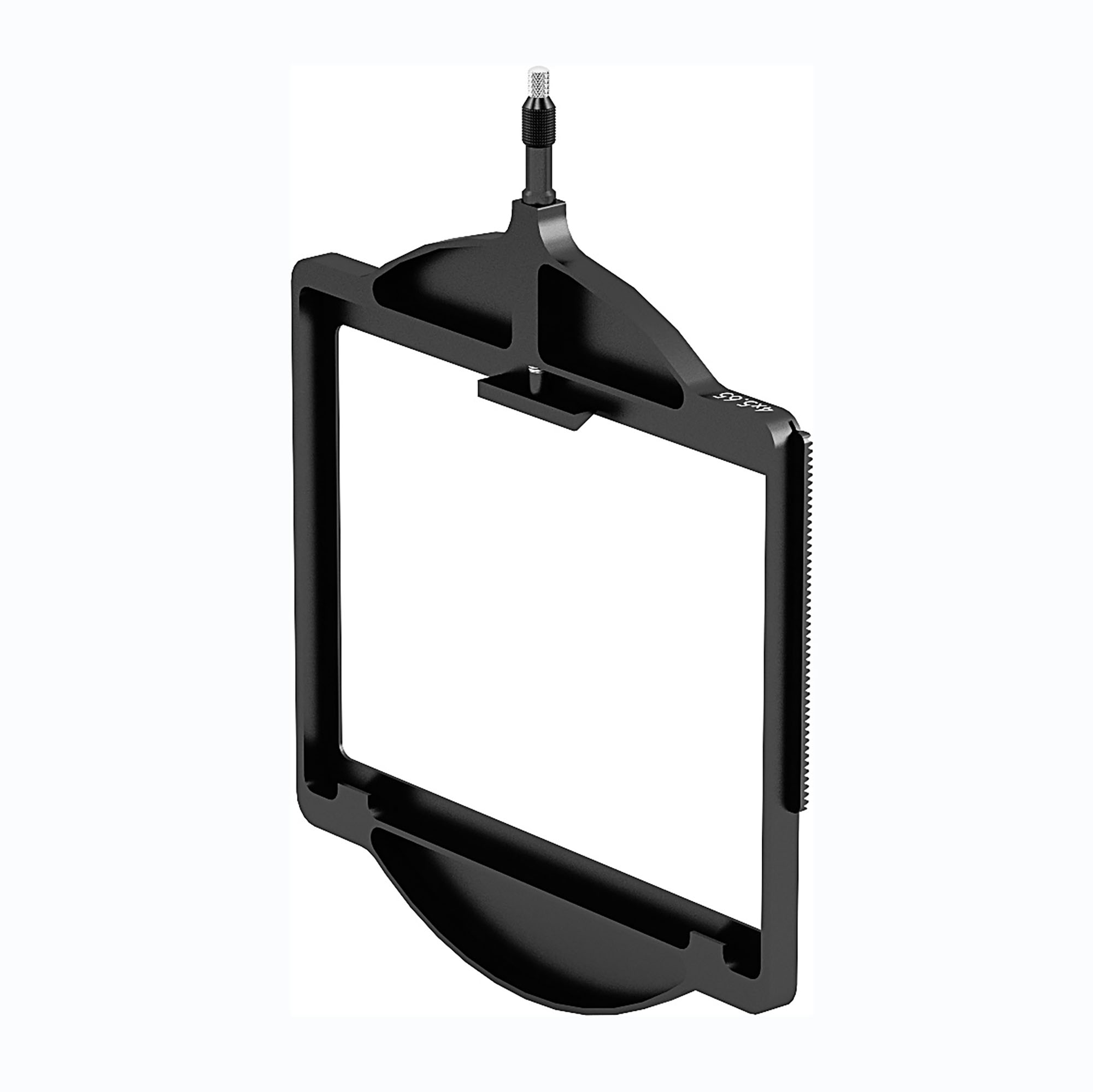

Compatible with MB-20 and MB-28.With cutouts to center 4x4 filter (4x5.65 filter orients horizontally when inserted from above).

Compatible with SMB-1.

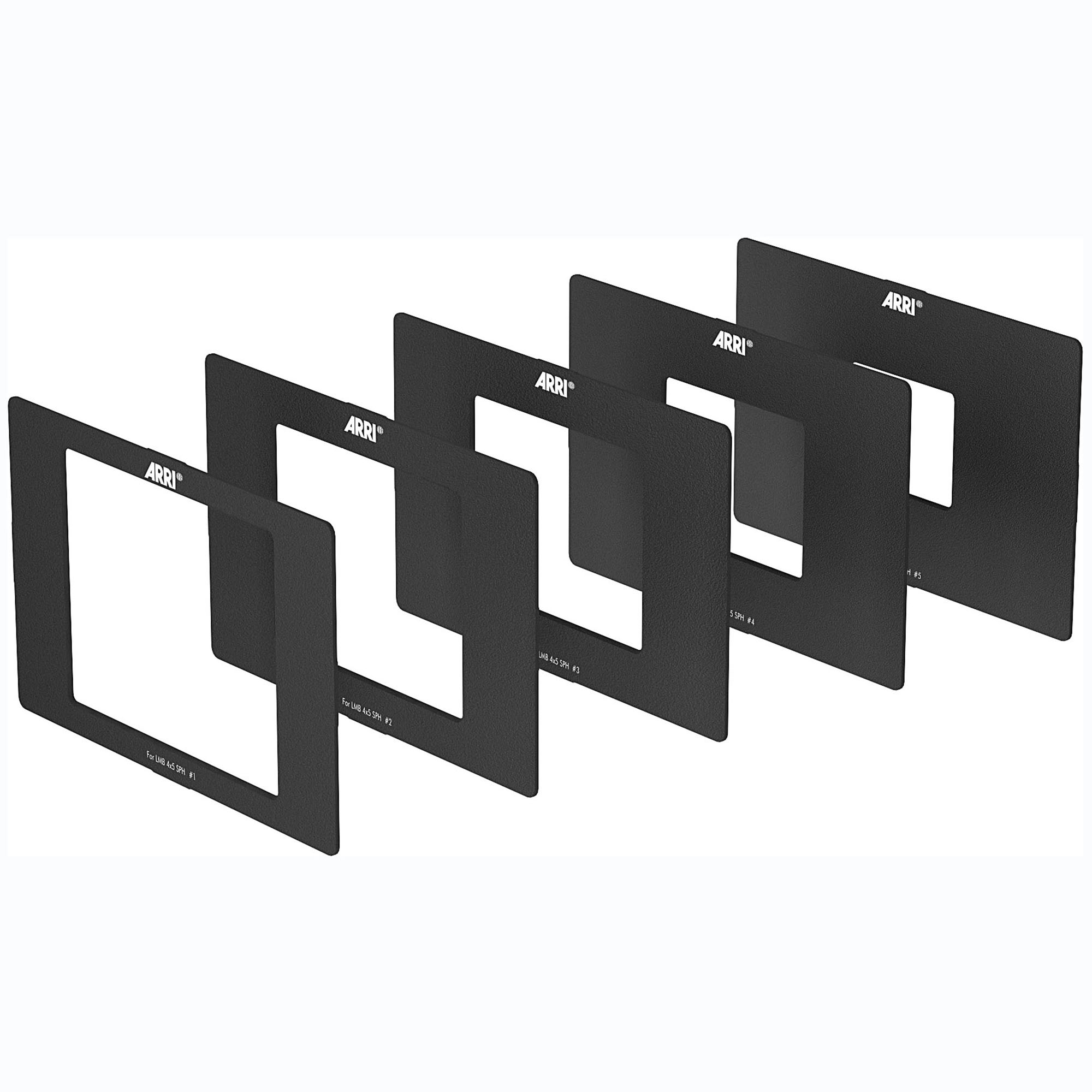

This set of Mattes includes 5 Mattes and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.

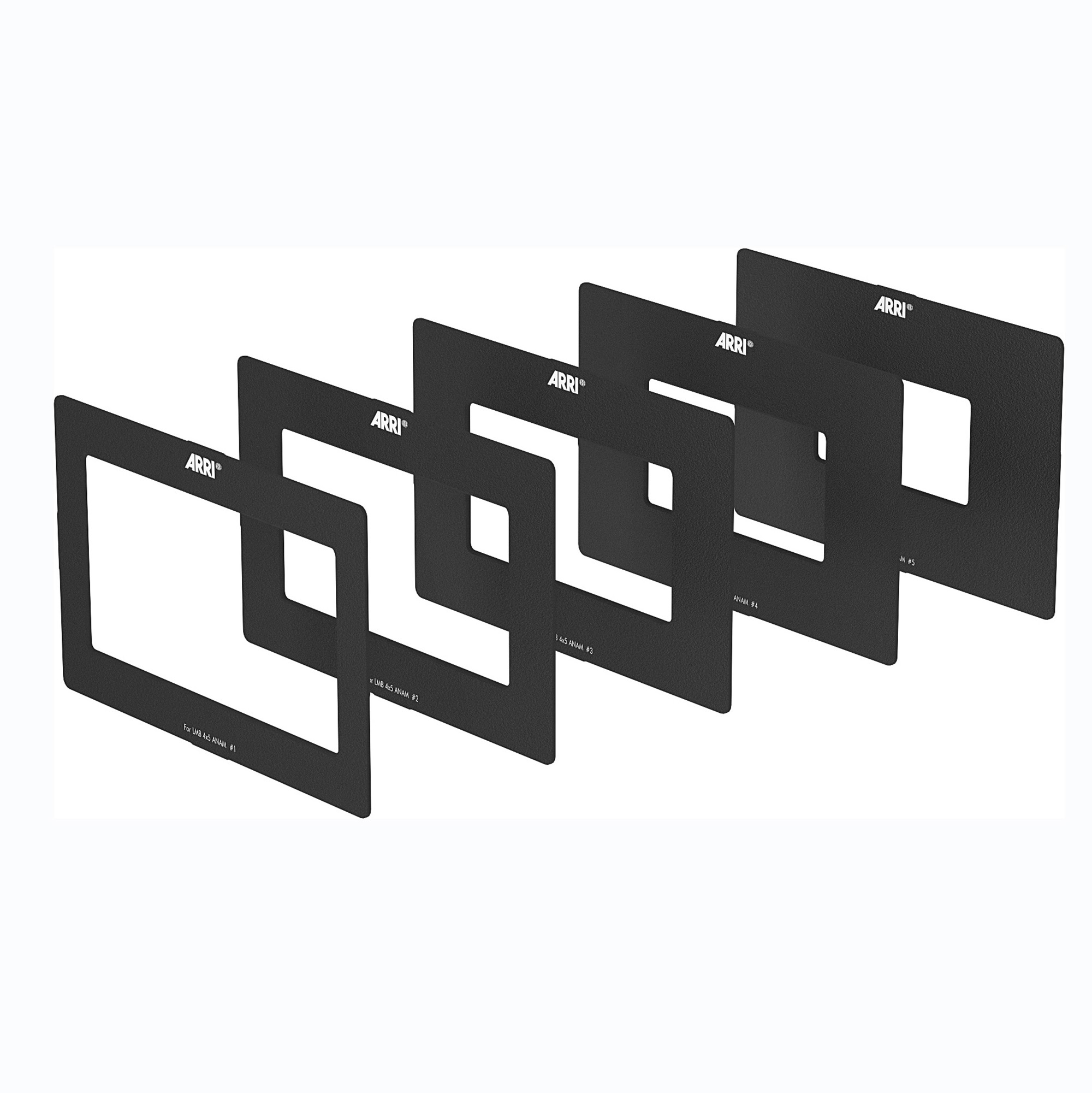

This set of Mattes includes 5 anam. Mattes and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.

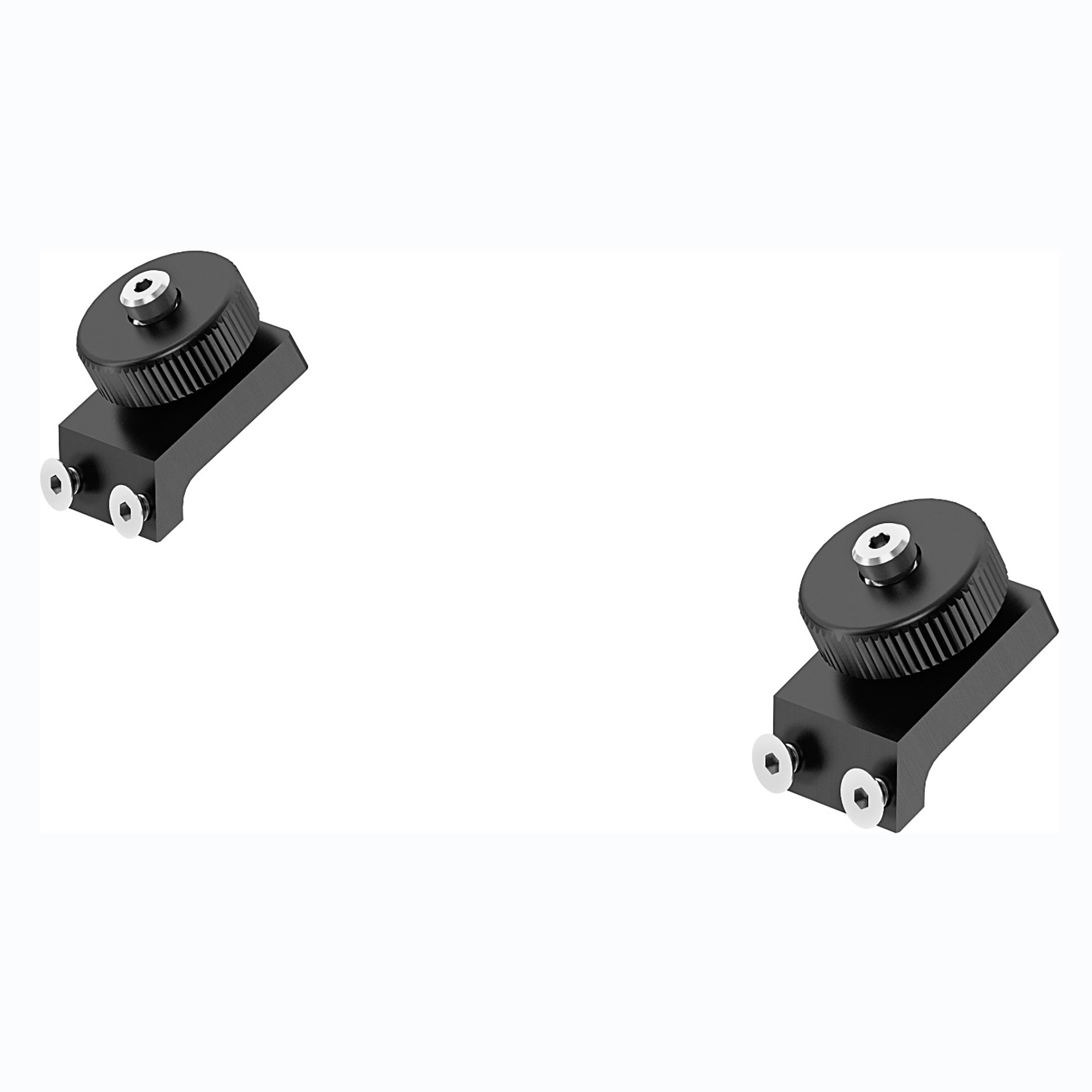

A pair of flag holders that can be mounted on the top, bottom, or sides of the LMB 4x5 and LMB 6x6. Also compatible with LMB-25 and LMB-6 (top).

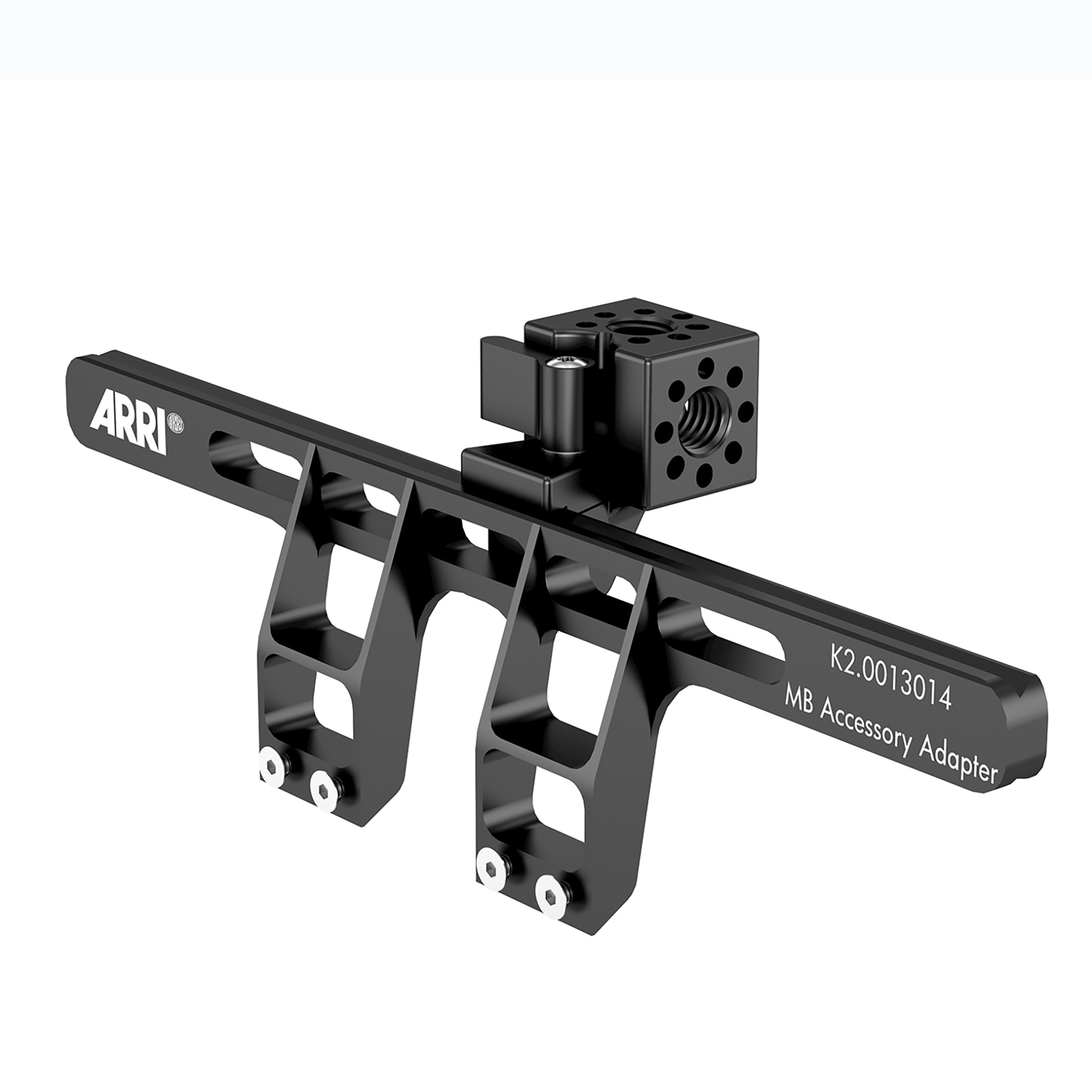

For 3/8 inch accessories such as ultrasonic devices-compatible with LMB 4x5 / LMB 6x6 / LMB-25 / LMB-6 with the additional sliding possibility for a perfect positioning.

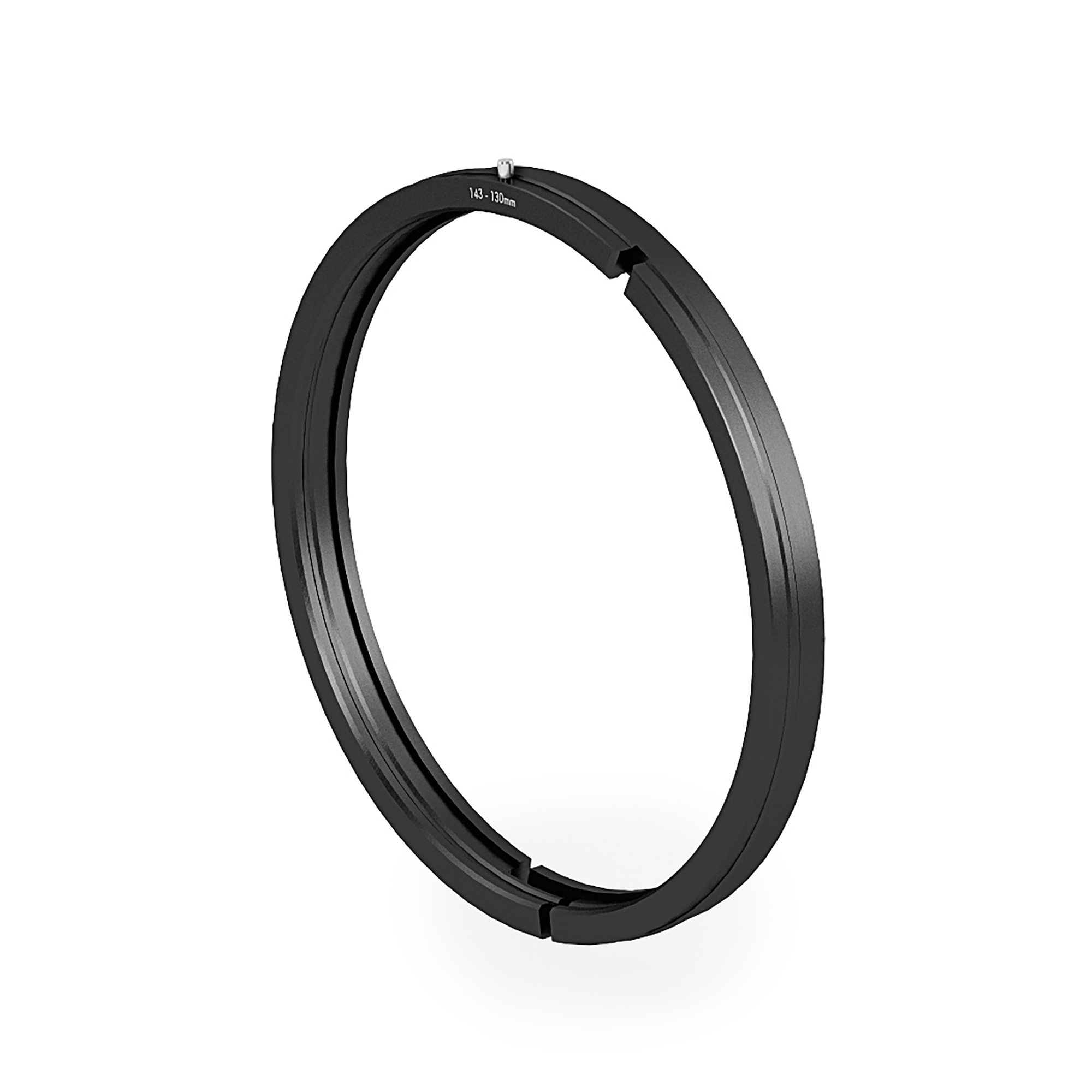

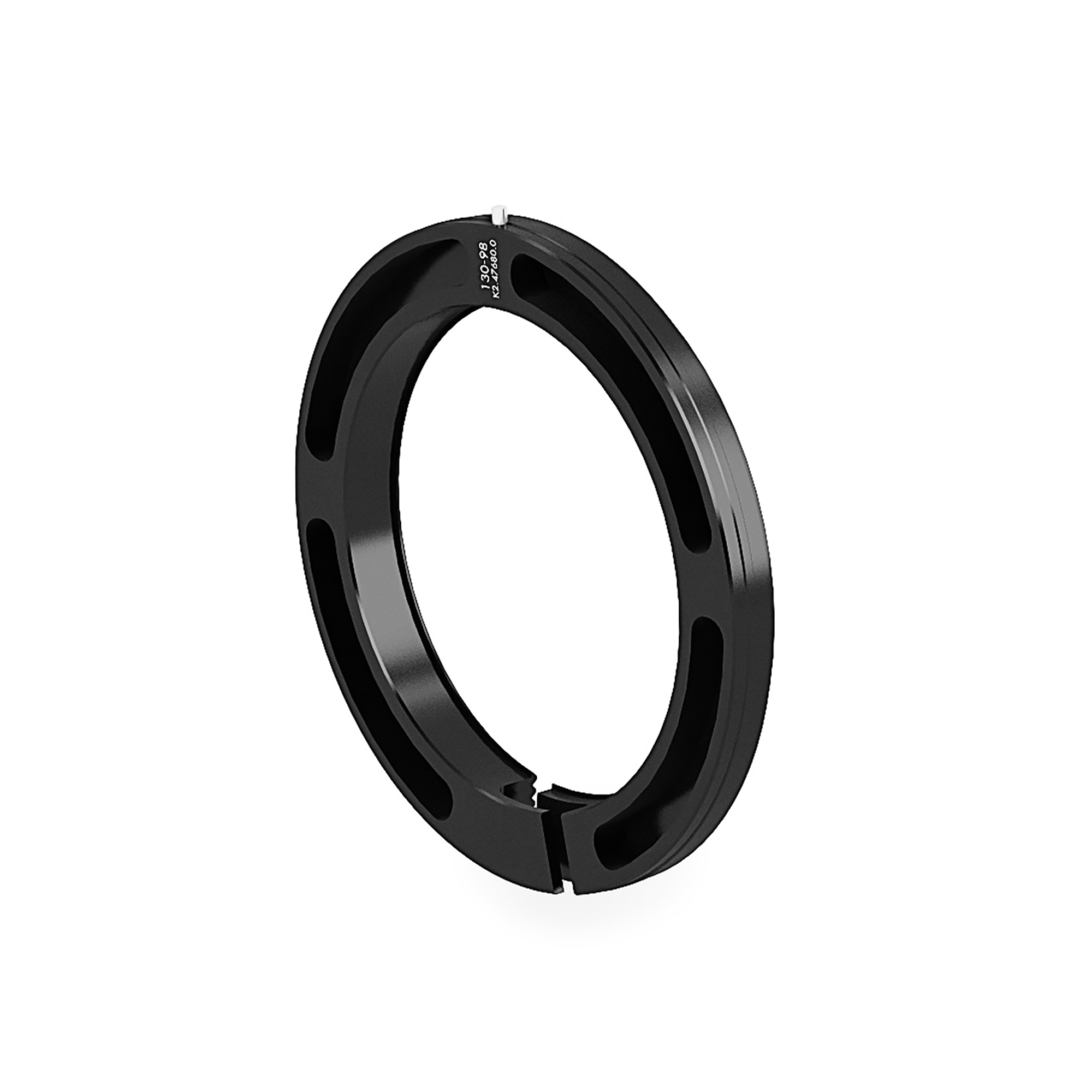

step down to R7 clamp-on Rings 130 mm possible

Compatible with MMB-2.

To use with R2 rings in combination with the LMB 4x5 15 mm LWS console or with R11 clamp-on rings (143 mm to…mm). The LMB 4x5 15 mm LWS console can be mounted either on top or at the bottom – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Vario Sonnar and Cooke Mini S4/i lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Canon Zoom 14.5-60 mm, 30-300 mm, Angenieux 25-250 mm – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For ALURA Studio Zooms 18-80 mm, 45-250 mm and Fujinon Premier zoom lenses - compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Zeiss Standard and HS (Super Speed) lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Hawk 60-135 mm, Cooke S4/i 150 mm – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Master Primes, Master Anamorphics, UP 14 mm, UP 180 mm, LDS-UP 14 mm, LDS-UP 180 mm, ALURA Lightweight Zooms, and many other zoom and prime lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For Cooke S4 lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

For LDS Ultra Prime 16-135 mm, Cine Xenar III – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.
