Electronic Control System - Accessories
Two stand-alone Wireless Video Receivers (WVR-1) that receive the signal from the integrated video transmitter of the ALEXA LF, ALEXA SXT W or the stand-alone Wireless Video Transmitter (WVT-1). The housing is spray and dust proof aluminum with built-in collars for antenna and BNC connectors and offers several mounting options. WVR-1 includes an external power out connector that makes powering external accessories, like monitors, possible.Includes:K2.0014053 2x Wireless Video Receiver WVR-1 deviceK2.0015006 1x Wireless Video System CaseK2.0014568 10x Antenna Video/WiFi/ECSK2.0014323 2x Multi Interface Adapter MIA-1K2.0014216 1x USB Cable WVSK2.0014774 2x Receiver Power Supply RPS-1Note: Battery Adapter Plates for WVR-1 are not included and can be ordered separately.
5 OLED Monitor with touch functionality, integrated H.264 recorder and integrated wireless video receiver radio.Includes:1x Transvideo Starlite ARRI-WVS1x Protective case1x Sunhood1x AC power supply1x SDI cableNote:This device is only compatible with ARRI-WVS transmitters as used in the ALEXA LF, ALEXA SXT W and in the Wireless Video Transmitter WVT-1.
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits two monitors up to 9in screen diagonals with threaded 1/4in interfaces top and bottom, such as TV Logic.Set includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014829 2x Adjustable Monitor Mount AMM-1K2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most Transvideo Monitors fitted with proprietary interface.Set includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014831 2x Monitor Adapter for TransvideoK2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most SmallHD Monitors fitted with proprietary interfaceSet Includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014832 2x Monitor Adapter for Small HDK2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
The General Purpose IO Box GPB-1 is a break-out box that works with ALEXA Mini, ALEXA Mini LF and AMIRA. It allows users to build custom button interfaces and electronic controls. The box can be connected to the camera EXT port which it also replicates. It provides protected input channels that can be flexibly mapped to various functions. Possible functions include the activation of the SDI Overlay Menu, replication of the ALEXA Mini camera buttons, ND filter or EI changes, Record Start/Stop and Stop motion trigger.Includes:K2.0007736 1x Cable ALEXA Mini/AMIRA EXT to GPB-1Instruction Manual, 37-pin SUB-D male connector.
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most SmallHD Monitors fitted with proprietary interfaceSet includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 1x Rod Mounting Bracket RMB-5K2.0014832 1x Monitor Adapter for Small HDK2.0014954 1x Single Support Rod 340mm/13.4in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
Connects Universal Motor Controller UMC-4 to Panaflex Millennium film camera. Provides camera record start/stop function and tally. Length: 0.4 m/1.3ft
Offset rod extension for tight spaces and small builds. Fits 19mm or 15mm support rods.
Set of 10 imperial smart focus rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0040121 1x Smart Focus Ring 1ftK2.0040122 1x Smart Focus Ring 1ft3K2.0040123 1x Smart Focus Ring 1ft8K2.0040280 1x Smart Focus Ring 2ftK2.0040124 1x Smart Focus Ring 2ft6K2.0040125 1x Smart Focus Ring 3ft6K2.0040126 1x Smart Focus Ring 5ftK2.0040127 1x Smart Focus Ring 6ft6K2.0040120 1x Smart Focus Ring 9inK2.0040128 1x Smart Focus Ring 10ft
Set of 10 metric smart focus rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0040110 1x Smart Focus Ring 0.20mK2.0040111 1x Smart Focus Ring 0.25mK2.0040112 1x Smart Focus Ring 0.30mK2.0040113 1x Smart Focus Ring 0.35mK2.0040114 1x Smart Focus Ring 0.50mK2.0040115 1x Smart Focus Ring 0.75mK2.0040116 1x Smart Focus Ring 1.00mK2.0040117 1x Smart Focus Ring 1.50mK2.0040118 1x Smart Focus Ring 2.00mK2.0040119 1x Smart Focus Ring 3.00m
Extends the Ethernet Remote Cable KC 157 (K2.72040.0) or Ethernet Remote Cable KC 158 (K2.72041.0). Three KC 159-S (15m) plus one Remote Cable can be combined for a maximum total length of 47 m (154 feet) or 46 m (151 feet).
Connects Universal Motor Controller CAM connector to the EXT connector on the ALEXA family of cameras. Provides camera RUN/STOP function, tally and camera status information on WCU-4. Enables WCU-4 ALEXA Remote License for ALEXA cameras without the Plus module.
Monitor bracket for Hi-5 Nato-rail. For tool-less mounting of monitors with 1/4 thread, with or without anti-twist locating pins. Includes 160° tilt-mechanism and ARRI 3/8-16 thread.
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to LANC connectors (e.g. Canon C300 / C500, Sony PXW-FX9 / PXW-FS7) and D-Tap power source. Provides camera RUN/STOP function and tally on ARRI and cmotion cPRO hand units. Length: 0.6m/2ft
Connects LCUBE CUB-2 to the 12 pin Hirose lens connector on the AMIRA/ALEXA Mini PL LDS Lens Mount, the B4 Lens Mount, and third party cameras. Enables camera auto-iris function while using Master Grips for focus and zoom. Supports analog iris control signals from ENG/EFP cameras. The cable can also be used to connect the 12-pin Hirose to the K2.0051099 LLA-1 Control Module. Length:0.3m/1ft.
Rod clamp designed for reliable and user-friendly mounting of lens motors on 19 mm support rods. Its toolless design enables fast and straightforward mounting, allowing quick motor installation and precise positioning. The two-part construction provides enhanced flexibility and stability, allowing tilt adjustments of up to 200° for optimal motor alignment. The clamping lever securing the clamp to the lens motor via the dovetail interface can be rotated by 180°, allowing tightening from either the left or right side depending on available space. This ensures accessibility even in tight setups with multiple motors mounted closely side by side. A hinged rod clamp with thumbscrew ensures secure fixation, while the integrated ARRI Multi-HEX interface (HEX 4, 5, or 5/32”) provides the option for additional tightening with an Allen key if required. Two split reduction bushings additionally allow use with 15 mm support rods, providing flexibility across different rod standards. Compatible with ARRI's cforce MAX, cforce mini, cforce mini RF, CLM-5, Operator Control Unit OCU-1 and cmotion's cPro motor
Special clamp console for use with film cameras and short lenses in the area of the camera mirror shutter. With integrated dovetail slide includes magnetic inserts for use with 15 mm support rods. Also fits to CLM-4 motor unit.
Connects LBUS devices (e.g. Master Grips). Includes two angled LBUS connectors. Length: 0.8m/2.6ft

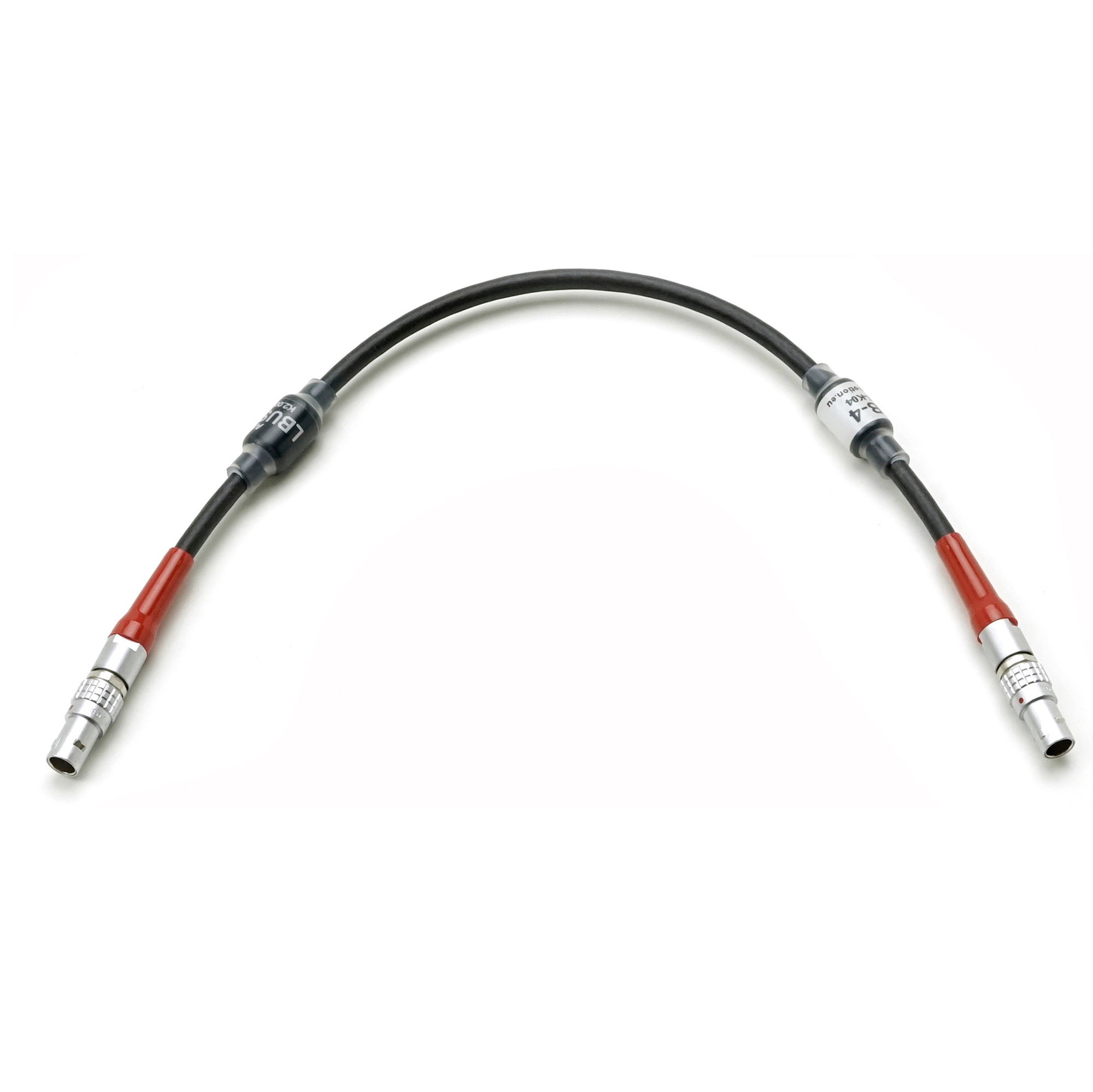

Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Lenghth. (0.3m/1ft)
Rod clamp designed for reliable and user-friendly mounting of lens motors on 15 mm support rods. Its toolless design enables fast and straightforward mounting, allowing quick motor installation and precise positioning. The two-part construction provides enhanced flexibility and stability, allowing tilt adjustments of up to 200° for optimal motor alignment. The clamping lever securing the clamp to the lens motor via the dovetail interface can be rotated by 180°, allowing tightening from either the left or right side depending on available space. This ensures accessibility even in tight setups with multiple motors mounted closely side by side. A hinged rod clamp with thumbscrew ensures secure fixation, while the integrated ARRI Multi-HEX interface (HEX 4, 5, or 5/32”) provides the option for additional tightening with an Allen key if required. Compatible with ARRI's cforce MAX, cforce mini, cforce mini RF, CLM-5, Operator Control Unit OCU-1 and cmotion's cPro motor.
Connects AMIRA, ALEXA Mini and ALEXA Mini LF EXT to LBUS devices (e.g. Master Grips). Includes one angled LBUS connector. Length: 0.8m/2.6ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 1m/3.3ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.35m/1.1ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.80m/2.6ft
The Rosette Adapter RA-8 allows to attach the Operator Control Unit OCU-1 to the ZMU-4 to wirelessly control a second lens axis.
Connects Universal Motor Controller UMC-4 to RED Weapon. Provides camera RUN/STOP function and tally. Length: 2x 0.5m/1.6ftNote: Do not use with RED DSMC2 BASE EXPANDER and RED EPIC!
Compatible with ARRI's CLM-5, cforce mini, cforce mini RF, Operator Control Unit OCU-1 and cmotion's cPro motor.Includes:
Connects ARRI Radio Interface Adapter RIA-1, ARRI cforce mini RF, cmotion cPRO motor and cmotion camin to Sony Remote connector on Sony F5/F55/Venice cameras and to D-Tap power source. Supports camera REC start/stop function and tally. Also supports camera status and camera control on ARRI’s Hi-5 hand unit and cmotion cPRO hand unit (license required). Length: 0.8m/2.6ft.
Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is used close to the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).
Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is mounted on the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).
25 mm wide gear for moving lens barrels. Includes metal gear flange. Compatible with CLM-4, cforce plus and cforce mini motors.
Connects Universal Motor Controller CAM connector to Sony F65. Provides camera RUN/STOP function. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to the EXT connector of an ALEXA EV camera. Provides camera RUN/STOP function, tally and camera status information on ARRI and cmotion hand units. Length: 0,8m/2.6ft
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to 12 pin Hirose lens connectors. Requires separate power source. Length: 0.3m/1ft
Set of 5 smart iris rings for the Hi-5 hand unit.includes:K2.0047208 1x Smart Iris Ring T1.0-T22K2.0047209 1x Smart Iris Ring T1.4-T22K2.0047211 1x Smart Iris Ring T2.0-T22K2.0047212 1x Smart Iris Ring T2.8-T22K2.0047213 1x Smart Iris Ring T1.0-Close
The Rosette Adapter RA-7 allows to attach the ZMU-4 to a Handgrip Pan Bar Adapter or Handgrip Extension.
15 mm rod-to-rod adapter that attaches to CLM-4 and cforce plus motors.
Connects Universal Motor Controller UMC-4 to RED Epic. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ft Separate UMC-4 RS IN cable for power supply required. Works with:- DSMC REDVOLT Expander- DSMC JETPACK Expander- DSMC V-Lock I/O Expander- REDCAST Module
LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 1.2m/4ft.
LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 0.8m/2.6ft.

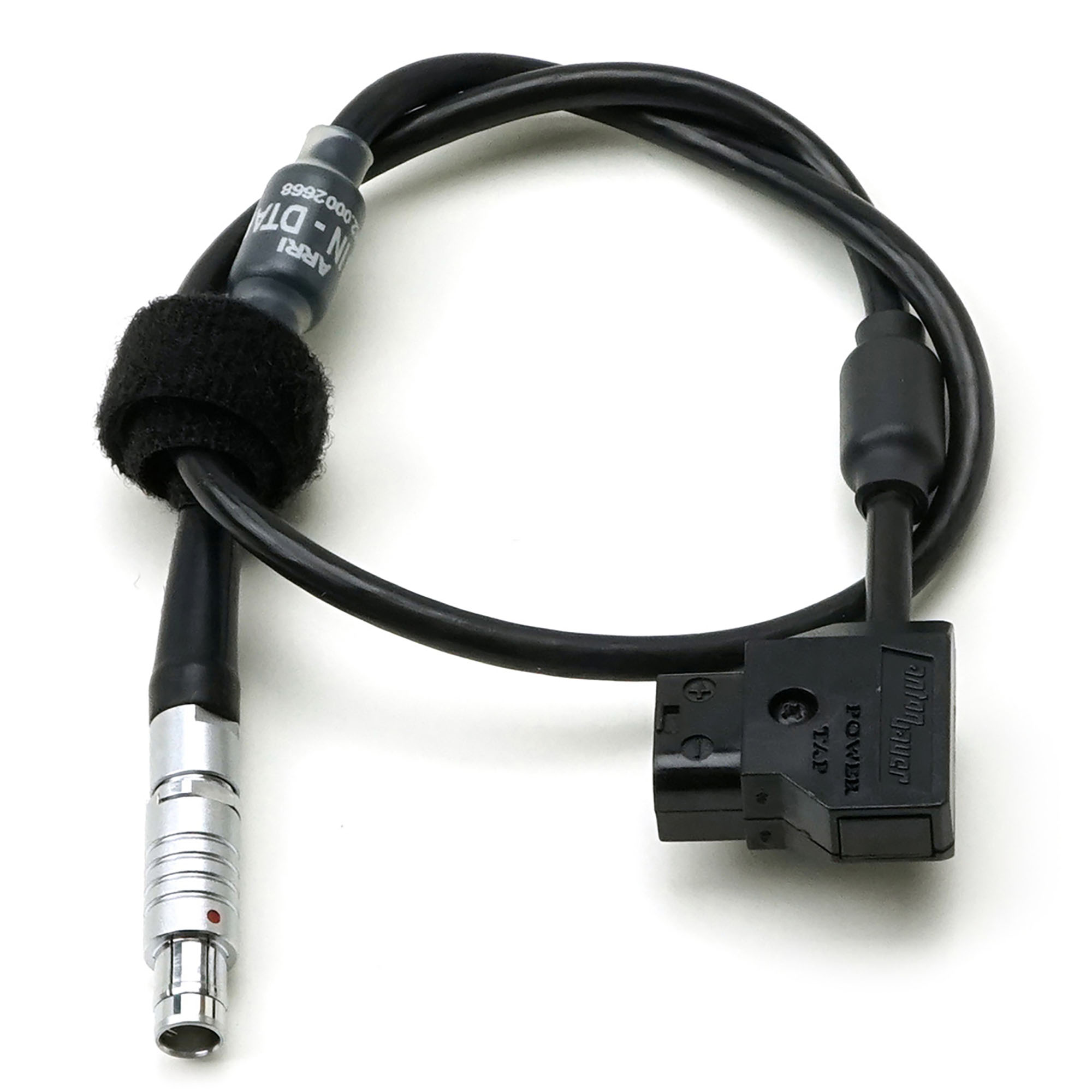

Connects ARRI cforce RF motor/cmotion cPRO motor and camin to D-Tap power source. Length: 0.5m/1.6ft
Connects ARRI hand units and motor controllers for wired operation.

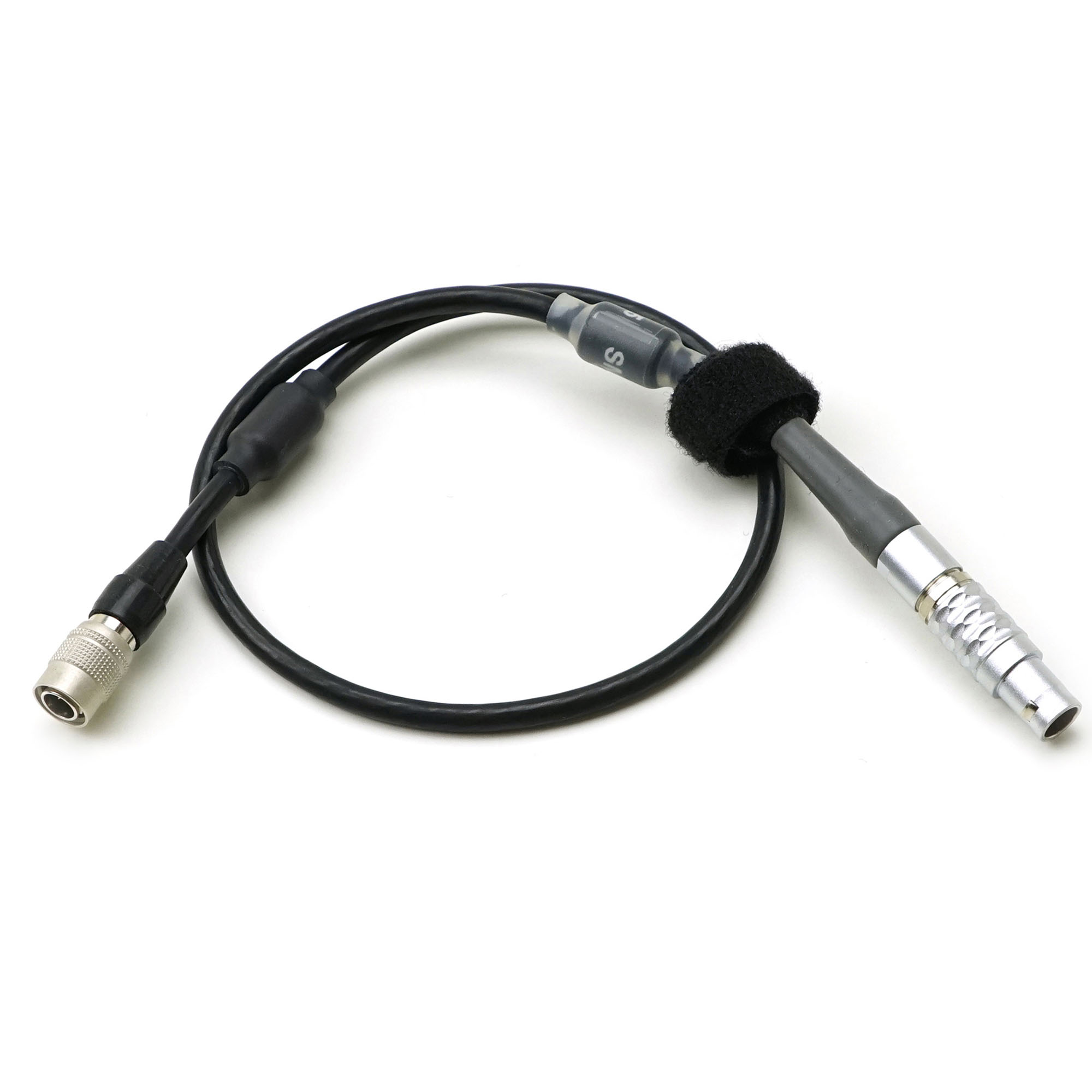

Connects Universal Motor Controller CAM connector to Sony F5/F55/Venice and Panasonic Varicam 35 cameras. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
For Panavision zoom.Compatible with CLM-5, cforce mini and cforce mini RF.
LBUS power cable to Fischer 3 pin (Le m4p, Fi m3p). Provides power but no RUN/STOP function. Length: 0.8m/2.6ft.
Connects Universal Motor Controller UMC-4 (from SUP 1.2) to cforce lens motors. This cable is also required to update firmware to cforce motors, Master Grips and LCUBE converters via WCU-4, UMC-4 and AMC-1. Length: 0.8m/2.6ft.Note: Requires motor power supply through the unused cforce motor LBUS connector (e.g. with K2.0006758 Cable LBUS to D-Tap).
Set of gear rings including one metal gear flange.
Set of 5 blank custom smart rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0037463 5x Custom Smart Ring
Cables for connecting the ARRI Hi-5/Hi-5 SX 4-pin SERIAL interface to compatible SmallHD monitors. Features a straight 4-pin connector and a 90° rear angled 5-pin connector for compact rigging.Compatible with SmallHD Cine 5 and Ultra 5, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056300 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled (0.35m/1.1ft)K2.0056301 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled(1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.

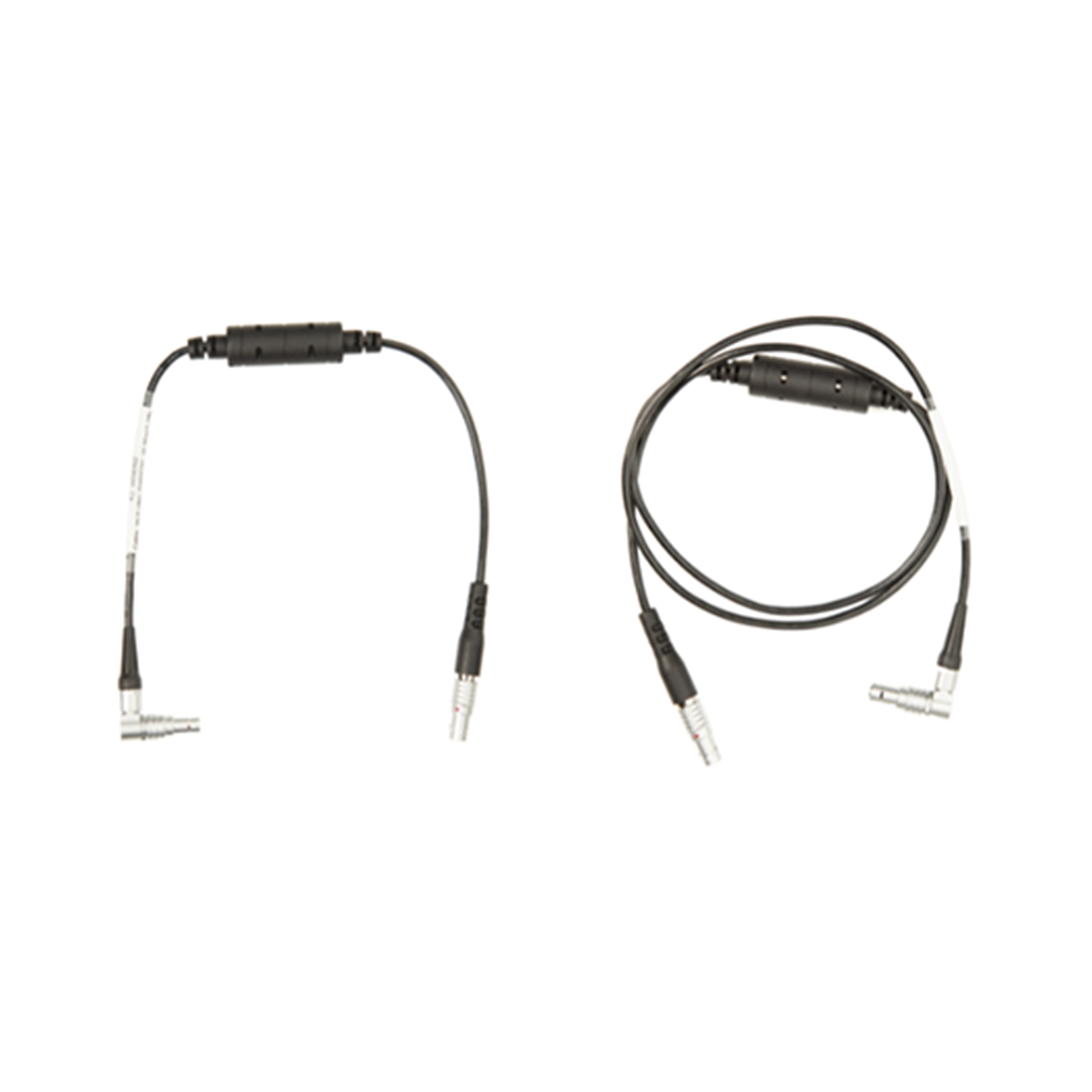

Cables for connecting the ARRI Hi-5/Hi-5 SX 4-pin SERIAL interface to compatible SmallHD monitors. Features a straight 4-pin connector and a 270° rear angled 5-pin connector for compact rigging.Compatible with ARRI CCM-1, SmallHD Cine 7, Ultra 7 and Ultra 10, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056302 1x Cable Hi-5 (4p) straight - SmallHD (5p) forward (270°) angled (0.35m/1.1ft)K2.0056303 1x Cable Hi-5 (4p) straight - SmallHD (5p) forward (270°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.

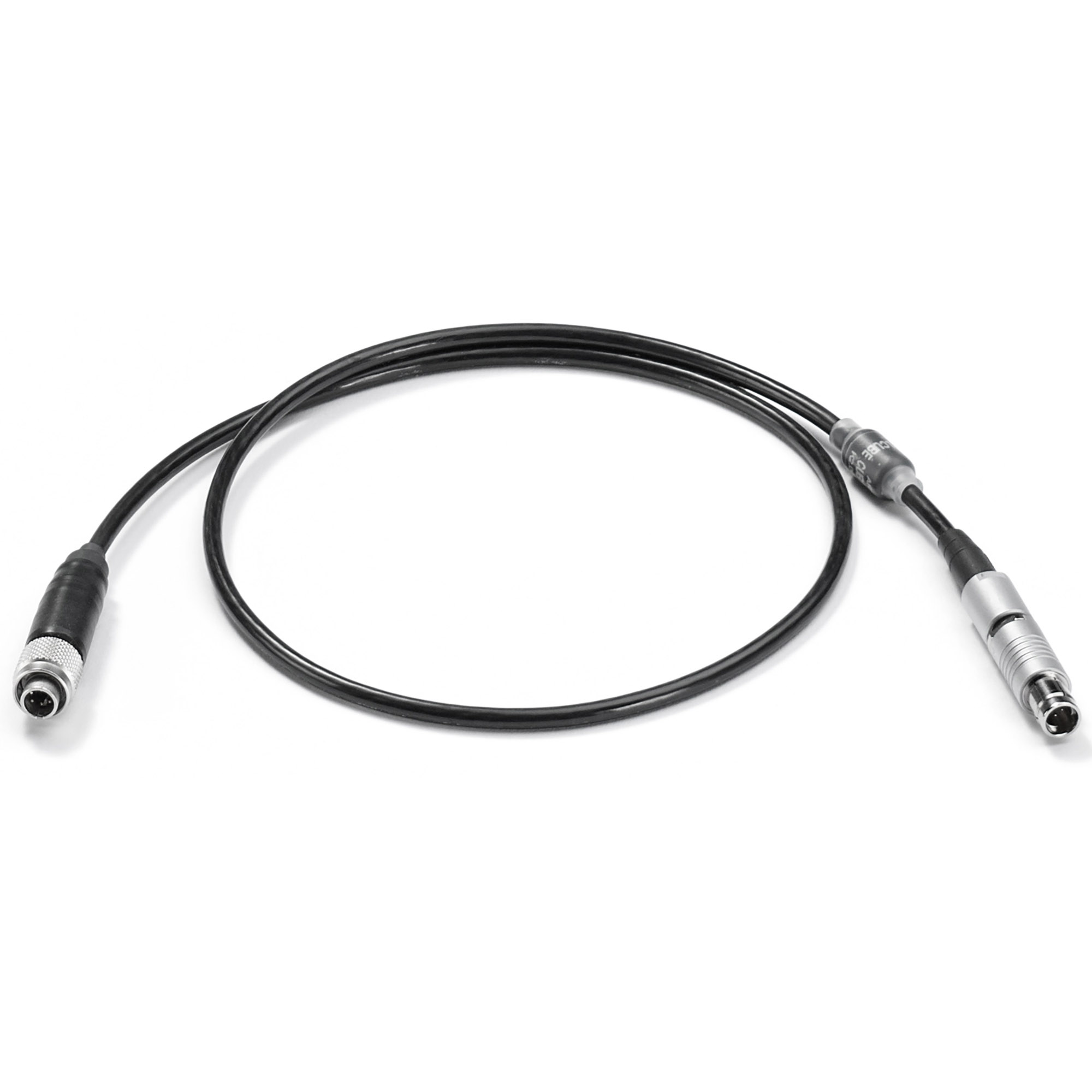

Connects LCUBE CUB-1 to Sony F5/F55/Venice cameras. Length: 0.4 m/1.3ft

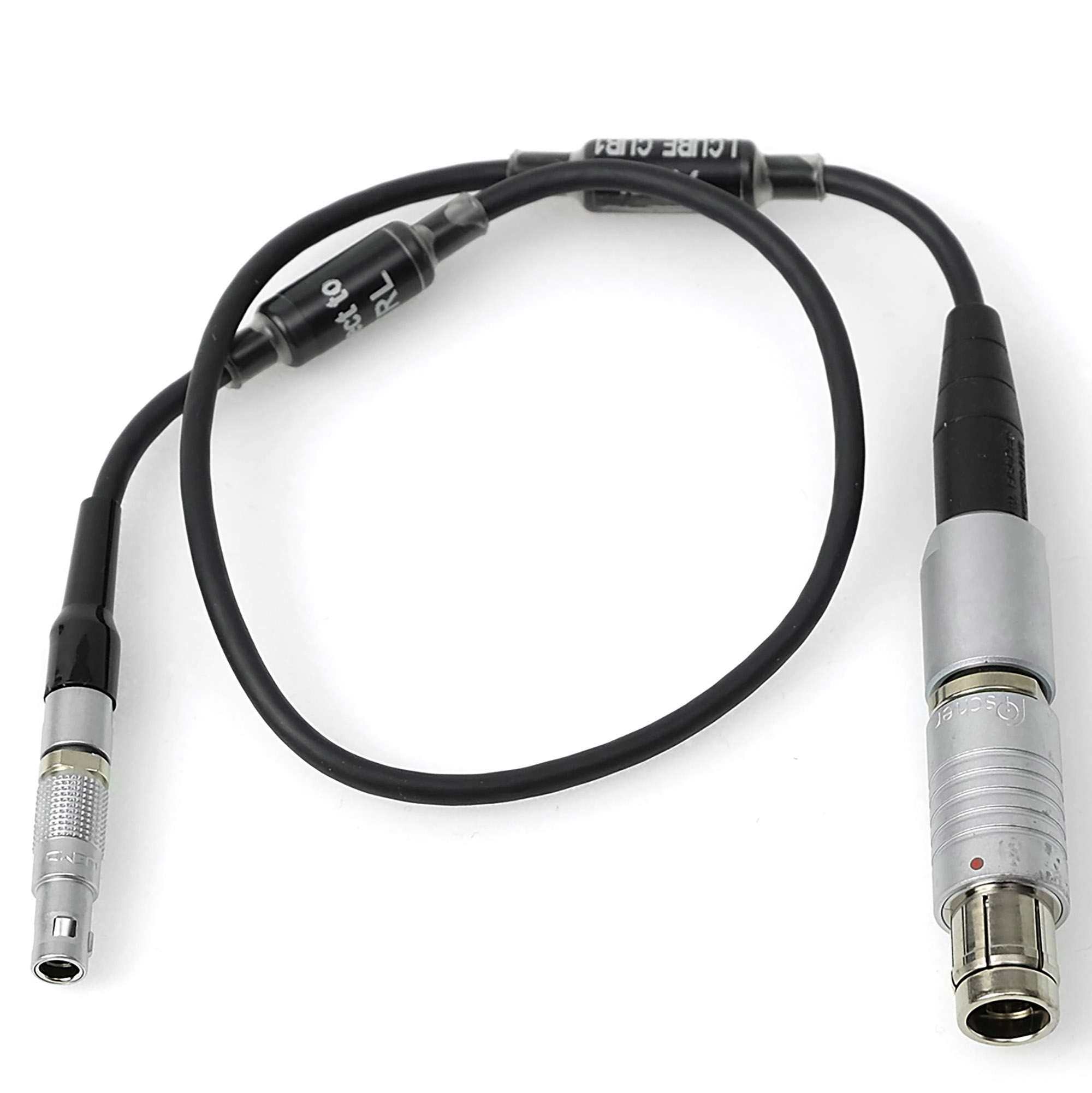

Connects LCUBE CUB-1 SERIAL to RED CTRL connector. Length: 0.4 m/1.3ft

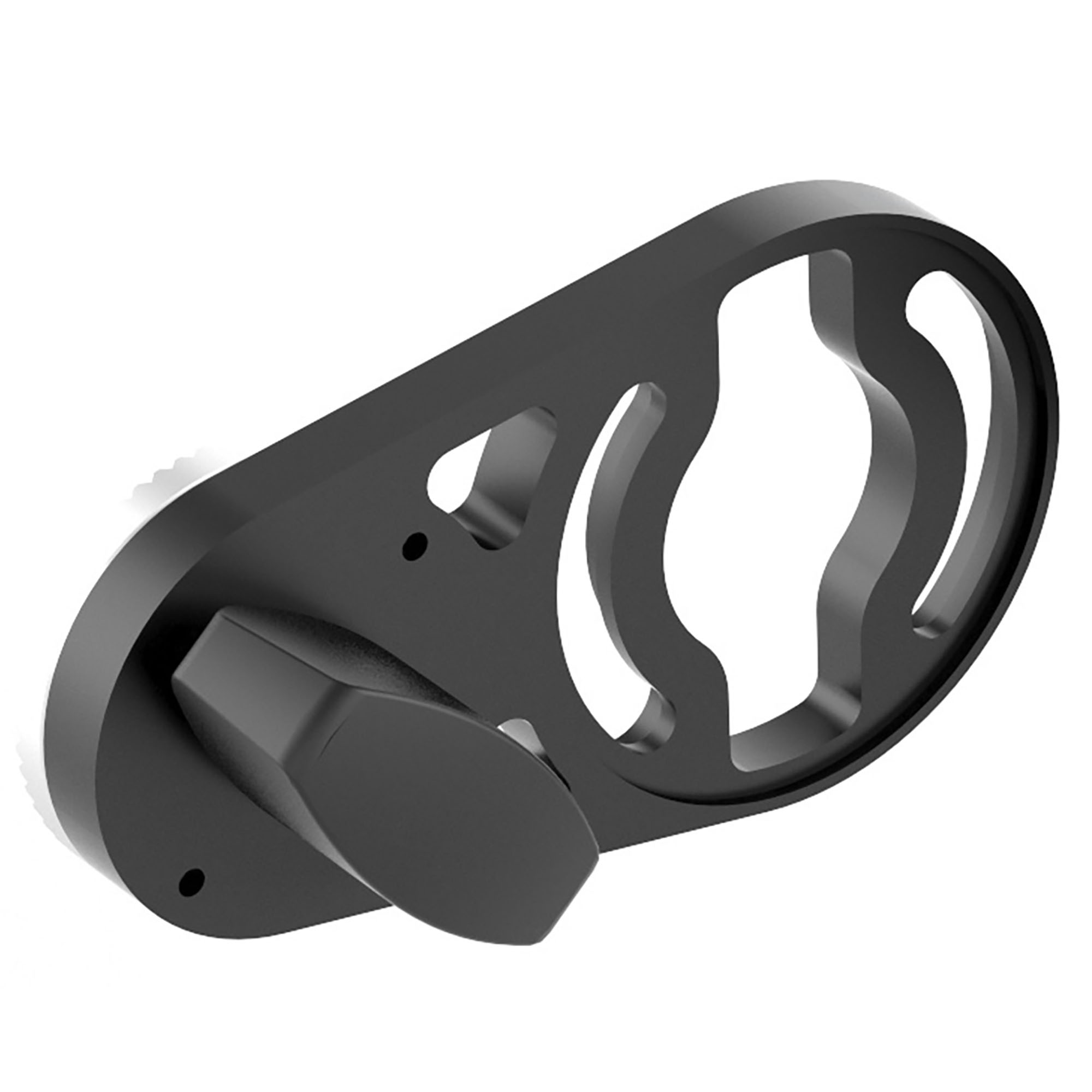

Compatible with Operator Control Unit OCU-1 (K2.0020002). Includes a ARRI rosette.

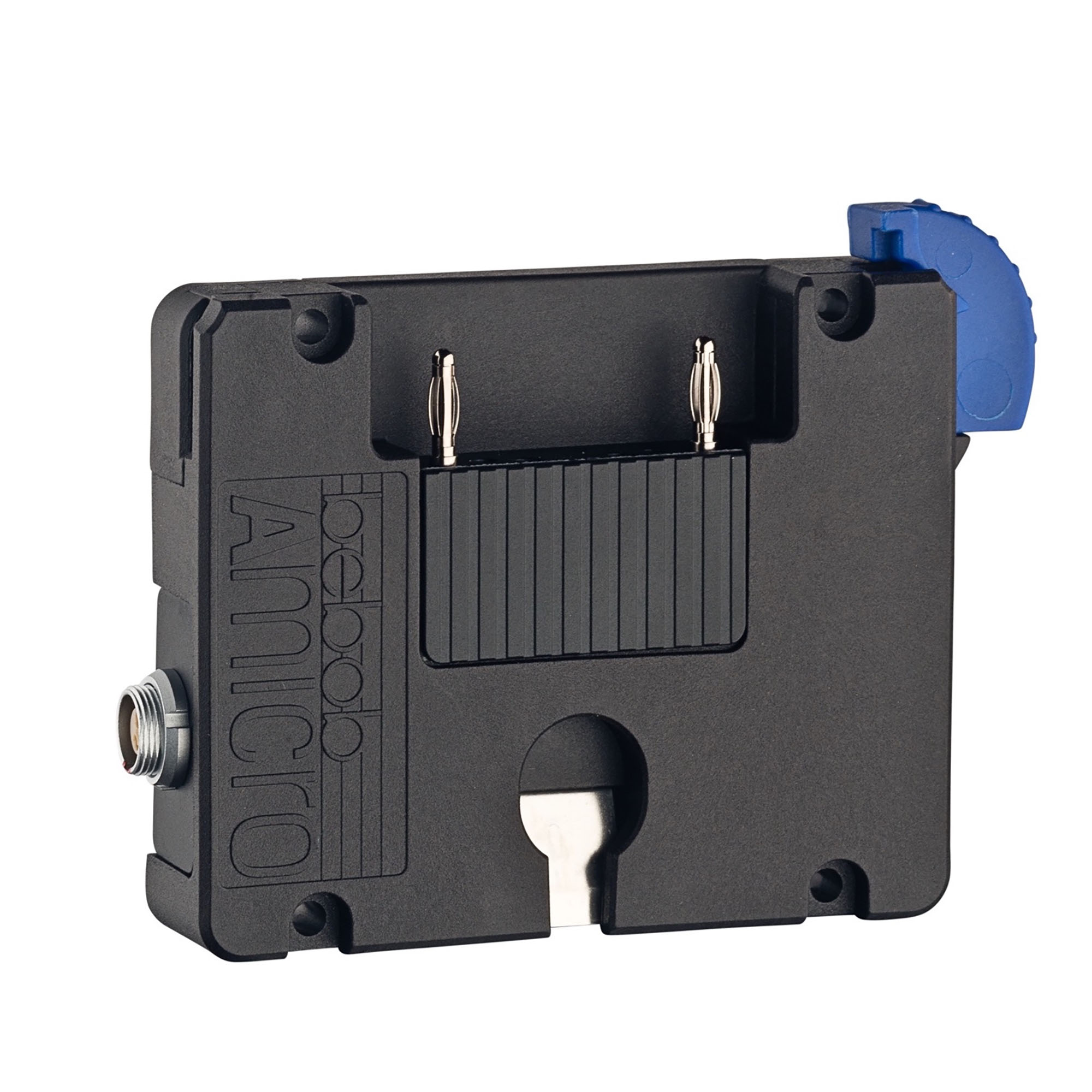

Attaches to the back of the Wireless Video Receiver small WVR-1s and accepts Gold mount and Bebob AMicro batteries. Additional 12 V accessories can be powered by the 2 pin Lemo-type power output or by the twist DTAP power output. Note: Not compatible with the Wireless Video Receiver WVR-1.

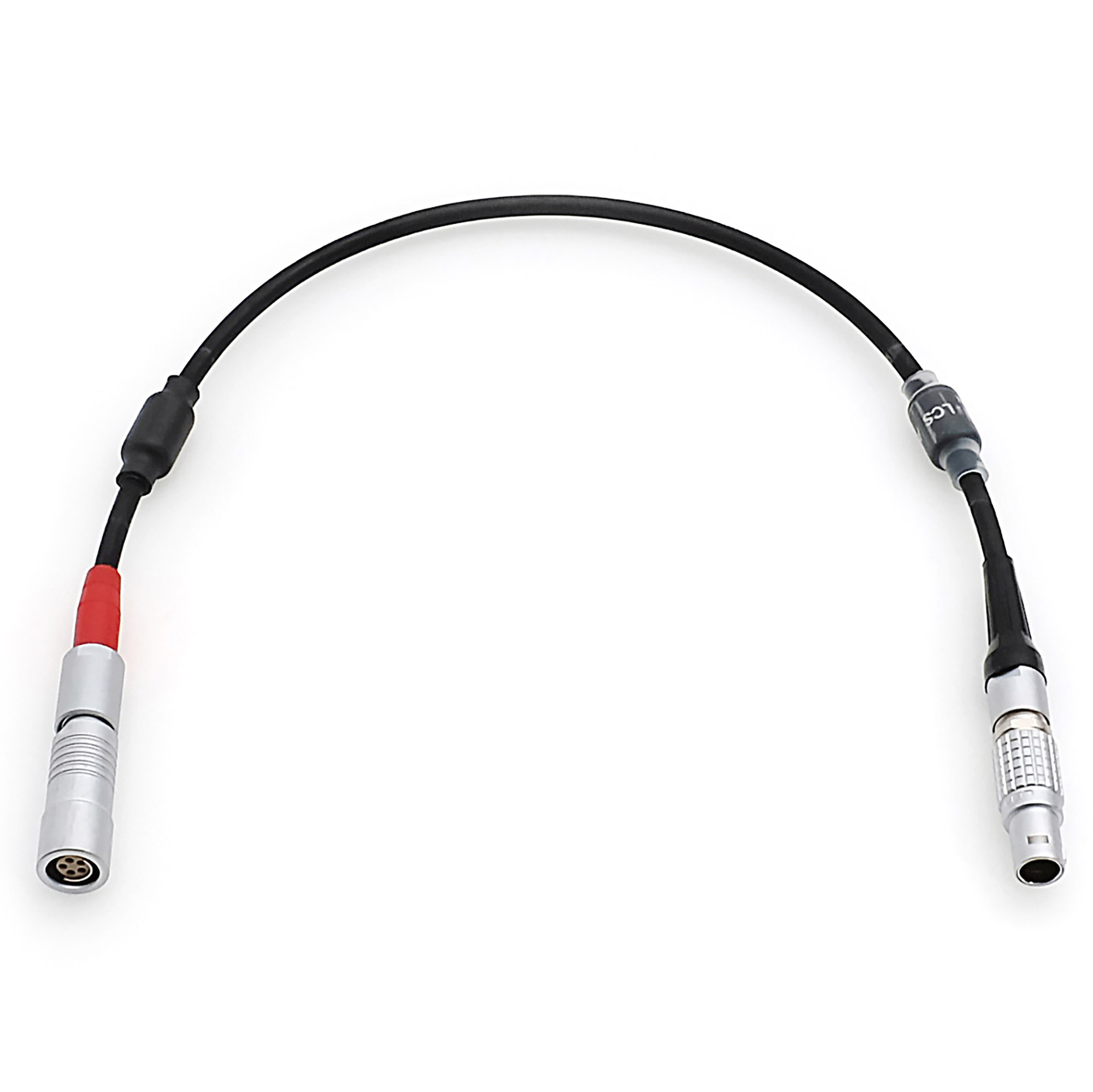

Adapts ALEXA Mini, ALEXA Mini LF EXT connector to LCS cables.Note: Can not be used with ZMU-3/ZMU-3A.

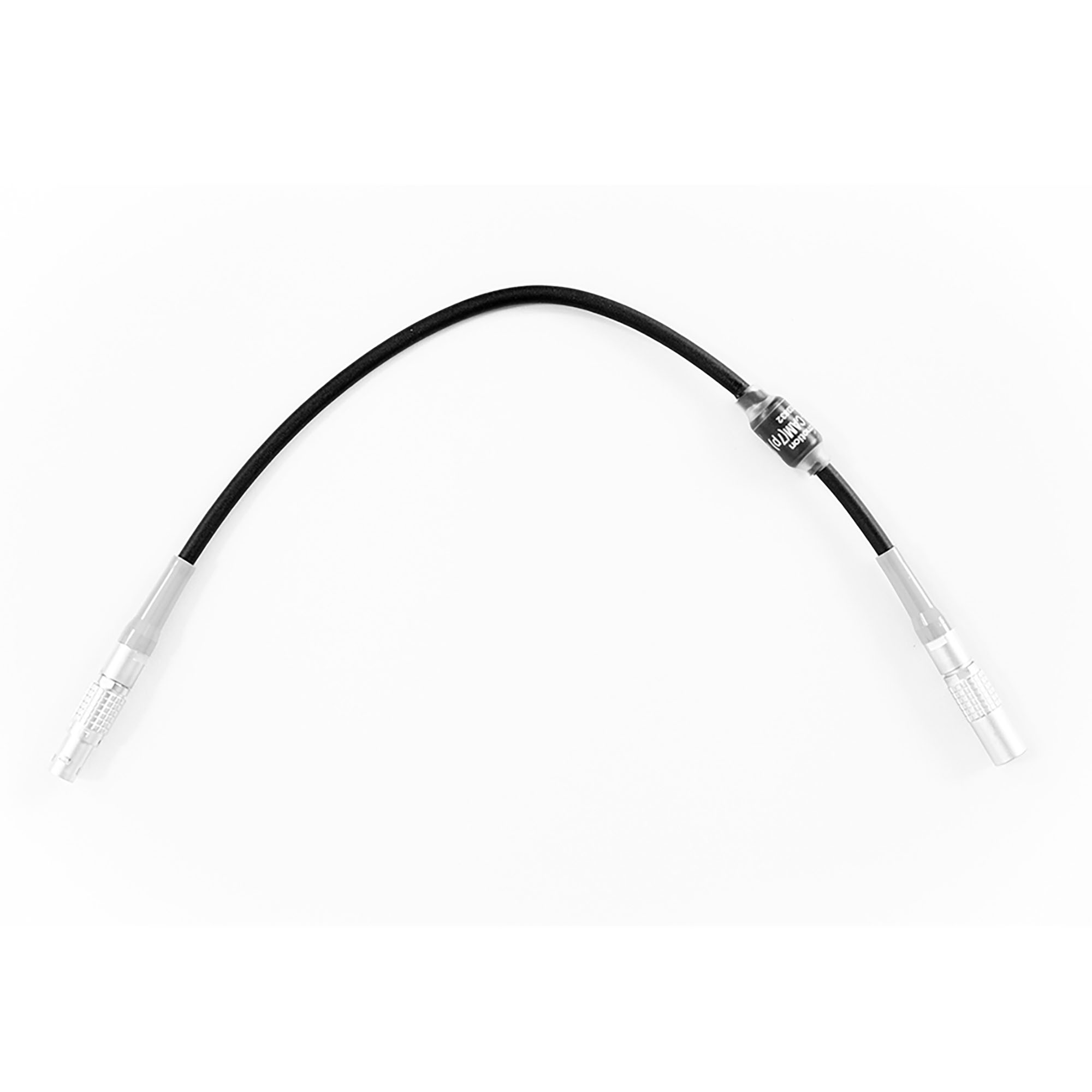

CAM cable extension (Le 7p female, Le 7p male). Length: 0.3m/1ft

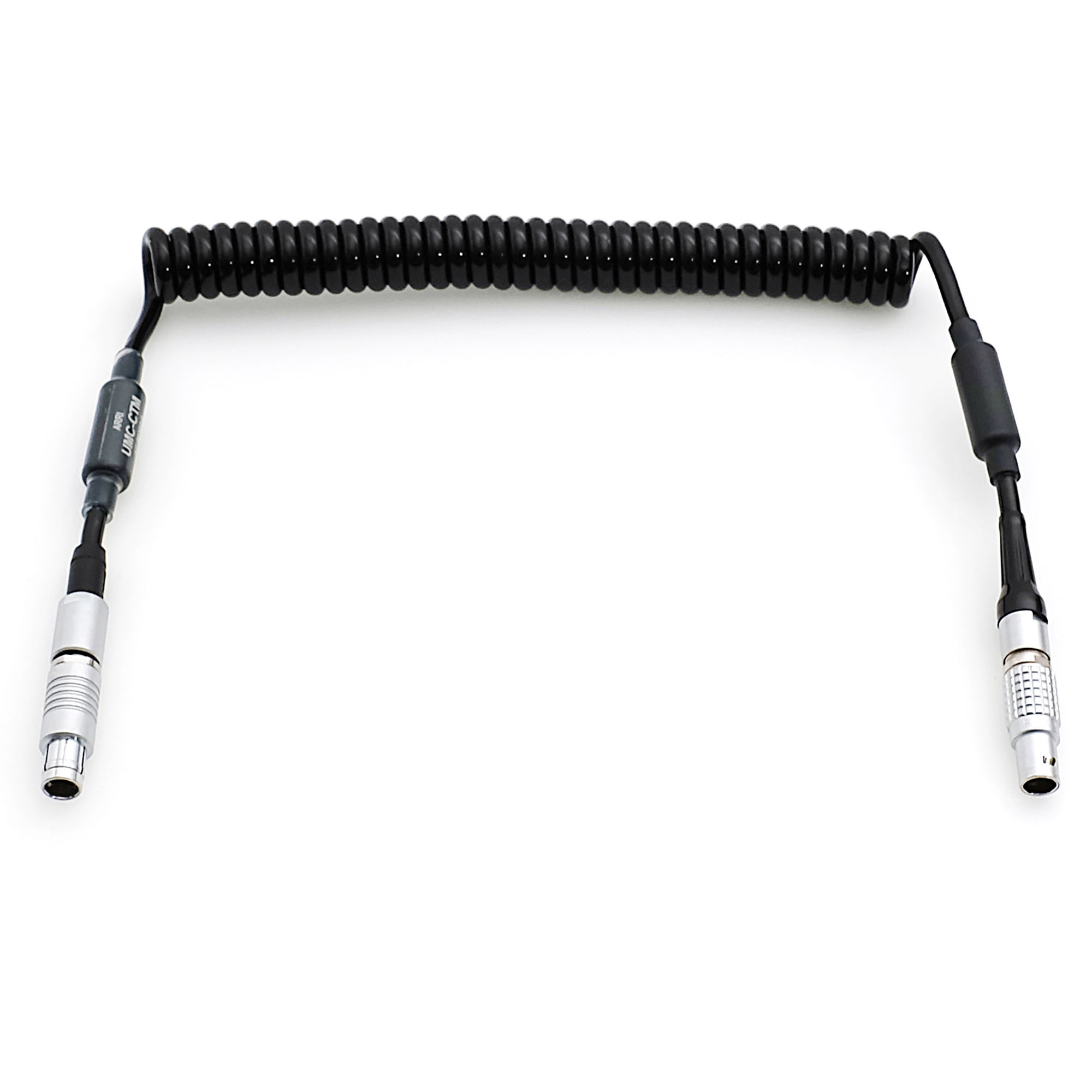

Connects Universal Motor Controllers and LCUBE CUB-1 to Cine Tape Measure.
Cable D-Tap to PWR IN/RS Fischer-type 3pin (female). Provides power but no RUN/STOP function. Can be used to power a WVT-1, WVR-1 or UMC-4 from a camera or a power splitting box. Length: 0.5m/1.6ft

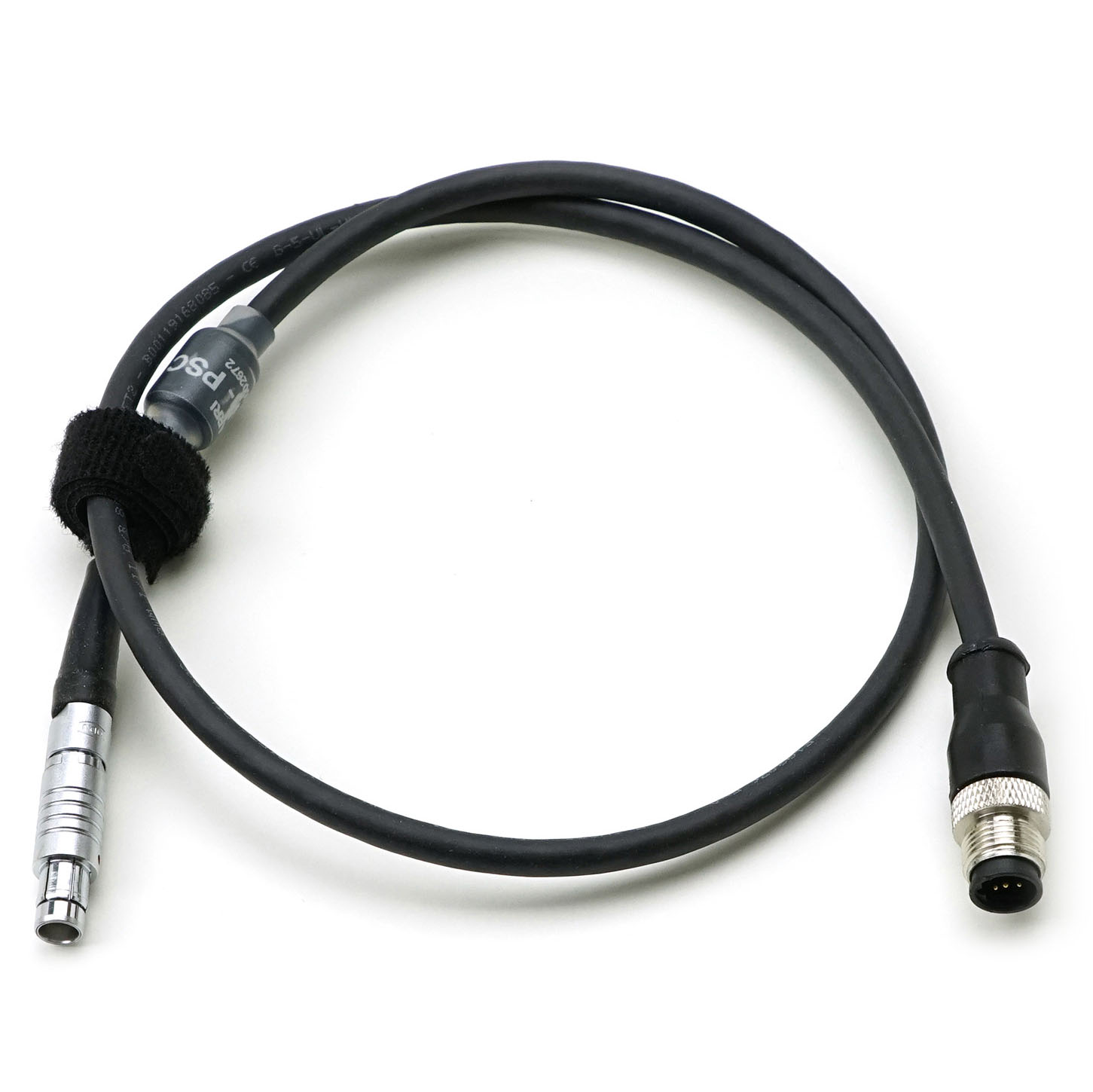

Connects RS IN connector on UMC-4 with Power System Connector (PSC) cables. Length: 0.7m/2ft.Additional Power Supply Connector (PSC) cable required.

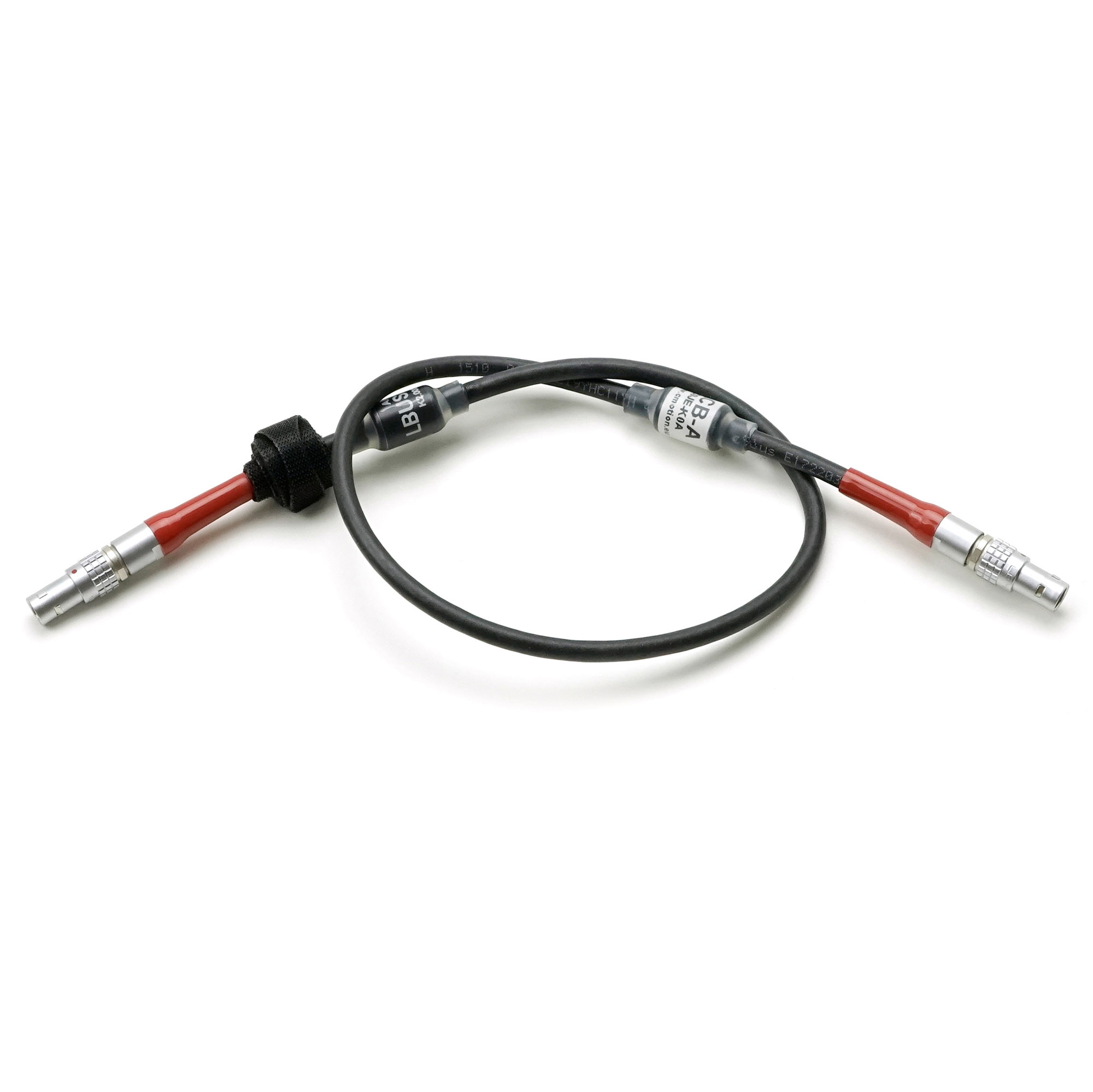

LBUS cable (Le 4p, Le 4p). Length: 0.5m/1.5ft.

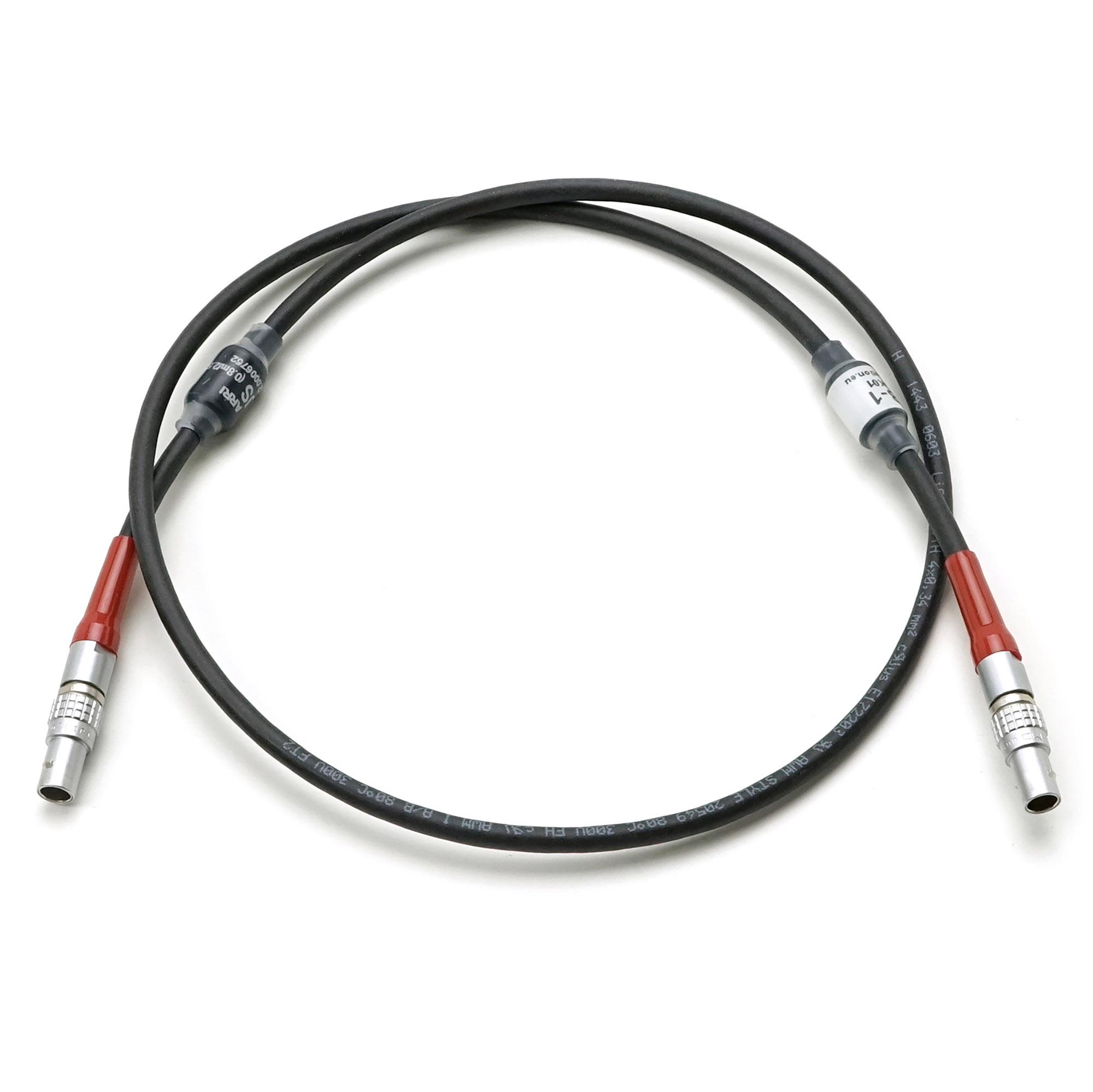

LBUS cable (Le 4p, Le 4p). Length: 0.8m/2.6ft.
includes:K2.0006175 1x CLM-5/cforce mini Clamp Insert 19/15mmNote: The clamp insert is compatible to cforce mini, cforce mini RF, cforce plus and CLM-5 clamp consoles.

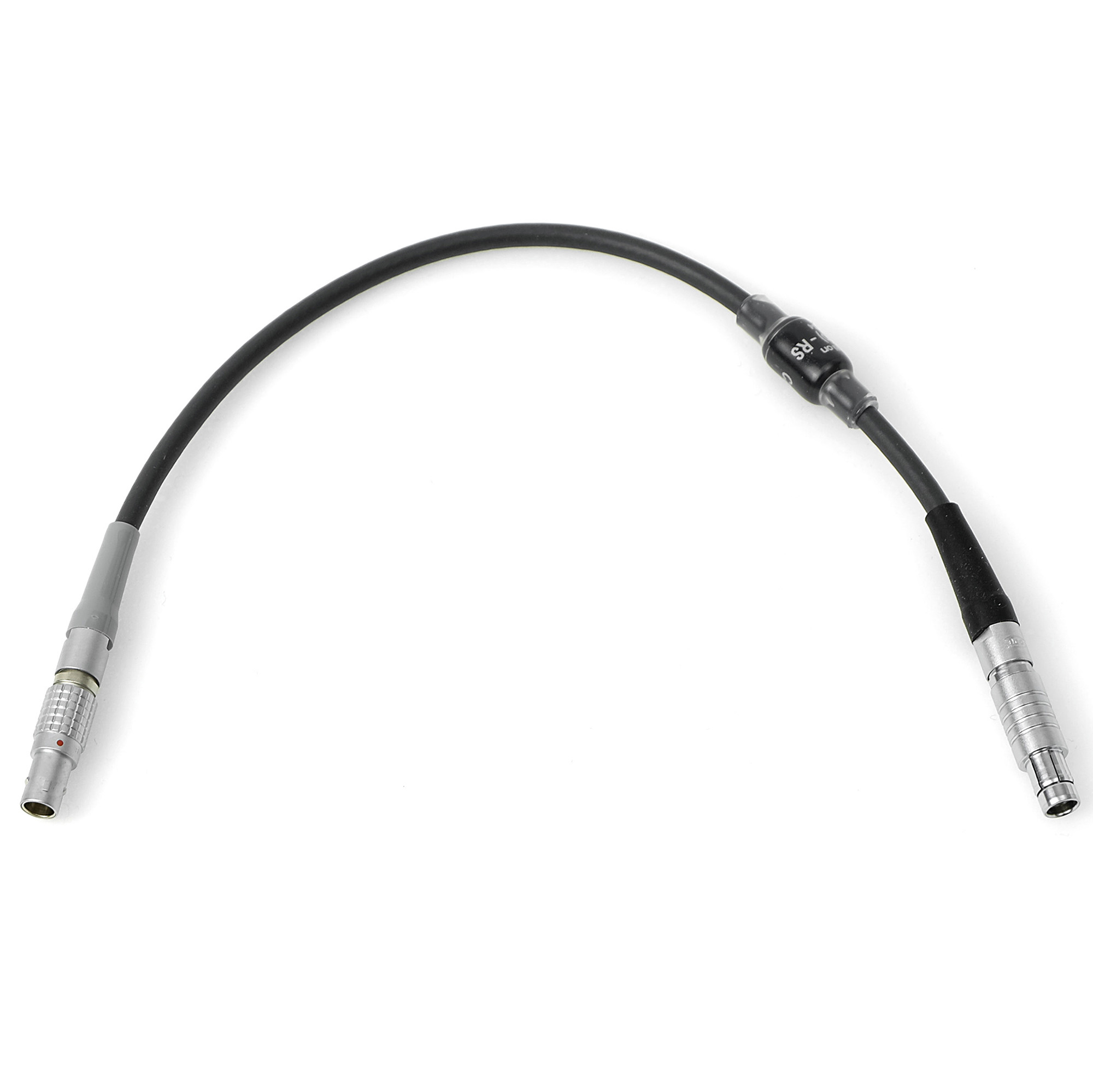

Connects ARRI cforce RF motor/cmotion cPRO motor and camin to RS connector. Provides camera RUN/STOP and tally function on ARRI and cmotion cPRO hand units. Works with ALEXA and AMIRA cameras. Length: 0.3m/1ft.
Connects ARRI RIA-1, ARRI cforce RF motor, cmotion cPRO motor and camin to LBUS devices or LBUS power source. Length: 0.5m/1.6ft
Connects ARRI RIA-1, ARRI cforce RF motor, cmotion cPRO motor and camin to LBUS devices or LBUS power source. Length: 0.3/1ft.
Compatible with CLM-5, cforce mini and cforce mini RF.Includes:K2.0006175 1x CLM-5/cforce mini Clamp Insert 19/15mm

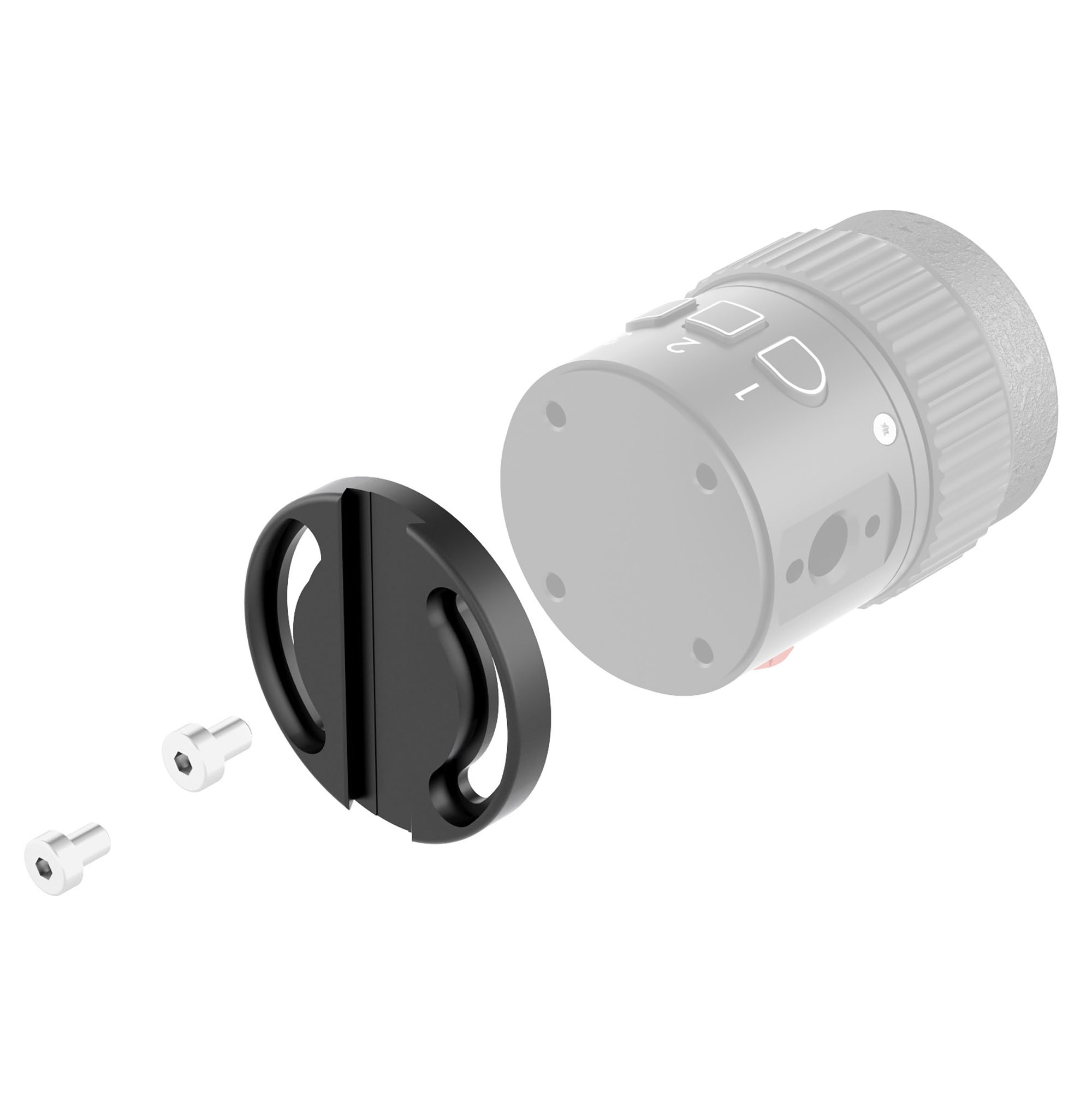

Compatible with Operator Control Unit OCU-1 (K2.0020002) with a dovetail mounting interface for CLM-5/cforce mini Clamp Console 19/15mm (K2.0006176) and two screws for flexible mounting positions.Note: K2.0006176 CLM-5/cforce mini Clamp Console 19/15mm not included!

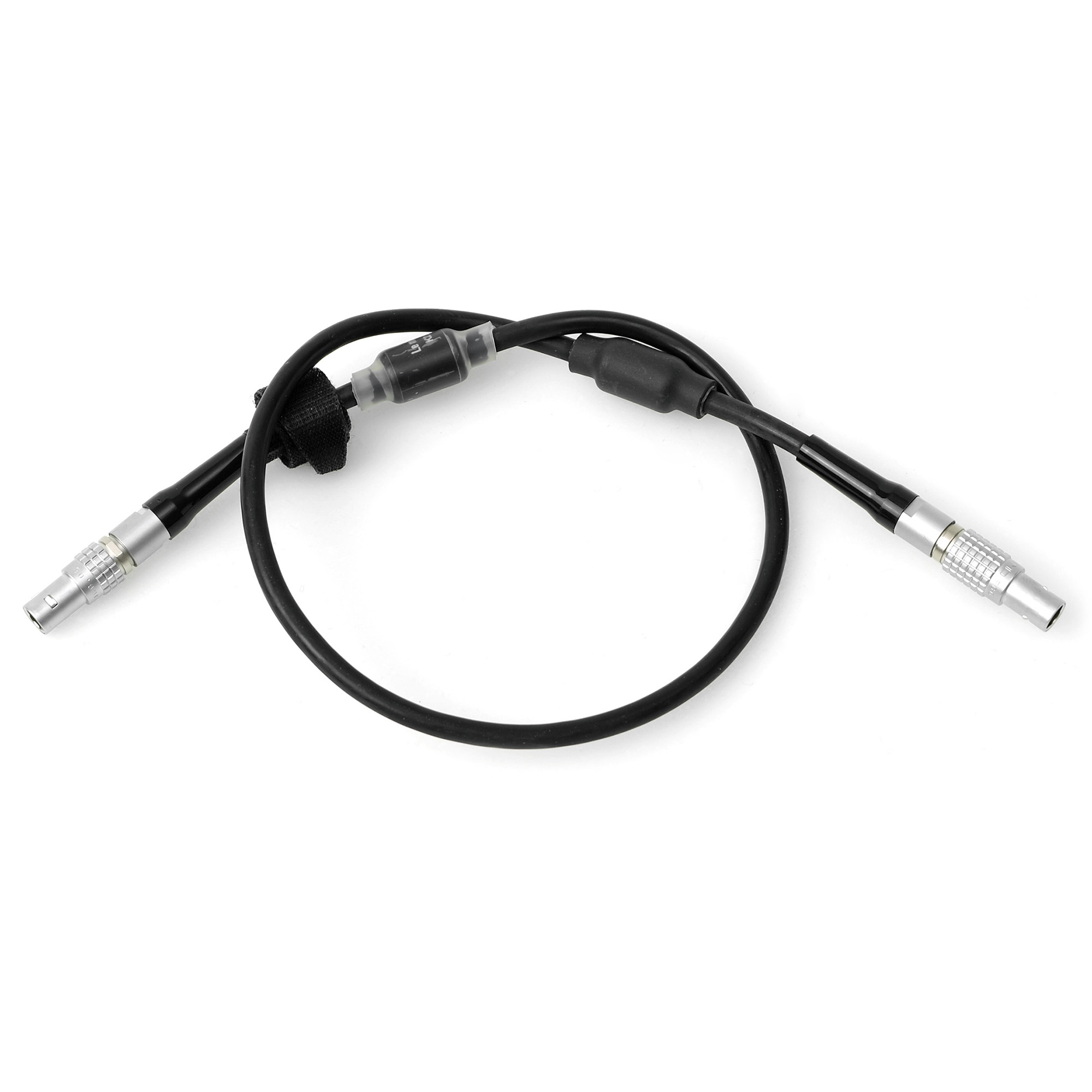

Cable PWR OUT/12V connector Lemo-type 2p (male) to Lemo-type 5p (male). Can be used to power an external on-board monitor from an ARRI camera, WVR-1, battery adapter plate or a power splitting box. Length: 0.5m/1.6ft

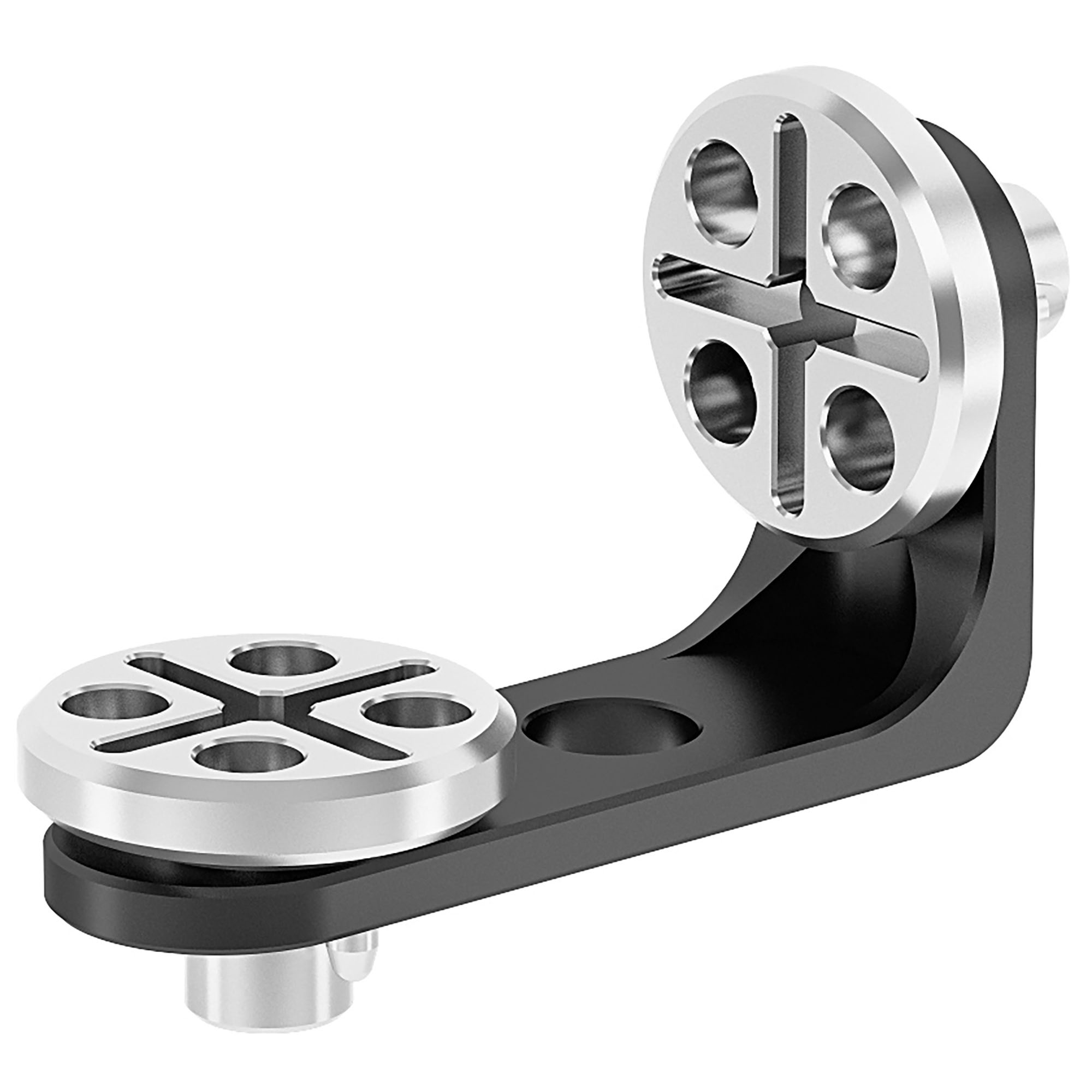

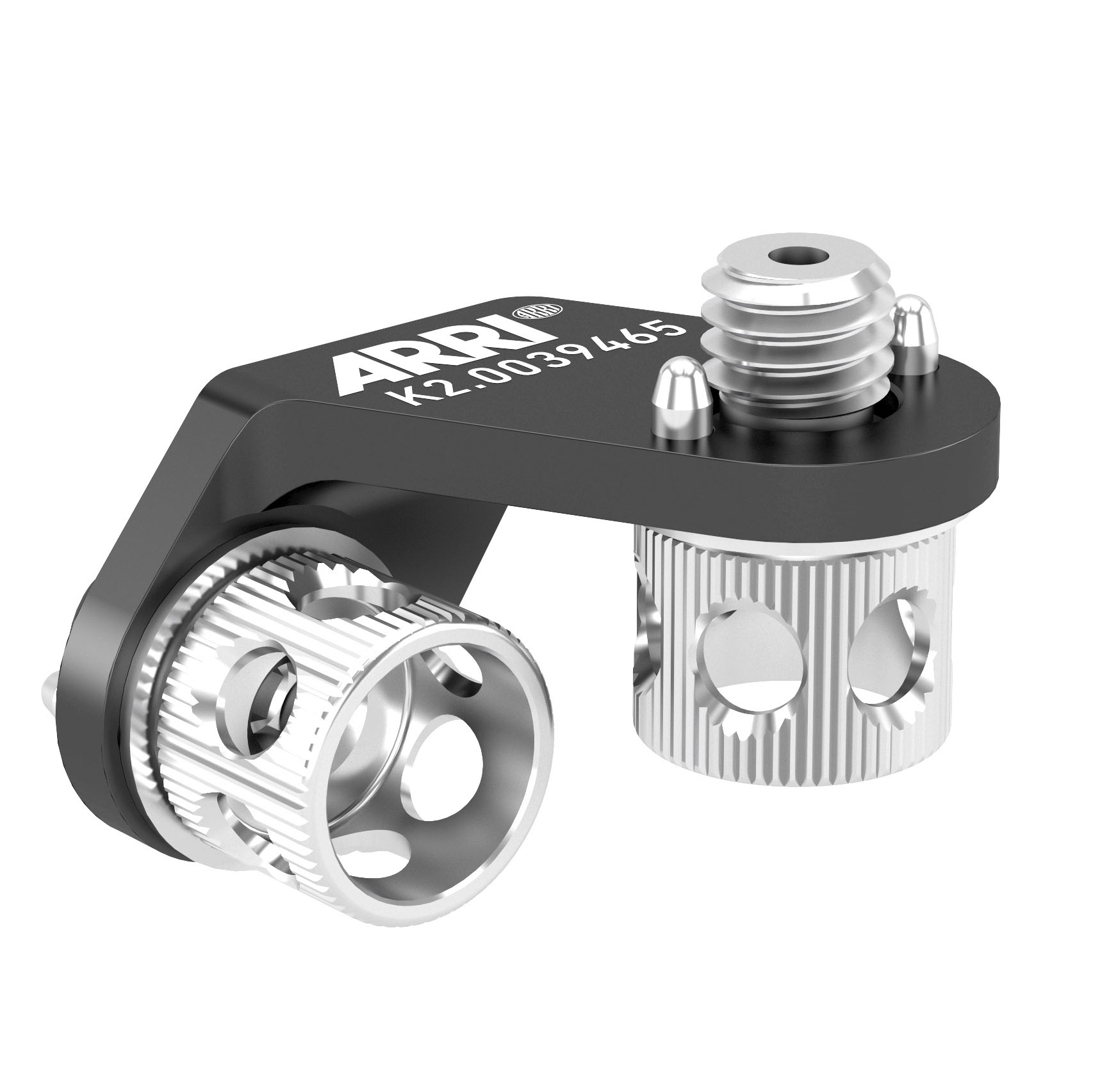

L-shaped bracket with two 3/8 inch screws and anti-twist locating pins. Mounts the Radio Interface Adapter RIA-1 to camera cages and handles.
Connects SMC-1, EMC-1 and AMC-1 motor controllers to Sony F5/55/Venice and Panasonic Varicam 35 cameras. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ft

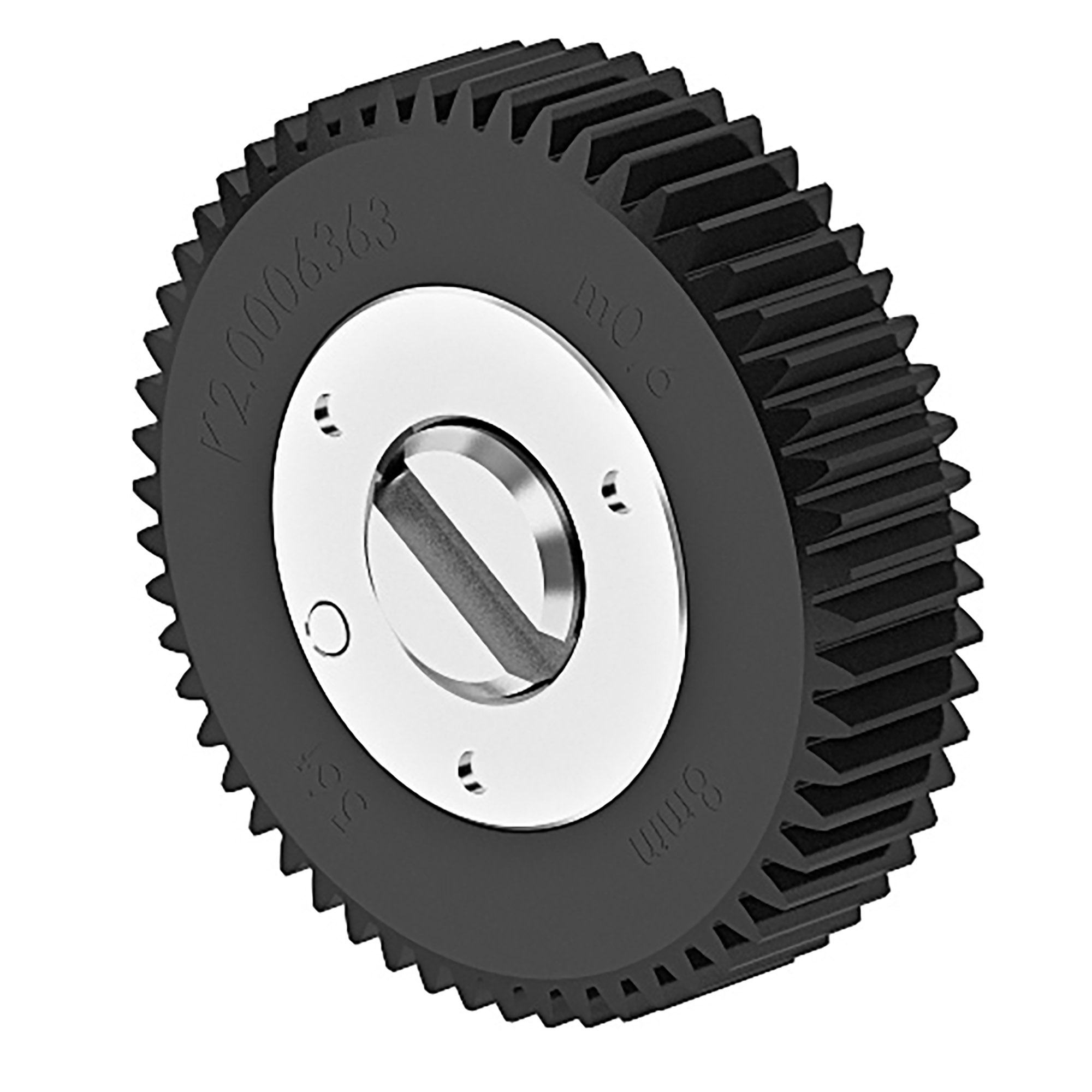

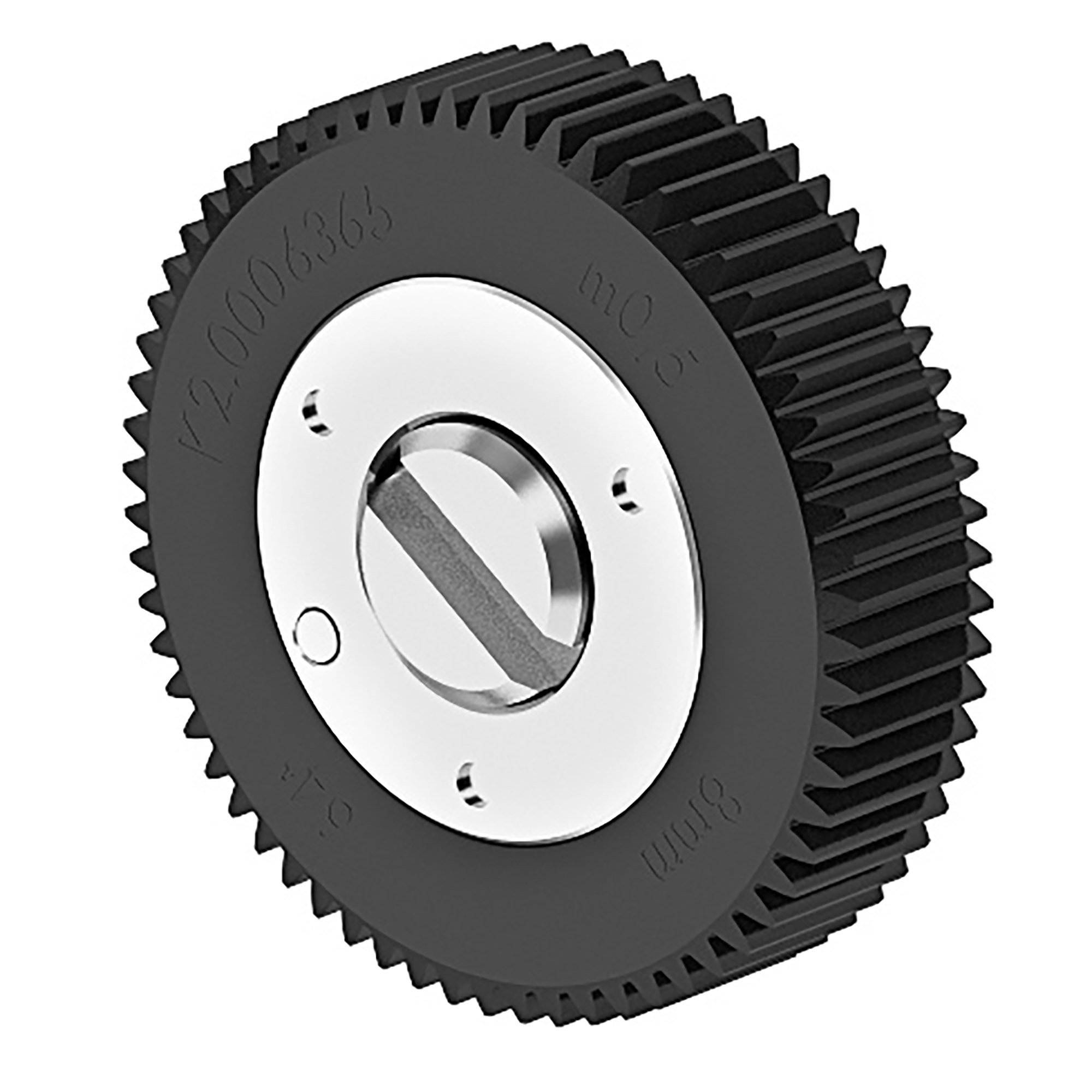

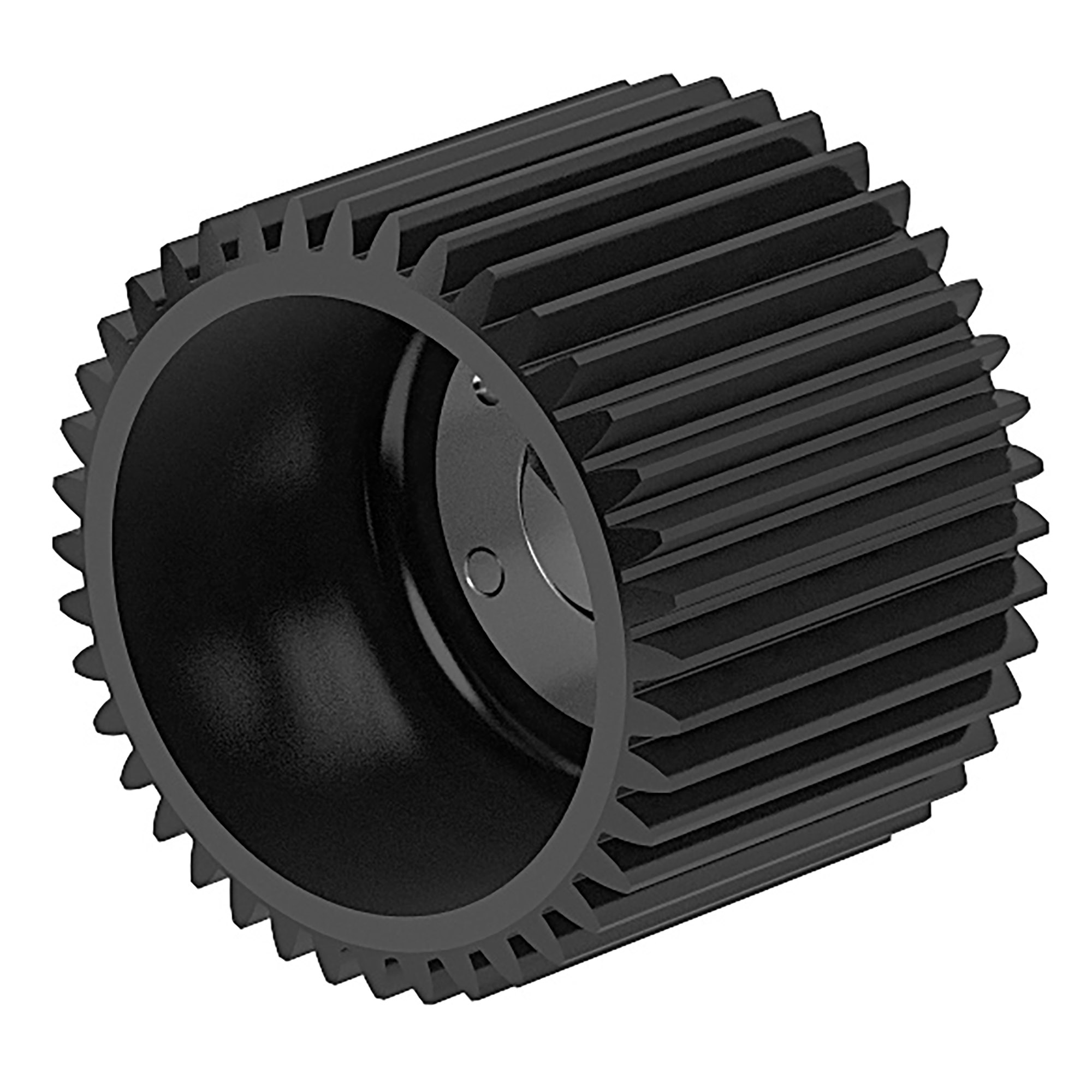

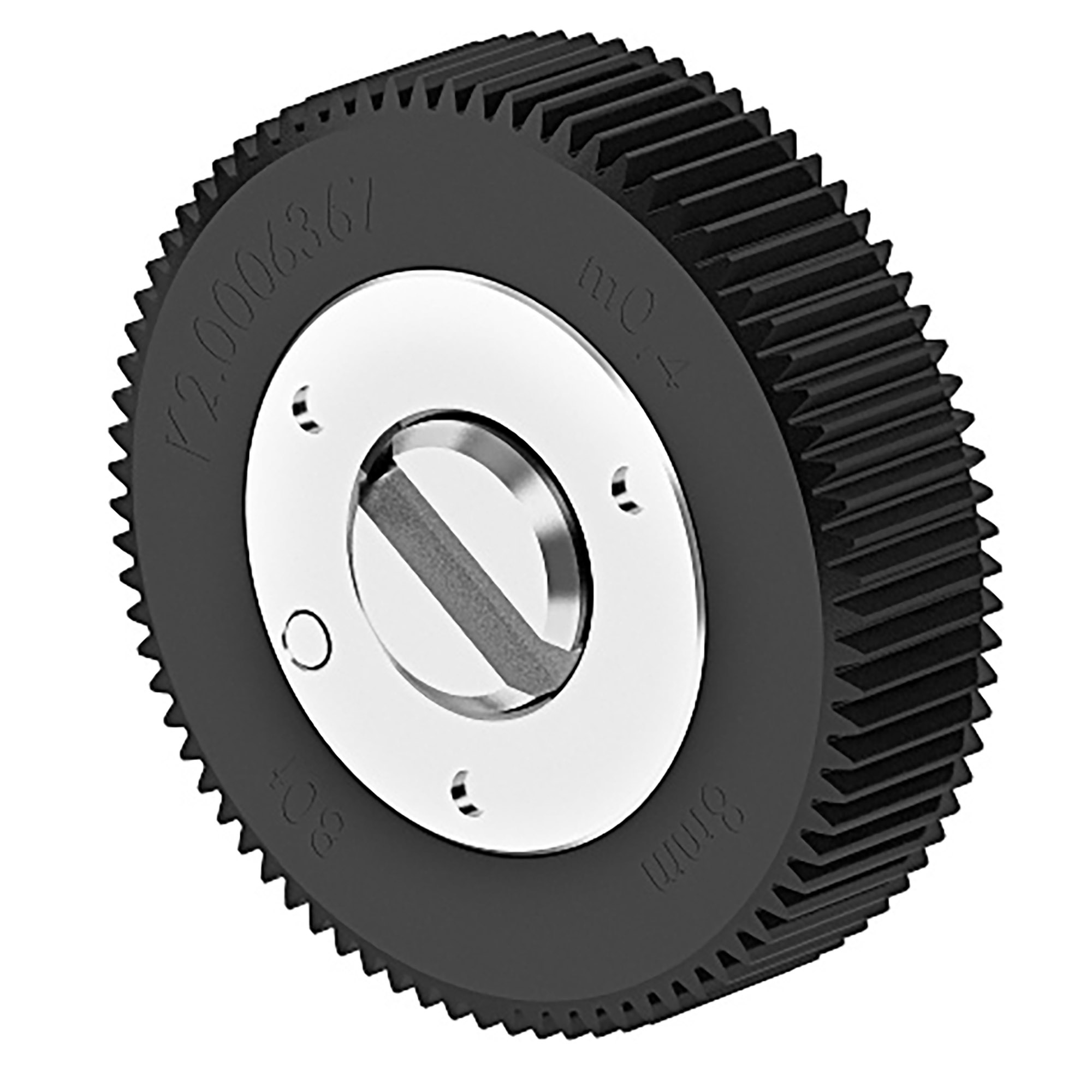

25mm wide gear for moving lens barrels.Compatible with CLM-5, cforce mini and cforce mini RF.

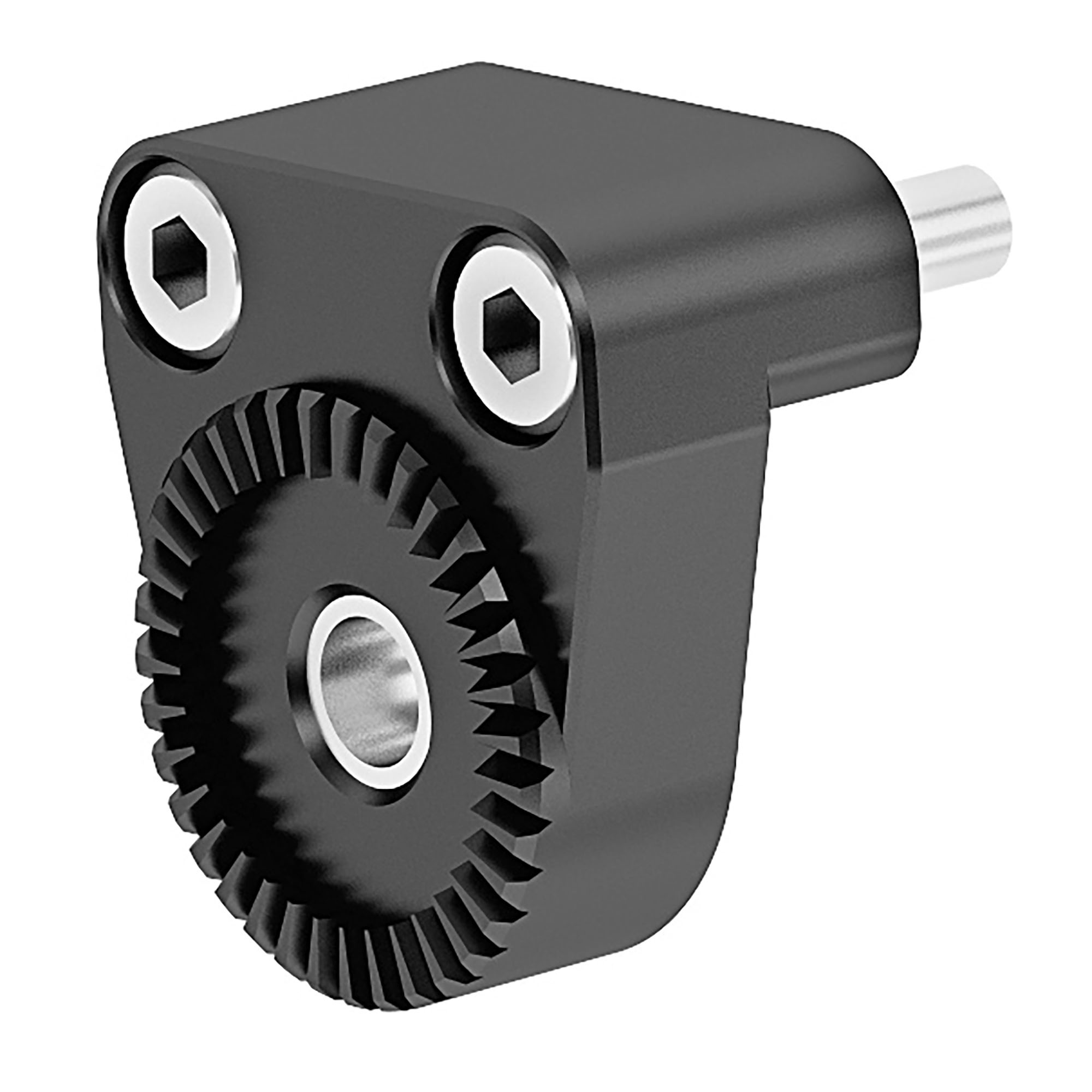

Rosette adapter that connects CLM-4 and cforce plus motors to Hill brackets.

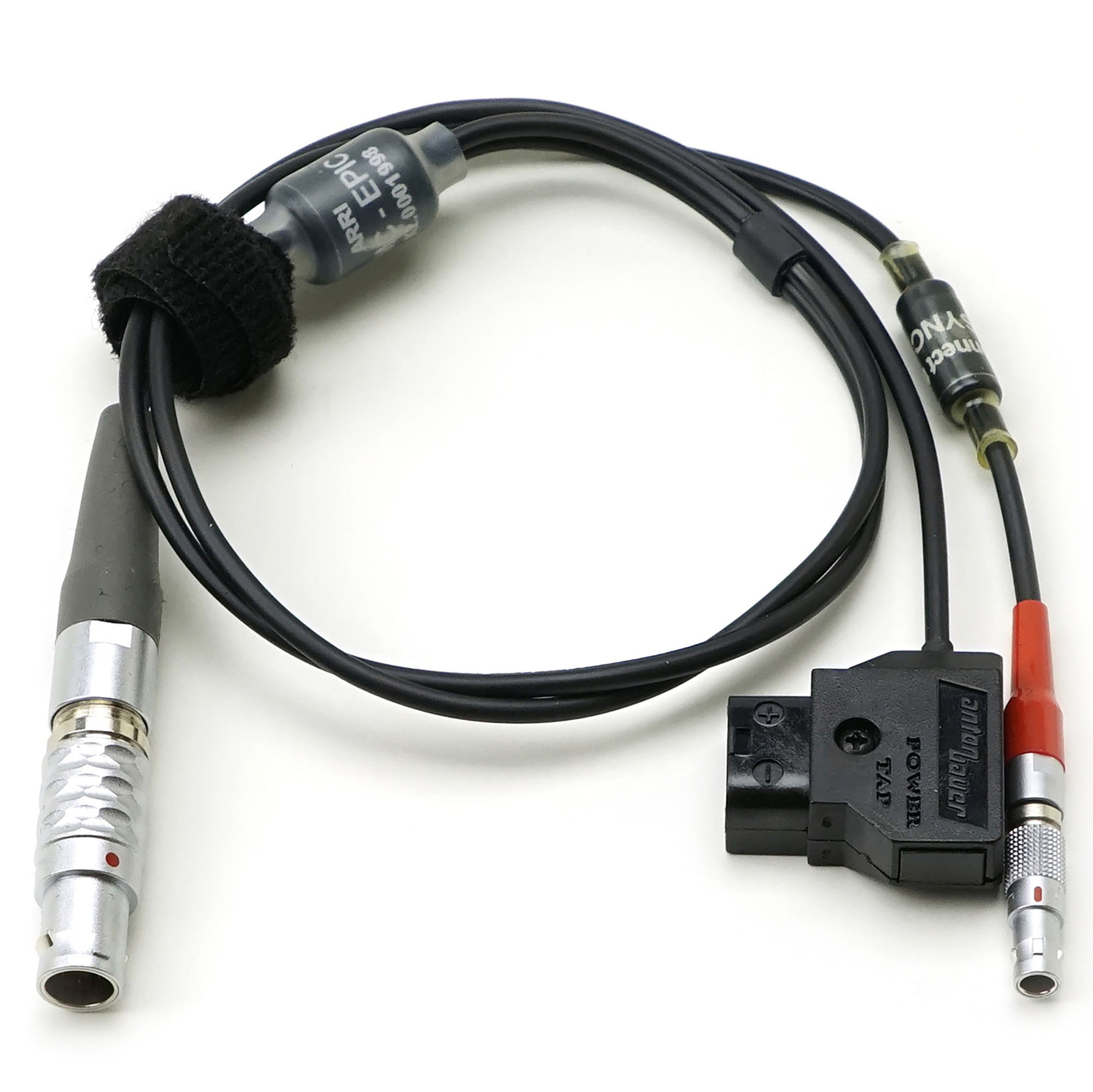

Connects SMC-1, EMC-1 and AMC-1 motor controllers to RED EPIC camera and D-Tap power source. Provides camera RUN/STOP function. Length: 2x 0.5m/1.6ft

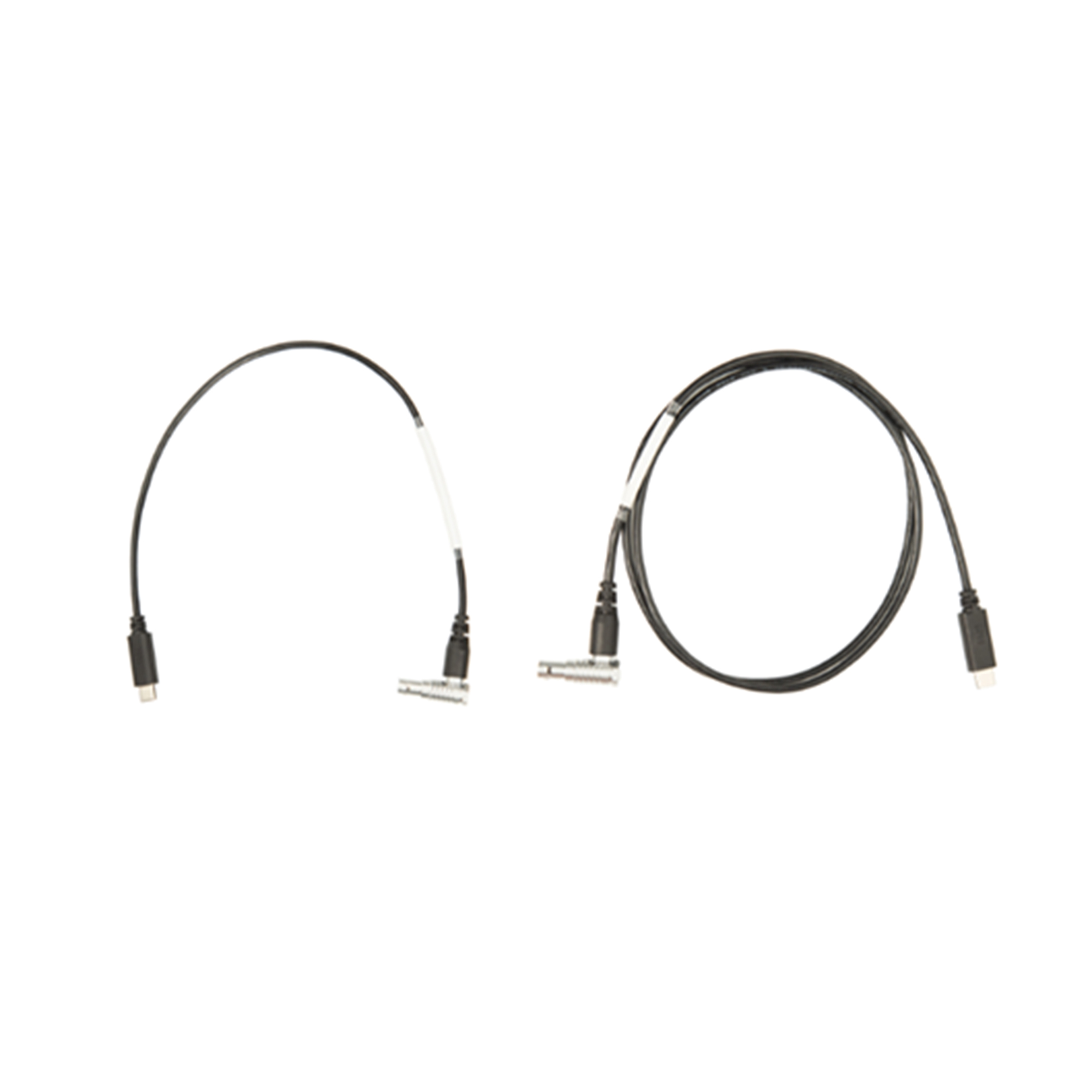

Cables for connecting the ARRI Hi-5/Hi-5 SX USB-C interface to compatible SmallHD monitors. Features a straight USB-C connector and a 90° rear angled 5-pin connector for compact rigging.Compatible with SmallHD Cine 5 and Ultra 5, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SXincludes:K2.0056304 1x Cable Hi-5 USB-C - SmallHD (5p) rear (90°) angled (0.35m/1.1ft)K2.0056305 1x Cable Hi-5 USB-C - SmallHD (5p) rear (90°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.

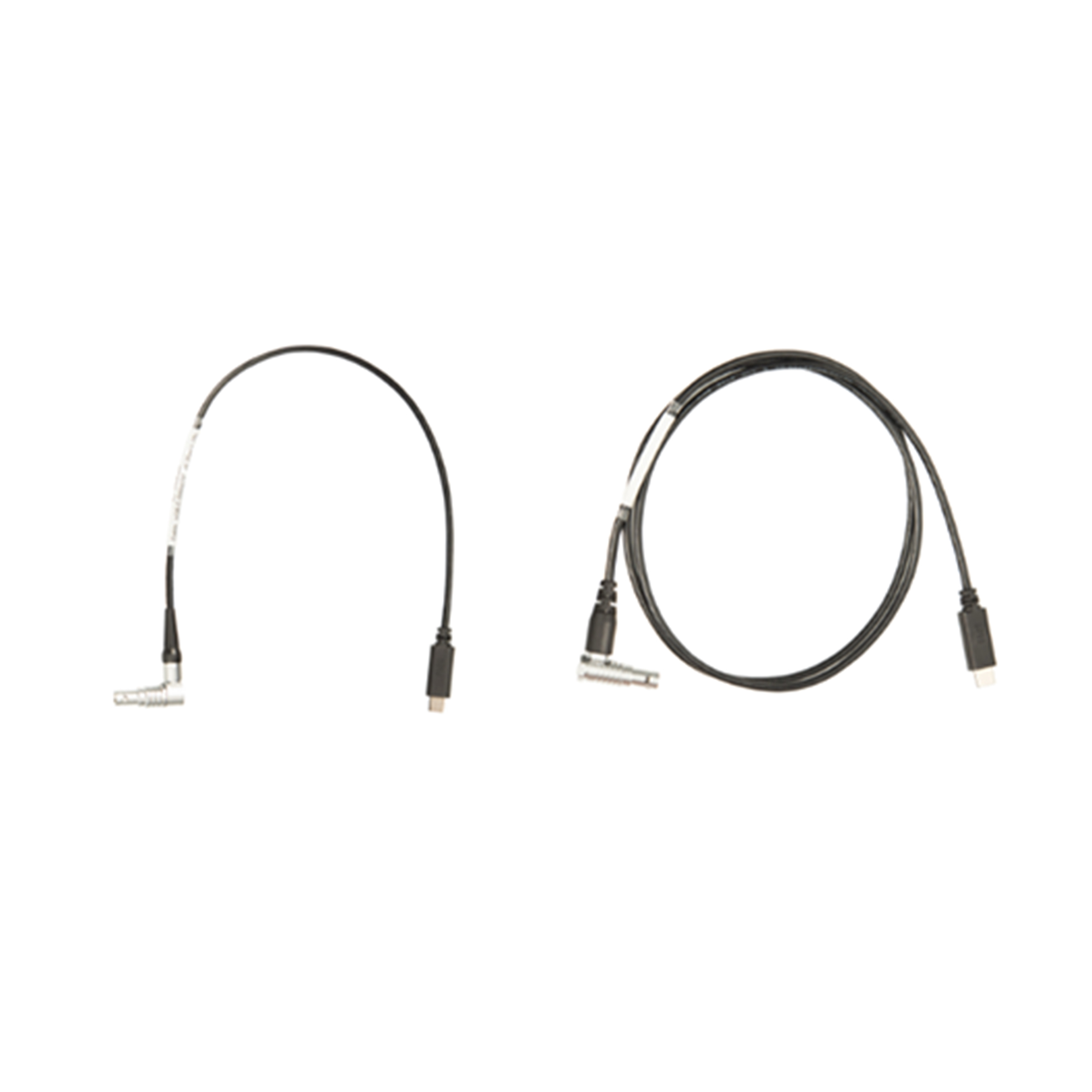

Cables for connecting the ARRI Hi-5/Hi-5 SX USB-C interface to compatible SmallHD monitors. Features a straight USB-C connector and a 270° rear angled 5-pin connector for compact rigging.Compatible with ARRI CCM-1, SmallHD Cine 7, Ultra 7 and Ultra 10, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056306 1x Cable Hi-5 USB-C - SmallHD (5p) forward (270°) angled (0.35m/1.1ft)K2.0056307 1x Cable Hi-5 USB-C - SmallHD (5p) forward (270°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
For Fujinon ENG focus/zoom.Compatible with CLM-5, cforce mini and cforce mini RF.
For Canon ENG focus/zoom.Compatible with CLM-5, cforce mini and cforce mini RF.
For Panavision iris, Fujinon ENG iris, Canon ENG iris.Compatible with CLM-5, cforce mini and cforce mini RF.

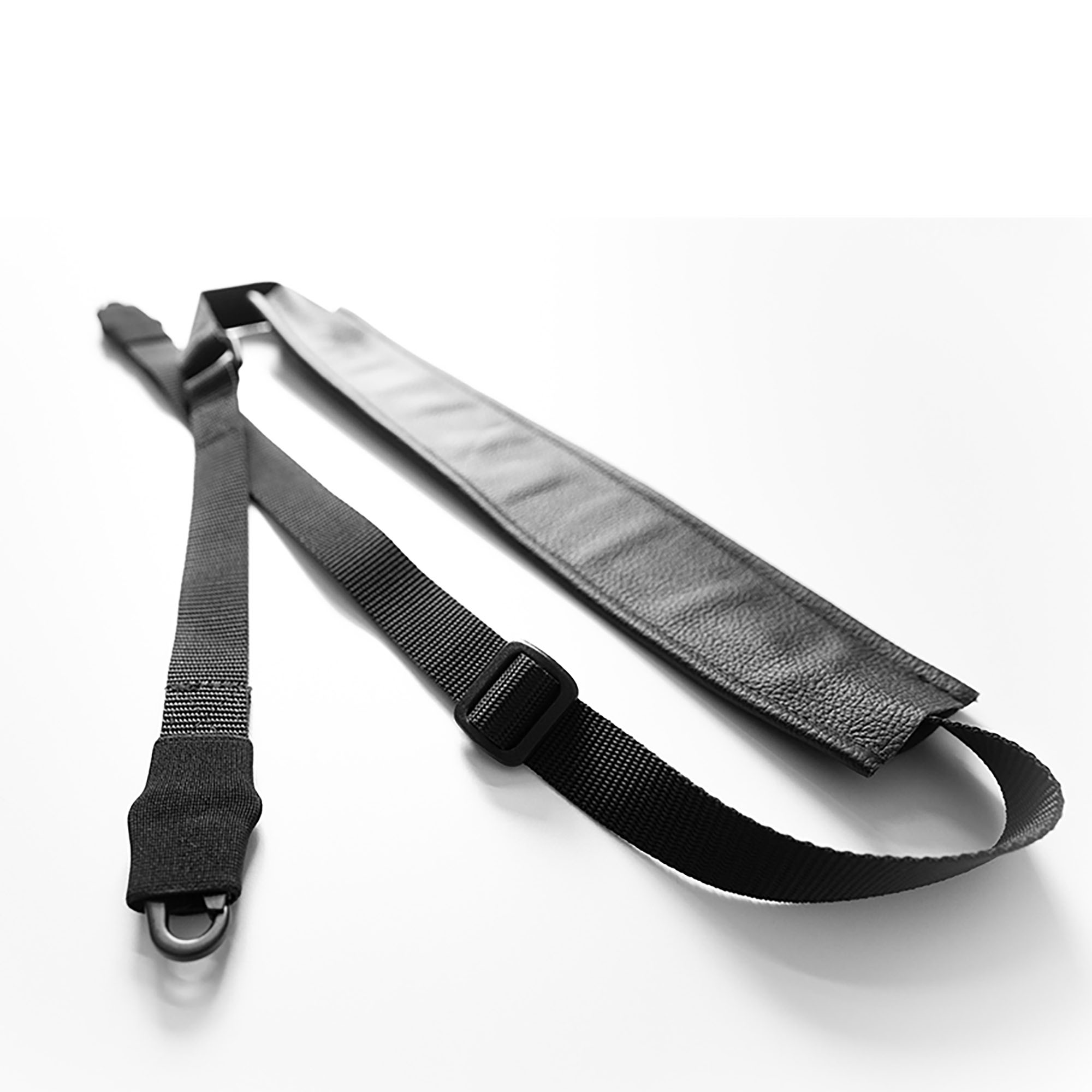

Neck strap with two snap hooks and leather cushion. For Hi-5 hand unit.
15 mm rod adapter that attaches to CLM-4 and cforce plus motors.

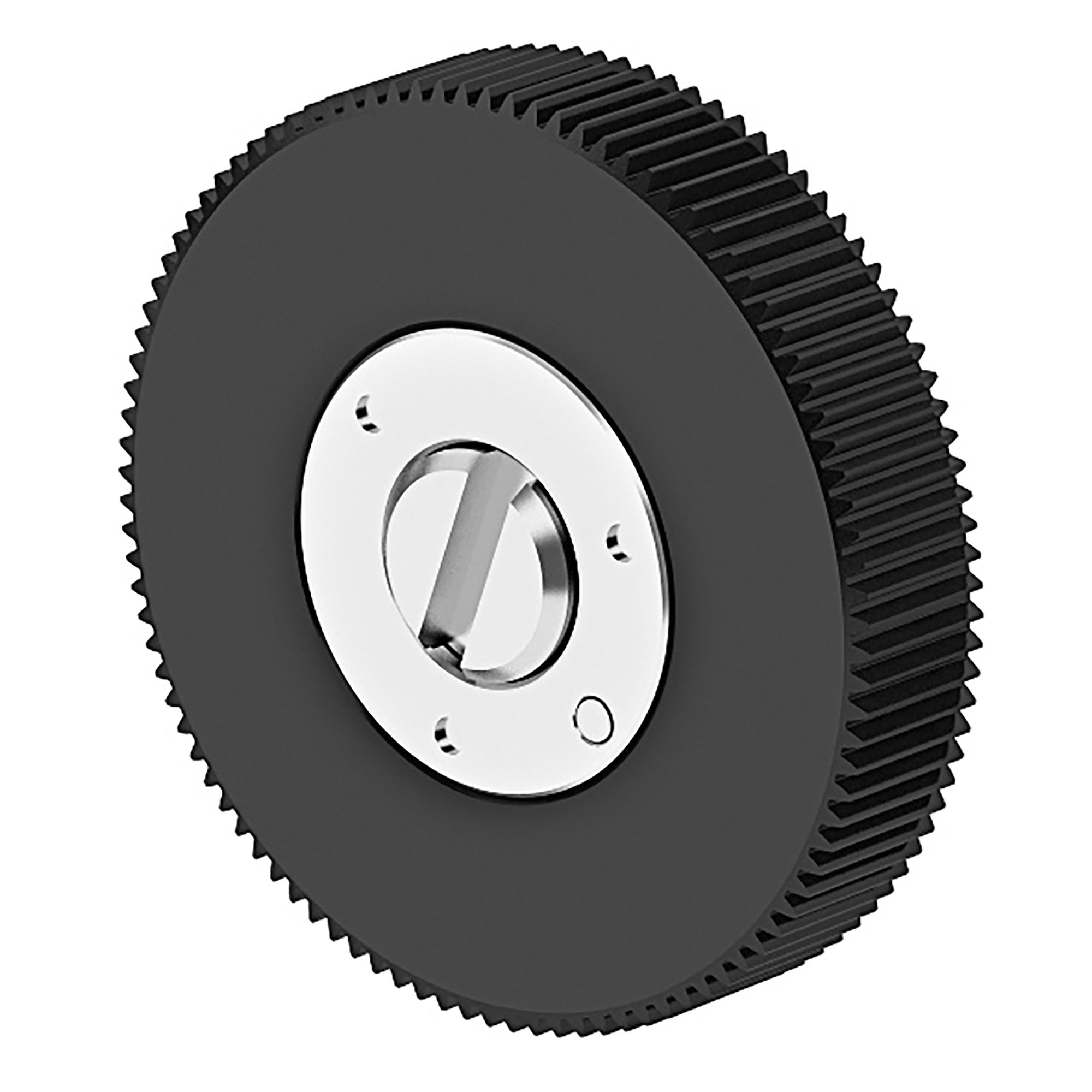

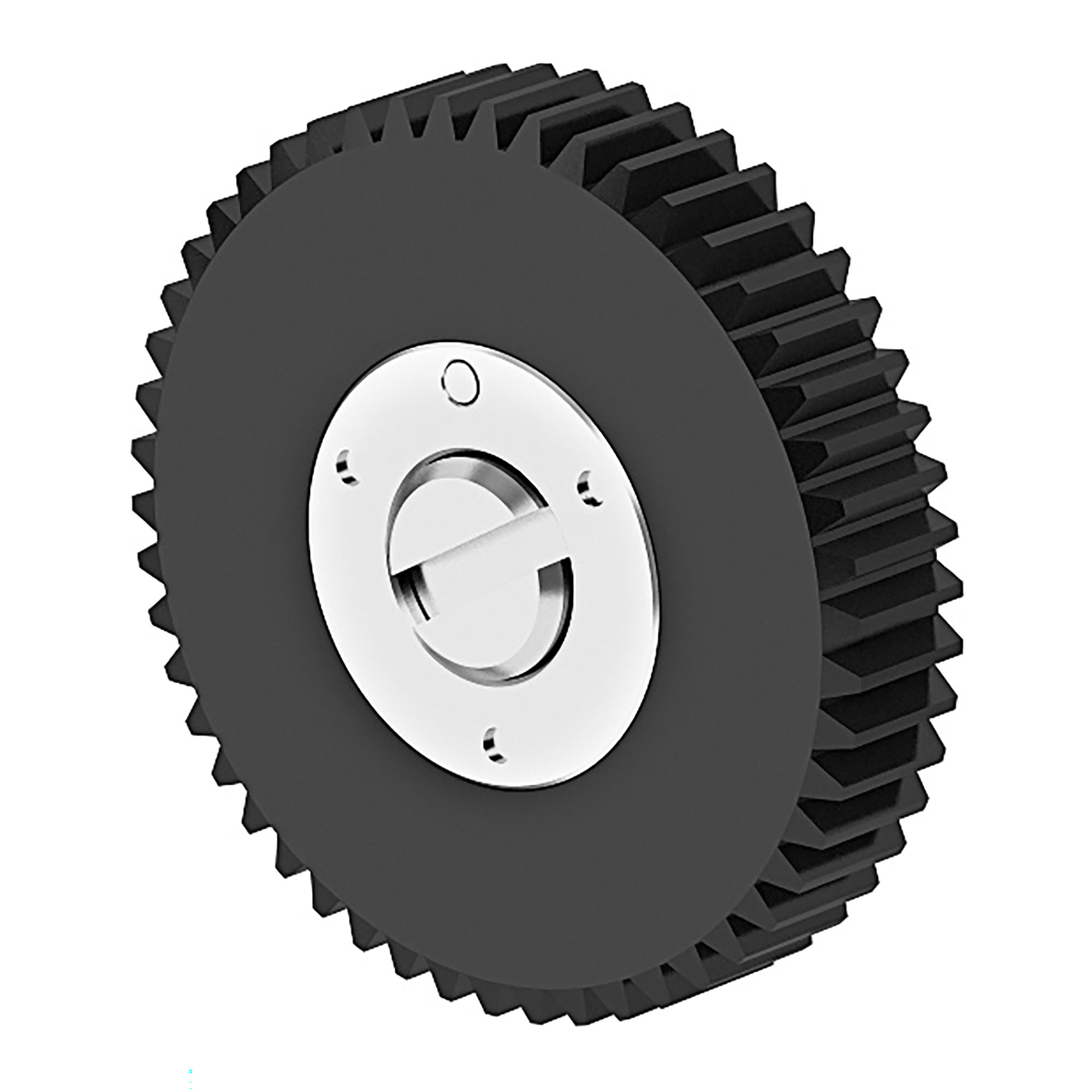

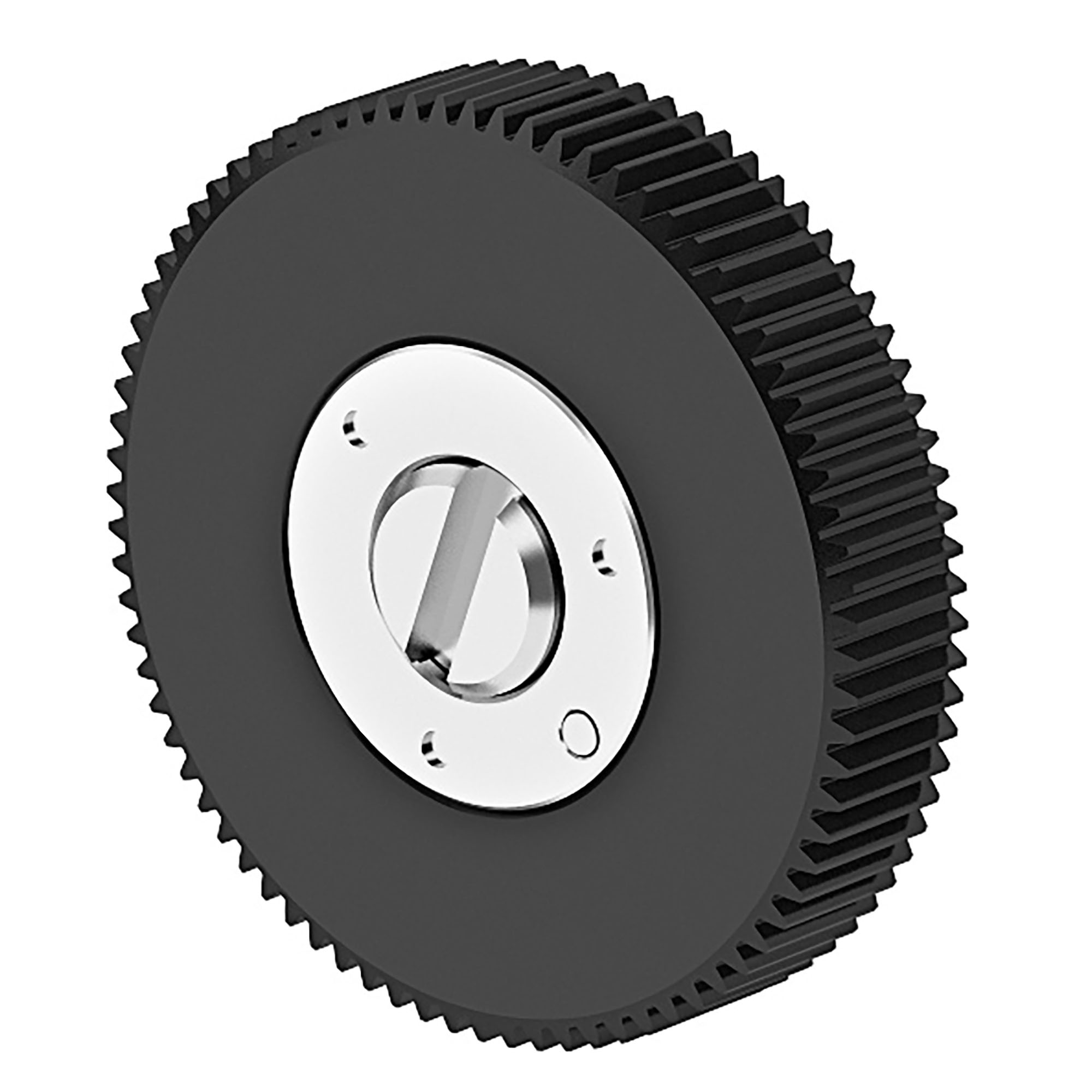

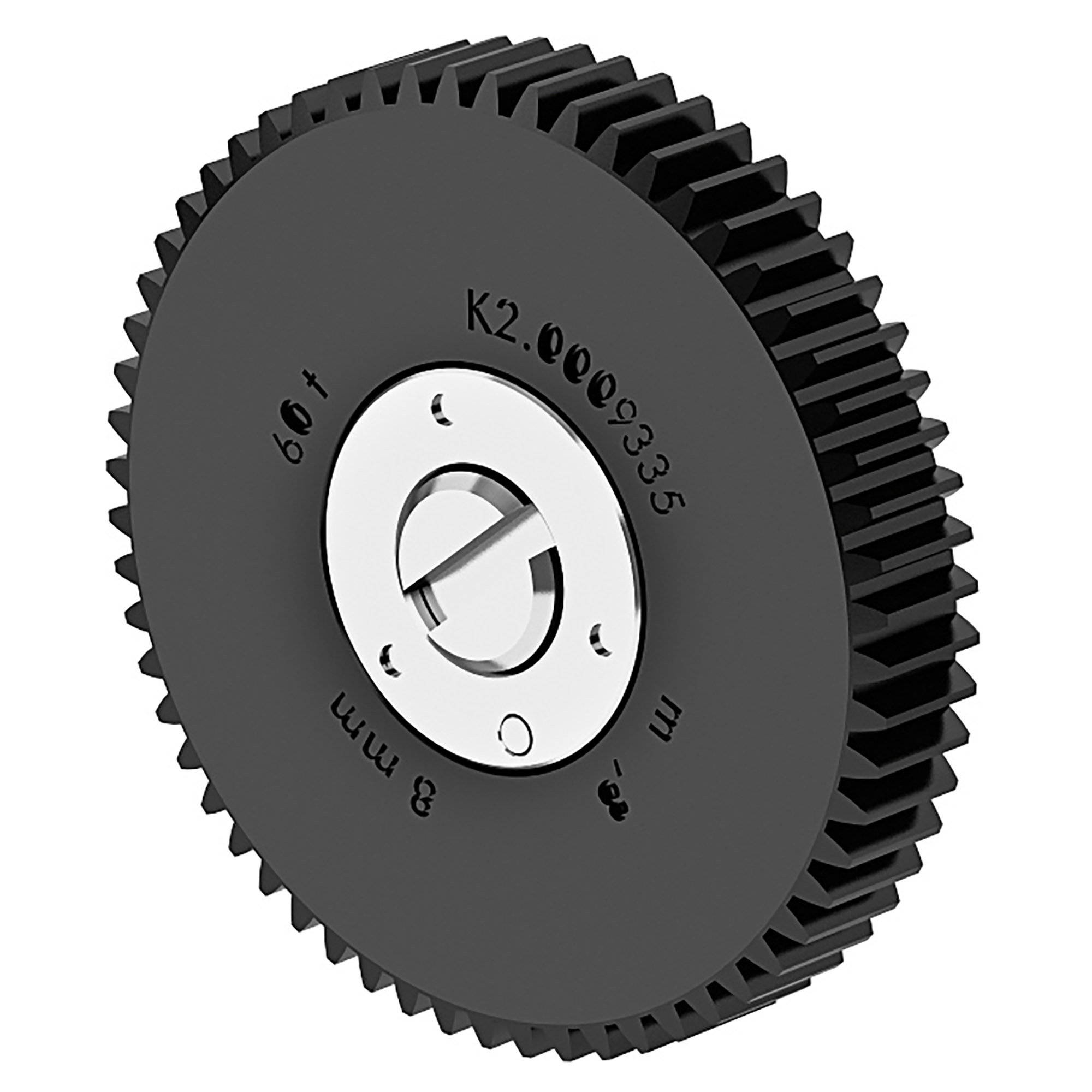

For ARRI/Zeiss focus/iris/zoom, Panavision focus, Fujifilm PL focus/iris/zoom. Includes metal gear flange. Compatible with CLM-4, cforce plus and cforce mini motors.
For Panavision iris, Fujinon ENG iris, Canon ENG iris. Includes metal gear flange.
For Canon ENG focus/zoom. Includes metal gear flange.
For Fujinon ENG focus/zoom. Includes metal gear flange.
