Electronic Control System

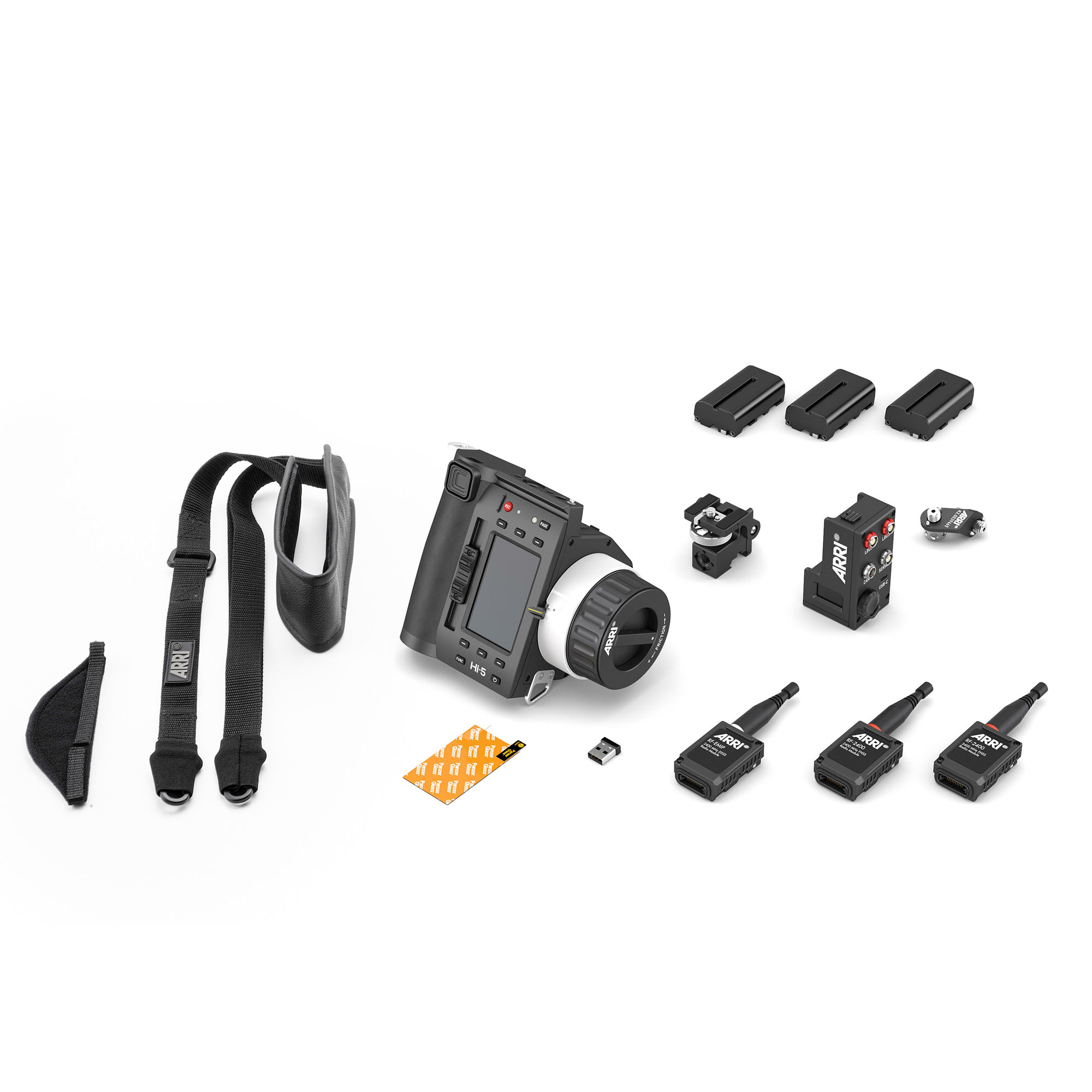

Hi-5 hand unit with one white-coded RF-EMIP radio module, a set of RF-2400 radio modules, Radio Interface Adapter RIA-1 and accessories. Compatible with ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and 3rd-party cameras.Includes:KK.0042529 1x Hi-5 Hand Unit Basic Set w/o Batteries, ChargerK2.0039874 1x LBP Battery ChargerK2.0036022 3x Li-Ion Battery Pack LBP-3500K2.0037880 1x Hi-5 Monitor BracketKK.0039980 1x Radio Interface Adapter RIA-1 SetKK.0039984 1x RF-2400 Radio Module 2400 MHz FHSS Set (2x)

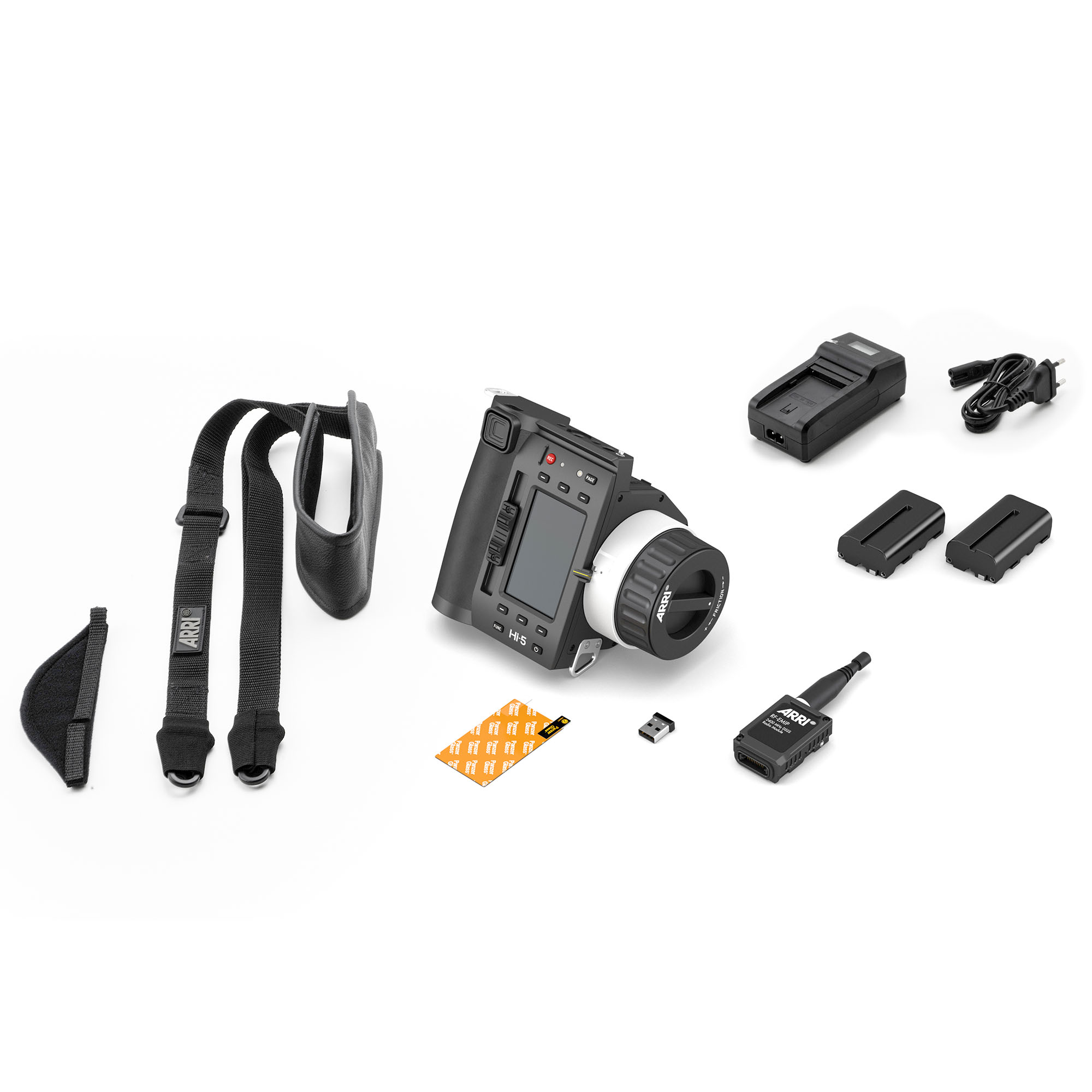

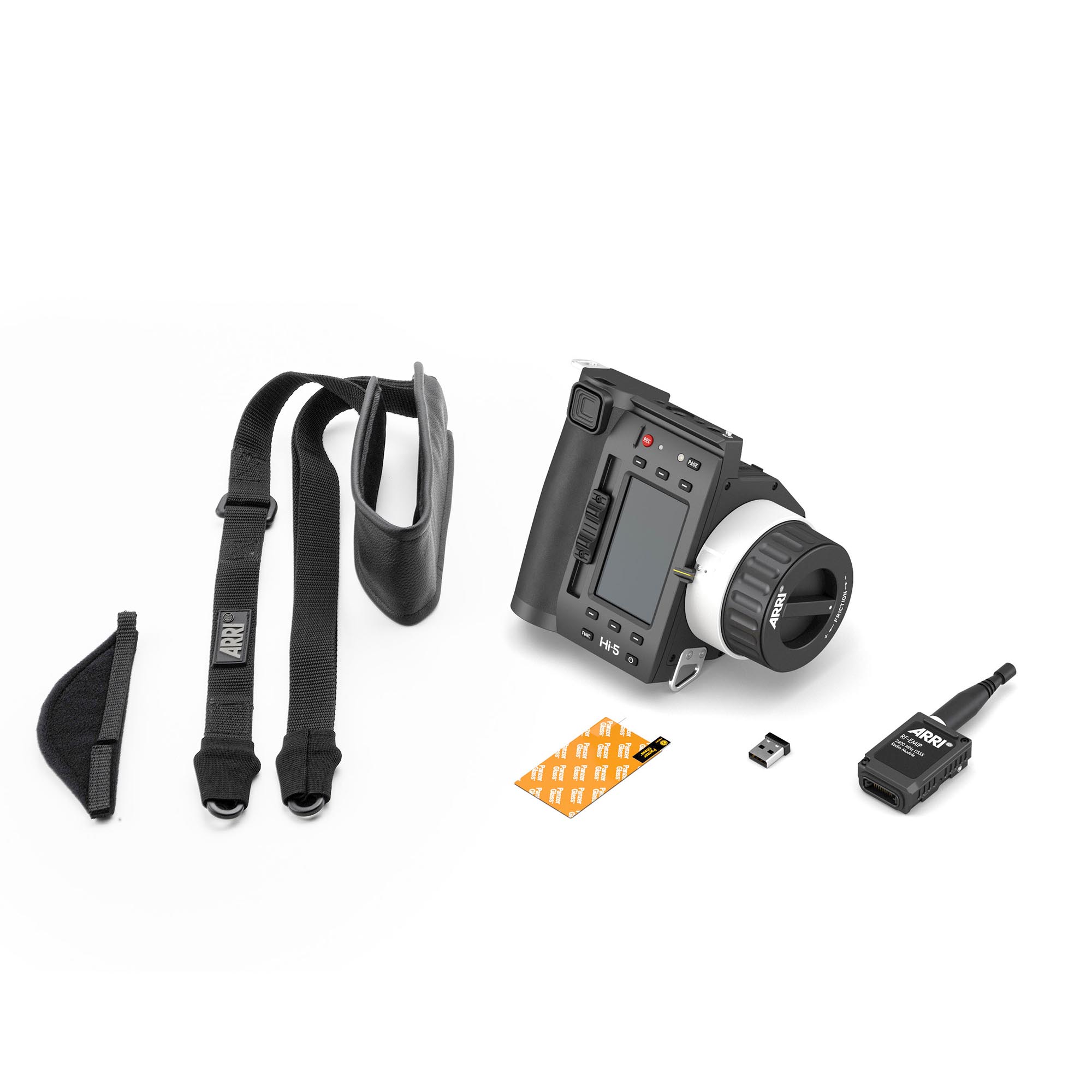

Hi-5 hand unit with white-coded RF-EMIP radio module and accessories. Compatible with ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP.Includes:KK.0042529 1x Hi-5 Hand Unit Basic Set w/o Batteries, ChargerK2.0039874 1x LBP Battery ChargerK2.0036022 2x Li-Ion Battery Pack LBP-3500
Hi-5 hand unit with white-coded RF-EMIP radio module and accessories. Compatible with ALEXA 35, ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP.Includes:KK.0039973 1x Hi-5 Hand Unit Body KitK2.0033702 1x RF-EMIP Radio Module 2400 MHz DSSSK2.0039959 1x Hi-5 Neck StrapK2.0039958 1x Hi-5 Hand StrapK2.0040015 1x Hi-5 PanzerGlassPlease note: Batteries and battery charger are not included!

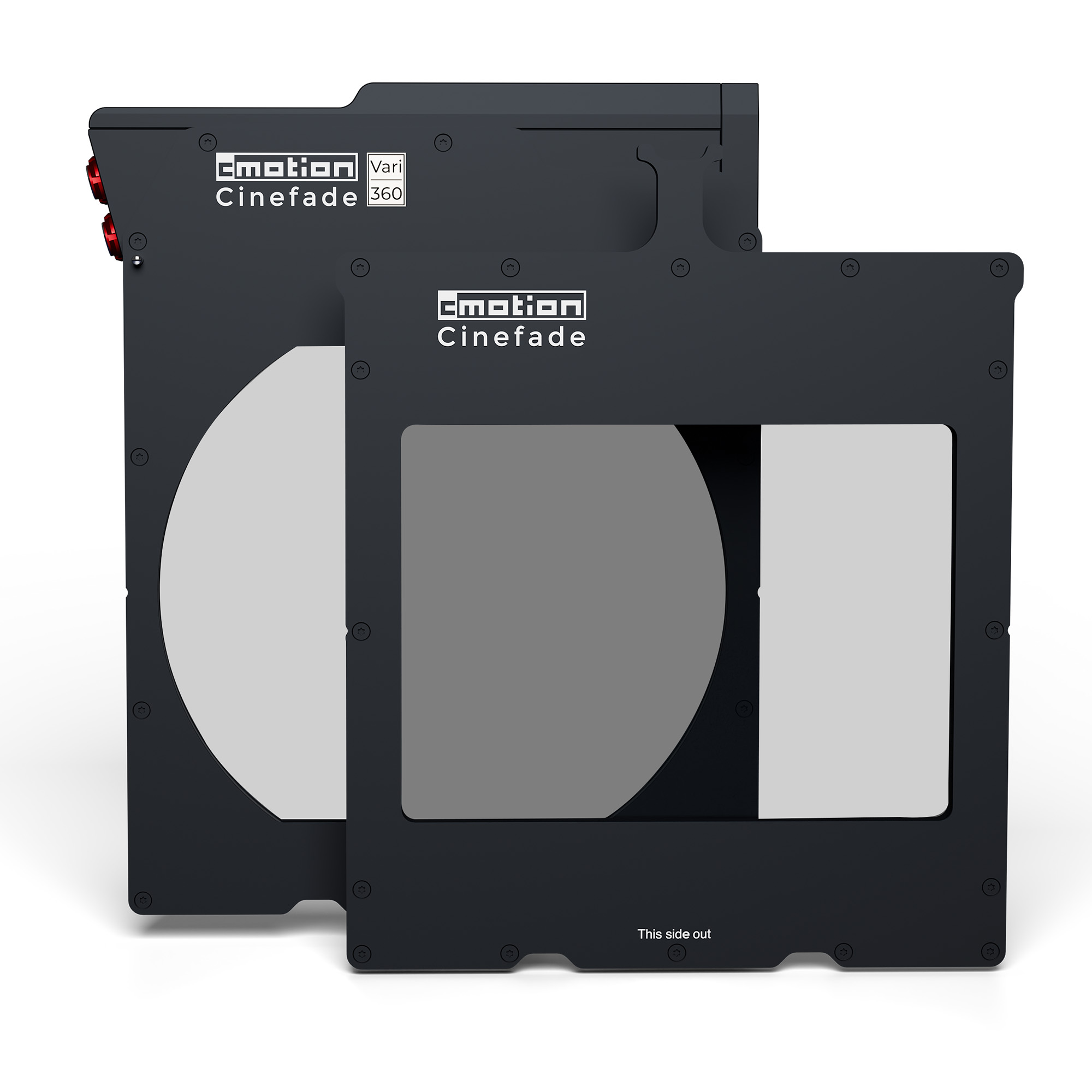

The Vari360 is a motorized LBUS VariND and Rotopola filter.Includes:1x Static Polariser1x Motorized Polariser1x 3/8 mounting point for safety loop1x cmotion Cinefade Vari360 hard caseIncluding 3-axis gyro-sensor for automatic synchronisation of the RotaPola with the camera rotation.Can also be used as a standalone variable ND filter or standalone variable polariser.

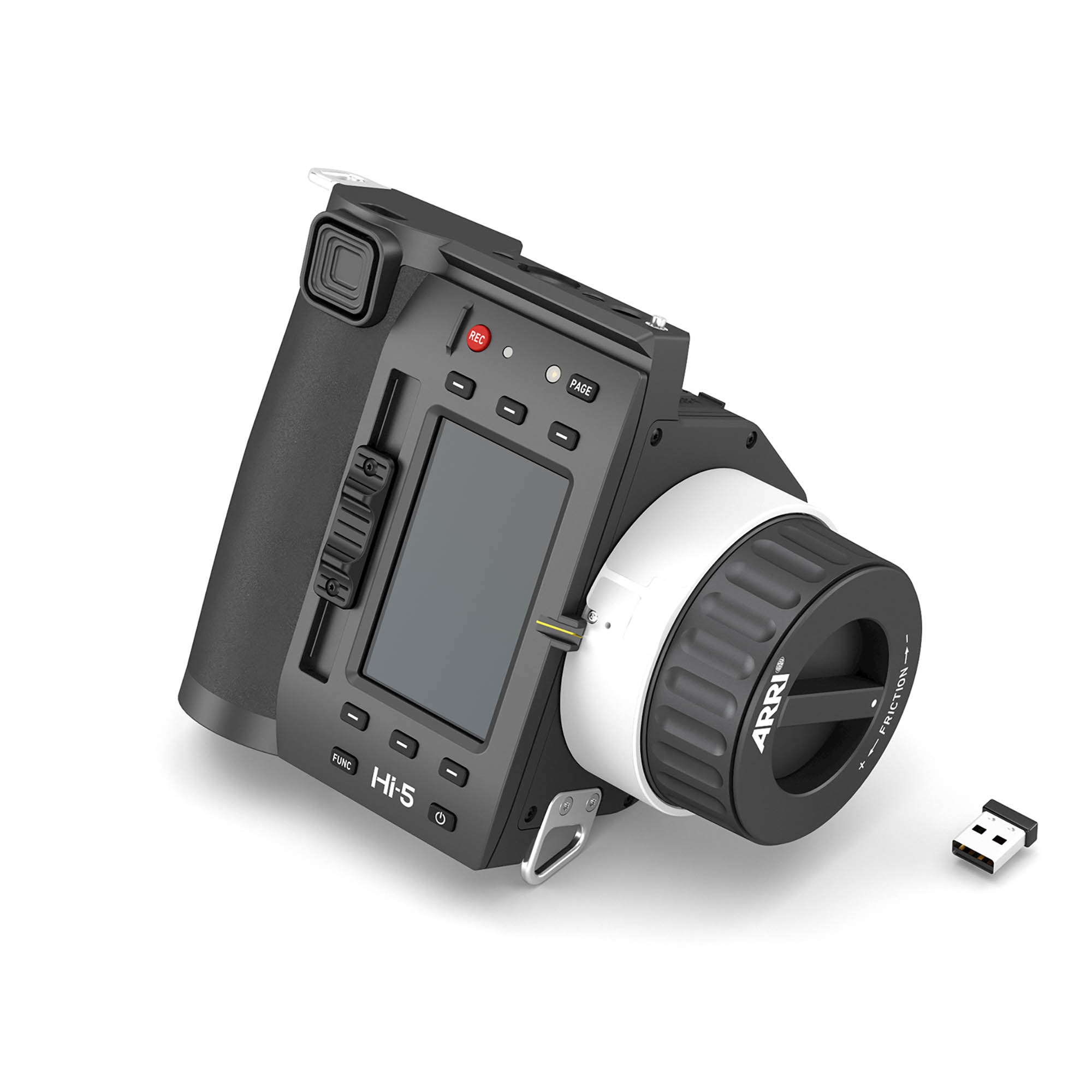

Hi-5 hand unit body set without radio module. Includes: K2.0037280 1x Hi-5 Hand Unit Body Naked K2.0039838 1x Bluetooth Dongle K2.0037463 1x Custom Smart Ring

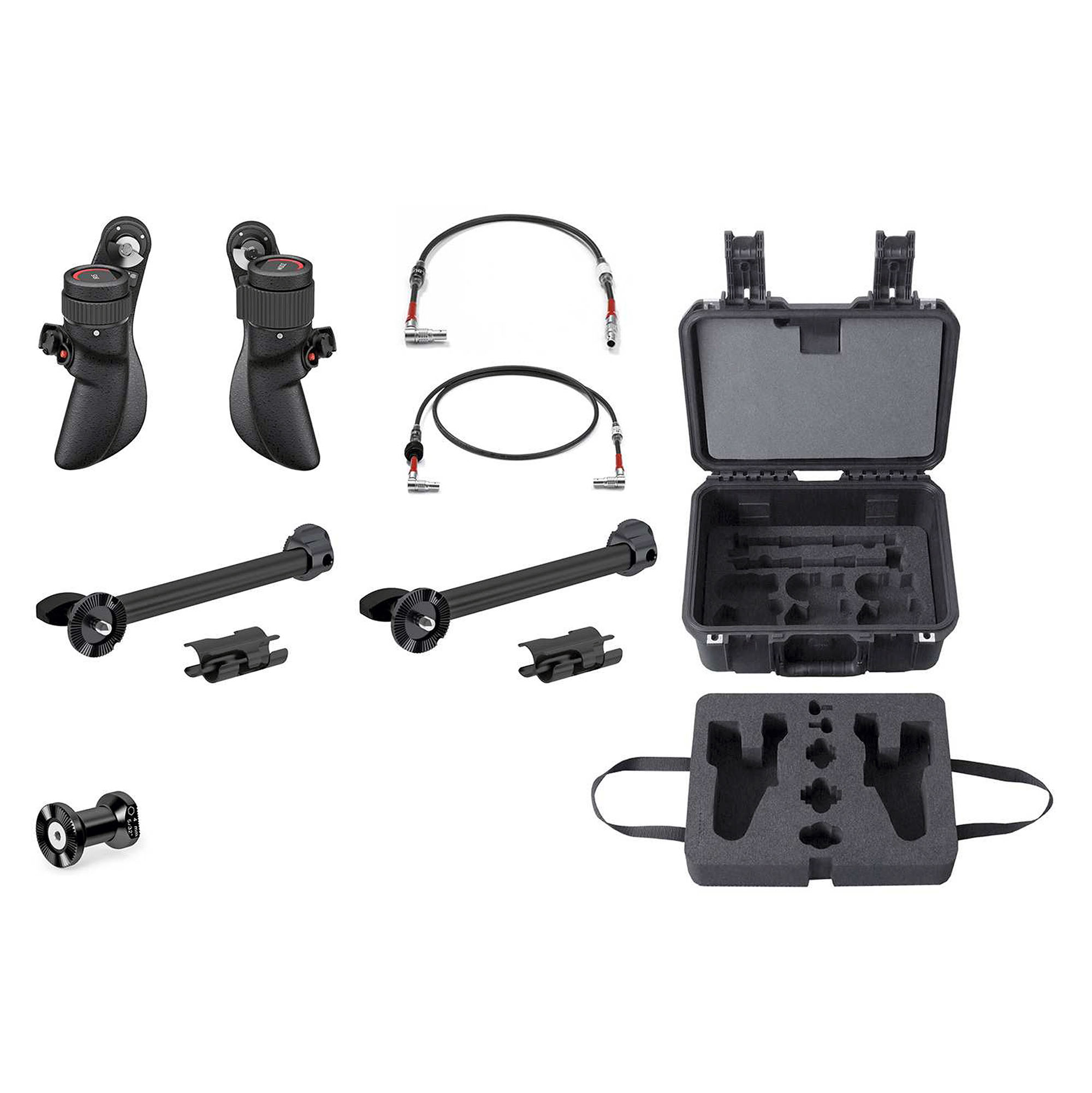

Pre-configured set with Master Grips and accessories, suitable for controlling zoom lenses on ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini and ALEXA Mini LF cameras.Includes:K2.0009493 1x Master Grip Right Rocker MRR-1K2.0009363 1x Master Grip Left Wheel MLW-1K2.0012911 2x Handgrip Extension 160mmK2.0012921 2x Cable Clip 15mmK2.47136.0 1x Extension Tube for HandgripK2.0013042 1x Cable LBUS (angled) - LBUS (straight) (0.35m/1.15ft)K2.0013040 1x Cable LBUS (angled) - LBUS (angled) (0.6m/1.9ft)K2.0012965 1x Master Grip CaseNote: cforce motors, respective LBUS cables and 15mm rods/supporting hardware not included!

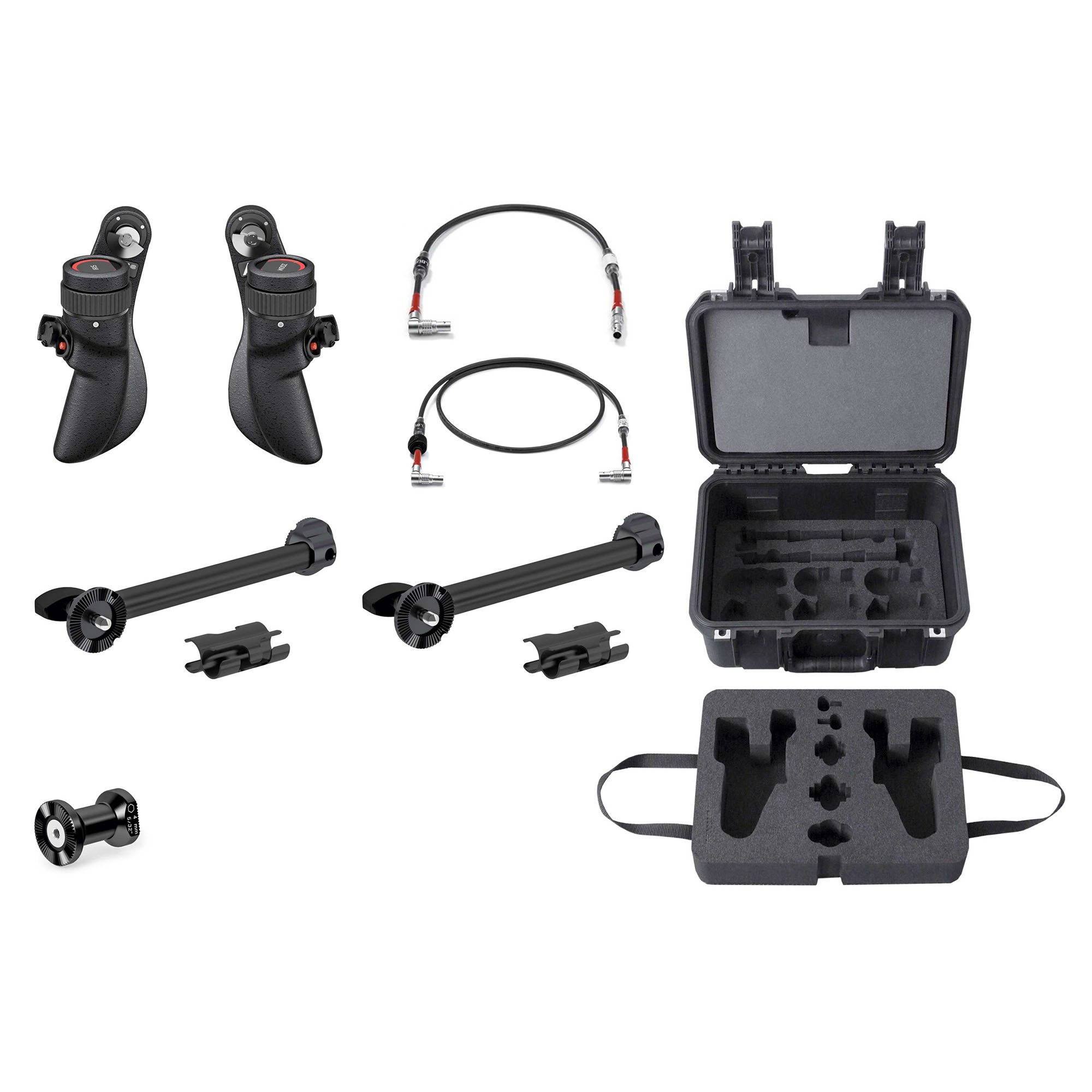

Pre-configured set with Master Grips and accessories, suitable for controlling prime lenses on ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini and ALEXA Mini LF cameras.Includes:K2.0009494 1x Master Grip Right Wheel MRW-1K2.0009363 1x Master Grip Left Wheel MLW-1K2.0012911 2x Handgrip Extension 160mmK2.0012921 2x Cable Clip 15mmK2.47136.0 1x Extension Tube for HandgripK2.0013042 1x Cable LBUS (angled) - LBUS (straight) (0.35m/1.15ft)K2.0013040 1x Cable LBUS (angled) - LBUS (angled) (0.6m/1.9ft)K2.0012965 1x Master Grip CaseNote: cforce motors, respective LBUS cables and 15mm rods/supporting hardware not included!

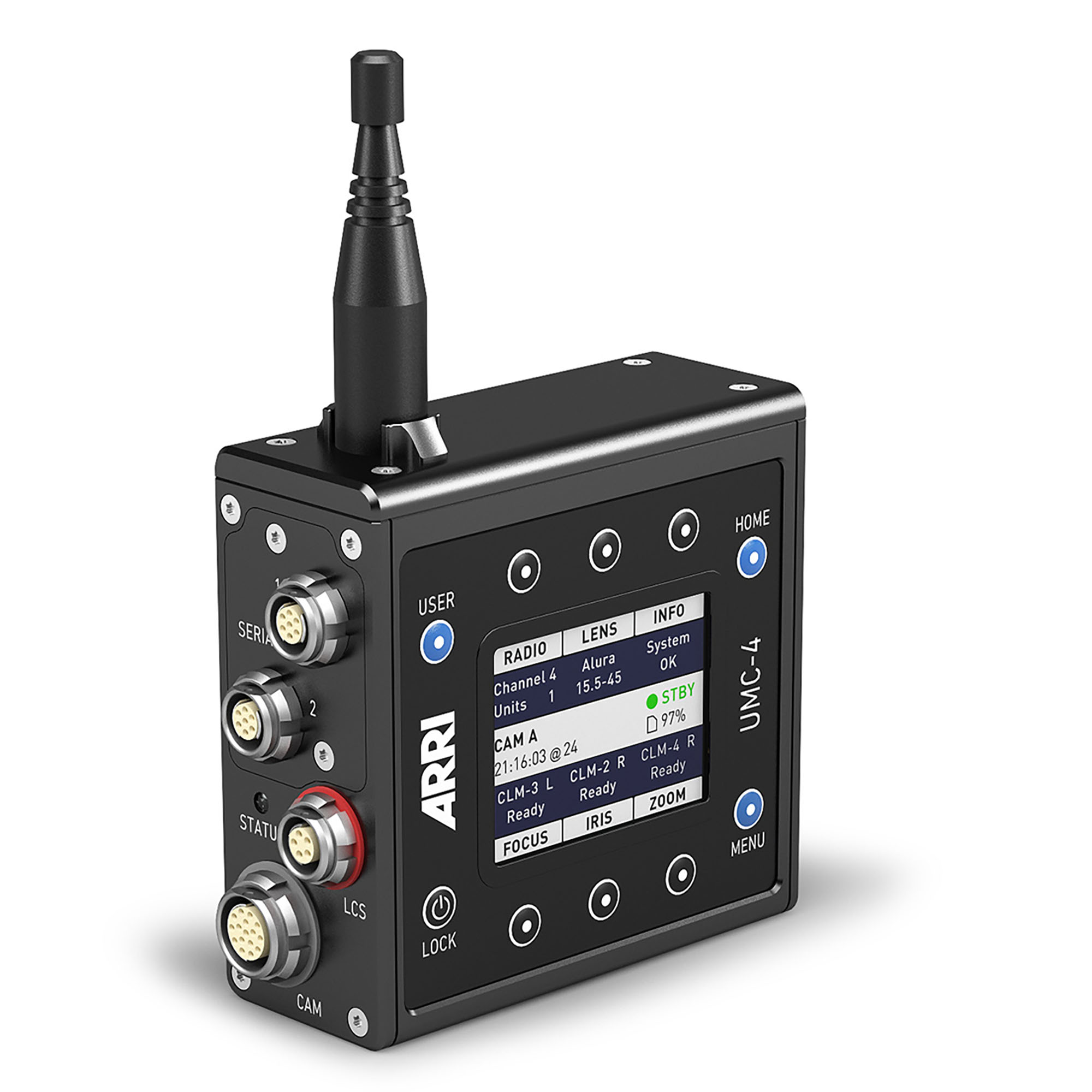

3-axis wireless motor controller with LDS lens data functionality. Works with WCU-4, SXU-1, Master Grips and pan-bar zoom (cmotion). Set includes L-Bracket, Antenna, SD card and user manual.
Hi-5 hand unit with white-coded RF-EMIP radio module and accessories. Compatible with ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP.Includes:KK.0051705 1x Hi-5 SX Basic Set w/o Batteries, ChargerK2.0036022 2x Li-Ion Battery Pack LBP-3500K2.0039874 1x LBP Battery Charger

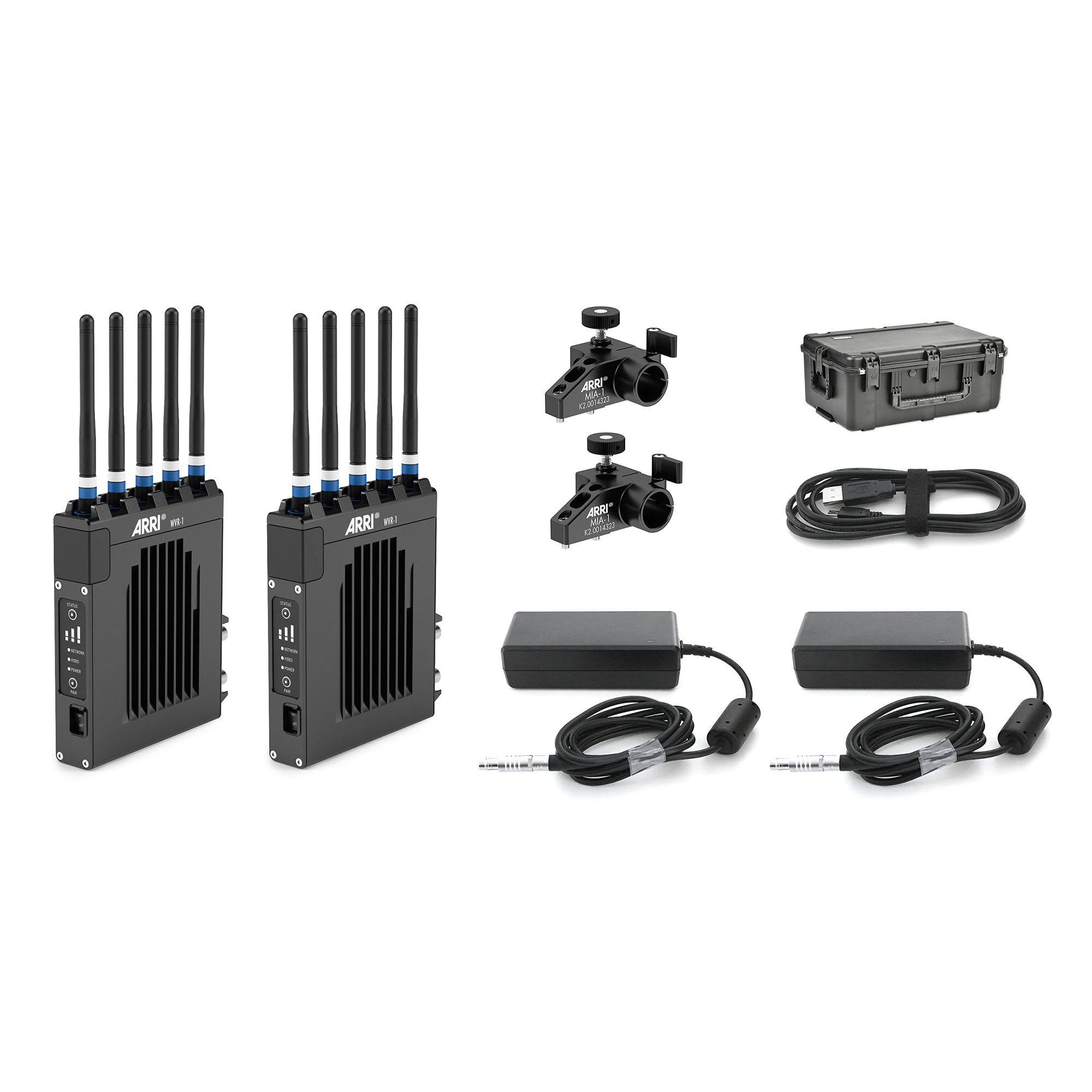

Two stand-alone Wireless Video Receivers (WVR-1) that receive the signal from the integrated video transmitter of the ALEXA LF, ALEXA SXT W or the stand-alone Wireless Video Transmitter (WVT-1). The housing is spray and dust proof aluminum with built-in collars for antenna and BNC connectors and offers several mounting options. WVR-1 includes an external power out connector that makes powering external accessories, like monitors, possible.Includes:K2.0014053 2x Wireless Video Receiver WVR-1 deviceK2.0015006 1x Wireless Video System CaseK2.0014568 10x Antenna Video/WiFi/ECSK2.0014323 2x Multi Interface Adapter MIA-1K2.0014216 1x USB Cable WVSK2.0014774 2x Receiver Power Supply RPS-1Note: Battery Adapter Plates for WVR-1 are not included and can be ordered separately.

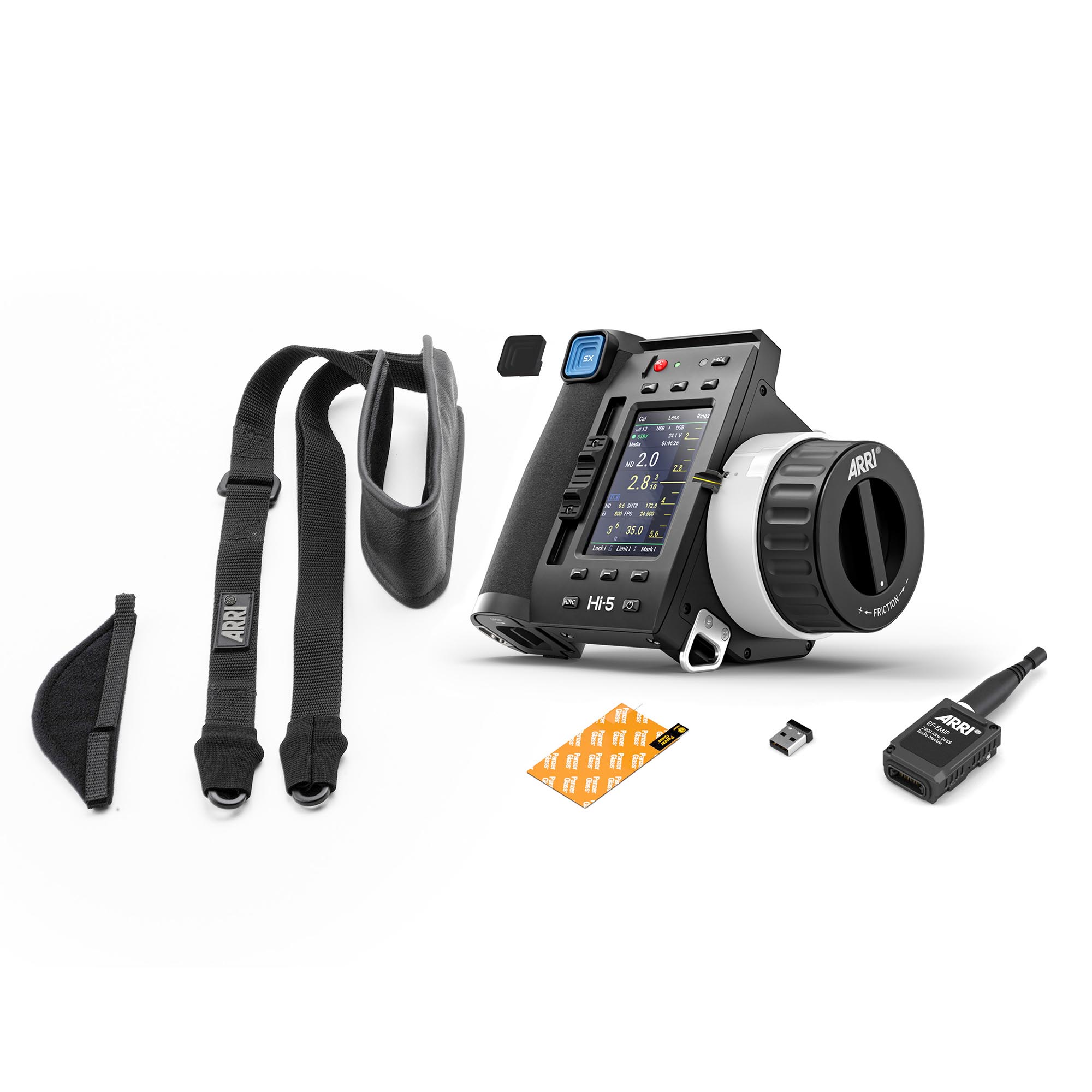

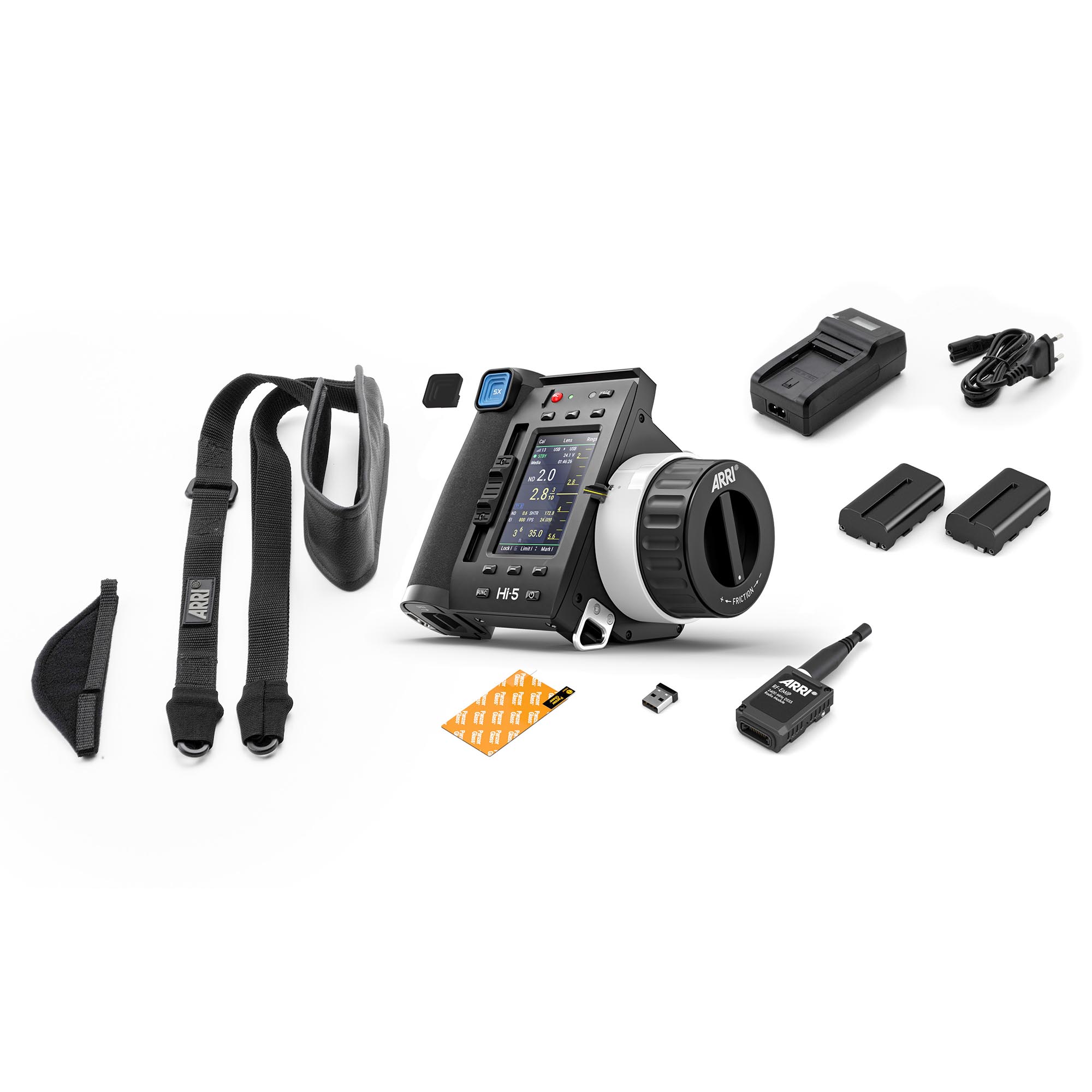

Hi-5 SX hand unit with white-coded RF-EMIP radio module and accessories. Compatible with ALEXA 35, ALEXA 35 Live, ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP.Includes:KK.0051704 1x Hi-5 SX Body KitK2.0040015 1x Hi-5 PanzerGlassK2.0039958 1x Hi-5 Hand StrapK2.0039959 1x Hi-5 Neck StrapK2.0033702 1x RF-EMIP Radio Module 2400 MHz DSSSPlease note: Batteries and batterie charger are not included!

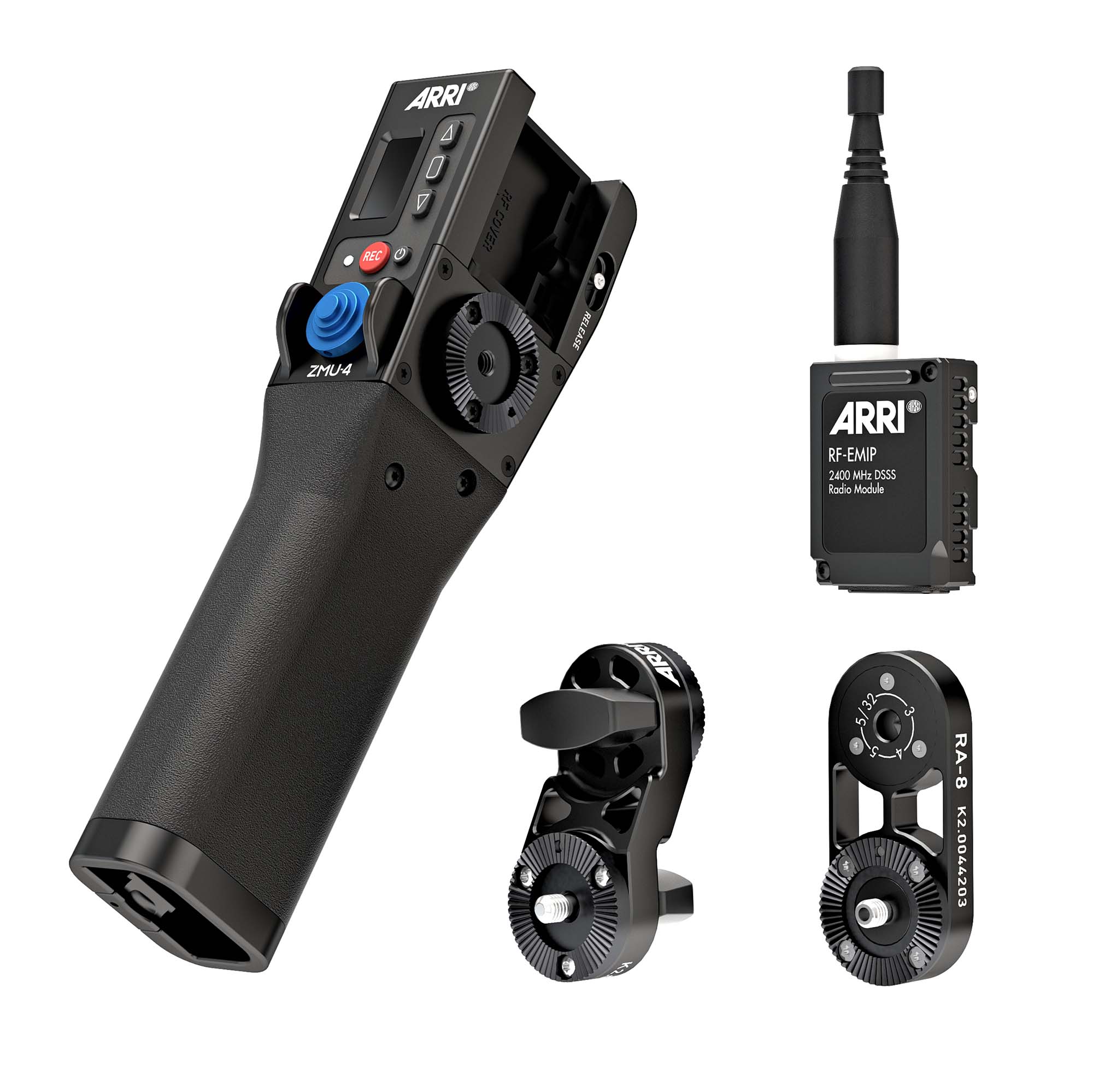

ZMU-4 with white-coded RF-EMIP radio module and accessories. The RF-EMIP radio module is compatible with all ARRI cameras with integrated radio (white coded) and with all wireless motor controllers like RIA-1, cforce mini RF or UMC-4. The ZMU-4 Basic Set comes with a second ZMU-4 ARRI Rosette mounted on the unit.Includes:K2.0039926 1x ZMU-4 Zoom Main Unit BodyK2.0033702 1x RF-EMIP Radio Module 2400 MHz DSSSK2.0041744 1x Rosette Adapter RA-7K2.0044203 1x Rosette Adapter RA-8K2.0044543 1x ZMU-4 ARRI RosetteNote: Batteries and battery charger are not included!

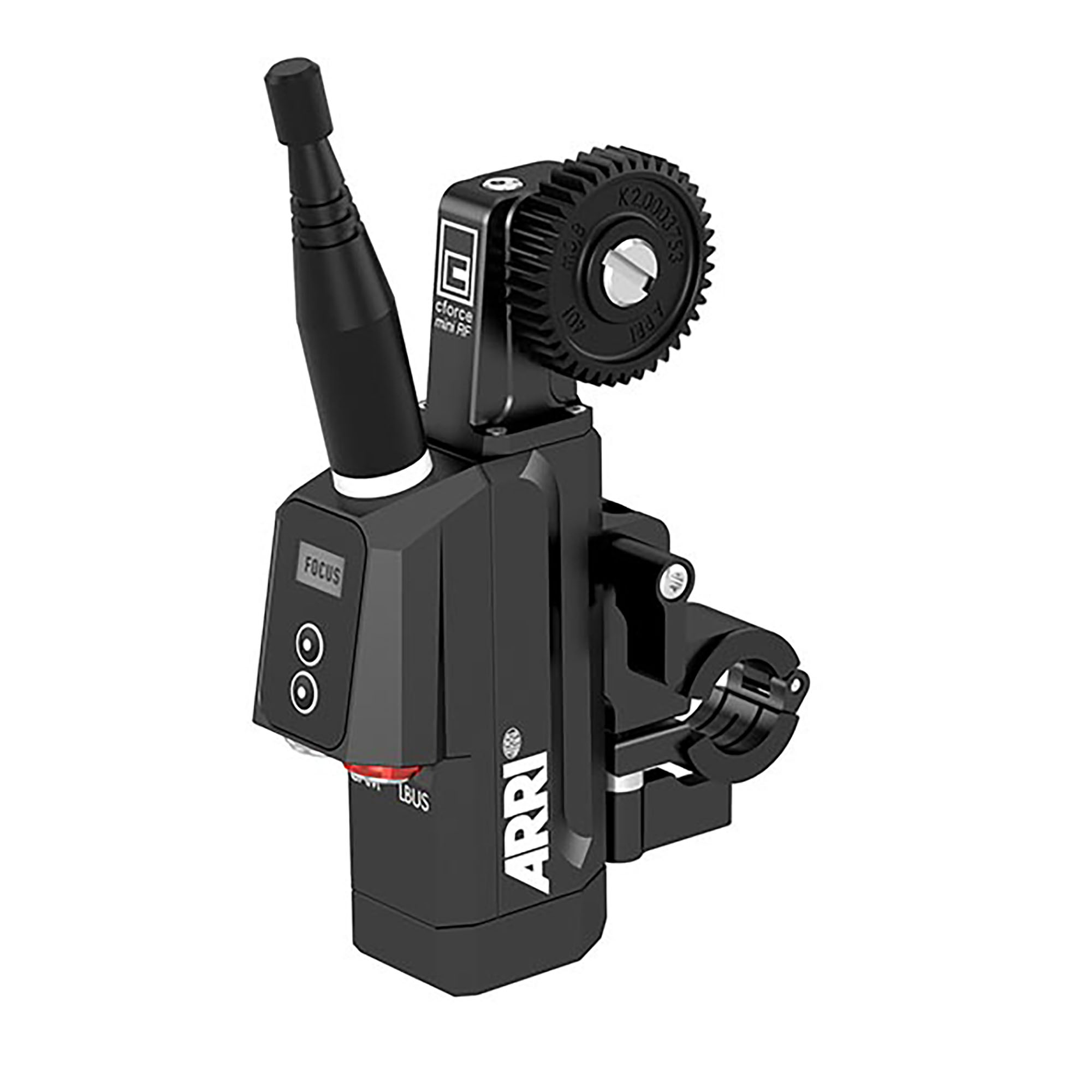

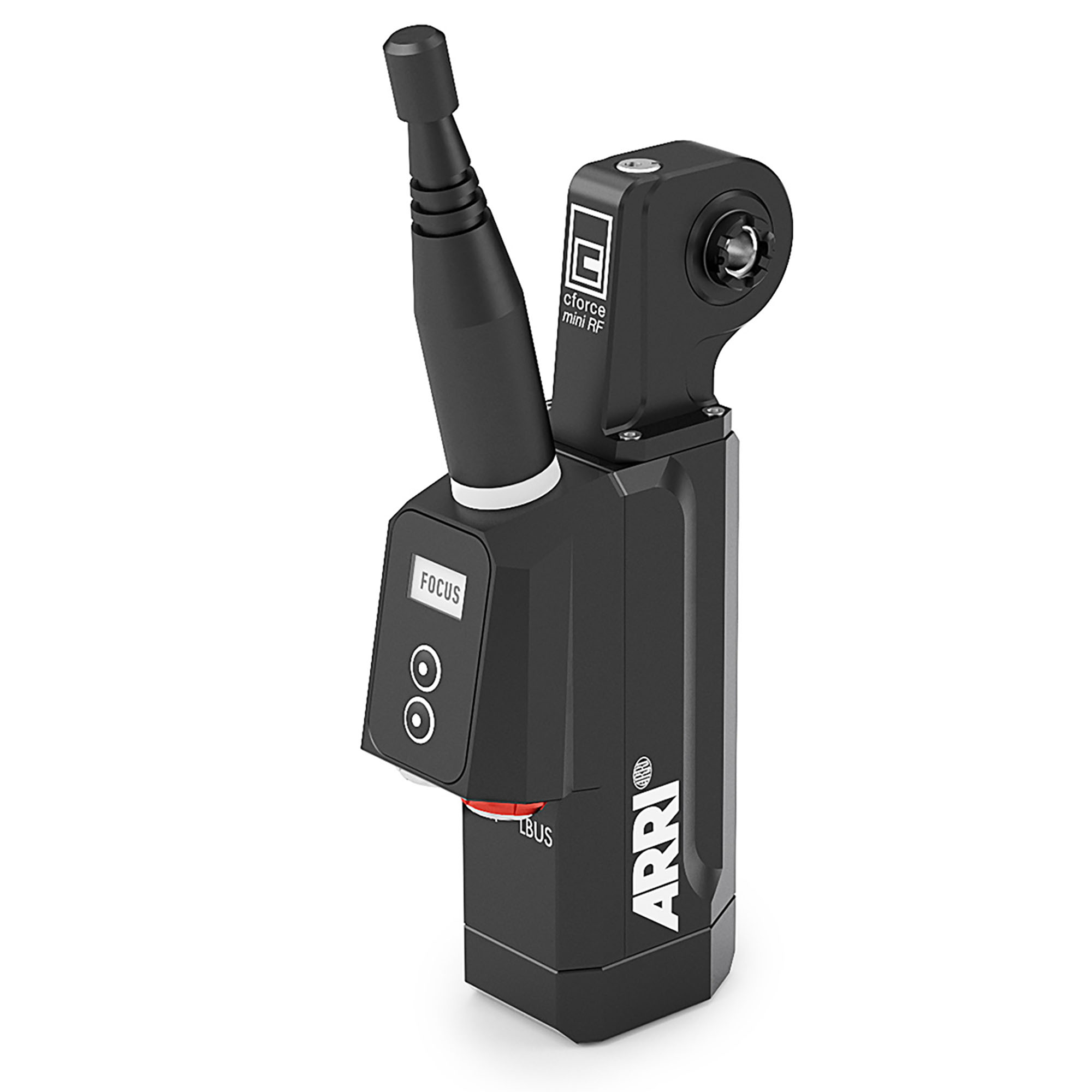

The cforce mini RF is an intelligent lens motor with integrated white-coded ARRI radio module, eliminating the need for an additional receiver unit mounted on the camera. The cforce mini RF can pair with up to three hand units for split focus, iris and zoom operation and provides full lens data when used with the WCU-4 hand unit.Includes:K2.0016802 1x cforce mini RF Motor UnitK2.0036610 1x cforce mini Clamp Console 2 19/15mmK2.0003753 1x CLM-5/cforce mini Gear m0.8/32p, 40tK2.0002007 1x 2400MHz Antenna RPSMA, straightNote: LBUS motor cables need to be ordered separately.
cforce mini RF motor unit without gears, cable and bracket.

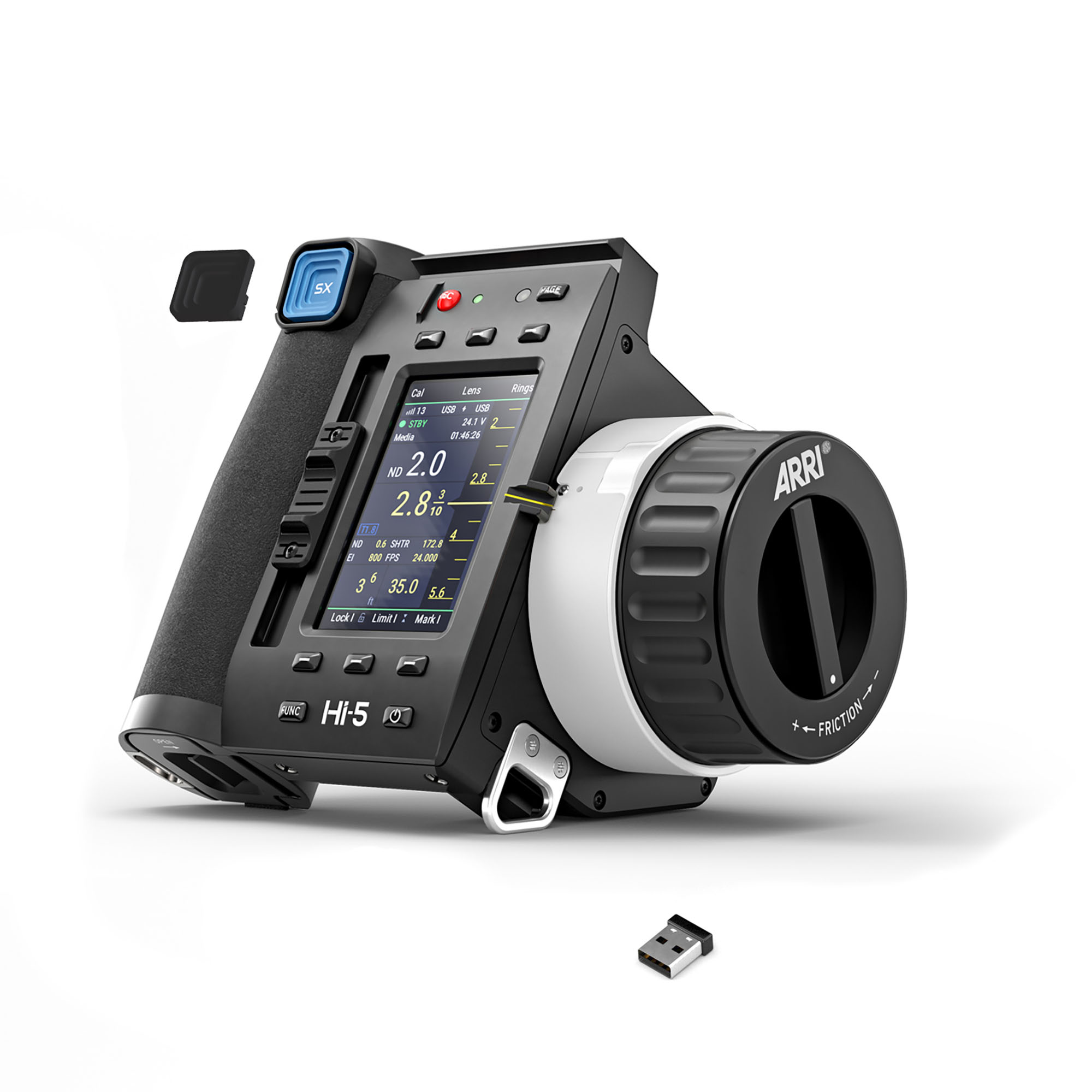

Hi-5 SX hand unit body kit without radio moduleIncludes:K2.0037280 1x Hi-5 Hand Unit Body NakedK2.0039838 1x Bluetooth DongleK2.0037463 1x Custom Smart RingK4.0042707 1x Hi-5 Force-Pad Cover Black

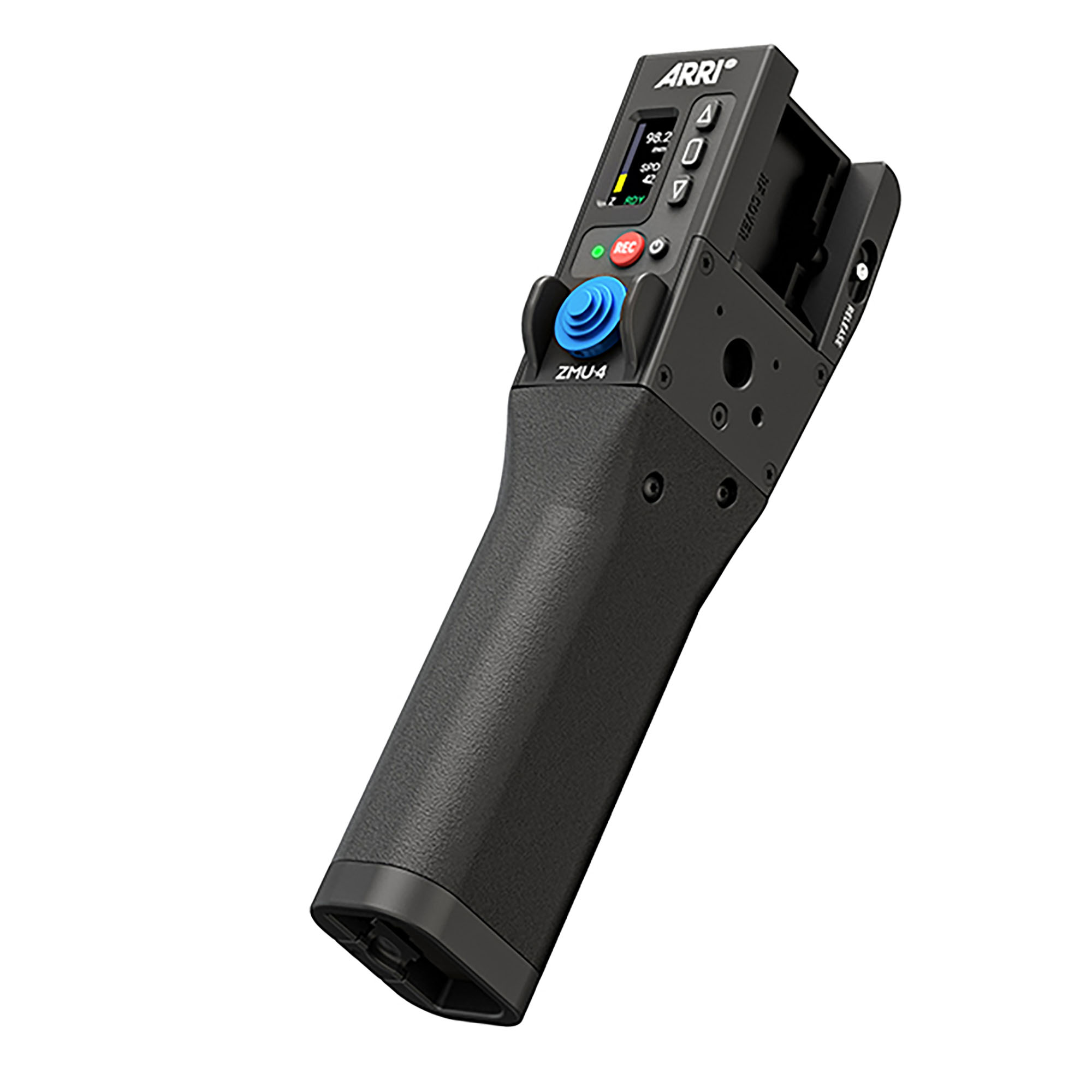

ZMU-4 body without radio module and accessories. Every ZMU-4 ships withone ZMU-4 ARRI Rosette mounted on the unit.Includes:K2.0039965 1x RF-CoverNote: Radio module and batteries are not included!

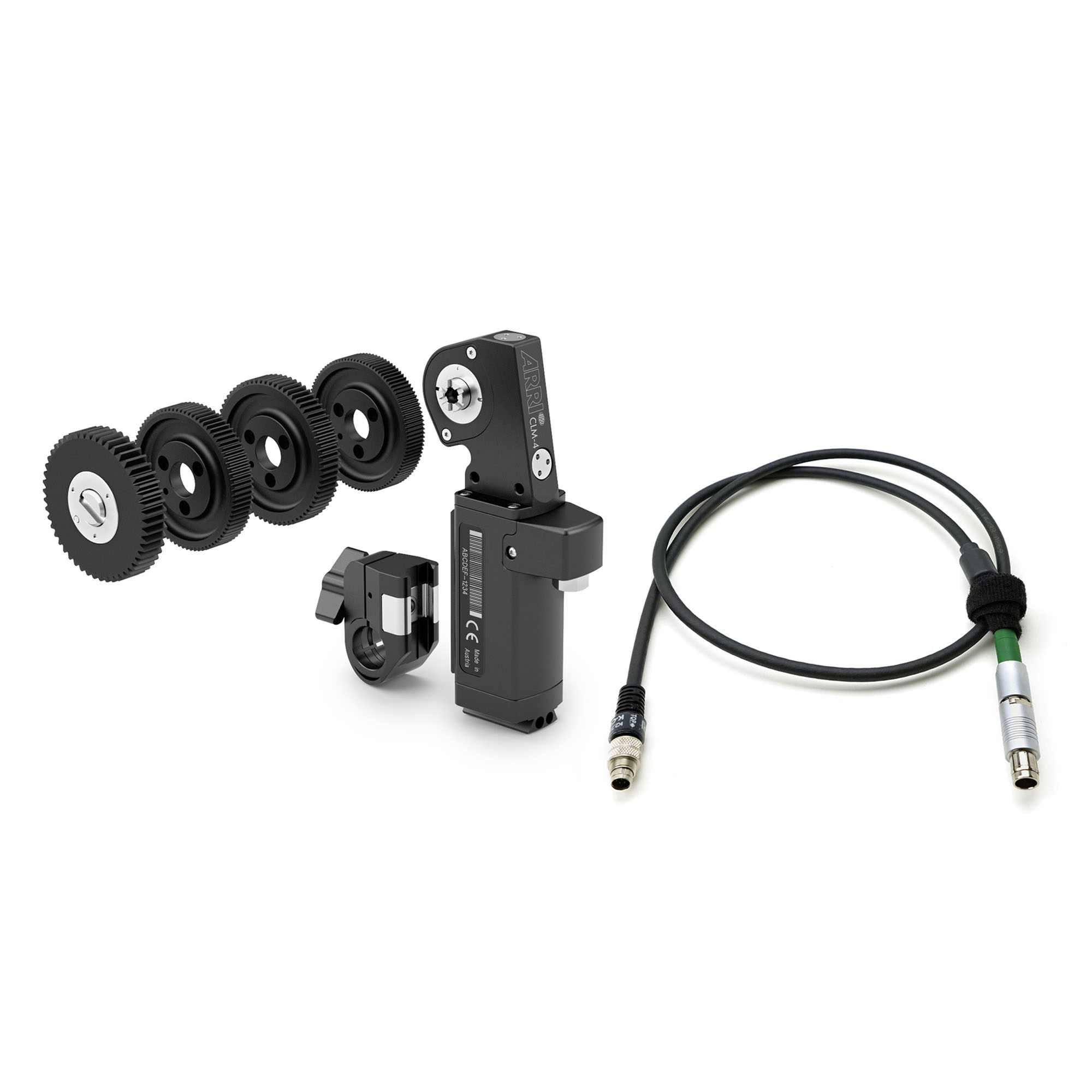

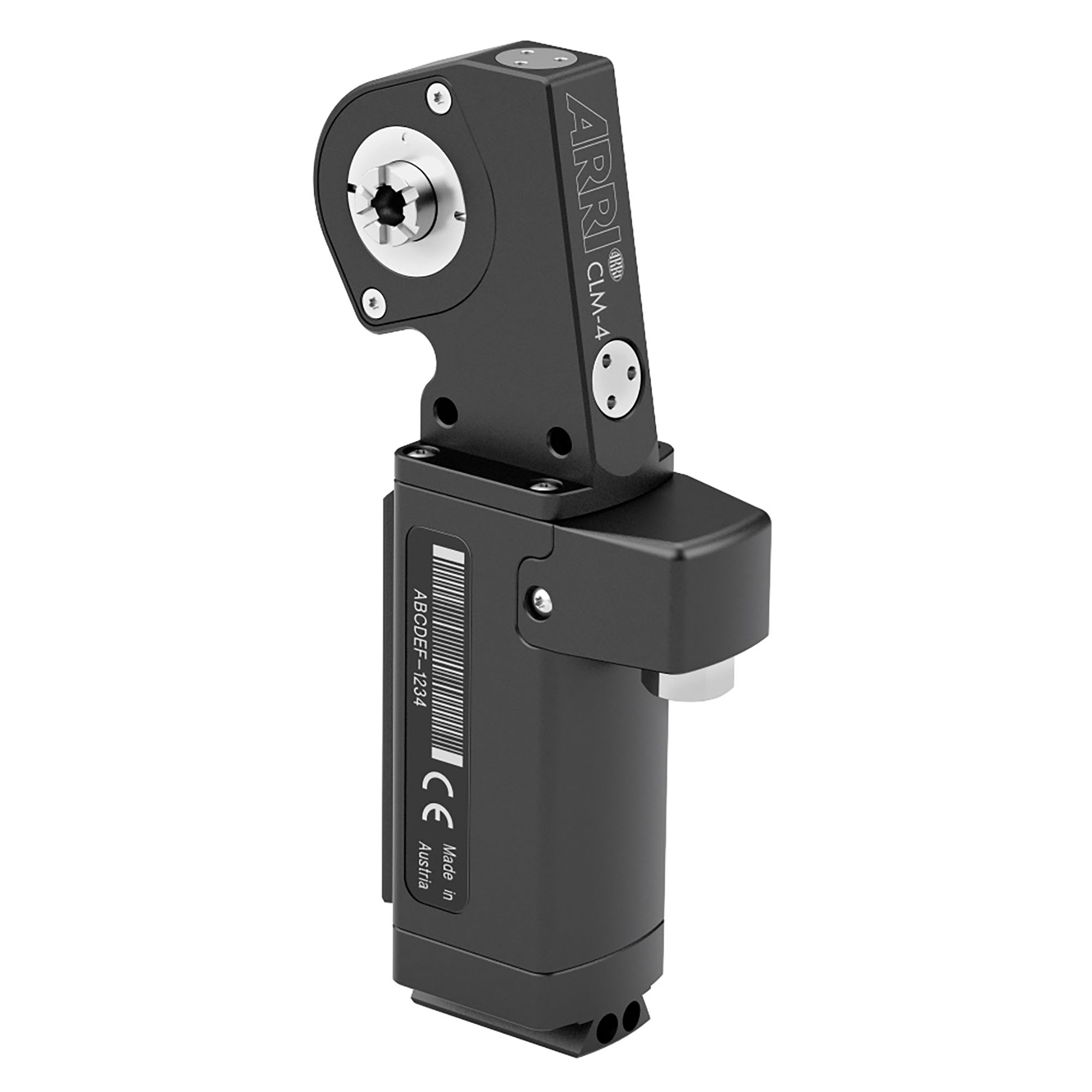

includes:K2.72114.0 1x CLM-4 Motor UnitK2.72099.0 1x Cable CLM-4 (8p) - CLM/FIZ (12p) (0,8m/2.6ft)K2.72101.0 1x CLM-4 Standard Clamp Console 19/15mmK2.72116.0 1x CLM-4 Gear Set m0.8, 0.6, 0.5, 0.4
Super-responsive brushless motor with integrated touchscreen interface, designed for larger cine primes, zoom lenses, vintage glass, and specialty optics that require both strength and precision. With a high speed of up to 400 teeth per second and market-leading latency, it is also ideally suited for focus tracking systems. Dual LBUS ports enable seamless daisy-chaining and flexible system integration. The motor comes with the highly adjustable Motor Rod Clamp MRC-1 19mm, providing a robust and reliable connection to lens gears. includes: K2.0055211 1x cforce MAX Motor Unit K2.0053386 1x Motor Rod Clamp MRC-1 19mm K2.72108.0 1x CLM-4/cforce Gear m0.8/32p, 50t
crews to integrate it effortlessly into established setups. A Tech Talk detailing all the features will be available on the ARRI YouTube channel and on our ARRI website: www.arri.com/cforceMAX Product Name, Order Number, List Price and Description cforce MAX Basic Kit 15mm KK.0055606 2.980 € Super-responsive brushless motor with integrated touchscreen interface, designed for larger cine primes, zoom lenses, vintage glass, and specialty optics that require both strength and precision. With a high speed of up to 400 teeth per second and market-leading latency, it is also ideally suited for focus tracking systems. Dual LBUS ports enable seamless daisy-chaining and flexible system integration. The motor comes with the highly adjustable Motor Rod Clamp MRC-1 15mm, providing a robust and reliable connection to lens gears. includes: K2.0055211 1x cforce MAX Motor Unit K2.0055222 1x Motor Rod Clamp MRC-1 15mm K2.72108.0 1x CLM-4/cforce Gear m0.8/32p, 50t

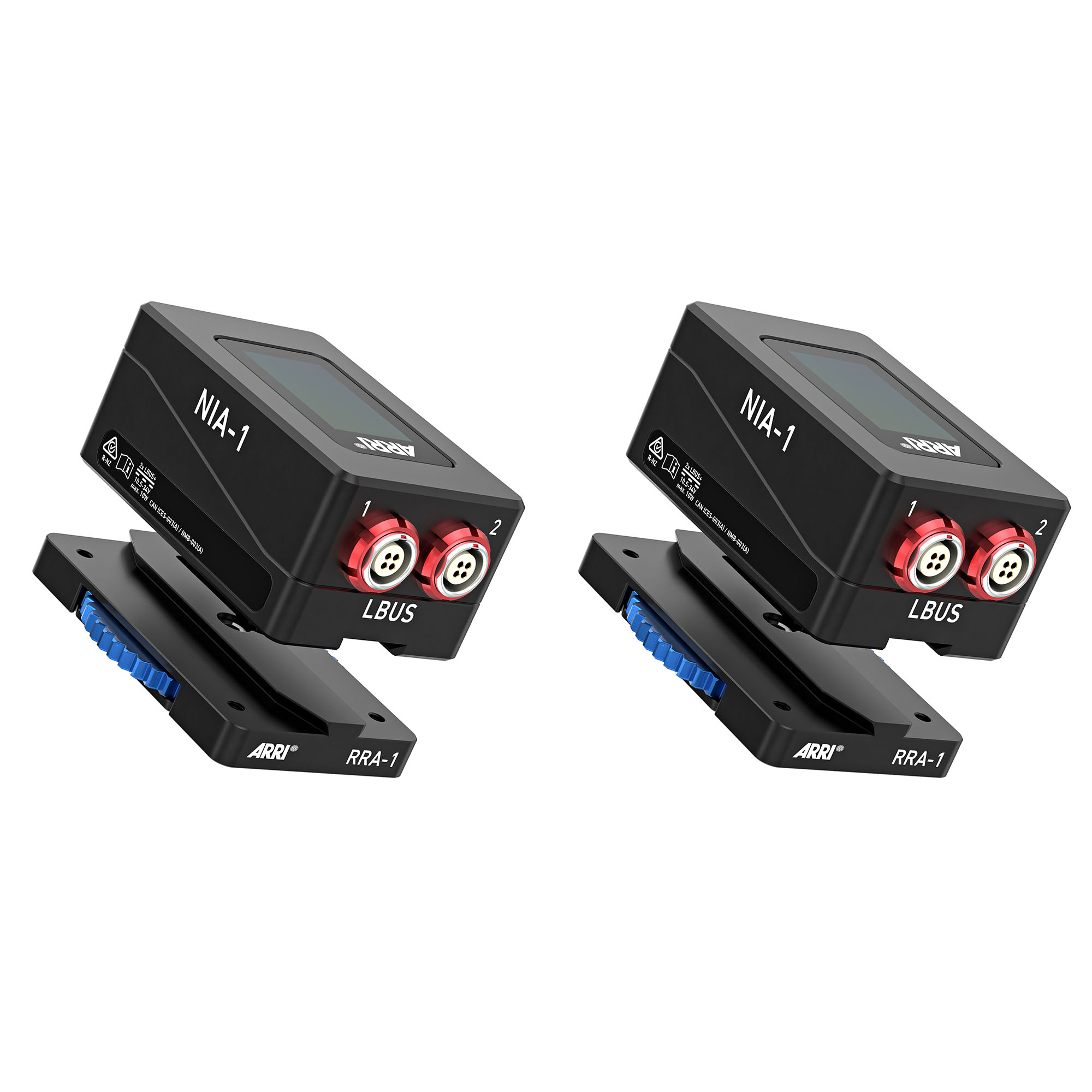

Set of two Network Interface Adapter NIA-1 and RRA-1 brackets.includes:K2.0052389 2x Network Interface Adapter NIA-1K2.0053976 2x Rotary Release Adapter RRA-1

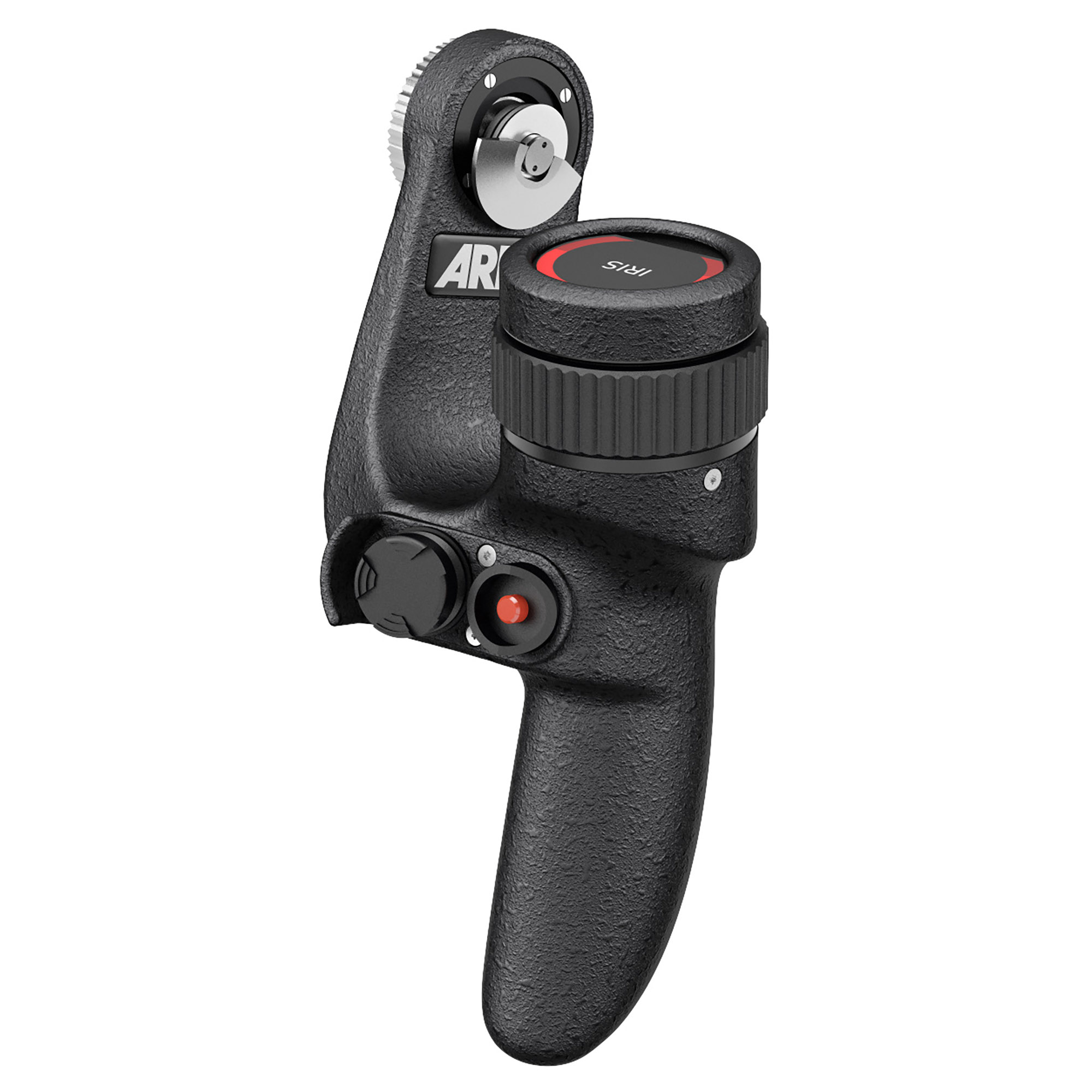

Solid, ergonomic left-side camera handgrip with assignable user buttons and a finger wheel for iris or focus adjustments. Includes a steel ARRI rosette and two LBUS interfaces.
Solid, ergonomic left-side camera handgrip with assignable user buttons and a control rocker for super-smooth zooming. Includes a steel ARRI rosette and two LBUS interfaces.
Solid, ergonomic right-side camera handgrip with assignable user buttons and a control rocker for super-smooth zooming. Includes a steel ARRI rosette and two LBUS interfaces.
Solid, ergonomic right-side camera handgrip with assignable user buttons and a finger wheel for iris or focus adjustments. Includes a steel ARRI rosette and two LBUS interfaces.

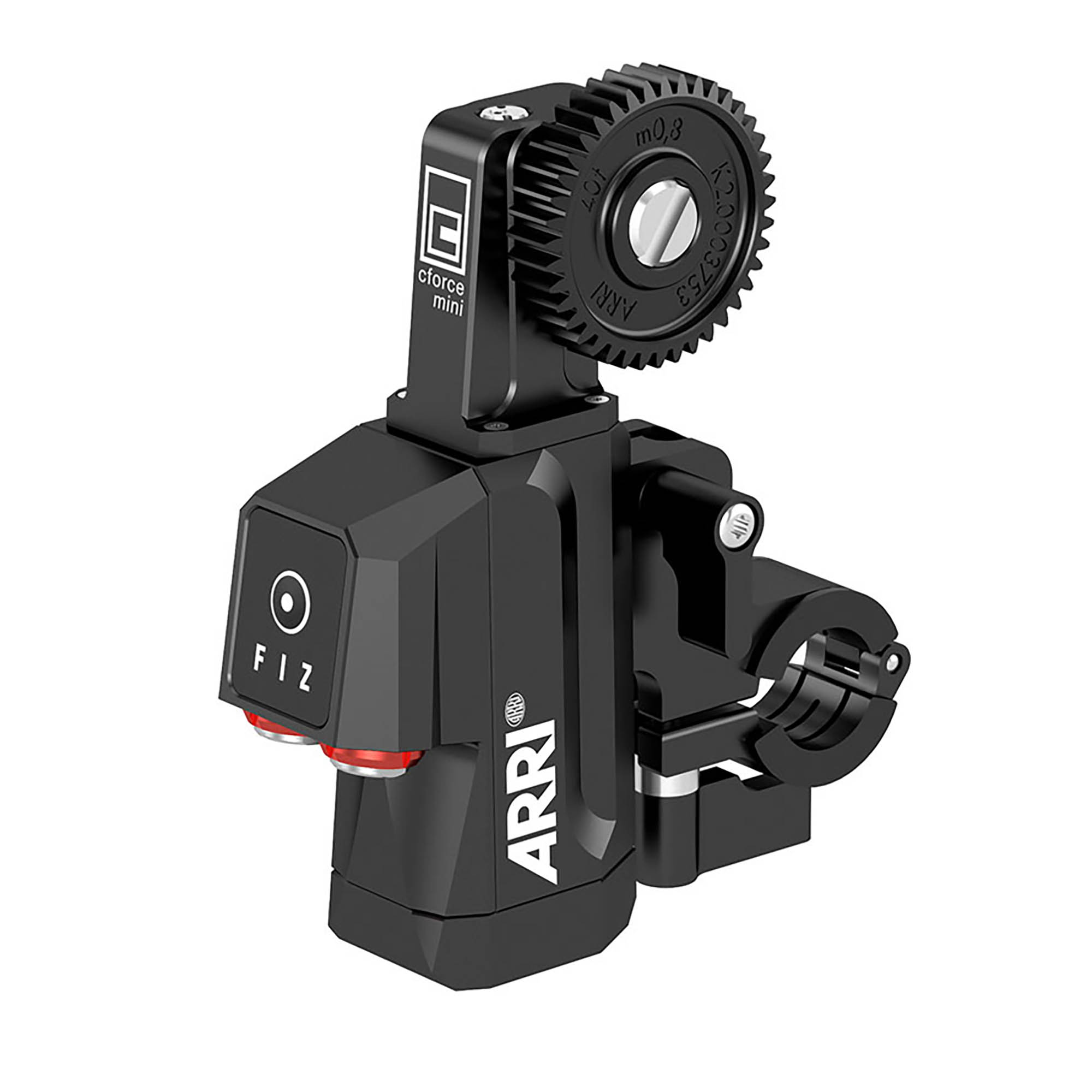

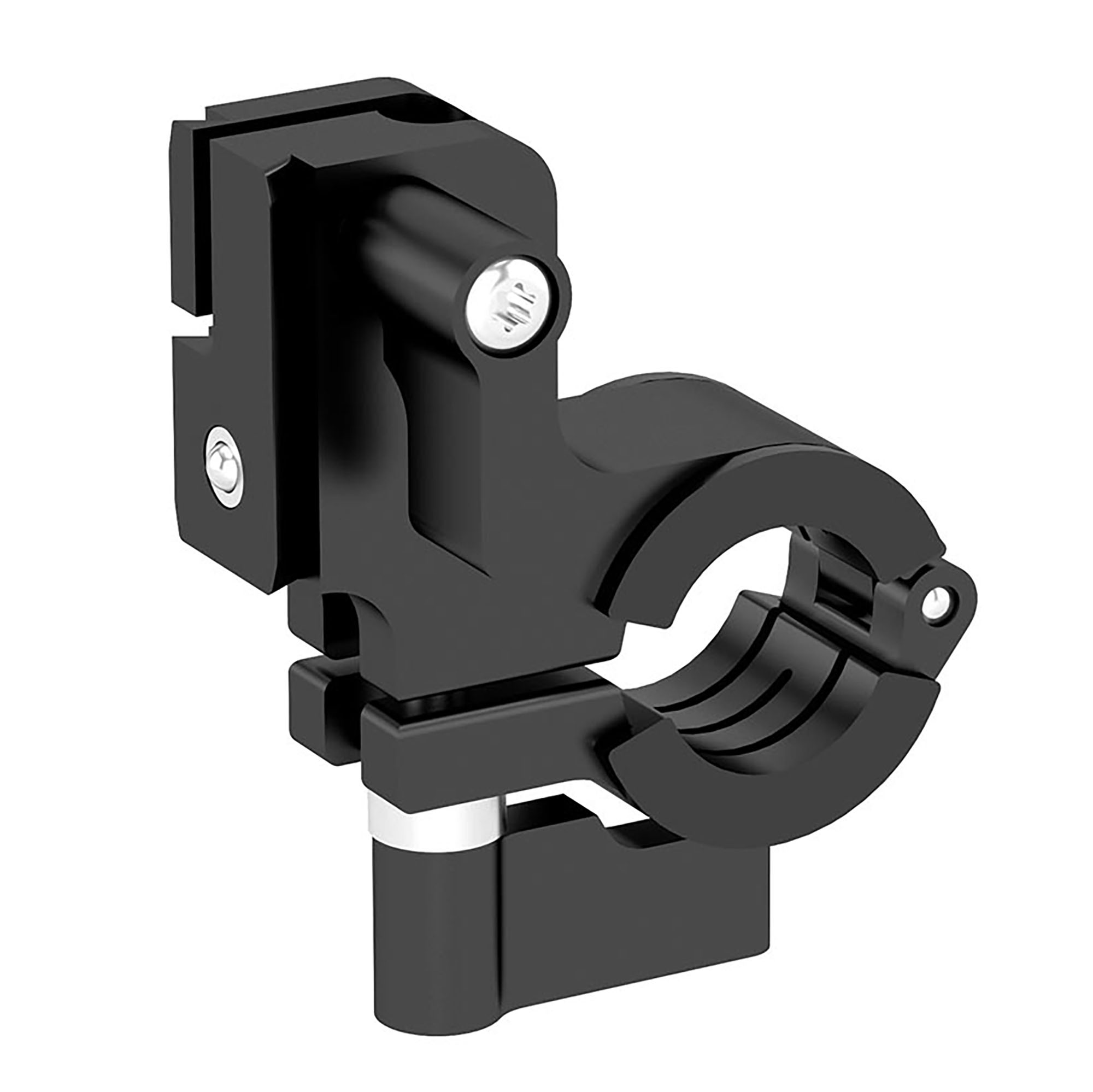

Includes:K2.0006354 1x cforce mini Motor UnitK2.0036610 1x cforce mini Clamp Console 2 19/15mmK2.0003753 1x CLM-5/cforce mini Gear m0.8/32p, 40tNote: LBUS motor cables need to be ordered separately.

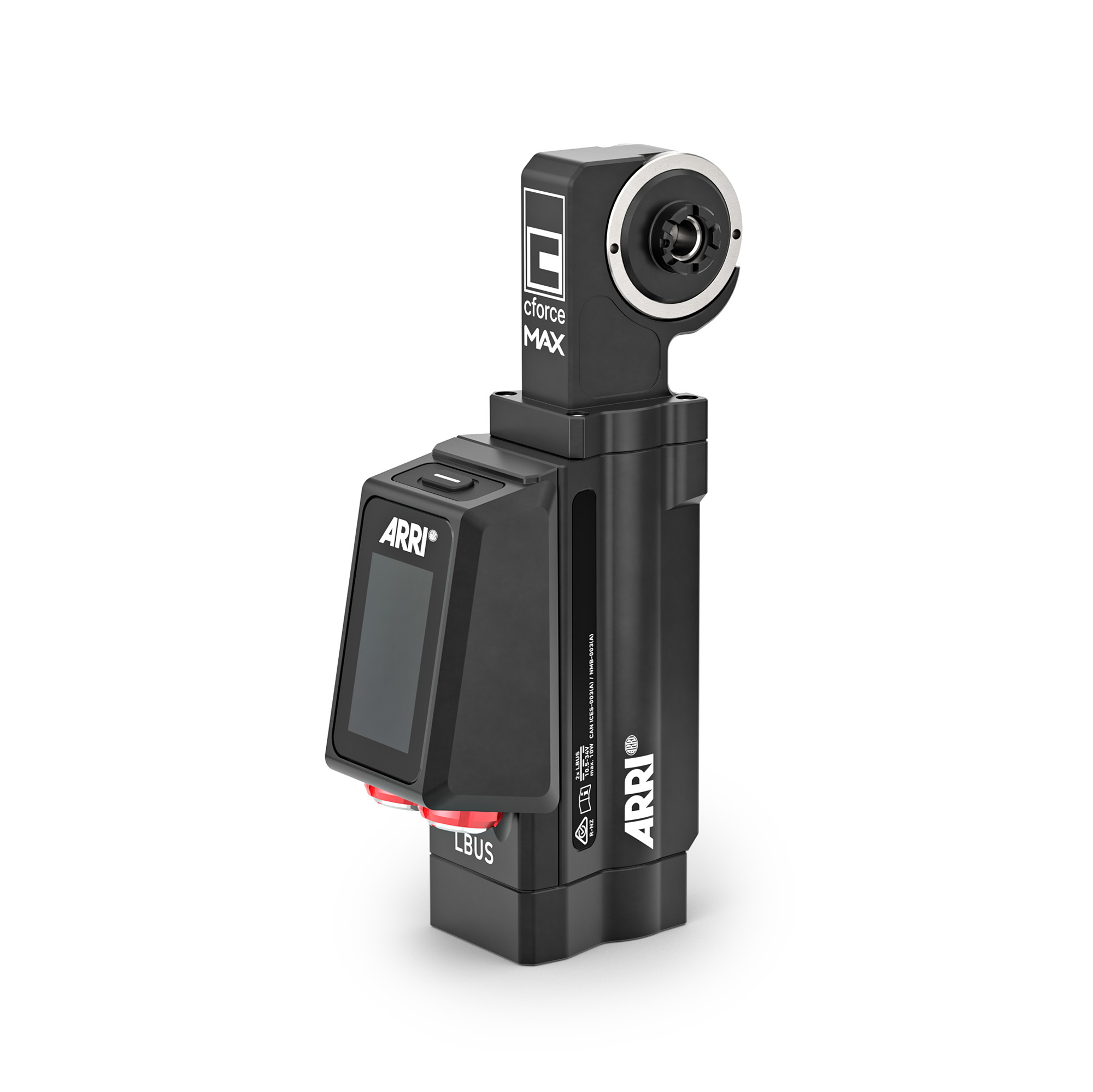

cforce MAX motor unit without gears, cable and bracket.

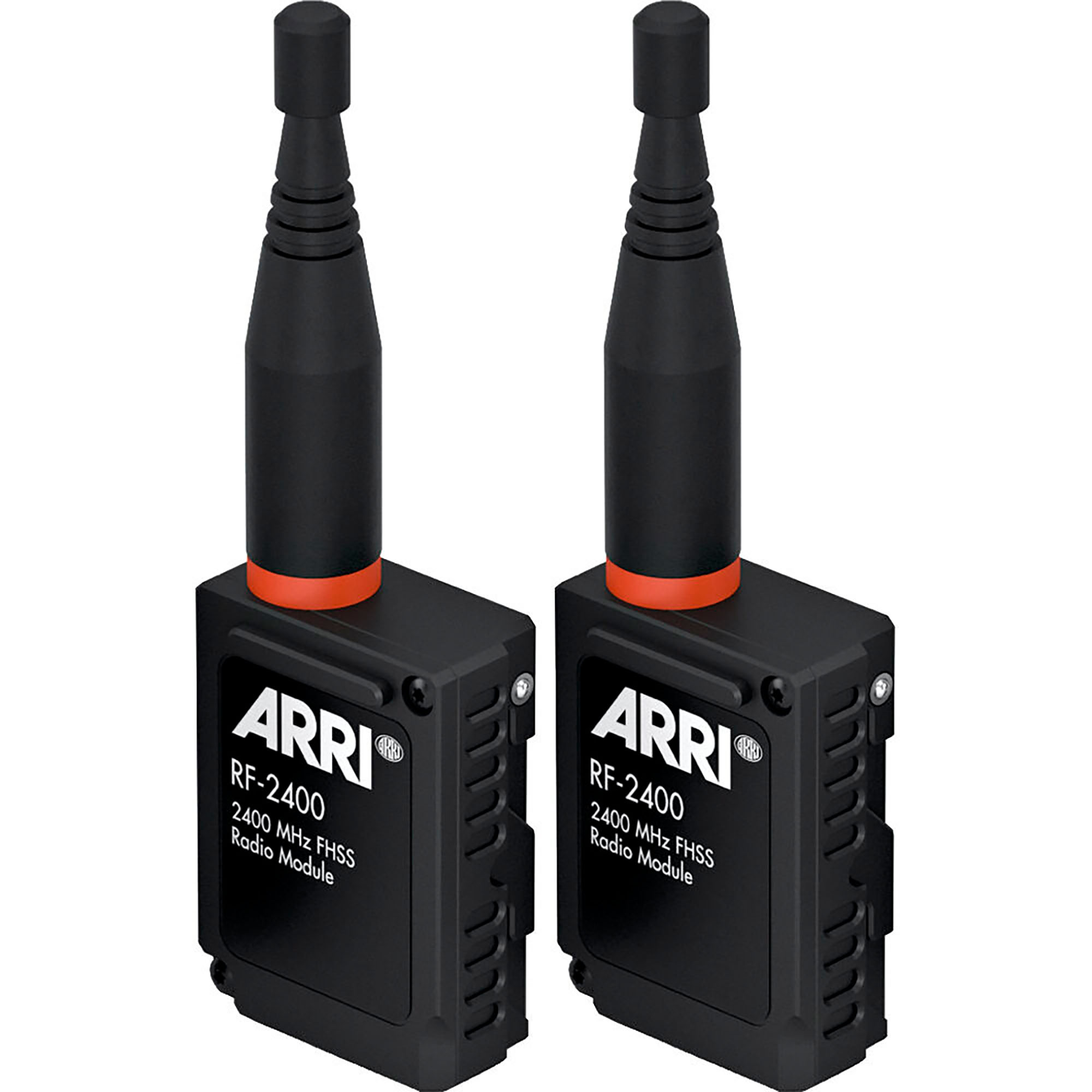

Set of two exchangeable radio modules for the Hi-5 hand unit and Radio Interface Adapter RIA-1. Point-to-point communication for connecting one Hi-5 hand unit with one Radio Interface Adapter RIA-1.Frequency: 2400 MHzModulation: Frequency-hopping spread spectrum (FHSS)Number of channels: 100Includes:K2.0036598 2x RF-2400 Radio Module 2400 MHz FHSS
Set of two exchangeable radio modules for the Hi-5 hand unit and Radio Interface Adapter RIA-1. Point-to-multipoint communication for connecting up to three hand units with one motor controller or camera. Backwards-compatible to devices including the ARRI's white-coded radio (EMIP) modules.Frequency: 2400 MHzModulation: Direct-sequence spread spectrum (DSSS)Number of channels: 14Includes:K2.0033702 2x RF-EMIP Radio Module 2400 MHz DSSS

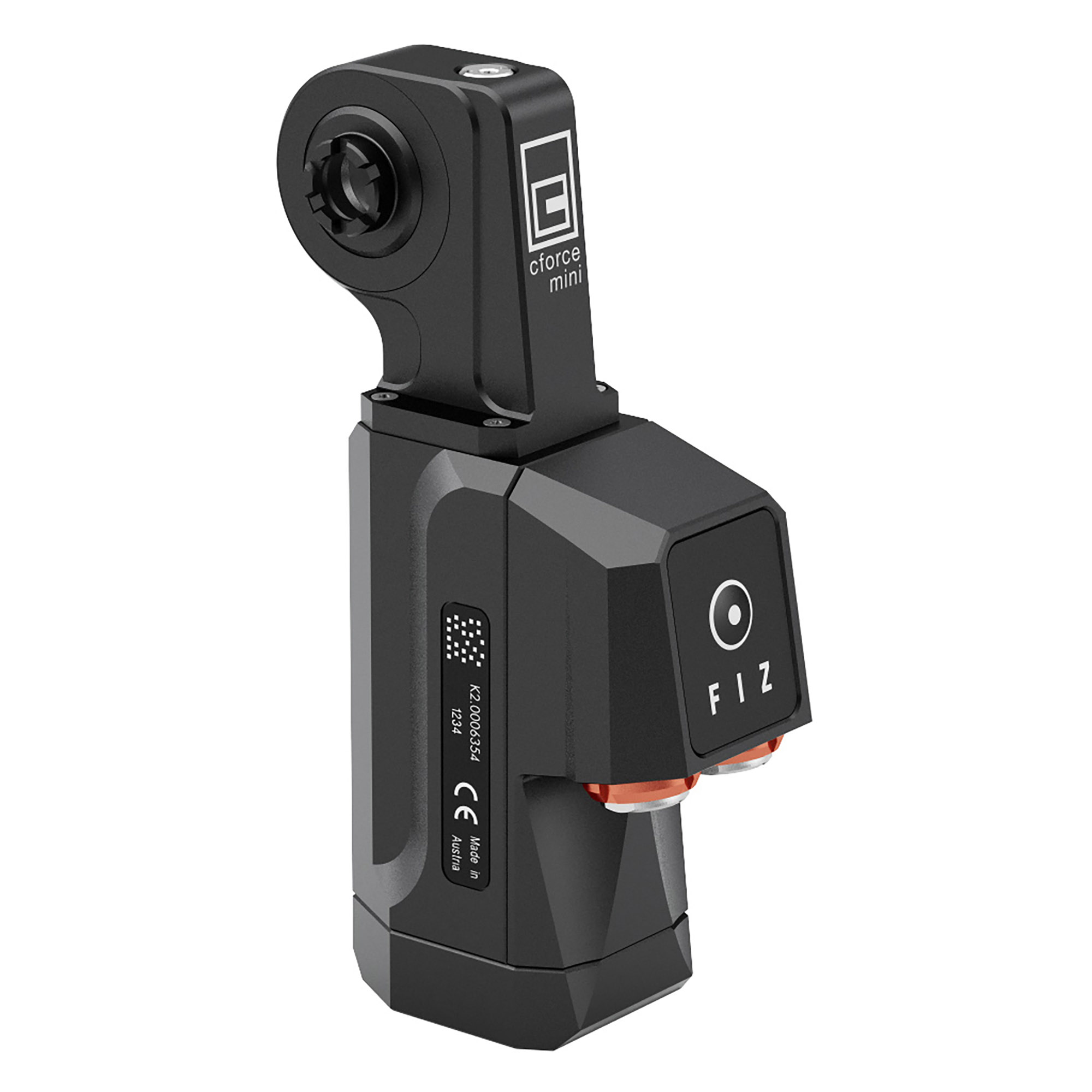

cforce mini motor unit without gears, cable and bracket.

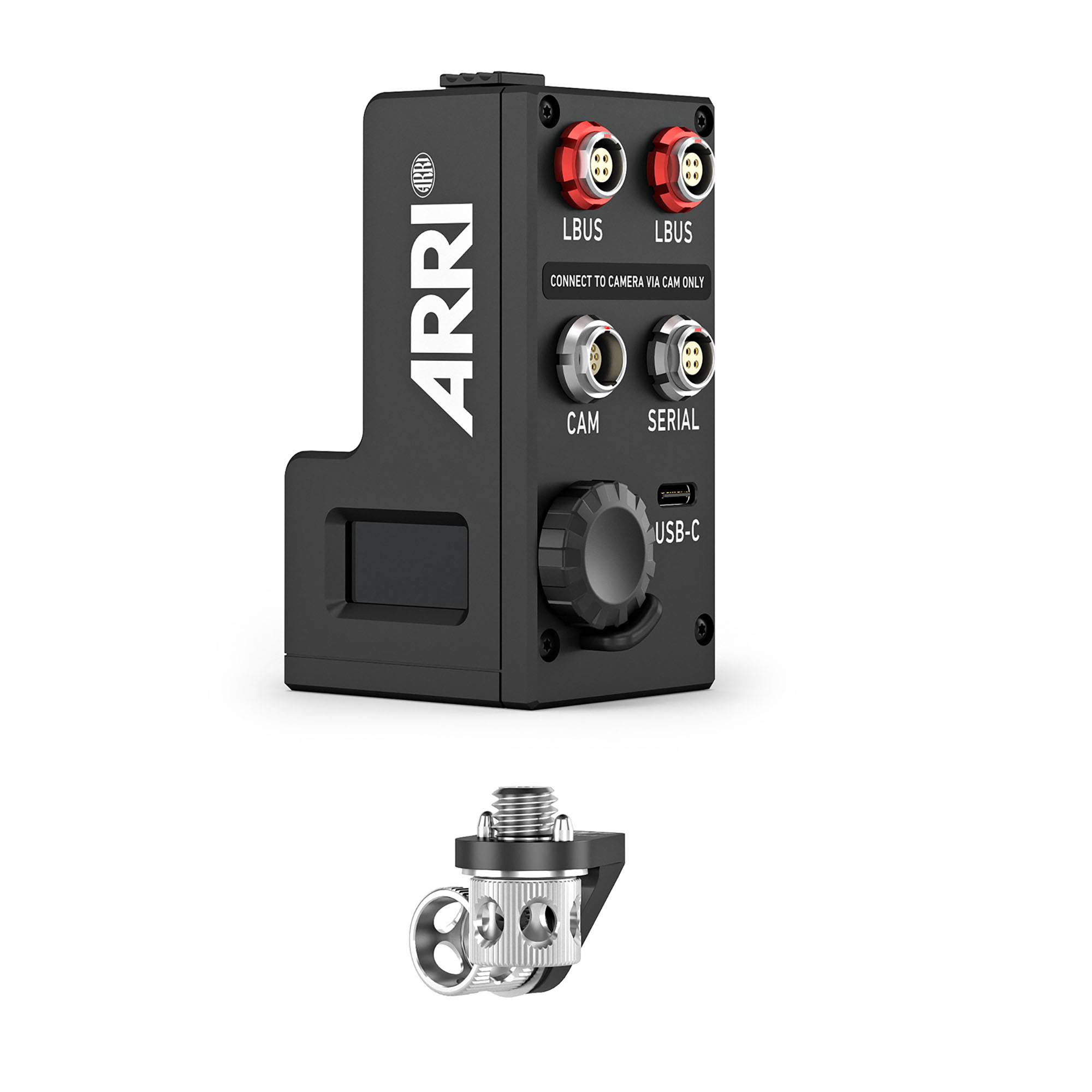

Set of Radio Interface Adapter RIA-1 and RIA-1 Bracket.Includes:K2.0036186 1x Radio Interface Adapter RIA-1K2.0039465 1x RIA-1 BracketPlease note: Radio module is not included!

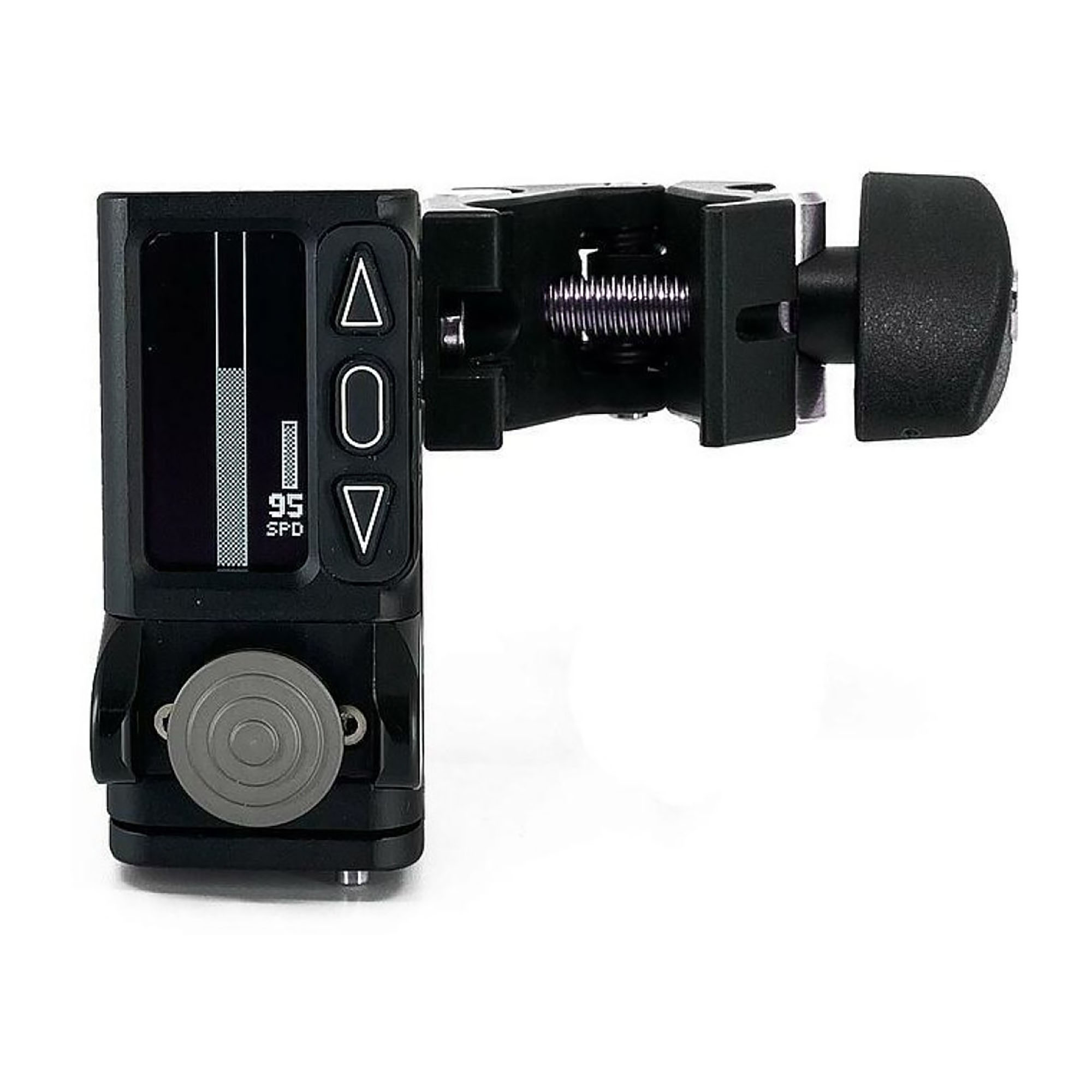

Zoom unit for Steadycam Rig.(cmotion Ident Nr. C0E5-K66)

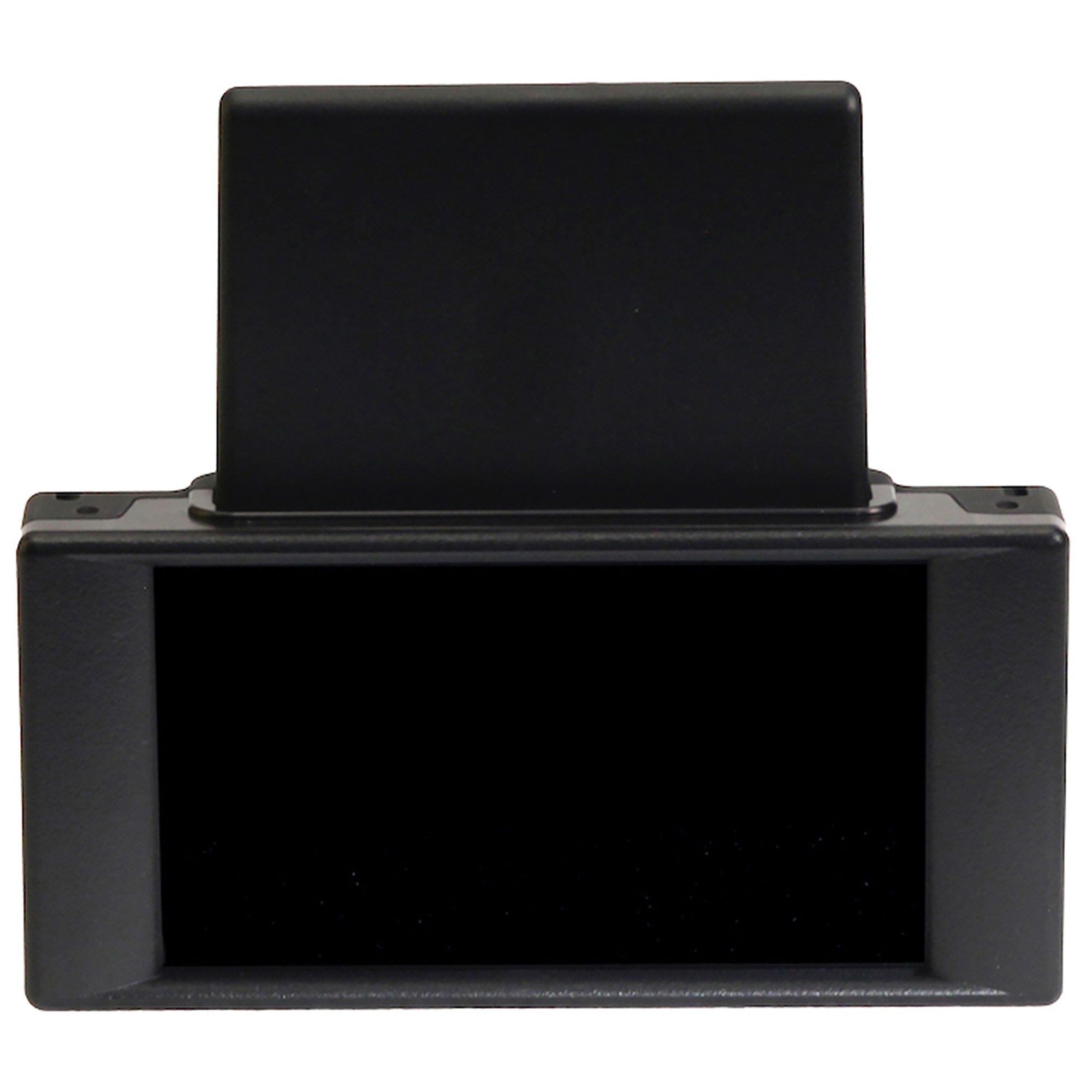

5 OLED Monitor with touch functionality, integrated H.264 recorder and integrated wireless video receiver radio.Includes:1x Transvideo Starlite ARRI-WVS1x Protective case1x Sunhood1x AC power supply1x SDI cableNote:This device is only compatible with ARRI-WVS transmitters as used in the ALEXA LF, ALEXA SXT W and in the Wireless Video Transmitter WVT-1.

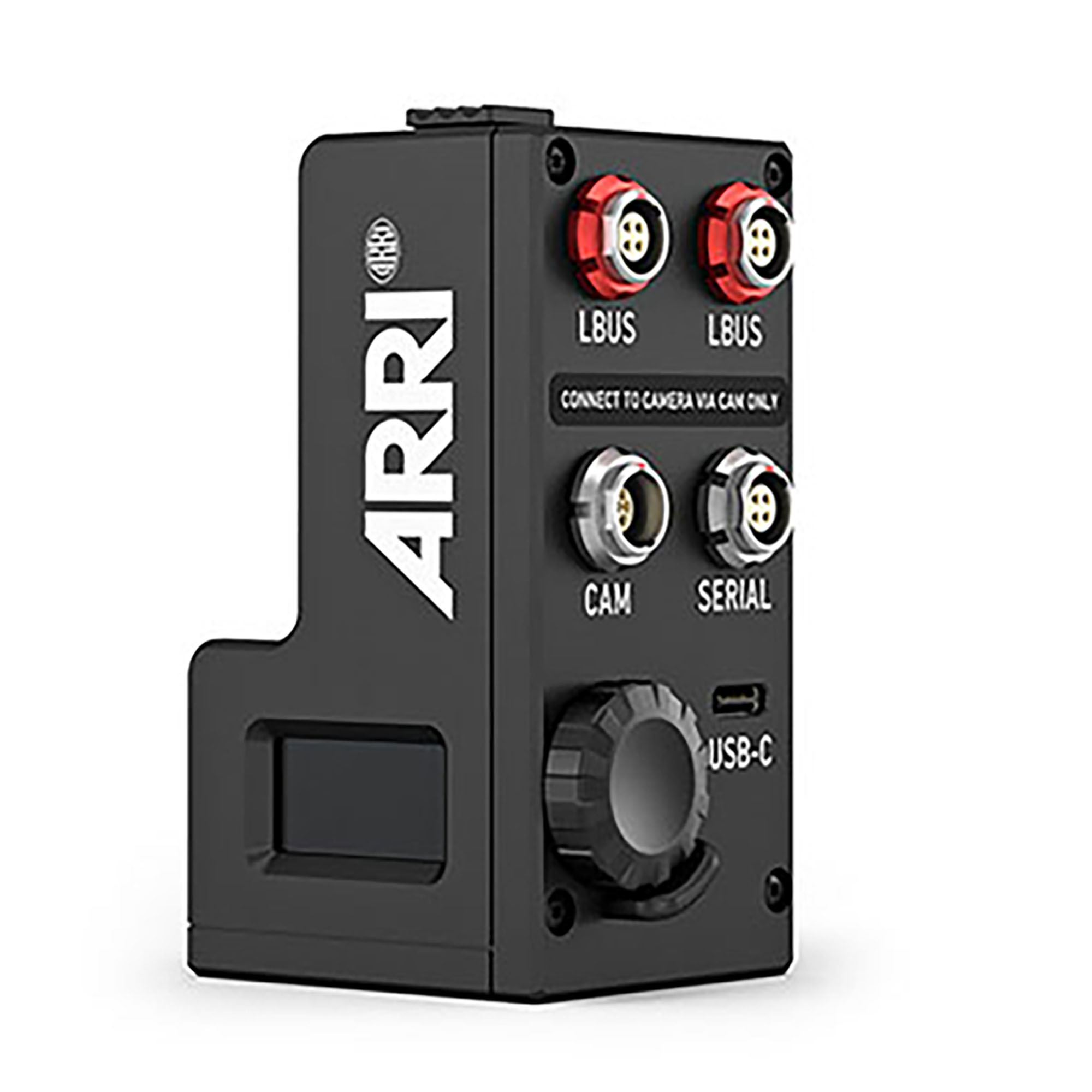

Adapter for RF-EMIP, RF-2400 and RF-900 radio modules. Provides LBUS, CAM and SERIAL interfaces for camera control, motor control and distance measuring.K2.0039965 1x RF-CoverPlease note: Radio module is not included!

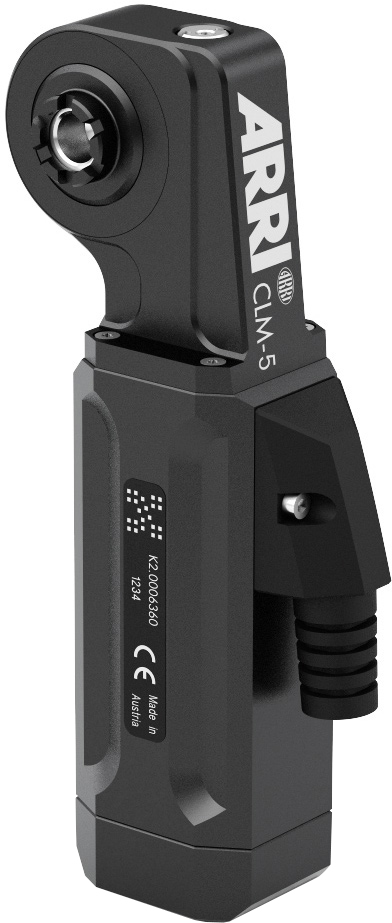

CLM-5 motor unit without gears and bracket.Includes:K2.0006332 1x Cable CLM-5 (10p) - CLM/FIZ (12p) (0,8m/2.6ft)

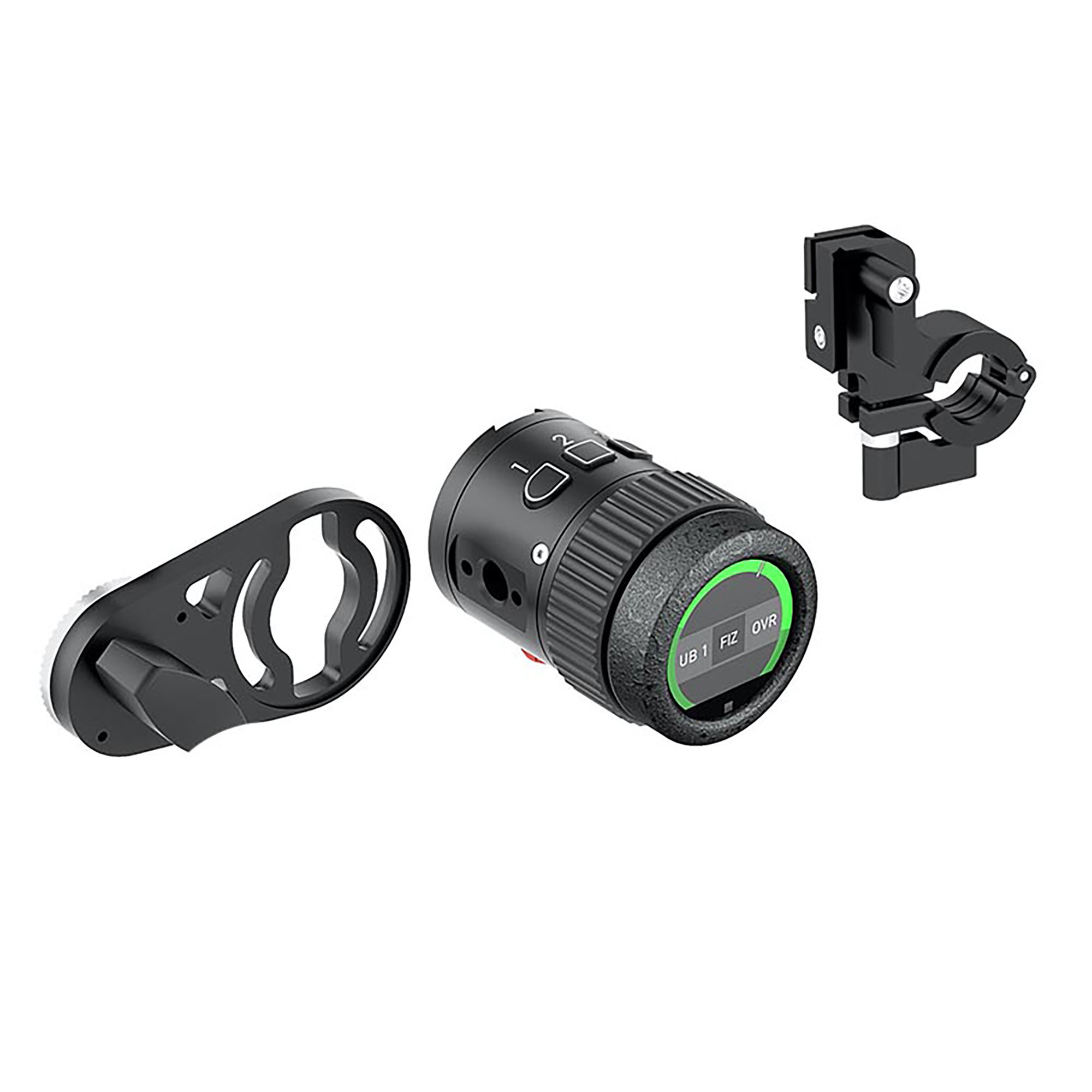

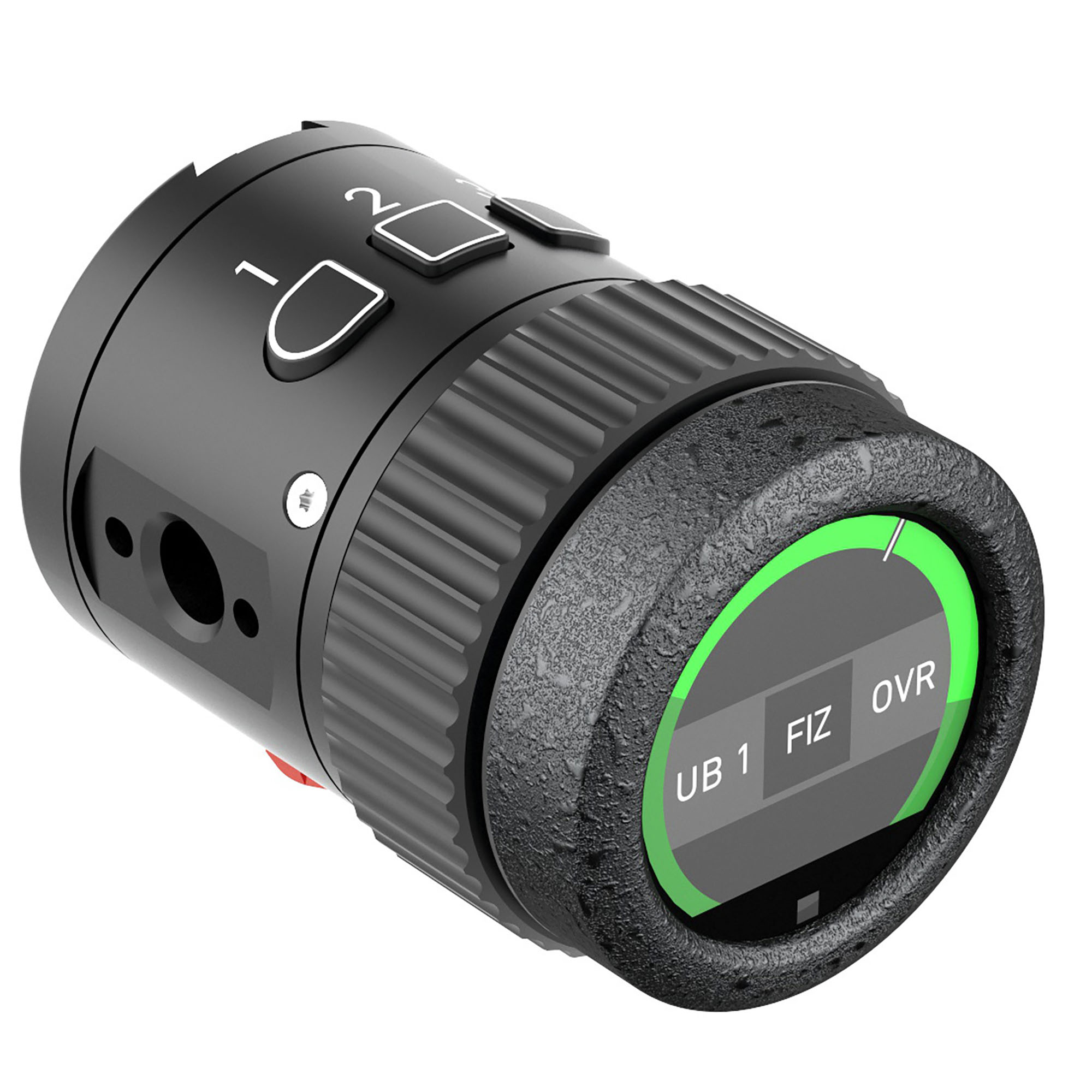

Pre-configured set with Operator Control Unit OCU-1 and accessories, suitable for controlling prime lenses on ALEXA 35 Xtreme, ALEXA 35, ALEXA 35 Live, ALEXA Mini, ALEXA Mini LF cameras.Includes:K2.0020002 1x Operator Control Unit OCU-1 Basic SetK2.0020003 1x OCU-1 Rosette BracketK2.0036610 1x cforce mini Clamp Console 2 19/15mmNote: LBUS cables need to be ordered separately.

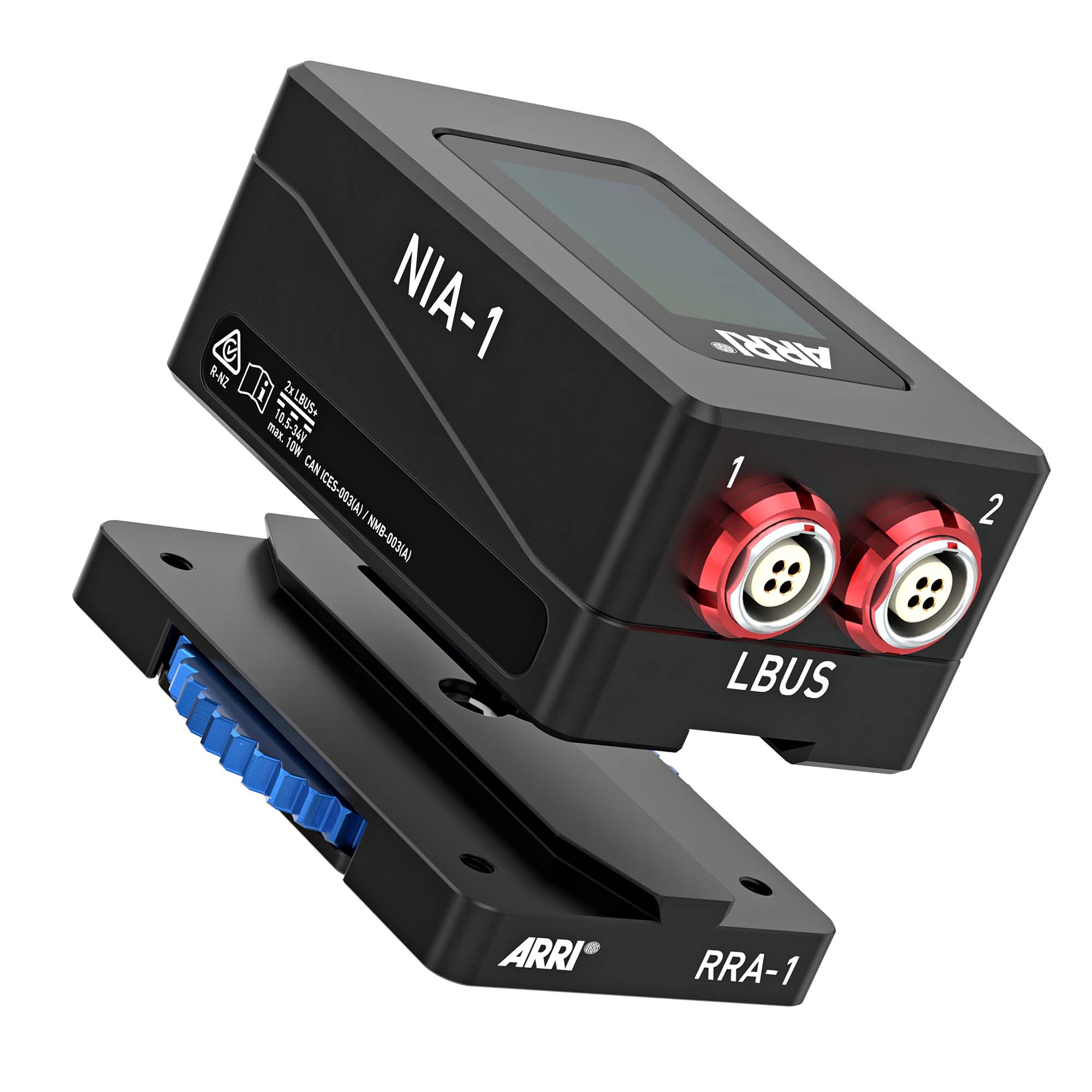

Set of Network Interface Adapter NIA-1 and RRA-1 bracket.The NIA-1 expands LBUS via Ethernet and enables IP workflows for cine and broadcast applications. It enables lens and camera control via IP networks, extended control of 3rd party cameras (Hi-5 license required), synchronized control of multiple lenses with one ECS control unit like Hi-5, long-range cable connection via Ethernet and much more. Setup and configuration are fast and easy, with the NIA-1 automatically managing complex network settings, although manual IP configuration is also an option when incorporating the NIA-1 into advanced networks.includes:K2.0052389 1x Network Interface Adapter NIA-1K2.0053976 1x Rotary Release Adapter RRA-1
Small, solid and lightweight operator control unit with the ability to over-take and return control of lens axis of the WCU-4. It offers three assignable user buttons and flexible mounting options: 3/8-16 mounting point, dovetail mounting interface for CLM-5/cforce mini Clamp Console 19/15mm and optional ARRI rosette bracket.The OCU-1 controls EF lenses without additional external motors and the roll axis of the ARRI Stabilized Remote Head SRH-3.Includes:Dovetail Mounting InterfaceNote: cforce motors, respective LBUS cables not included!

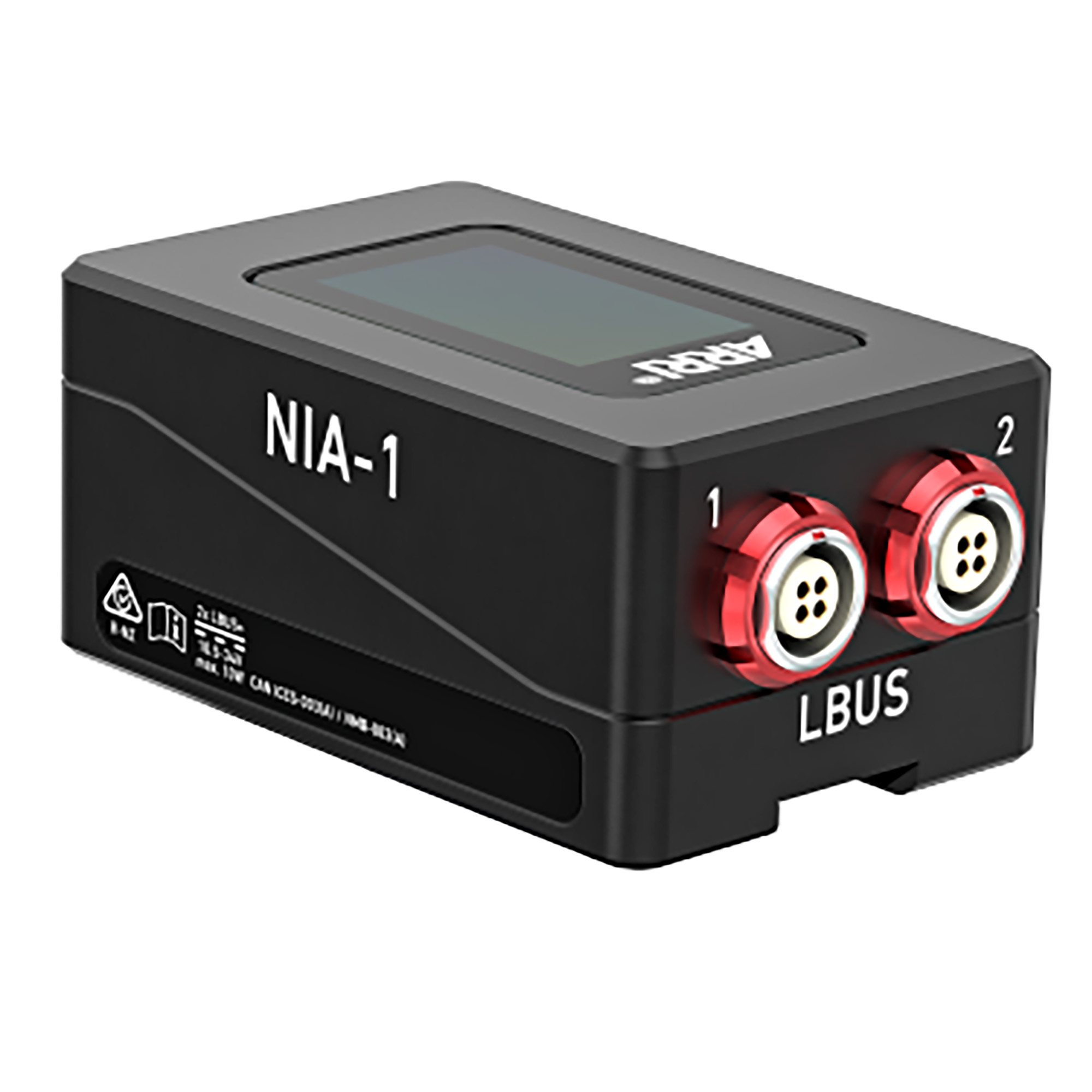

The NIA-1 expands LBUS via Ethernet and enables IP workflows for cine and broadcast applications. It enables lens and camera control via IP networks, extended control of 3rd party cameras (Hi-5 license required), synchronized control of multiple lenses with one ECS control unit like Hi-5, long-range cable connection via Ethernet and much more. Setup and configuration are fast and easy, with the NIA-1 automatically managing complex network settings, although manual IP configuration is also an option when incorporating the NIA-1 into advanced networks.

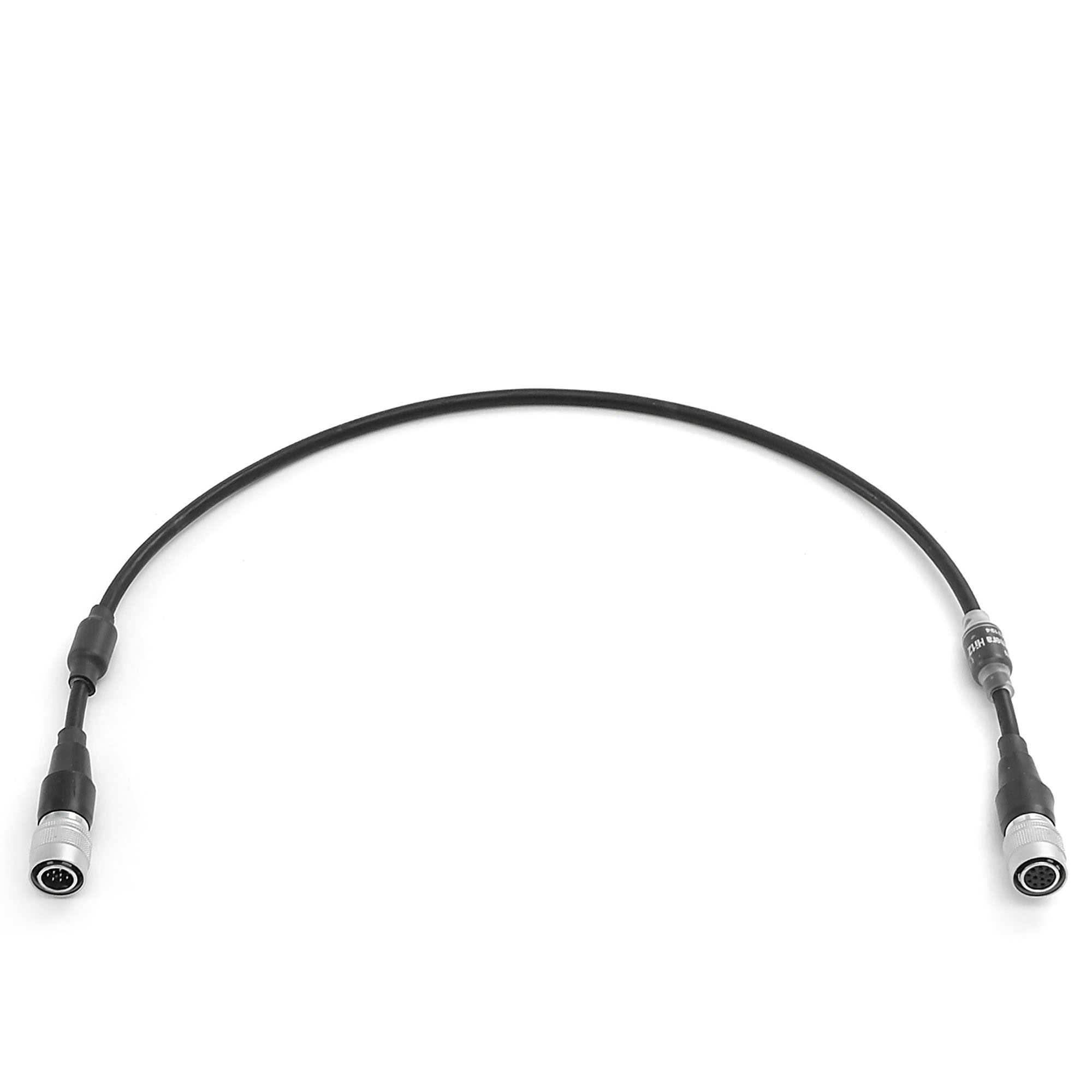

Adapts servo-zoom lenses (Hirose 12 pin) to LBUS (Lemo 4 pin). Enables Master Grips to directly control focus, iris and zoom of a servo-zoom lens. Provides a switch to select between iris control from camera (auto-iris via camera Hirose 12 pin interface) or Master Grips (via LBUS).The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15 mm (K2.0006176).Includes:K2.0010681 1x LCUBE CUB-2K2.0009620 1x LCUBE BracketK2.0022328 1x Cable LENS/ENG (12p) - Hi (12p) analogNote: LBUS cables need to be ordered separately.

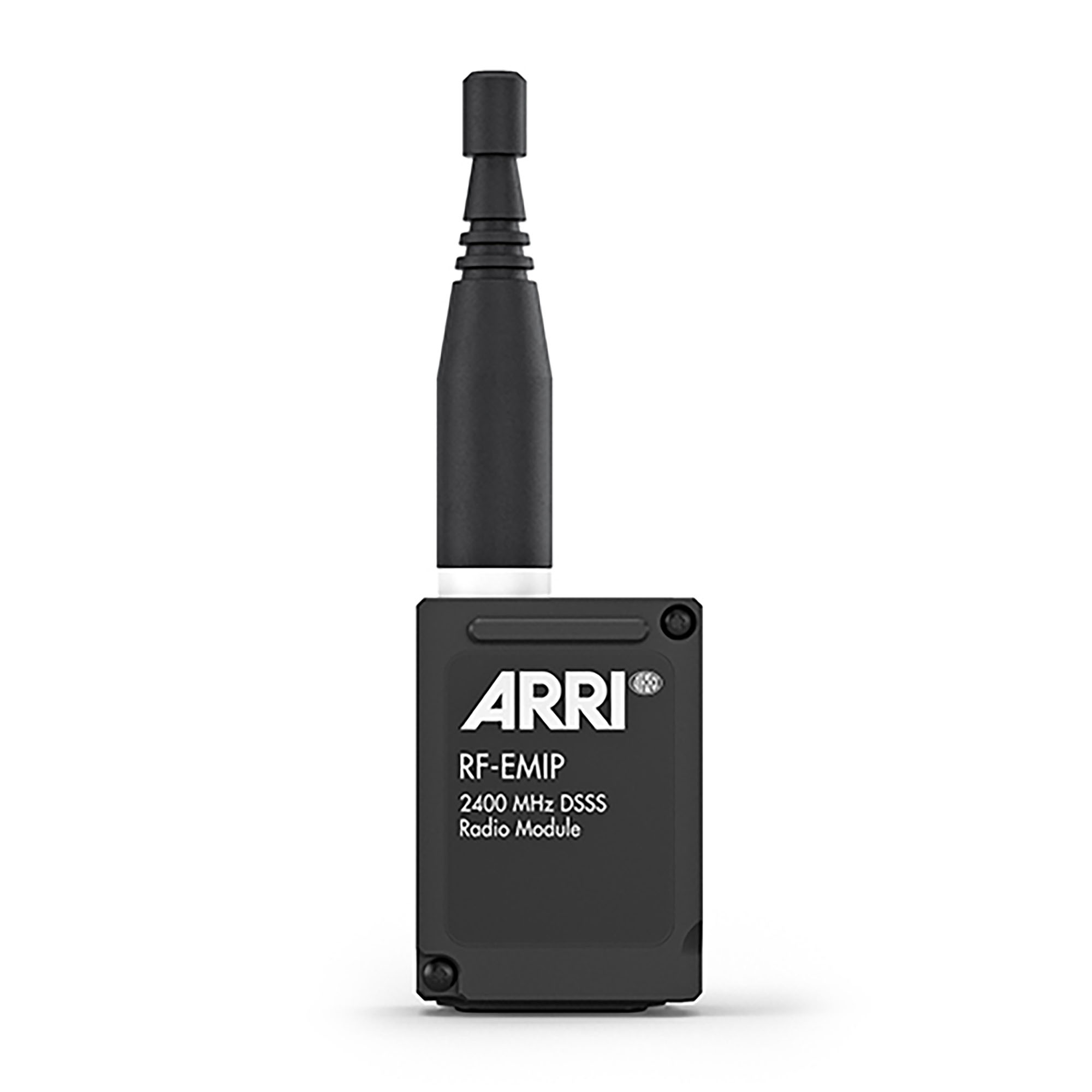

Exchangeable radio module for the Hi-5 hand unit and Radio Interface Adapter RIA-1. Point-to-multipoint communication for connecting up to three hand units with one motor controller or camera. Backwards-compatible to devices including the ARRI's white-coded radio (EMIP) modules.Frequency: 2400 MHzModulation: Direct-sequence spread spectrum (DSSS)Number of channels: 14

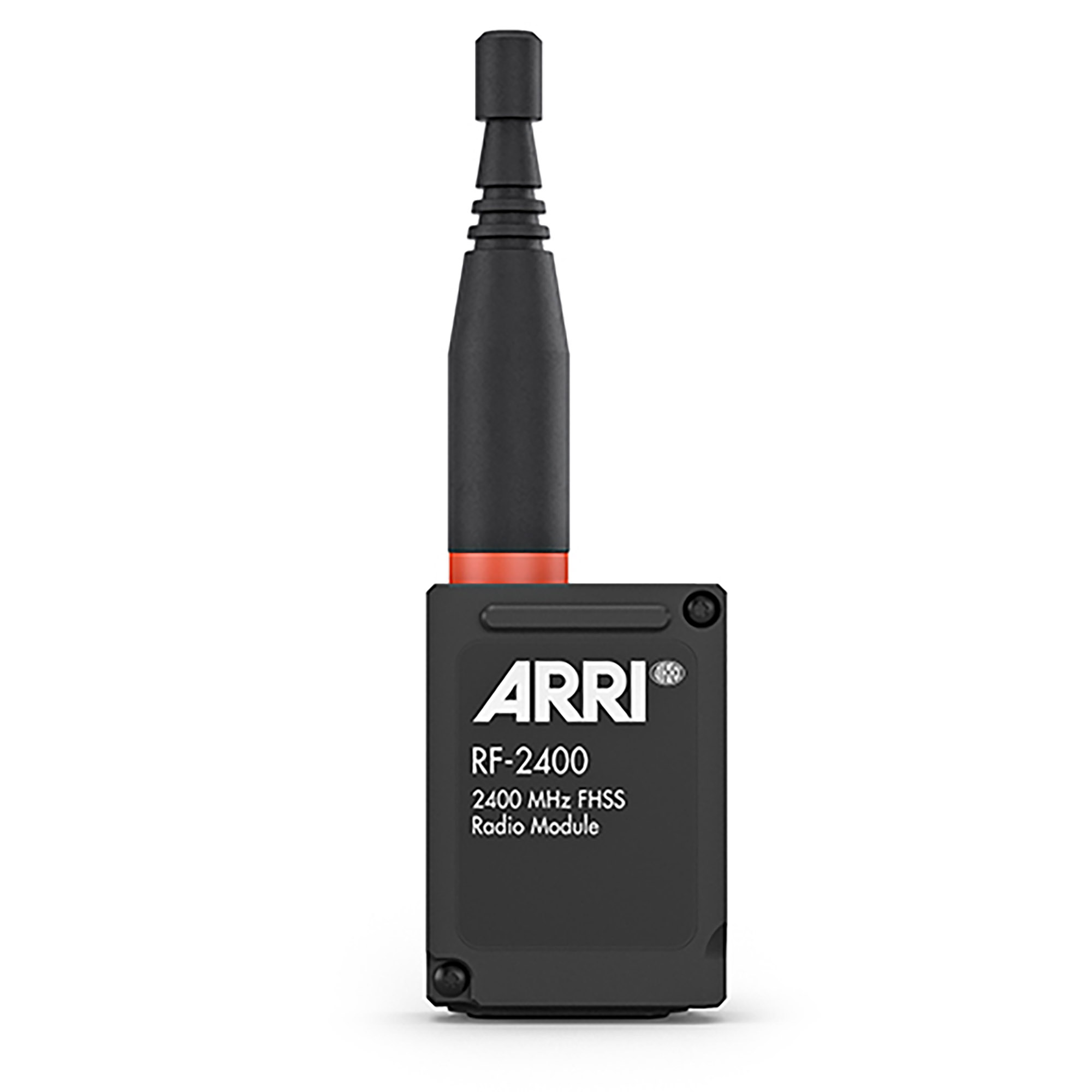

Exchangeable radio module for the Hi-5 hand unit and Radio Interface Adapter RIA-1. Point-to-point communication for connecting one Hi-5 hand unit with one Radio Interface Adapter RIA-1.Frequency: 2400 MHzModulation: Frequency-hopping spread spectrum (FHSS)Number of channels: 100
Exchangeable radio module for the Hi-5 hand unit and Radio Interface Adapter RIA-1. Point-to-multipoint communication for connecting up to three hand units with one motor controller or camera.Frequency: 900 MHzModulation: Frequency-hopping spread spectrum (FHSS)Number of channels: 100Note: For use in USA and Canada only!

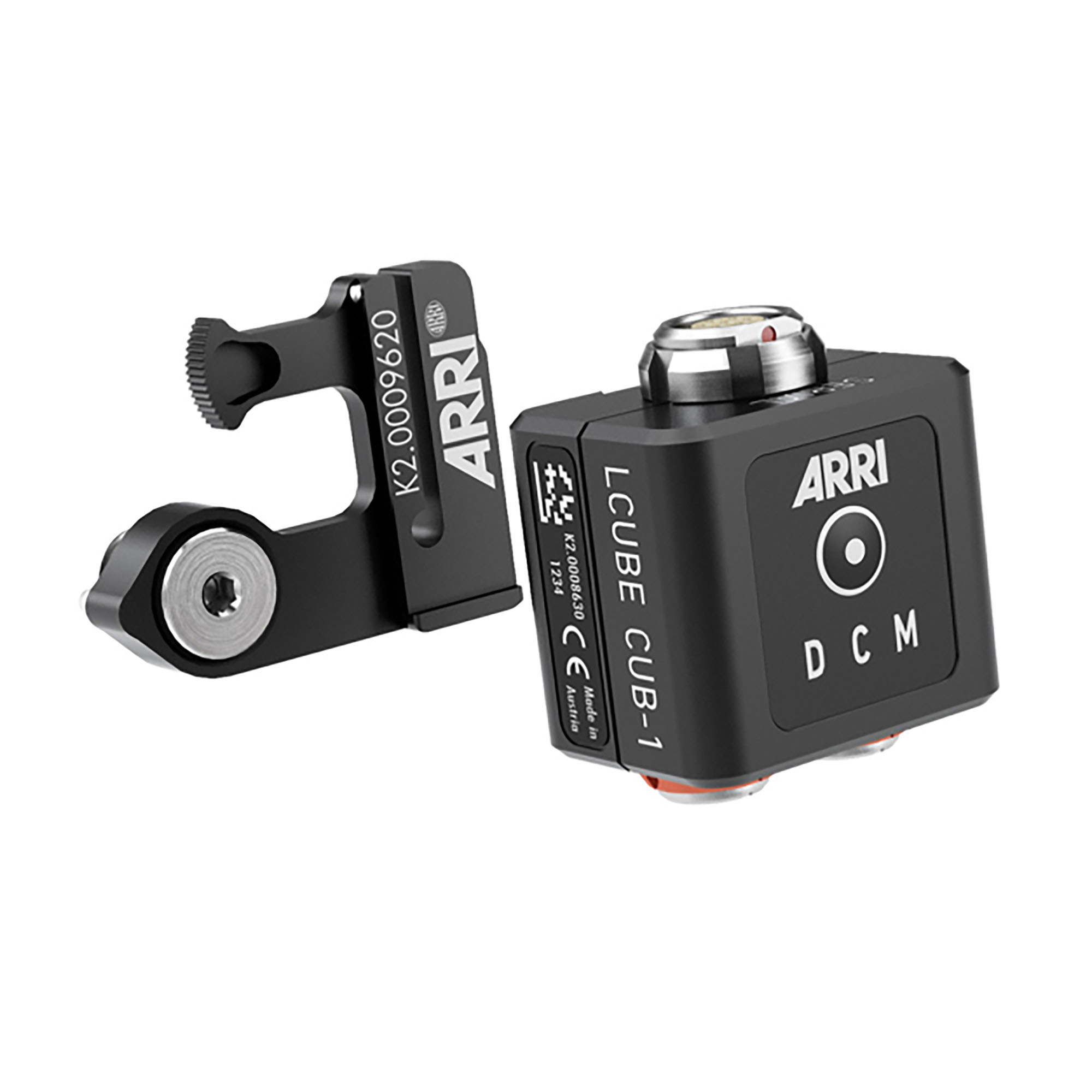

Miniature converter box converting the LBUS protocol to serial protocols and vice versa. Adapts Ultrasonic Distance Measure UDM-1 to ALEXA Mini and ALEXA Mini LF camera (for UDM-1 readout on WCU-4 handset). Provides two LBUS connectors (4 pin) and one SERIAL connector (7 pin). The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15 mm (K2.0006176).includes:K2.0008630 1x LCUBE CUB-1K2.0009620 1x LCUBE BracketNote: LBUS cables need to be ordered separately.

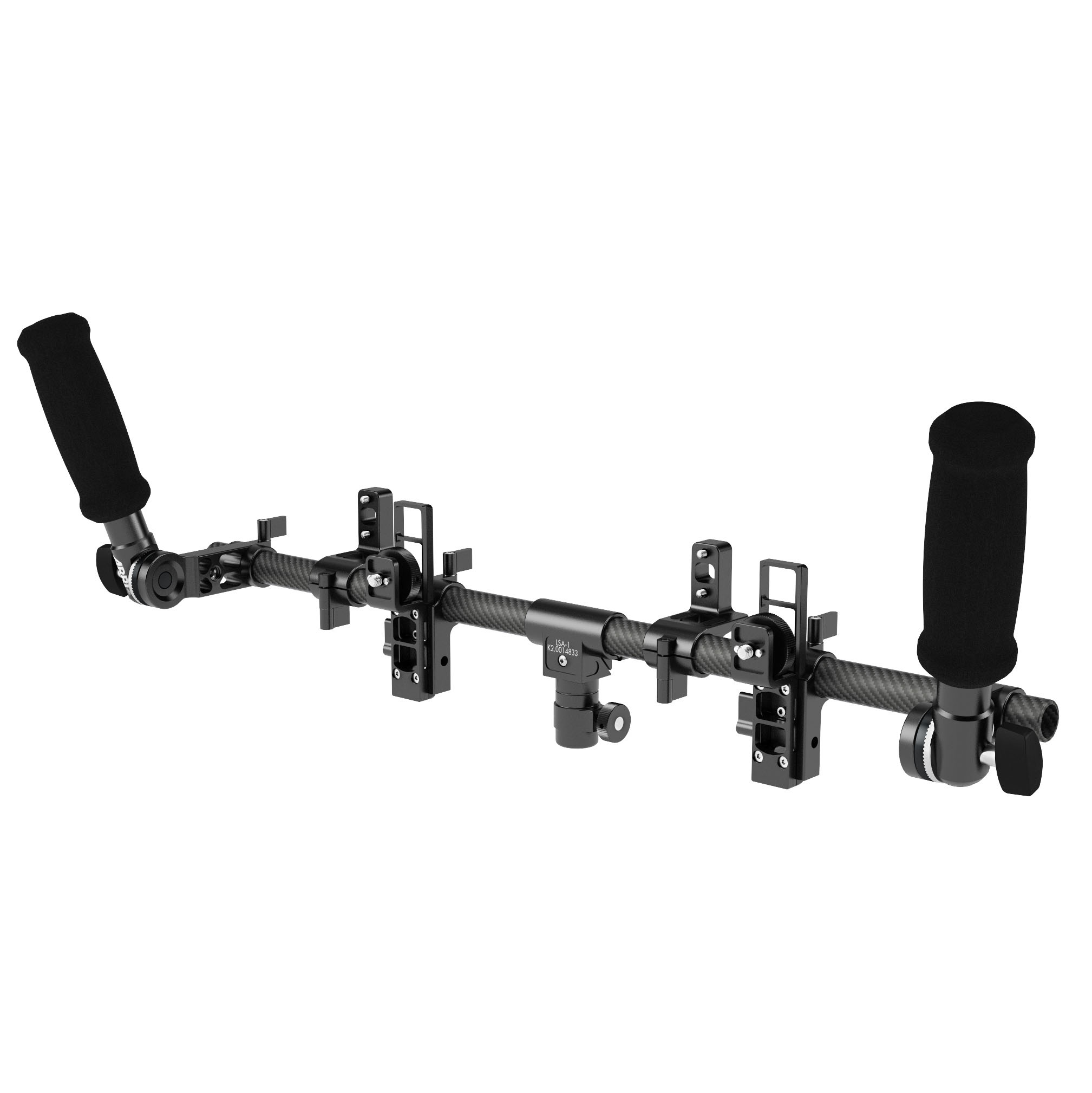

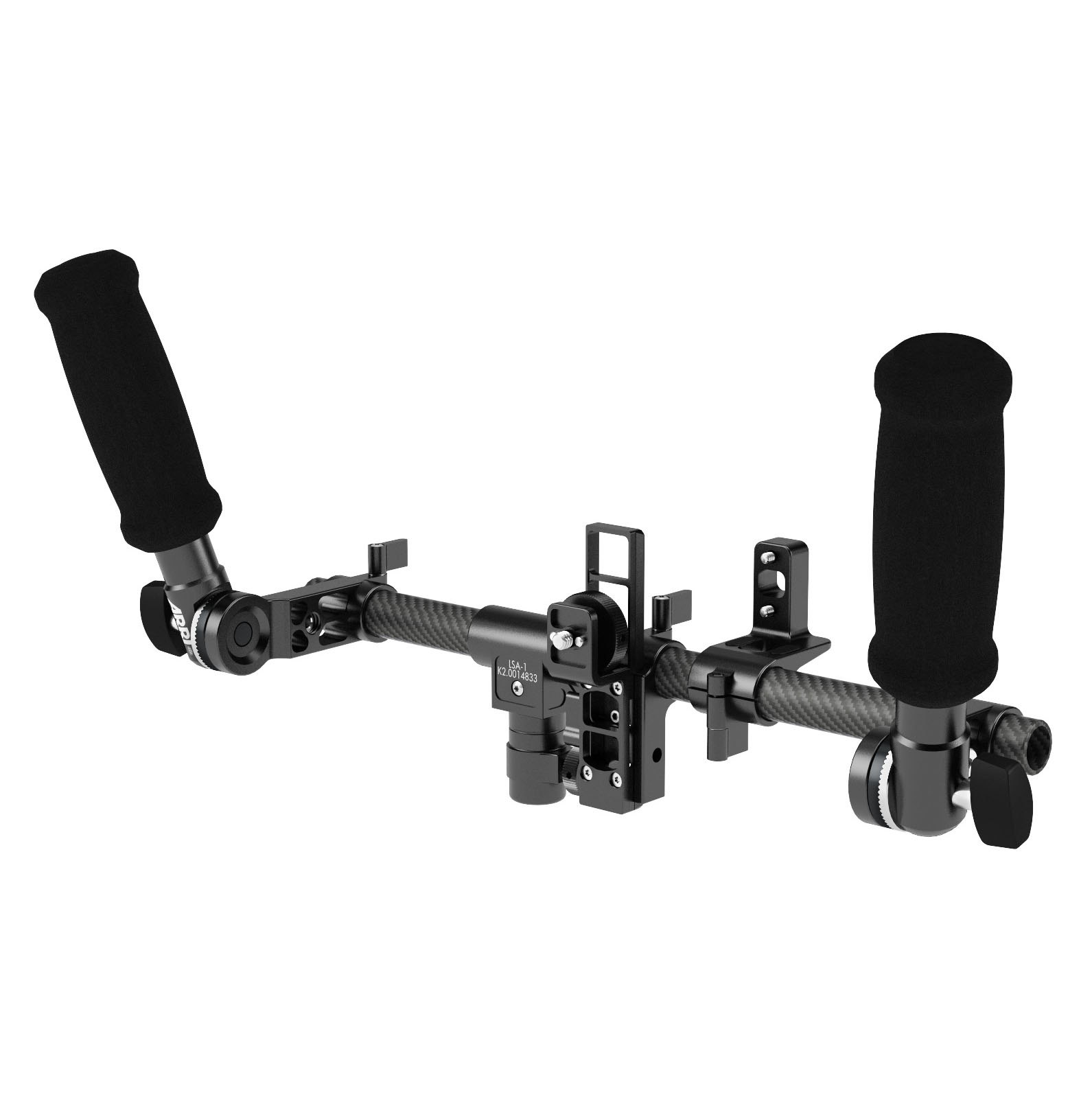

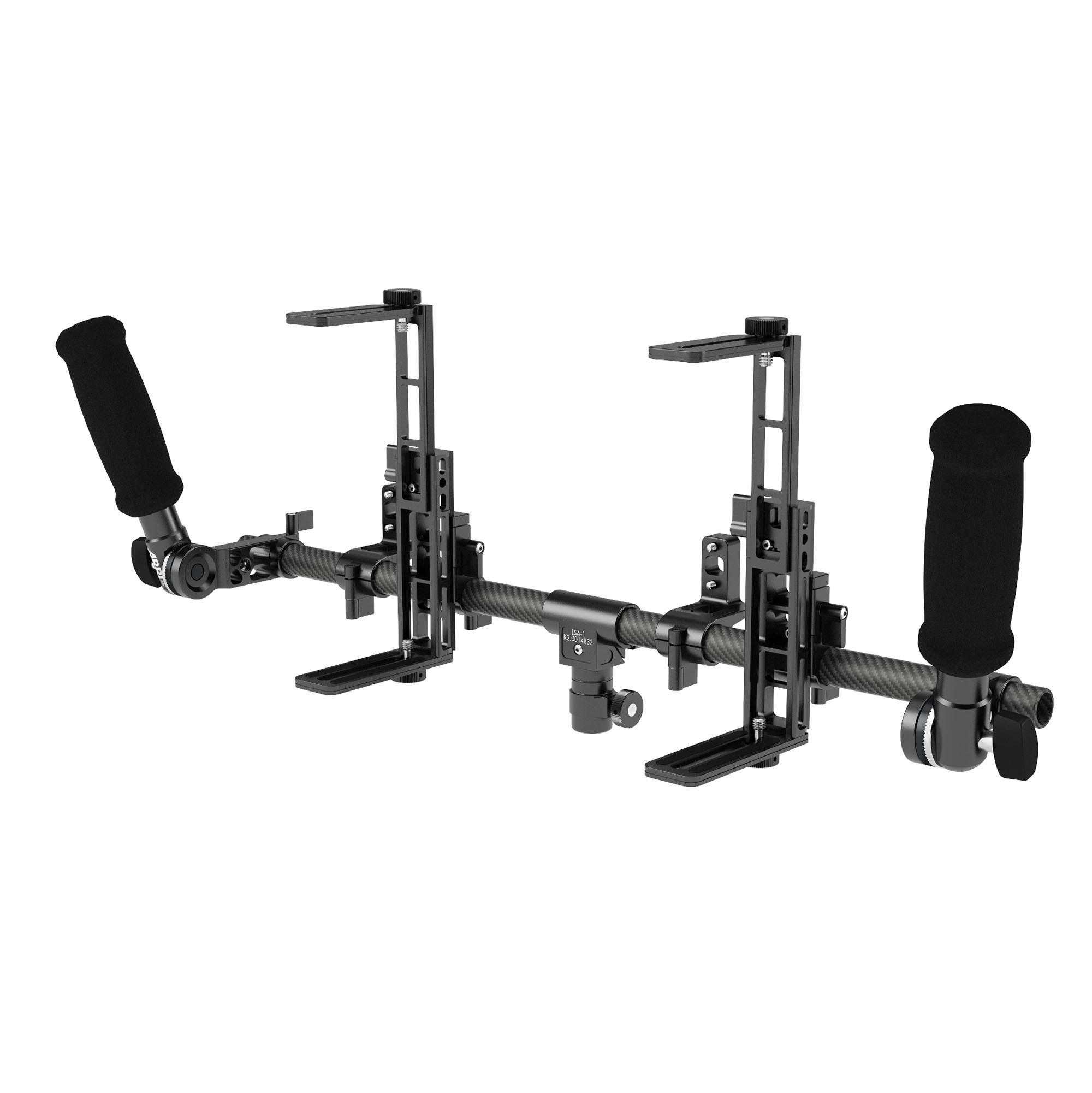

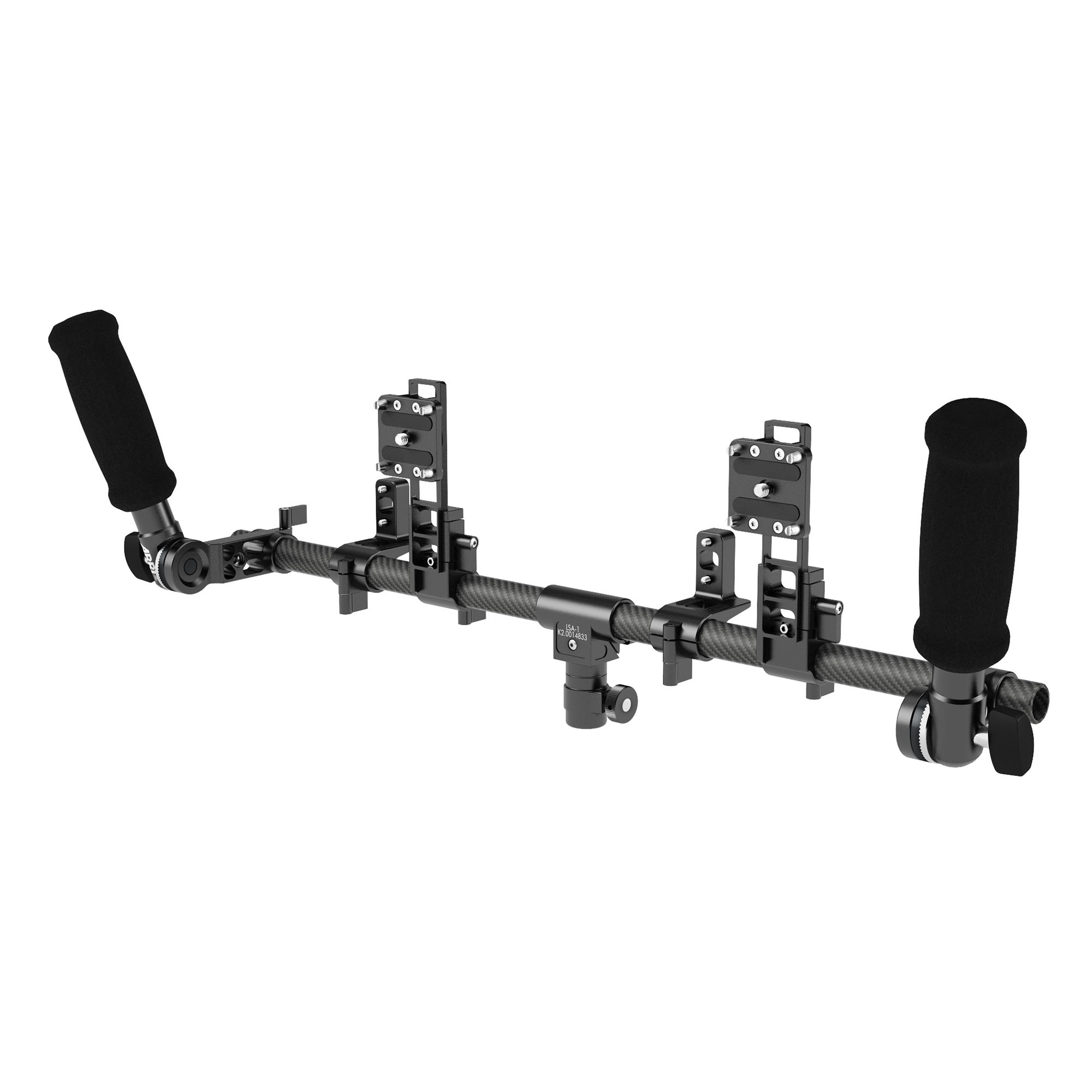

This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits two monitors up to 9in screen diagonals with threaded 1/4in interfaces top and bottom, such as TV Logic.Set includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014829 2x Adjustable Monitor Mount AMM-1K2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most Transvideo Monitors fitted with proprietary interface.Set includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014831 2x Monitor Adapter for TransvideoK2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most SmallHD Monitors fitted with proprietary interfaceSet Includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 2x Rod Mounting Bracket RMB-5K2.0014832 2x Monitor Adapter for Small HDK2.0014959 1x Single Support Rod 540mm/21.3in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters

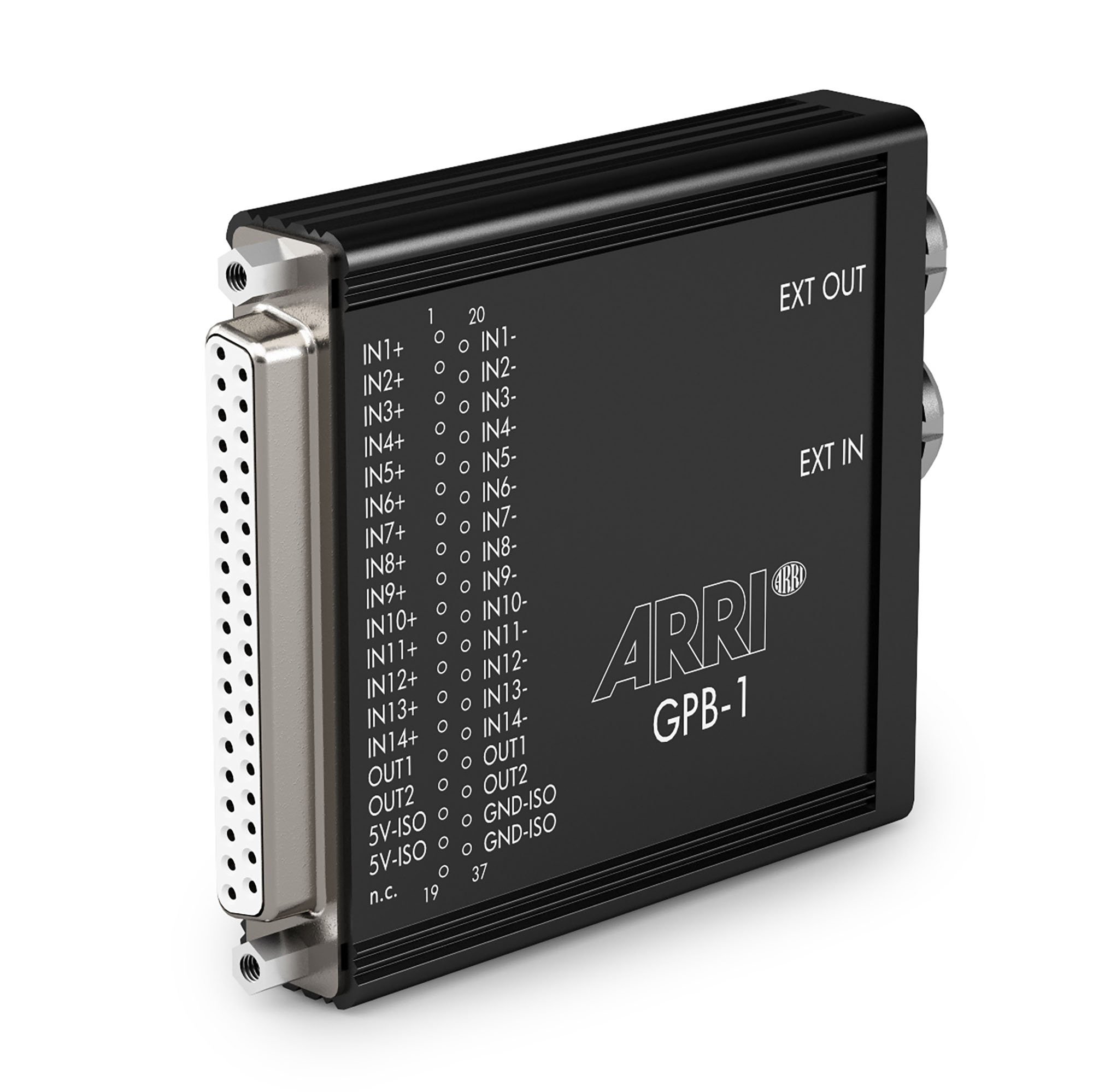

The General Purpose IO Box GPB-1 is a break-out box that works with ALEXA Mini, ALEXA Mini LF and AMIRA. It allows users to build custom button interfaces and electronic controls. The box can be connected to the camera EXT port which it also replicates. It provides protected input channels that can be flexibly mapped to various functions. Possible functions include the activation of the SDI Overlay Menu, replication of the ALEXA Mini camera buttons, ND filter or EI changes, Record Start/Stop and Stop motion trigger.Includes:K2.0007736 1x Cable ALEXA Mini/AMIRA EXT to GPB-1Instruction Manual, 37-pin SUB-D male connector.
This DMS-1 set is a lightweight director’s monitor kit designed around the Wireless Video Receiver WVR-1 and a specific monitor mount. This set suits most SmallHD Monitors fitted with proprietary interfaceSet includes:K2.0014825 2x Rosette Adapter to 19mm, RA-4K2.0014833 1x Lighting Spigot Adapter LSA-1K2.0014827 1x Rod Mounting Bracket RMB-5K2.0014832 1x Monitor Adapter for Small HDK2.0014954 1x Single Support Rod 340mm/13.4in, 19mmK2.47861.0 2x Handgrip without on/off switchK2.0001223 1x Shoulder Belt Adapters

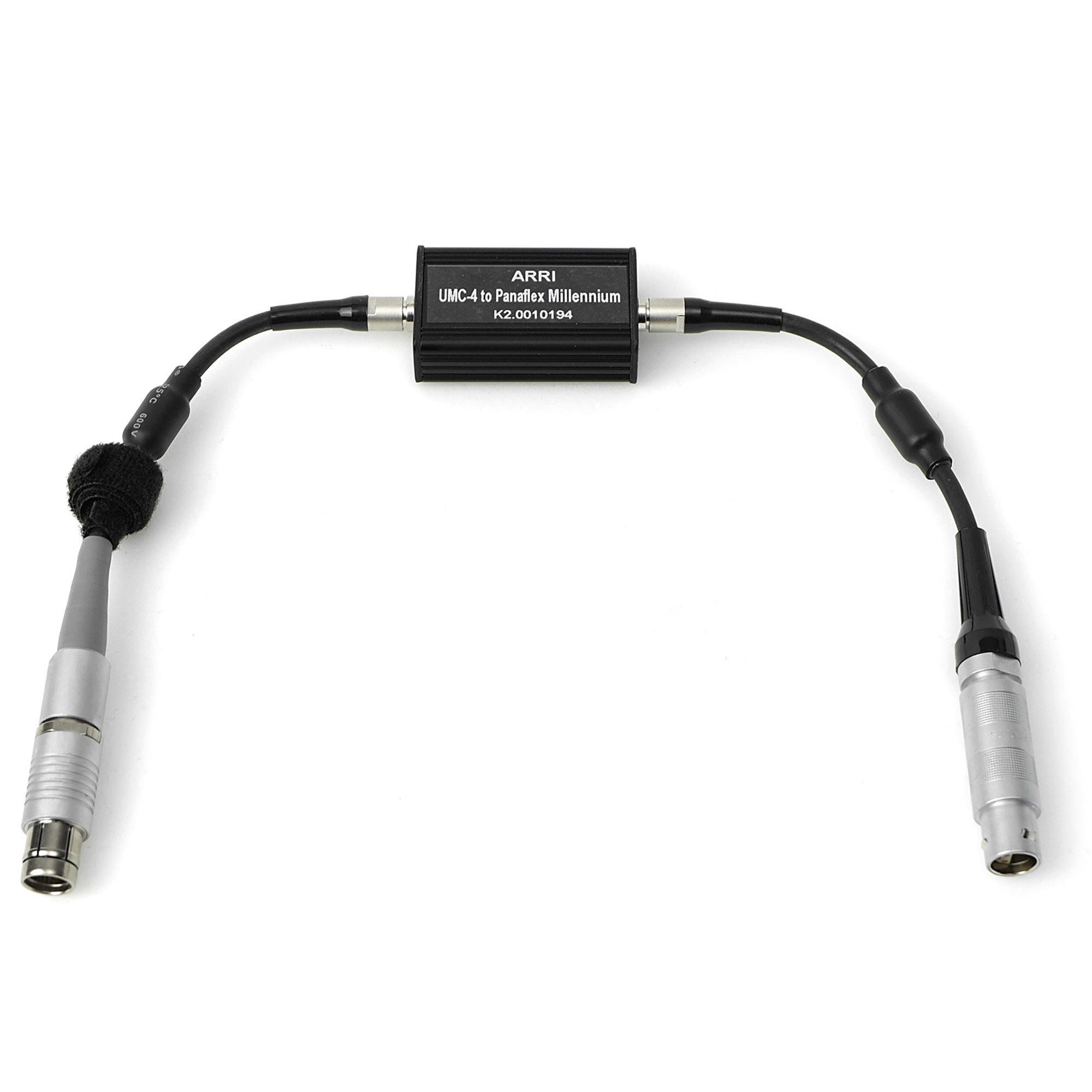

Connects Universal Motor Controller UMC-4 to Panaflex Millennium film camera. Provides camera record start/stop function and tally. Length: 0.4 m/1.3ft

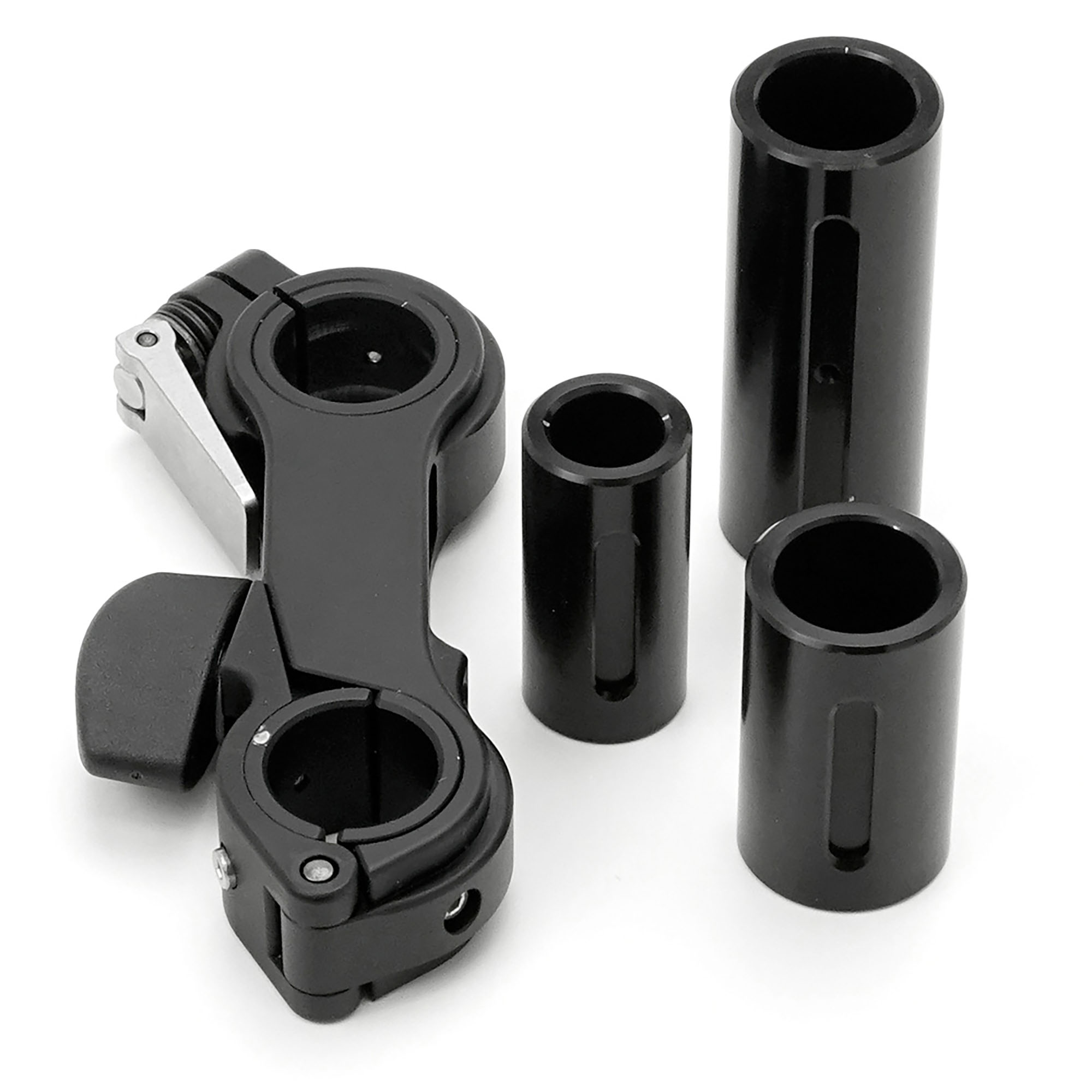

Offset rod extension for tight spaces and small builds. Fits 19mm or 15mm support rods.

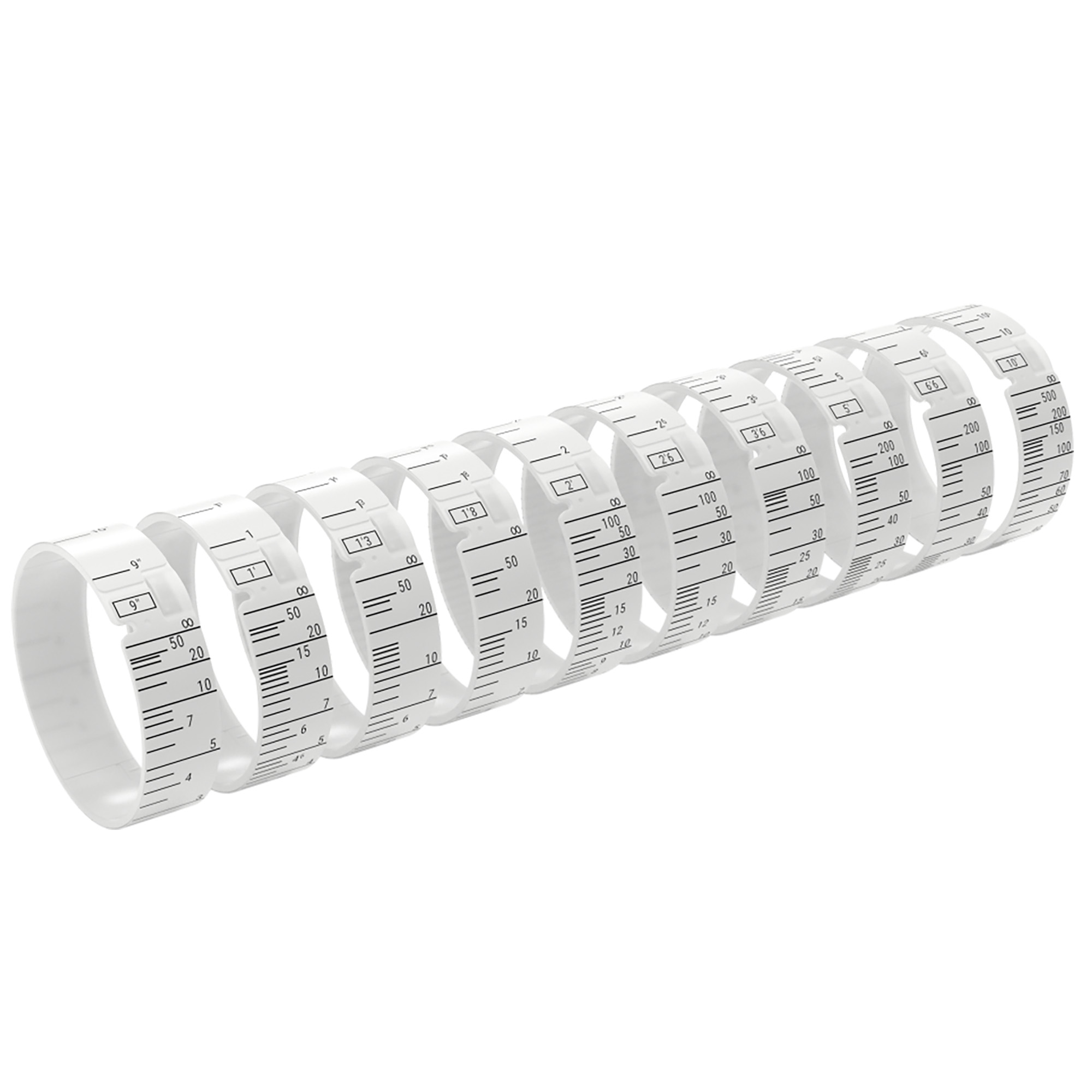

Set of 10 imperial smart focus rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0040121 1x Smart Focus Ring 1ftK2.0040122 1x Smart Focus Ring 1ft3K2.0040123 1x Smart Focus Ring 1ft8K2.0040280 1x Smart Focus Ring 2ftK2.0040124 1x Smart Focus Ring 2ft6K2.0040125 1x Smart Focus Ring 3ft6K2.0040126 1x Smart Focus Ring 5ftK2.0040127 1x Smart Focus Ring 6ft6K2.0040120 1x Smart Focus Ring 9inK2.0040128 1x Smart Focus Ring 10ft

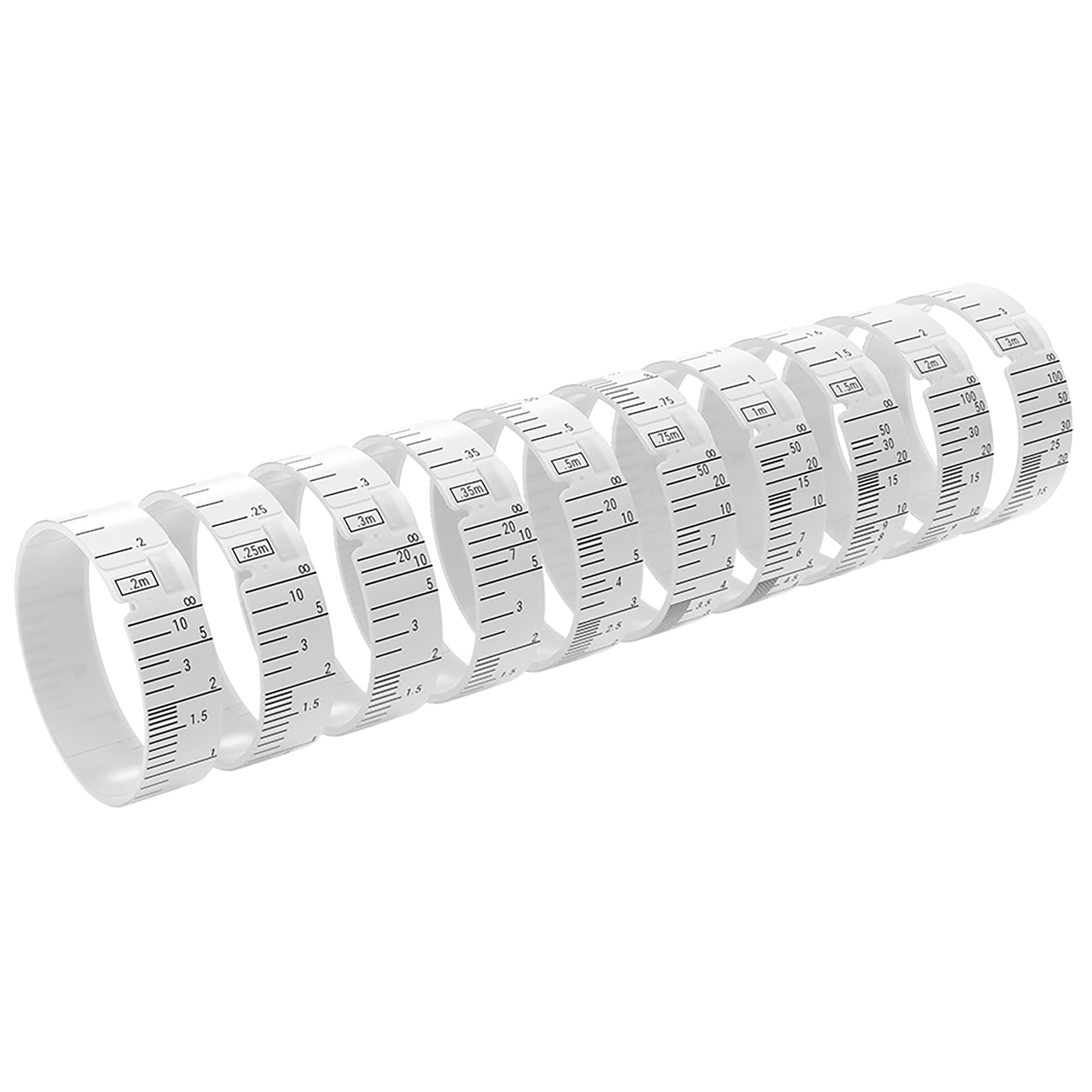

Set of 10 metric smart focus rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0040110 1x Smart Focus Ring 0.20mK2.0040111 1x Smart Focus Ring 0.25mK2.0040112 1x Smart Focus Ring 0.30mK2.0040113 1x Smart Focus Ring 0.35mK2.0040114 1x Smart Focus Ring 0.50mK2.0040115 1x Smart Focus Ring 0.75mK2.0040116 1x Smart Focus Ring 1.00mK2.0040117 1x Smart Focus Ring 1.50mK2.0040118 1x Smart Focus Ring 2.00mK2.0040119 1x Smart Focus Ring 3.00m

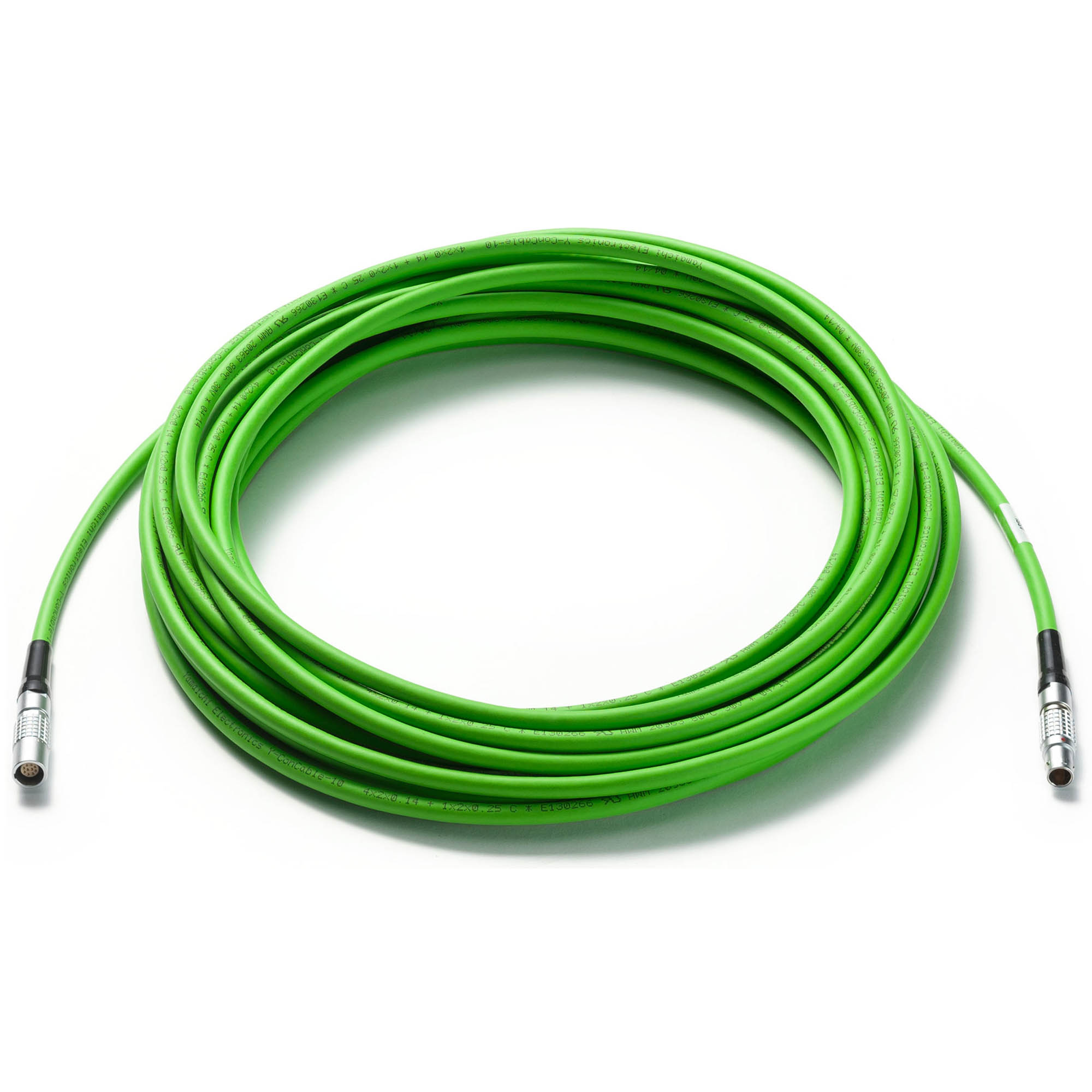

Extends the Ethernet Remote Cable KC 157 (K2.72040.0) or Ethernet Remote Cable KC 158 (K2.72041.0). Three KC 159-S (15m) plus one Remote Cable can be combined for a maximum total length of 47 m (154 feet) or 46 m (151 feet).

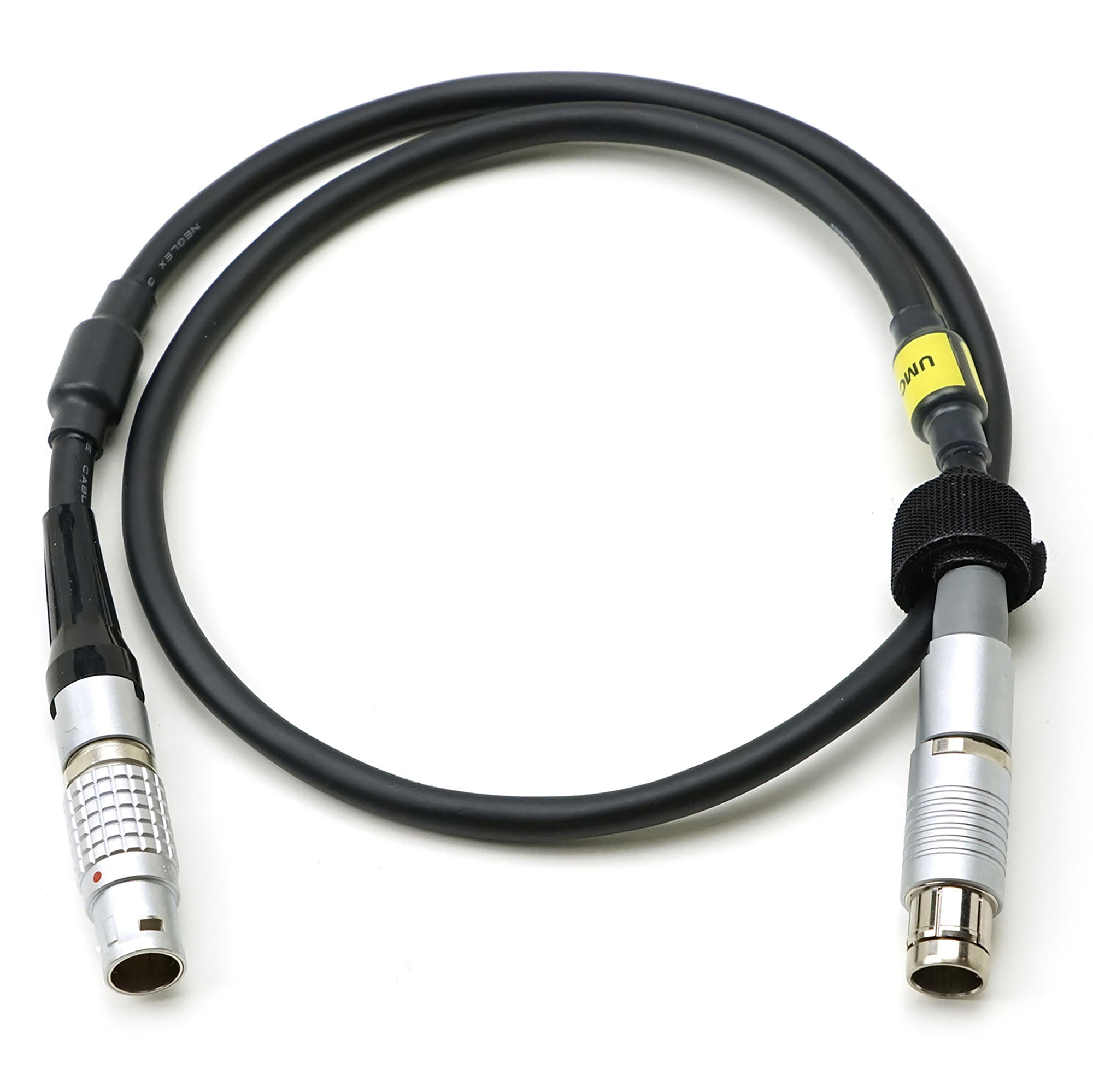

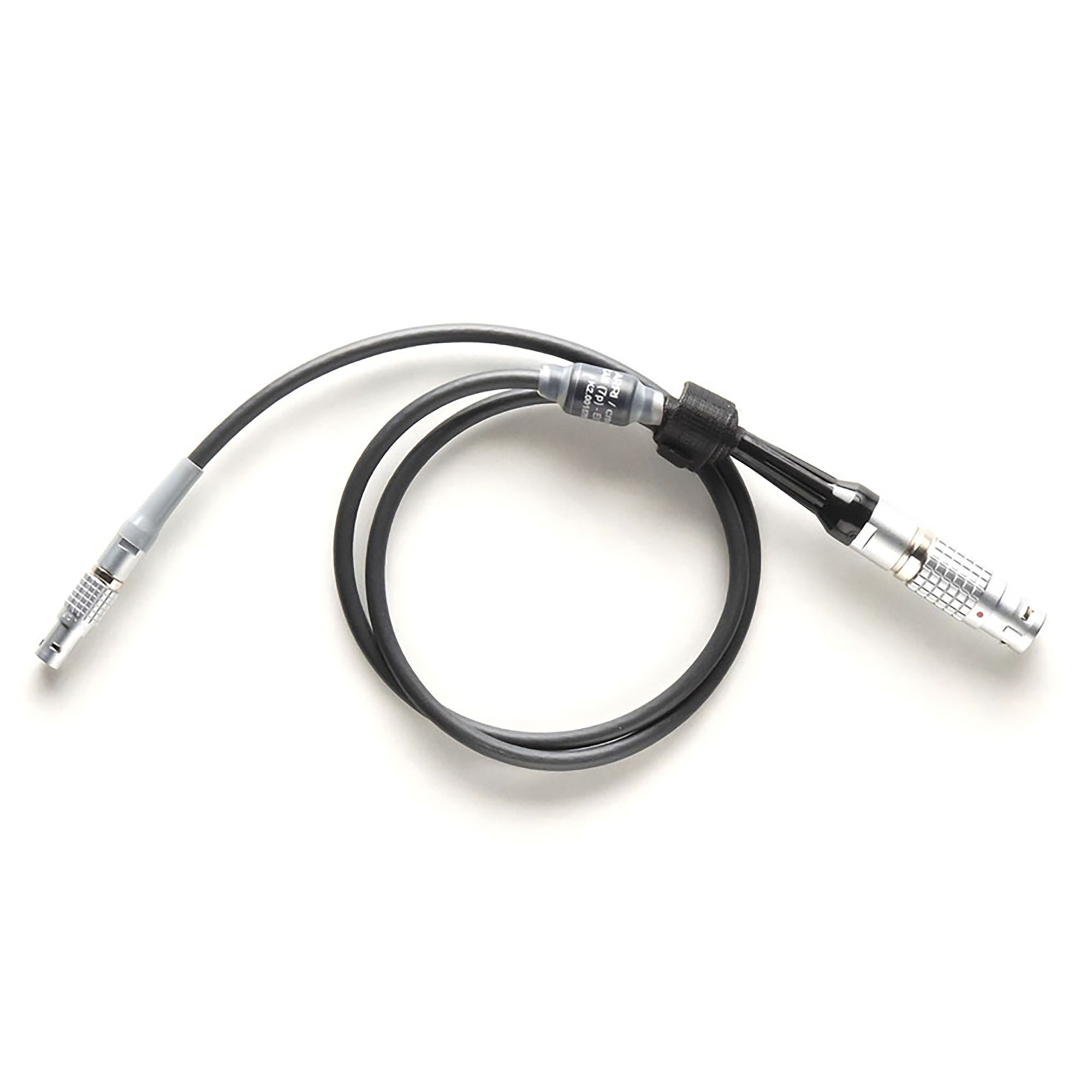

Connects Universal Motor Controller CAM connector to the EXT connector on the ALEXA family of cameras. Provides camera RUN/STOP function, tally and camera status information on WCU-4. Enables WCU-4 ALEXA Remote License for ALEXA cameras without the Plus module.

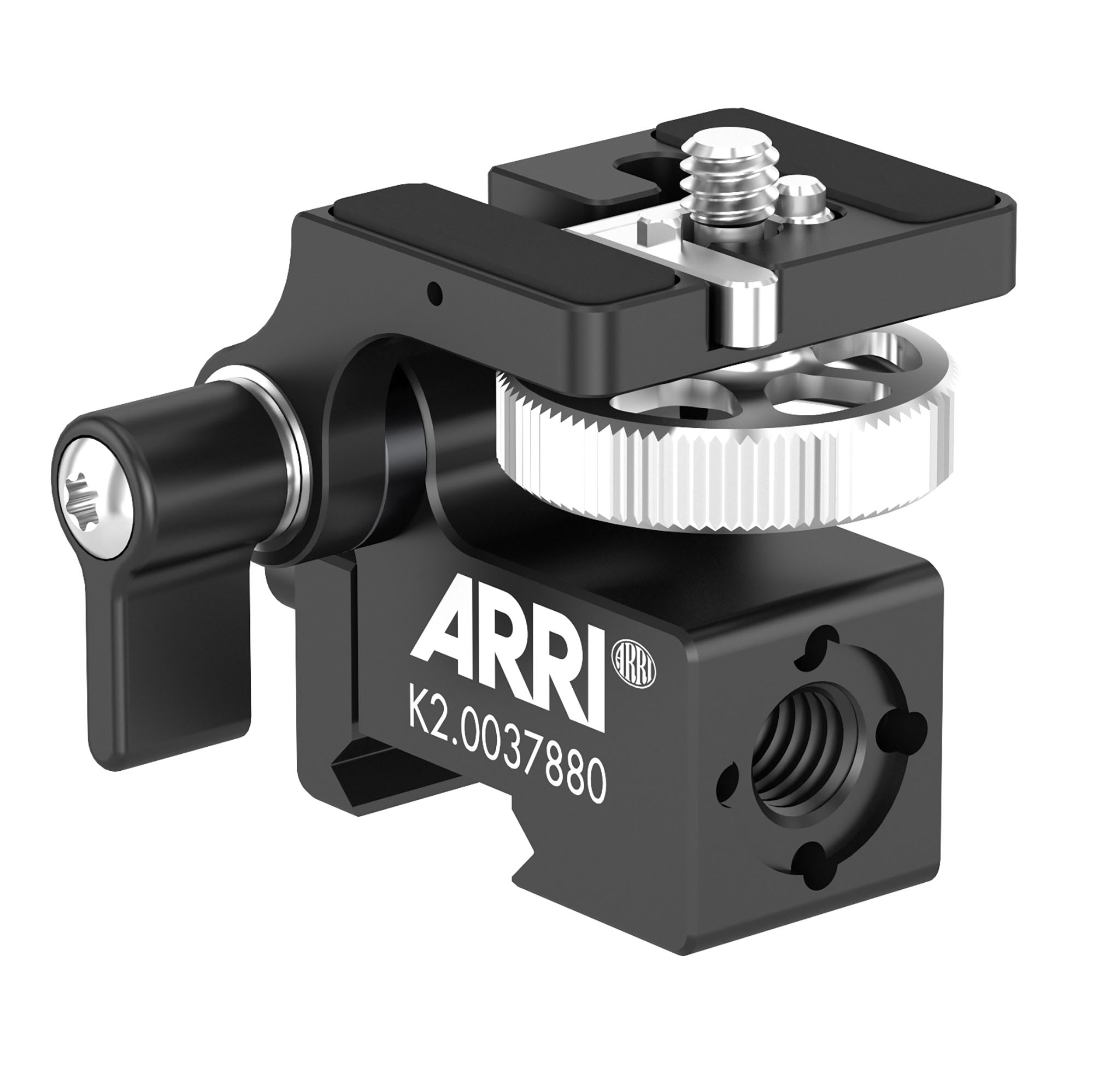

Monitor bracket for Hi-5 Nato-rail. For tool-less mounting of monitors with 1/4 thread, with or without anti-twist locating pins. Includes 160° tilt-mechanism and ARRI 3/8-16 thread.

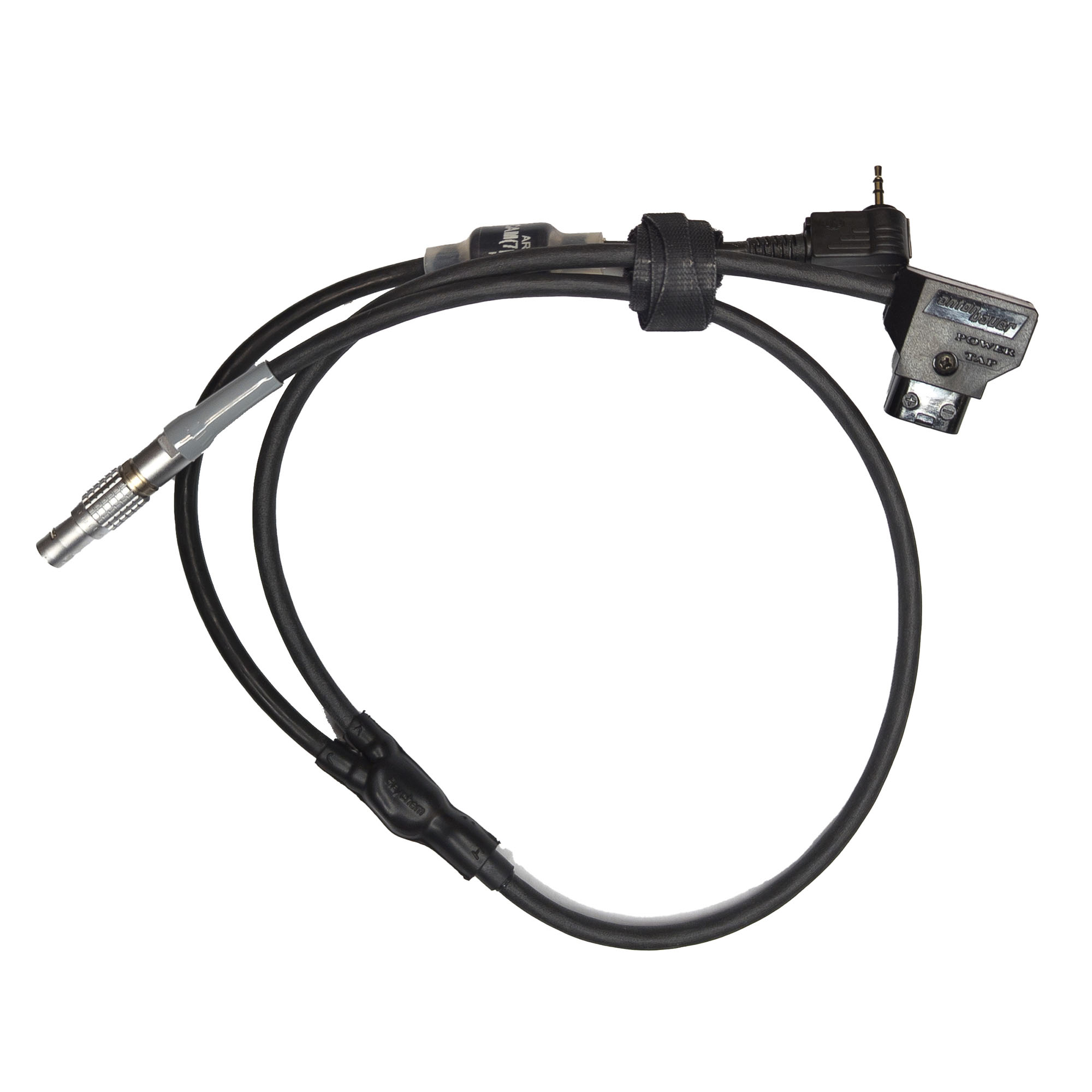

Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to LANC connectors (e.g. Canon C300 / C500, Sony PXW-FX9 / PXW-FS7) and D-Tap power source. Provides camera RUN/STOP function and tally on ARRI and cmotion cPRO hand units. Length: 0.6m/2ft

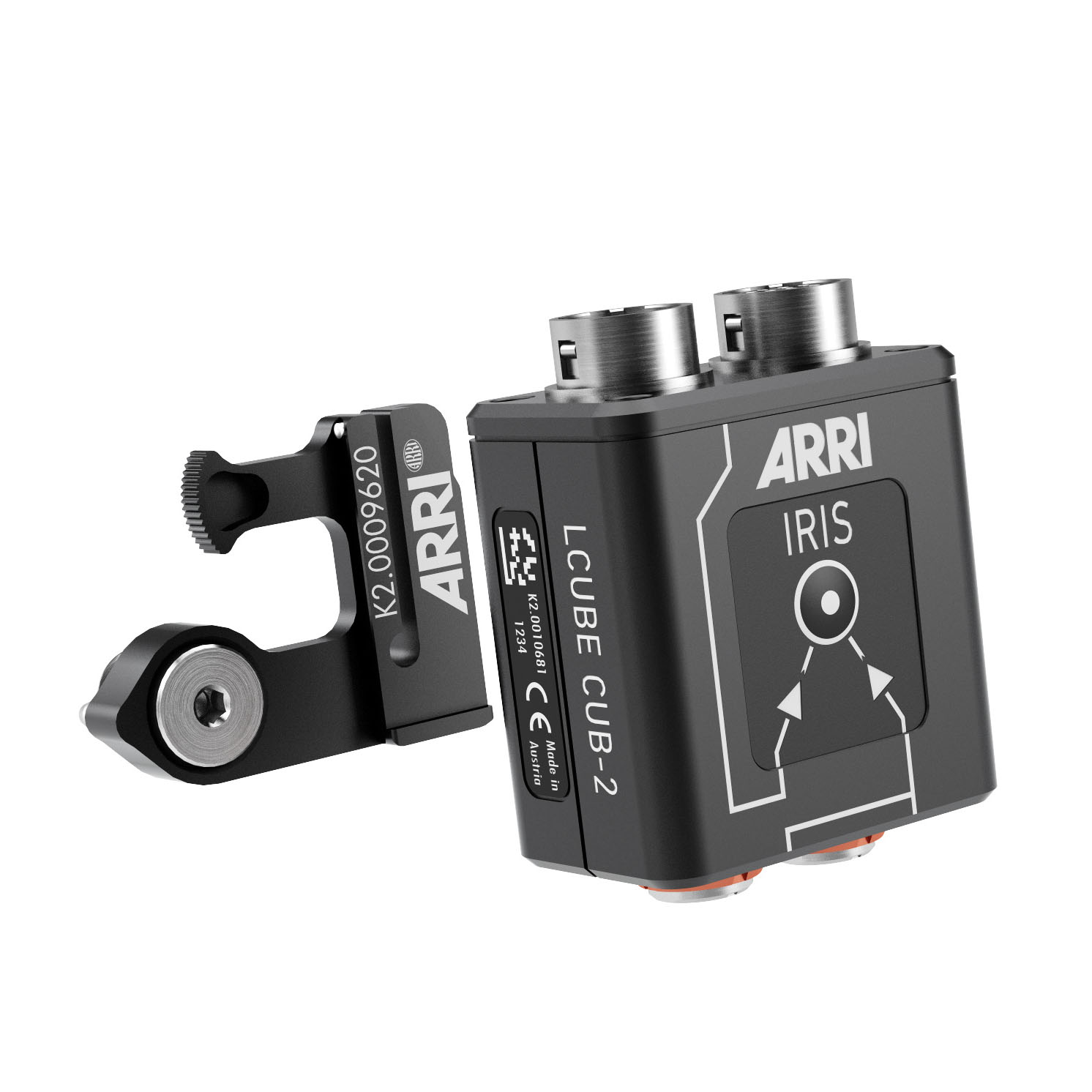

Connects LCUBE CUB-2 to the 12 pin Hirose lens connector on the AMIRA/ALEXA Mini PL LDS Lens Mount, the B4 Lens Mount, and third party cameras. Enables camera auto-iris function while using Master Grips for focus and zoom. Supports analog iris control signals from ENG/EFP cameras. The cable can also be used to connect the 12-pin Hirose to the K2.0051099 LLA-1 Control Module. Length:0.3m/1ft.

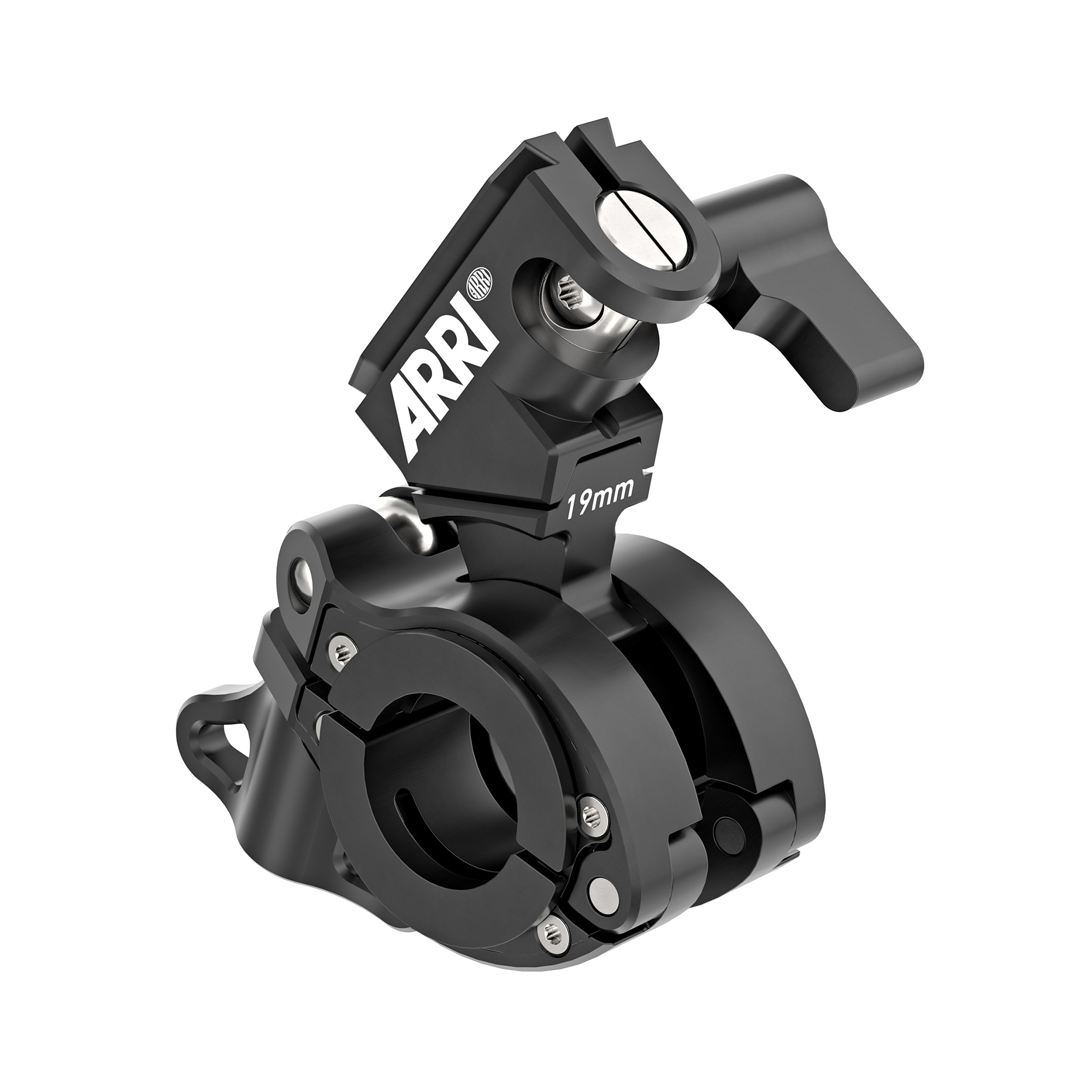

Rod clamp designed for reliable and user-friendly mounting of lens motors on 19 mm support rods. Its toolless design enables fast and straightforward mounting, allowing quick motor installation and precise positioning. The two-part construction provides enhanced flexibility and stability, allowing tilt adjustments of up to 200° for optimal motor alignment. The clamping lever securing the clamp to the lens motor via the dovetail interface can be rotated by 180°, allowing tightening from either the left or right side depending on available space. This ensures accessibility even in tight setups with multiple motors mounted closely side by side. A hinged rod clamp with thumbscrew ensures secure fixation, while the integrated ARRI Multi-HEX interface (HEX 4, 5, or 5/32”) provides the option for additional tightening with an Allen key if required. Two split reduction bushings additionally allow use with 15 mm support rods, providing flexibility across different rod standards. Compatible with ARRI's cforce MAX, cforce mini, cforce mini RF, CLM-5, Operator Control Unit OCU-1 and cmotion's cPro motor

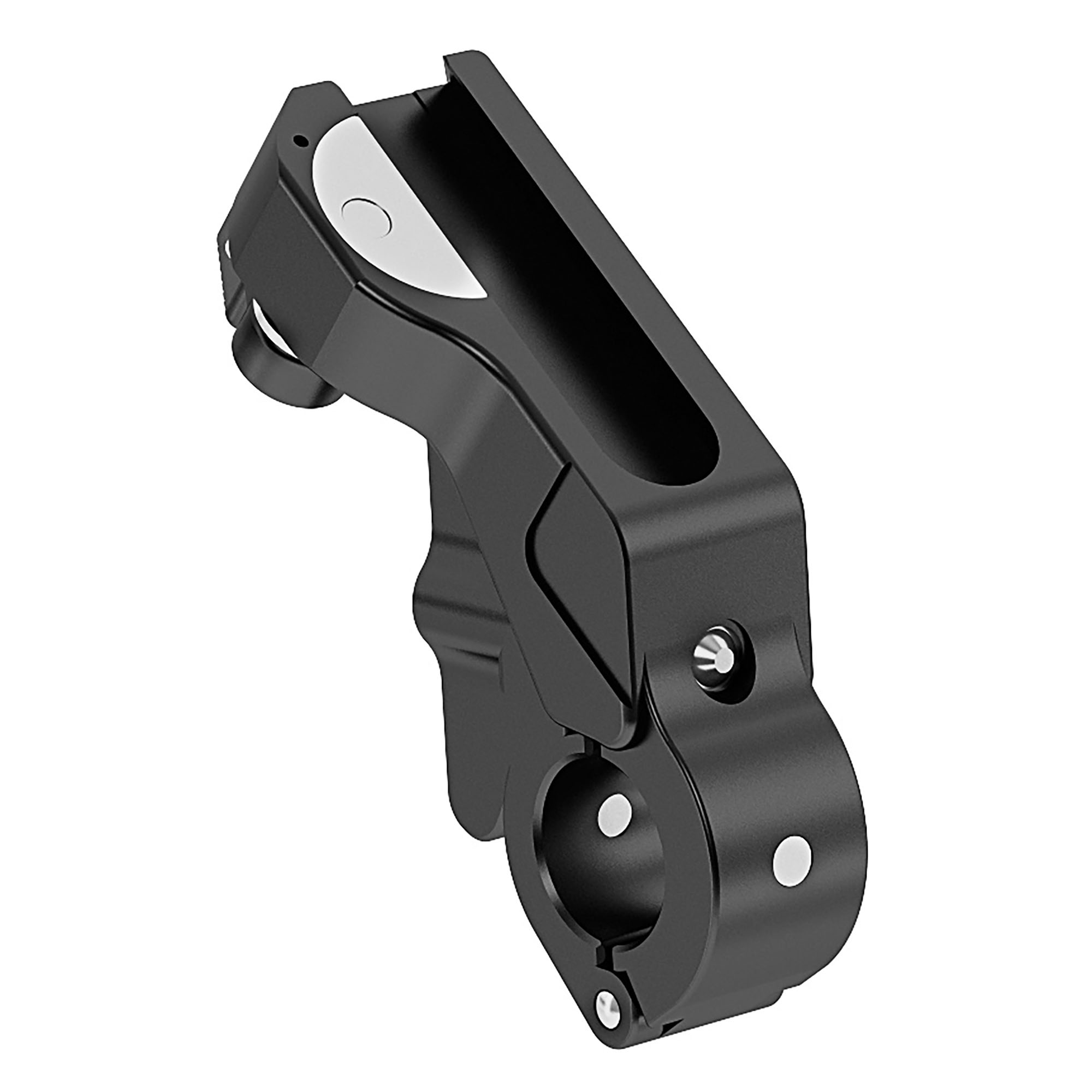

Special clamp console for use with film cameras and short lenses in the area of the camera mirror shutter. With integrated dovetail slide includes magnetic inserts for use with 15 mm support rods. Also fits to CLM-4 motor unit.

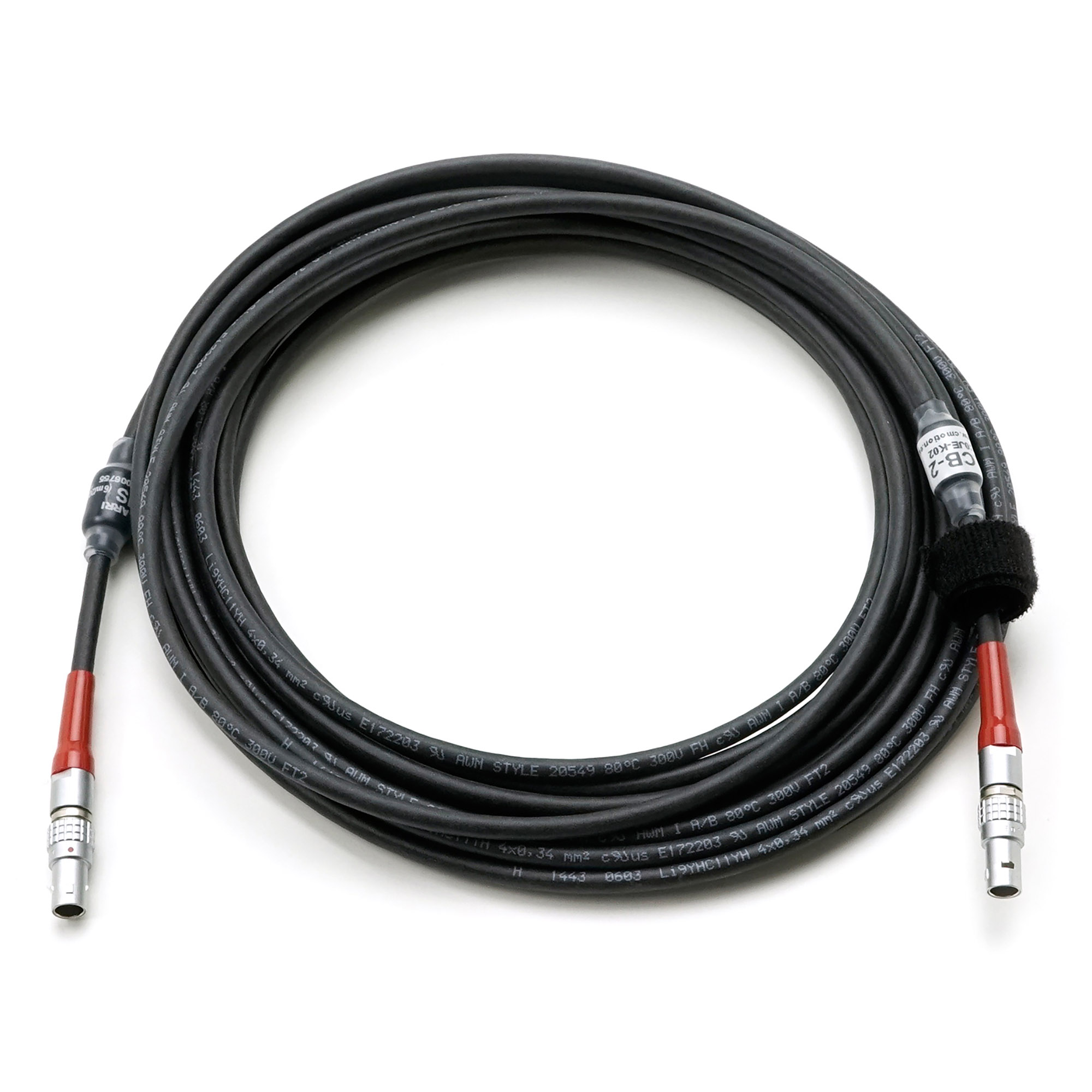

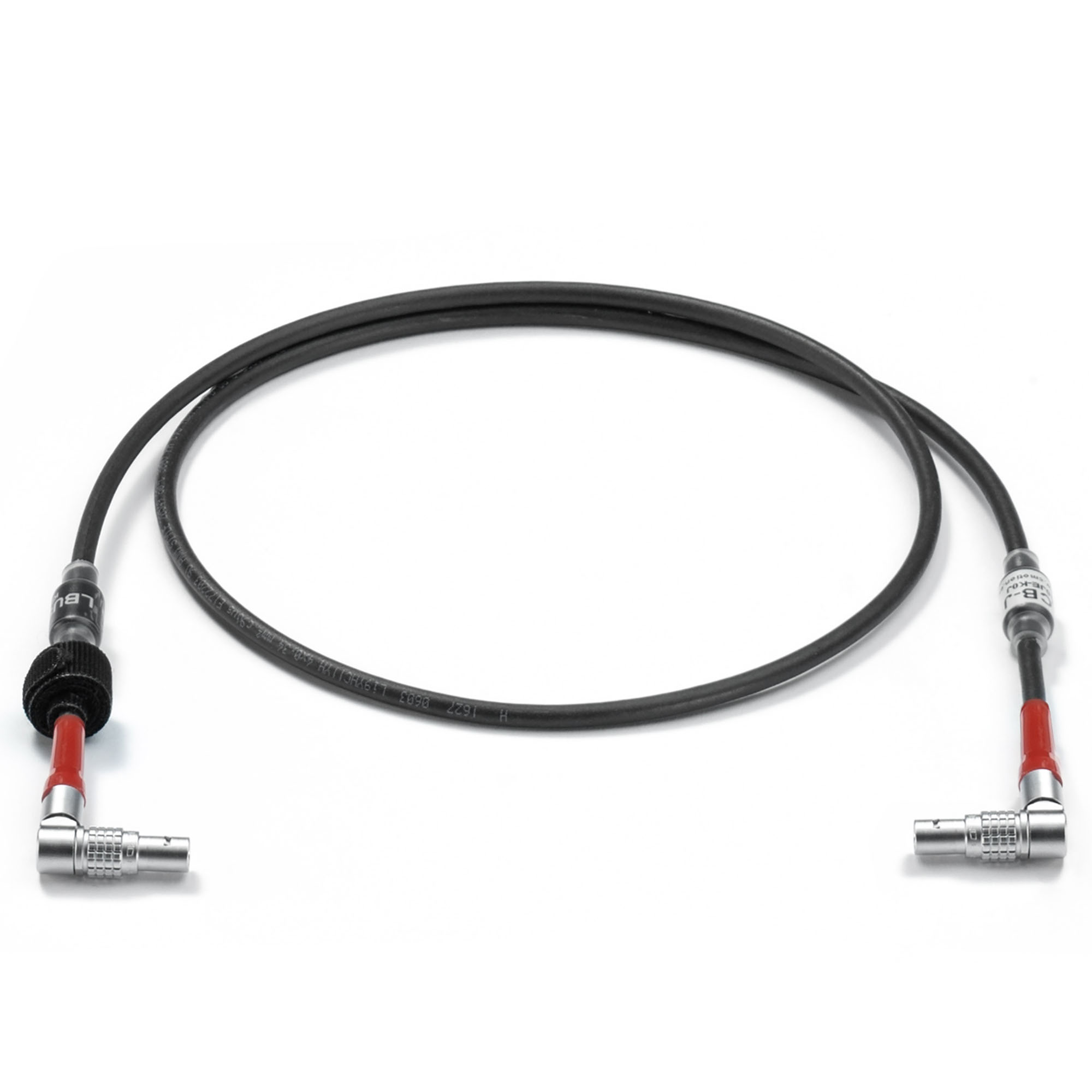

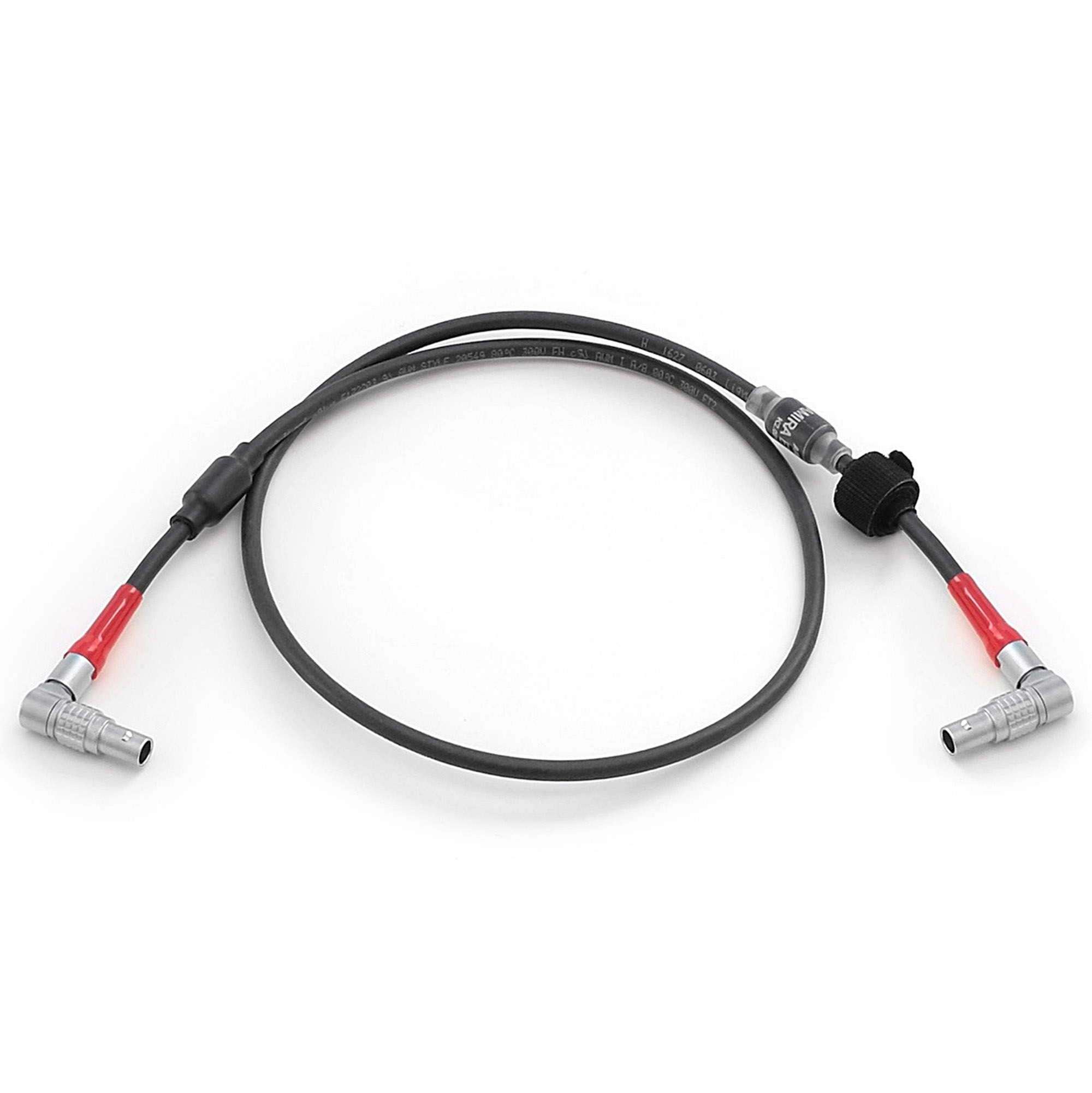

Connects LBUS devices (e.g. Master Grips). Includes two angled LBUS connectors. Length: 0.8m/2.6ft

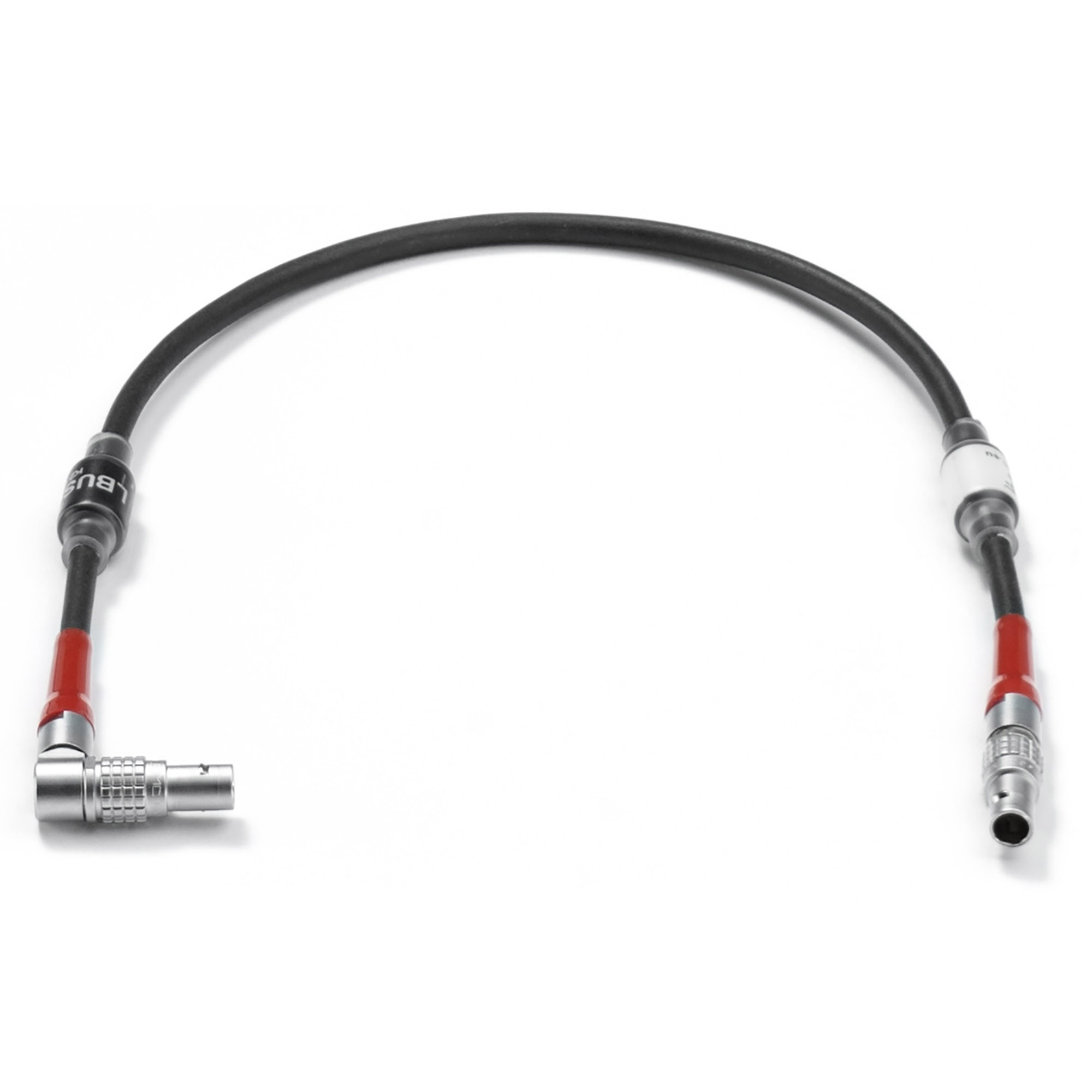

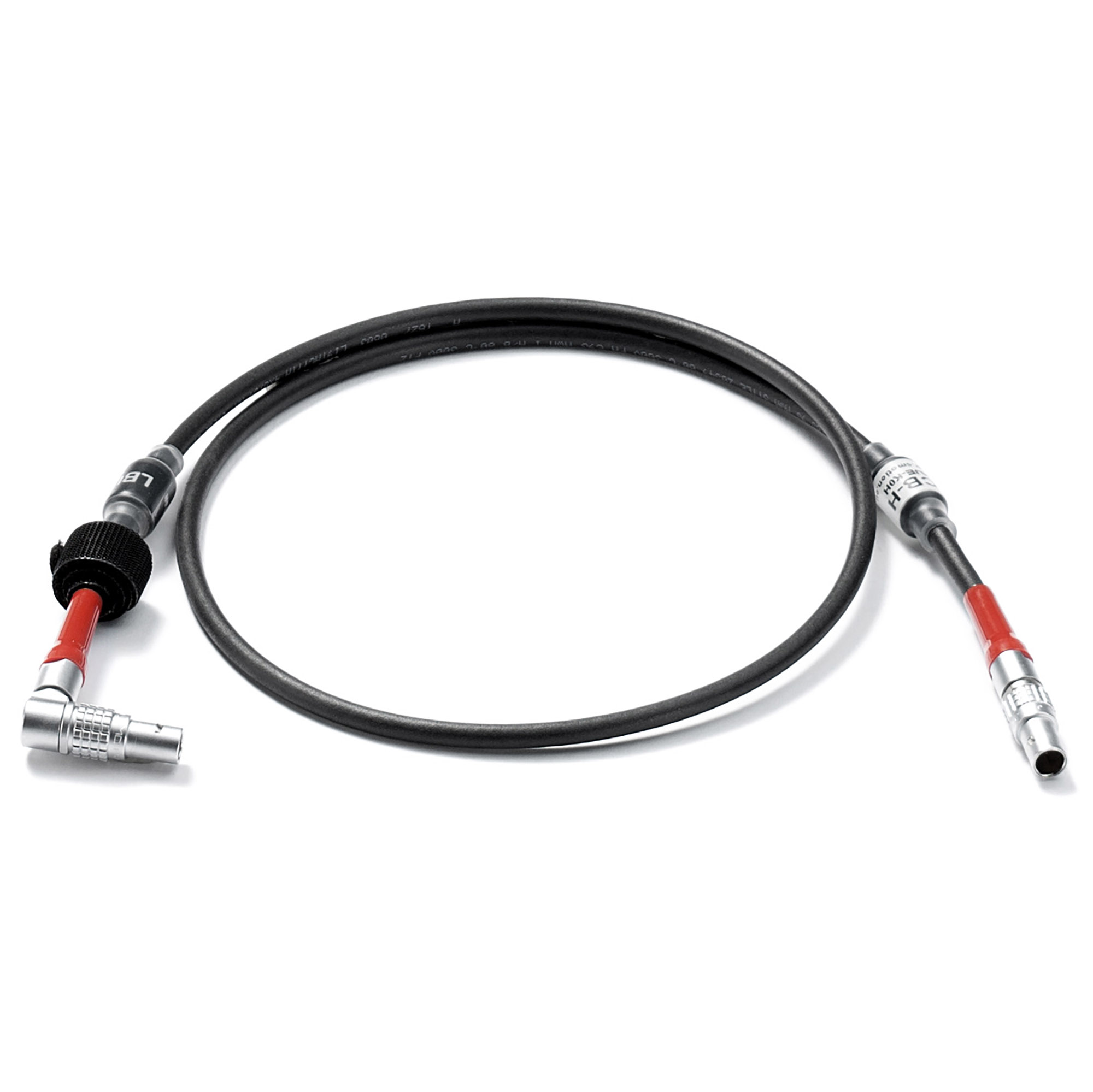

Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Lenghth. (0.3m/1ft)

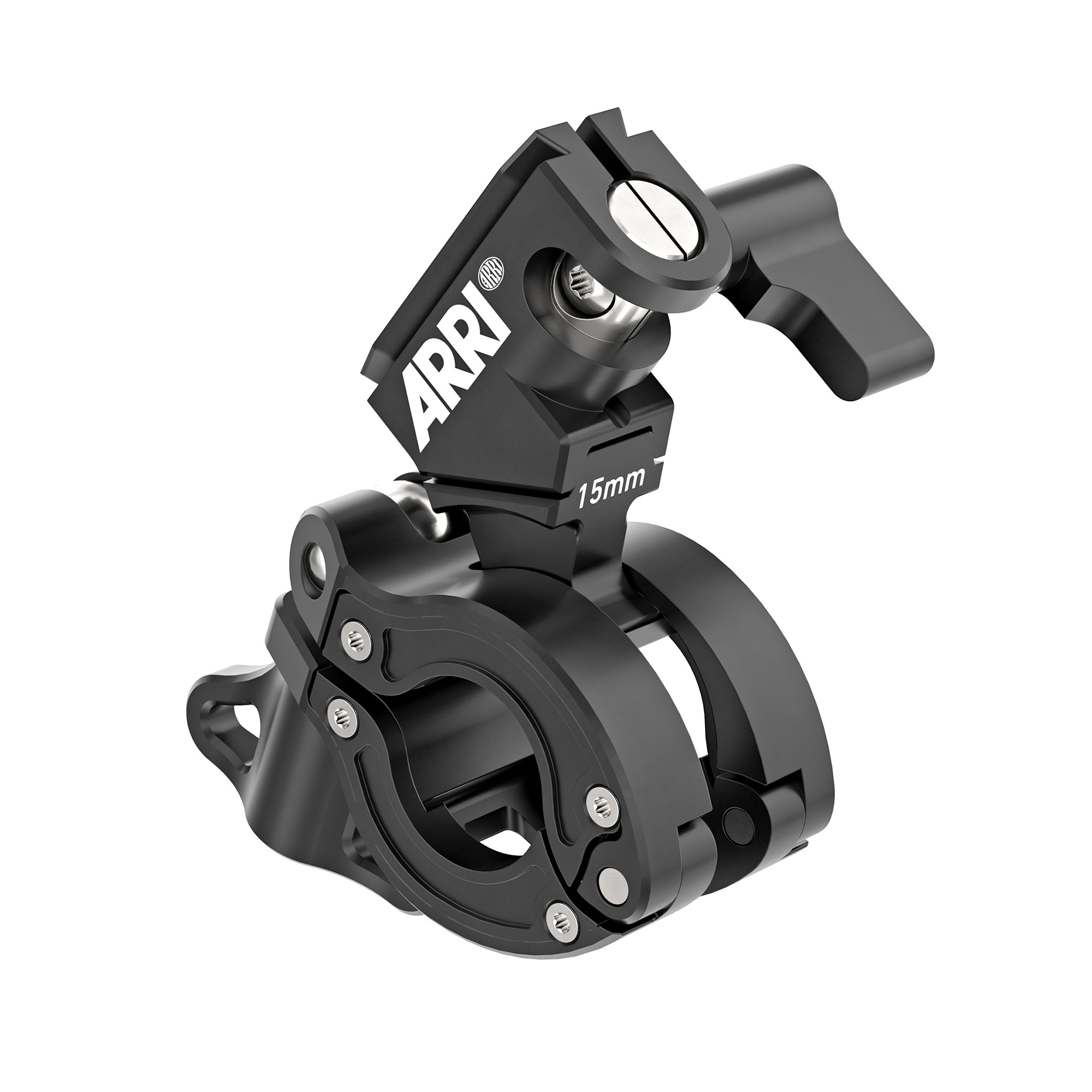

Rod clamp designed for reliable and user-friendly mounting of lens motors on 15 mm support rods. Its toolless design enables fast and straightforward mounting, allowing quick motor installation and precise positioning. The two-part construction provides enhanced flexibility and stability, allowing tilt adjustments of up to 200° for optimal motor alignment. The clamping lever securing the clamp to the lens motor via the dovetail interface can be rotated by 180°, allowing tightening from either the left or right side depending on available space. This ensures accessibility even in tight setups with multiple motors mounted closely side by side. A hinged rod clamp with thumbscrew ensures secure fixation, while the integrated ARRI Multi-HEX interface (HEX 4, 5, or 5/32”) provides the option for additional tightening with an Allen key if required. Compatible with ARRI's cforce MAX, cforce mini, cforce mini RF, CLM-5, Operator Control Unit OCU-1 and cmotion's cPro motor.

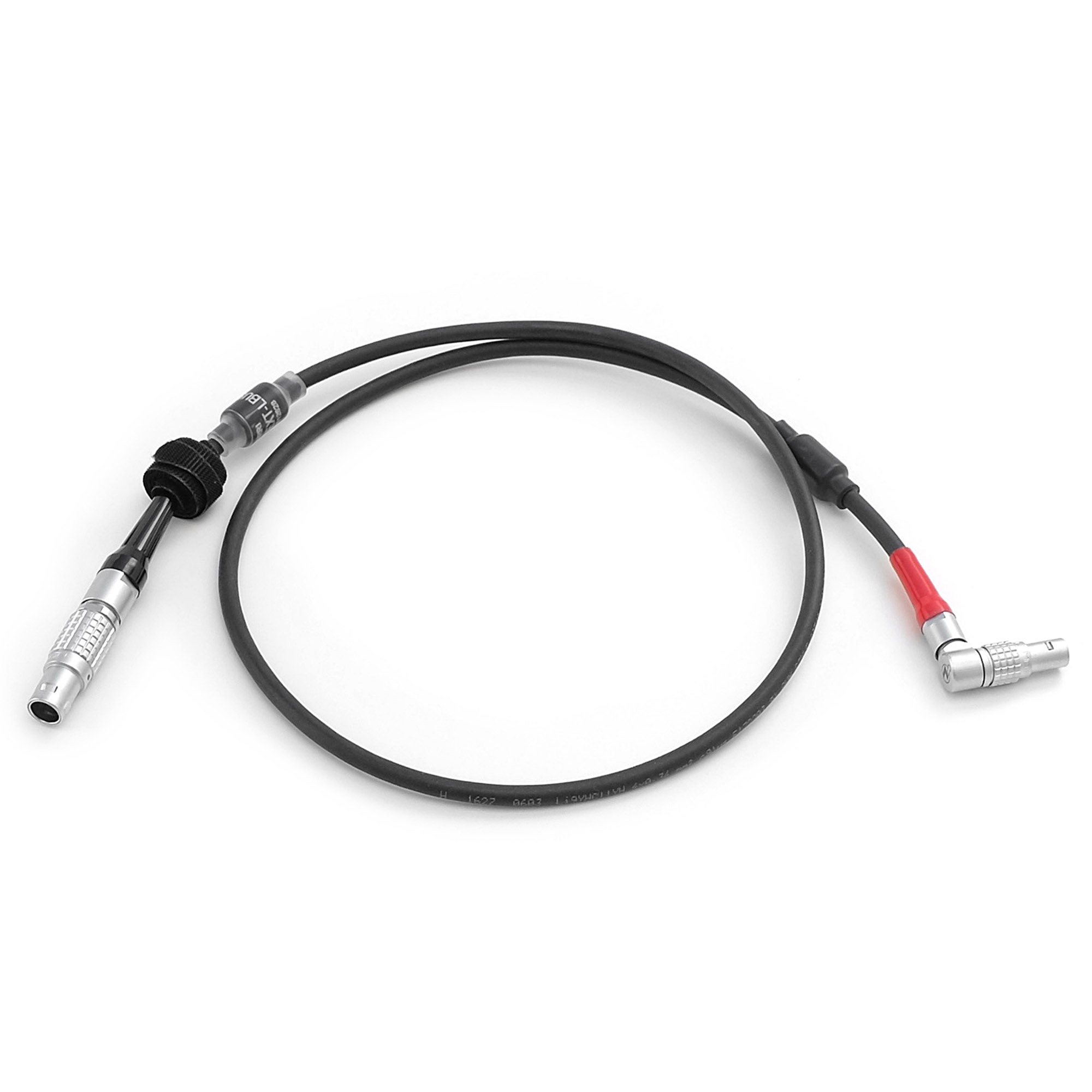

Connects AMIRA, ALEXA Mini and ALEXA Mini LF EXT to LBUS devices (e.g. Master Grips). Includes one angled LBUS connector. Length: 0.8m/2.6ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 1m/3.3ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.35m/1.1ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.80m/2.6ft

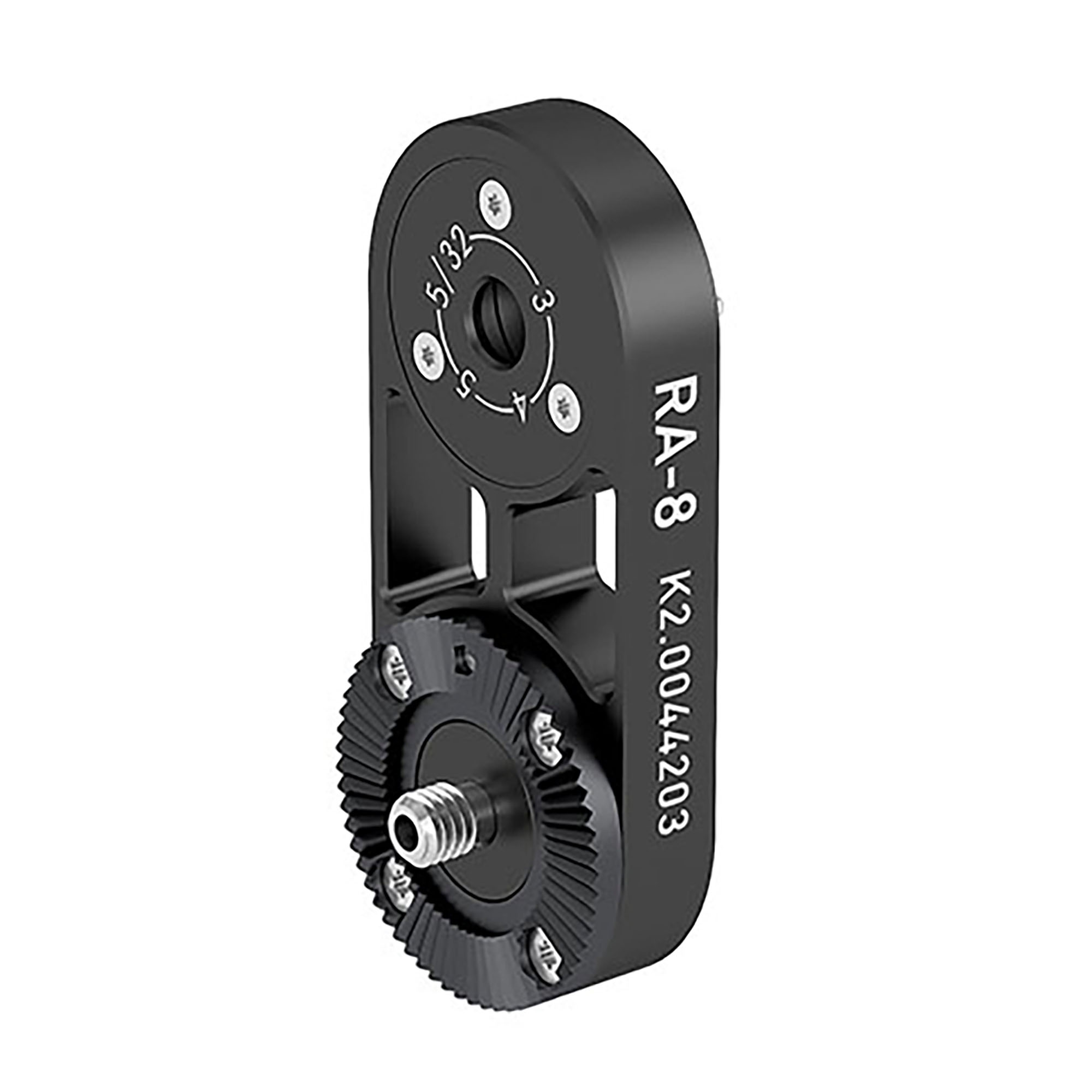

The Rosette Adapter RA-8 allows to attach the Operator Control Unit OCU-1 to the ZMU-4 to wirelessly control a second lens axis.

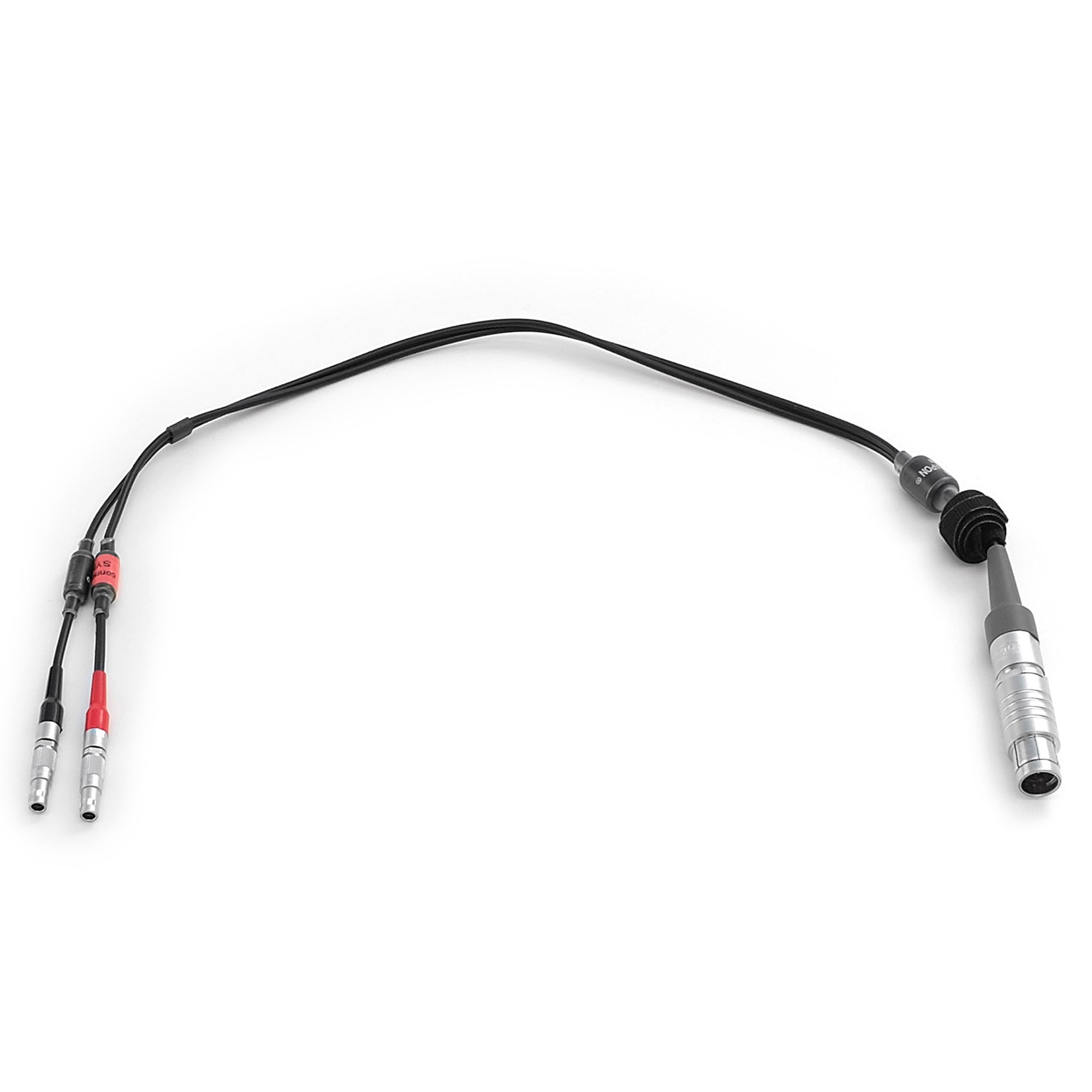

Connects Universal Motor Controller UMC-4 to RED Weapon. Provides camera RUN/STOP function and tally. Length: 2x 0.5m/1.6ftNote: Do not use with RED DSMC2 BASE EXPANDER and RED EPIC!
Compatible with ARRI's CLM-5, cforce mini, cforce mini RF, Operator Control Unit OCU-1 and cmotion's cPro motor.Includes:
Connects ARRI Radio Interface Adapter RIA-1, ARRI cforce mini RF, cmotion cPRO motor and cmotion camin to Sony Remote connector on Sony F5/F55/Venice cameras and to D-Tap power source. Supports camera REC start/stop function and tally. Also supports camera status and camera control on ARRI’s Hi-5 hand unit and cmotion cPRO hand unit (license required). Length: 0.8m/2.6ft.

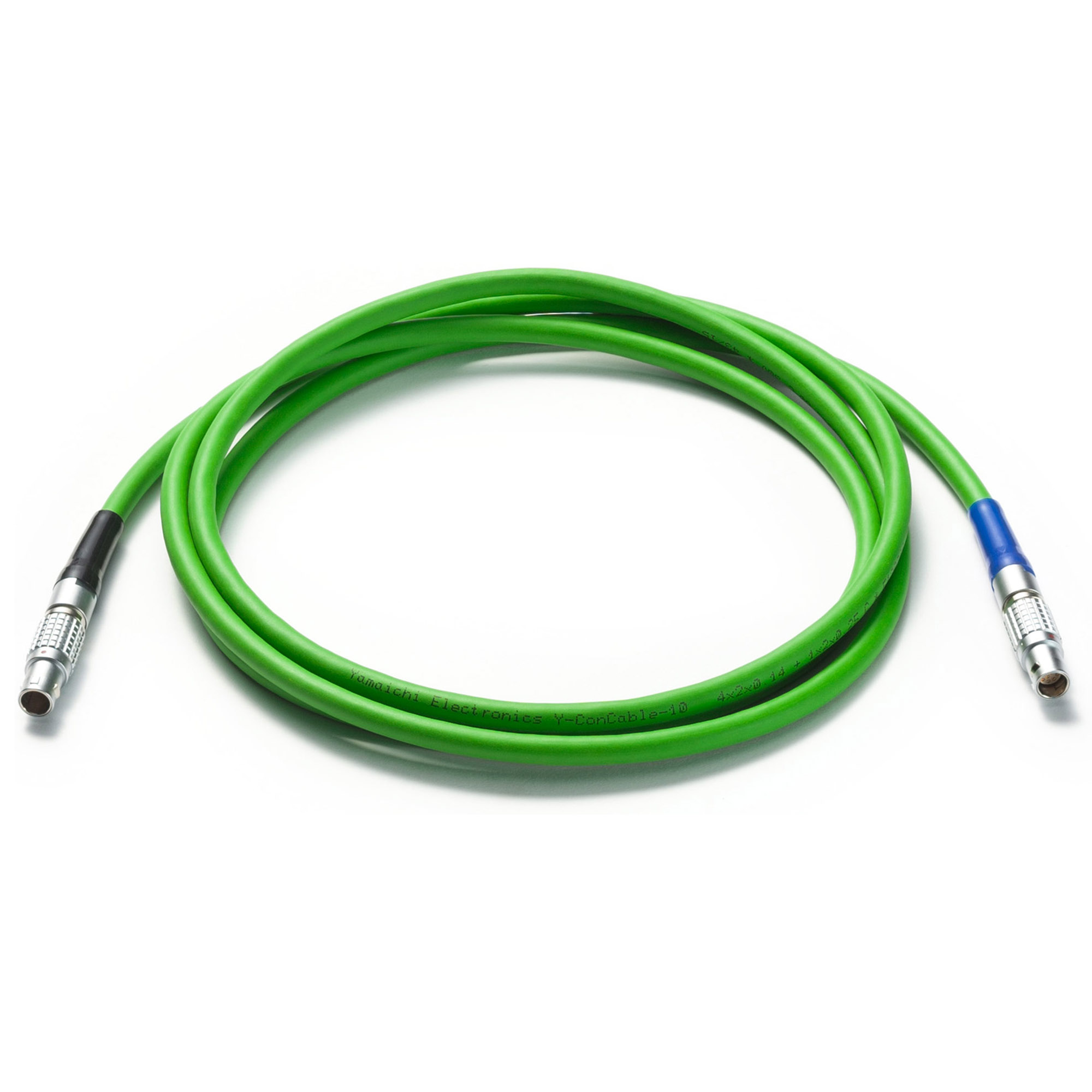

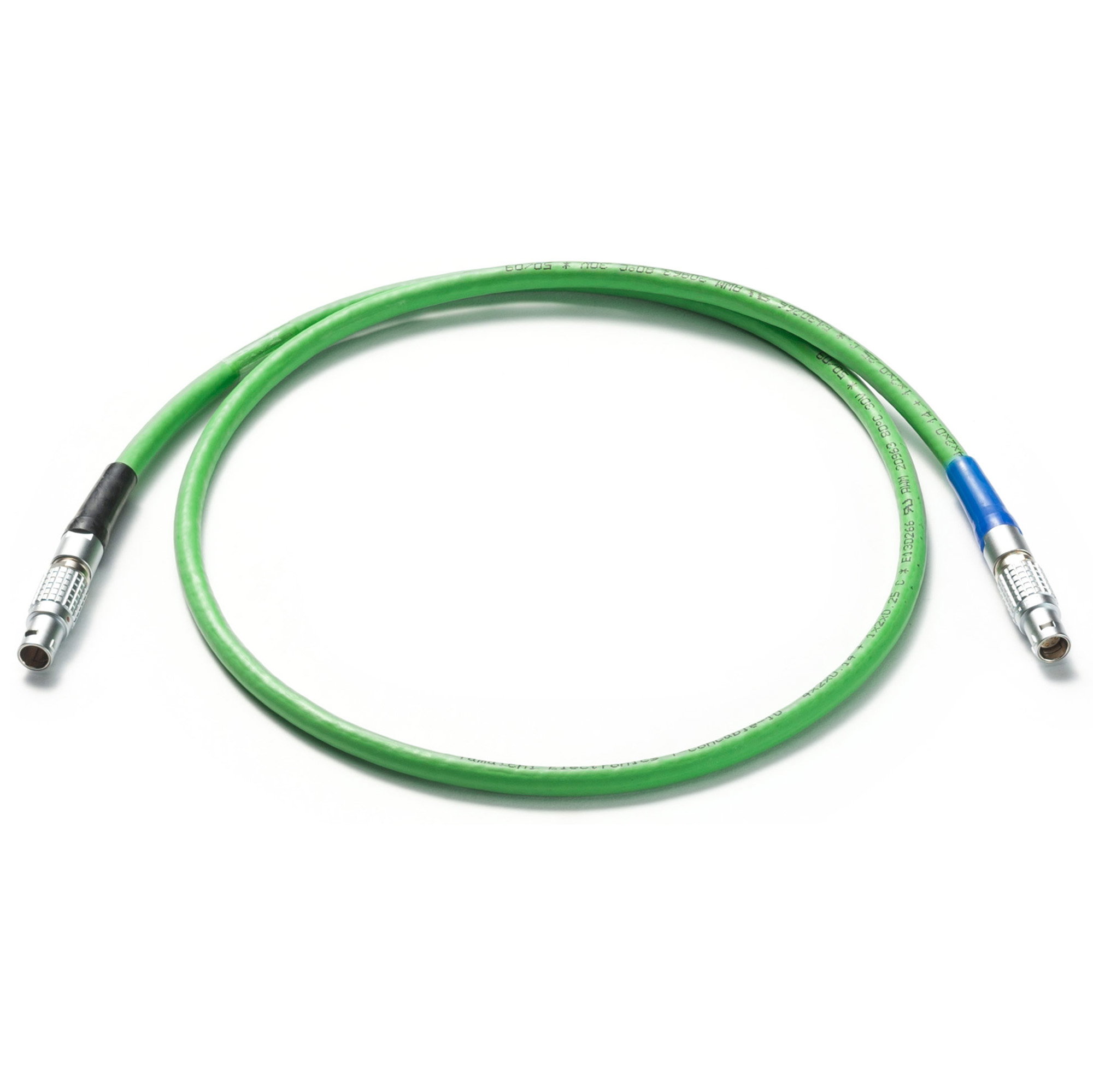

Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is used close to the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).
Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is mounted on the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).

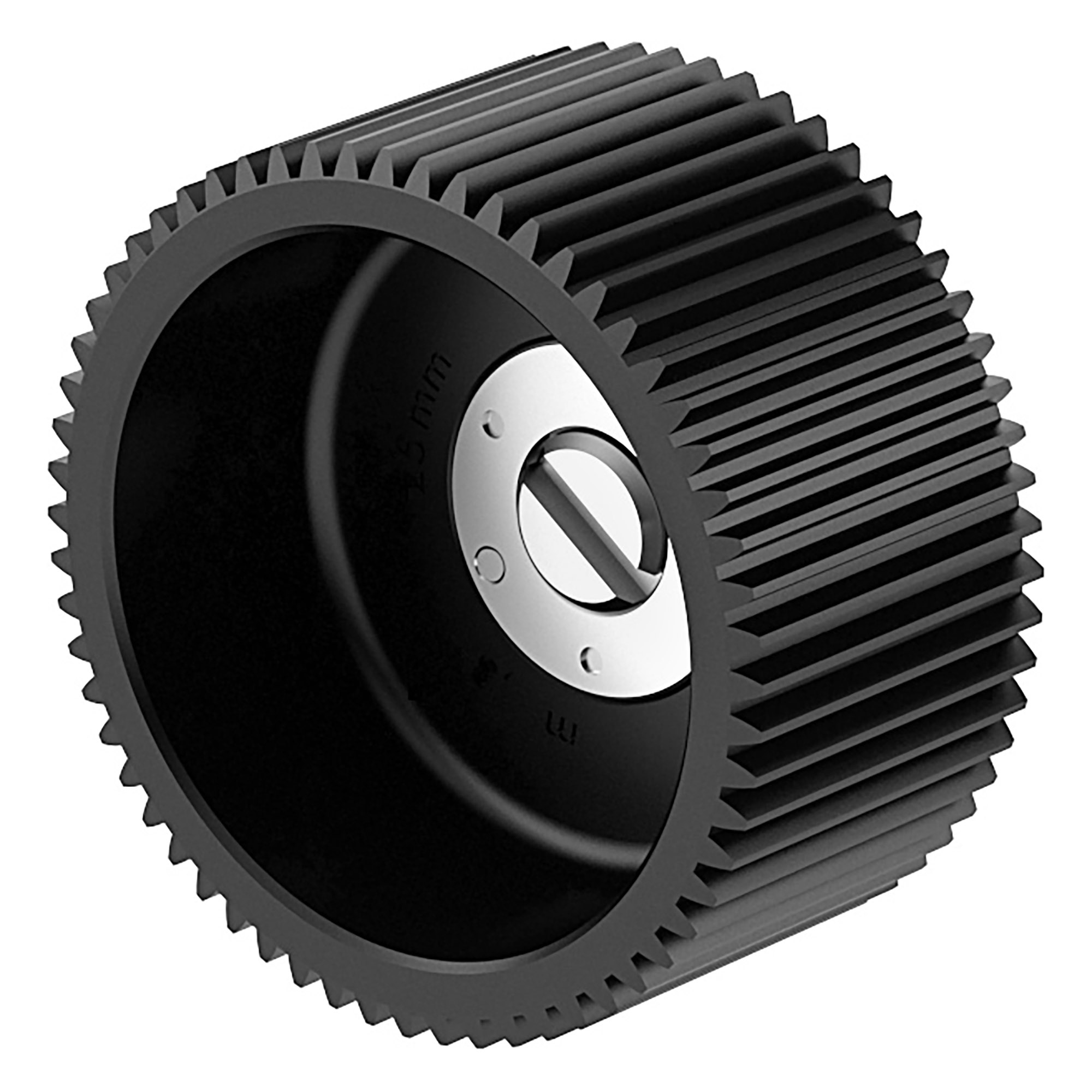

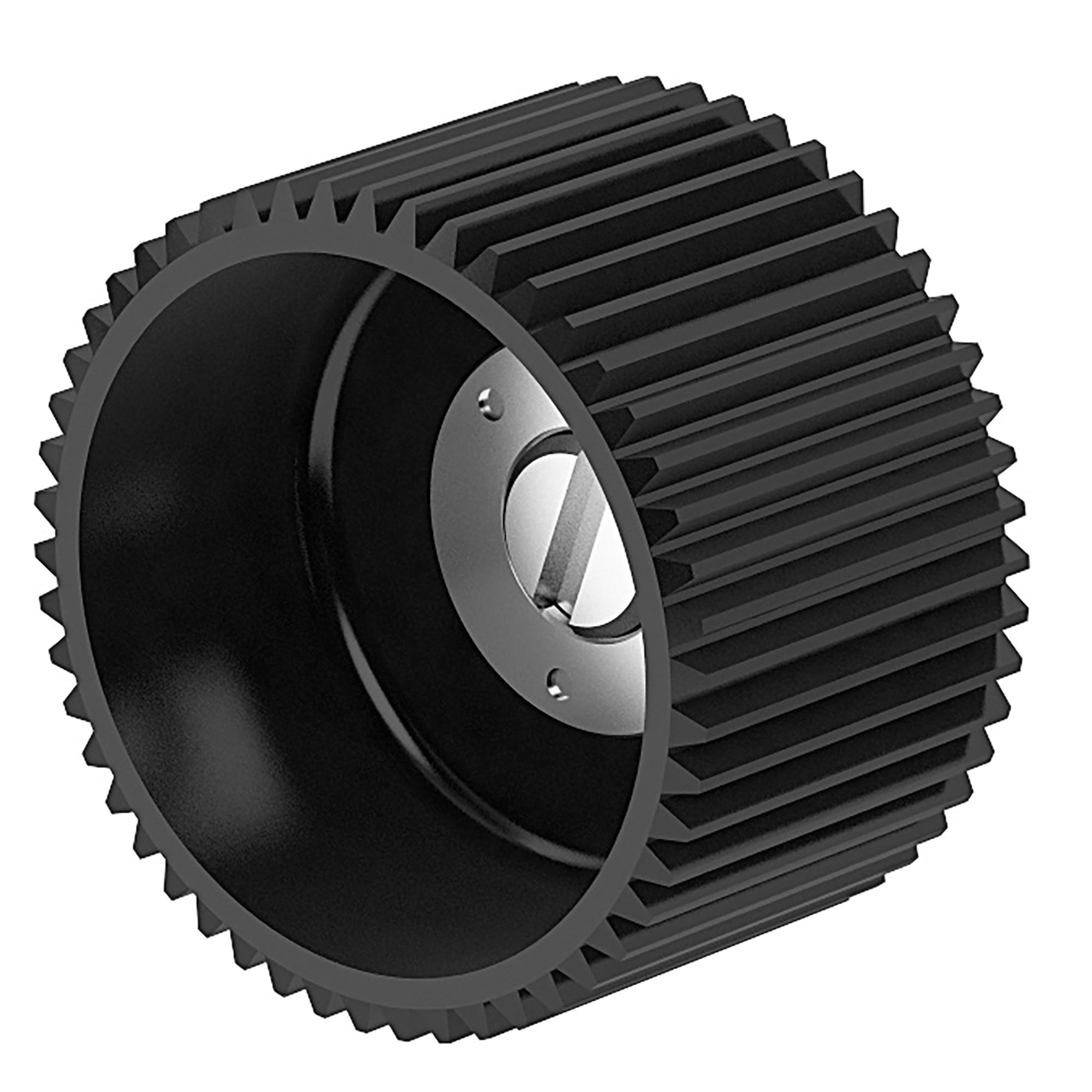

25 mm wide gear for moving lens barrels. Includes metal gear flange. Compatible with CLM-4, cforce plus and cforce mini motors.

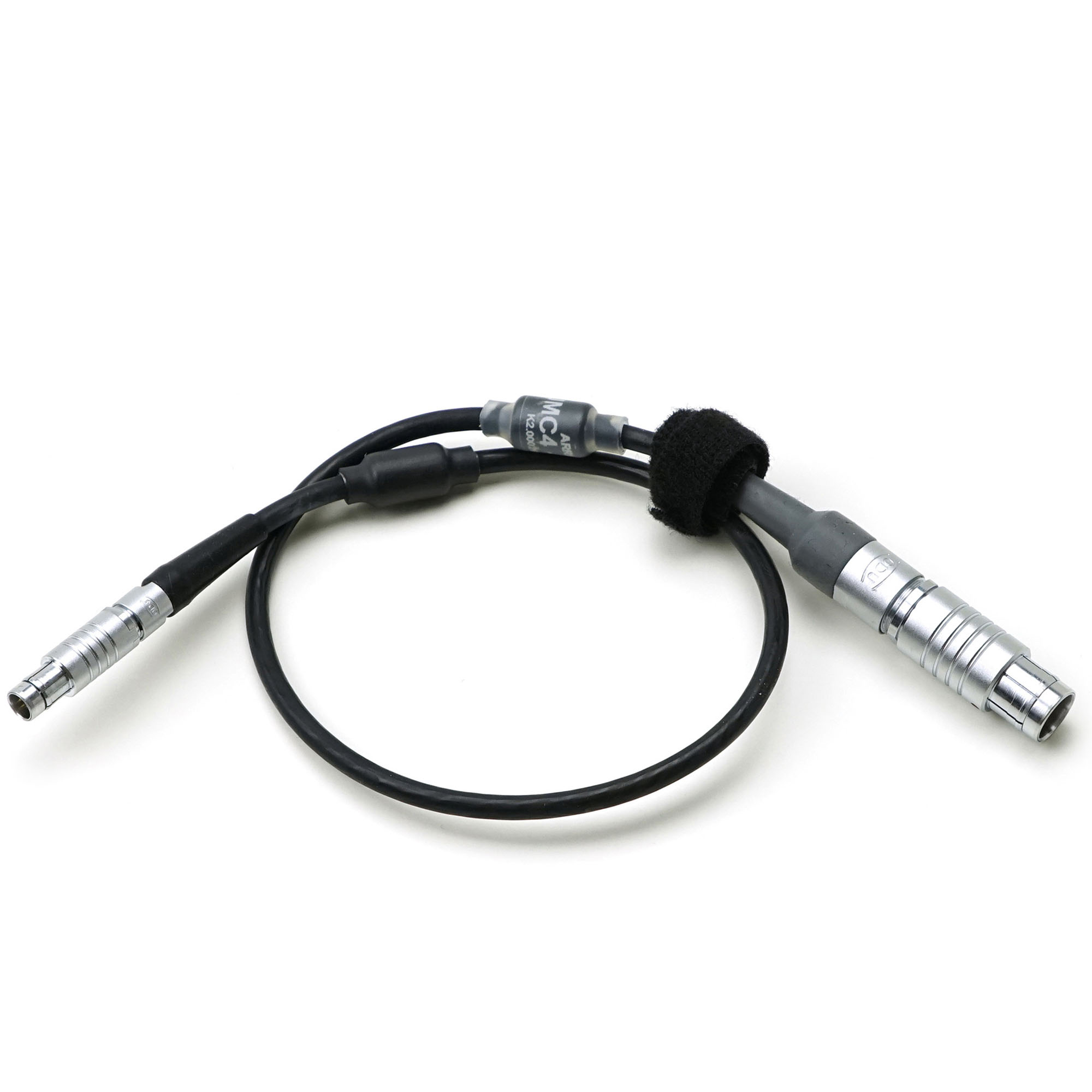

Connects Universal Motor Controller CAM connector to Sony F65. Provides camera RUN/STOP function. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to the EXT connector of an ALEXA EV camera. Provides camera RUN/STOP function, tally and camera status information on ARRI and cmotion hand units. Length: 0,8m/2.6ft
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to 12 pin Hirose lens connectors. Requires separate power source. Length: 0.3m/1ft

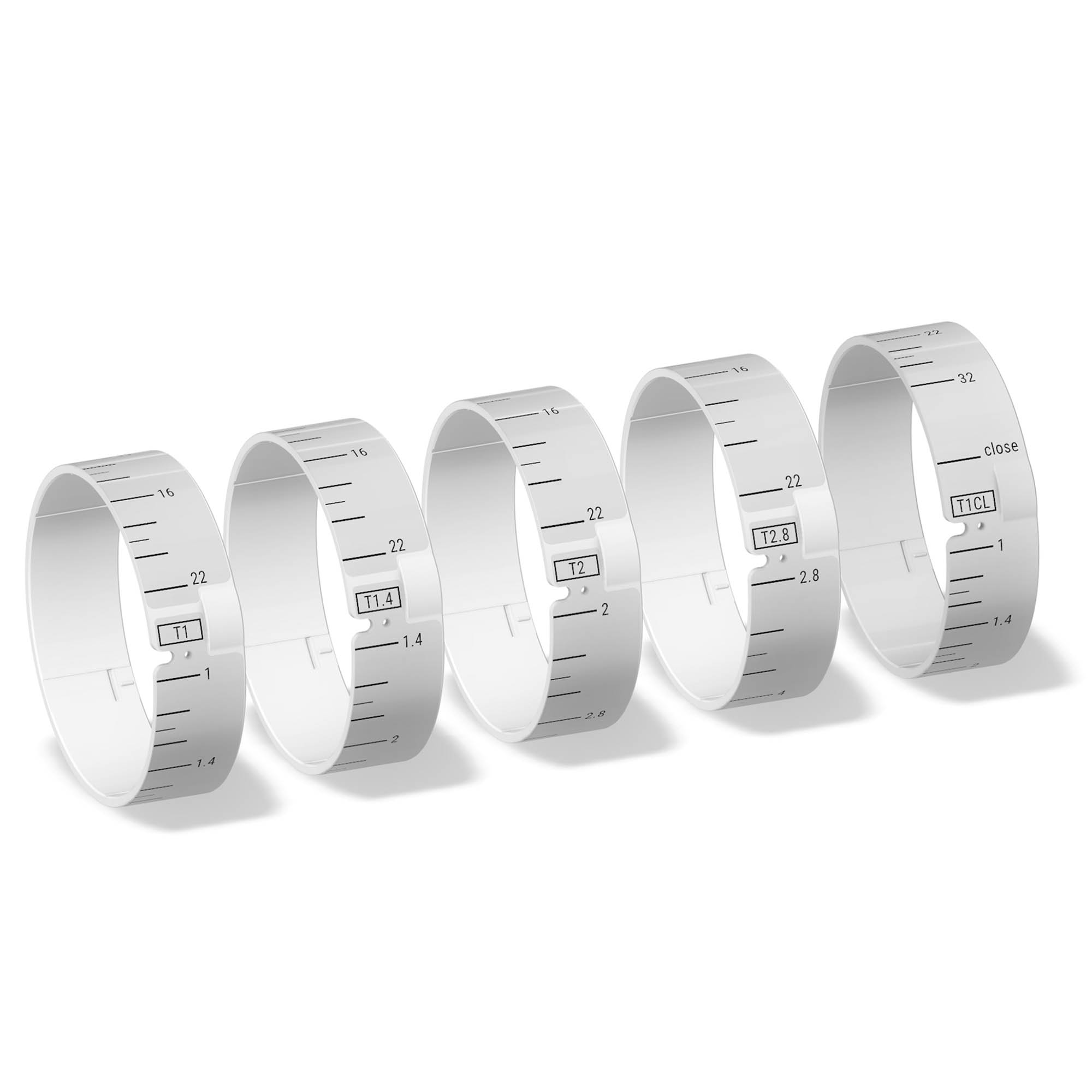

Set of 5 smart iris rings for the Hi-5 hand unit.includes:K2.0047208 1x Smart Iris Ring T1.0-T22K2.0047209 1x Smart Iris Ring T1.4-T22K2.0047211 1x Smart Iris Ring T2.0-T22K2.0047212 1x Smart Iris Ring T2.8-T22K2.0047213 1x Smart Iris Ring T1.0-Close

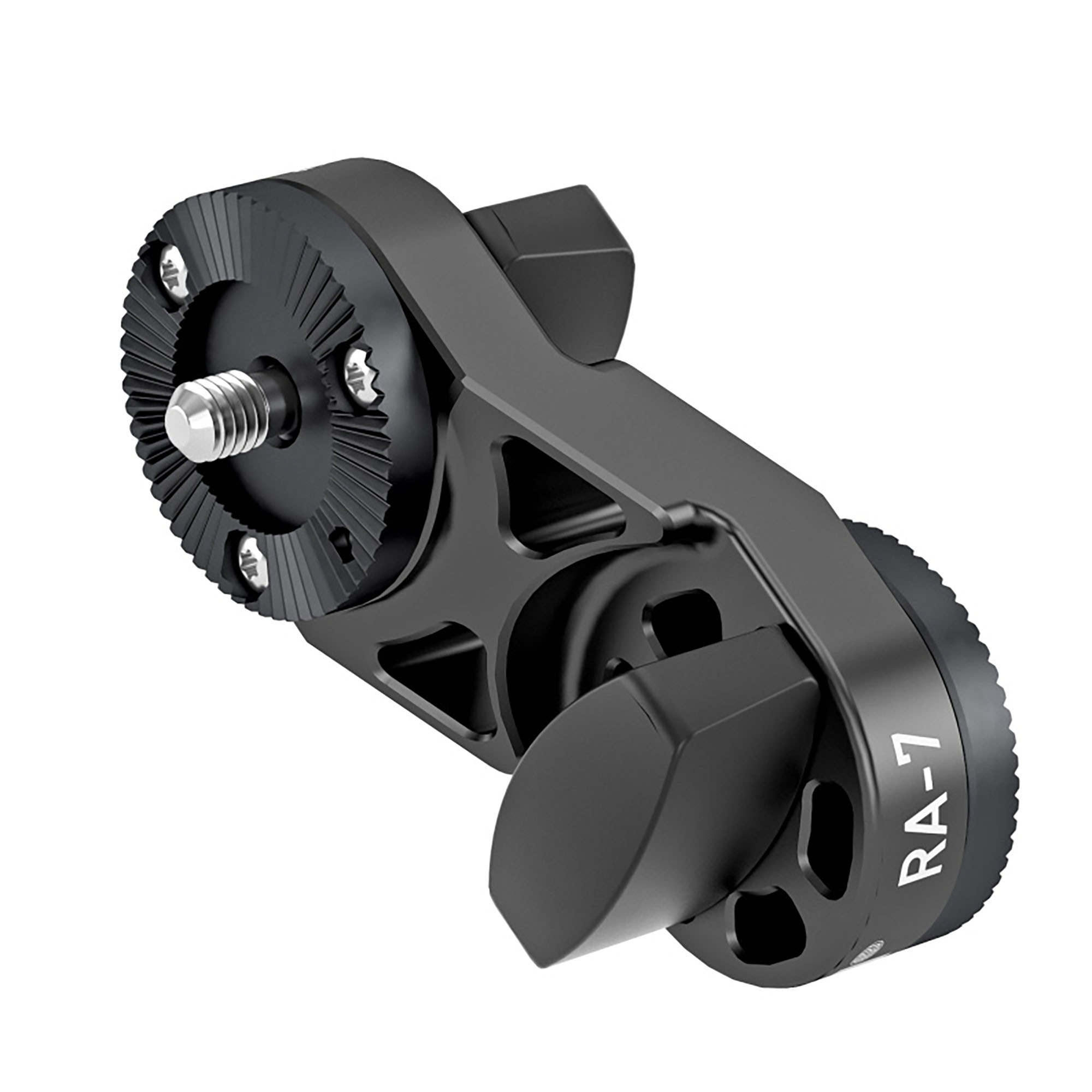

The Rosette Adapter RA-7 allows to attach the ZMU-4 to a Handgrip Pan Bar Adapter or Handgrip Extension.

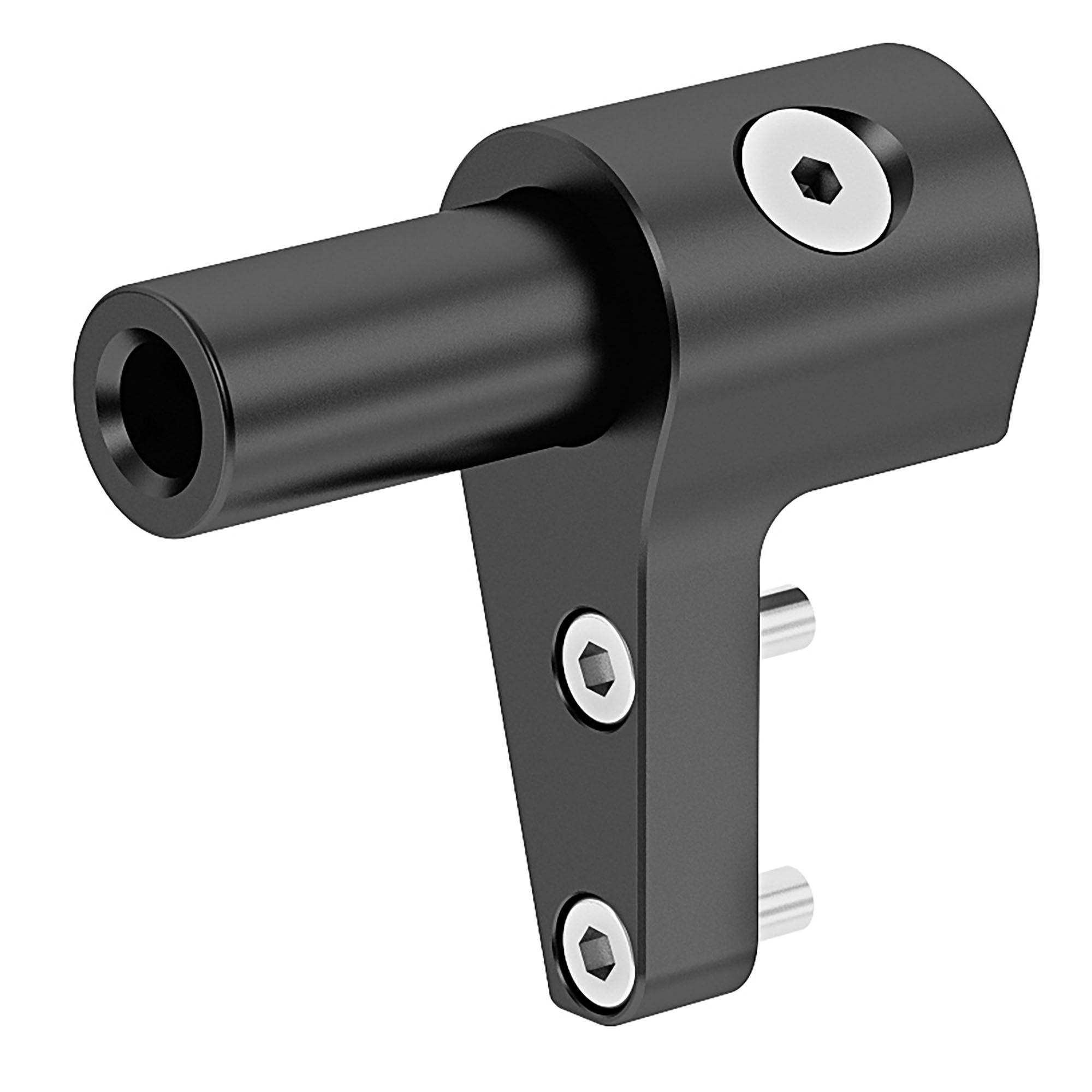

15 mm rod-to-rod adapter that attaches to CLM-4 and cforce plus motors.

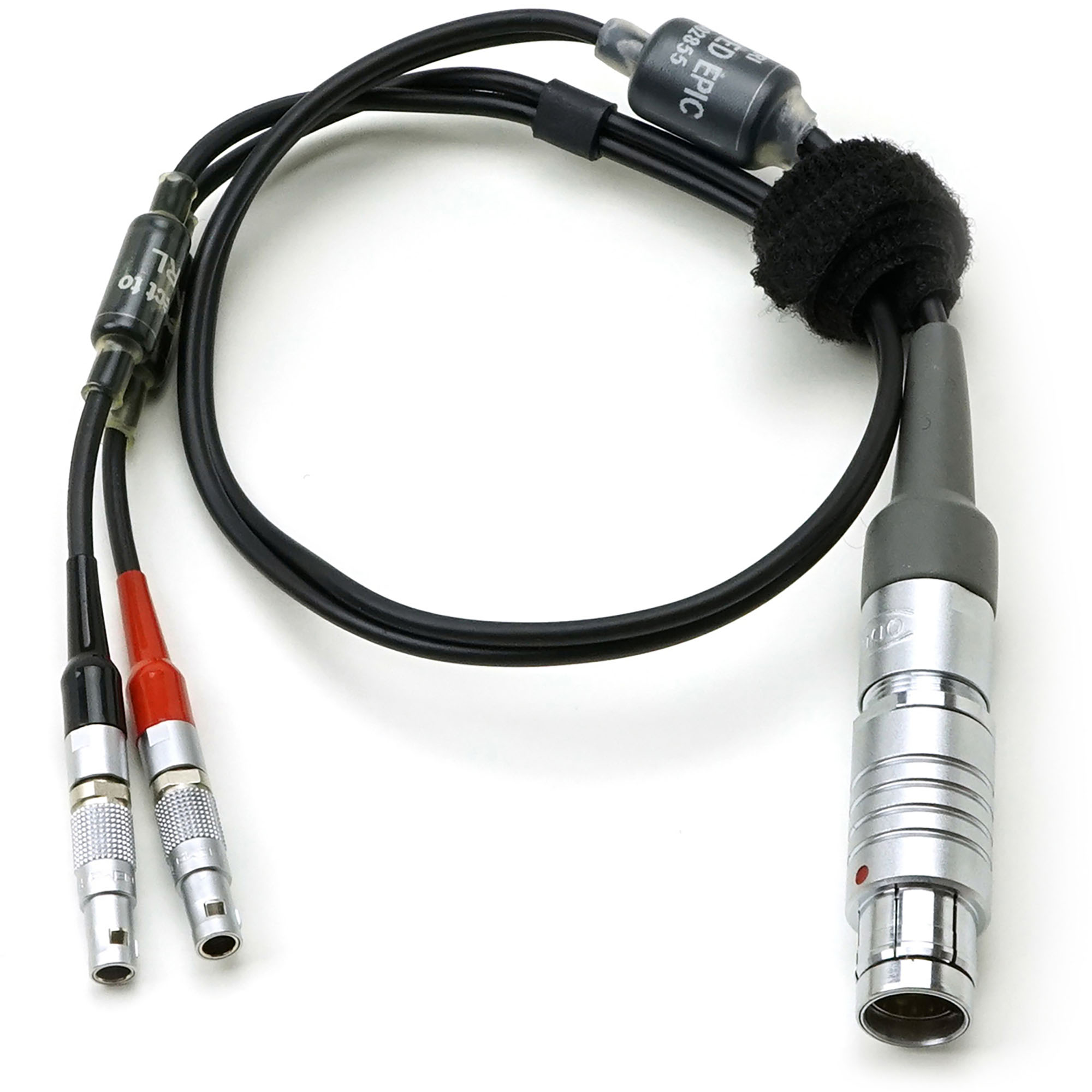

Connects Universal Motor Controller UMC-4 to RED Epic. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ft Separate UMC-4 RS IN cable for power supply required. Works with:- DSMC REDVOLT Expander- DSMC JETPACK Expander- DSMC V-Lock I/O Expander- REDCAST Module

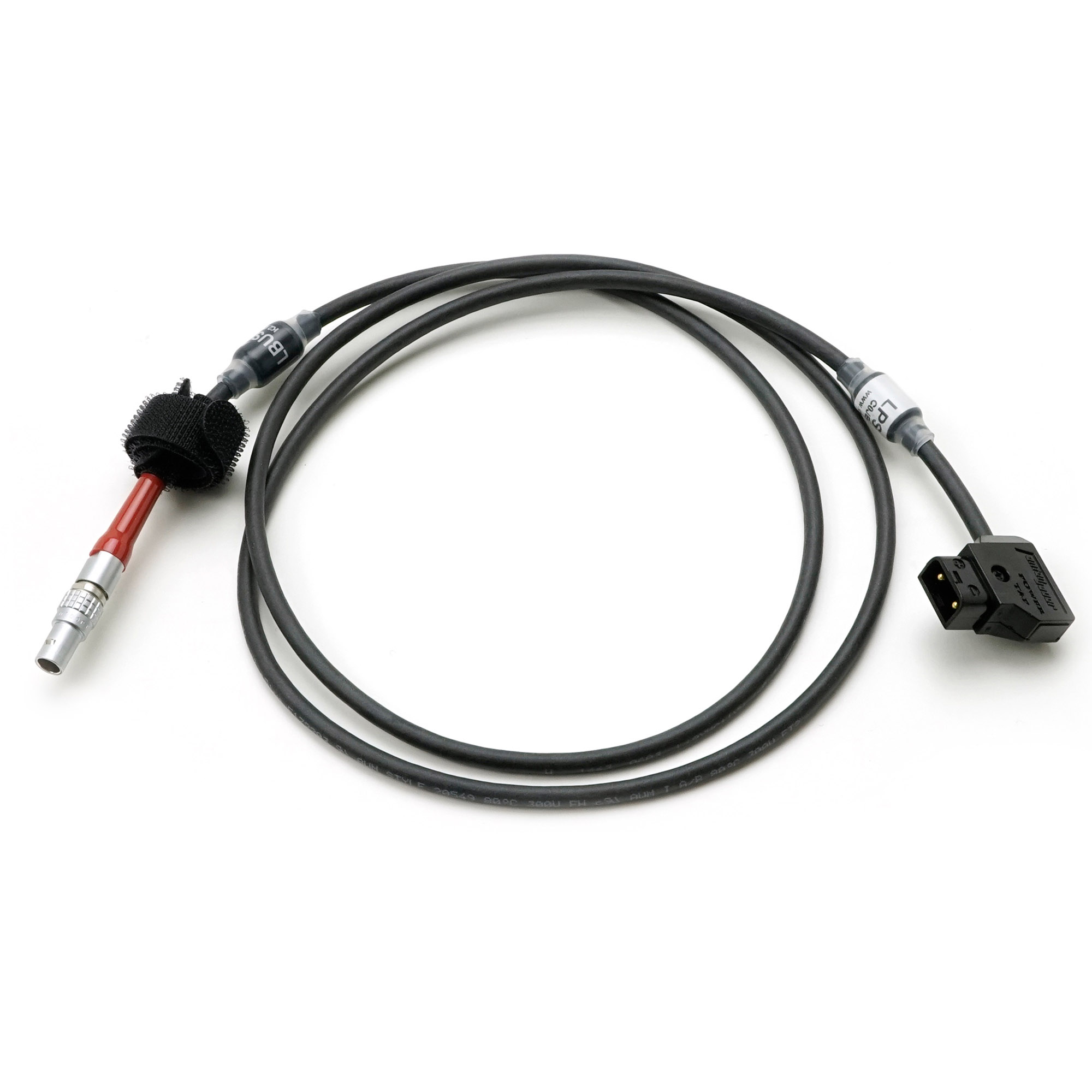

LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 1.2m/4ft.

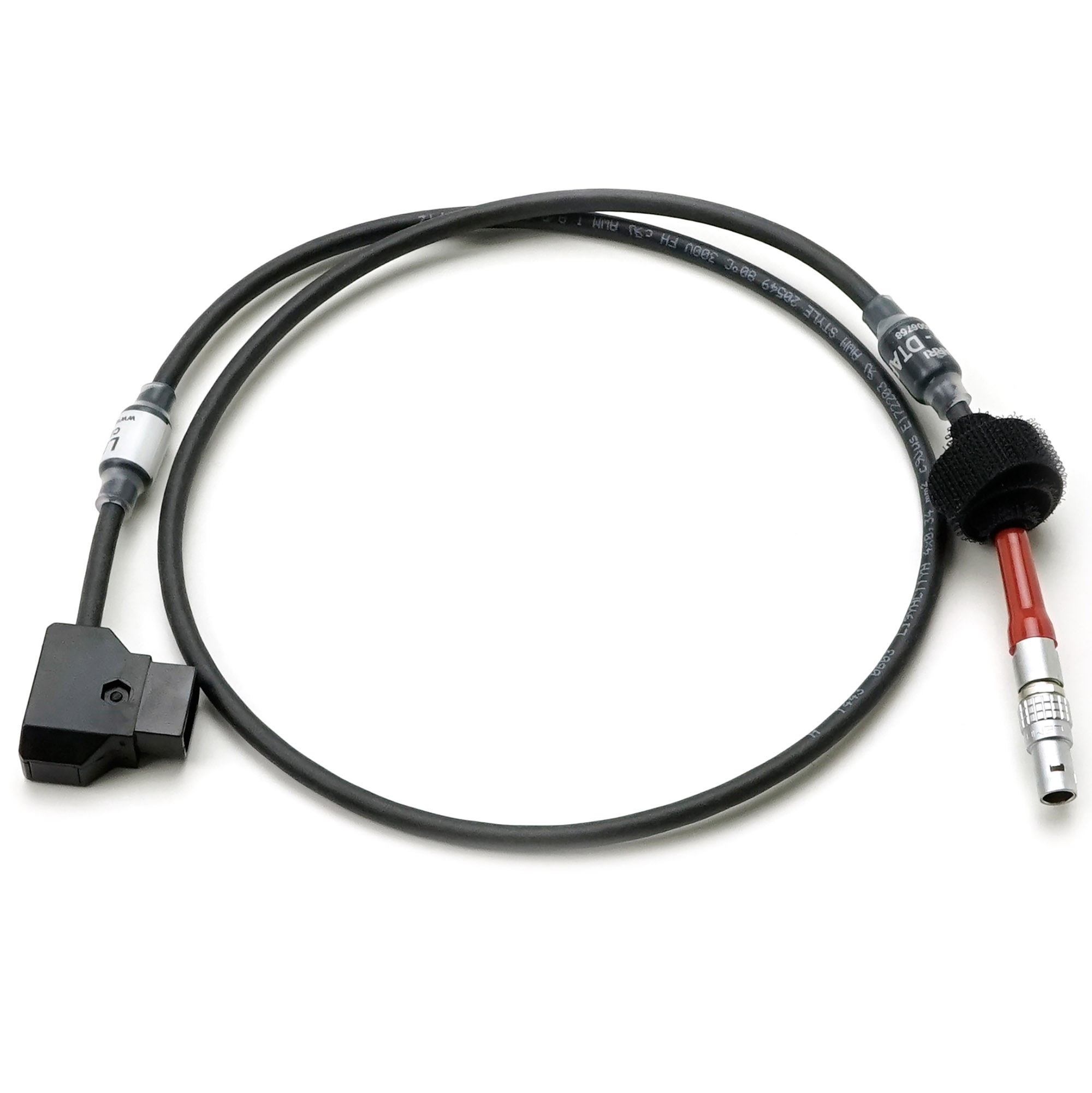

LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 0.8m/2.6ft.

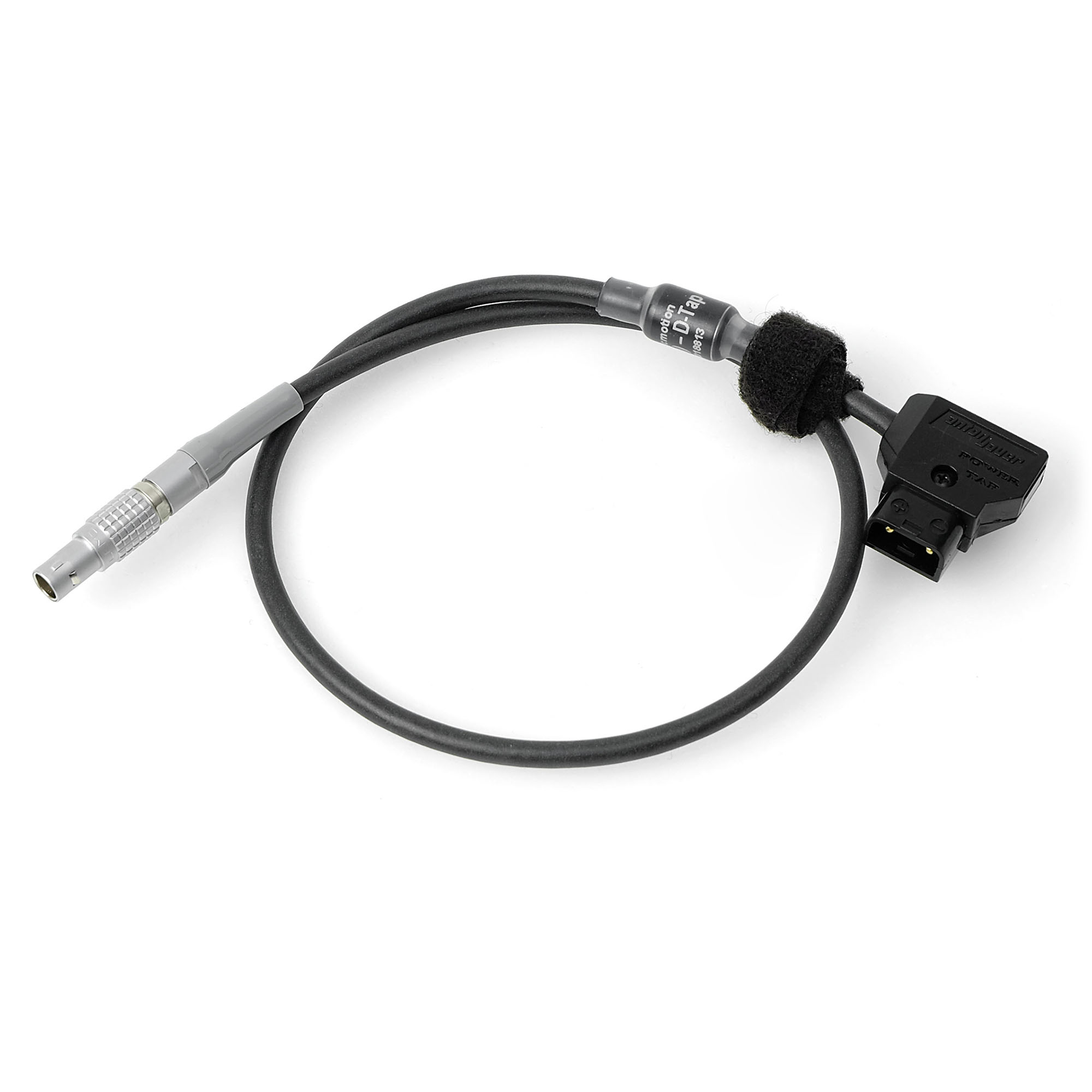

Connects ARRI cforce RF motor/cmotion cPRO motor and camin to D-Tap power source. Length: 0.5m/1.6ft

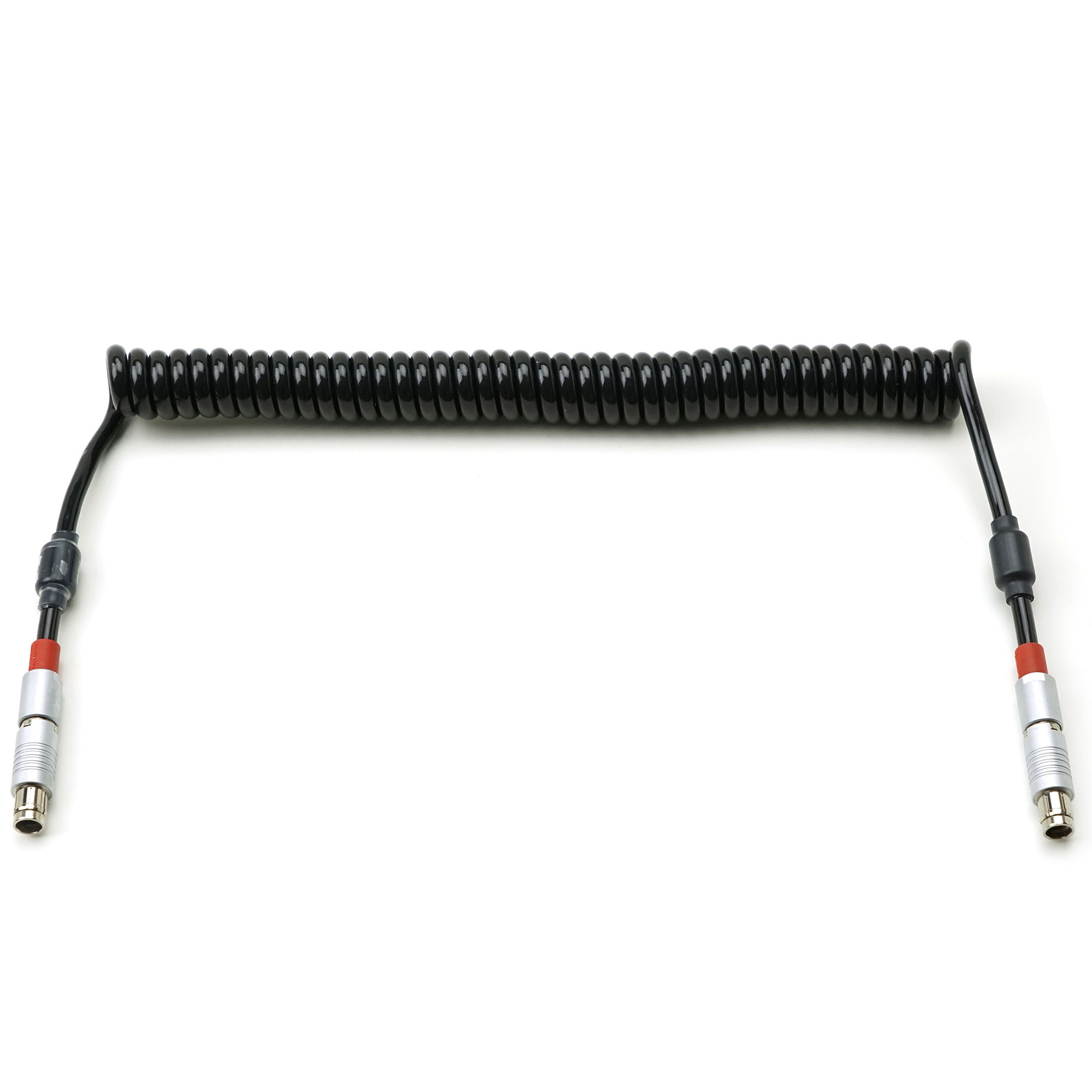

Connects ARRI hand units and motor controllers for wired operation.

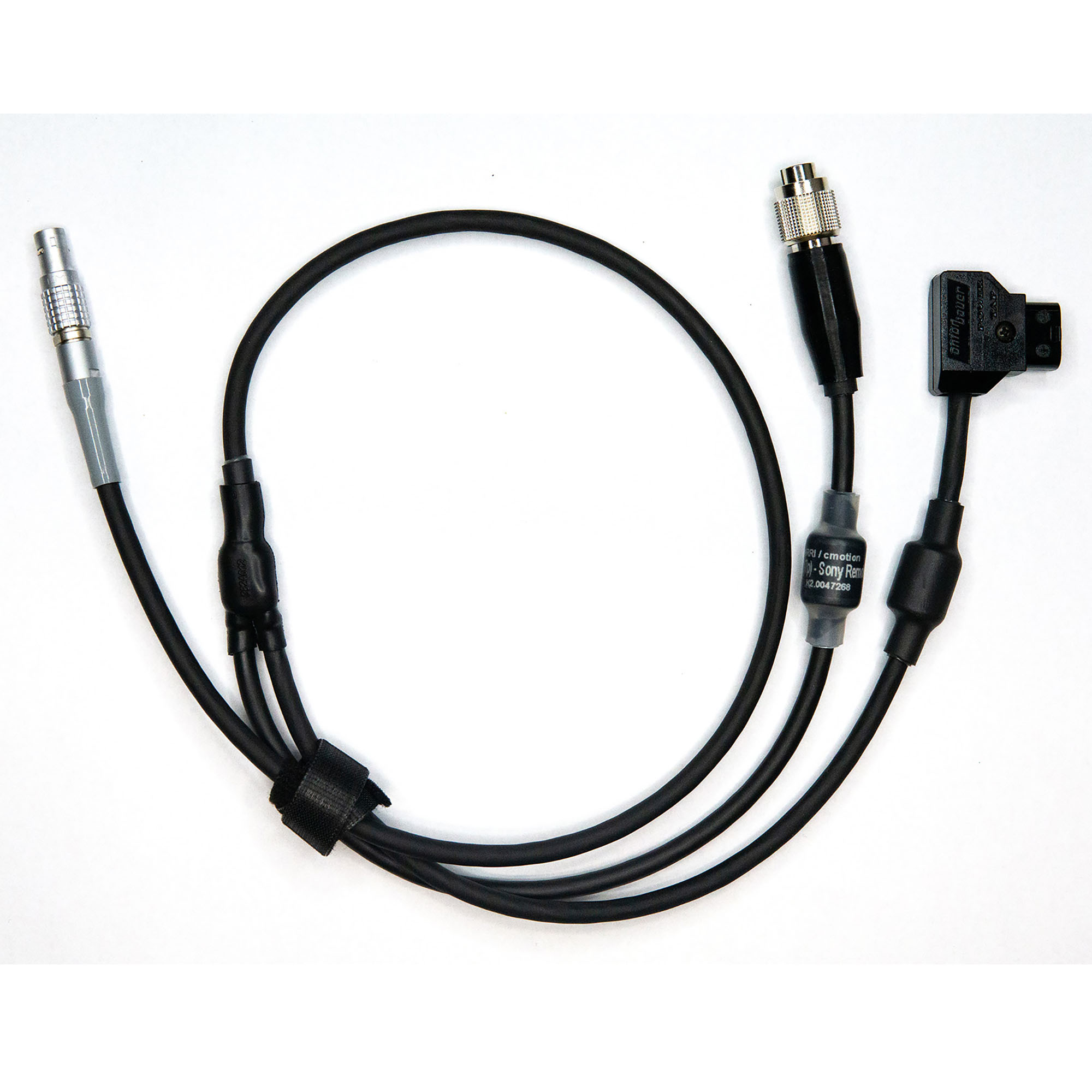

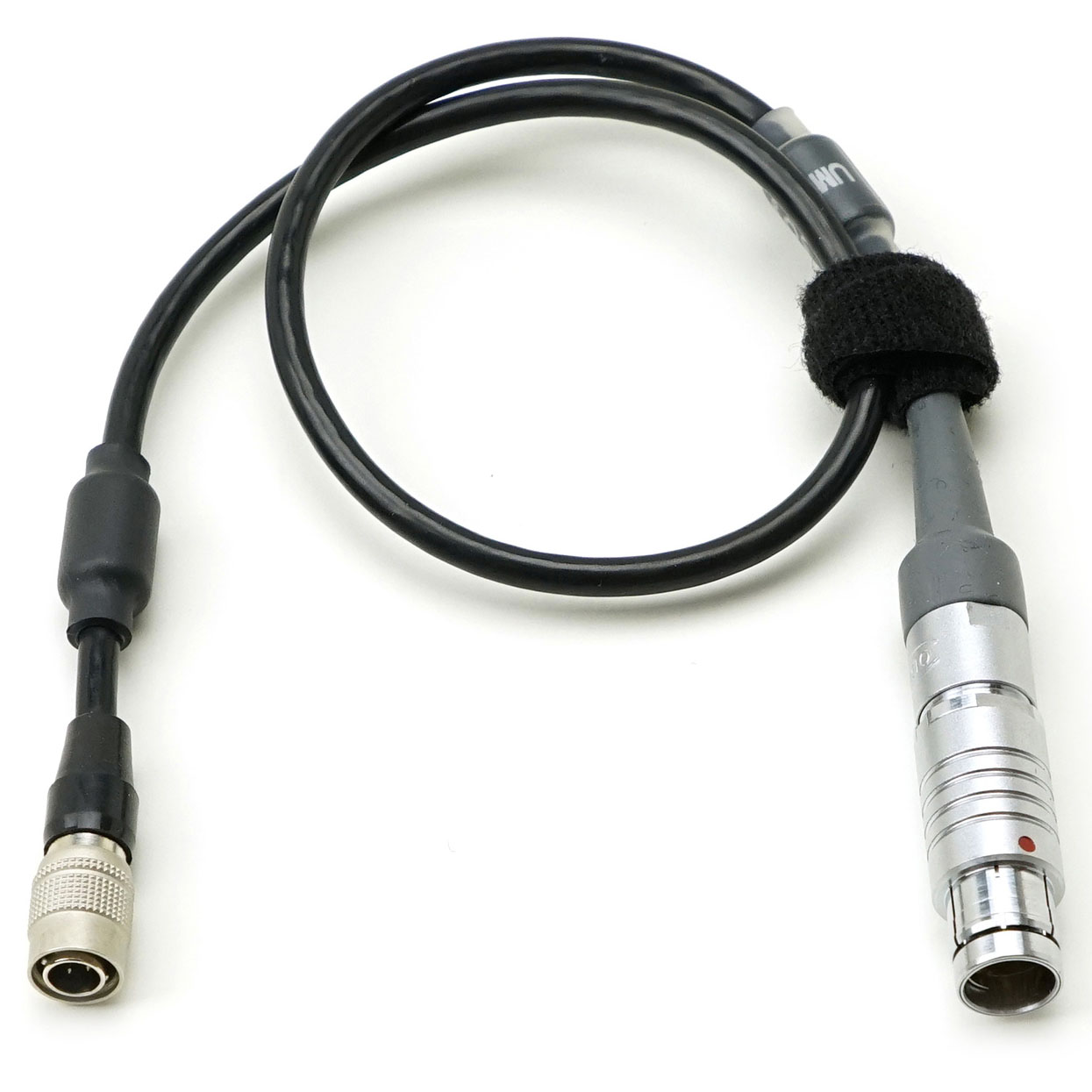

Connects Universal Motor Controller CAM connector to Sony F5/F55/Venice and Panasonic Varicam 35 cameras. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
For Panavision zoom.Compatible with CLM-5, cforce mini and cforce mini RF.
LBUS power cable to Fischer 3 pin (Le m4p, Fi m3p). Provides power but no RUN/STOP function. Length: 0.8m/2.6ft.
Connects Universal Motor Controller UMC-4 (from SUP 1.2) to cforce lens motors. This cable is also required to update firmware to cforce motors, Master Grips and LCUBE converters via WCU-4, UMC-4 and AMC-1. Length: 0.8m/2.6ft.Note: Requires motor power supply through the unused cforce motor LBUS connector (e.g. with K2.0006758 Cable LBUS to D-Tap).

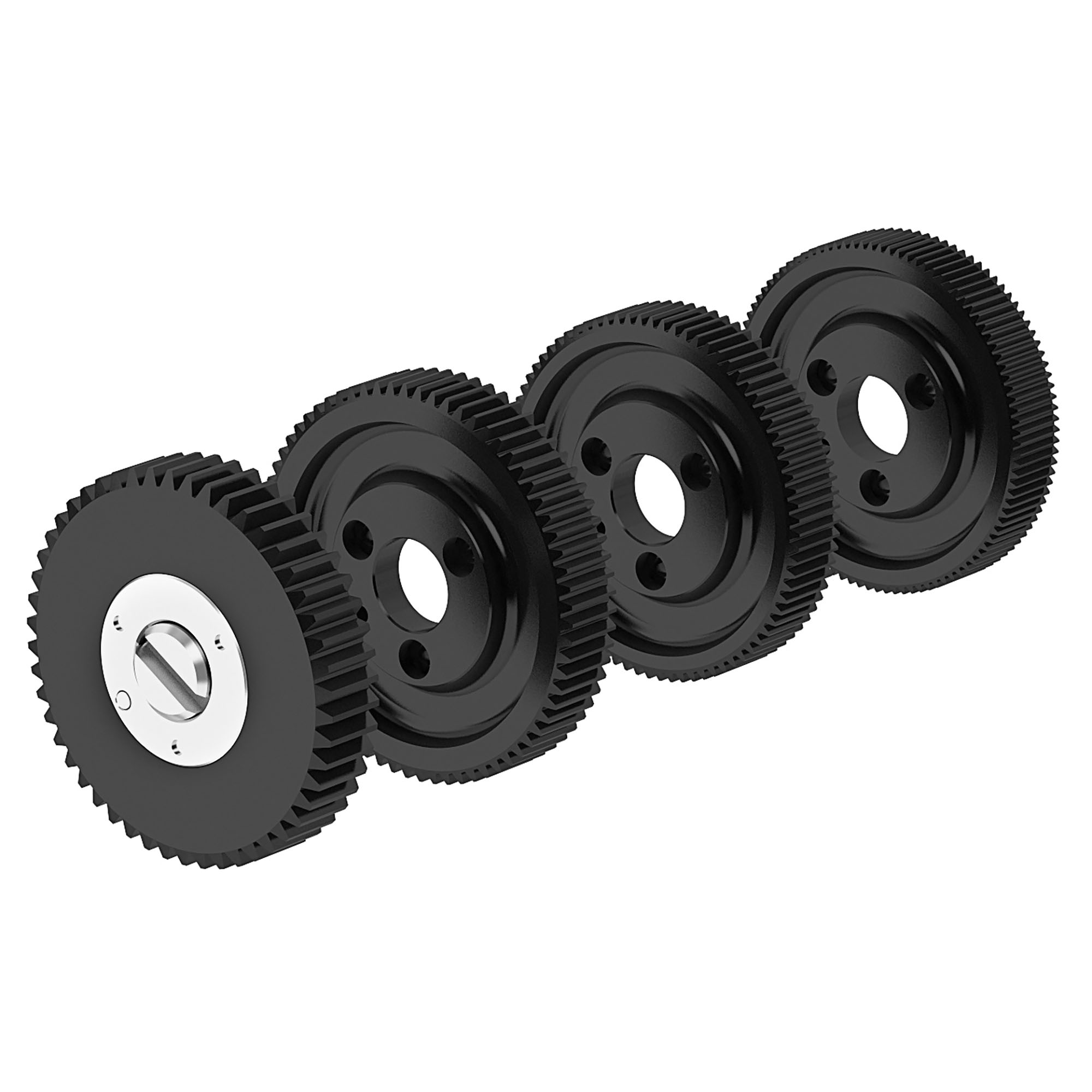

Set of gear rings including one metal gear flange.

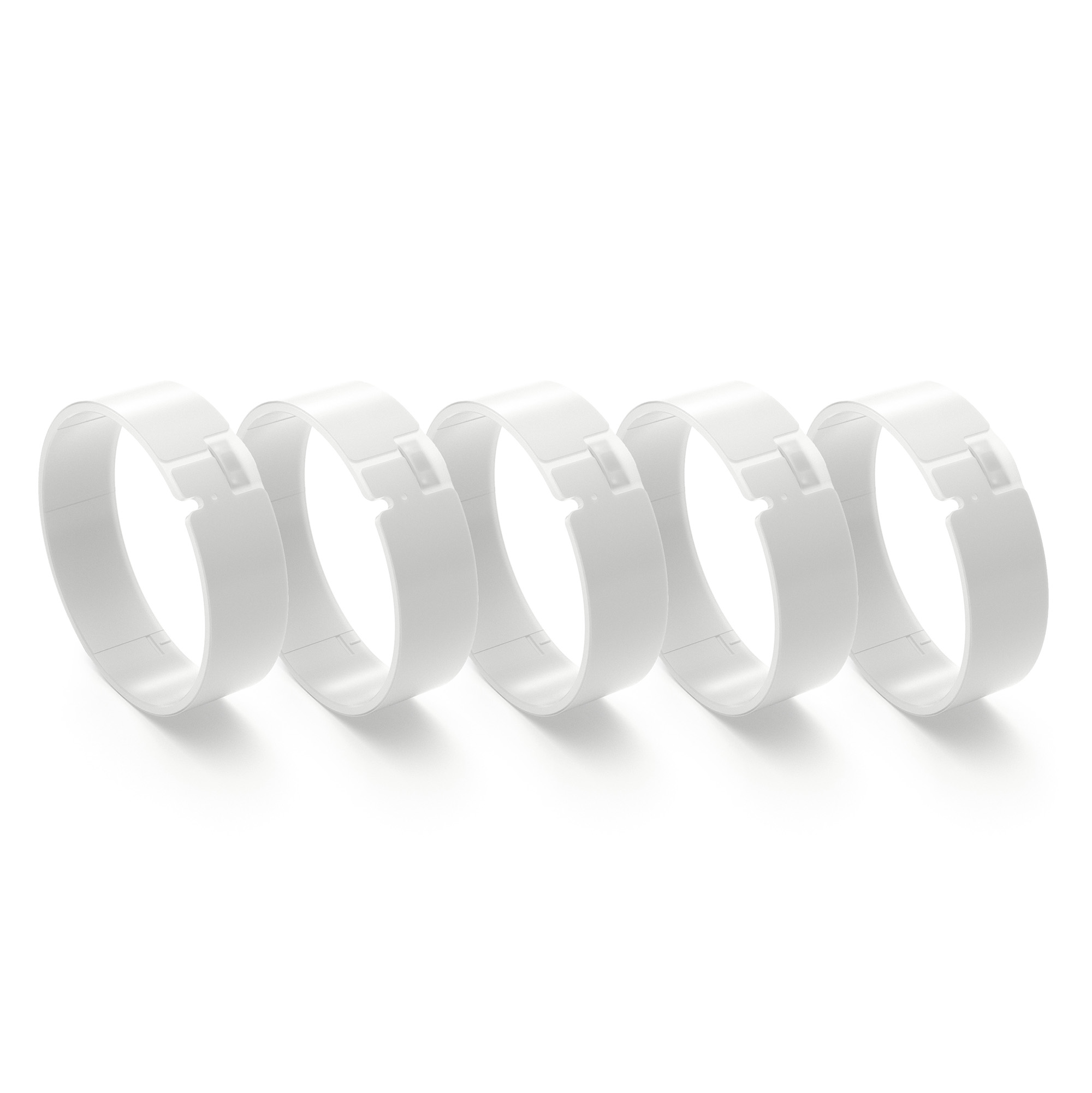

Set of 5 blank custom smart rings. Plug-and-play with the Hi-5 hand unit.Includes:K2.0037463 5x Custom Smart Ring

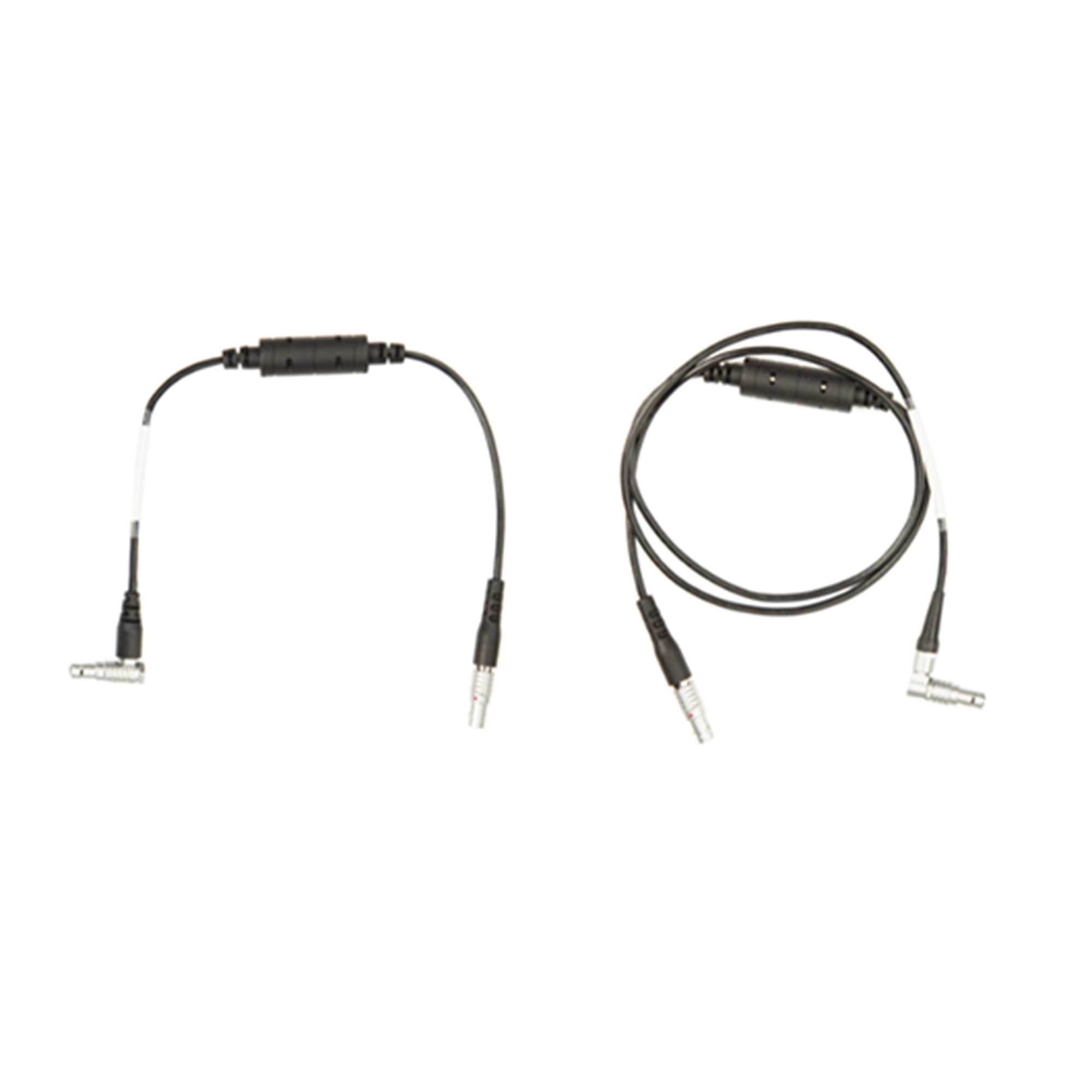

Cables for connecting the ARRI Hi-5/Hi-5 SX 4-pin SERIAL interface to compatible SmallHD monitors. Features a straight 4-pin connector and a 90° rear angled 5-pin connector for compact rigging.Compatible with SmallHD Cine 5 and Ultra 5, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056300 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled (0.35m/1.1ft)K2.0056301 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled(1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
