PCA: Mechanical Accessories - Support Systems
The Pro Set for Sony VENICE Ext. Mini is more comprehensive than previous Pro Sets for third-party cameras. It features additional handgrips, multiple NATO rails for streamlined, minimalistic camera setups, and the versatile fully adjustable CTH-2 Top Handle.The set is designed to provide all necessary components for both fully rigged configurations requiring a robust cage and highly stripped-down setups where minimal weight and size are essential.Includes:K2.0054187 1x Base Plate for Sony VENICE Ext. MiniK2.0054520 1x Top Plate for Sony VENICE Ext. MiniK2.0054189 1x Back Plate for Sony VENICE Ext. MiniK2.0054179 2x Side Bracket for Sony VENICE Ext. MiniK2.0054522 3x NATO Rail for Sony VENICE Ext. MiniK2.0054201 1x Cable Clamp for Sony VENICE Ext. MiniK2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.66255.0 1x 15mm Reduction InsertK2.0024745 1x Bridge Plate Adapter BPA-6K2.0054160 1x Cage Top Handle CTH-2K2.0047776 1x NATO Rail Clamp NRC-1K2.0054216 1x Wooden Handle Grip WHG-3 rightK2.0054215 1x Wooden Handle Grip WHG-3 leftK2.66254.0 1x Support Rods 140mm/5.5in, 15mm

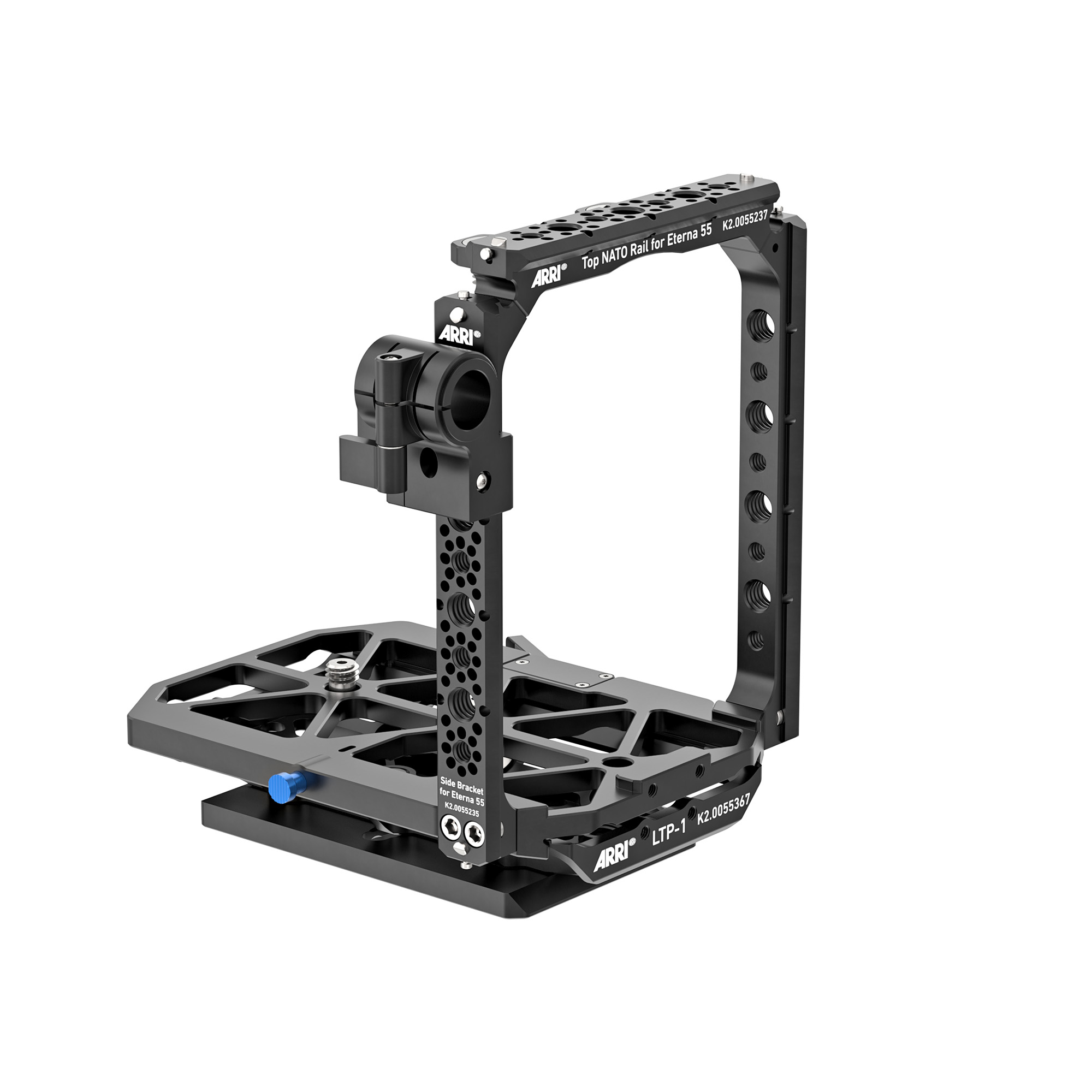

The Pro Set provides a complete, ready-to-shoot configuration for the Fujifilm GFX ETERNA 55, combining flexibility for handheld, tripod, and gimbal operation. It includes ARRI’s CCH-4 top handle, which can be extended with HEX extensions or paired with the Viewfinder Set for ETERNA 55 for a versatile and stable monitor setup using Fujifilm’s native 5-inch LCD monitor. The Rear Side Bracket Right features an integrated NATO rail, ideal for mounting wireless video transmitters, supported by the included NRC-2 clamp. The Compact Bridge Plate CBP-5 (19 mm) with integrated Visco shoulder pad and 240 mm support rods interfaces directly with the Base Plate for ETERNA, offering fore-aft balance adjustment.Please note: Due to the height of the Fujifilm ETERNA 55, rods mounted via the Compact Bridge Plates CBP-5/-6 and the BPA-6 are positioned approximately 10 mm below the standard heights defined for 15 mm LWS and 15/19 mm Studio rod standards. To achieve the standard 15 mm LWS height, the Base Plate for ETERNA 55 used together with the LWS-7 provides full compatibility.The 19 mm Studio standard height is not supported with this camera configuration.includes:K2.0055237 1x Top NATO Rail for ETERNA 55K2.0055230 1x Top Plate for ETERNA 55K2.0055235 2x Side Bracket for ETERNA 55K2.0055233 1x Base Plate for ETERNA 55K2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0017270 1x Center Camera Handle CCH-4K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0048324 1x NATO Rail Clamp NRC-2K2.66255.0 1x 15mm Reduction InsertK2.0047776 1x NATO Rail Clamp NRC-1K2.0023549 1x Compact Bridge Plate CBP-5 (19mm)
includes:K2.0013191 1x Plate for Canon C700K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0013229 1x Top Plate for Canon C700K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0013195 1x EVF Bracket for Canon EVF-V70K2.73002.0 1x Center Camera Handle CCH-2K2.0015896 1x Bottom Dovetail Plate 300mm/12inK2.0001022 1x Support Rods 440mm/17.3in, 19mmK2.0031436 1x Bridge Plate BP-8
The Extended Pro Set provides a complete, ready-to-shoot configuration for the Fujifilm GFX ETERNA 55, combining flexibility for handheld, tripod, and gimbal operation. It includes ARRI’s CCH-4 top handle, which can be extended with HEX extensions or paired with the Viewfinder Set for ETERNA 55 for a versatile and stable monitor setup using Fujifilm’s native 5-inch LCD monitor. The Rear Side Bracket Right features an integrated NATO rail, ideal for mounting wireless video transmitters, supported by the included NRC-2 clamp. The Compact Shoulder Pad CSP-2 with integrated Visco shoulder pad and the Lightweight Support LWS-7 support 15mm rods interfaces directly with the Base Plate for ETERNA, offering fore-aft balance adjustment.Includes:KK.0055440 1x Basic Set for ETERNA 55K2.0024161 1x Compact Shoulder Pad CSP-2K2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.0050467 1x Lightweight Support LWS-7K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0048324 1x NATO Rail Clamp NRC-2K2.0055230 1x Top Plate for ETERNA 55K2.0017270 1x Center Camera Handle CCH-4
includes:K2.0051221 1x Top Plate for Canon EOS C400K2.0051262 1x Plate for Canon EOS C400K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.0017270 1x Center Camera Handle CCH-4K2.0051223 1x Side Bracket Right for Canon EOS C400K2.0051222 1x Side Bracket Left for Canon EOS C400K2.0051224 1x Rear Side Bracket Right for Canon EOS C400K2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0006186 1x Rod Mounting Bracket RMB-3K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleNote:Recommended products for Canon Monitor:1x K2.0015520 EVF Bracket for Canon LM-V1/2 1x K2.0013302 Viewfinder Cross Pipe Recommended products for Canon Camera Grip:1x K2.0024574 Rosette Adapters, RA-6, pair

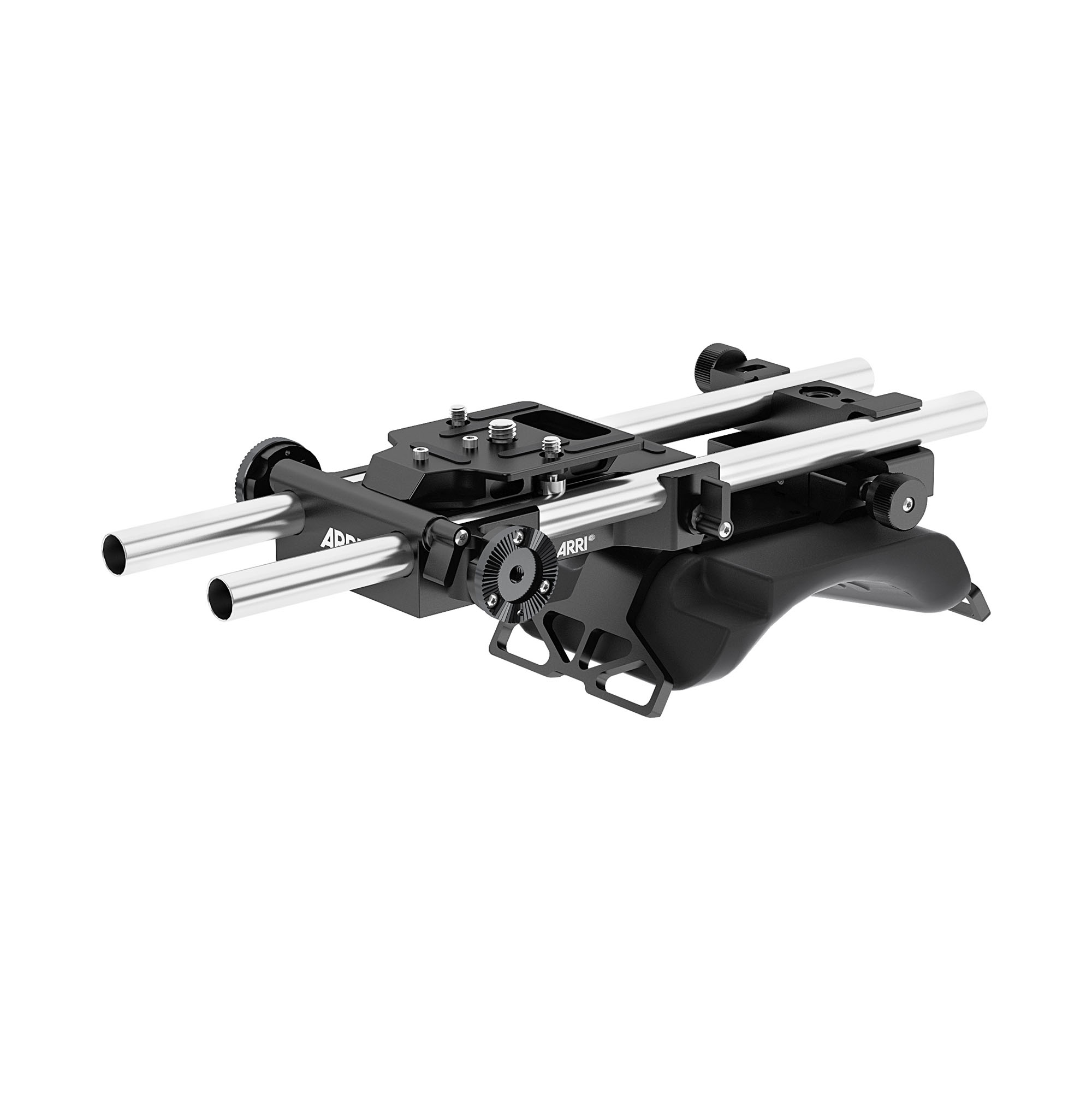

Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold extension cable.includes:K2.0006797 1x Broadcast Plate C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0015518 1x Adapter Plate for Canon C200K2.0015513 1x Top Plate for Canon C200K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.73002.0 1x Center Camera Handle CCH-2K2.0015520 1x EVF Bracket for Canon LM-V1/2K2.0000399 1x QRP-1-Baseplate

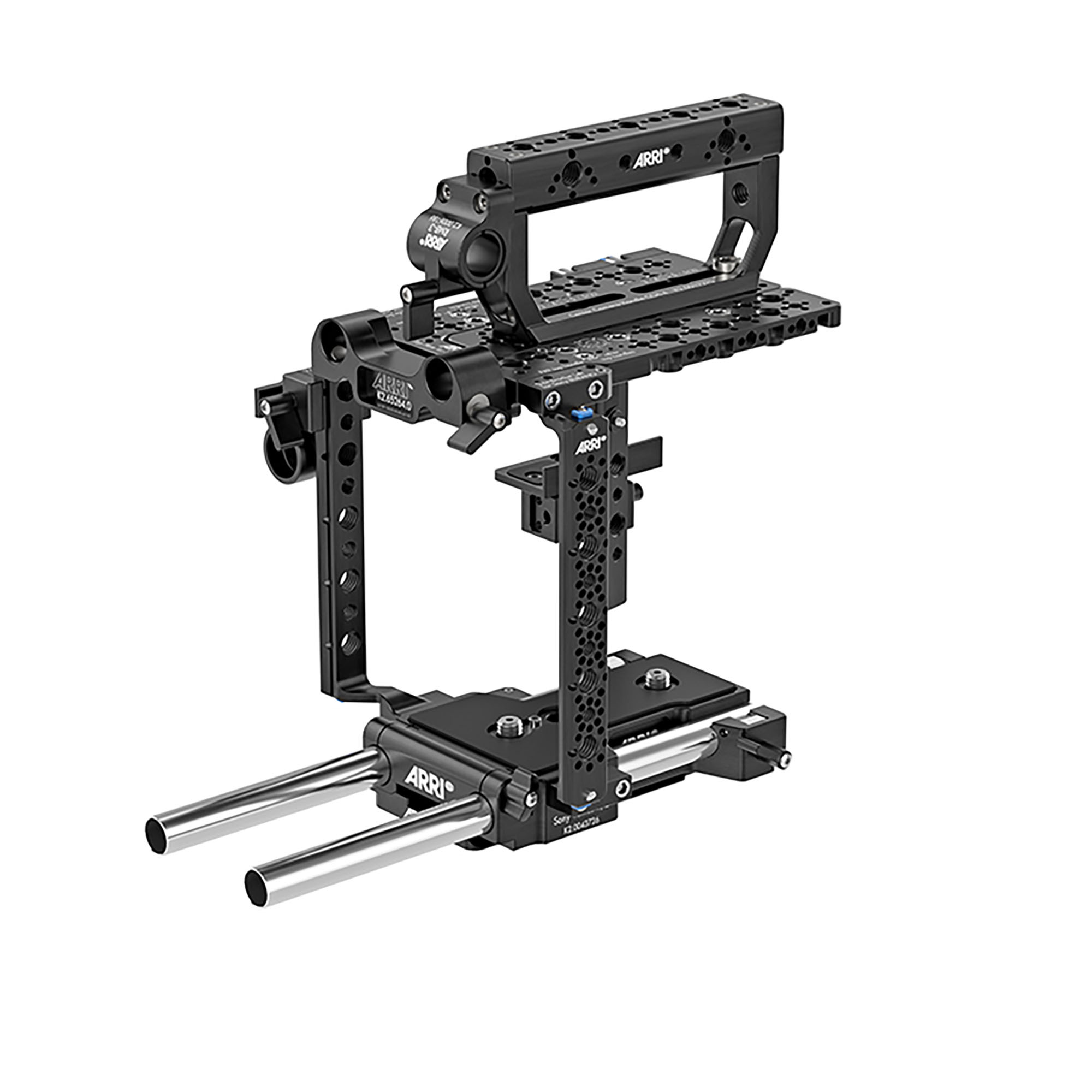

includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0049819 1x Side Bracket Right for Sony BURANOK2.0049816 1x Side Bracket Left for Sony BURANOK2.0049904 1x Rear Side Bracket Right for Sony BURANOK2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0017270 1x Center Camera Handle CCH-4K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0006186 1x Rod Mounting Bracket RMB-3

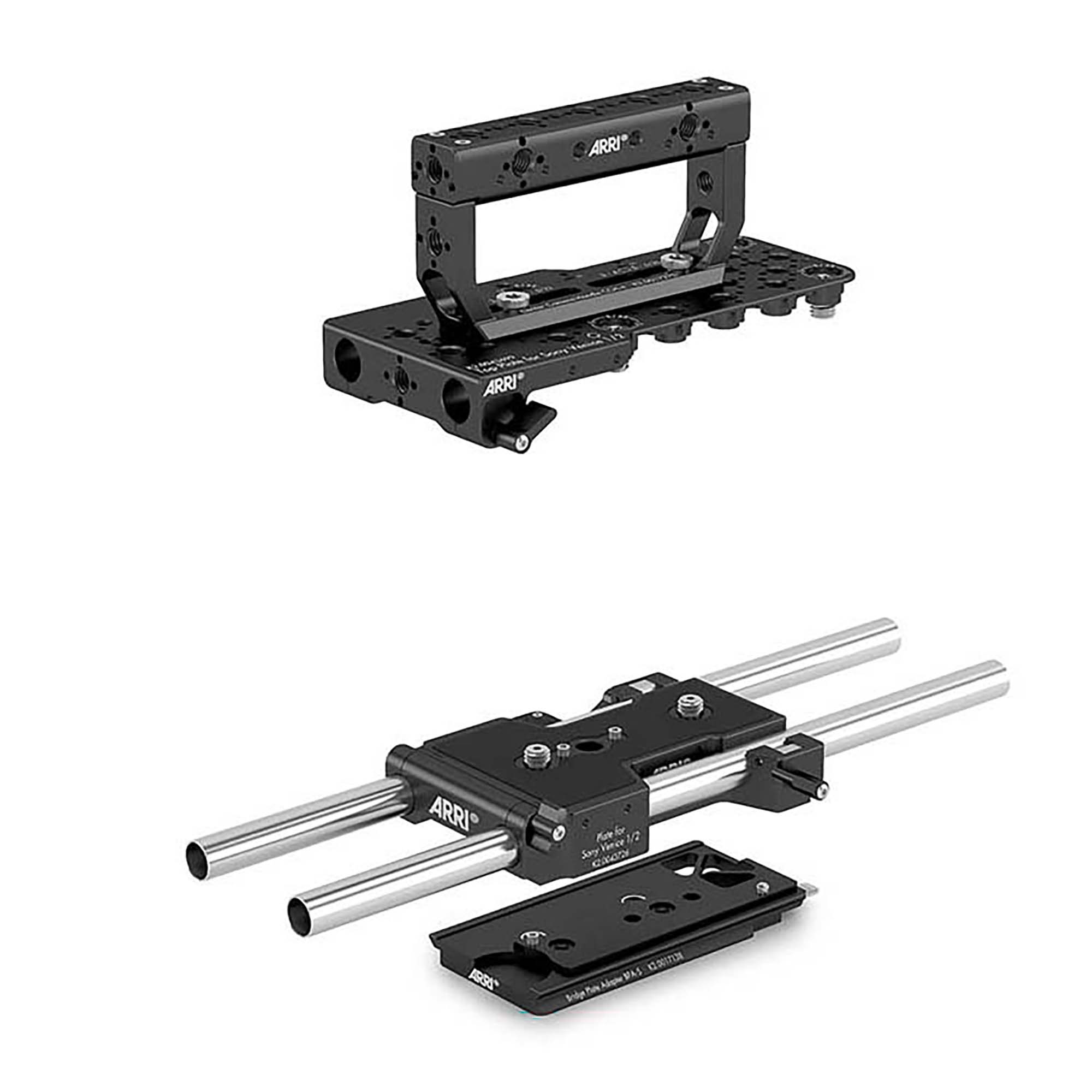

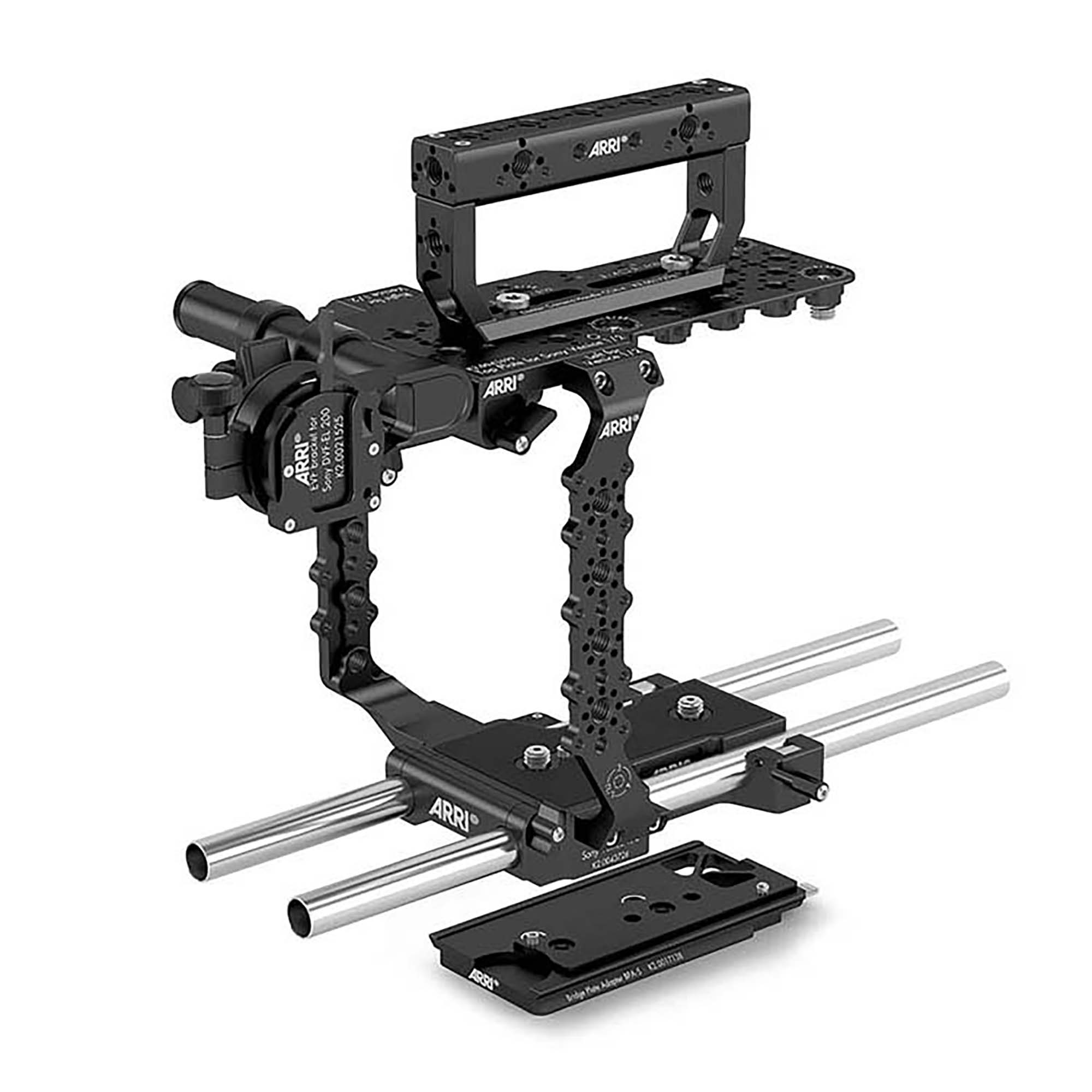

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4K2.0043731 1x Side Bracket Right for Sony Venice 1/2K2.0043725 1x Side Bracket Left for Sony Venice 1/2K2.0021525 1x EVF Bracket for Sony DVF-EL200 (Venice)K2.0006140 1x Mini Viewfinder Bracket MVB-1
includes:K2.0013191 1x Plate for Canon C700K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0013229 1x Top Plate for Canon C700K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0013195 1x EVF Bracket for Canon EVF-V70K2.73002.0 1x Center Camera Handle CCH-2K2.0000399 1x QRP-1-Baseplate
The Extended Basic Set provides a lightweight and modular foundation for professional setups. It includes the compact CSP-2 shoulder pad and two NRC-6 ARRI rosette attachment brackets for mounting handgrips on NATO rails during handheld operation.The set supports the use of the native Fujifilm ETERNA Top Handle and features the NRC-1 clamp for underslung lens motor mounting, as well as an additional Rear Side Bracket Right with an NRC-2 for attaching a video transmitter. Fully compatible with ARRI HEX extensions and RMB-3 interfaces, it ensures maximum flexibility and seamless system integration.The Extended Basic Set is an ideal choice for operators who primarily work handheld and want to transition quickly to a gimbal setup using ARRI’s SAM plates.includes:KK.0055440 1x Basic Set for ETERNA 55K2.0024161 1x Compact Shoulder Pad CSP-2K2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.0050467 1x Lightweight Support LWS-7K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0048324 1x NATO Rail Clamp NRC-2
Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold extension cable.includes:K2.0006864 1x Cine Plate for C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006807 1x Shoulder Pad CSP-1K2.0015518 1x Adapter Plate for Canon C200K2.0015513 1x Top Plate for Canon C200K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.73002.0 1x Center Camera Handle CCH-2K2.0015520 1x EVF Bracket for Canon LM-V1/2
includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0049819 1x Side Bracket Right for Sony BURANOK2.0049816 1x Side Bracket Left for Sony BURANOK2.0049904 1x Rear Side Bracket Right for Sony BURANOK2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0017270 1x Center Camera Handle CCH-4K2.0017138 1x Bridge Plate Adapter BPA-5K2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0006186 1x Rod Mounting Bracket RMB-3
Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0017138 1x Bridge Plate Adapter BPA-5K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4K2.0043731 1x Side Bracket Right for Sony Venice 1/2K2.0043725 1x Side Bracket Left for Sony Venice 1/2K2.0021525 1x EVF Bracket for Sony DVF-EL200 (Venice)K2.0006140 1x Mini Viewfinder Bracket MVB-1

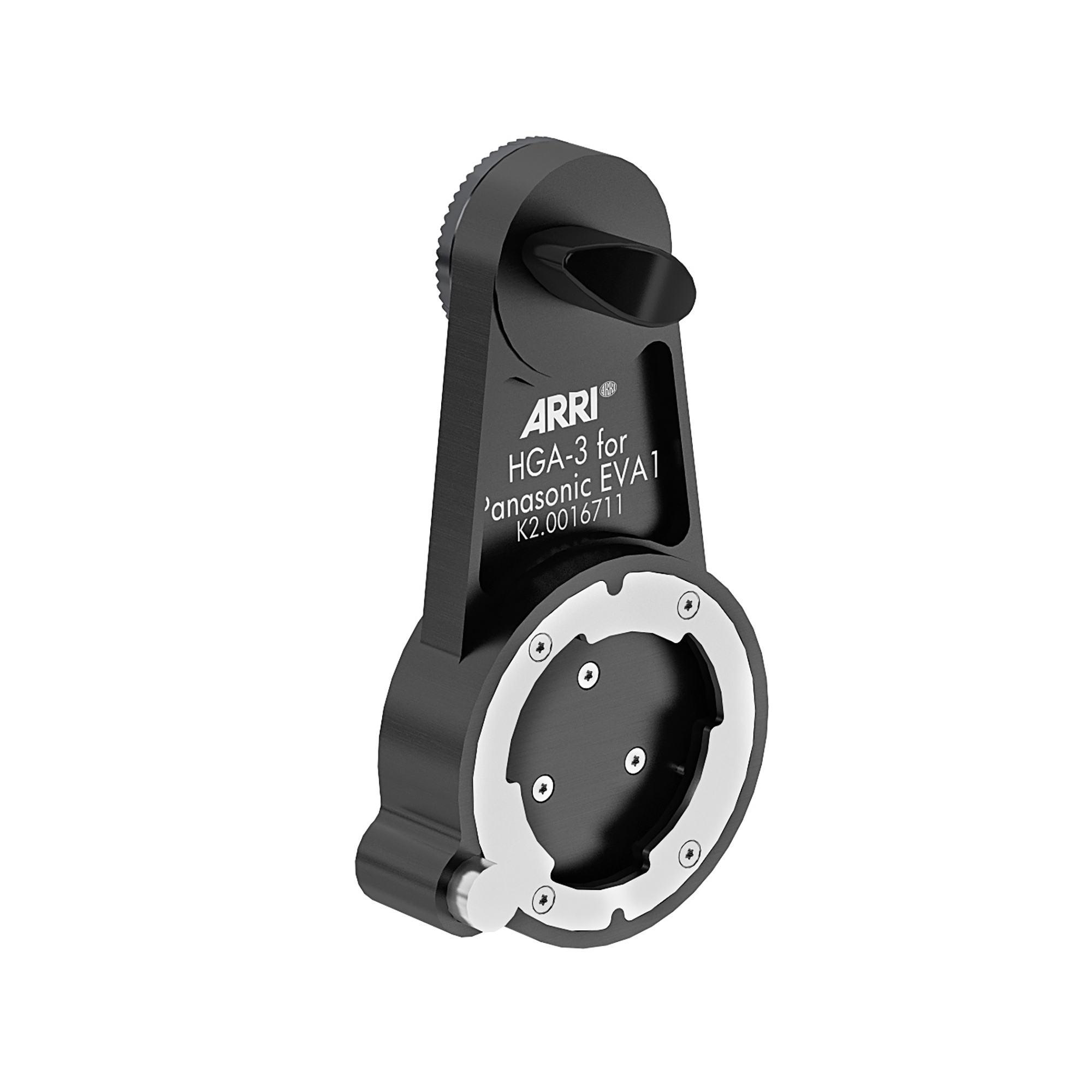

Using the HGA-3 requires a longer, separately sold 3rd party LANC cable.includes:K2.0015883 1x Plate for Panasonic EVA1K2.0015880 1x Top Plate for Panasonic EVA1K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0016259 1x Monitor Bracket for Panasonic AU-EVA1K2.0016711 1x Handgrip Adapter HGA-3K2.0006471 1x Battery Adapter Plate BAP-1K2.65264.0 1x 15mm LWS Rod ConsoleK2.66254.0 2x Support Rods 140mm/5.5in, 15mm

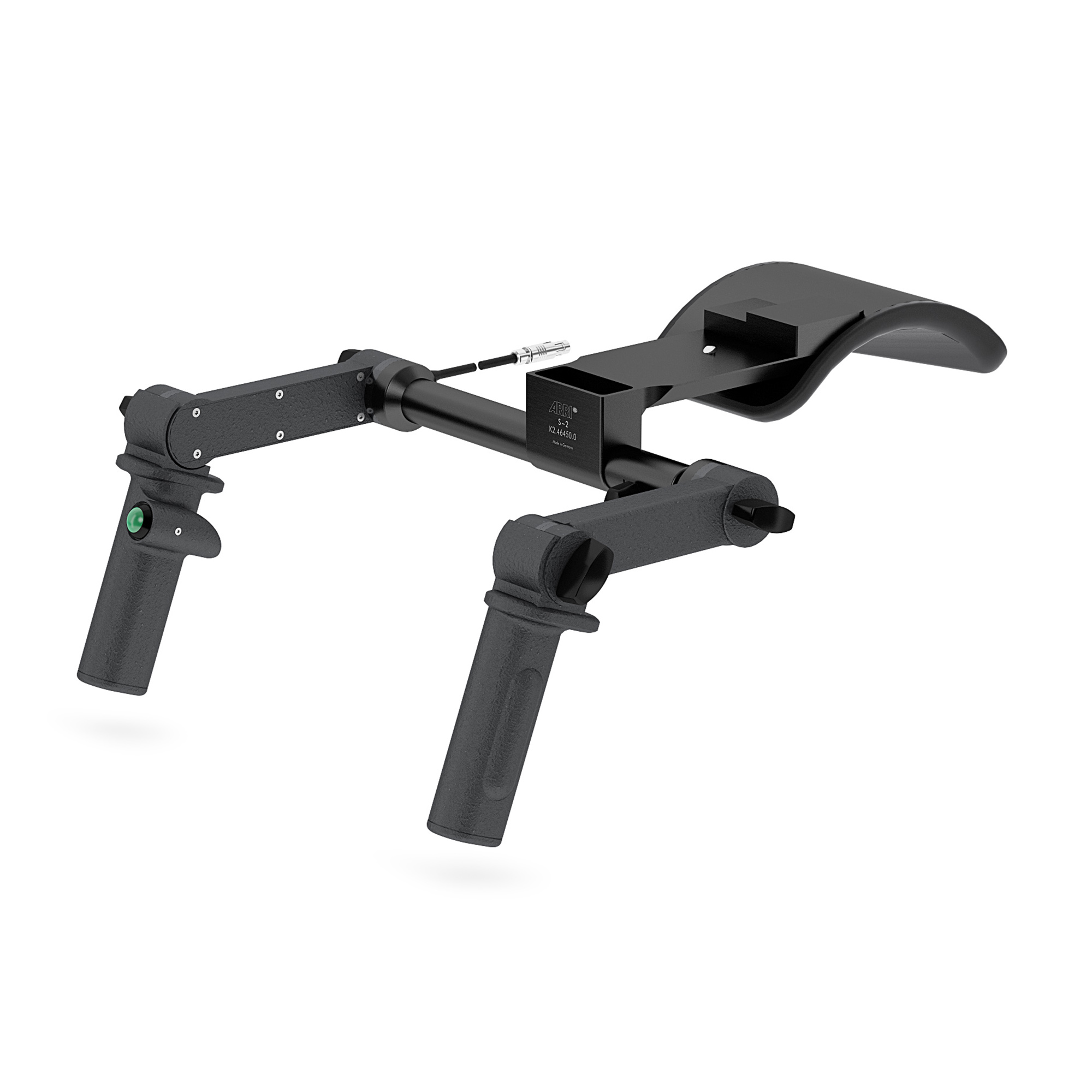

Includes shoulder cushion, left and right grips with run/stop switch via ARRI standard RS 3-pin connector.
includes:K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.66254.0 1x Support Rods 140mm/5.5in, 15mmK2.66227.0 1x Cage Top Handle, CTH-1K2.66255.0 1x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.0024564 1x Base Plate for Venice Ext. UnitK2.0039457 1x Top Plate for Venice Ext. UnitK2.0024566 1x Side Bracket Right for Venice Ext. UnitK2.0024761 1x Side Bracket Left for Venice Ext. UnitK2.0024569 1x Cable Clamp for Venice Ext. UnitK2.0024574 1x Rosette Adapters, RA-6, pairK2.0024573 1x Back Plate for Venice Ext. UnitK2.0024965 1x Wooden Handgrip WHG-1K2.0006186 1x Rod Mounting Bracket RMB-3K2.0047941 1x Back Plate 2 for Venice Ext. UnitK2.0017138 1x Bridge Plate Adapter BPA-5

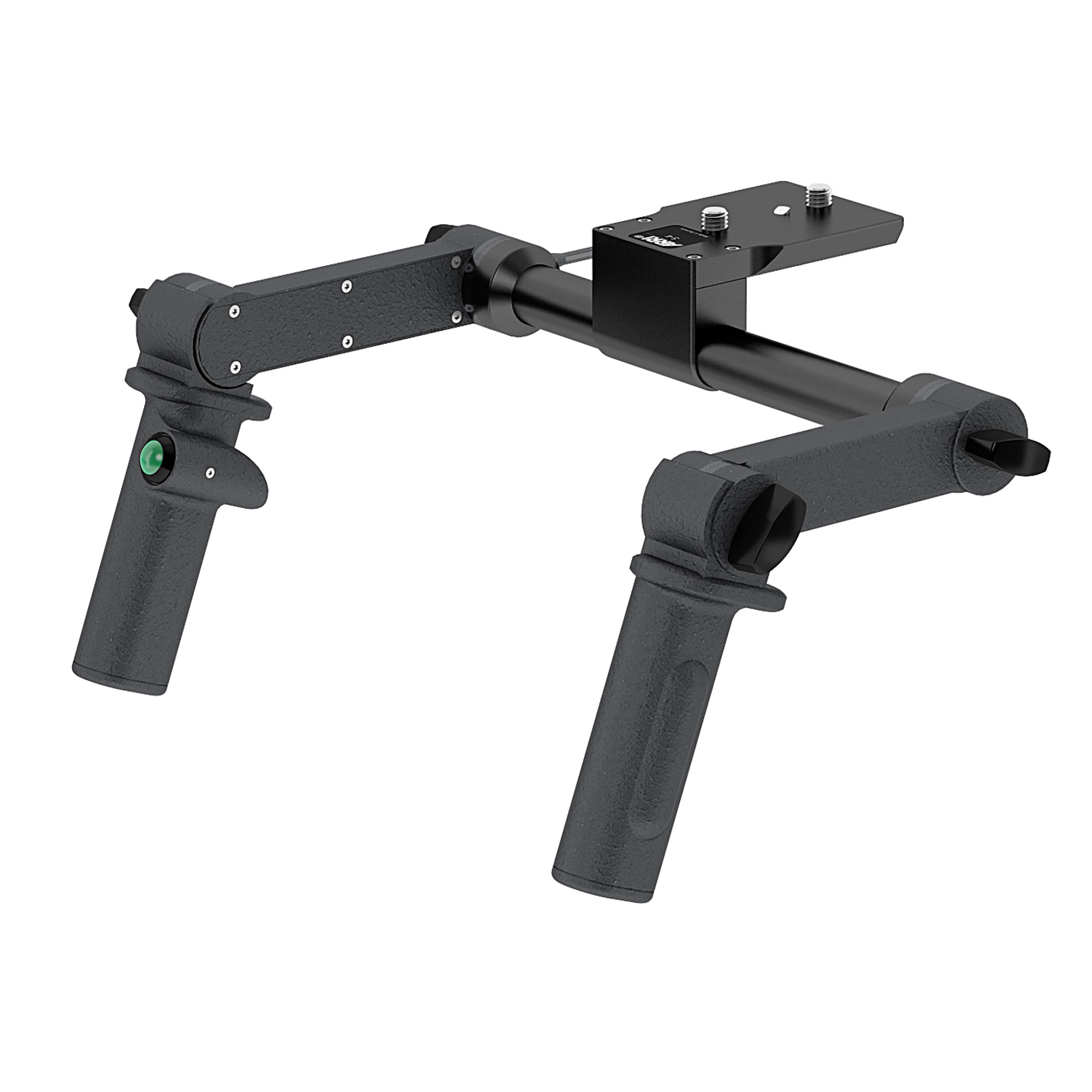

The handgrip set S-4 can be attached directly to the bottom of most classic ARRI cameras, the ALEXA via the bridge plate adapter BPA-1/2 and also the AMIRA via its baseplate BPA-3. The S-4 can also be swiftly mounted to the bottom of all ARRI bridge plates such as BP-8/9 and BP-12/13, for quick transition from tripod to shoulder.

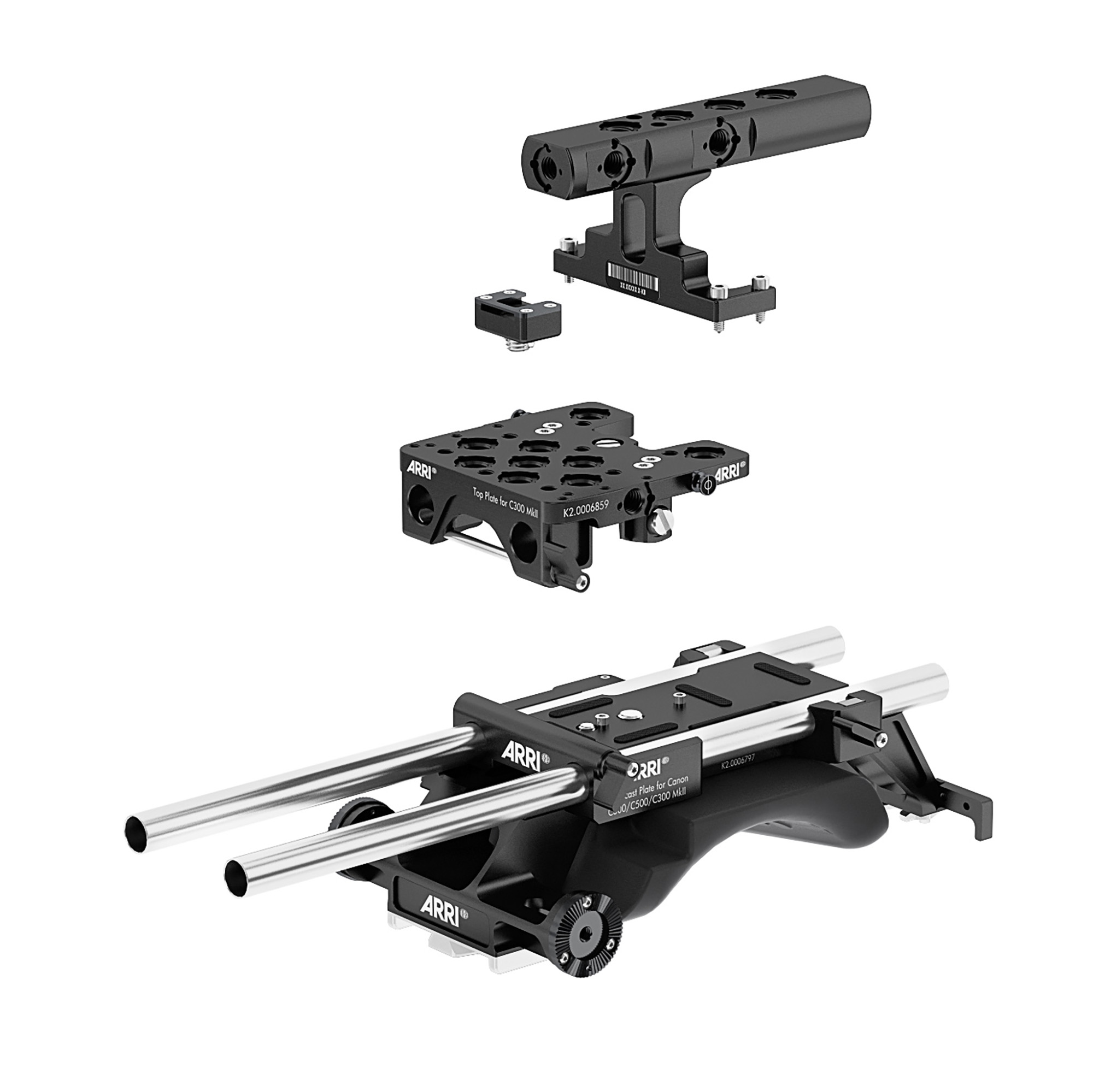

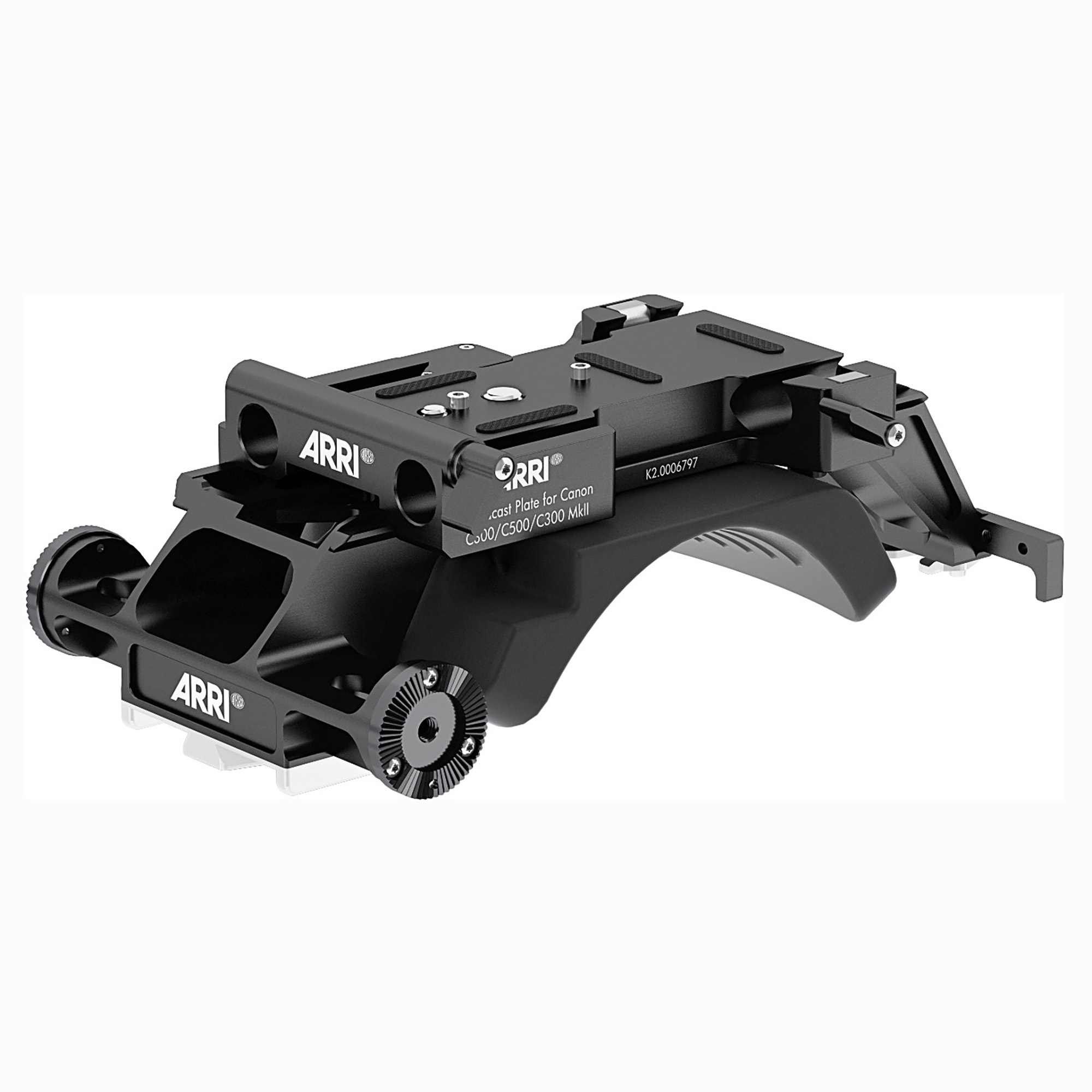

includes:K2.0006797 1x Broadcast Plate C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006859 1x Top Plate C300 MkIIK2.73002.0 1x Center Camera Handle CCH-2K2.54077.0 1x 3/8in Accessory Adapter, 18, 65mm square

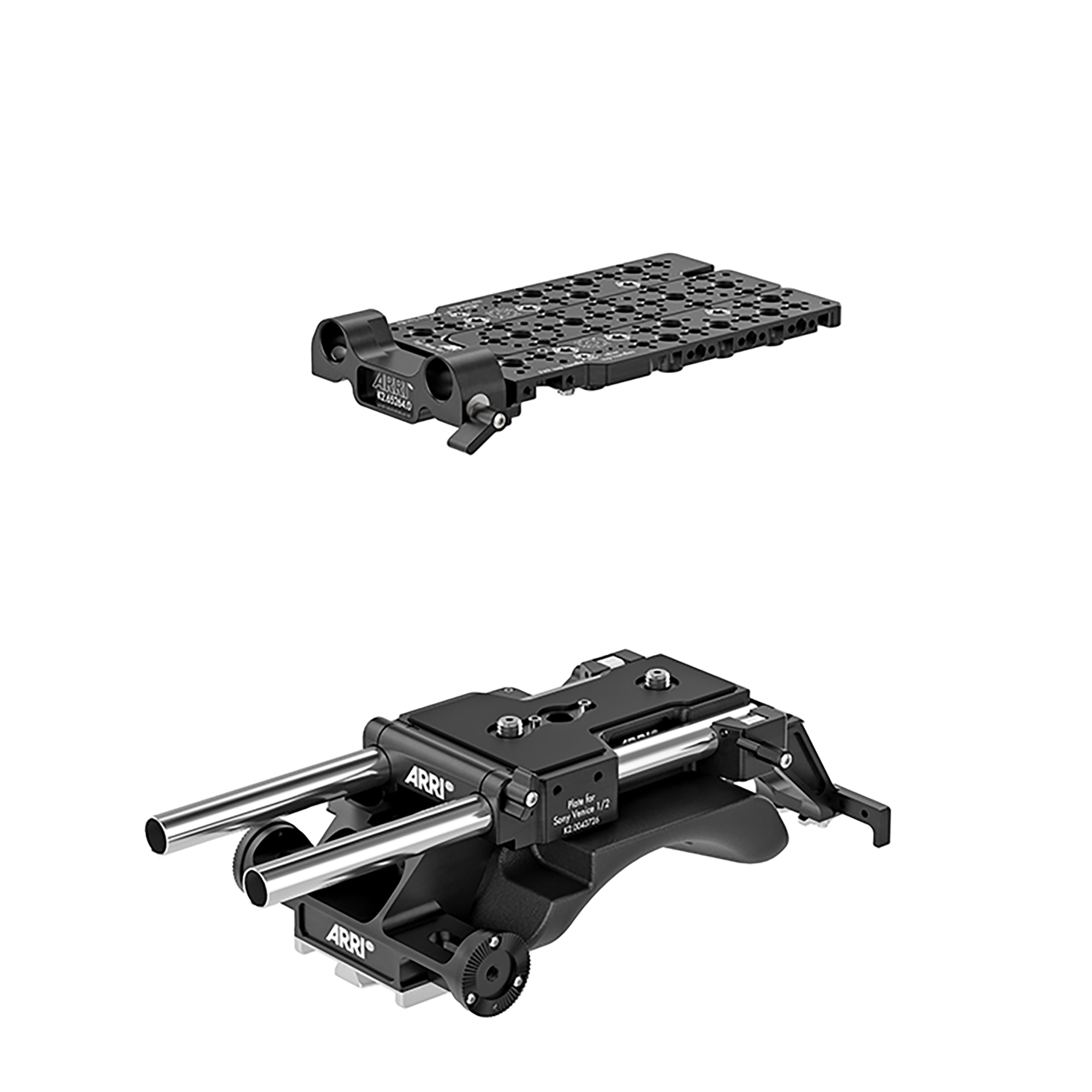

includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mm

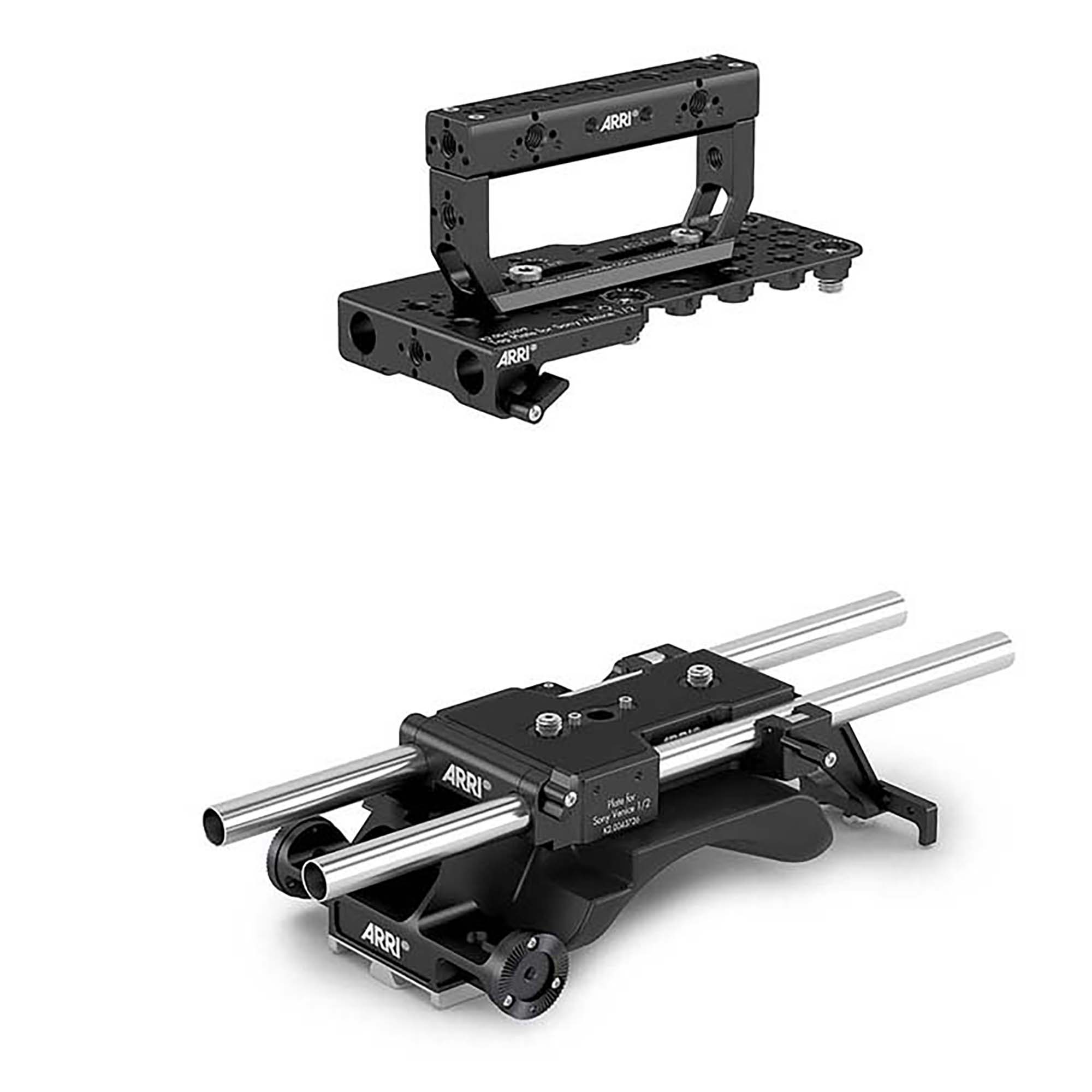

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.0017270 1x Center Camera Handle CCH-4K2.66252.0 1x Support Rods 340mm/13.4in, 15mm
The Basic Set provides a lightweight, modular foundation for professional setups using existing ARRI accessories such as the CBP-5/6, CSP-2, BPA-6, or SAM-5–9. Designed for operators working handheld or with gimbals, it supports use of the native Fujifilm ETERNA Top Handle and includes the NRC-1 clamp for underslung lens motor mounting. Fully compatible with ARRI HEX extensions and RMB-3 interfaces, it ensures maximum flexibility and seamless system integration.Includes:K2.0055237 1x Top NATO Rail for ETERNA 55K2.66255.0 1x 15mm Reduction InsertK2.0047776 1x NATO Rail Clamp NRC-1K2.0055233 1x Base Plate for ETERNA 55K2.0055235 2x Side Bracket for ETERNA 55K2.0055367 1x Lightweight Tripod Plate LTP-1

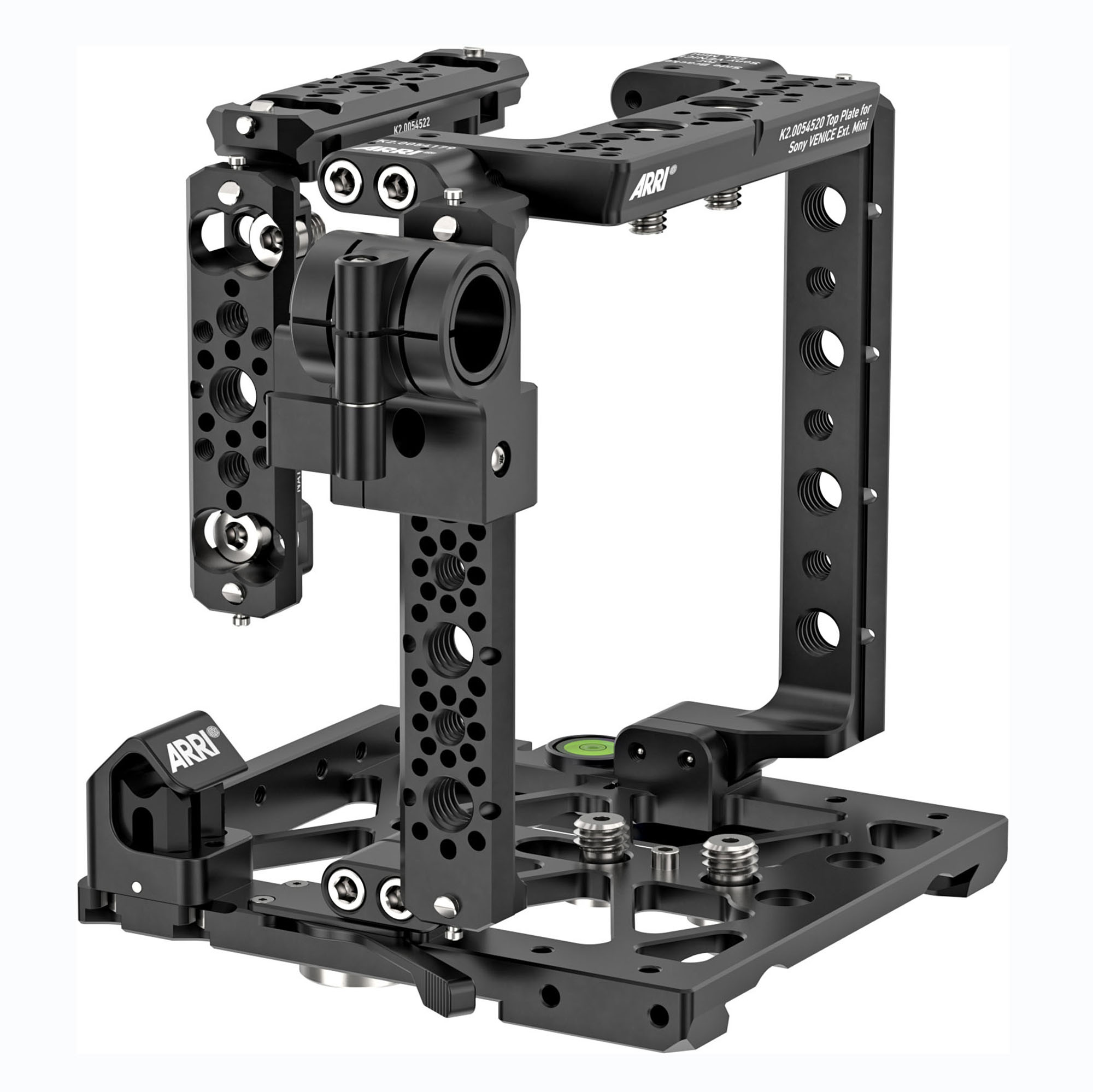

includes:K2.0054187 1x Base Plate for Sony VENICE Ext. MiniK2.0054520 1x Top Plate for Sony VENICE Ext. MiniK2.0054179 2x Side Bracket for Sony VENICE Ext. MiniK2.0054522 2x NATO Rail for Sony VENICE Ext. MiniK2.0054201 1x Cable Clamp for Sony VENICE Ext. MiniK2.0047776 1x NATO Rail Clamp NRC-1K2.66255.0 1x 15mm Reduction Insert

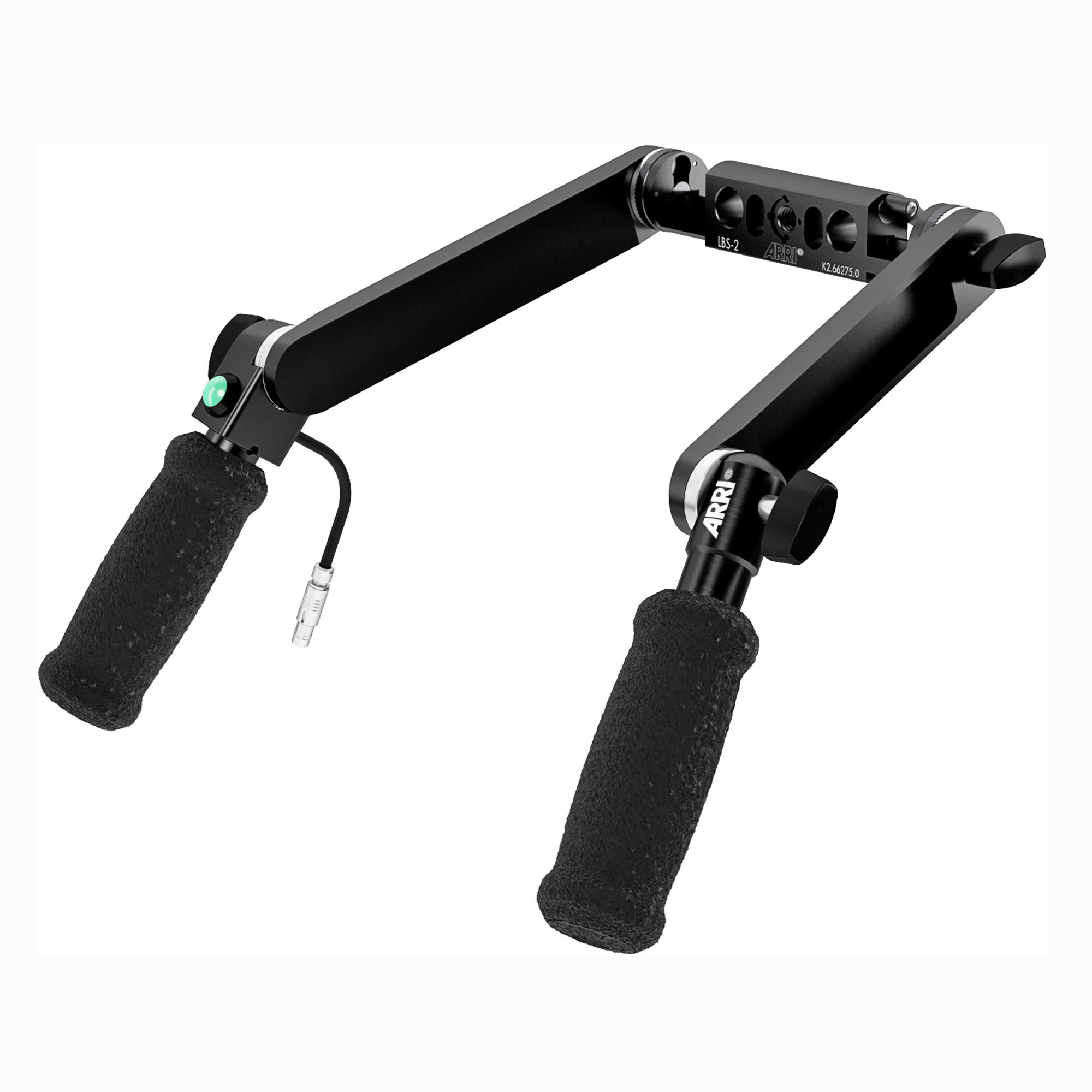

Lightweight and durable handgrip set based on ARRI rosettes. Can be attached to 15mm LWS rods.Triggers run functionality on cameras fitted with 3-pin RS run signals, such as ALEXA, AMIRA and many third party cameras.includes:K2.47861.0 1x Handgrip without on/off switchK2.47862.0 1x Handgrip with on/off switch RS-3 pinK2.47863.0 2x Handgrip Extension, longK2.66275.0 1x Lightweight Bridge Support LBS-2For ALEXA Mini Set up additionally required: K2.0006170 1x EXT-RS Adapter
Can be attached to 15mm LWS rods as well as 15mm and 19mm studio rod systems. Triggers run functionality on cameras fitted with 3-pin RS run signals, such as ALEXA, AMIRA and many third party cameras. Lightweight and durable handgrip set based on ARRI rosettes.includes:K2.47861.0 1x Handgrip without on/off switchK2.47862.0 1x Handgrip with on/off switch RS-3 pinK2.47863.0 2x Handgrip Extension, longK2.0013320 1x Universal Bridge Support UBS-3
Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold third party extension cable.includes:K2.0006864 1x Cine Plate for C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006807 1x Shoulder Pad CSP-1K2.0015518 1x Adapter Plate for Canon C200

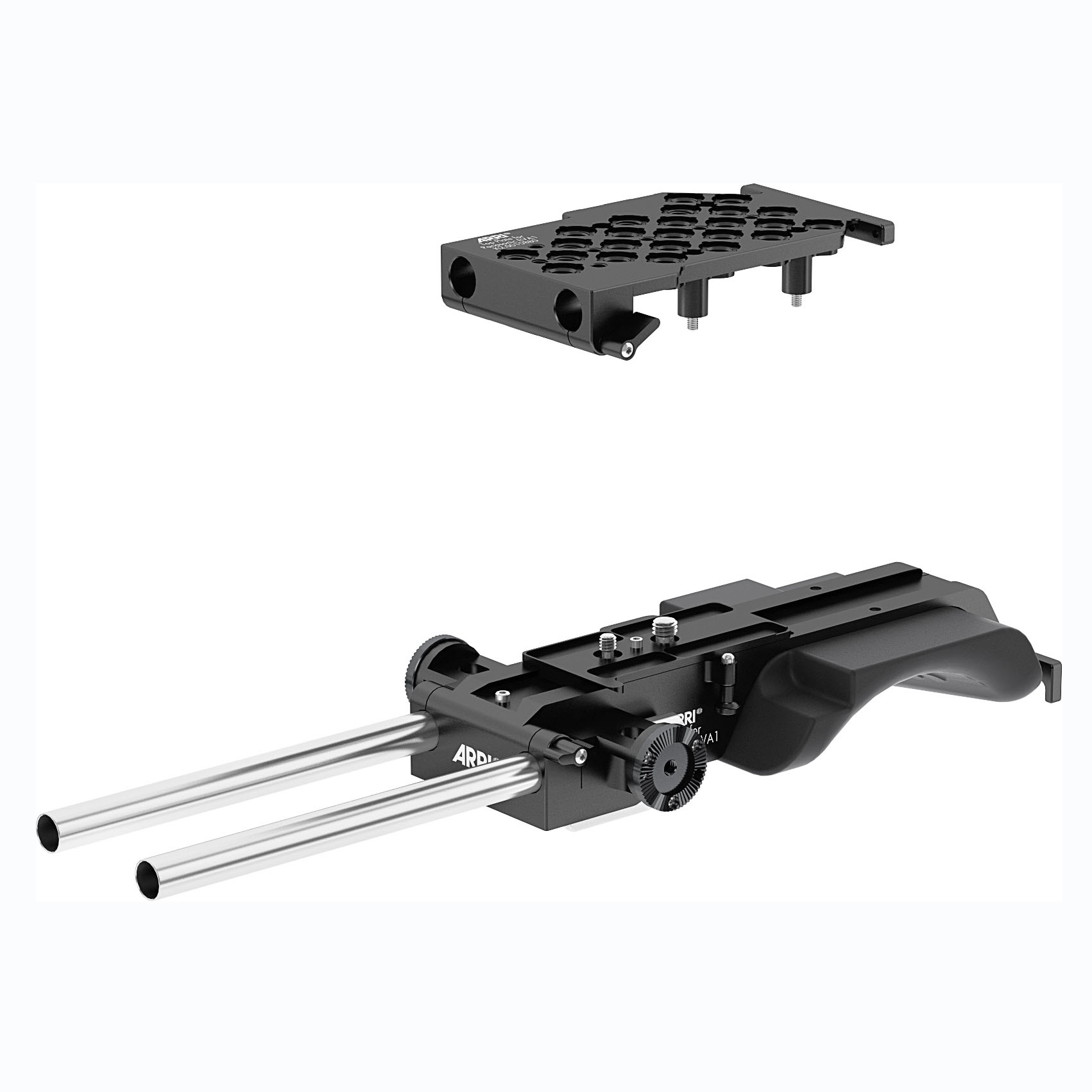

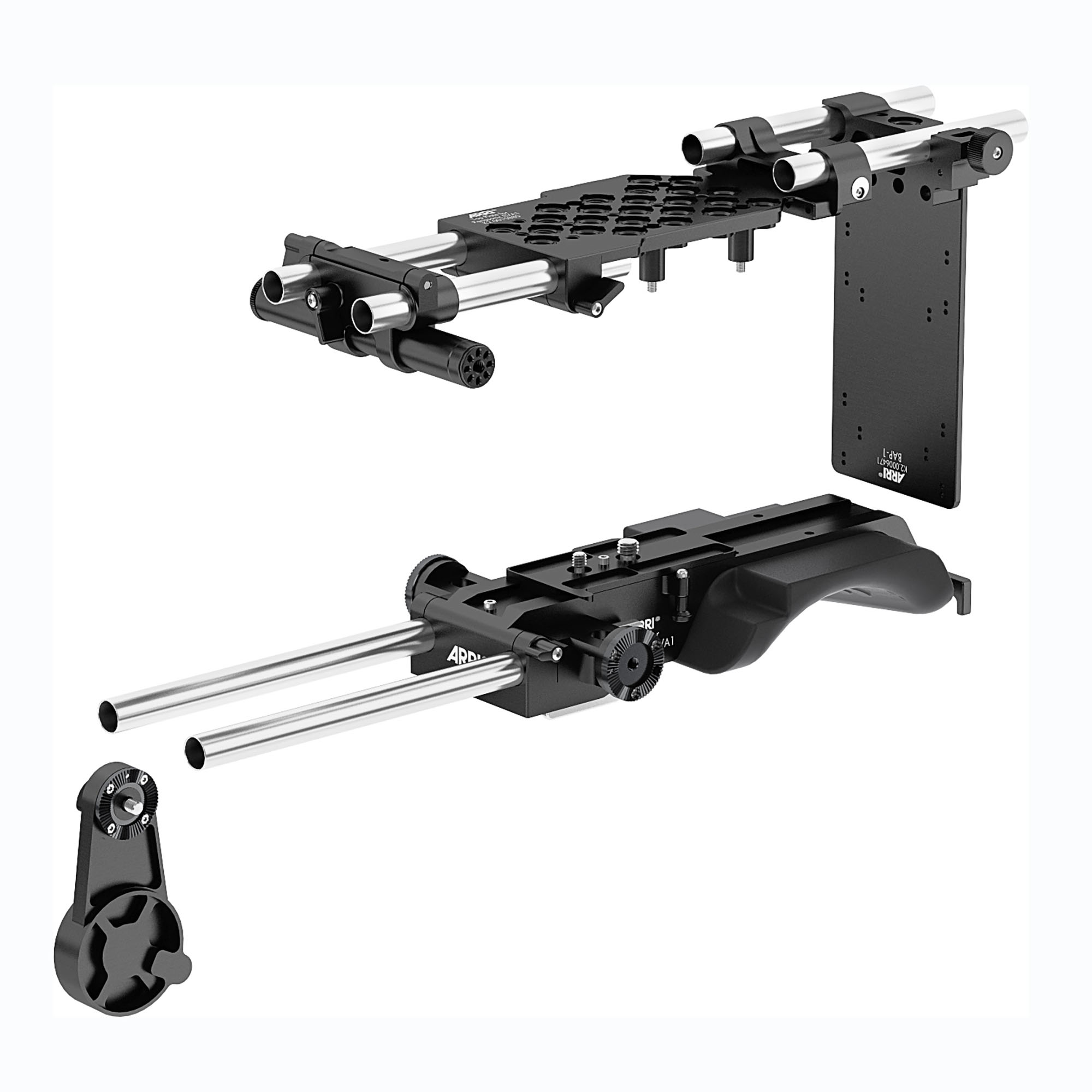

includes:K2.0015883 1x Plate for Panasonic EVA1K2.0015880 1x Top Plate for Panasonic EVA1K2.66253.0 1x Support Rods 240mm/9.4in, 15mm

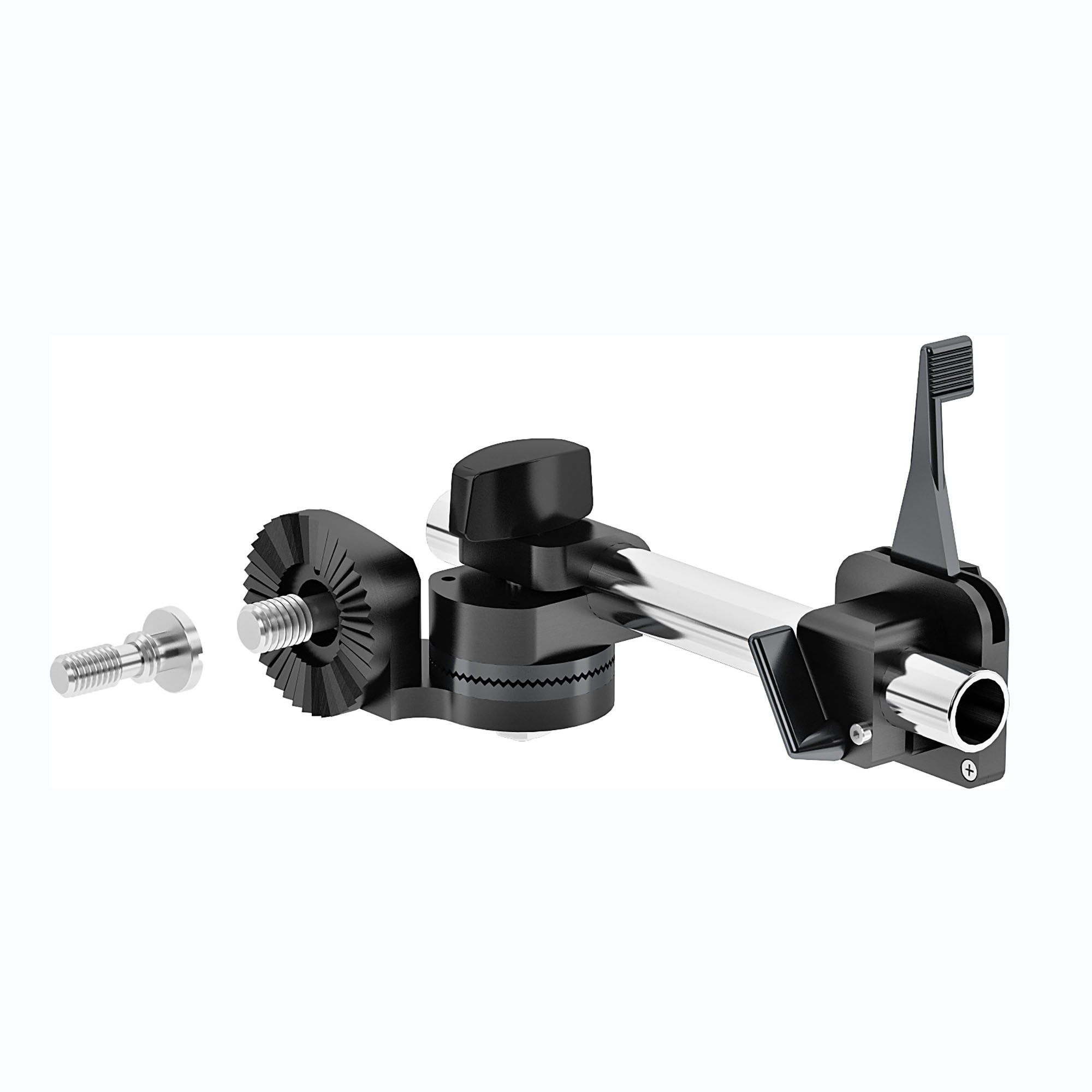

Bracket with 26 mm dovetail (insert side) interface on 15 mm rod, attaches to ARRIHEAD rosette, can be pivoted on rosette or slid along rod. For use with 26 mm shoe-mounted accessories such as UMC-3K2.52080.0 1x Adapter UMC 3/8inK2.52083.0 1x Dovetail Shoe 3/8in threador Wired Handgrip Attachments WHA-2 / WHA-3.
Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0017138 1x Bridge Plate Adapter BPA-5K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4

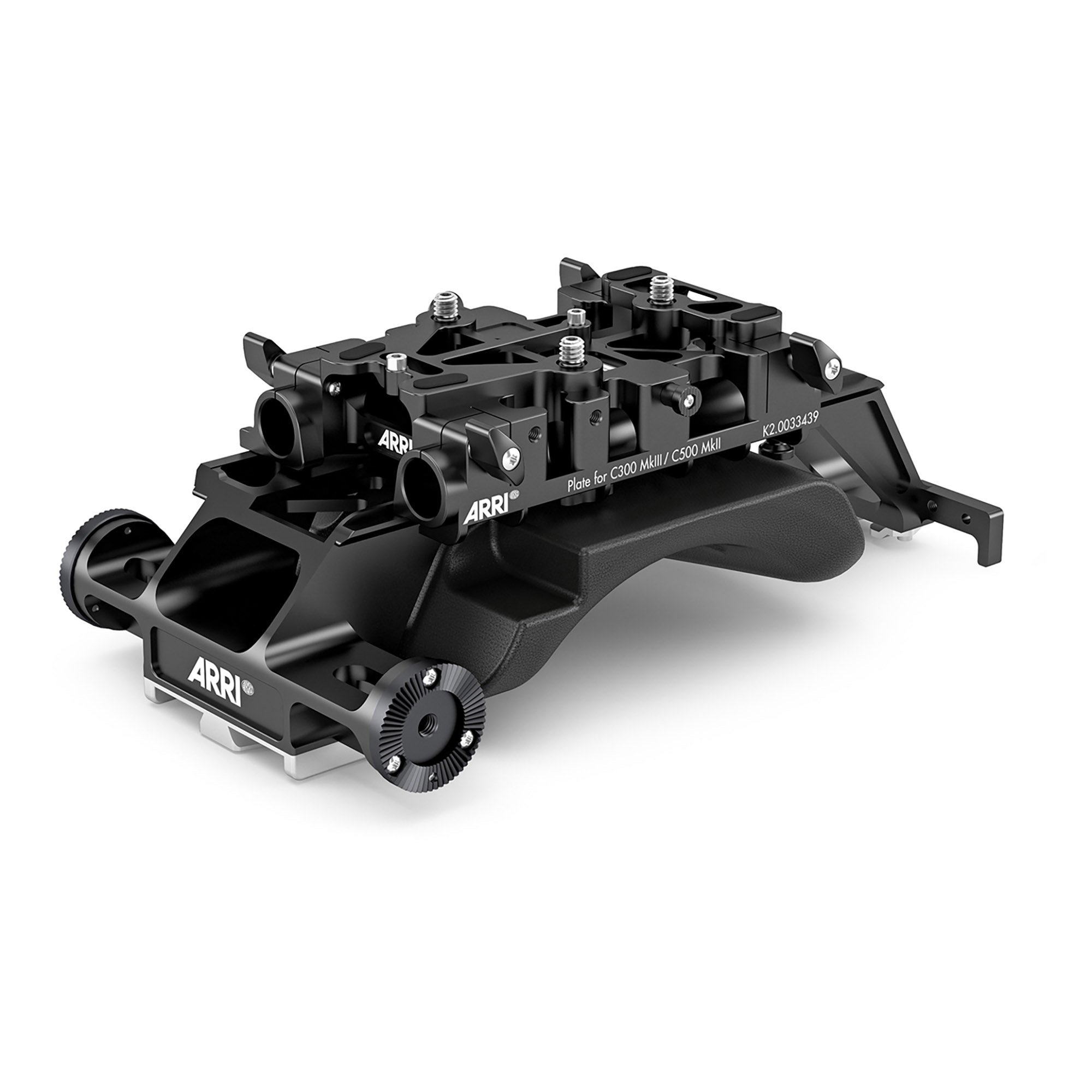

The Plate for C300 MkIII/ C500 MkII can be used either shoulder mounted compatible with a VCT-14 style plate such as the QRP-1 or by using the Bridge Plate Adapter BPA-5 to mount the cine-style BP-8, BP-9 or BPS-2. Both versions can be changed easily to the front and the back by sliding and exchanging one against the other without the need to detach any accessories from the camera. The plate includes an interface for two 15mm rods at the front and an optional 15mm lightweight support at the back.
This handgrip configuration can be used with any camera, fitting to 15, 19 mm studio rods or 15 mm lightweight support rods.includes:K2.47861.0 2x Handgrip without on/off switchK2.47863.0 2x Handgrip Extension, longK2.0013320 1x Universal Bridge Support UBS-3

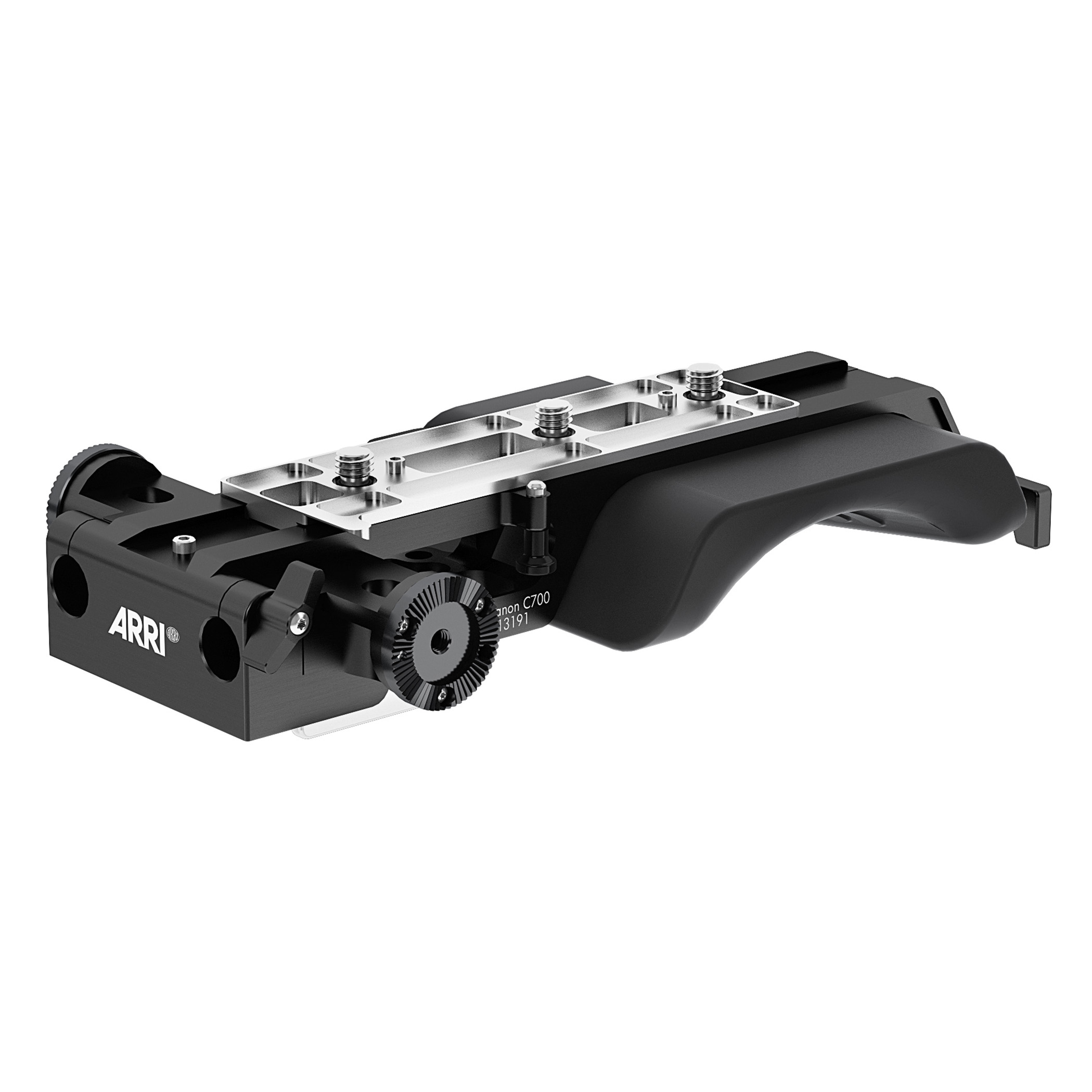

The ARRI Plate for Canon C700 is an hybrid support that is well-suited to common rental setups using studio bridge plates such as the BP-8 or BP-9, as well as documentary setups using VCT-style base plates like the ARRI QRP-1.

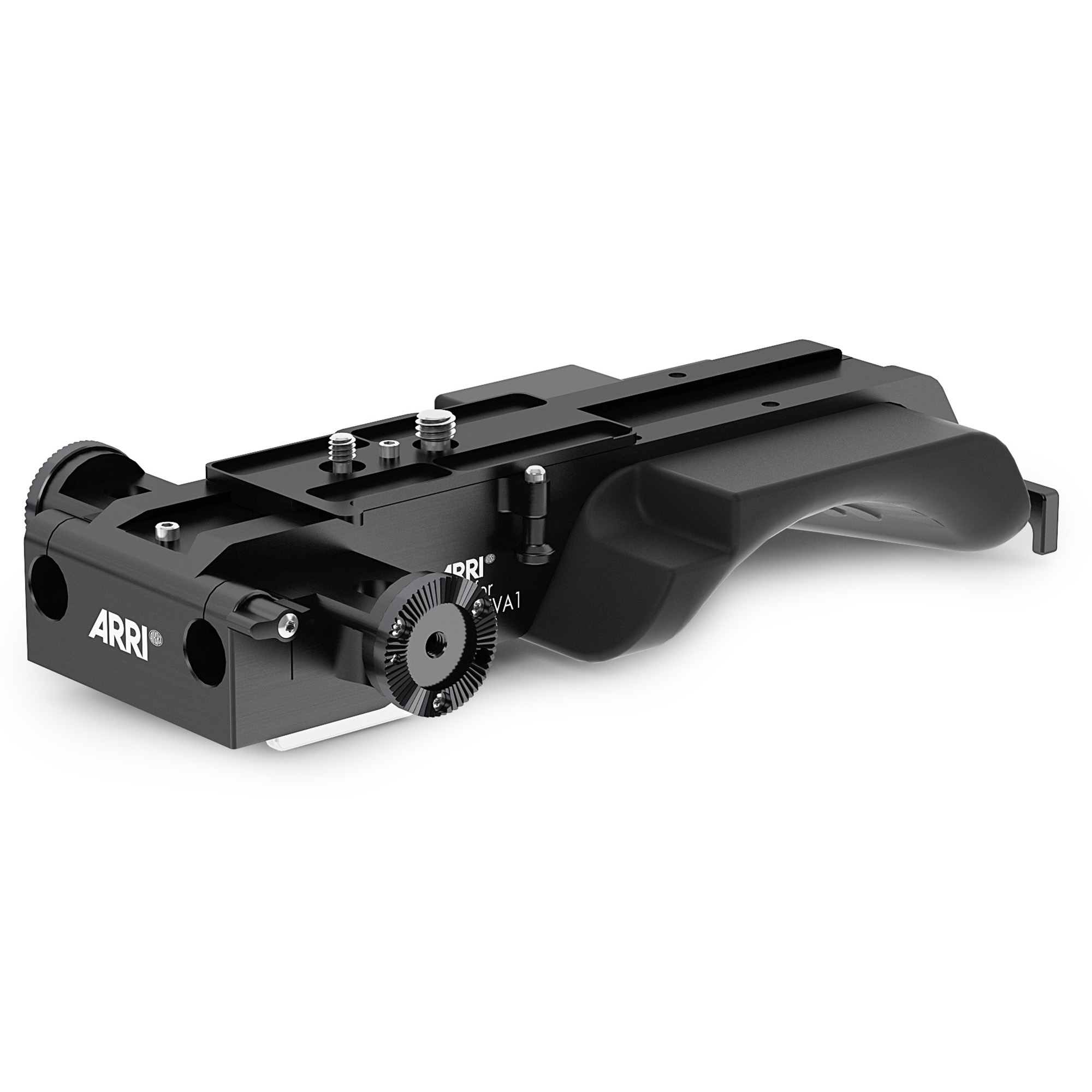

The ARRI plate for Panasonic AU-EVA1 is a hybrid support with 15mm LWS Base Plate and comfortable shoulder pad. The plate works perfectly with BP-8 or BP-9 and also with VCT-style tripod adapters such as the QRP-1.

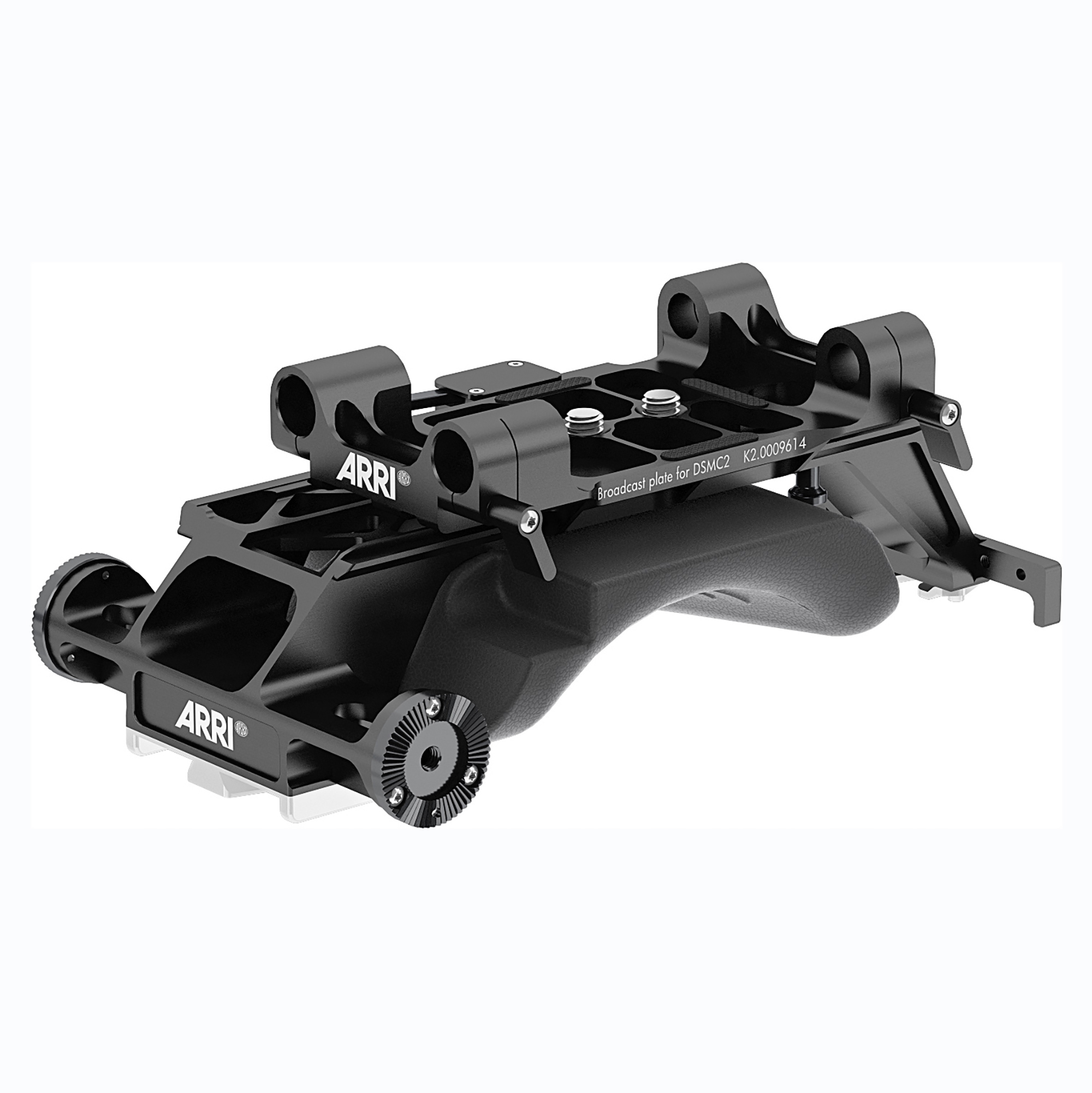

The ARRI Broadcast Plate for RED DSMC2 is a documentary-style baseplate compatible with VCT-style plates such as the ARRI QRP-1.

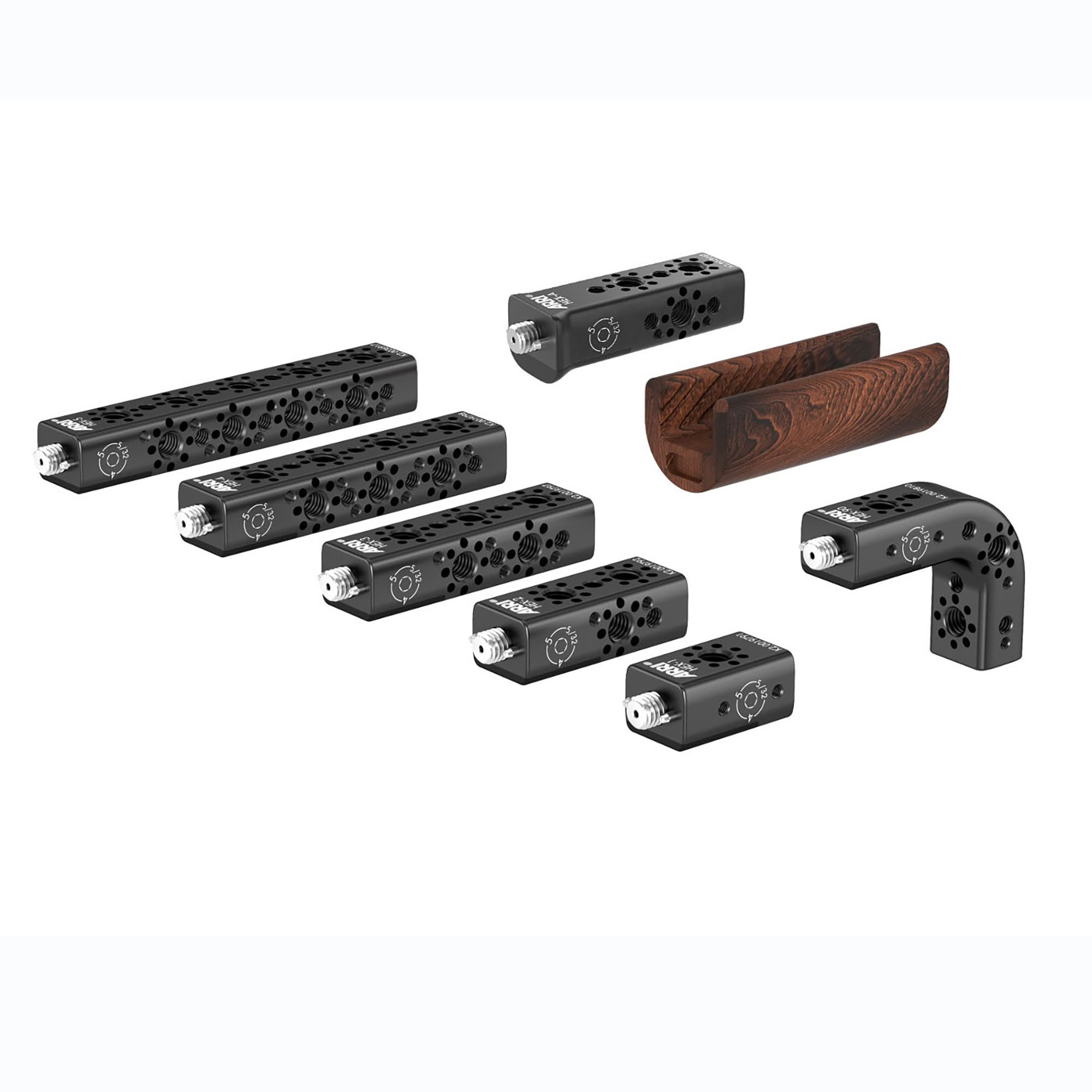

The Handle Extensions follow the design of the Camera Center Handle CCH-4. The number of each HEX refers to the number of 3/8-16 interfaces on the top (HEX-1 has one and HEX-5 five of them). They can be connected in multiple ways in order to extend a top handle but also to build your own handle design. Every HEX offers a 3/8-16 screw at the front (ARRI Multi-HEX screw with 4 different tool options) with two anti-twist locating pins and the corresponding thread interface at the back. Multiple RMB-3, as well as 1/4-20 interfaces, are included as well. The system can also be used to build a so-called Hollywood Handle. This allows to operate the camera from the back without touching the on-board battery. The Handle Extension Set for ALEXA 35 includes the Handle Extension HEX-A. The Handle Extension Set for ALEXA 35 comes in a foam inlay that fits in a Pelican 1170 case (Pelicase not included). includes: K2.0019791 1x Handle Extension HEX-1 K2.0019792 1x Handle Extension HEX-2 K2.0019797 1x Handle Extension HEX-3 K2.0019798 1x Handle Extension HEX-4 K2.0036917 1x Handle Extension HEX-5 K2.0019810 1x Handle Extension HEX-90 K2.0037131 1x Wooden Shell for HEX K2.0049050 1x Handle Extension HEX-A Maximum load: HEX-1 90 kg / 200 lbs HEX-2 80 kg / 175 lbs HEX-3 50 kg / 110 lbs HEX-4 40 kg / 90 lbs HEX-5 30 kg / 65 lbs HEX-90 60 kg / 130 lbs HEX-A 75 / 165 lbs Please note that the maximum load is only referring to the use of one single HEX, when another HEX will be attached the maximum load will be reduced.

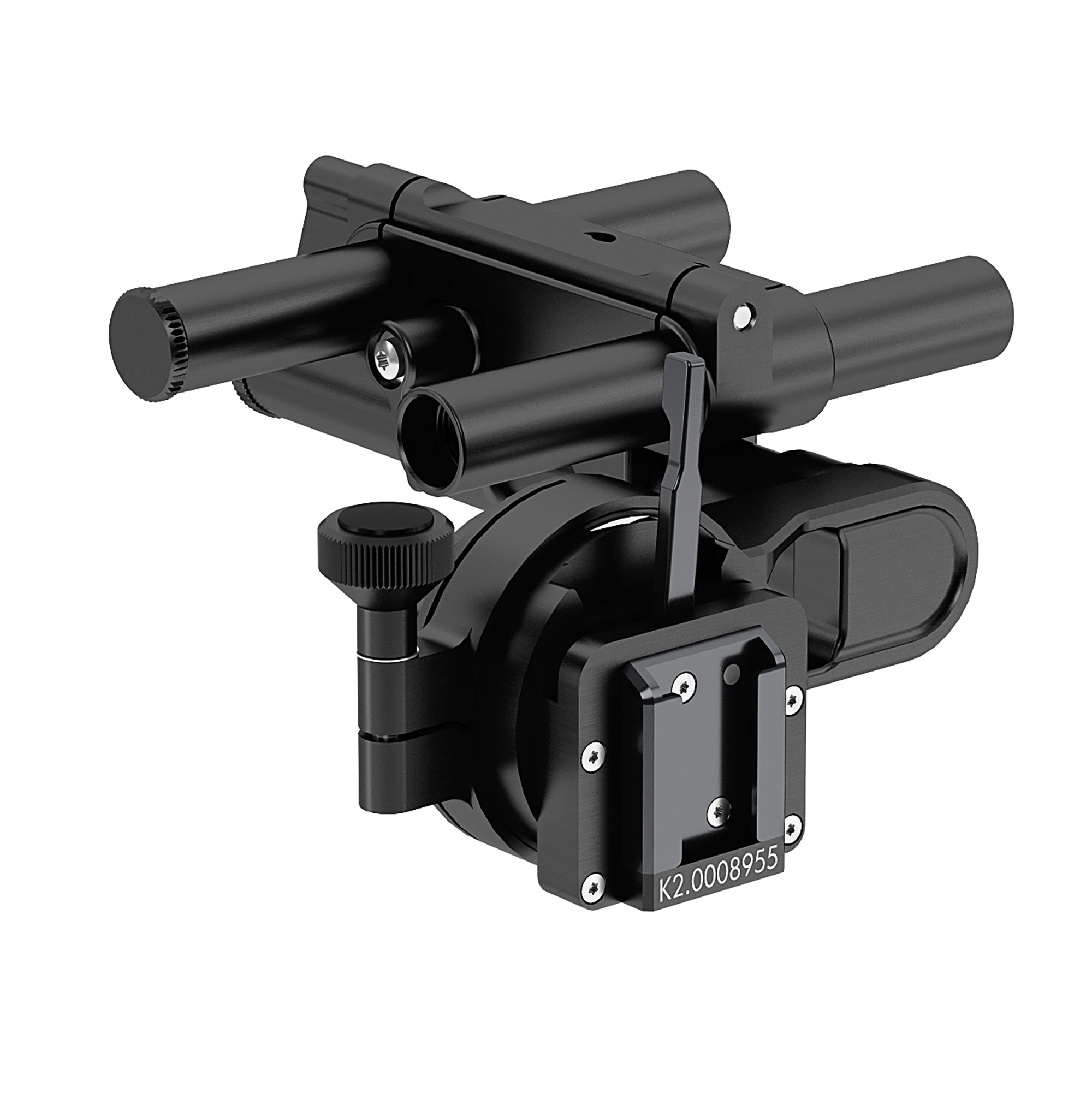

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008955 1x EVF Bracket for Canon Monitor Unit

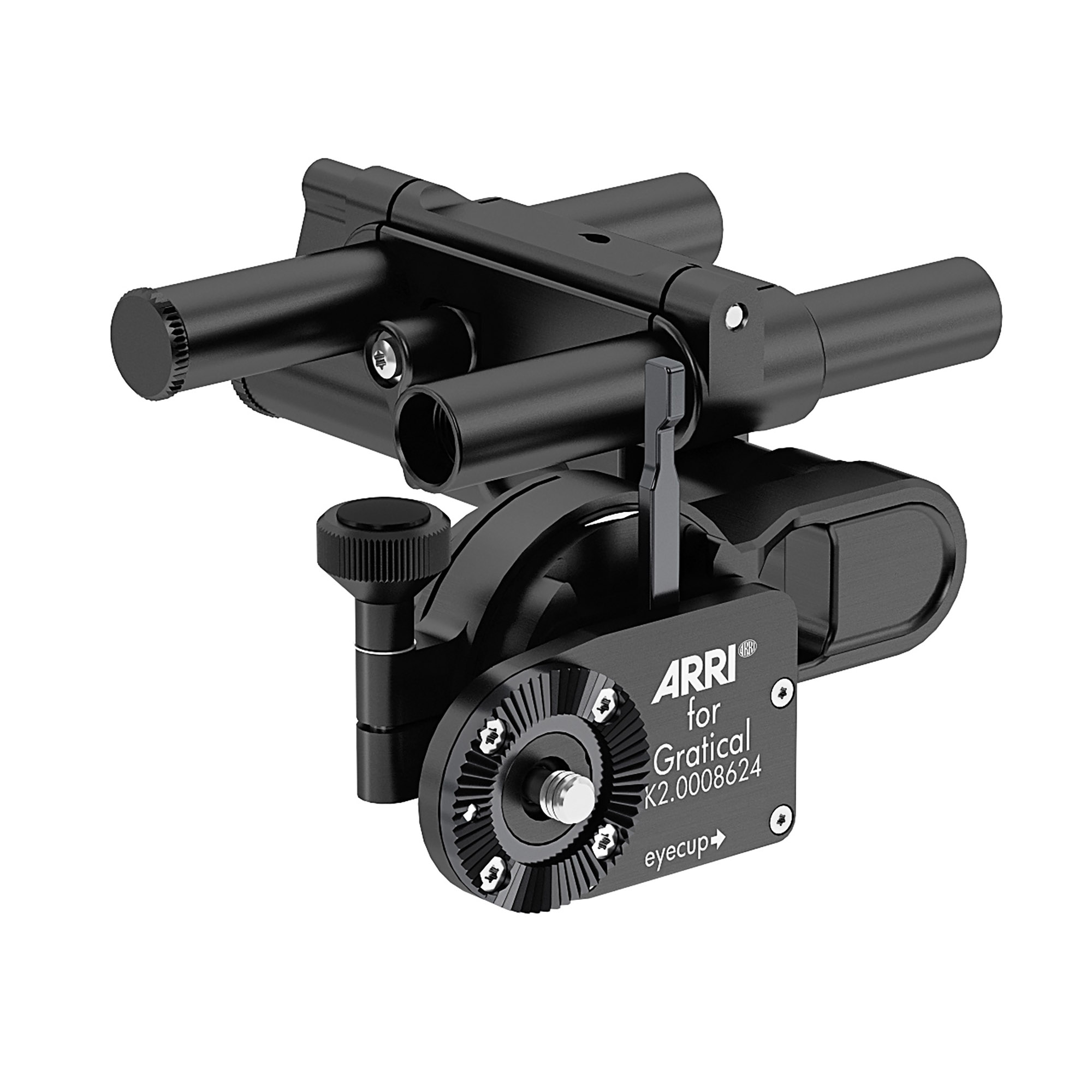

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008624 1x EVF Bracket for Zacuto Gratical

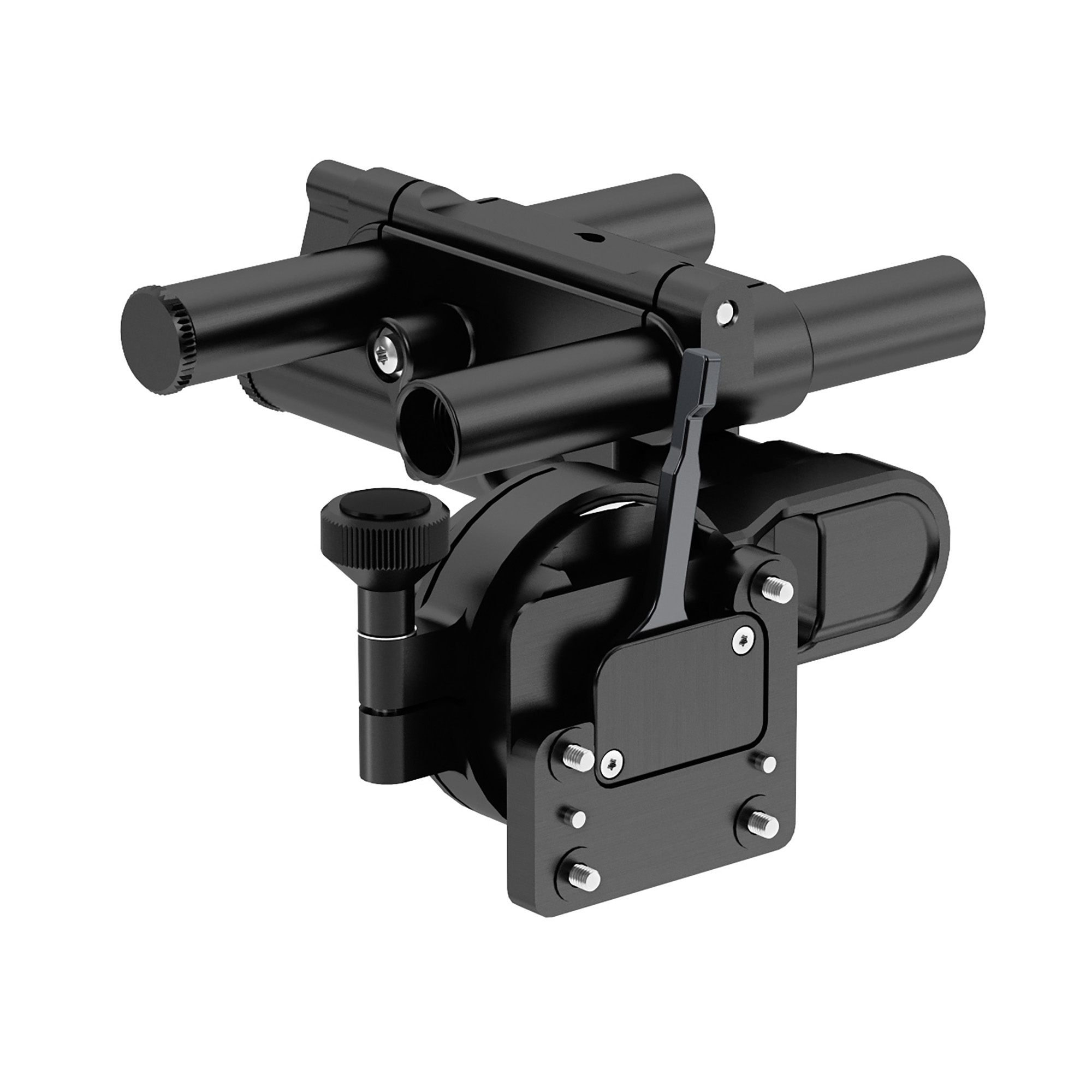

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0010580 1x EVF Bracket for Panasonic VariCam

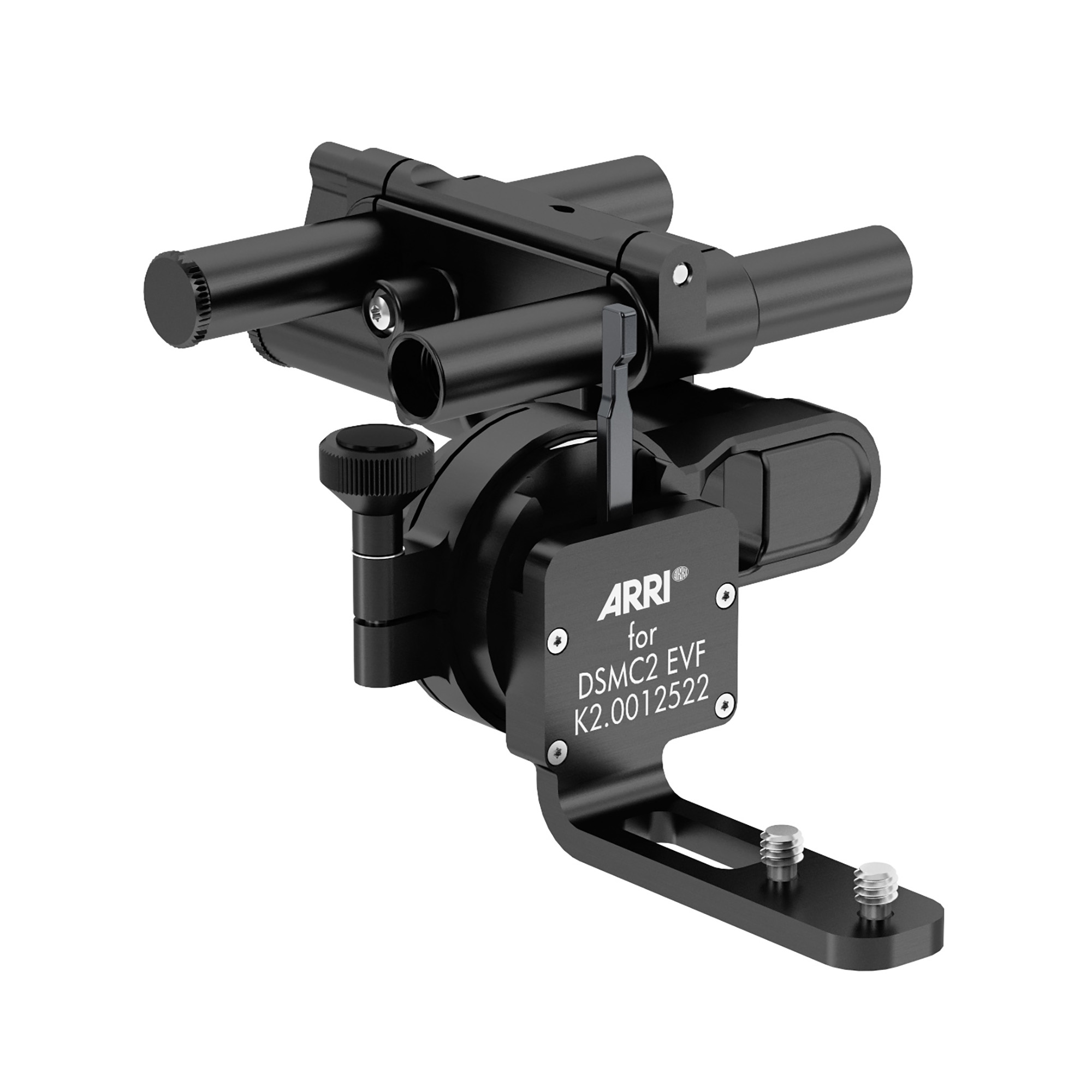

DSMC2 RED EVF Mounting Plate is needed for mounting.includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0012522 1x EVF Bracket for RED DSMC2 viewfinder

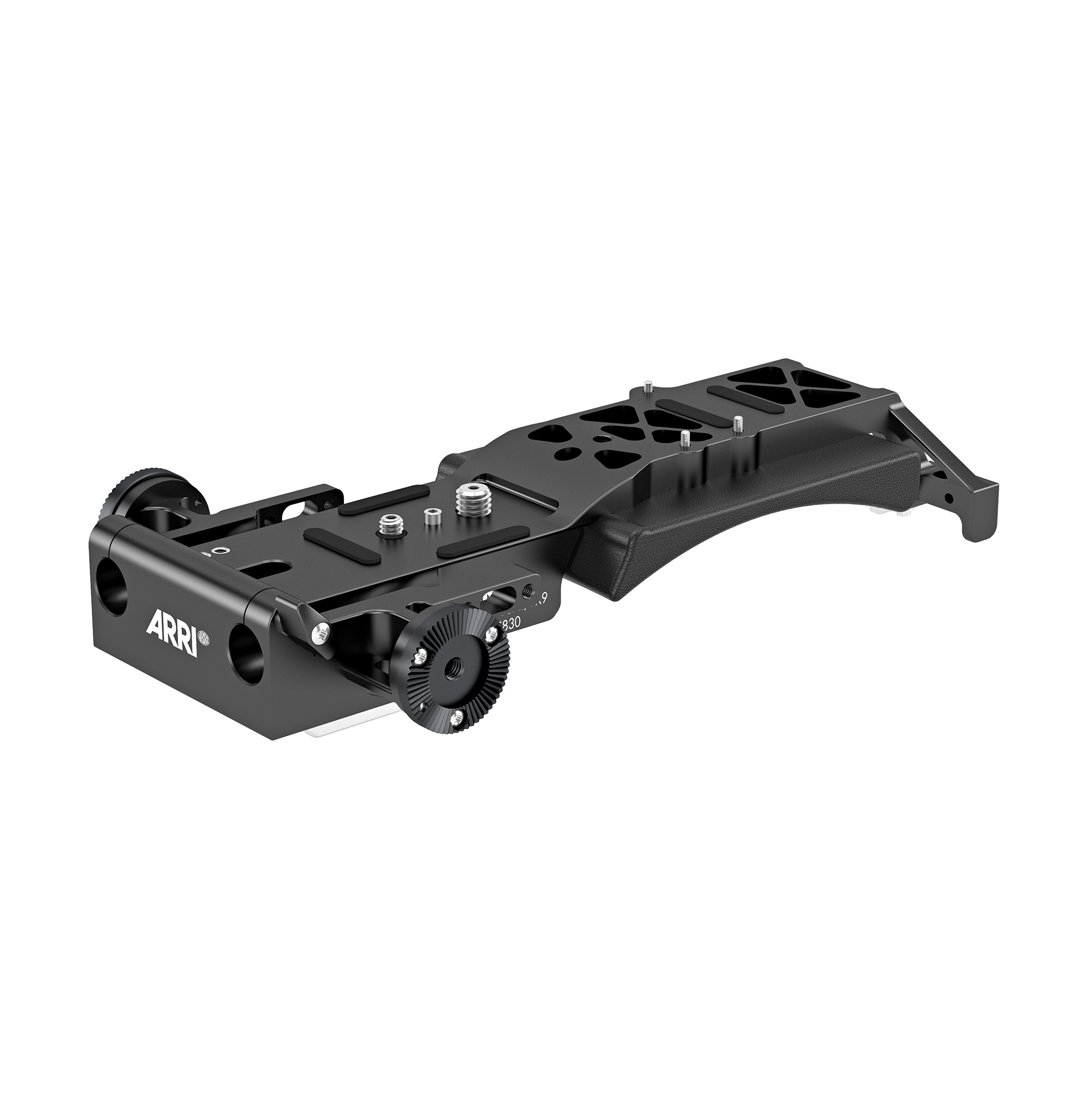

The Plate for Sony FS7II/FX9 with integrated 15mm lightweight support and a comfortable shoulder pad can be adjusted for perfect balancing. The plate is compatible with VCT-style tripod adapters such as the QRP-1 from ARRI or BP-8, BP-9 and BPS-2. The optional Lens Adapter Support LAS-1 (K2.0003899) offers the possibility to support lens adapters from below.

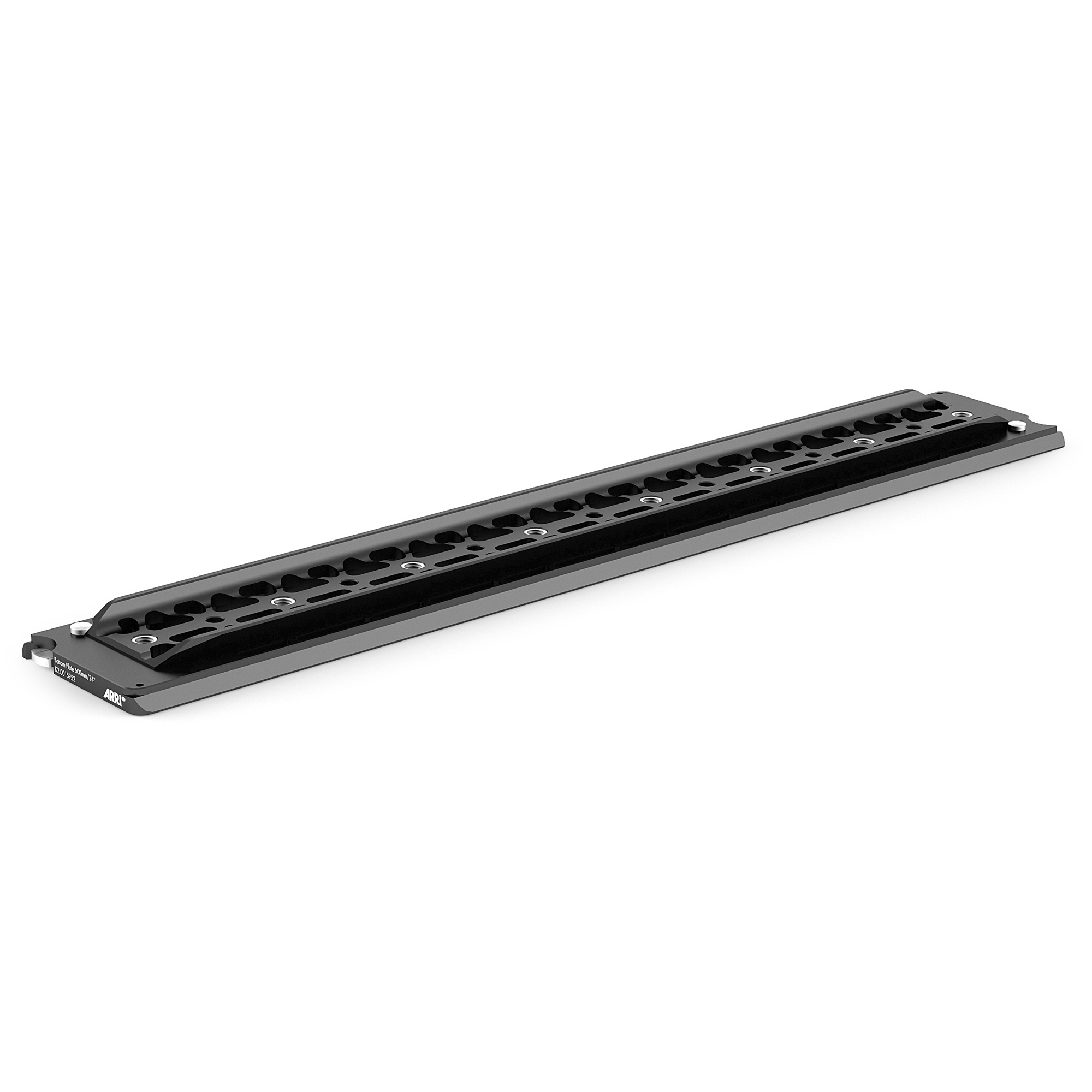

The 600mm/24 inch Bottom Dovetail Plate is the perfect solution when working with large and heavy zoom lenses where maximum balancing is required. An additional rod support for stabilizing the rods in the front is available for either 15mm Studio (RSB-15 K2.0000437) or 19mm Studio (RSB-19 K2.0000440). All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.
VCT-style broadcast plate compatible with the ARRI AMIRA camera, most of ARRI PCA support systems as well as ENG cameras.

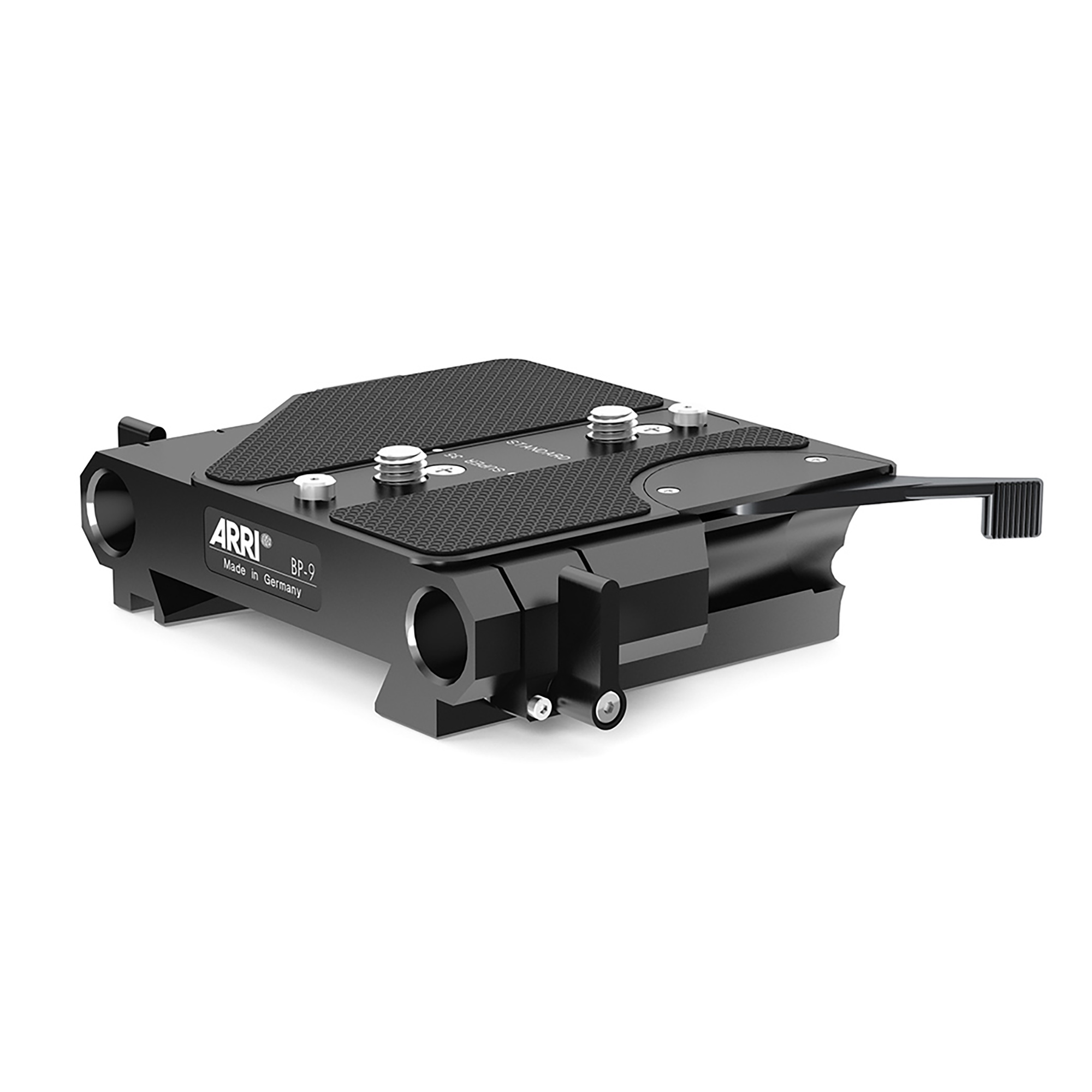

The BP-9 helps optimize camera rig balance when combined with the range of ARRI bottom plates. It brings compatibility with studio 15 mm rod systems to an increasing number of ARRI and third party cameras.

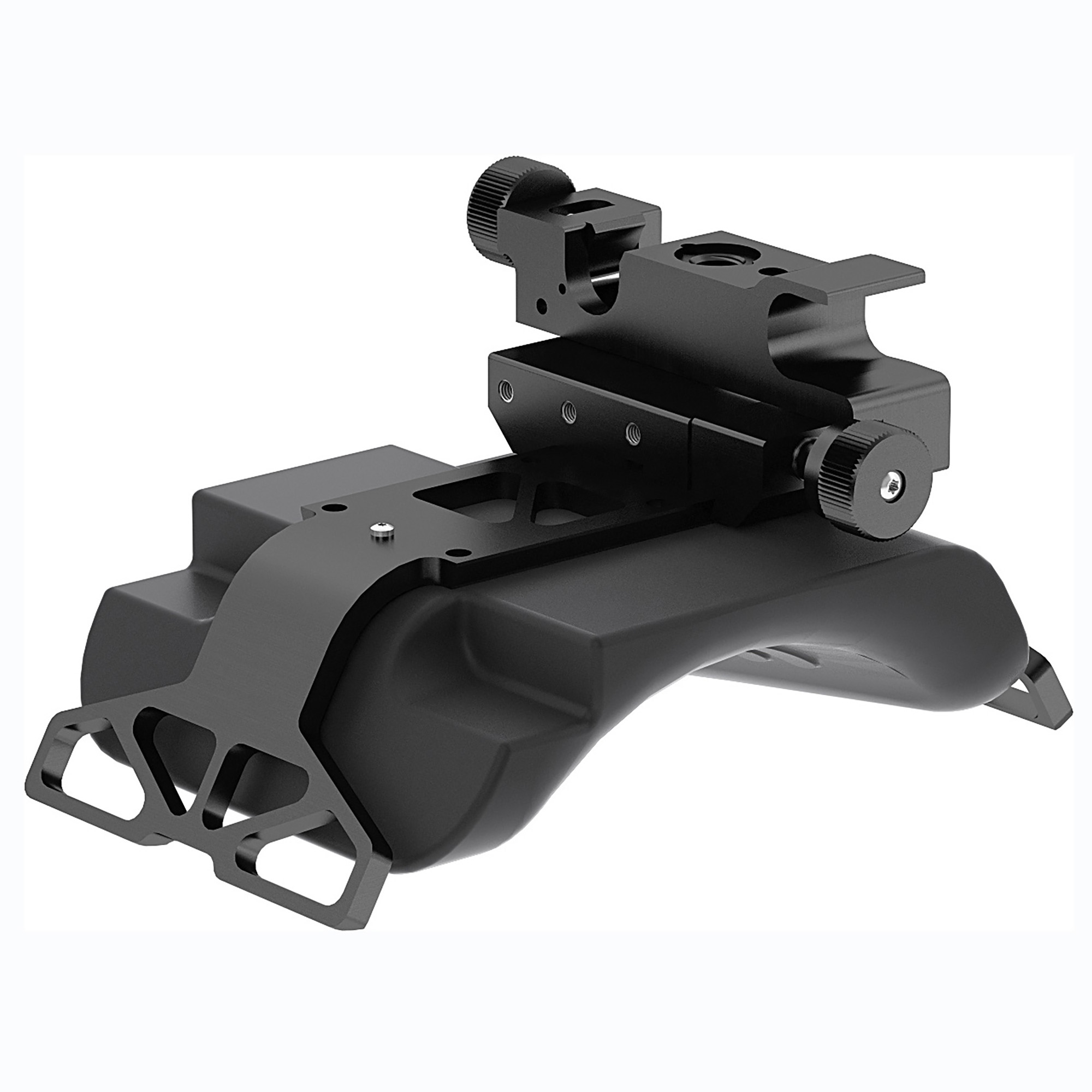

This shoulder pad clamps on 15 mm LWS rods forward or backwards of the baseplate and can be adjusted to suit best balance on the shoulder. The camera rig is able to rest on a flat surface without its shoulder pad coming in contact to the ground.

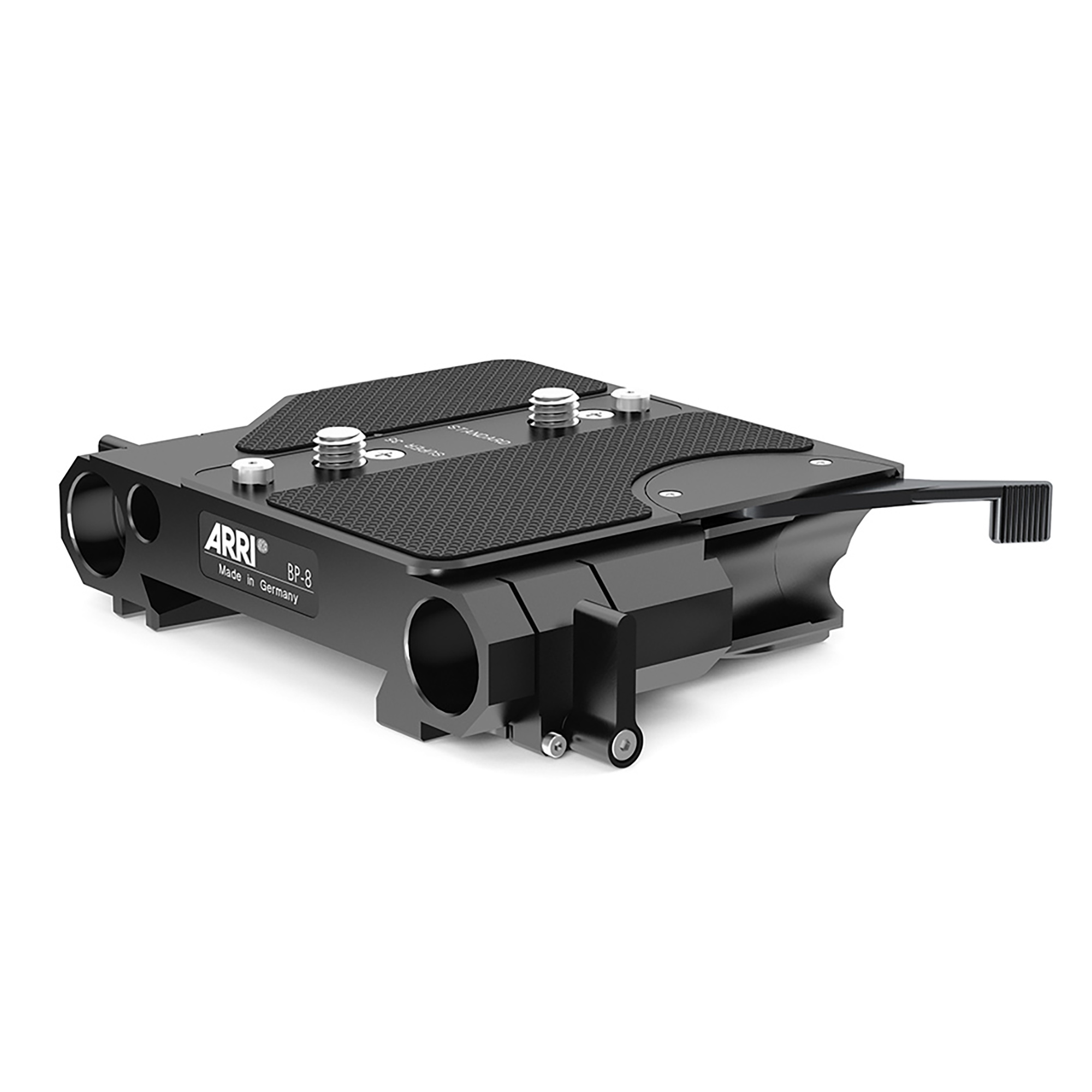

The BP-8 helps to optimize camera rig balance when combined with the range of ARRI bottom plates. It brings compatibility with studio 19 mm rod systems to an increasing number of ARRI and third party cameras.

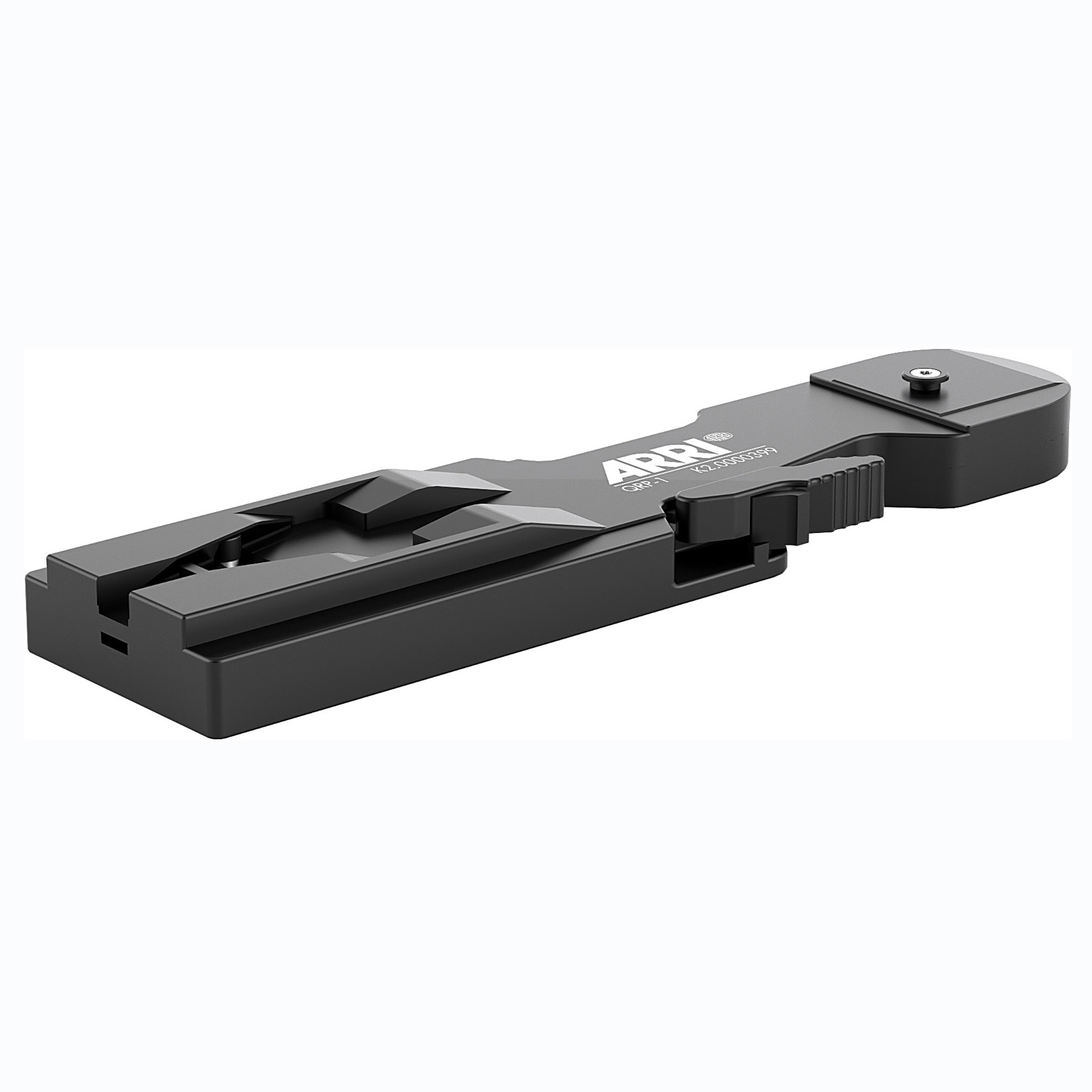

The plate is compatible with VCT-style quick-lock plates such as the QRP-1 from ARRI. With its ergonomic shoulder pad, it converts the Plate for Sony Venice 1/2 (K2.0043726) into a shoulder camera set-up.
With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.

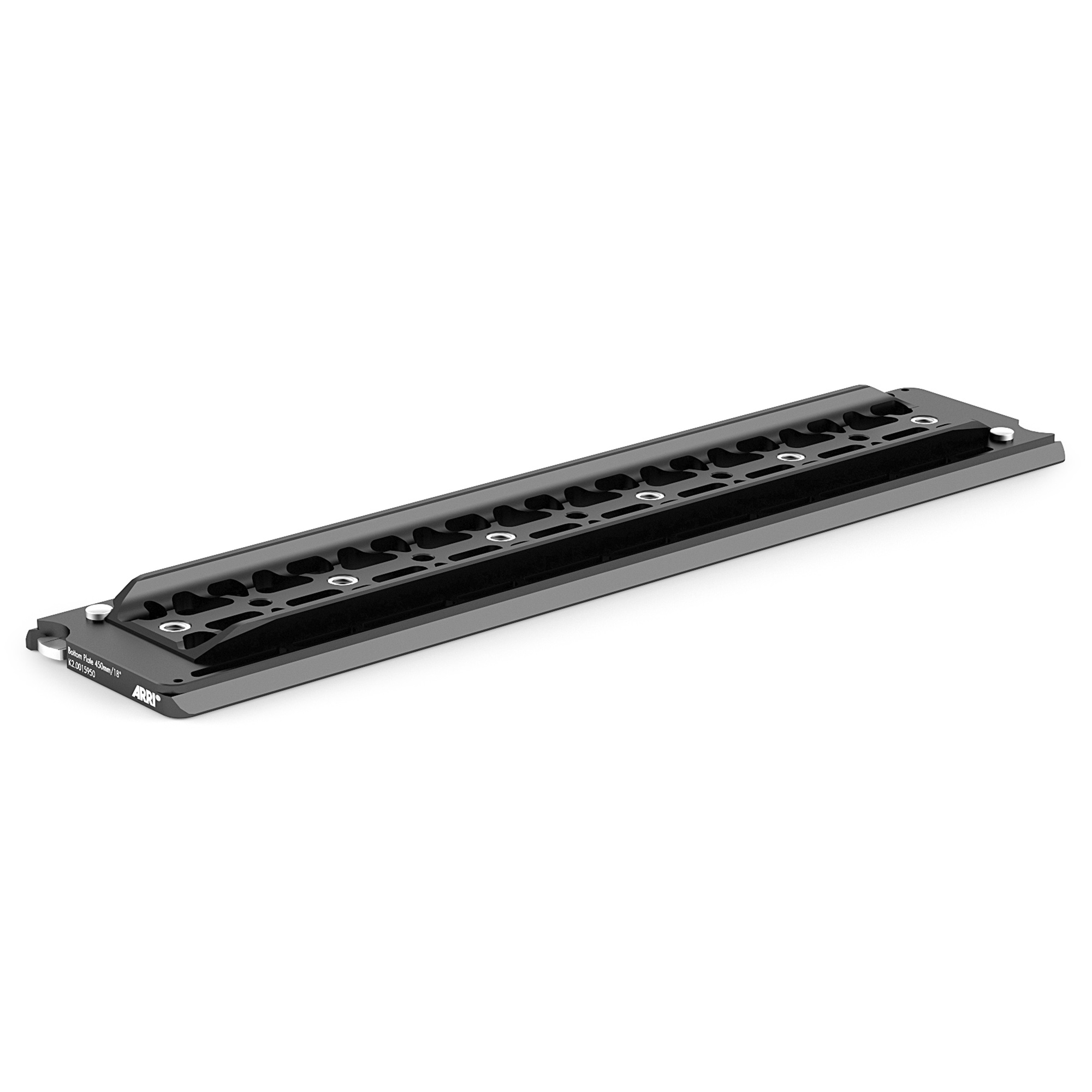

The 450mm/18 inch Bottom Dovetail Plate fits perfectly with smaller and medium zoom lenses where a bit more balancing is required. All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.
A 360° rotatable top handle designed as a classic T-handle, mounted on aNATO rail and adjustable along both the X-axis (forward/backward) and Yaxis(left/right) for optimal positioning. Built on a multi-directional Hexinterface, the handle supports modular expansion and customization. TheWooden Shell for Hex (K2.0037131) and the Plastic Shell for Hex(K2.0037132) can be attached directly to the CTH-2 for enhanced grip.
With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.
26mm dovetail insert. Both sides attach to 3/8-16 UNC thread mounting points having standard ARRI 15,5mm counterbore for attaching and quickly removing accessories from a camera (compatible with all UMC versions).includes:K2.52082.0 1x Dovetail Insert 3/8in threadK2.52083.0 1x Dovetail Shoe 3/8in thread
Does not include Support Rod Holder or Bottom Dovetail Plate. Only compatible with QR-HD Cine Base Plate.

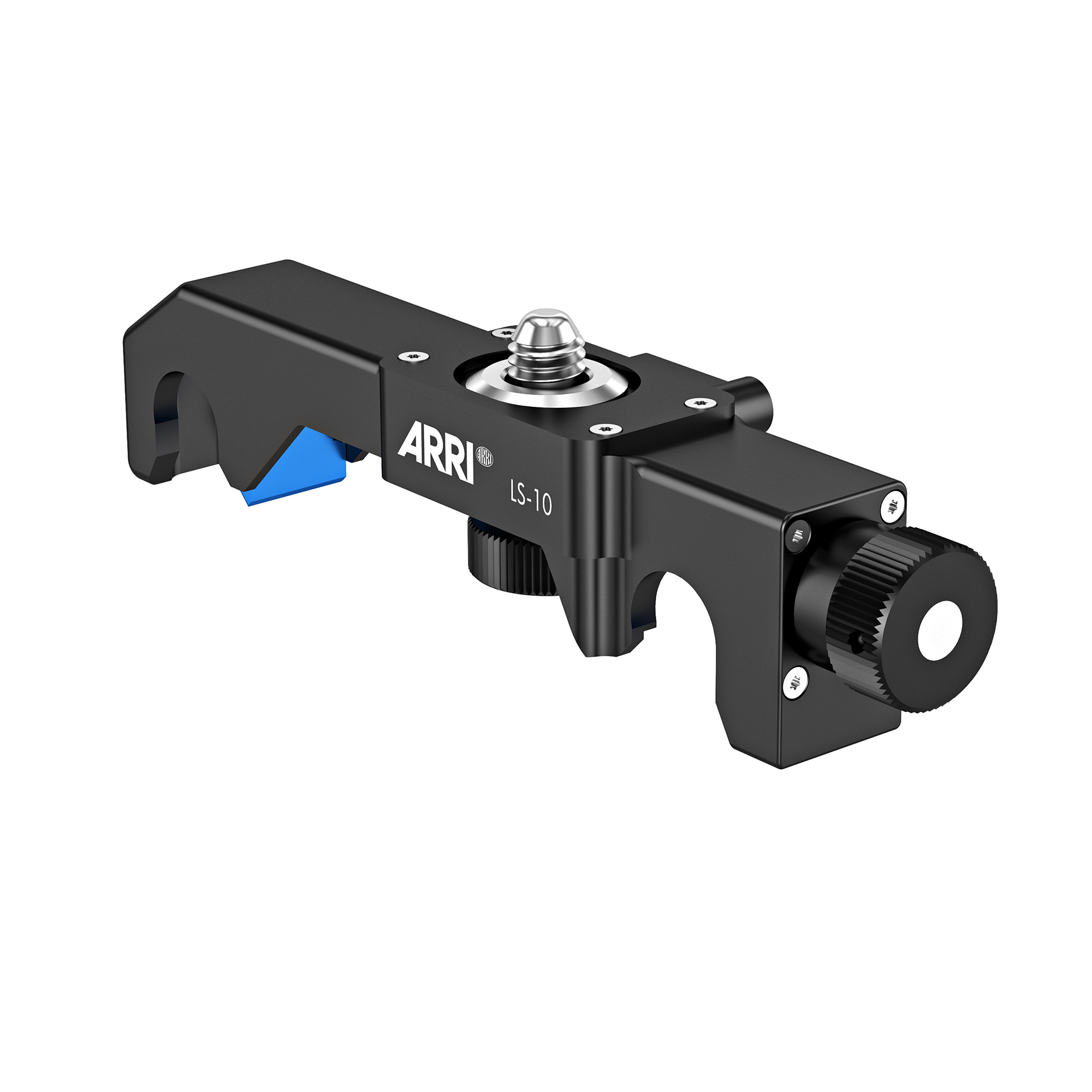

The ARRI Lens Support LS-10 is an adjustable and lockable bridge that clips to 15 mm rods. The lens is secured via a 3/8-16 thumbscrew.

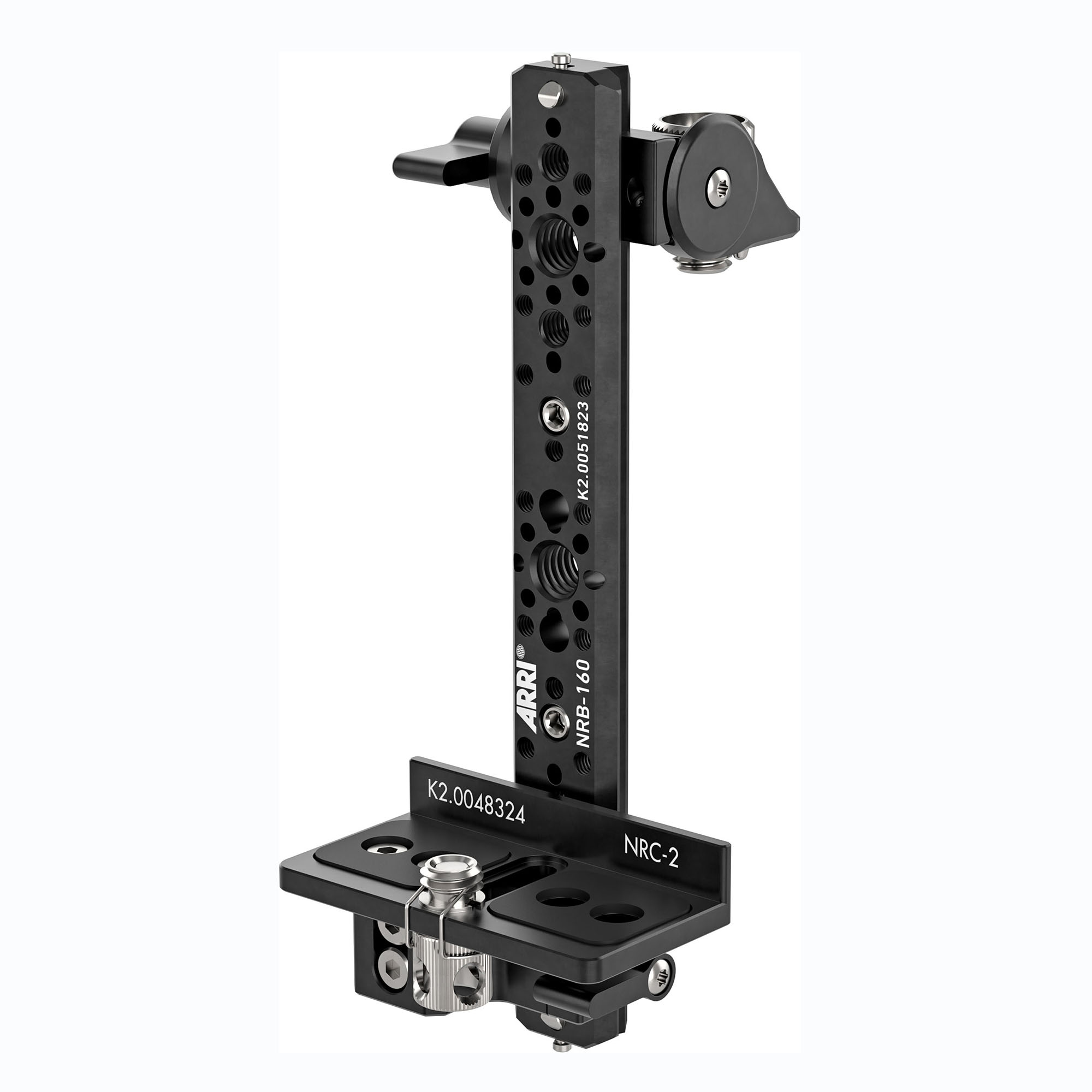

includes:K2.0052697 1x Swivel Mechanism BracketK2.0051823 1x NATO Rail Bar NRB-160K2.0048324 1x NATO Rail Clamp NRC-2
The Broadcast plate fits to quick release tripod adapters and offers support for 15 mm LWS rods.

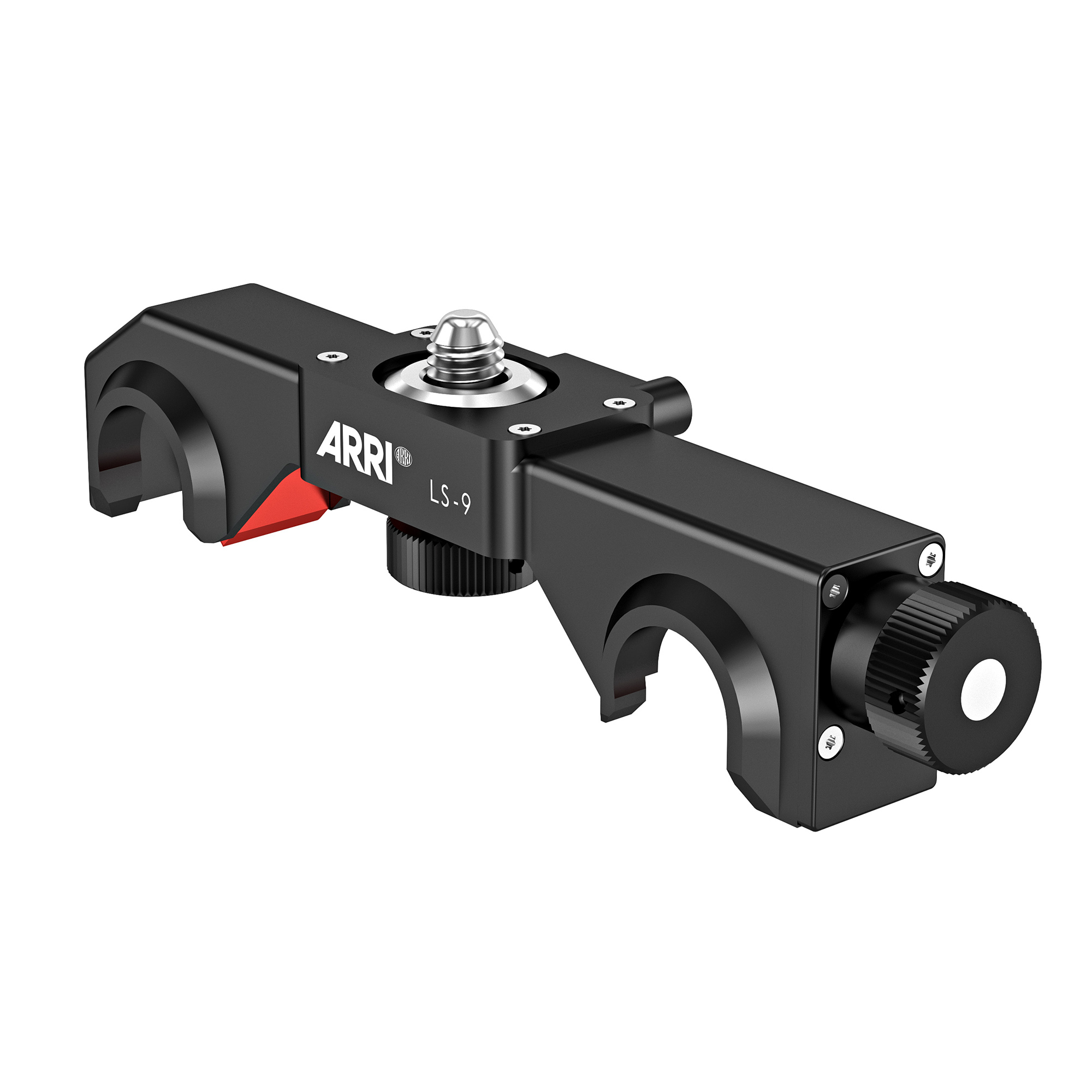

The ARRI Lens Support LS-9 is an adjustable and lockable bridge that clips to 19 mm rods. The lens is secured via a 3/8-16 inch thumbscrew.
Compatible with VCT- style plates such as the ARRI QRP-1. Offers a wide range of shoulder adjustments without affecting the placement of accessories fitted to the integrated 15mm LWS rod system. Compatible with following Canon Cameras: Canon EOS C200 (with additional Adapter Plate for Canon C200), Canon EOS C300, Canon EOS C300 MkII, Canon EOS C500.

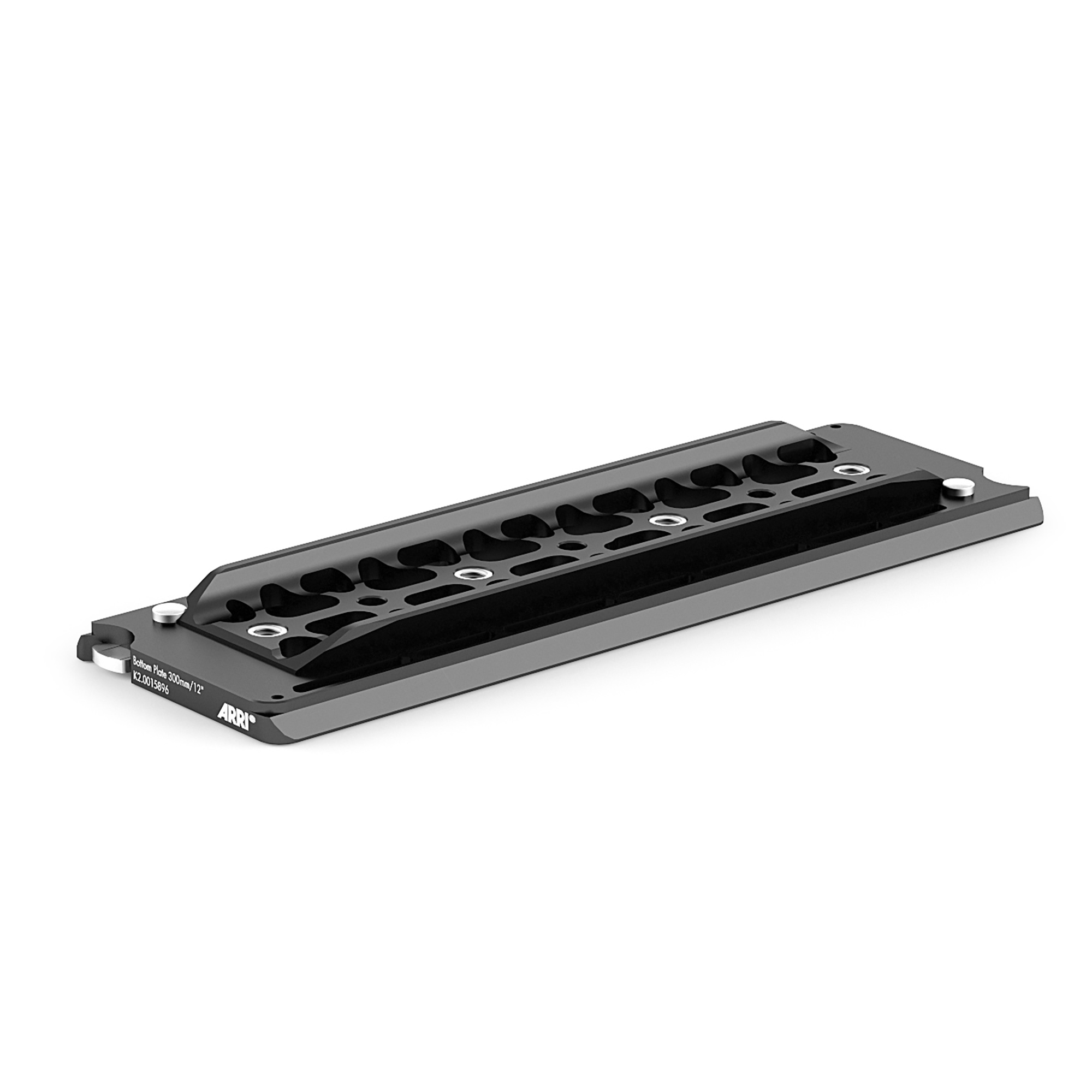

The 300mm/12 inch Bottom Dovetail Plate is the standard for all prime lenses where minimal balancing is required. All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.

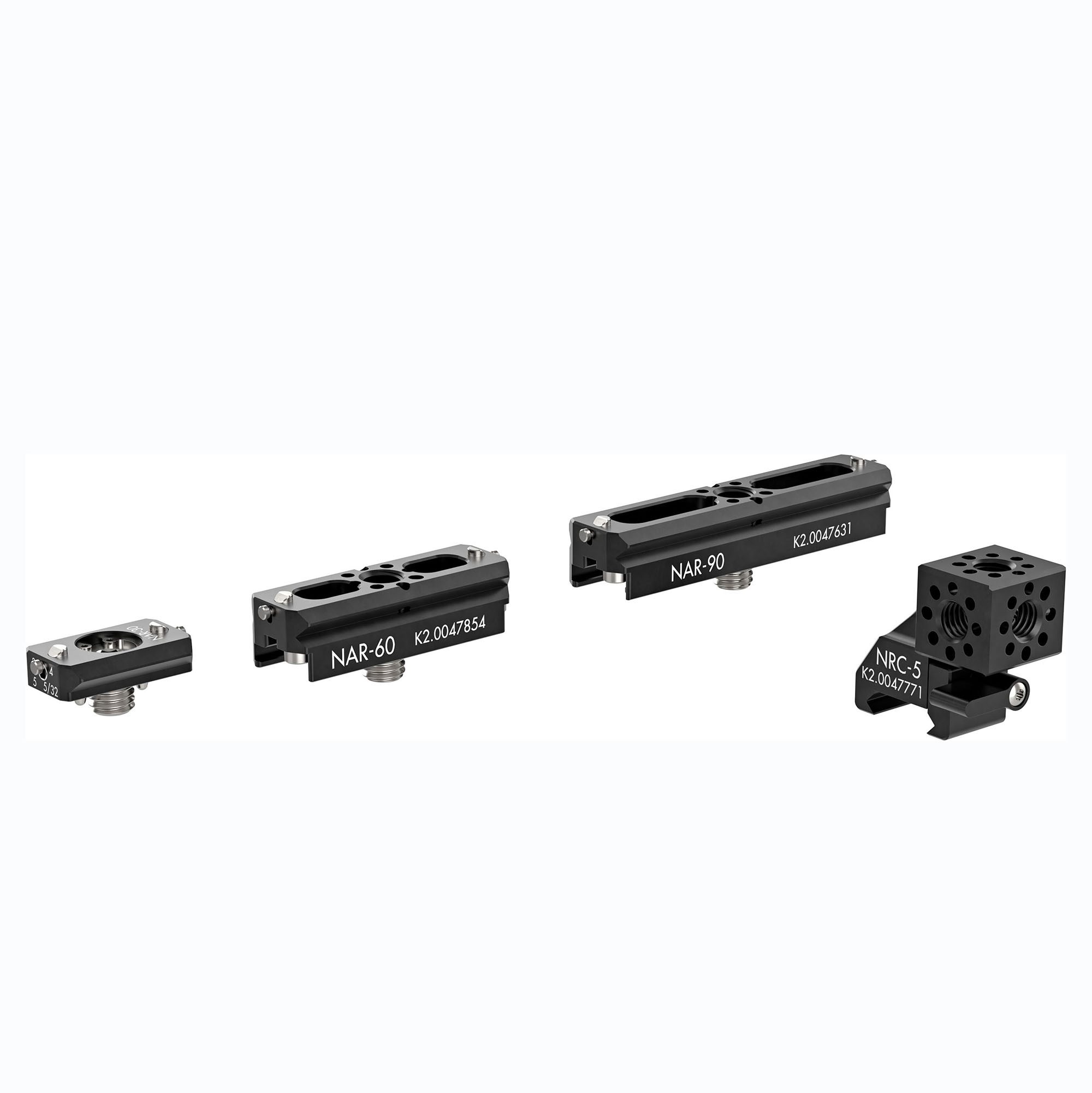

includes:K2.0047643 1x NATO Accessory Rail NAR-30K2.0047854 1x NATO Accessory Rail NAR-60K2.0047631 1x NATO Accessory Rail NAR-90K2.0047771 1x NATO Rail Clamp NRC-5

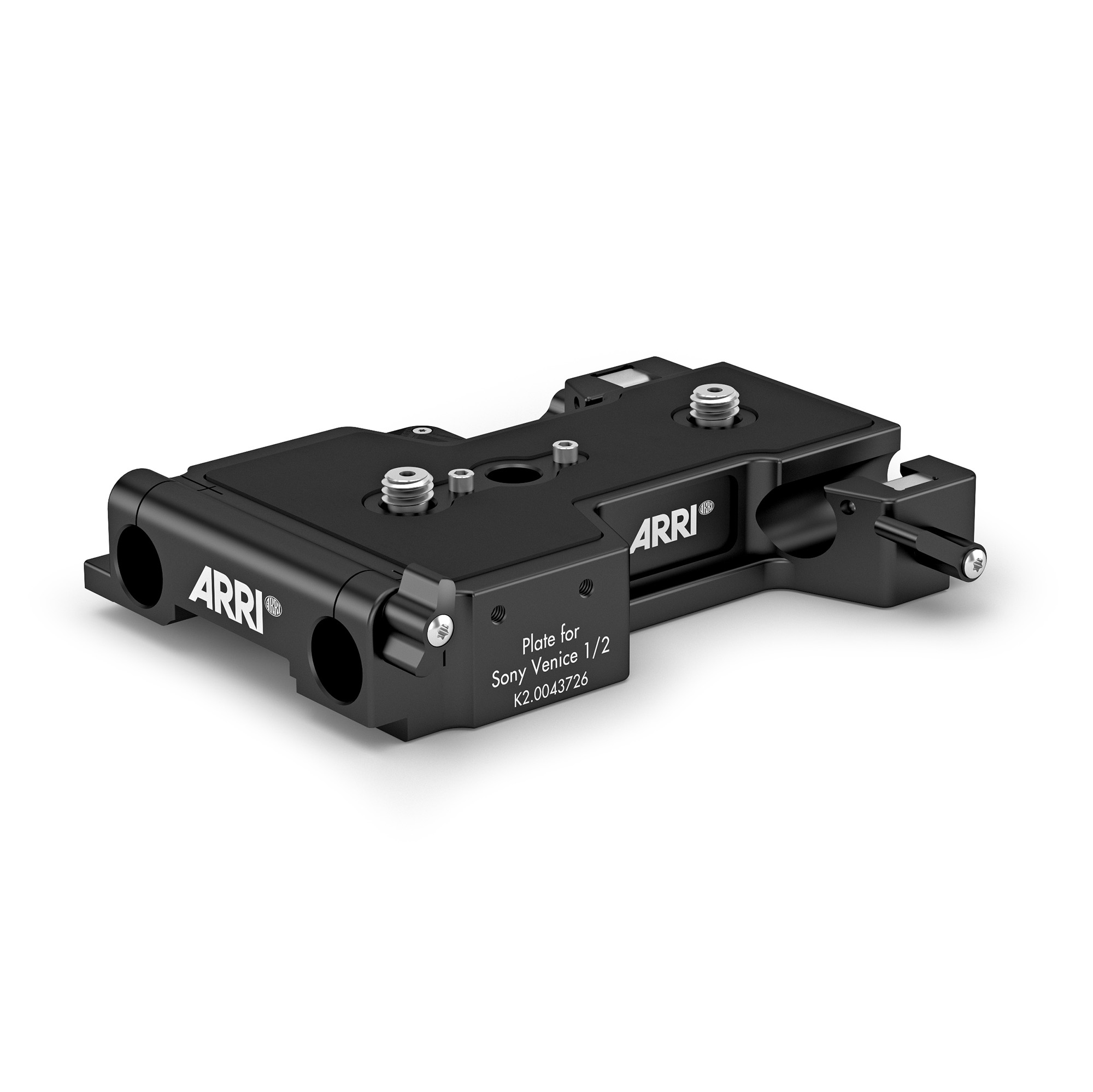

Compatible with Sony Venice 1/2 and Sony BURANO.The Plate comes with two integrated 15mm lightweight supports (at the front and the back) and is compatible with the BPA-5 (K2.0017138) and the BSA-1 (K2.0043749). This plate offers a pair of M4 threads on each side to attach the side brackets left and right.
Used on current ARRI cameras, this proven viewfinder bracket offers the best adjustment range and sturdiness for this type of viewfinder from the Sony FS7II/ FX9.

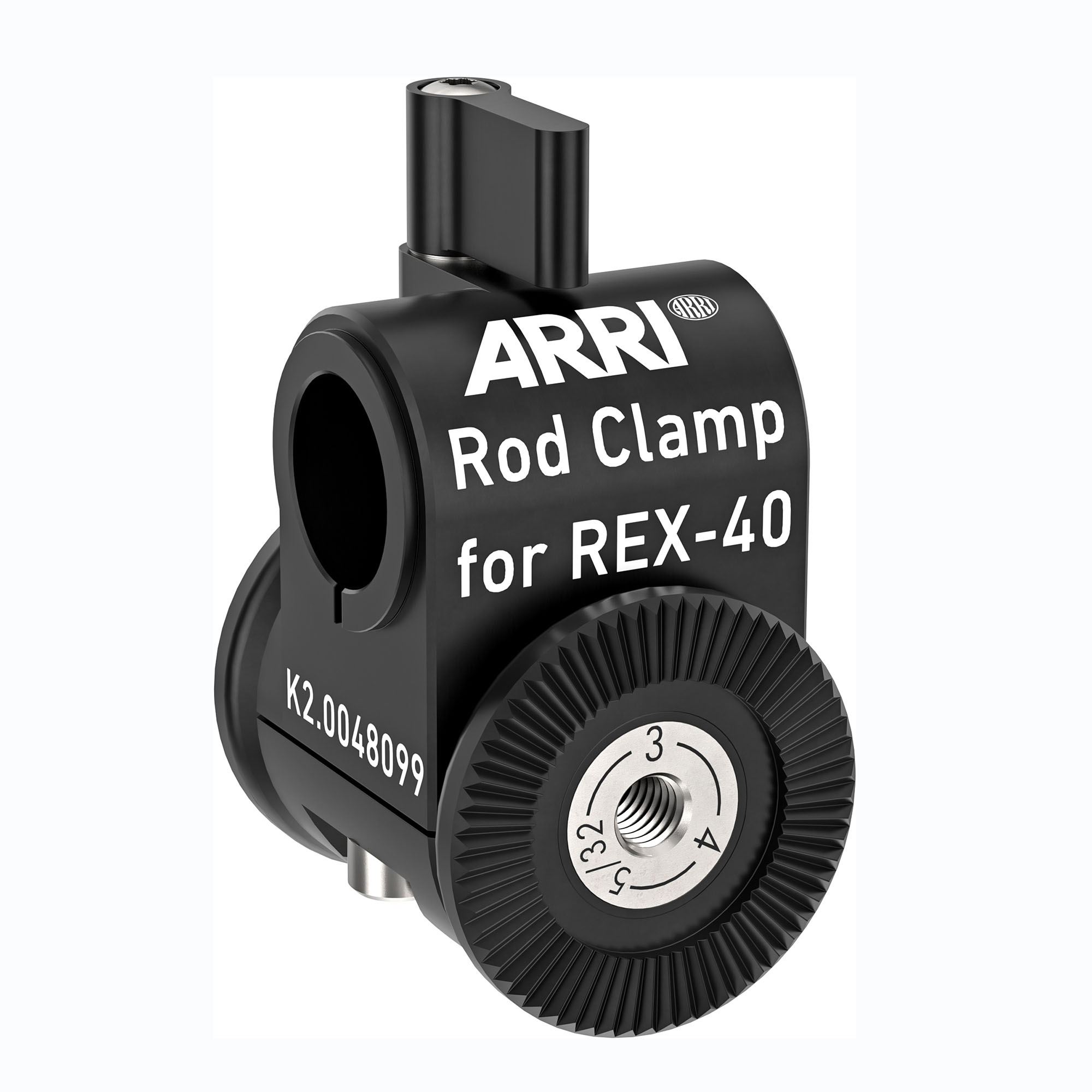

includes:K2.0048099 1x Rod Clamp for REX-40K2.0049430 1x Rosette Extension REX-40K2.66255.0 1x 15mm Reduction InsertNote: RS cables not included!

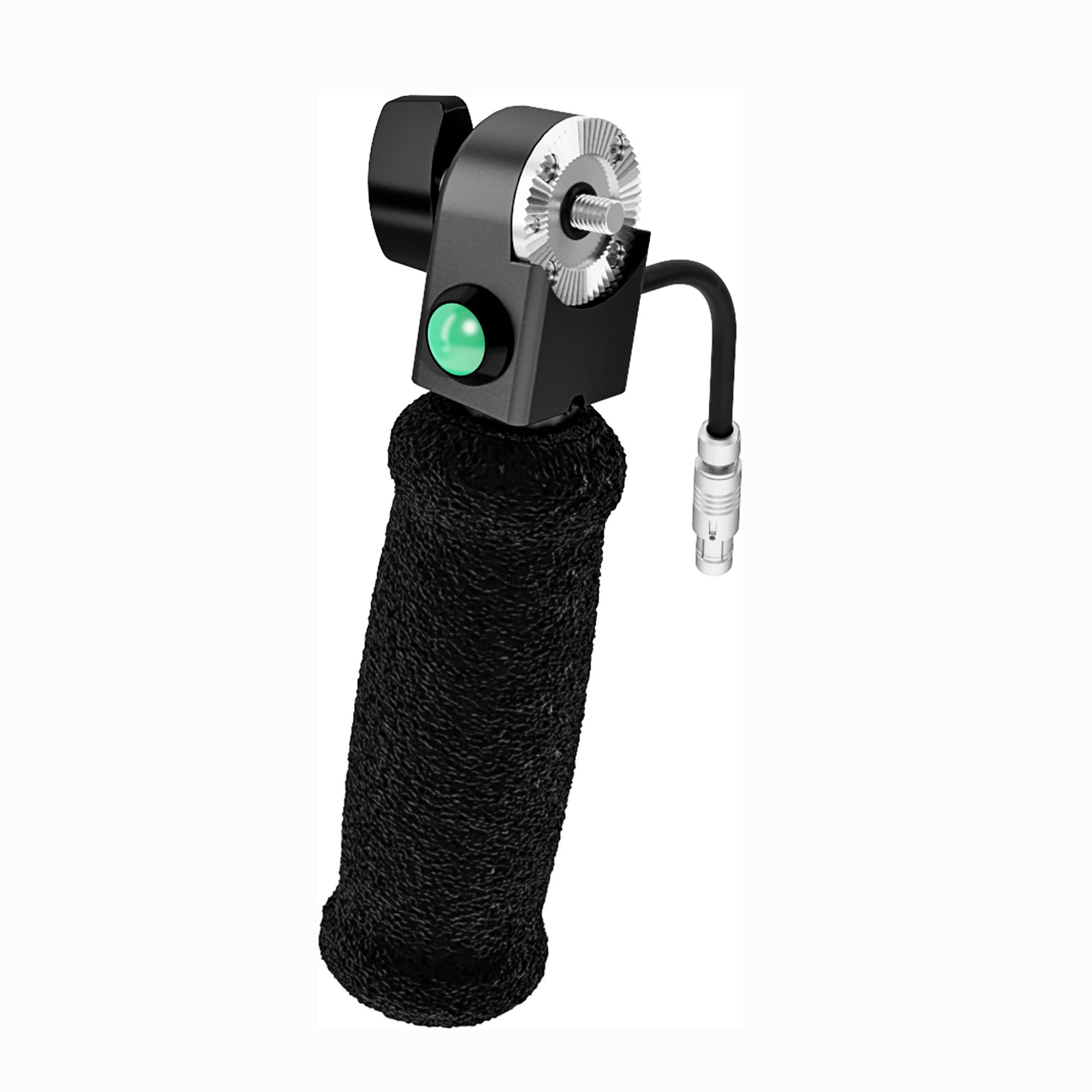

With RS 3-Pin connector. Cables with other connectors available. Approx. cable lenght: 800 mm.
The handgrip with integrated cable for triggering the Sony F5/F55 and Panasonic VariCam 35/HS, using the 4-pin Hirose connector could be used on ARRI standard rosette interfaces.

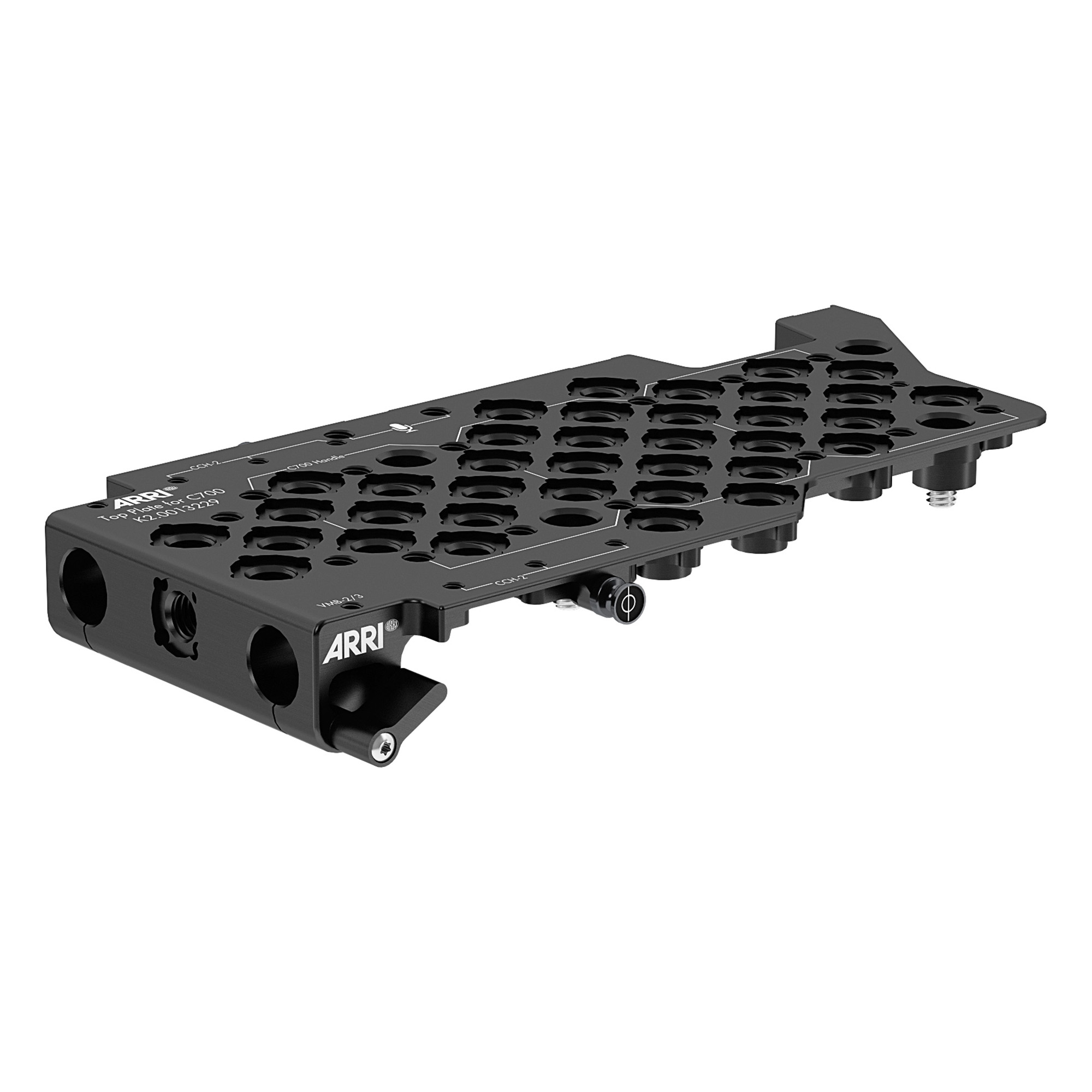

The ARRI Top Plate for Canon C700 is a low-mode support, featuring numerous accessory threads and a built-in console for 15 mm LWS rods.
The new Top Plate allows the use of the original Sony handle. The middle part of the plate can be removed. Both plates can be used separately if required, e.g. to save weight. The Top Plate is equipped with a variety of 3/8-16, 1/4-20 and RMB-3 interfaces.

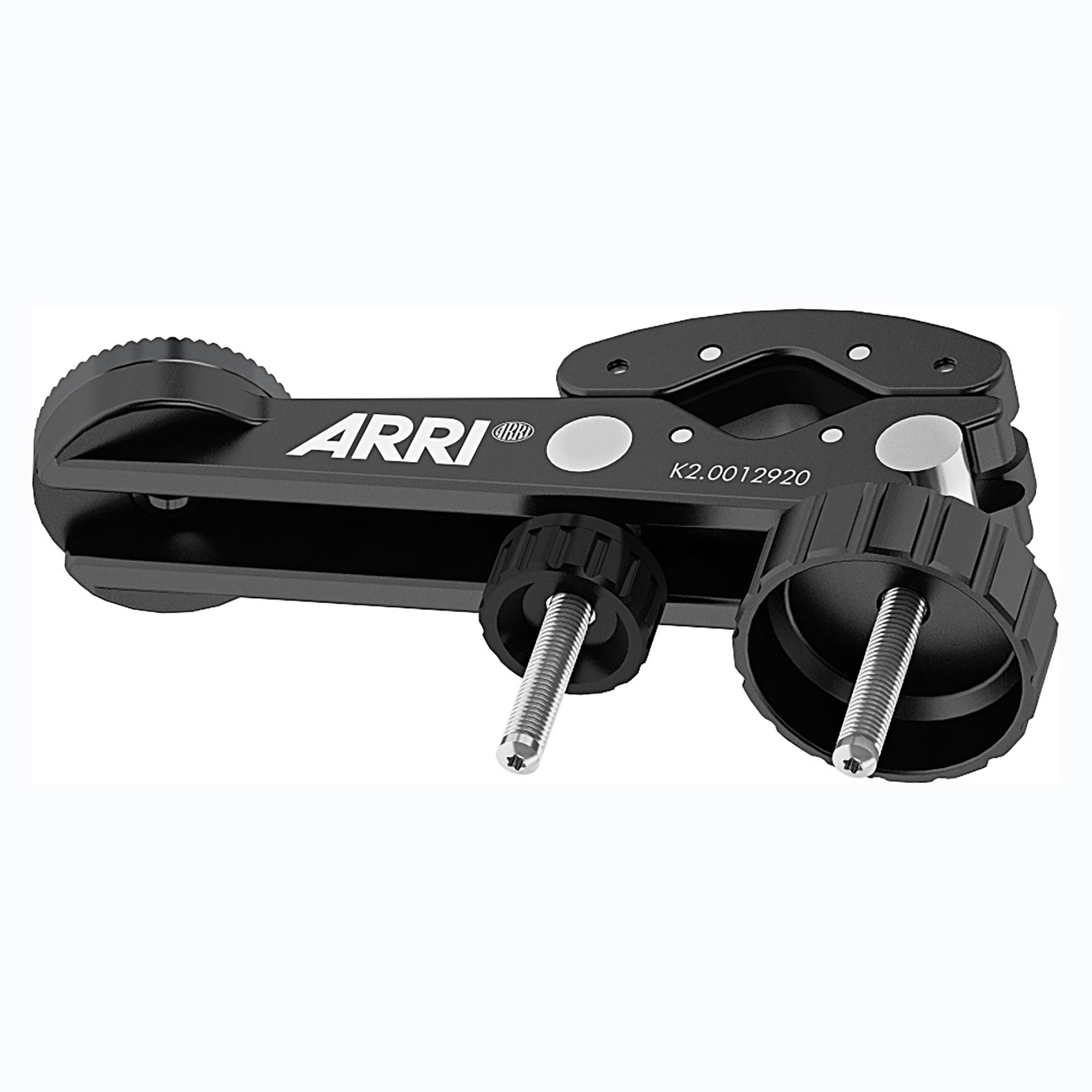

Adjustable clamp arm that links Master Grips and the ZMU-4 with a Rosette Adapter RA-7 to fluid head pan handles up to 32mm tube diameter.

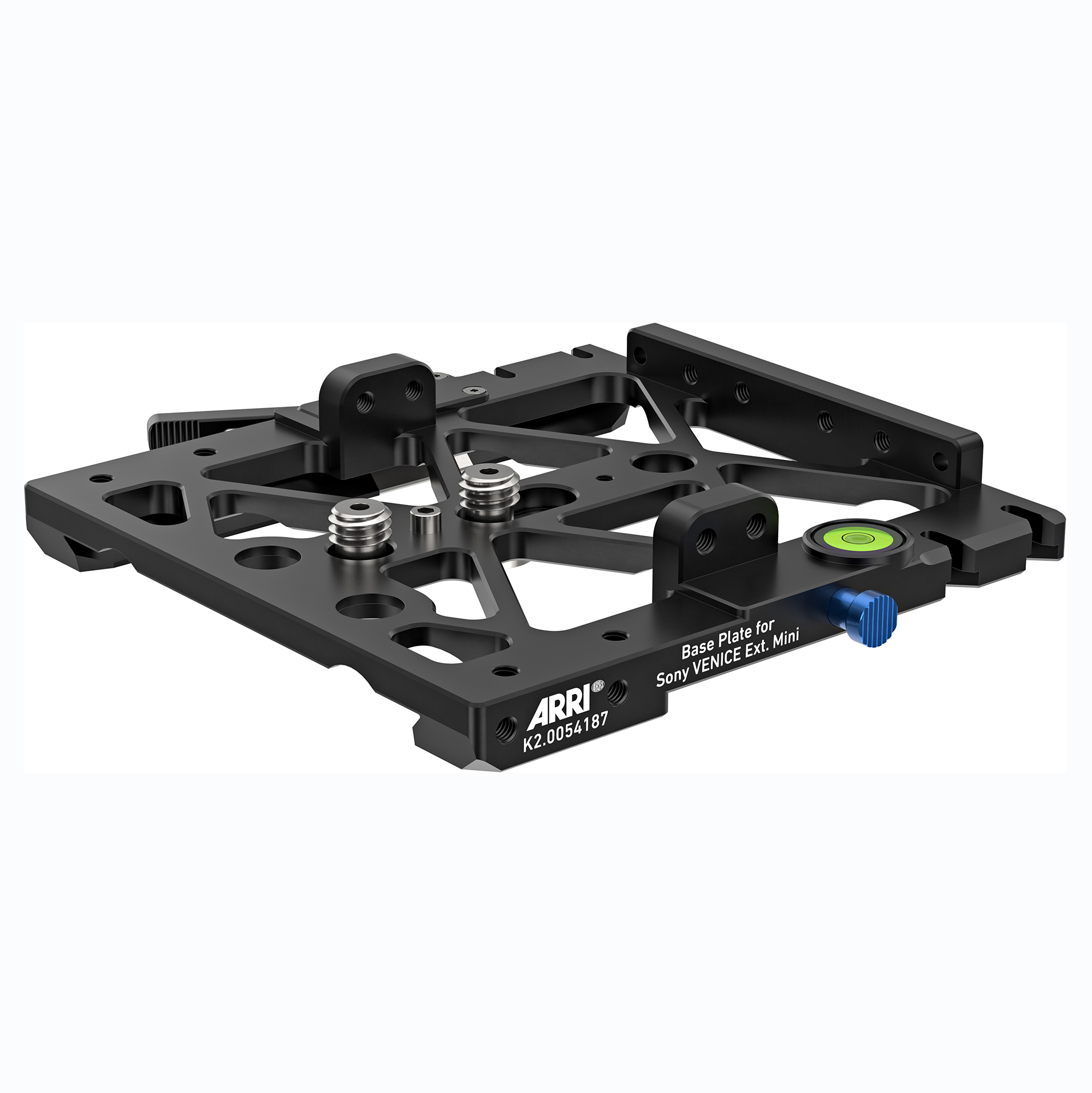

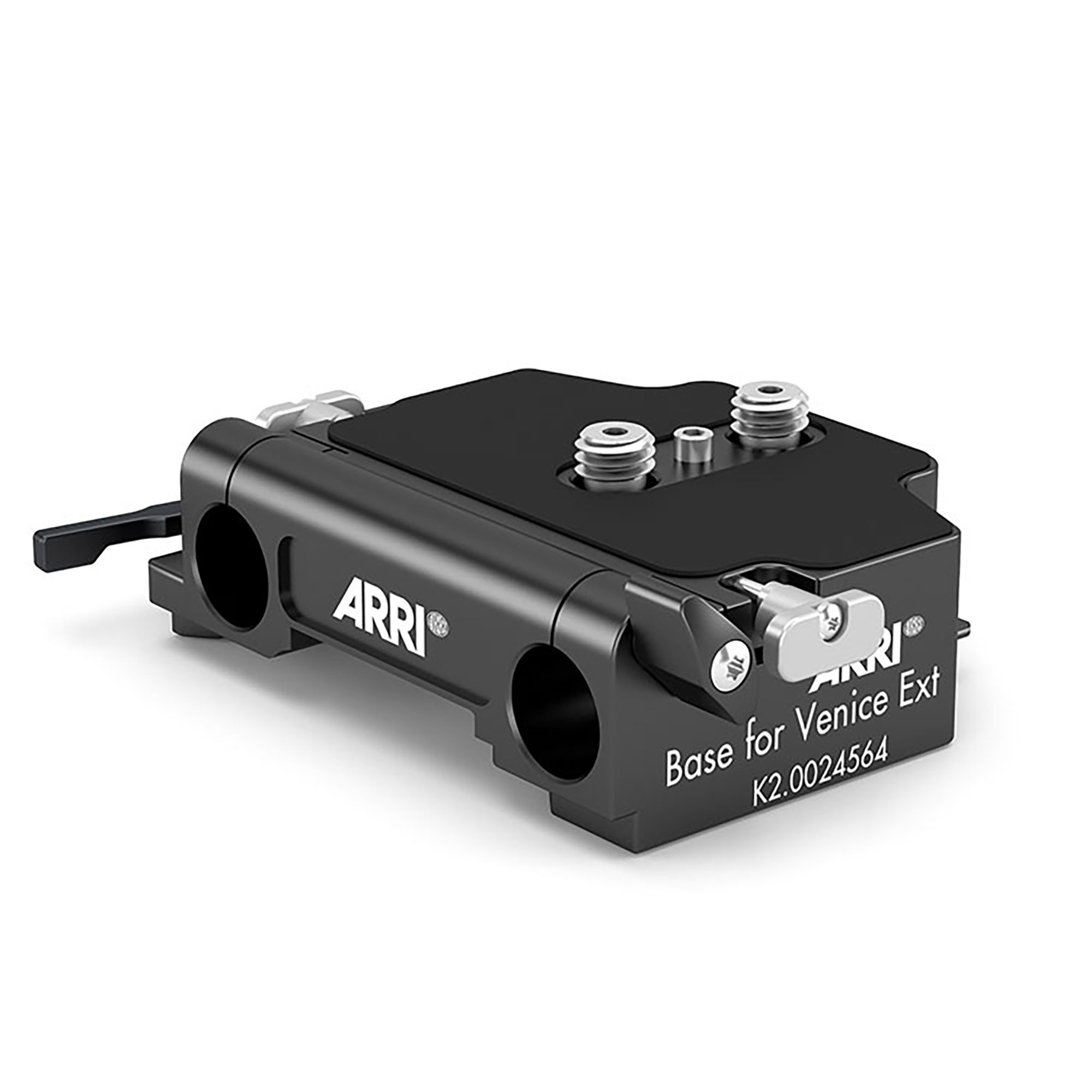

The Base Plate for the Venice Extension Unit is compatible with the BPA-5 and the ENG-style shoulder bottom part from the plate for Sony Venice. Like with the Sony Venice both can be easily attached by sliding them on and off from front or back. The release button is accessible from both sides. 15mm lightweight rod support standard is integrated.Compatible with Extension Unit (Rialto) 1 and 2.
The Base Plate is designed as a Balance Utility Dovetail (BUD) and mounts directly to the underside of the camera. Its integrated dovetail enables extensive fore-aft balancing adjustments when used with all standard shoulder pads, bridge plates, and SAM plates.Compatible with CBP-5, CBP-6, CSP-2, BPA-6, UAP-4, SAM-5/6/7/8/9 and LTP-1. These accessories can be easily attached by sliding them on or off from the front or rear, with the release button accessible from both sides.The Base Plate offers a pair of M4 threads on each side to attach the side brackets left and right, and an additional pair of M4 threads on the front side to attach a Lightweight Support LWS-7 as 15 mm rod mounting support.Compatible with Fujifilm GFX ETERNA 55 camera.Please note: Due to the height of the Fujifilm ETERNA 55, rods mounted via the Compact Bridge Plates CBP-5/-6 and the BPA-6 are positioned approximately 10 mm below the standard heights defined for 15 mm LWS and 15/19 mm Studio rod standards. To achieve the standard 15 mm LWS height please use the Base Plate for ETERNA 55 together with the LWS-7 for full compatibility. The 19 mm Studio standard height is not supported
Pivotable clamp arm to attach Master Grips and the ZMU-4 with a Rosette Adapter RA-7 to fluid head pan handles with 18mm tube diameter.
Pivotable clamp arm to attach Master Grips and the ZMU-4 with a Rosette Adapter RA-7 to fluid head pan handles with 20mm tube diameter.
The Base Plate is designed as a Balance Utility Dovetail (BUD) and mounts directly to the underside of the camera. Its integrated dovetail enables extensive fore-aft balancing adjustments when used with all standard shoulder pads, bridge plates, and SAM plates.Compatible with CBP-5, CBP-6, CSP-2, BPA-6, UAP-4, and SAM-5/6/7/8/9. These accessories can be easily attached by sliding them on or off from the front or rear, with the release button accessible from both sides.The Base Plate offers a pair of M4 threads on each side to attach the side brackets left and right.Compatible with Sony VENICE Extension System Mini

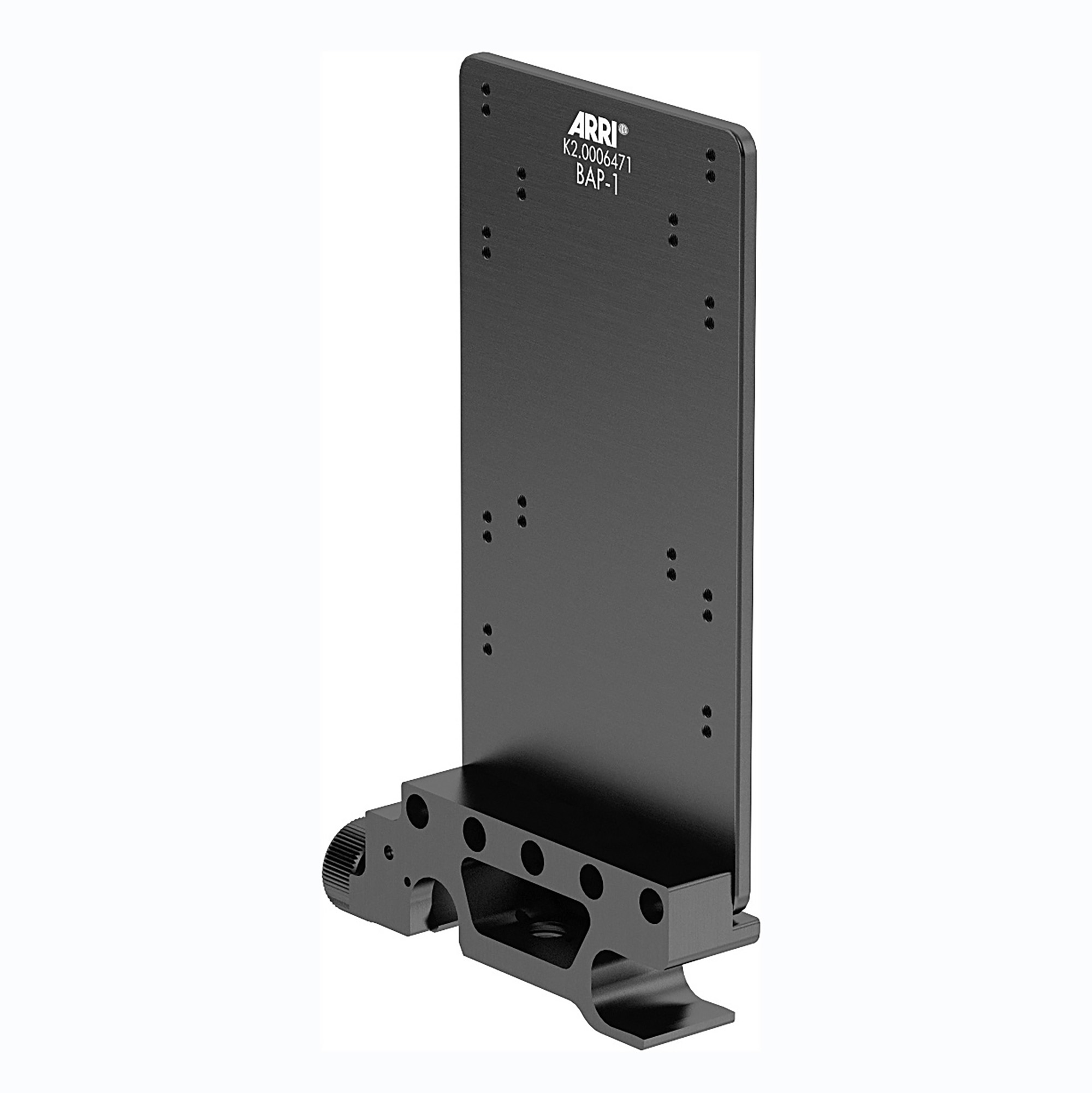

The battery plate allows industry standard battery mounts such as V-mount and Gold Mount to fit to 15mm LWS rods. The battery plate can be offset in order to clear rear card slots or optimise balance.

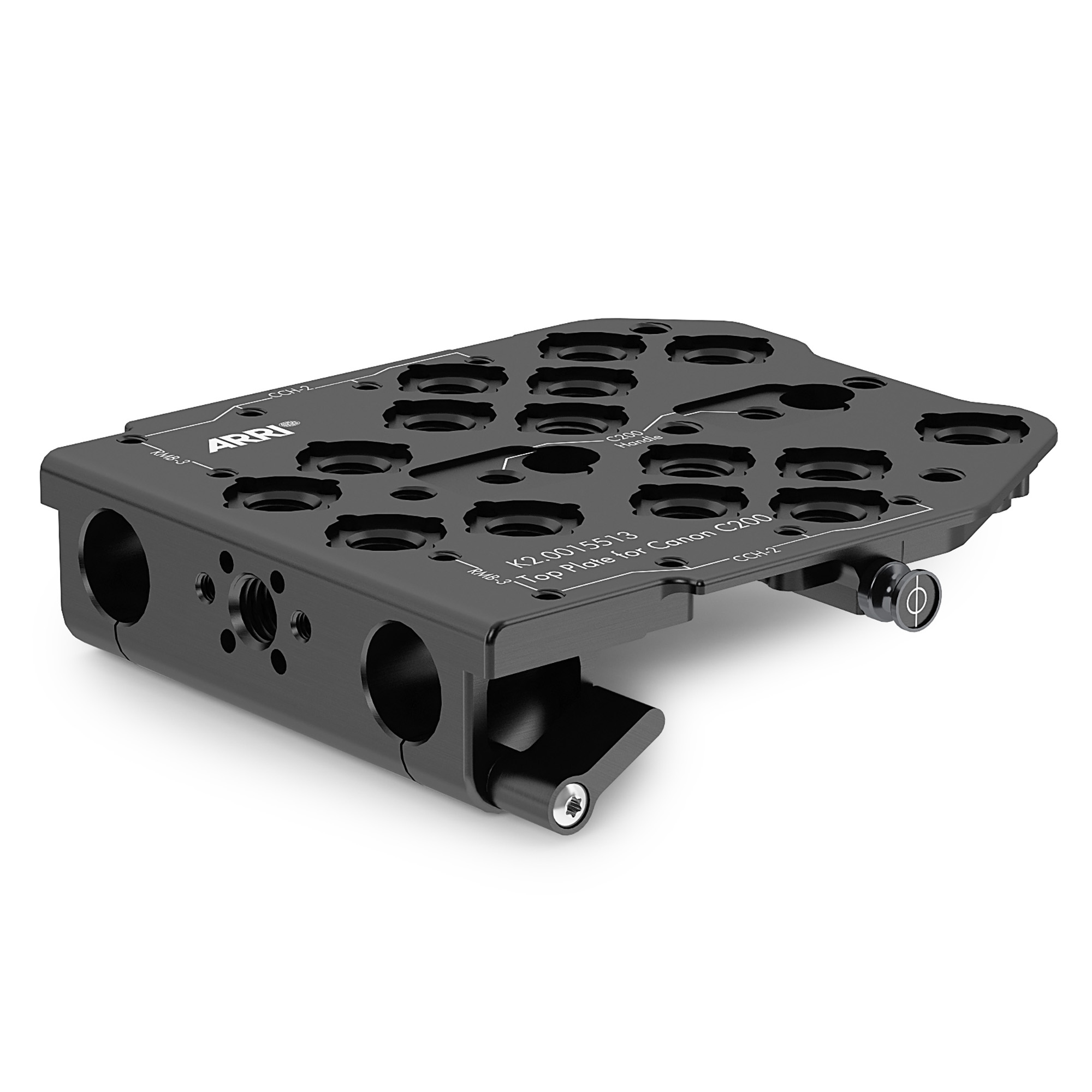

The ARRI Top Plate for Canon C200 is a low-mode support, featuring numerous accessory threads and a built-in console for 15 mm LWS with the possibility to use either the original C200 or the ARRI CCH-2 top handle.

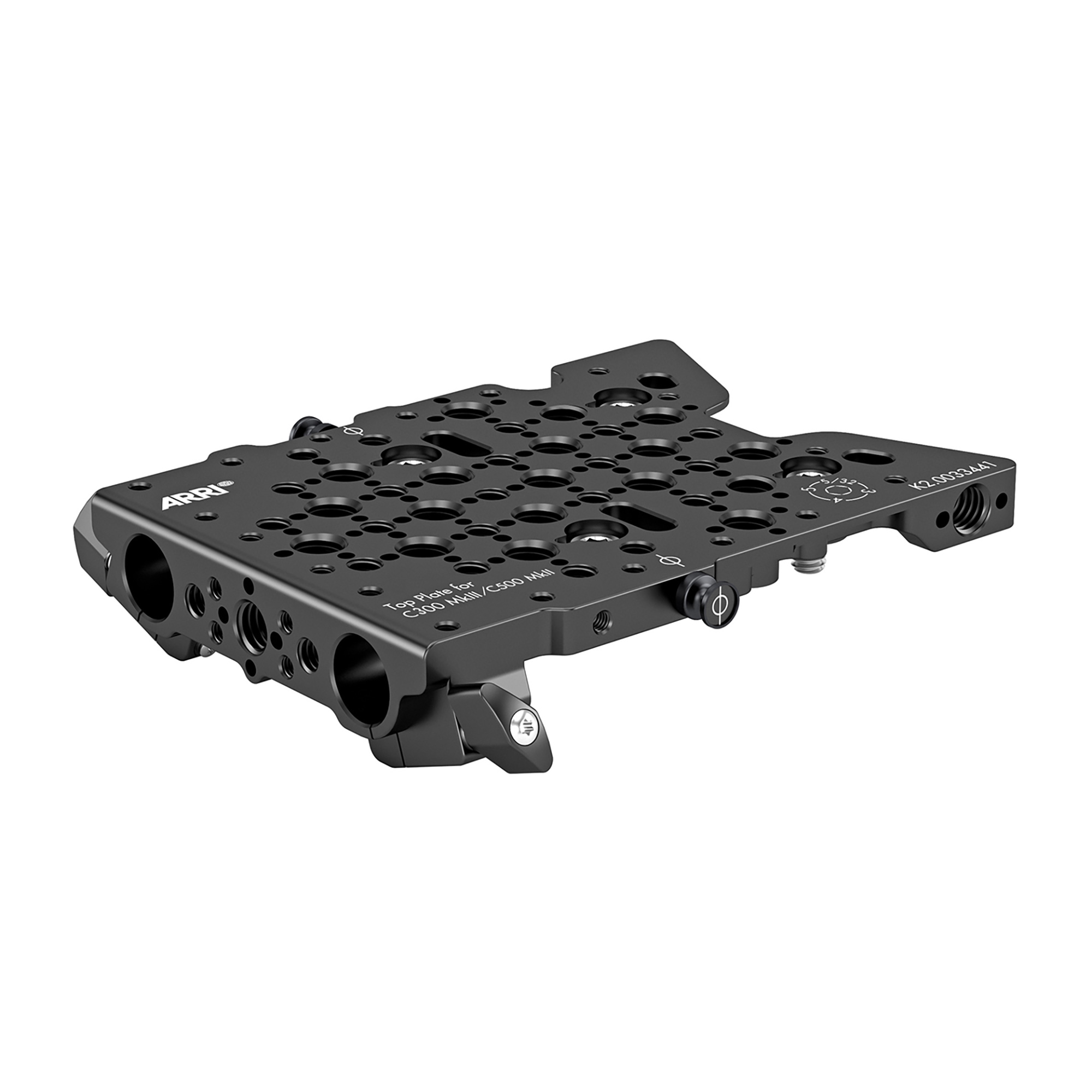

The Top Plate for C300 MkIII/ C500 MkII offers a variety of 1/4-20 3/8-16 and M4 threads for additional accessory support such as the RMB-3, CCH-4 (CCH-4 Sliding Adapter option) or CCH-2. An integrated optically centered 15mm lightweight support interface allows to mount 15mm rods or the Mini Viewfinder Bracket MVB-1 (K2.0006140). The C500 MkII monitor (via the Monitor Bracket for Canon C200 K2.0015520) or Canons C700 EVF (via K2.0013195 EVF bracket for C700) can be attached to the MVB-1.

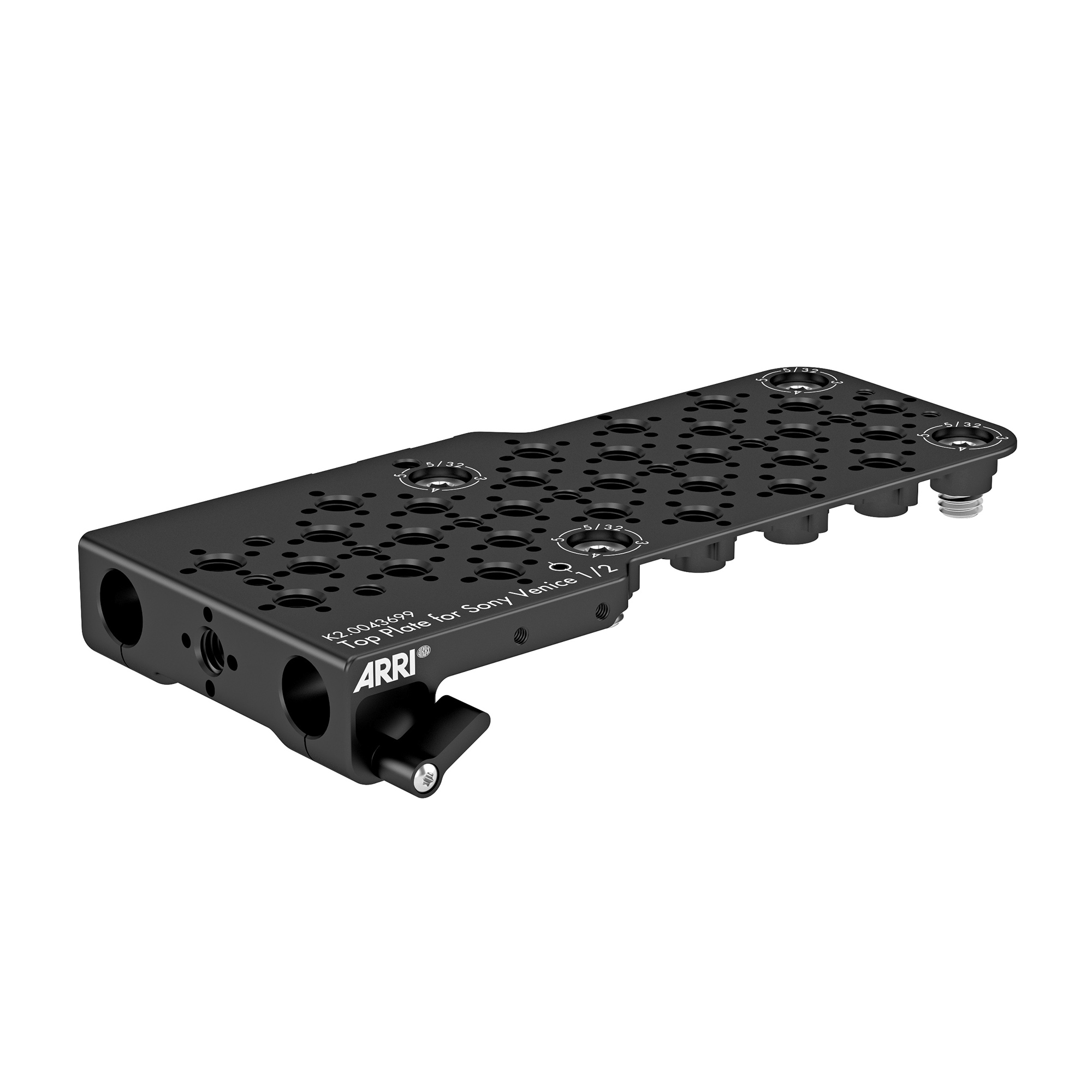

Compatible with Sony Venice 1/2.Low-mode support, featuring numerous threads (3/8”-16 1/4”-20 M4) for additional accessories and an optical centered built-in 15mm lightweight console with the possibility to use either the original Sony Venice Viewfinder and bracket or ARRI´s Mini Viewfinder Mounting Bracket MVB-1 in combination with the EVF bracket for Sony DVF-EL200. This plate offers a pair of M4 threads on each side to attach the side brackets left and right.

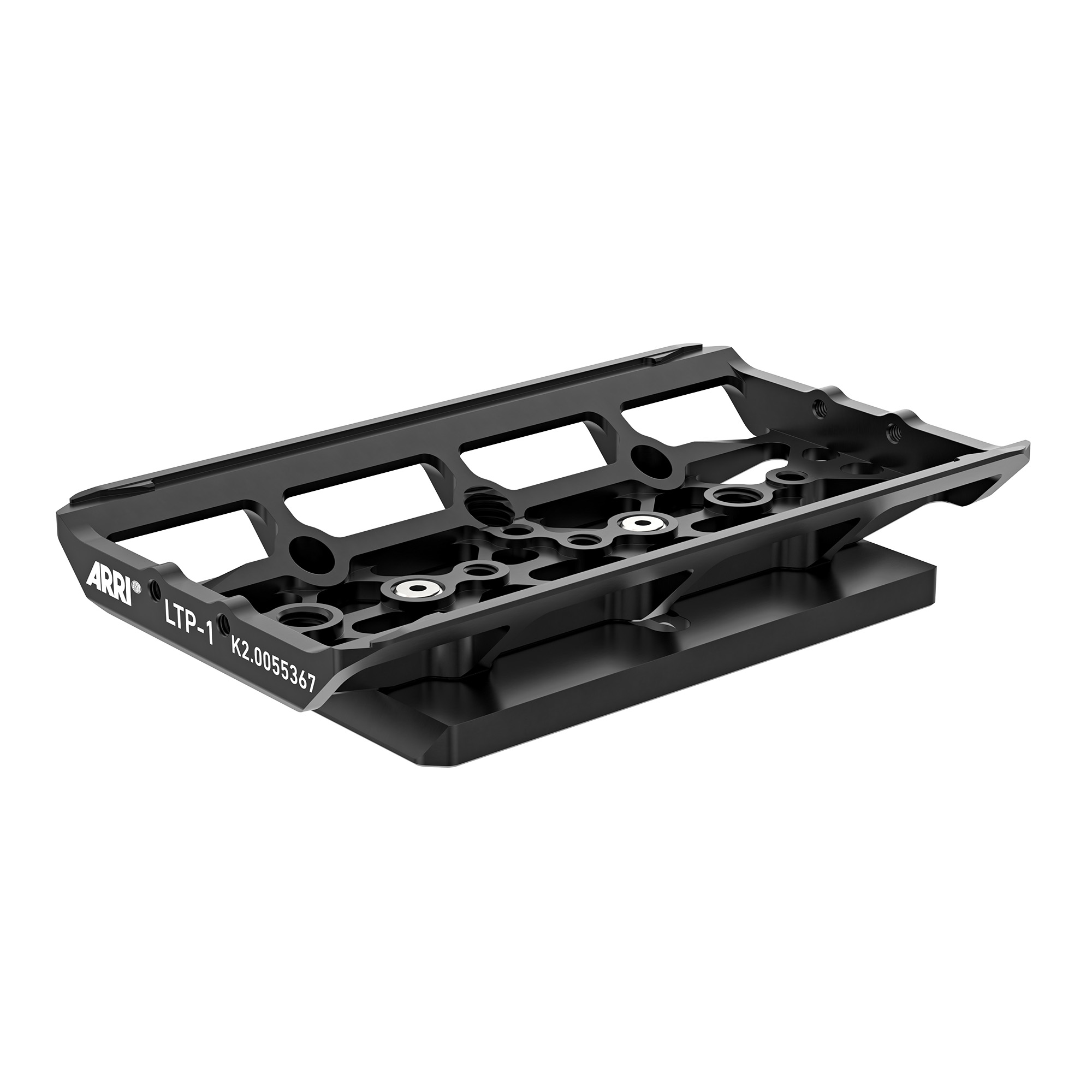

The LTP-1 enables direct tripod mounting of the BUD via an integrated “Touch and Go 35” snap-plate, with no additional plate required.The modular design consists of two main components: an adapter plate with a dovetail interface for compatibility to the BUD, and an adapter plate for various tripod heads.The snap-plate features two 3/8 Multi-Hex screws for secure attachment and includes four recesses on the rear side for applying rental labels.Two additional threaded holes allow repositioning of the 3/8 screws to support vertical format shooting.The counterpart BUD dovetail is compatible with standard Touch and Go 16 interfaces.Front and rear interfaces are provided for LWS-7 support.

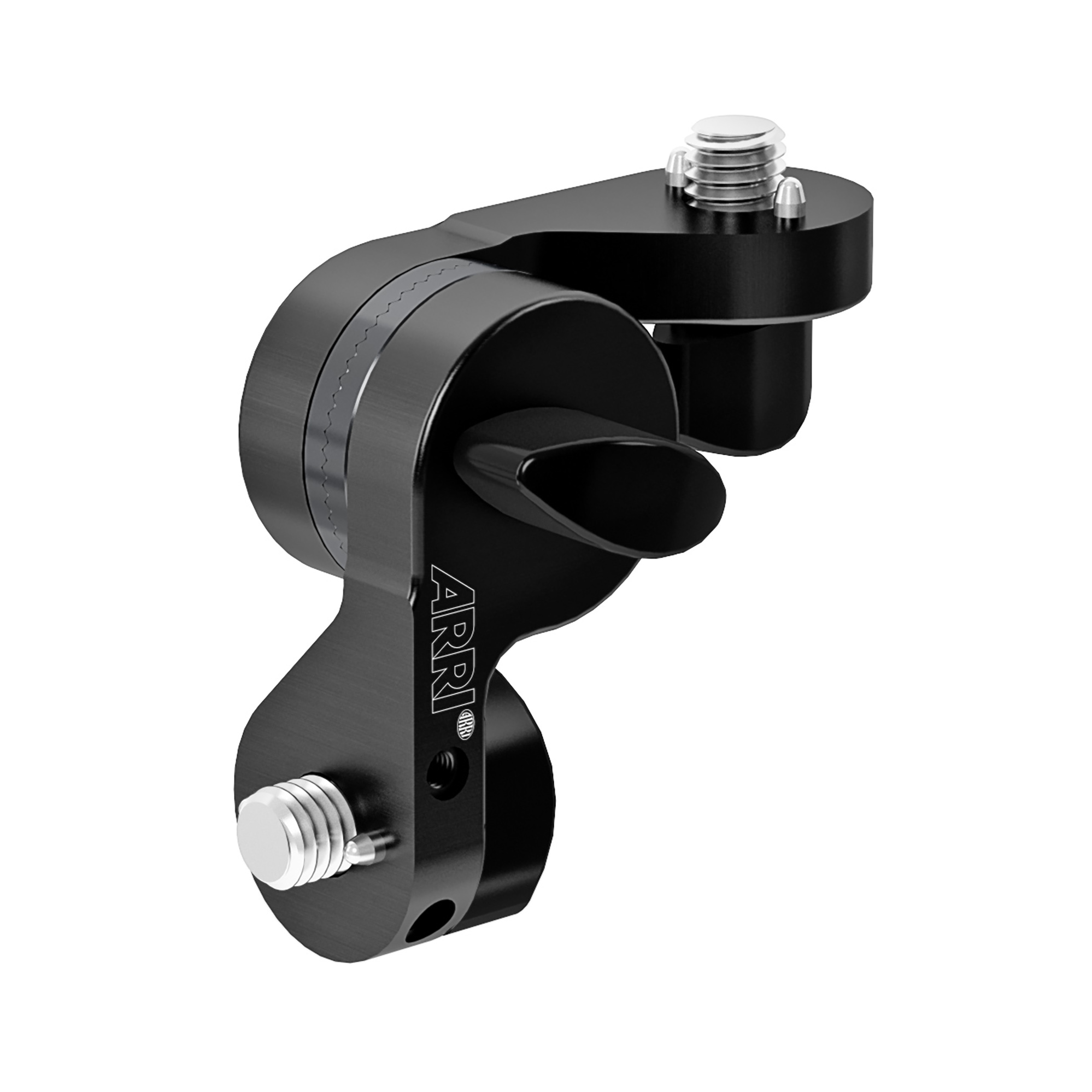

The strong hinge locks via a rosette and mounts through a standard 3/8-16 interface with removable anti-rotation pins. The ARRI Rosette Based Hinge is not limited to the Recorder and Battery Bracket, and can be used for other purposes.
Articulated accessory holder arm for attaching accessories with 3/8-16 mounting points to cameras with 3/8-16 mounting points. 240mm / 9.4 long, with two swivel ball joints and one elbow joint.

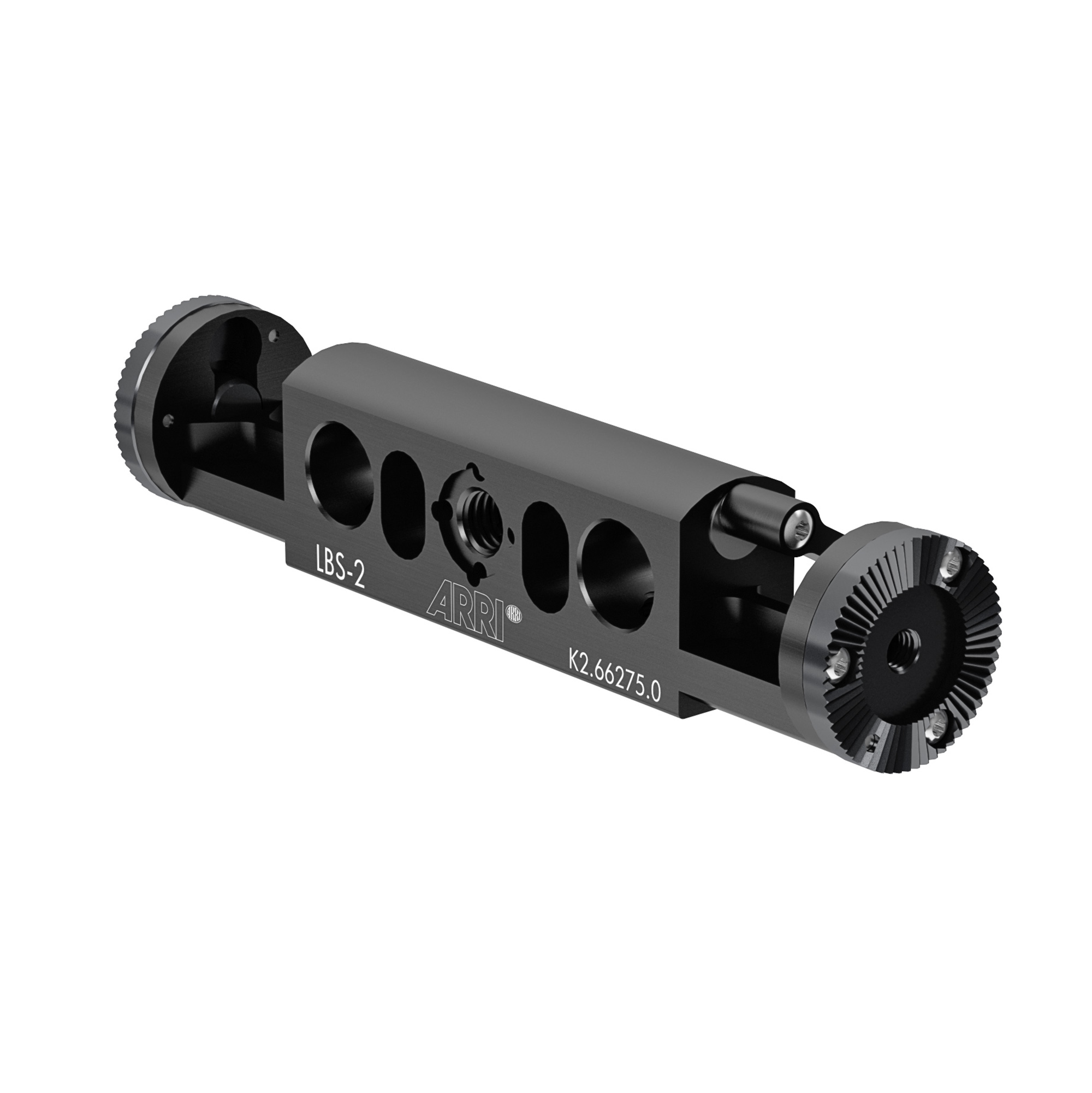

ARRI`s Lightweight Bridge support LBS-2 comes with hard-mounted rosettes, offering lightweight rod support standard for handheld set.
The handle adapter allows to attach the Panasonic AU-EVA1 handgrip at a handgrip extension. This allows to extend the distance between camera and handle. Using the HGA-3 requires a longer, separately sold 3rd party LANC cable.

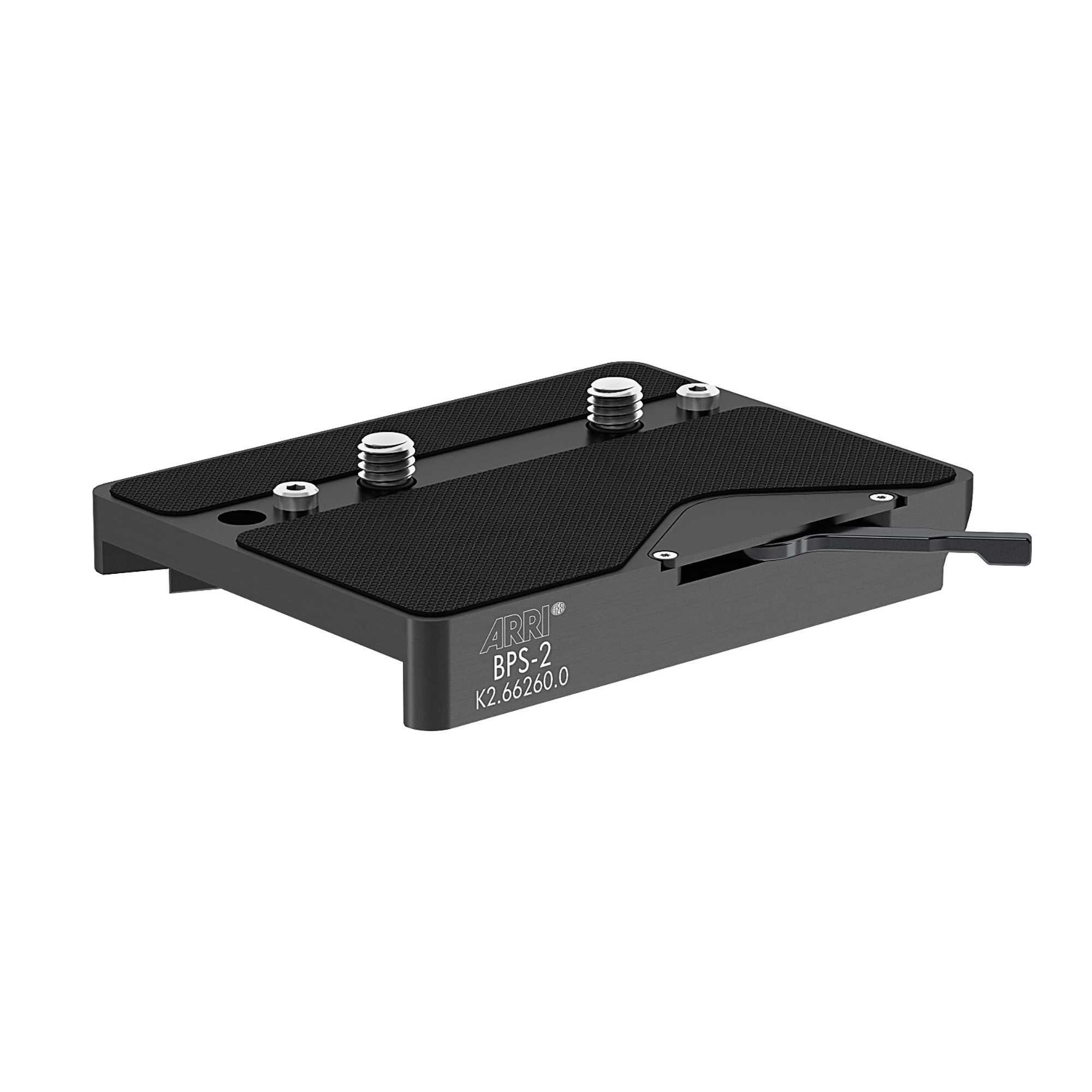

The Bridge Plate Sled BPS-2 is a lightweight alternative to a studio bridge plate when a bottom plate is useful for better balancing but studio rods are not needed. Compatible with most 3rd party ARRI accessories sharing the same BP-8/ BP-9 interface.

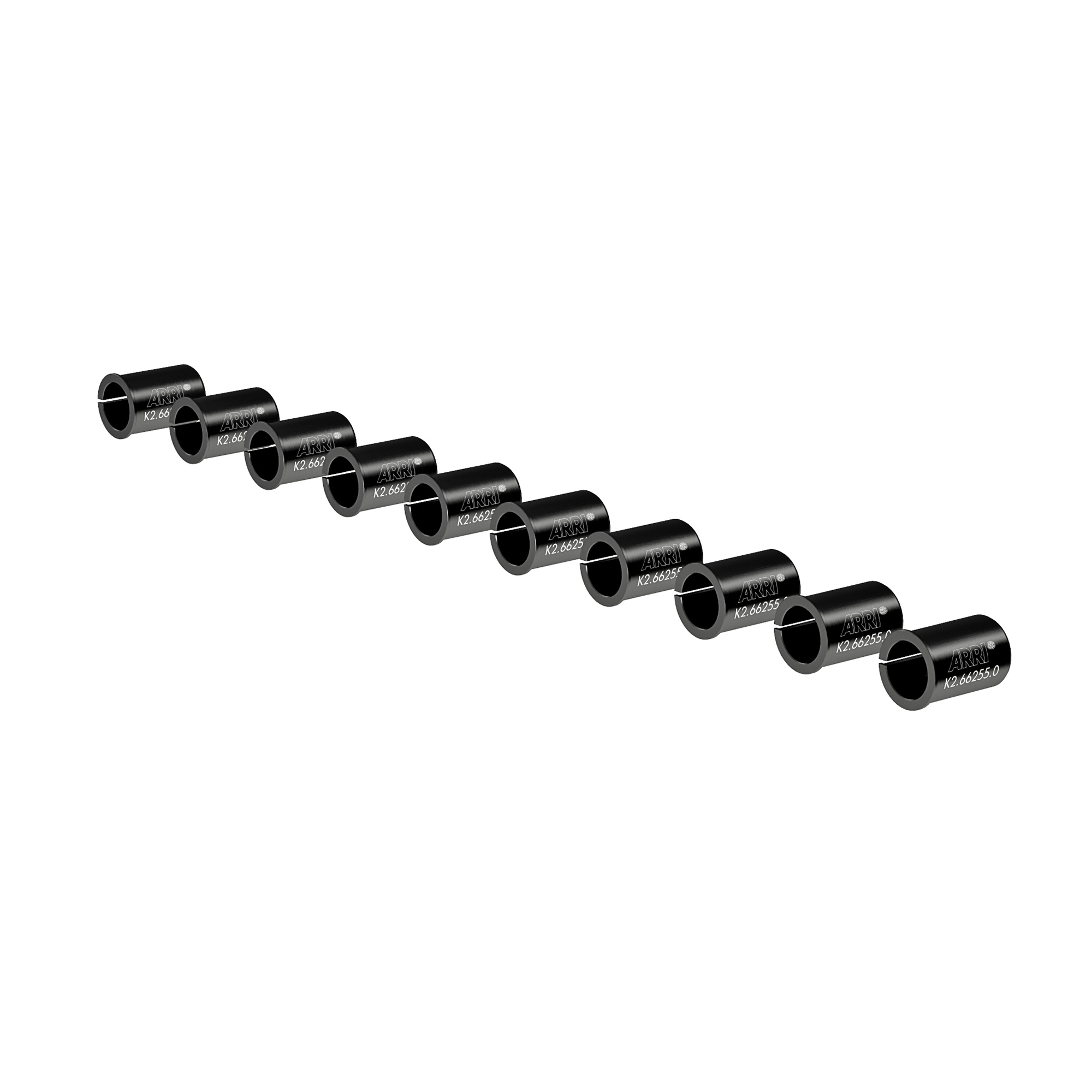

The 15 mm reduction insert can be fitted to any 19 mm rod mount to allow compatibility with 15 mm rods.includes:K2.66255.0 10x 15mm Reduction Insert

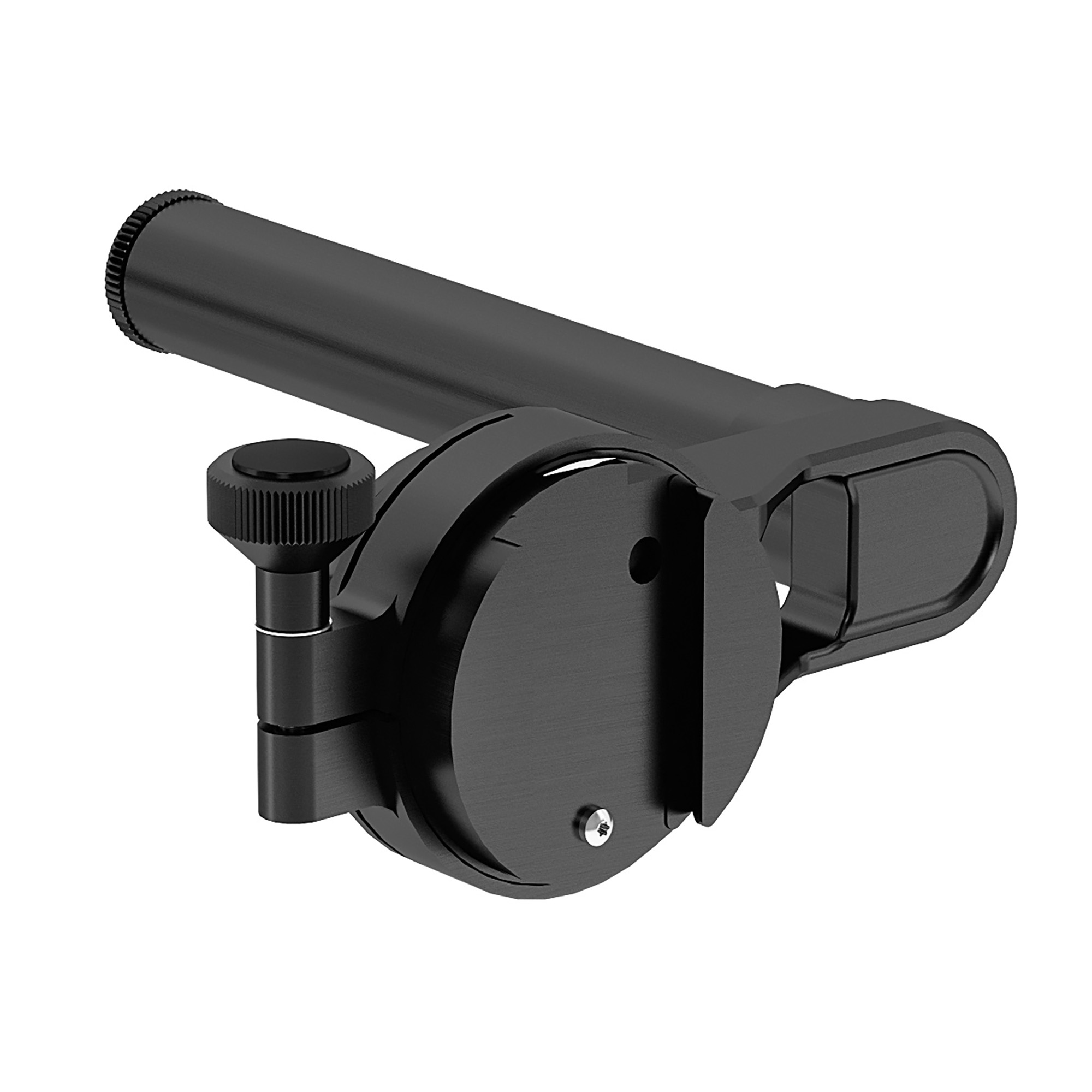

The ARRI Viewfinder Cross Pipe can be used in combination with the Viewfinder Mounting Bracket MVB-1 to attach ARRI or third party viewfinders in combination with the EVF brackets from ARRI PCA.

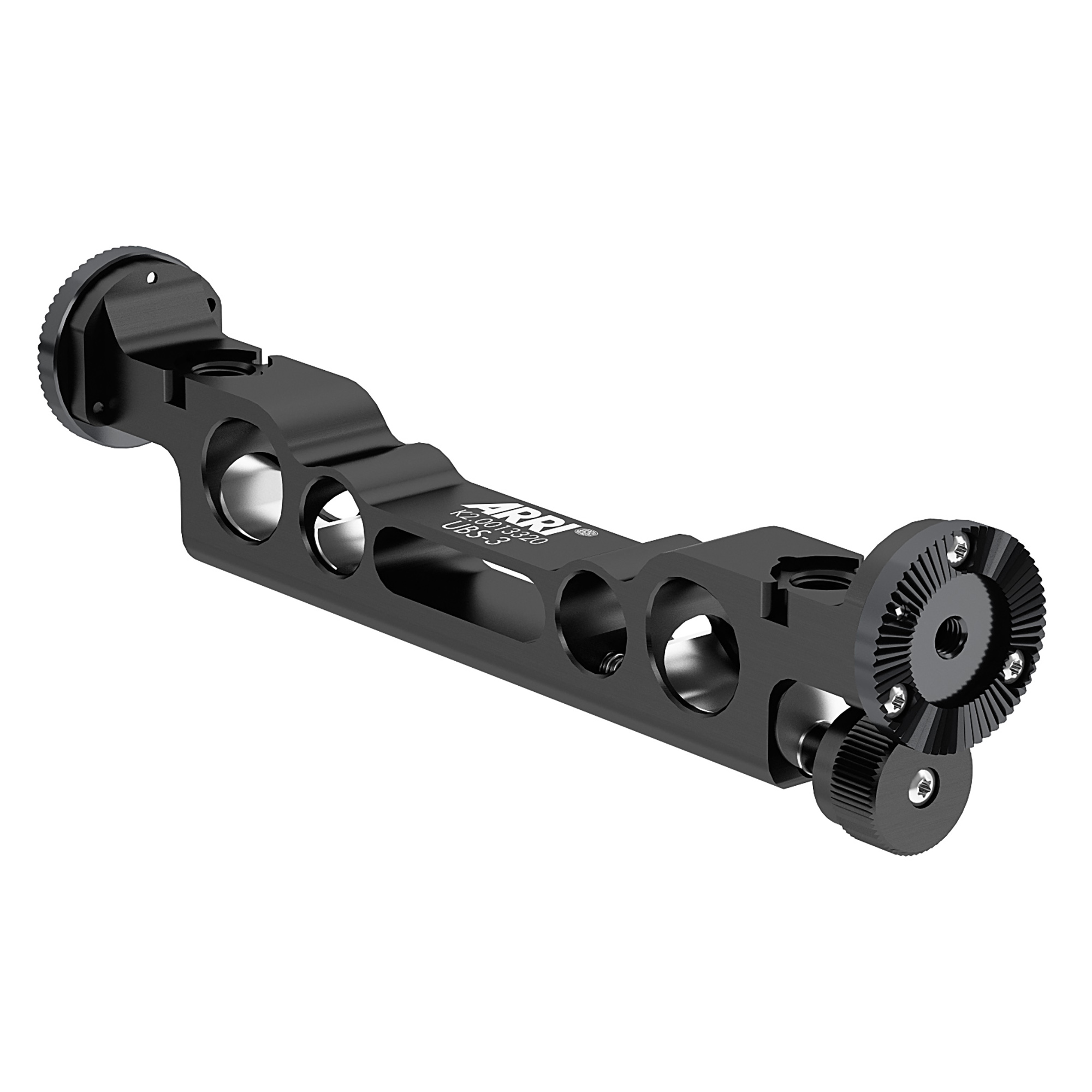

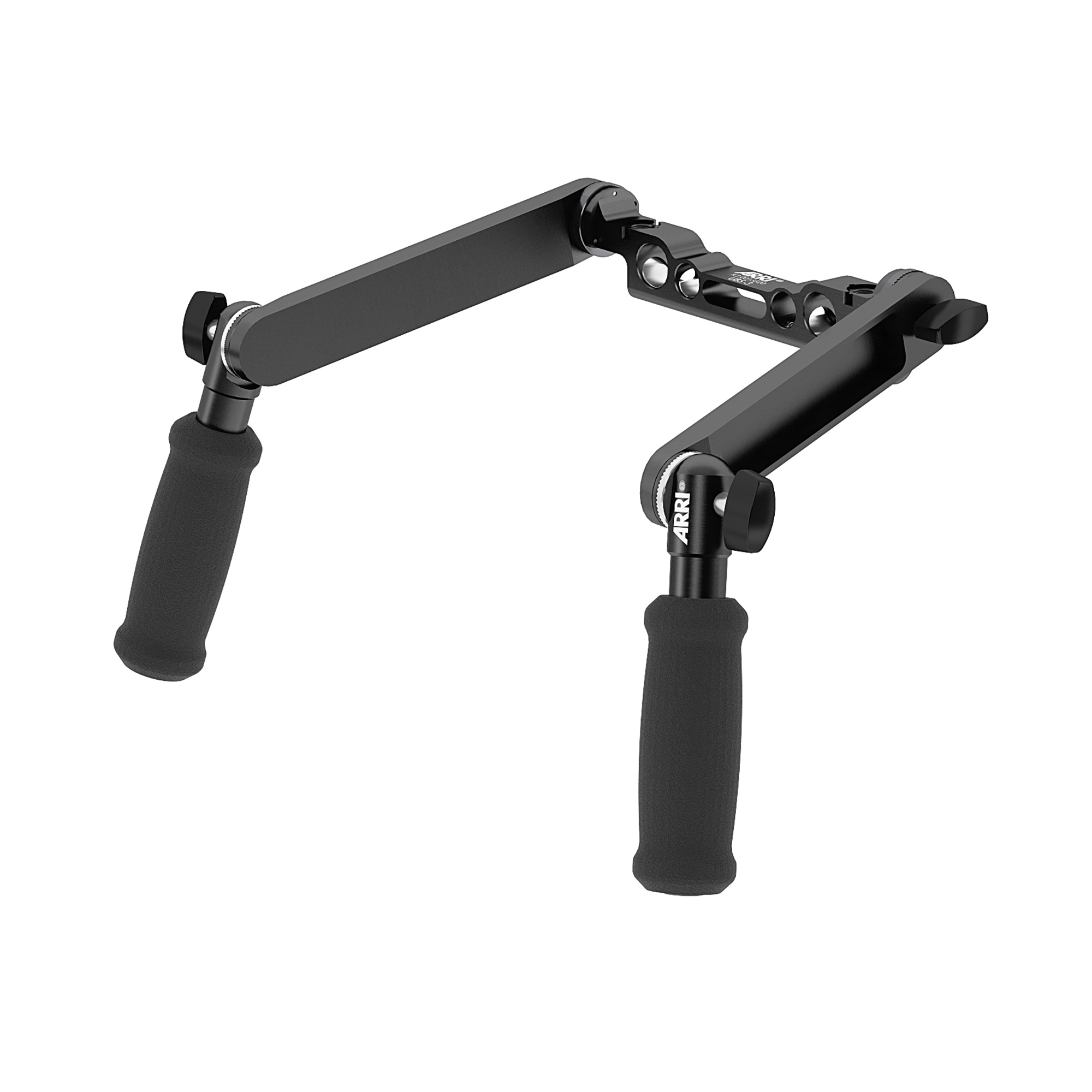

ARRI’s Universal Bridge Support UBS-3 offers compatibility with 19 mm studio, 15 mm studio and 15 mm lightweight rods and comes with hard-mounted rosettes with a total weight of only 240g.
Converts a 3/8-16 anti twist pin interface into an ARRI standard rosette.

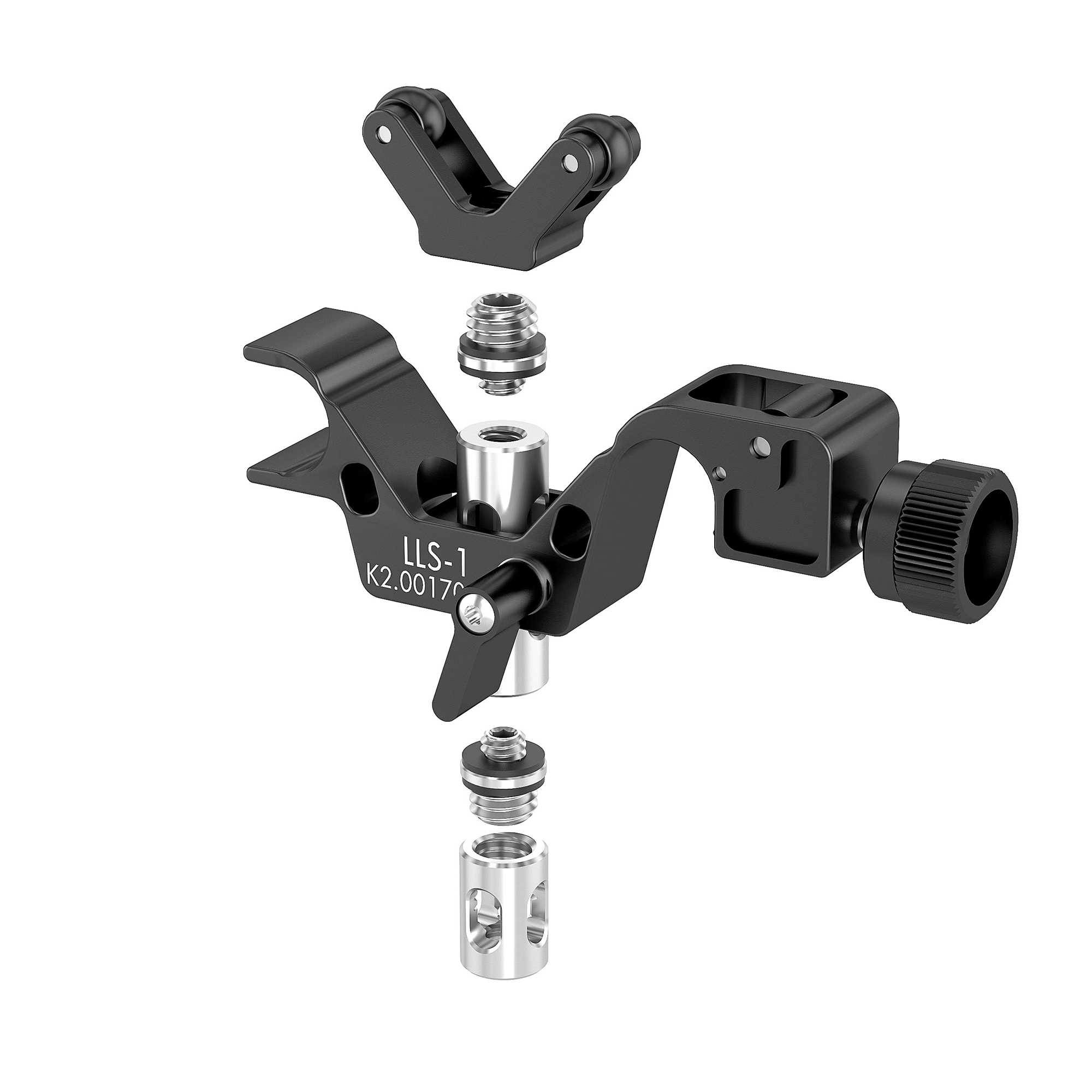

K2.0017029 1x Lightweight Lens Support LLS-1K2.0047386 1x LLS-1 Pin Small

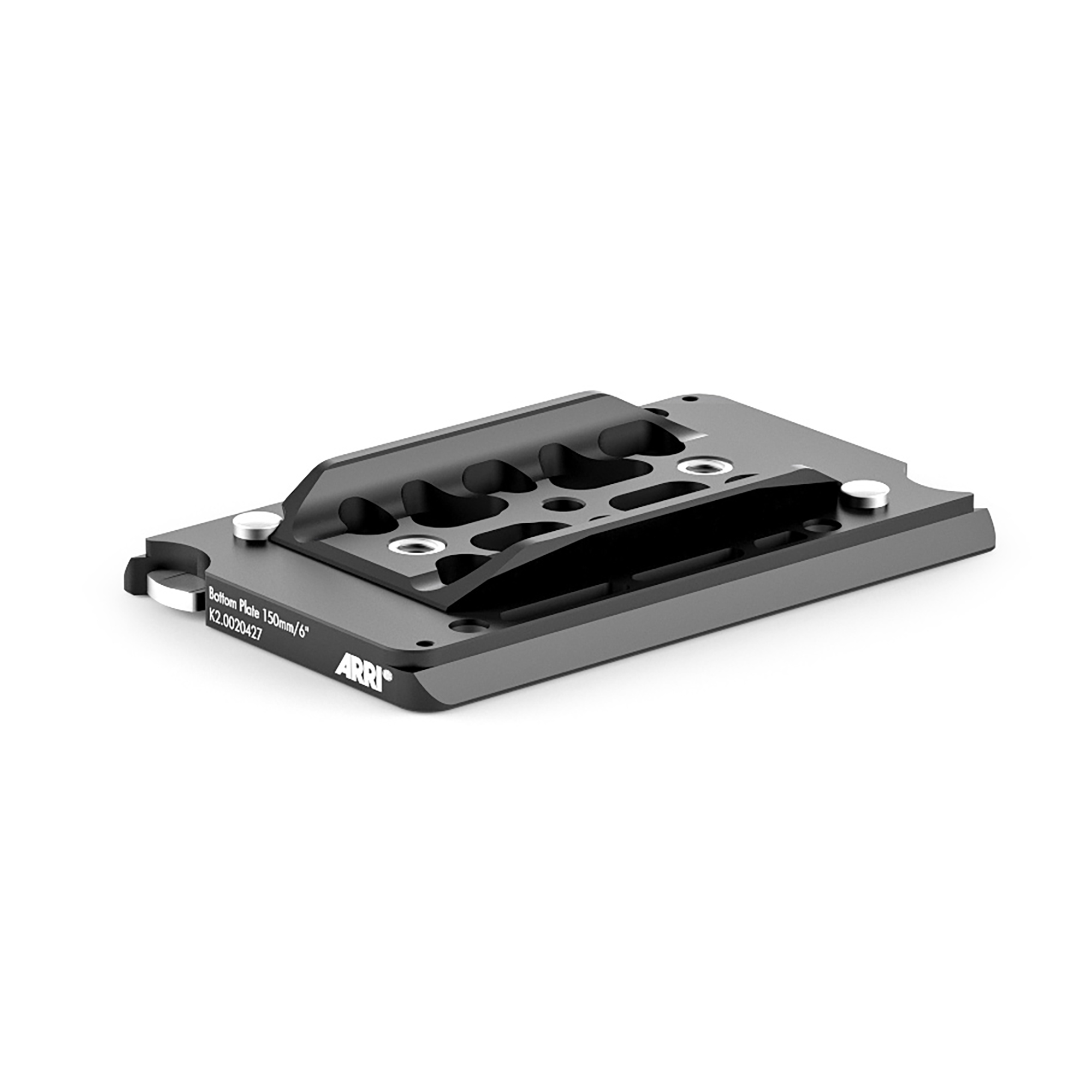

The shortest of our Bottom Dovetail Plates fits very well on camera carts, car mounts, Steadicam or with any applications when balancing is not necessary, but the interface is welcome to work with an BP-8/-9. All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.

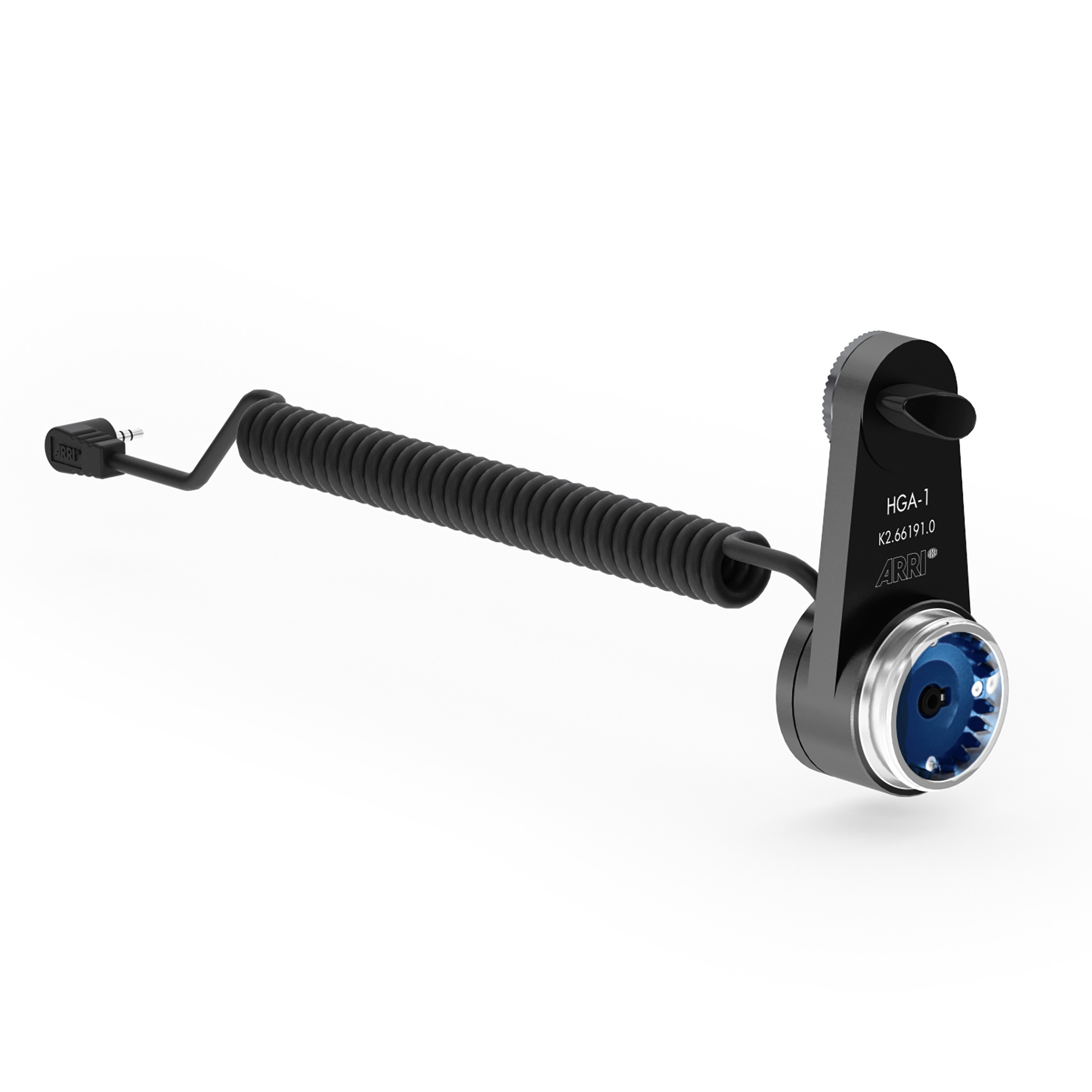

Allows camera operators to adjust camera settings while framing. Handgrip Extension Bracket HGA-1 includes a cable fitted with the Canon proprietary connector.Note:The HGA-1 is not compatible with the C300 MkIII and the C500MkII.

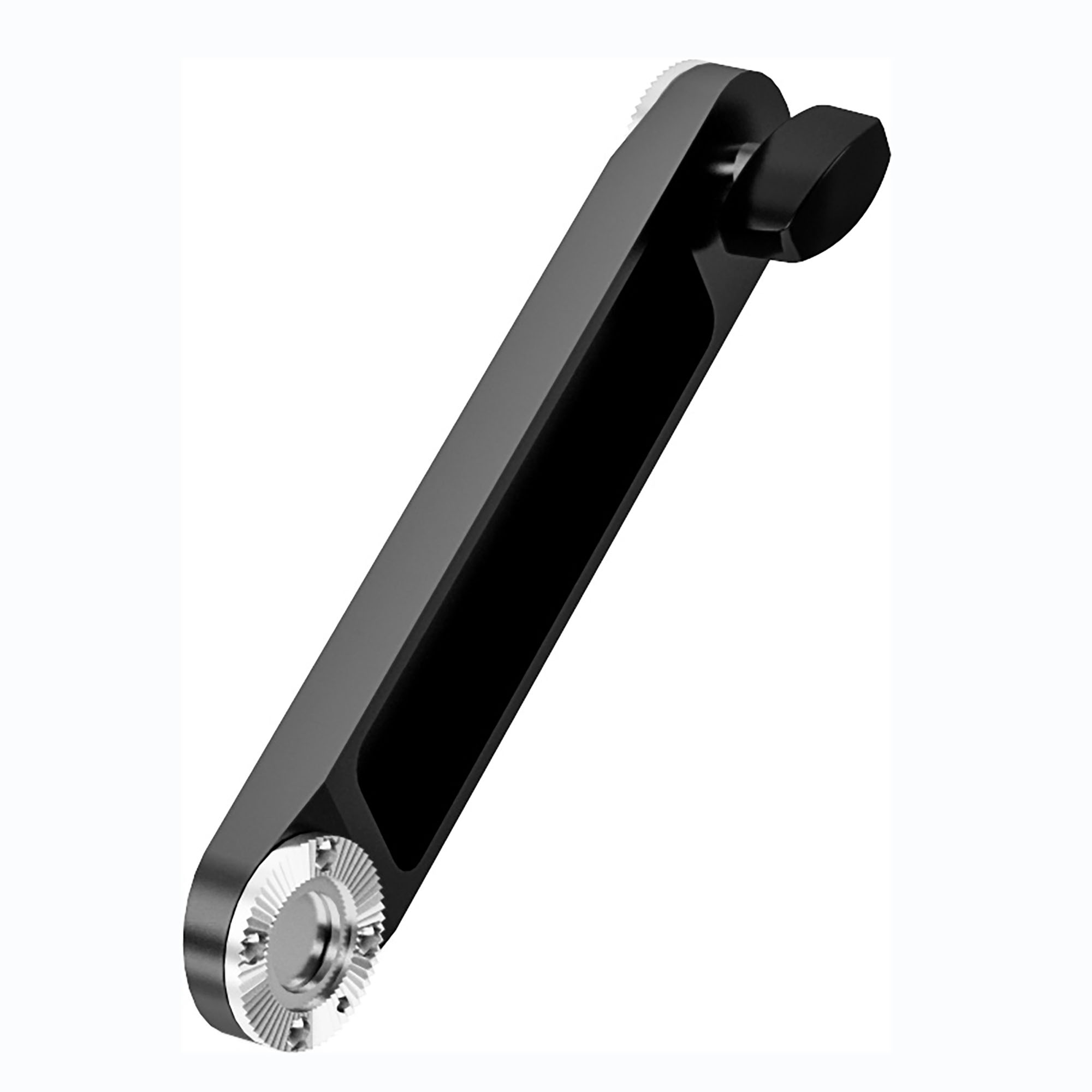

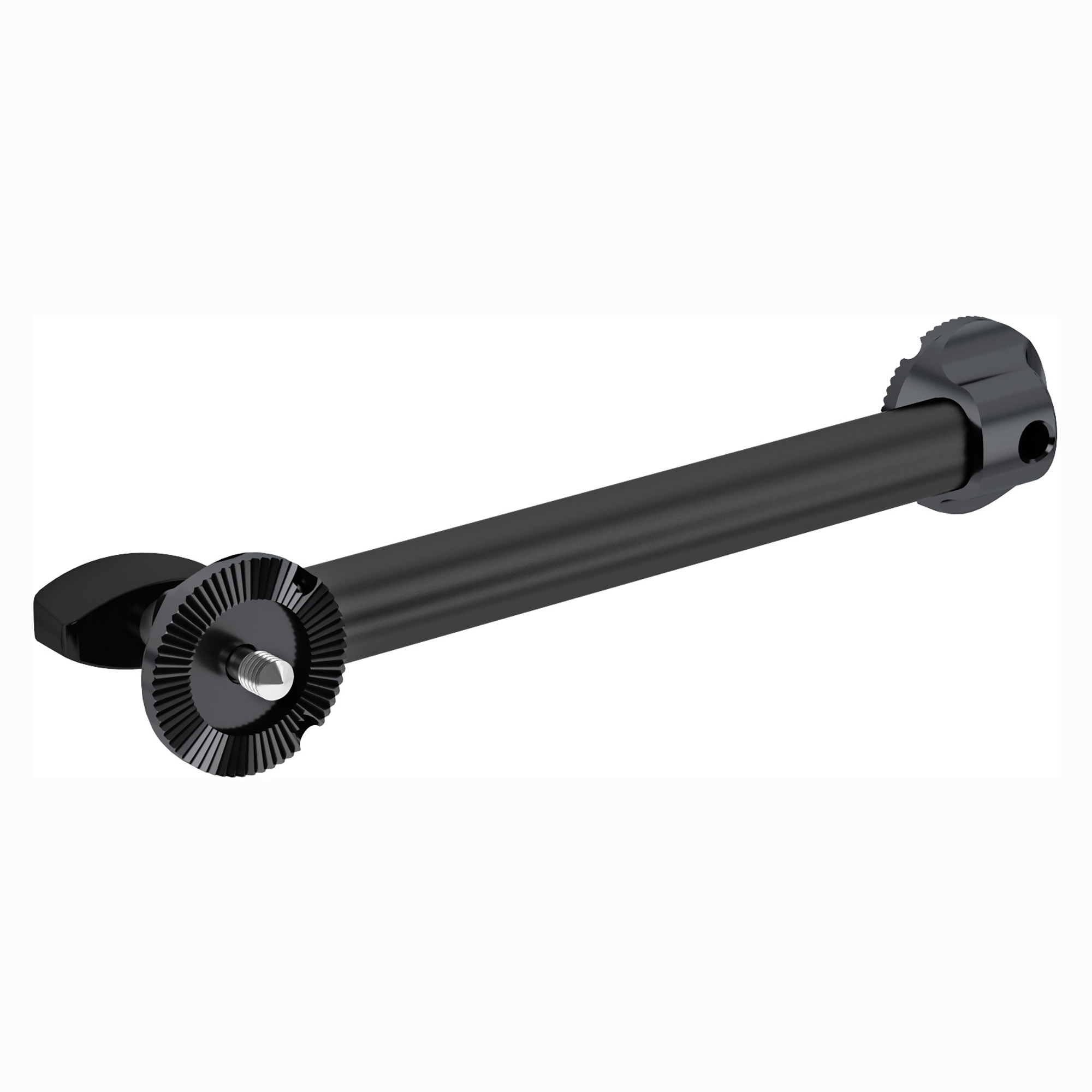

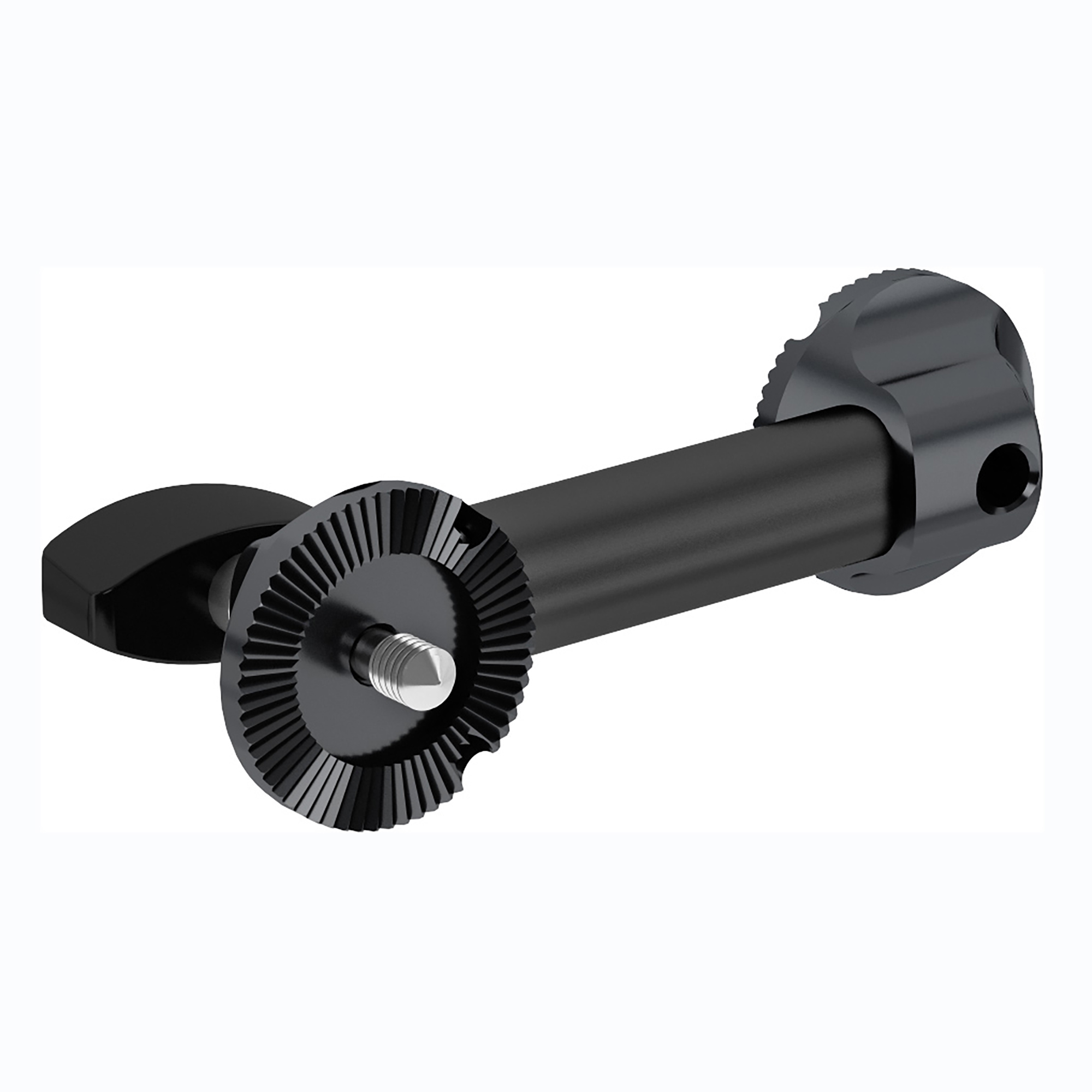

Stainless steel handgrip extension compatible with rosette-based systems, such as Master Grips.
Converts a 3/8-16 anti twist pin interface into an ARRI standard rosette.
Stainless steel handgrip extension compatible with rosette-based systems, such as Master Grips.
Can be mounted to several ARRI support accessories and offer optional front and rear or top mounted 15mm LWS rods.

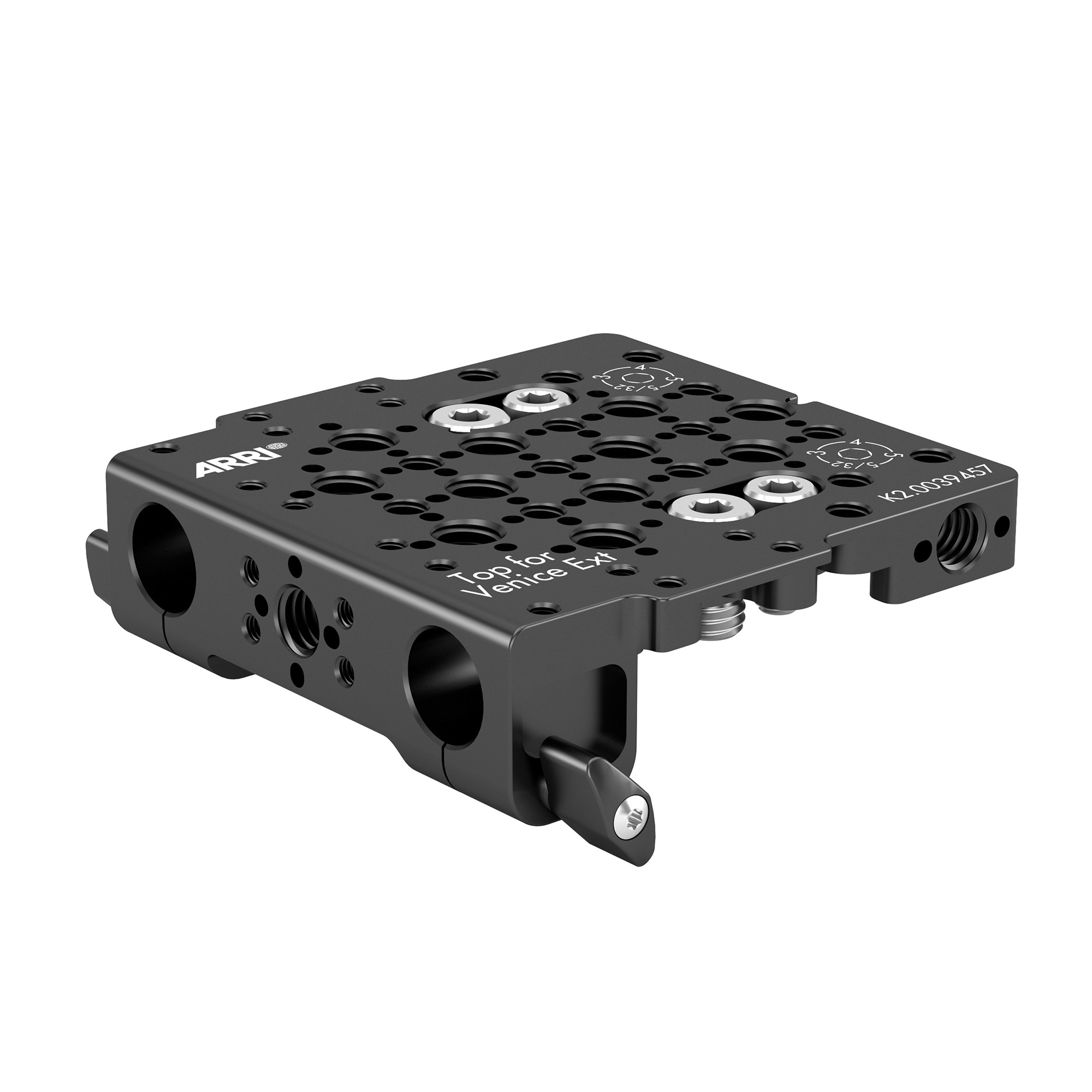

The Top Plate is attached to the Extension unit with four screws. It offers plenty of interfaces (3/8-16 and 1/4-20 with anti-twist pin holes RMB-3 CTH-1 CCH-2 and CCH-4 15mm LWS Rod Console at the back). It includes an optically centered 15mm lightweight rod support with individual rod clamps. An interface at the back offers the usage of ARRI´s 15mm LWS Rod Console.Compatible with Extension Unit (Rialto) 1 and 2.

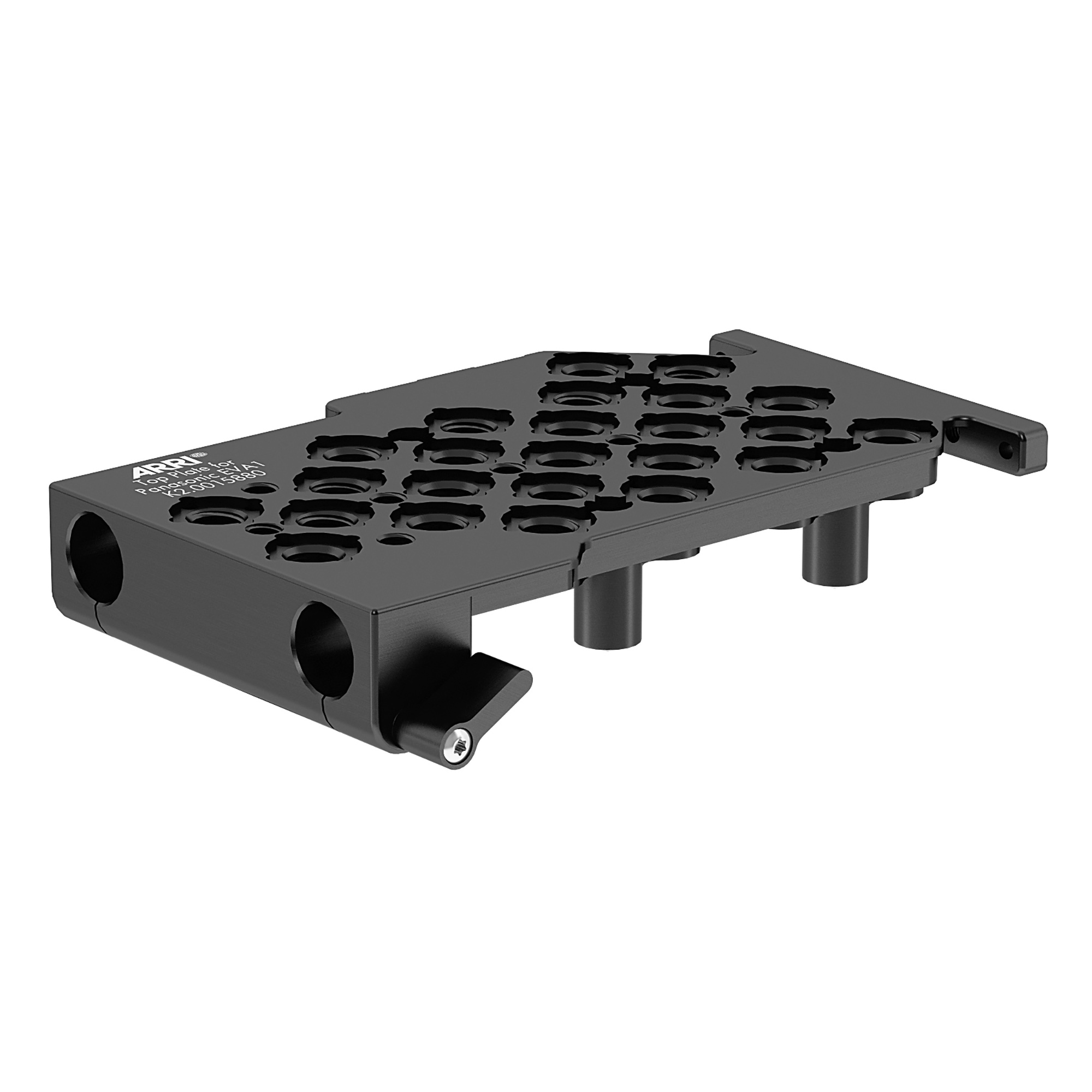

The ARRI Top Plate for Panasonic AU-EVA1 is a lightweight support featuring numerous accessory threads and a built-in console for 15 mm LWS rods.

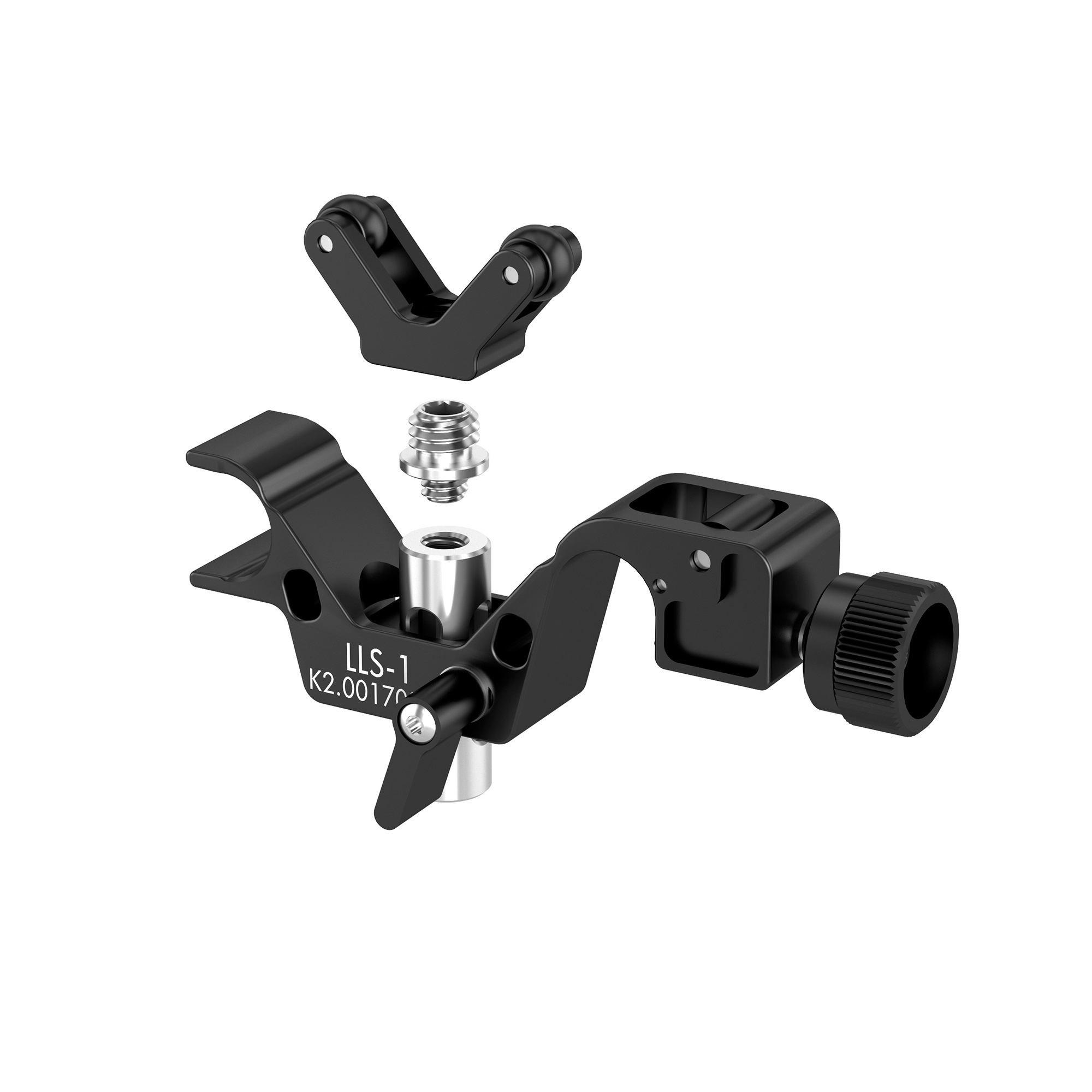

The Lightweight Lens Support LLS-1 is a multifunctional solution for lenses with a diameter in between 39 mm and 153 mm. It offers a 3/8 and a 1/4 interface for lenses with included lens support pin. Lenses without a pin, such as an Alura Lightweight Zoom, Prime lenses or still photo lenses can be supported by using the bracket with plastic support rollers. When necessary, the LLS-1 can be flipped in order to extend the range of support possibilities. This is needed when the support pin of lenses which are meant to be supported on studio 15 or 19mm standard is ending below the 15mm lightweight support standard.
