PCA: Mechanical Accessories

The ARRIHEAD II can be used with all tripods and camera dollies or camera support systems that employ a Mitchell flat base. All ARRIHEAD II control features are arranged to provide simple operation. Precision chain drives and worm gears ensure slackfree operation. The precision guides guarantee smooth tilting and panning.Without encoders. includes: K2.47171.0 Wedge Platenot included:K2.34301.0 Reduction Gear

The LMB 6x6 19 mm Studio 3-Stage Set includes all the components of the modular LMB 6x6, and can be fitted without any additional tools. It includes mountings for clamping-on, and for 19 mm rods. It also comes with flexible filter stages – both rotatable and non-rotatable – for up to three filters, including an extreme lightweight single filter option for use with gimbals. An optional swing-away system allows lens changes to be made quickly. A 10° up and down tilt mechanism helps avoid unwanted reflections. To further reduce stray light there is a choice of different matte sets, and top and side flags which fold completely flat for swift and convenient storage. The LMB 6x6 comes with a flexible rubber “donut” which allows for use with optics of different diameters and stills or vintage lenses. A sliding accessory mount provides optimized usage of distance measurement tools. All LMB 6x6 Sets (except the clamp adapter set) are delivered in a foam insert that fits perfectly into a Pelican 1637 case. includes:K2.0019218 1x LMB 6x6 Basic ModuleK2.0019133 1x LMB 6x6 Extra Non-Rotatable Filter StageK2.0019178 1x LMB 6x6 Top, Bottom FlagK2.0019085 1x LMB 6x6 Tilt and Flex Adapter 80-156mmK2.0013432 1x LMB 19mm Studio Rod AdapterK2.0019159 1x LMB 6x6 Extra Rotatable Filter StageK2.0019083 1x LMB 6x6 Swing Away Tilt Mod. 19mm StudioK2.0019216 1x LMB 6x6 Side FlagsK2.0013825 2x LMB Flag HoldersK2.0013014 1x LMB Accessory AdapterK2.0019253 1x LMB 6x6 Set of Mattes sphericalK2.0019258 1x LMB 6x6 Set of Mattes anamorphicK2.0023162 1x LMB 6x6 Foam Insert

The LMB 4x5 set to fulfill all needs with the most modular matte box – from single stage, to three stage, to bottom and top lightweight mounted, to the full-blown version with swing-away tilt module, all carbon fiber flags (top and side) and both extra filter stages (rotatable and non-rotatable). The weight of the whole Set is 2272g. The LMB 4x5 Pro Set comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Pelican 1560 case.Note: 19 mm, 15 mm studio rod adapters and rod adapters have to be ordered separately.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013427 1x LMB 4x5 15mm Lightweight Support ConsoleK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013460 1x LMB 4x5 Extra Rotatable Filter StageK2.0013447 1x LMB 4x5 Swing Away Tilt ModuleK2.0013750 1x LMB 4x5 Side FlagsK2.0013825 2x LMB Flag HoldersK2.0000069 1x LMB 4x5 Set of Mattes sphericalK2.0007992 1x LMB 4x5 Set of Mattes anamorphicK2.0013014 1x LMB Accessory Adapter

The Pro Set for Sony VENICE Ext. Mini is more comprehensive than previous Pro Sets for third-party cameras. It features additional handgrips, multiple NATO rails for streamlined, minimalistic camera setups, and the versatile fully adjustable CTH-2 Top Handle.The set is designed to provide all necessary components for both fully rigged configurations requiring a robust cage and highly stripped-down setups where minimal weight and size are essential.Includes:K2.0054187 1x Base Plate for Sony VENICE Ext. MiniK2.0054520 1x Top Plate for Sony VENICE Ext. MiniK2.0054189 1x Back Plate for Sony VENICE Ext. MiniK2.0054179 2x Side Bracket for Sony VENICE Ext. MiniK2.0054522 3x NATO Rail for Sony VENICE Ext. MiniK2.0054201 1x Cable Clamp for Sony VENICE Ext. MiniK2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.66255.0 1x 15mm Reduction InsertK2.0024745 1x Bridge Plate Adapter BPA-6K2.0054160 1x Cage Top Handle CTH-2K2.0047776 1x NATO Rail Clamp NRC-1K2.0054216 1x Wooden Handle Grip WHG-3 rightK2.0054215 1x Wooden Handle Grip WHG-3 leftK2.66254.0 1x Support Rods 140mm/5.5in, 15mm

includes:K2.65221.0 1x Follow Focus FF-4, Basic Unit, blackK2.65224.0 1x FF-4 Adapter for Studio 19mm, BA-2K2.65276.0 1x FF Gear 0.8 Mod, 35 Tooth, 10mmK2.32730.0 1x Focus Lever Speed Handle/Focus CrankK2.32701.0 4x Marking Disk, FlatK2.44965.0 1x Case for FF-3/-4/-5 incl. Accessories

The Pro Set provides a complete, ready-to-shoot configuration for the Fujifilm GFX ETERNA 55, combining flexibility for handheld, tripod, and gimbal operation. It includes ARRI’s CCH-4 top handle, which can be extended with HEX extensions or paired with the Viewfinder Set for ETERNA 55 for a versatile and stable monitor setup using Fujifilm’s native 5-inch LCD monitor. The Rear Side Bracket Right features an integrated NATO rail, ideal for mounting wireless video transmitters, supported by the included NRC-2 clamp. The Compact Bridge Plate CBP-5 (19 mm) with integrated Visco shoulder pad and 240 mm support rods interfaces directly with the Base Plate for ETERNA, offering fore-aft balance adjustment.Please note: Due to the height of the Fujifilm ETERNA 55, rods mounted via the Compact Bridge Plates CBP-5/-6 and the BPA-6 are positioned approximately 10 mm below the standard heights defined for 15 mm LWS and 15/19 mm Studio rod standards. To achieve the standard 15 mm LWS height, the Base Plate for ETERNA 55 used together with the LWS-7 provides full compatibility.The 19 mm Studio standard height is not supported with this camera configuration.includes:K2.0055237 1x Top NATO Rail for ETERNA 55K2.0055230 1x Top Plate for ETERNA 55K2.0055235 2x Side Bracket for ETERNA 55K2.0055233 1x Base Plate for ETERNA 55K2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0017270 1x Center Camera Handle CCH-4K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0048324 1x NATO Rail Clamp NRC-2K2.66255.0 1x 15mm Reduction InsertK2.0047776 1x NATO Rail Clamp NRC-1K2.0023549 1x Compact Bridge Plate CBP-5 (19mm)

The Upgrade Set LMB-25 to LMB 4x5 Pro comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Pelican 1560 case.To upgrade the LMB-25 to the full pro set of the LMB 4x5.includes:K2.0013825 2x LMB Flag HoldersK2.0015140 1x LMB 4x5 Backplate with filter guidesK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013460 1x LMB 4x5 Extra Rotatable Filter StageK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0013427 1x LMB 4x5 15mm Lightweight Support ConsoleK2.0013447 1x LMB 4x5 Swing Away Tilt ModuleK2.0013750 1x LMB 4x5 Side FlagsK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013014 1x LMB Accessory Adapter

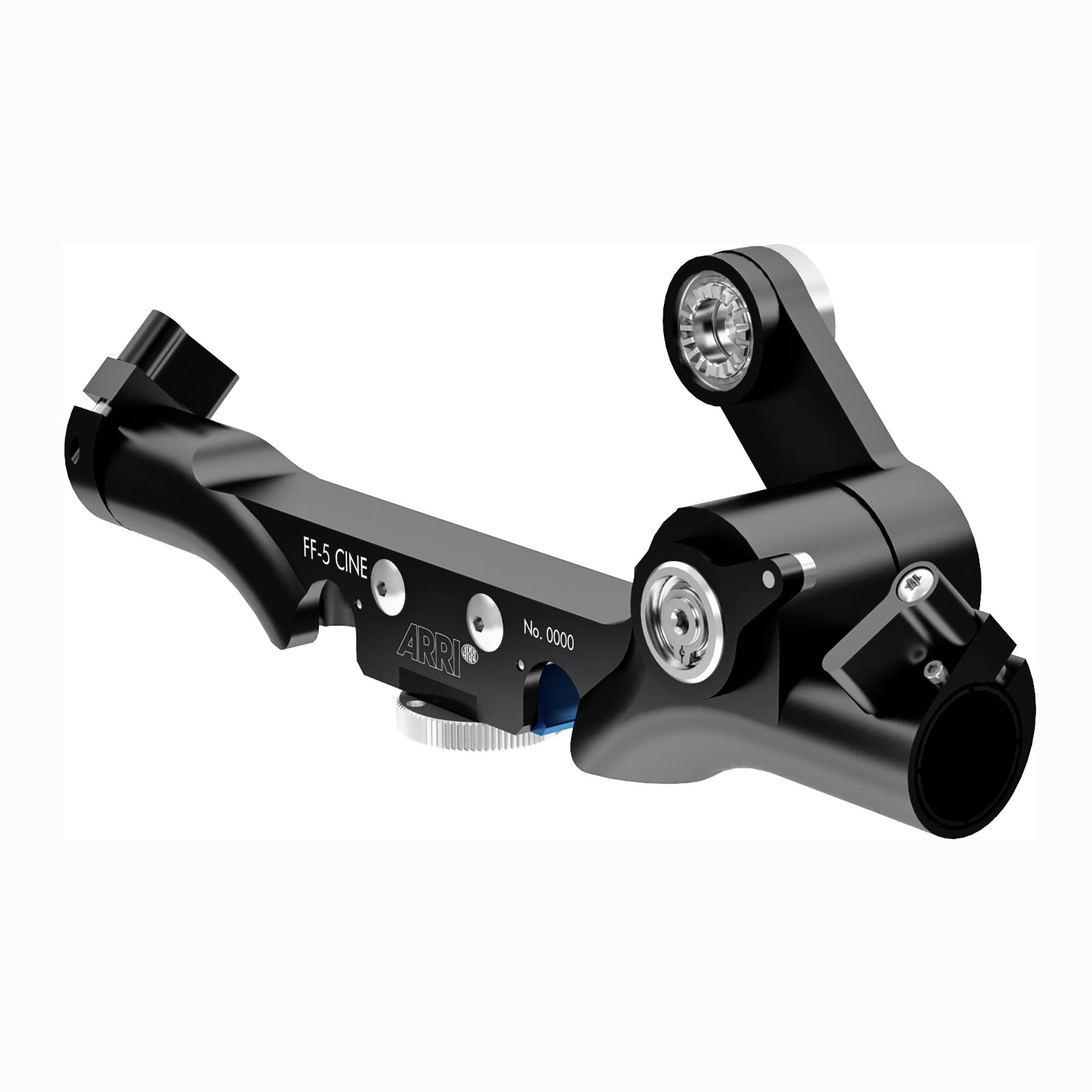

includes: K2.65246.0 1x Follow Focus FF5-Cine, baseK2.65253.0 1x Standard Focus Knob, leftK2.65276.0 1x FF Gear 0.8 Mod, 35 Tooth, 10mmK2.65259.0 1x FF Gear 0.8 Mod, 43 Tooth, 6mmK2.47215.0 1x Standard Focus Knob, RightK2.32730.0 1x Focus Lever Speed Handle/Focus CrankK2.34100.0 1x Flexible Shaft, 300mmK2.32701.0 10x Marking Disk, Flatadditional accessories e.g. Adapters for 19 mm or 15 mm have to be ordered separately.For Marking Disks please see chapter -Marking Disks for Follow Focus-

includes:K2.0013191 1x Plate for Canon C700K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0013229 1x Top Plate for Canon C700K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0013195 1x EVF Bracket for Canon EVF-V70K2.73002.0 1x Center Camera Handle CCH-2K2.0015896 1x Bottom Dovetail Plate 300mm/12inK2.0001022 1x Support Rods 440mm/17.3in, 19mmK2.0031436 1x Bridge Plate BP-8

The Extended Pro Set provides a complete, ready-to-shoot configuration for the Fujifilm GFX ETERNA 55, combining flexibility for handheld, tripod, and gimbal operation. It includes ARRI’s CCH-4 top handle, which can be extended with HEX extensions or paired with the Viewfinder Set for ETERNA 55 for a versatile and stable monitor setup using Fujifilm’s native 5-inch LCD monitor. The Rear Side Bracket Right features an integrated NATO rail, ideal for mounting wireless video transmitters, supported by the included NRC-2 clamp. The Compact Shoulder Pad CSP-2 with integrated Visco shoulder pad and the Lightweight Support LWS-7 support 15mm rods interfaces directly with the Base Plate for ETERNA, offering fore-aft balance adjustment.Includes:KK.0055440 1x Basic Set for ETERNA 55K2.0024161 1x Compact Shoulder Pad CSP-2K2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.0050467 1x Lightweight Support LWS-7K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0048324 1x NATO Rail Clamp NRC-2K2.0055230 1x Top Plate for ETERNA 55K2.0017270 1x Center Camera Handle CCH-4

includes:K2.0051221 1x Top Plate for Canon EOS C400K2.0051262 1x Plate for Canon EOS C400K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.0017270 1x Center Camera Handle CCH-4K2.0051223 1x Side Bracket Right for Canon EOS C400K2.0051222 1x Side Bracket Left for Canon EOS C400K2.0051224 1x Rear Side Bracket Right for Canon EOS C400K2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0006186 1x Rod Mounting Bracket RMB-3K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleNote:Recommended products for Canon Monitor:1x K2.0015520 EVF Bracket for Canon LM-V1/2 1x K2.0013302 Viewfinder Cross Pipe Recommended products for Canon Camera Grip:1x K2.0024574 Rosette Adapters, RA-6, pair

Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold extension cable.includes:K2.0006797 1x Broadcast Plate C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0015518 1x Adapter Plate for Canon C200K2.0015513 1x Top Plate for Canon C200K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.73002.0 1x Center Camera Handle CCH-2K2.0015520 1x EVF Bracket for Canon LM-V1/2K2.0000399 1x QRP-1-Baseplate

includes: K2.65246.0 1x Follow Focus FF5-Cine, baseK2.65253.0 1x Standard Focus Knob, leftK2.65276.0 1x FF Gear 0.8 Mod, 35 Tooth, 10mmK2.65259.0 1x FF Gear 0.8 Mod, 43 Tooth, 6mmadditional accessories e.g. Bridgeplate Adapters for 19 mm or 15 mm have to be ordered separately.For Marking Disks please see chapter -Marking Disks for Follow Focus-

includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0049819 1x Side Bracket Right for Sony BURANOK2.0049816 1x Side Bracket Left for Sony BURANOK2.0049904 1x Rear Side Bracket Right for Sony BURANOK2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0017270 1x Center Camera Handle CCH-4K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0006186 1x Rod Mounting Bracket RMB-3

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4K2.0043731 1x Side Bracket Right for Sony Venice 1/2K2.0043725 1x Side Bracket Left for Sony Venice 1/2K2.0021525 1x EVF Bracket for Sony DVF-EL200 (Venice)K2.0006140 1x Mini Viewfinder Bracket MVB-1

includes:K2.0013191 1x Plate for Canon C700K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0013229 1x Top Plate for Canon C700K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0013195 1x EVF Bracket for Canon EVF-V70K2.73002.0 1x Center Camera Handle CCH-2K2.0000399 1x QRP-1-Baseplate

The Extended Basic Set provides a lightweight and modular foundation for professional setups. It includes the compact CSP-2 shoulder pad and two NRC-6 ARRI rosette attachment brackets for mounting handgrips on NATO rails during handheld operation.The set supports the use of the native Fujifilm ETERNA Top Handle and features the NRC-1 clamp for underslung lens motor mounting, as well as an additional Rear Side Bracket Right with an NRC-2 for attaching a video transmitter. Fully compatible with ARRI HEX extensions and RMB-3 interfaces, it ensures maximum flexibility and seamless system integration.The Extended Basic Set is an ideal choice for operators who primarily work handheld and want to transition quickly to a gimbal setup using ARRI’s SAM plates.includes:KK.0055440 1x Basic Set for ETERNA 55K2.0024161 1x Compact Shoulder Pad CSP-2K2.0054184 2x NATO Rail Clamp NRC-6 (Rosette)K2.0050467 1x Lightweight Support LWS-7K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0055362 1x Rear Side Bracket Right for ETERNA 55K2.0048324 1x NATO Rail Clamp NRC-2

For use with film or video Lightweight Support systems conforming to ARRI standard includes focus knob left. For use with BP-8 and BP-9, adapter BA-2 or BA-3 (see below) is required.

Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold extension cable.includes:K2.0006864 1x Cine Plate for C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006807 1x Shoulder Pad CSP-1K2.0015518 1x Adapter Plate for Canon C200K2.0015513 1x Top Plate for Canon C200K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.73002.0 1x Center Camera Handle CCH-2K2.0015520 1x EVF Bracket for Canon LM-V1/2

includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0049819 1x Side Bracket Right for Sony BURANOK2.0049816 1x Side Bracket Left for Sony BURANOK2.0049904 1x Rear Side Bracket Right for Sony BURANOK2.0047776 1x NATO Rail Clamp NRC-1K2.0048324 1x NATO Rail Clamp NRC-2K2.0017270 1x Center Camera Handle CCH-4K2.0017138 1x Bridge Plate Adapter BPA-5K2.66255.0 2x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0006186 1x Rod Mounting Bracket RMB-3

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0017138 1x Bridge Plate Adapter BPA-5K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4K2.0043731 1x Side Bracket Right for Sony Venice 1/2K2.0043725 1x Side Bracket Left for Sony Venice 1/2K2.0021525 1x EVF Bracket for Sony DVF-EL200 (Venice)K2.0006140 1x Mini Viewfinder Bracket MVB-1

The entry-level set is made up of the basic components of the modular LMB 6x6 for clamp-on mounting, with flexible filter stages for up to three filters. This includes an extreme lightweight single filter option for use with gimbals. To reduce stray light there is a top flag with extendable wings which folds completely flat for swift and convenient storage. Clamp adapters, which come in a range of different sizes, are available separately. All LMB 6x6 Sets (except the clamp adapter set) are delivered in a foam insert that fits perfectly into a Peli Case 1637.includes:K2.0019218 1x LMB 6x6 Basic ModuleK2.0019133 1x LMB 6x6 Extra Non-Rotatable Filter StageK2.0019178 1x LMB 6x6 Top, Bottom FlagK2.0023162 1x LMB 6x6 Foam Insert

Using the HGA-3 requires a longer, separately sold 3rd party LANC cable.includes:K2.0015883 1x Plate for Panasonic EVA1K2.0015880 1x Top Plate for Panasonic EVA1K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.0016259 1x Monitor Bracket for Panasonic AU-EVA1K2.0016711 1x Handgrip Adapter HGA-3K2.0006471 1x Battery Adapter Plate BAP-1K2.65264.0 1x 15mm LWS Rod ConsoleK2.66254.0 2x Support Rods 140mm/5.5in, 15mm

Includes shoulder cushion, left and right grips with run/stop switch via ARRI standard RS 3-pin connector.

includes:K2.66253.0 1x Support Rods 240mm/9.4in, 15mmK2.66254.0 1x Support Rods 140mm/5.5in, 15mmK2.66227.0 1x Cage Top Handle, CTH-1K2.66255.0 1x 15mm Reduction InsertK2.65264.0 1x 15mm LWS Rod ConsoleK2.0024564 1x Base Plate for Venice Ext. UnitK2.0039457 1x Top Plate for Venice Ext. UnitK2.0024566 1x Side Bracket Right for Venice Ext. UnitK2.0024761 1x Side Bracket Left for Venice Ext. UnitK2.0024569 1x Cable Clamp for Venice Ext. UnitK2.0024574 1x Rosette Adapters, RA-6, pairK2.0024573 1x Back Plate for Venice Ext. UnitK2.0024965 1x Wooden Handgrip WHG-1K2.0006186 1x Rod Mounting Bracket RMB-3K2.0047941 1x Back Plate 2 for Venice Ext. UnitK2.0017138 1x Bridge Plate Adapter BPA-5

The LMB 4x5 set for 15 mm lightweight support and a universal flexible adapter to fit almost all lens diameters, including a non-rotating filter stage, a carbon fiber top flag, and a tray catcher. The weight of this configuration is approx 893.Note: 19 mm, 15 mm studio rod adapters and clamp adapter have be ordered separately. The LMB 4x5 15mm LWS Set 3-stage comes in the LMB 4x5 Foam Insert (K2.0023149) that fits perfectly into any kind of Peli Case 1560.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter StageK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014206 1x LMB 4x5 Tilt and Flex AdapterK2.0013427 1x LMB 4x5 15mm Lightweight Support Console

Ratio 2:1 for cine style lenses, knobs not included - please see choices below.

The handgrip set S-4 can be attached directly to the bottom of most classic ARRI cameras, the ALEXA via the bridge plate adapter BPA-1/2 and also the AMIRA via its baseplate BPA-3. The S-4 can also be swiftly mounted to the bottom of all ARRI bridge plates such as BP-8/9 and BP-12/13, for quick transition from tripod to shoulder.

A set with all 14 existing LMB 4x5 clamp adapters.includes:K2.0015075 1x LMB 4x5 Clamp Adapter 162mmK2.0039254 1x LMB 4x5 Clamp Adapter 156mmK2.0014168 1x LMB 4x5 Clamp Adapter 143mmK2.0014348 1x LMB 4x5 Clamp Adapter 136mmK2.0014359 1x LMB 4x5 Clamp Adapter 134mmK2.0014377 1x LMB 4x5 Clamp Adapter 125mmK2.0014396 1x LMB 4x5 Clamp Adapter 114mmK2.0014409 1x LMB 4x5 Clamp Adapter 110mmK2.0014422 1x LMB 4x5 Clamp Adapter 104mmK2.0015103 1x LMB 4x5 Clamp Adapter 100mmK2.0014439 1x LMB 4x5 Clamp Adapter 95mmK2.0014227 1x LMB 4x5 Clamp Adapter 87mmK2.0015065 1x LMB 4x5 Clamp Adapter 85mmK2.0014376 1x LMB 4x5 Clamp Adapter 80mm

includes:K2.0006797 1x Broadcast Plate C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006859 1x Top Plate C300 MkIIK2.73002.0 1x Center Camera Handle CCH-2K2.54077.0 1x 3/8in Accessory Adapter, 18, 65mm square

This set includes one Diopter Stage, one Diopter Adapter and three Diopter Frames including all pouches. With this set rentals could offer their diopter set (+0.5, +1, +2 each in a Diopter Frame and +3 in a Diopter Stage) for best storage to avoid any damages on the glass.K2.0013740 3x Diopter Frame 138mmK2.0014745 1x Diopter Stage 138mmK2.0014357 1x Diopter Adapter 138mm to 4.5inK2.0020158 3x Pouch Rota Pola 4x5/Diopter Frame 138K2.0020157 1x Pouch Diopter Stage 138

The LMB 4x5 set for clamp-on use with an additional non-rotating filter stage, a carbon fiber top flag, and a tray catcher. The weight of this configuration is approx 707g. The LMB 4x5 Clamp-On Set 3-stage comes in the LMB 4x5 Foam Insert (K2.0023149) that perfectly into any kind of Peli Case 1560.Note: Clamp adapters have to be ordered seperately.includes:K2.0013589 1x LMB 4x5 Basic ModuleK2.0013724 1x LMB 4x5 Top/Bottom FlagK2.0014006 1x LMB 4x5 Extra Non-Rotatable Filter Stage

includes:K2.0049751 1x Top Plate for Sony BURANOK2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.65264.0 1x 15mm LWS Rod ConsoleK2.66253.0 1x Support Rods 240mm/9.4in, 15mm

For use with lenses fitted with ARRI Zip Gears or native 0.8 gearing. The 1:1 gearbox ratio offers more focus knob travel for stills lenses restricted by a short focus scale. Hard stop capability can be required to enable custom end stops on a lens at the focus puller inchs convenience (as when the lens scale goes past infinity) or to use with modern stills or camcorder lenses that do not have physical end stops.includes:K2.65260.0 1x Mini Follow Focus MFF-2 HD baseK2.65248.0 1x Hard Stop Focus Knob universalK2.65259.0 1x FF Gear 0.8 Mod, 43 Tooth, 6mm

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0043749 1x Broadcast Shoulder Adapter BSA-1K2.0017270 1x Center Camera Handle CCH-4K2.66252.0 1x Support Rods 340mm/13.4in, 15mm

The Basic Set provides a lightweight, modular foundation for professional setups using existing ARRI accessories such as the CBP-5/6, CSP-2, BPA-6, or SAM-5–9. Designed for operators working handheld or with gimbals, it supports use of the native Fujifilm ETERNA Top Handle and includes the NRC-1 clamp for underslung lens motor mounting. Fully compatible with ARRI HEX extensions and RMB-3 interfaces, it ensures maximum flexibility and seamless system integration.Includes:K2.0055237 1x Top NATO Rail for ETERNA 55K2.66255.0 1x 15mm Reduction InsertK2.0047776 1x NATO Rail Clamp NRC-1K2.0055233 1x Base Plate for ETERNA 55K2.0055235 2x Side Bracket for ETERNA 55K2.0055367 1x Lightweight Tripod Plate LTP-1

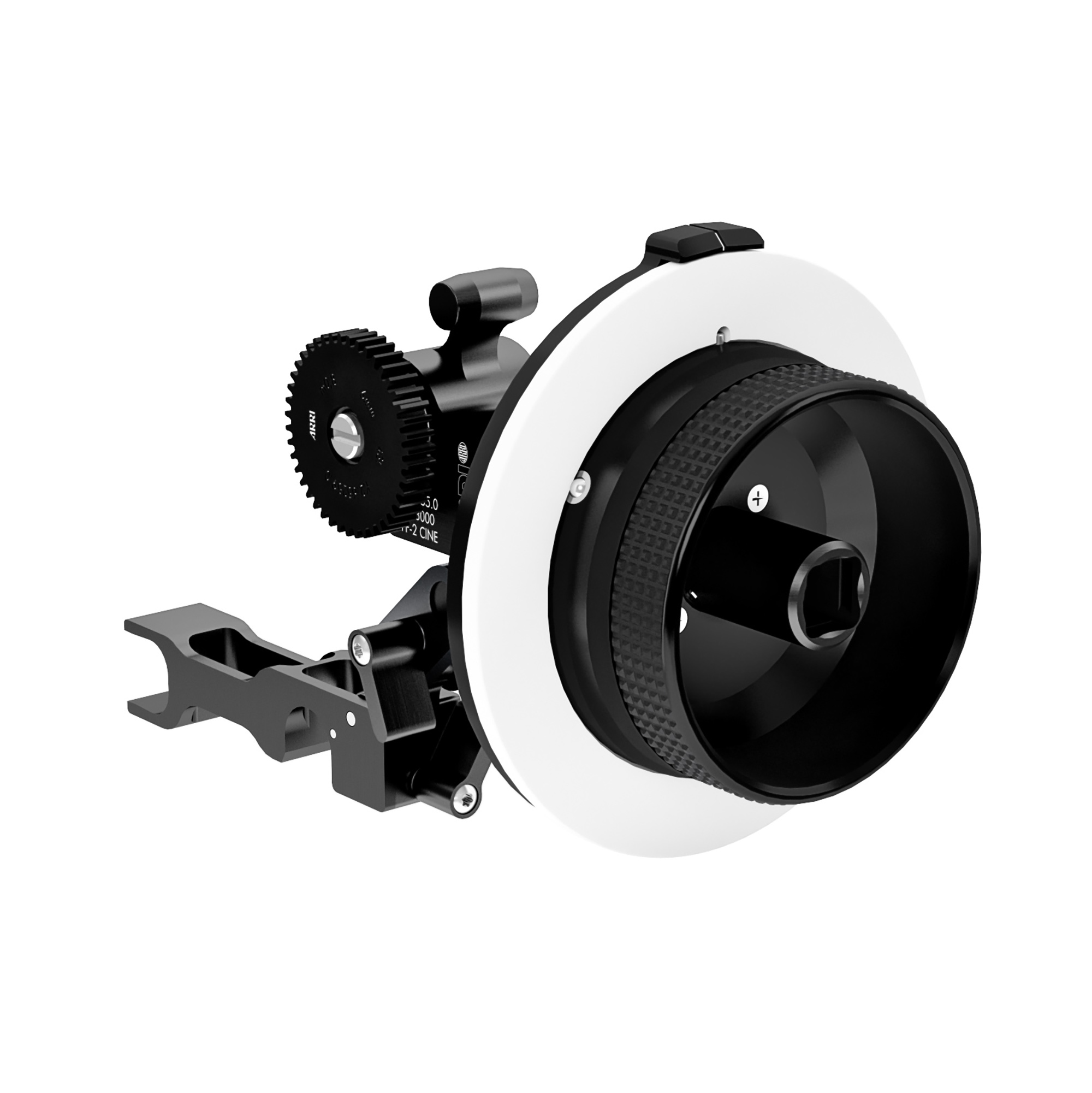

includes: K2.65255.0 1x Mini Follow Focus MFF-2 Cine baseK2.65253.0 1x Standard Focus Knob, leftK2.65259.0 1x FF Gear 0.8 Mod, 43 Tooth, 6mm

includes:K2.0054187 1x Base Plate for Sony VENICE Ext. MiniK2.0054520 1x Top Plate for Sony VENICE Ext. MiniK2.0054179 2x Side Bracket for Sony VENICE Ext. MiniK2.0054522 2x NATO Rail for Sony VENICE Ext. MiniK2.0054201 1x Cable Clamp for Sony VENICE Ext. MiniK2.0047776 1x NATO Rail Clamp NRC-1K2.66255.0 1x 15mm Reduction Insert

Lightweight and durable handgrip set based on ARRI rosettes. Can be attached to 15mm LWS rods.Triggers run functionality on cameras fitted with 3-pin RS run signals, such as ALEXA, AMIRA and many third party cameras.includes:K2.47861.0 1x Handgrip without on/off switchK2.47862.0 1x Handgrip with on/off switch RS-3 pinK2.47863.0 2x Handgrip Extension, longK2.66275.0 1x Lightweight Bridge Support LBS-2For ALEXA Mini Set up additionally required: K2.0006170 1x EXT-RS Adapter

Can be attached to 15mm LWS rods as well as 15mm and 19mm studio rod systems. Triggers run functionality on cameras fitted with 3-pin RS run signals, such as ALEXA, AMIRA and many third party cameras. Lightweight and durable handgrip set based on ARRI rosettes.includes:K2.47861.0 1x Handgrip without on/off switchK2.47862.0 1x Handgrip with on/off switch RS-3 pinK2.47863.0 2x Handgrip Extension, longK2.0013320 1x Universal Bridge Support UBS-3

The Basic Module is the heart of the LMB 6x6 system. Two 6.6x6.6 filters can be fitted. Each filter frame is secured with an extra tray catcher which holds them perfectly in place. The matte 0 offers the possibility to protect your lens against dust and dirt during a break and can be clipped into the sunshade easily. All additional components of the LMB 6x6 can be used with the basic module.includes: 1x Sunshade, 1x Backplate with Filter Guides, 2x Filter Frame 6.6 inch x 6.6 inch with integrated Tray Catcher, 2x Top Flag Holder1x Matte 0

Note: Using the original Canon C200 Camera Handle with Handgrip Extensions requires a separately sold third party extension cable.includes:K2.0006864 1x Cine Plate for C300 MkIIK2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0006807 1x Shoulder Pad CSP-1K2.0015518 1x Adapter Plate for Canon C200

includes:K2.0015883 1x Plate for Panasonic EVA1K2.0015880 1x Top Plate for Panasonic EVA1K2.66253.0 1x Support Rods 240mm/9.4in, 15mm

Bracket with 26 mm dovetail (insert side) interface on 15 mm rod, attaches to ARRIHEAD rosette, can be pivoted on rosette or slid along rod. For use with 26 mm shoe-mounted accessories such as UMC-3K2.52080.0 1x Adapter UMC 3/8inK2.52083.0 1x Dovetail Shoe 3/8in threador Wired Handgrip Attachments WHA-2 / WHA-3.

Compatible with Sony Venice 1/2.includes:K2.0043699 1x Top Plate for Sony Venice 1/2K2.0043726 1x Plate for Sony Venice 1/2K2.0017138 1x Bridge Plate Adapter BPA-5K2.66252.0 1x Support Rods 340mm/13.4in, 15mmK2.0017270 1x Center Camera Handle CCH-4

The Plate for C300 MkIII/ C500 MkII can be used either shoulder mounted compatible with a VCT-14 style plate such as the QRP-1 or by using the Bridge Plate Adapter BPA-5 to mount the cine-style BP-8, BP-9 or BPS-2. Both versions can be changed easily to the front and the back by sliding and exchanging one against the other without the need to detach any accessories from the camera. The plate includes an interface for two 15mm rods at the front and an optional 15mm lightweight support at the back.

Gear ratio 1:1 to use ENG style or still photo lenses.

This handgrip configuration can be used with any camera, fitting to 15, 19 mm studio rods or 15 mm lightweight support rods.includes:K2.47861.0 2x Handgrip without on/off switchK2.47863.0 2x Handgrip Extension, longK2.0013320 1x Universal Bridge Support UBS-3

The ARRI Plate for Canon C700 is an hybrid support that is well-suited to common rental setups using studio bridge plates such as the BP-8 or BP-9, as well as documentary setups using VCT-style base plates like the ARRI QRP-1.

The ARRI plate for Panasonic AU-EVA1 is a hybrid support with 15mm LWS Base Plate and comfortable shoulder pad. The plate works perfectly with BP-8 or BP-9 and also with VCT-style tripod adapters such as the QRP-1.

The ARRI Broadcast Plate for RED DSMC2 is a documentary-style baseplate compatible with VCT-style plates such as the ARRI QRP-1.

The basic module is the starting point for the modular LMB 4x5 matte box. By just adding a clamp adapter it offers a clip-on version which can be extended by adding other LMB 4x5 parts. Includes: 1x Sunshade, 1x Backplate with Filter Guides, 2x Filter Frame 4 x 5,56, 1x Tray Catcher, 2x Top Flag Holder, 1x Mask 0

This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.For use with 15mm studio rod system.

The Handle Extensions follow the design of the Camera Center Handle CCH-4. The number of each HEX refers to the number of 3/8-16 interfaces on the top (HEX-1 has one and HEX-5 five of them). They can be connected in multiple ways in order to extend a top handle but also to build your own handle design. Every HEX offers a 3/8-16 screw at the front (ARRI Multi-HEX screw with 4 different tool options) with two anti-twist locating pins and the corresponding thread interface at the back. Multiple RMB-3, as well as 1/4-20 interfaces, are included as well. The system can also be used to build a so-called Hollywood Handle. This allows to operate the camera from the back without touching the on-board battery.   The Handle Extension Set for ALEXA 35 includes the Handle Extension HEX-A.   The Handle Extension Set for ALEXA 35 comes in a foam inlay that fits in a Pelican 1170 case (Pelicase not included).   includes: K2.0019791 1x Handle Extension HEX-1 K2.0019792 1x Handle Extension HEX-2 K2.0019797 1x Handle Extension HEX-3 K2.0019798 1x Handle Extension HEX-4 K2.0036917 1x Handle Extension HEX-5 K2.0019810 1x Handle Extension HEX-90 K2.0037131 1x Wooden Shell for HEX K2.0049050 1x Handle Extension HEX-A   Maximum load: HEX-1 90 kg / 200 lbs HEX-2 80 kg / 175 lbs HEX-3 50 kg / 110 lbs HEX-4 40 kg / 90 lbs HEX-5 30 kg / 65 lbs HEX-90 60 kg / 130 lbs HEX-A 75 / 165 lbs   Please note that the maximum load is only referring to the use of one single HEX, when another HEX will be attached the maximum load will be reduced.

This module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module that allows 10° up and down adjustments to avoid unwanted reflections.For use with 19mm studio rod system.

The Extra Rotatable Filter Stage gives the possibility to rotate an additional 6.6x6.6 filter 360°. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without the need for any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly.

The carbon fiber Side Flags, each including one extendable wing to prevent possible image quality loss caused by stray light. The combination of top and side flags will fold flat allowing the LMB 6x6 to be stored easily without detaching any components. Please note that K2.0013825 LMB Flag Holders are required.

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008955 1x EVF Bracket for Canon Monitor Unit

The diopter stage can be used at the back of a 6.6x6.6 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 6x6 and LMB-6.

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0008624 1x EVF Bracket for Zacuto Gratical

includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0010580 1x EVF Bracket for Panasonic VariCam

DSMC2 RED EVF Mounting Plate is needed for mounting.includes:K2.0006140 1x Mini Viewfinder Bracket MVB-1K2.0012522 1x EVF Bracket for RED DSMC2 viewfinder

The Plate for Sony FS7II/FX9 with integrated 15mm lightweight support and a comfortable shoulder pad can be adjusted for perfect balancing. The plate is compatible with VCT-style tripod adapters such as the QRP-1 from ARRI or BP-8, BP-9 and BPS-2. The optional Lens Adapter Support LAS-1 (K2.0003899) offers the possibility to support lens adapters from below.

The 600mm/24 inch Bottom Dovetail Plate is the perfect solution when working with large and heavy zoom lenses where maximum balancing is required. An additional rod support for stabilizing the rods in the front is available for either 15mm Studio (RSB-15 K2.0000437) or 19mm Studio (RSB-19 K2.0000440). All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.

VCT-style broadcast plate compatible with the ARRI AMIRA camera, most of ARRI PCA support systems as well as ENG cameras.

The BP-9 helps optimize camera rig balance when combined with the range of ARRI bottom plates. It brings compatibility with studio 15 mm rod systems to an increasing number of ARRI and third party cameras.

This shoulder pad clamps on 15 mm LWS rods forward or backwards of the baseplate and can be adjusted to suit best balance on the shoulder. The camera rig is able to rest on a flat surface without its shoulder pad coming in contact to the ground.

The BP-8 helps to optimize camera rig balance when combined with the range of ARRI bottom plates. It brings compatibility with studio 19 mm rod systems to an increasing number of ARRI and third party cameras.

The carbon fiber Top, Bottom Flag including two extendable wings to prevent possible image quality loss caused by stray light. It can be fitted to the top or at the bottom of the LMB 6x6 Basic Module and will cover the opening of the sunshade 100% for best protection during a break.

Modified for soft stops with fingers.includes:K2.32701.0 1x Marking Disk, Flat

For Angénieux 25-250 HP with rubber sleeve and connection ring.

To upgrade the LMB-25 to the platform of the LMB 4x5.includes:K2.0013825 1x LMB Flag HoldersK2.0015140 1x LMB 4x5 Backplate with filter guidesK2.0023149 1x LMB 4x5 Foam Insert

The module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted reflections.It can be mounted directly in 15mm rods. In combination with the LMB 19mm Studio Rod Adapter (K2.0013432) or LMB 15mm Studio Rod Adapter (K2.0013440) it fits to both Studio Rod Support standards 19 and 15mm.

The plate is compatible with VCT-style quick-lock plates such as the QRP-1 from ARRI. With its ergonomic shoulder pad, it converts the Plate for Sony Venice 1/2 (K2.0043726) into a shoulder camera set-up.

A set with the 4 most popular LMB 4x5 clamp adapters.includes:K2.0014396 1x LMB 4x5 Clamp Adapter 114mmK2.0014409 1x LMB 4x5 Clamp Adapter 110mmK2.0014439 1x LMB 4x5 Clamp Adapter 95mmK2.0014376 1x LMB 4x5 Clamp Adapter 80mm

A set of two carbon fiber side flags, each extendable on the top. Please note that K2.0013825 LMB Flag Holders are required.

With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.

114 mm back.For one 4x4in/4.5in round filter frame and one 4x5.65in/4x4in frame (filter frame is not incl.). Rear stage fully rotatable.

includes:K2.66150.0 1x Side Flag leftK2.66148.0 1x Side Flag rightK2.66134.0 2x Side Flag Holder

The 450mm/18 inch Bottom Dovetail Plate fits perfectly with smaller and medium zoom lenses where a bit more balancing is required. All ARRI bottom dovetail plates feature 3/8” and ¼” Camloc® inserts.

A 360° rotatable top handle designed as a classic T-handle, mounted on aNATO rail and adjustable along both the X-axis (forward/backward) and Yaxis(left/right) for optimal positioning. Built on a multi-directional Hexinterface, the handle supports modular expansion and customization. TheWooden Shell for Hex (K2.0037131) and the Plastic Shell for Hex(K2.0037132) can be attached directly to the CTH-2 for enhanced grip.

An optional 360° rotatable third filter stage for the LMB 4x5, with integrated tray catcher. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters.

With adjustable rod centering for all common digital cameras. Only compatible with QR-HD Cine Base Plate.

26mm dovetail insert. Both sides attach to 3/8-16 UNC thread mounting points having standard ARRI 15,5mm counterbore for attaching and quickly removing accessories from a camera (compatible with all UMC versions).includes:K2.52082.0 1x Dovetail Insert 3/8in threadK2.52083.0 1x Dovetail Shoe 3/8in thread

Does not include Support Rod Holder or Bottom Dovetail Plate. Only compatible with QR-HD Cine Base Plate.

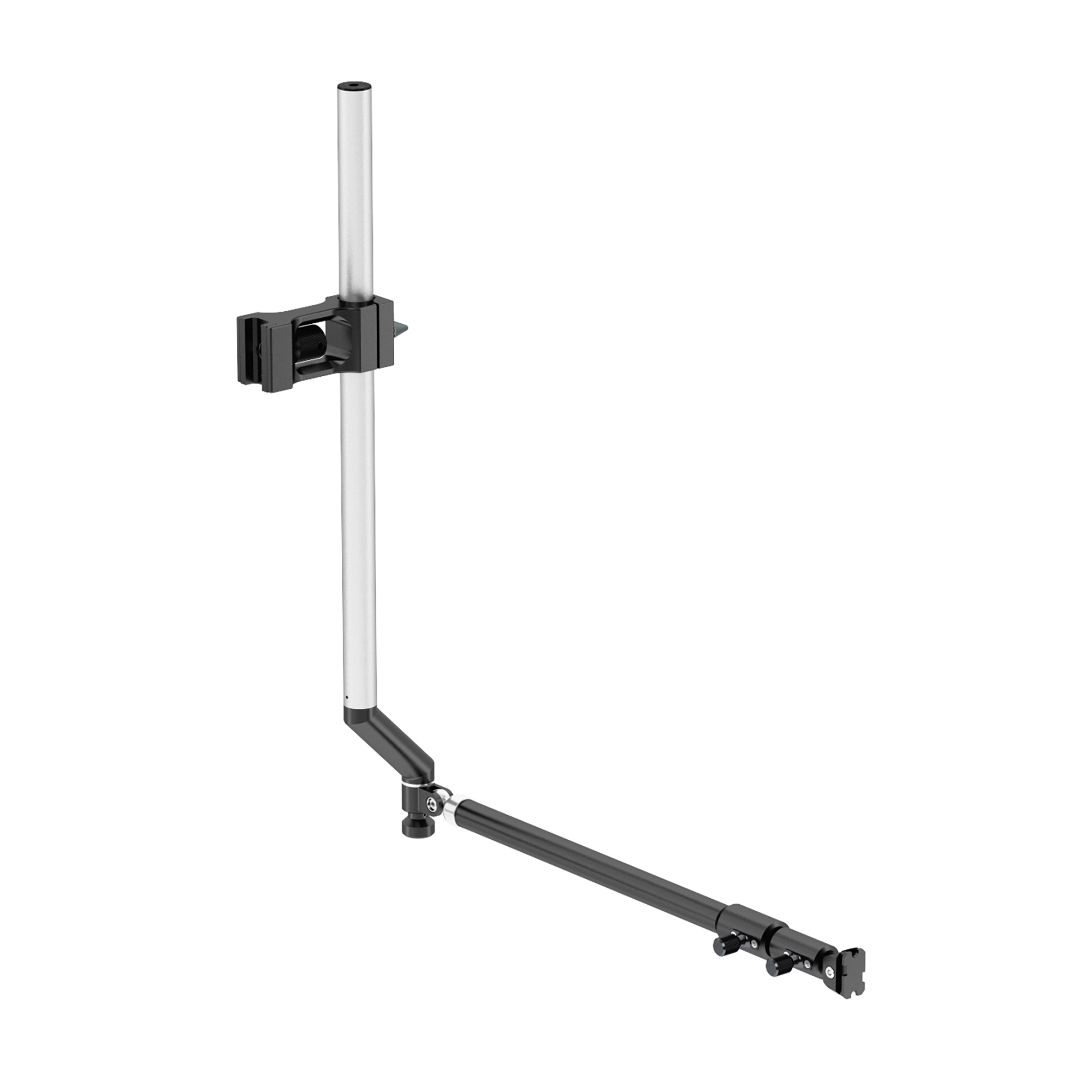

includes:K2.47767.0 1x Eyepiece Leveler EL-3, levelling rodK2.47768.0 1x Sachtler Fluid Head Adapter Kit for EL-3

The Rota Pola Filter Frame 4x5.65 has the same width as a regular F4 filter frame and therefore, only takes the space of one filter in a filter stage. Ships in a filter pouch.The usable diameter of the filter is 114,5mm.

The diopter stage can be used at the back of a 4x5.65 clip-on a matte box, or independently with a rear-mounted clamp adapter. Diopters up to +3 can be fitted, and the position of split diopters can be adjusted with an integrated friction wheel. As with the diopter frame, a safety device and 1/4 mounting threads are included. Compatible with LMB 4x5, LMB-25, LMB-15 and LMB-5.

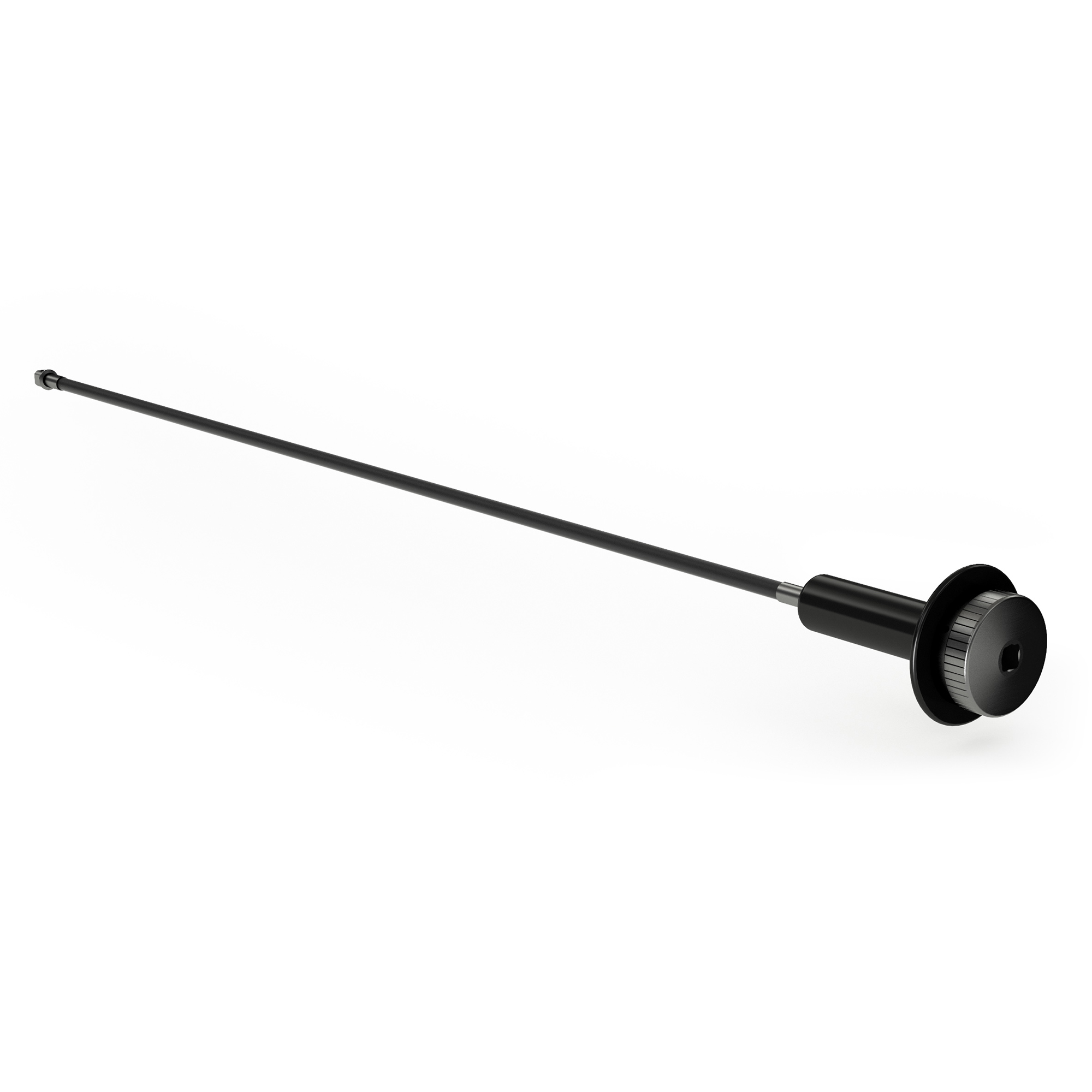

For use with Follow Focus Drive Units. The flexible shaft for all ARRI follow focus allows the extended use of the focus knob when confined or limited space requires the assistant to stand away from the camera.

The ARRI Lens Support LS-10 is an adjustable and lockable bridge that clips to 15 mm rods. The lens is secured via a 3/8-16 thumbscrew.

includes:K2.0052697 1x Swivel Mechanism BracketK2.0051823 1x NATO Rail Bar NRB-160K2.0048324 1x NATO Rail Clamp NRC-2

The diopter frame allows 6 inch diopters of up to +1 and in combinations with the Diopter Adapter 6in to 138mm, up to +2 Diopter. The frame is compatible with the ARRI LMB 6x6, LMB-6 and SMB-1. The frame has the width of two 6.6x 6.6 filter frames and fits into a 2- or 3-filter stage. A safety mechanism prevents the diopter from falling out of the frame during exchange, while two 1/4 threads permit the frame to be attached to an articulating arm.

The Broadcast plate fits to quick release tripod adapters and offers support for 15 mm LWS rods.

The ARRI Lens Support LS-9 is an adjustable and lockable bridge that clips to 19 mm rods. The lens is secured via a 3/8-16 inch thumbscrew.

The Extra Non-Rotatable Filter Stage makes it possible to use an additional 6.6x6.6 filter. It attaches to the Basic Module by sliding to the rear and fixed by two thumb screws without using any tools. For extreme lightweight applications such as gimbal and Steadicam the separate single filter stage works perfectly in conjunction with any clamp, or the tilt and flex adapter. Each filter frame is secured with an extra tray catcher which holds the filters in place perfectly. The LMB 6x6 sunshade can be mounted directly to the front of the filter stage.
