Electronic Control System - Accessories - Cables
Connects Universal Motor Controller UMC-4 to Panaflex Millennium film camera. Provides camera record start/stop function and tally. Length: 0.4 m/1.3ft
Extends the Ethernet Remote Cable KC 157 (K2.72040.0) or Ethernet Remote Cable KC 158 (K2.72041.0). Three KC 159-S (15m) plus one Remote Cable can be combined for a maximum total length of 47 m (154 feet) or 46 m (151 feet).
Connects Universal Motor Controller CAM connector to the EXT connector on the ALEXA family of cameras. Provides camera RUN/STOP function, tally and camera status information on WCU-4. Enables WCU-4 ALEXA Remote License for ALEXA cameras without the Plus module.
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to LANC connectors (e.g. Canon C300 / C500, Sony PXW-FX9 / PXW-FS7) and D-Tap power source. Provides camera RUN/STOP function and tally on ARRI and cmotion cPRO hand units. Length: 0.6m/2ft
Connects LCUBE CUB-2 to the 12 pin Hirose lens connector on the AMIRA/ALEXA Mini PL LDS Lens Mount, the B4 Lens Mount, and third party cameras. Enables camera auto-iris function while using Master Grips for focus and zoom. Supports analog iris control signals from ENG/EFP cameras. The cable can also be used to connect the 12-pin Hirose to the K2.0051099 LLA-1 Control Module. Length:0.3m/1ft.
Connects LBUS devices (e.g. Master Grips). Includes two angled LBUS connectors. Length: 0.8m/2.6ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Lenghth. (0.3m/1ft)
Connects AMIRA, ALEXA Mini and ALEXA Mini LF EXT to LBUS devices (e.g. Master Grips). Includes one angled LBUS connector. Length: 0.8m/2.6ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 1m/3.3ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.35m/1.1ft
Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector. Length: 0.80m/2.6ft
Connects Universal Motor Controller UMC-4 to RED Weapon. Provides camera RUN/STOP function and tally. Length: 2x 0.5m/1.6ftNote: Do not use with RED DSMC2 BASE EXPANDER and RED EPIC!
Connects ARRI Radio Interface Adapter RIA-1, ARRI cforce mini RF, cmotion cPRO motor and cmotion camin to Sony Remote connector on Sony F5/F55/Venice cameras and to D-Tap power source. Supports camera REC start/stop function and tally. Also supports camera status and camera control on ARRI’s Hi-5 hand unit and cmotion cPRO hand unit (license required). Length: 0.8m/2.6ft.
Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is used close to the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).
Connects the Ethernet socket of the ALEXA, ALEXA XT, ALEXA SXT and ALEXA LF family of cameras (Lemo 10 pin) to the Ethernet socket on the RCU-4 (Lemo 10 pin). This is a good length cable when the RCU-4 is mounted on the camera. Can be extended with ALEXA Ethernet Extension Cable (K2.72043.0).
Connects Universal Motor Controller CAM connector to Sony F65. Provides camera RUN/STOP function. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to the EXT connector of an ALEXA EV camera. Provides camera RUN/STOP function, tally and camera status information on ARRI and cmotion hand units. Length: 0,8m/2.6ft
Connects ARRI Radio Interface Adapter RIA-1/cforce RF motor/cmotion cPRO motor and camin to 12 pin Hirose lens connectors. Requires separate power source. Length: 0.3m/1ft
Connects Universal Motor Controller UMC-4 to RED Epic. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ft Separate UMC-4 RS IN cable for power supply required. Works with:- DSMC REDVOLT Expander- DSMC JETPACK Expander- DSMC V-Lock I/O Expander- REDCAST Module
LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 1.2m/4ft.
LBUS power cable to D-Tap (Le 4p, Anton Bauer 2p). Length: 0.8m/2.6ft.
Connects ARRI cforce RF motor/cmotion cPRO motor and camin to D-Tap power source. Length: 0.5m/1.6ft
Connects ARRI hand units and motor controllers for wired operation.
Connects Universal Motor Controller CAM connector to Sony F5/F55/Venice and Panasonic Varicam 35 cameras. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ftSeparate UMC-4 RS IN cable for power supply required.
LBUS power cable to Fischer 3 pin (Le m4p, Fi m3p). Provides power but no RUN/STOP function. Length: 0.8m/2.6ft.
Connects Universal Motor Controller UMC-4 (from SUP 1.2) to cforce lens motors. This cable is also required to update firmware to cforce motors, Master Grips and LCUBE converters via WCU-4, UMC-4 and AMC-1. Length: 0.8m/2.6ft.Note: Requires motor power supply through the unused cforce motor LBUS connector (e.g. with K2.0006758 Cable LBUS to D-Tap).
Cables for connecting the ARRI Hi-5/Hi-5 SX 4-pin SERIAL interface to compatible SmallHD monitors. Features a straight 4-pin connector and a 90° rear angled 5-pin connector for compact rigging.Compatible with SmallHD Cine 5 and Ultra 5, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056300 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled (0.35m/1.1ft)K2.0056301 1x Cable Hi-5 (4p) straight - SmallHD (5p) rear (90) angled(1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
Cables for connecting the ARRI Hi-5/Hi-5 SX 4-pin SERIAL interface to compatible SmallHD monitors. Features a straight 4-pin connector and a 270° rear angled 5-pin connector for compact rigging.Compatible with ARRI CCM-1, SmallHD Cine 7, Ultra 7 and Ultra 10, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056302 1x Cable Hi-5 (4p) straight - SmallHD (5p) forward (270°) angled (0.35m/1.1ft)K2.0056303 1x Cable Hi-5 (4p) straight - SmallHD (5p) forward (270°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
Connects LCUBE CUB-1 to Sony F5/F55/Venice cameras. Length: 0.4 m/1.3ft
Connects LCUBE CUB-1 SERIAL to RED CTRL connector. Length: 0.4 m/1.3ft
Adapts ALEXA Mini, ALEXA Mini LF EXT connector to LCS cables.Note: Can not be used with ZMU-3/ZMU-3A.
CAM cable extension (Le 7p female, Le 7p male). Length: 0.3m/1ft
Connects Universal Motor Controllers and LCUBE CUB-1 to Cine Tape Measure.
Cable D-Tap to PWR IN/RS Fischer-type 3pin (female). Provides power but no RUN/STOP function. Can be used to power a WVT-1, WVR-1 or UMC-4 from a camera or a power splitting box. Length: 0.5m/1.6ft
Connects RS IN connector on UMC-4 with Power System Connector (PSC) cables. Length: 0.7m/2ft.Additional Power Supply Connector (PSC) cable required.
LBUS cable (Le 4p, Le 4p). Length: 0.5m/1.5ft.
LBUS cable (Le 4p, Le 4p). Length: 0.8m/2.6ft.
Connects ARRI cforce RF motor/cmotion cPRO motor and camin to RS connector. Provides camera RUN/STOP and tally function on ARRI and cmotion cPRO hand units. Works with ALEXA and AMIRA cameras. Length: 0.3m/1ft.
Connects ARRI RIA-1, ARRI cforce RF motor, cmotion cPRO motor and camin to LBUS devices or LBUS power source. Length: 0.5m/1.6ft
Connects ARRI RIA-1, ARRI cforce RF motor, cmotion cPRO motor and camin to LBUS devices or LBUS power source. Length: 0.3/1ft.
Cable PWR OUT/12V connector Lemo-type 2p (male) to Lemo-type 5p (male). Can be used to power an external on-board monitor from an ARRI camera, WVR-1, battery adapter plate or a power splitting box. Length: 0.5m/1.6ft
Connects SMC-1, EMC-1 and AMC-1 motor controllers to Sony F5/55/Venice and Panasonic Varicam 35 cameras. Provides camera RUN/STOP function and tally. Length: 0.5m/1.6ft
Connects SMC-1, EMC-1 and AMC-1 motor controllers to RED EPIC camera and D-Tap power source. Provides camera RUN/STOP function. Length: 2x 0.5m/1.6ft
Cables for connecting the ARRI Hi-5/Hi-5 SX USB-C interface to compatible SmallHD monitors. Features a straight USB-C connector and a 90° rear angled 5-pin connector for compact rigging.Compatible with SmallHD Cine 5 and Ultra 5, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SXincludes:K2.0056304 1x Cable Hi-5 USB-C - SmallHD (5p) rear (90°) angled (0.35m/1.1ft)K2.0056305 1x Cable Hi-5 USB-C - SmallHD (5p) rear (90°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
Cables for connecting the ARRI Hi-5/Hi-5 SX USB-C interface to compatible SmallHD monitors. Features a straight USB-C connector and a 270° rear angled 5-pin connector for compact rigging.Compatible with ARRI CCM-1, SmallHD Cine 7, Ultra 7 and Ultra 10, supporting the SmallHD Monitor Overlay License for Hi-5 and Hi-5 SX.includes:K2.0056306 1x Cable Hi-5 USB-C - SmallHD (5p) forward (270°) angled (0.35m/1.1ft)K2.0056307 1x Cable Hi-5 USB-C - SmallHD (5p) forward (270°) angled (1.0m/3.28ft)Note: All cables must be ordered as a set (consisting of two cables) only.
Connects CLM-5 motor with motor controllers.
Connects an antenna (SMA) connector used for Wireless Video System (WVS), WiFi and Electronic Control System (ECS) on ALEXA camera bodies to an antenna. One angled and one straight connector. Length: 1.0m/3.3ft

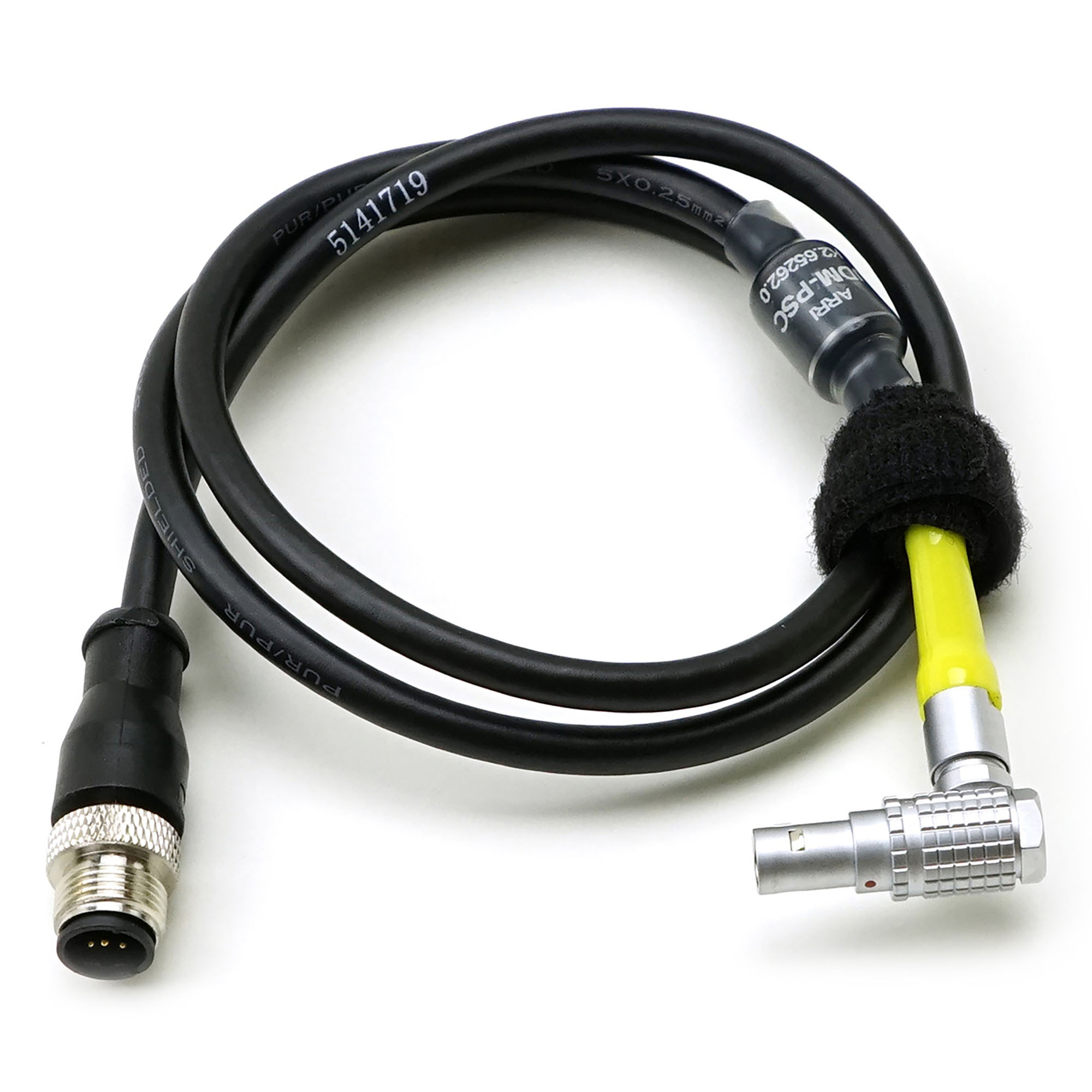

Connects UDM-1 to ARRI PSC power cables.Length: 1.5m/5ft.

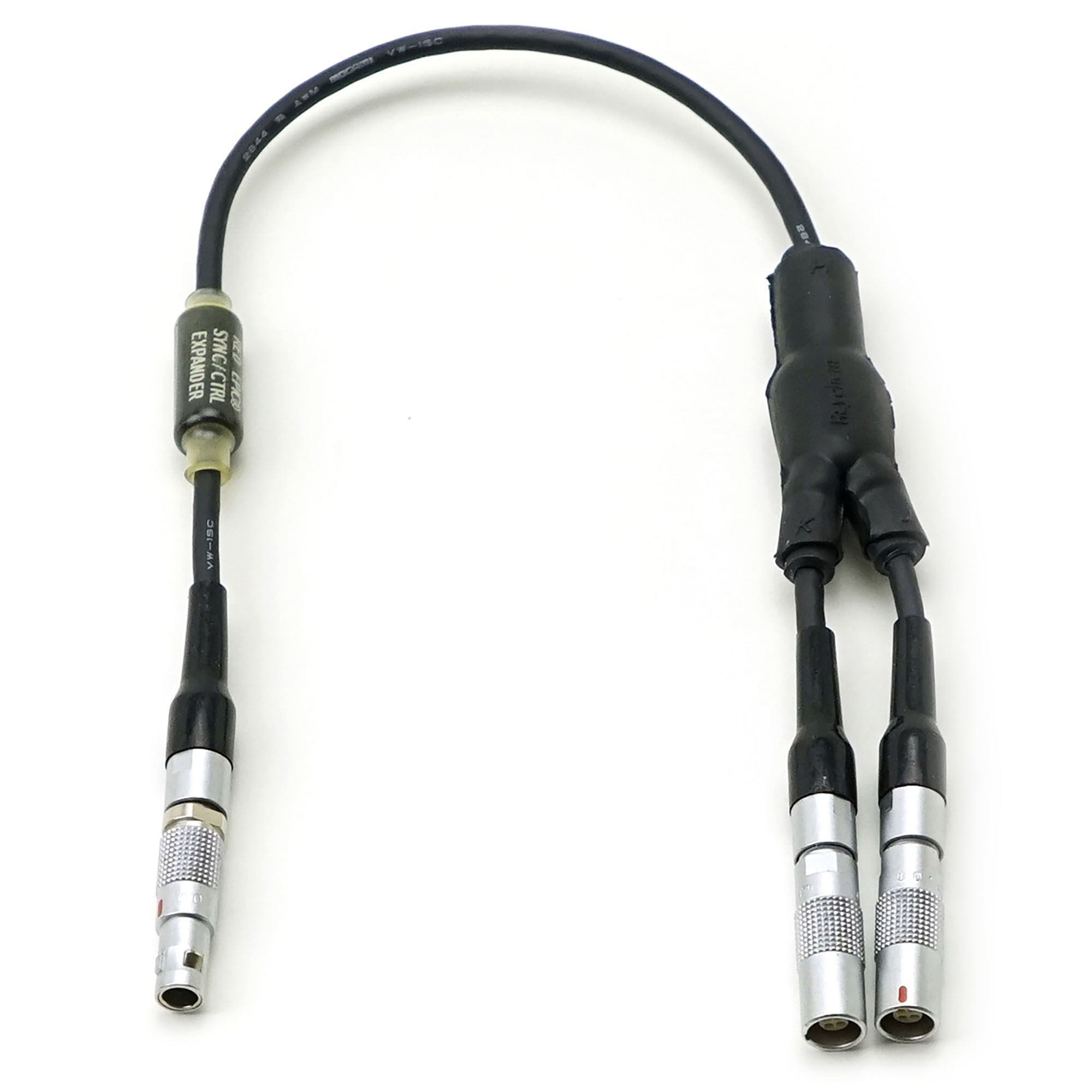

Enables access to RED Epic SYNC or CTRL sockets when using the Interface adapter UMC-3A CAM to RED EPIC/PSC (K2.65270.0) or the Cable UMC-4 to EPIC (K2.0002855).

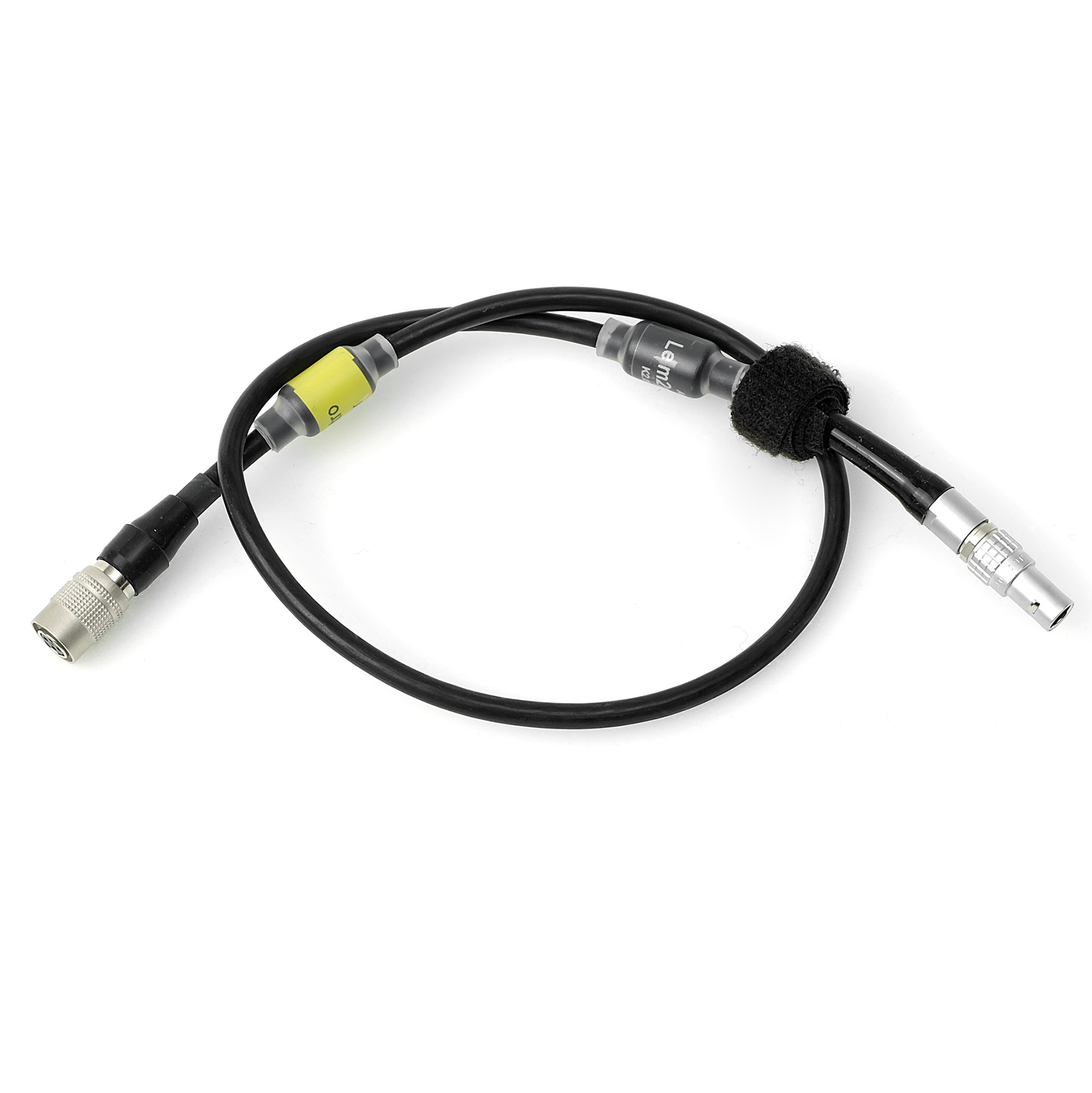

Cable PWR OUT/12V connector Lemo-type 2p (male) to Hirose-type 4p (female). Can be used to power an external on-board monitor from an ARRI camera, WVR-1, battery adapter plate or a power splitting box. Length: 0.5m/1.6ft
Powers ARRI hand units (WCU-4 and SXU-1) from a 2-Pin Lemo style power source.

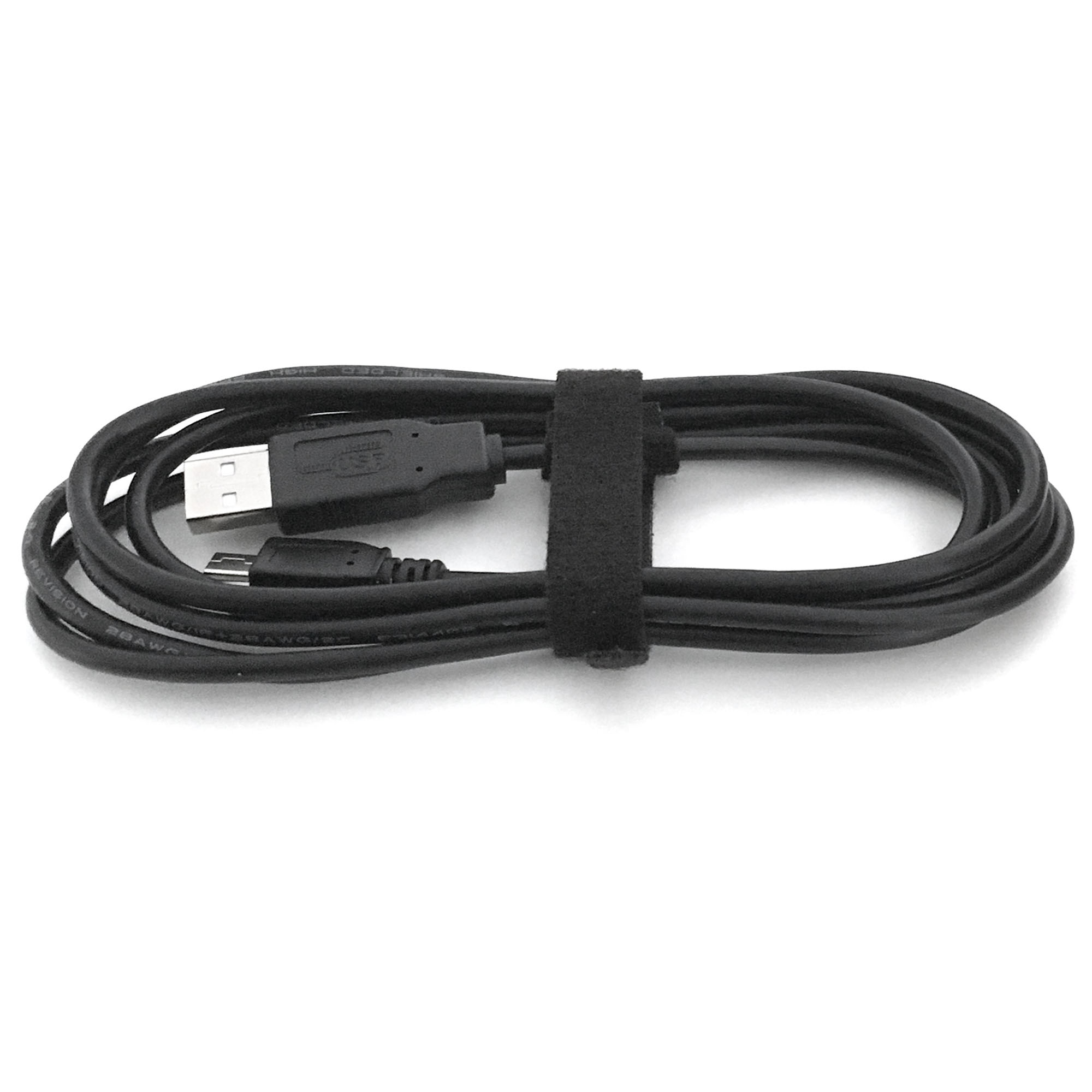

A standard USB Micro cable that can be used to update the software of the Wireless Video Receiver small WVR-1s.Note: Not compatible with the wireless video transmitter inside the ALEXA SXT W and ALEXA LF, the Wireless Video Transmitter WVT-1 and the Wireless Video Receiver WVR-1.

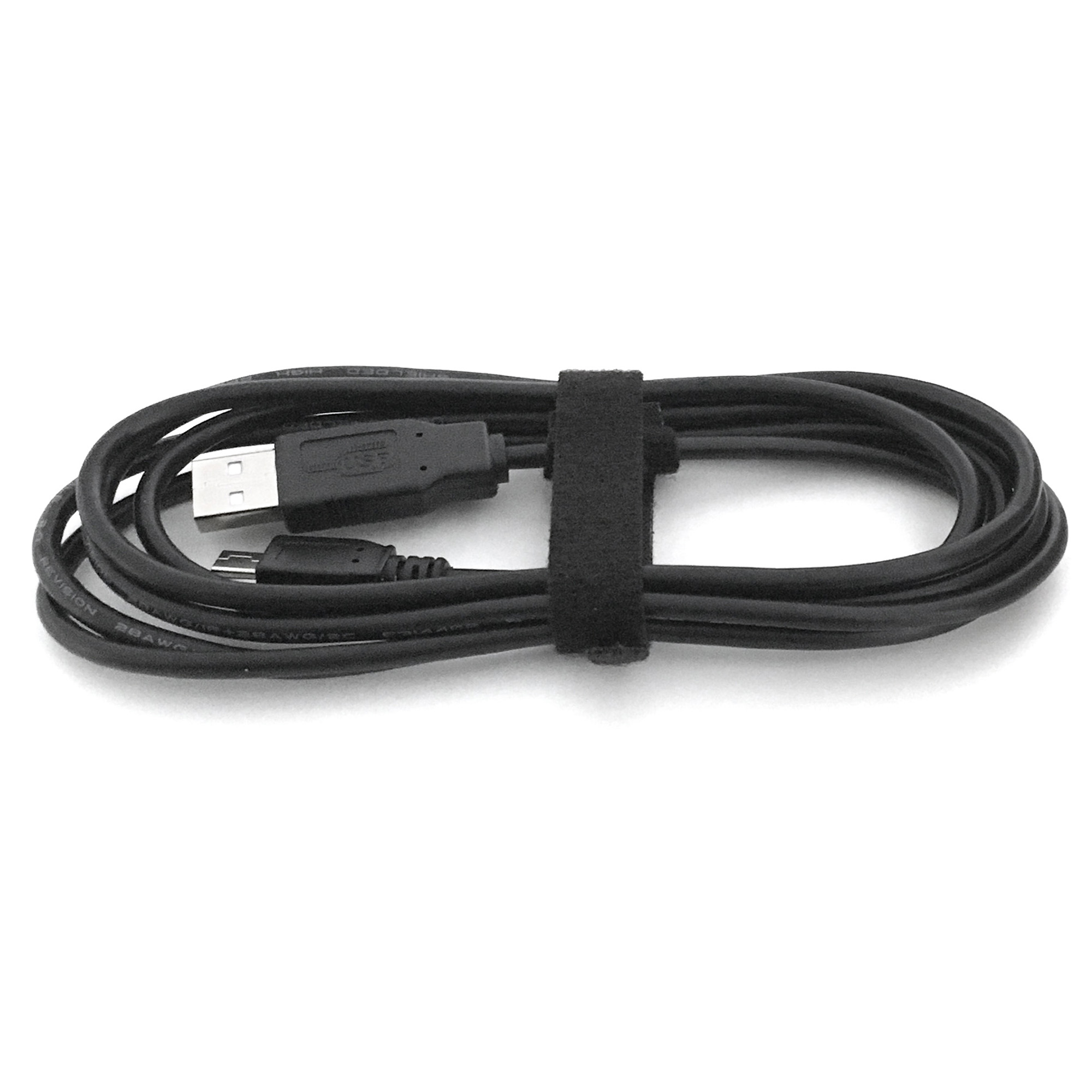

A standard USB cable that can be used to update the software of the wireless video transmitter inside the ALEXA LF and ALEXA SXT W, the software of the Wireless Video Transmitter WVT-1 and the software of the Wireless Video Receiver WVR-1.Note: Not compatible with the Wireless Video Receiver small WVR-1s.
