Camera Stabilizer Systems - Power Cables

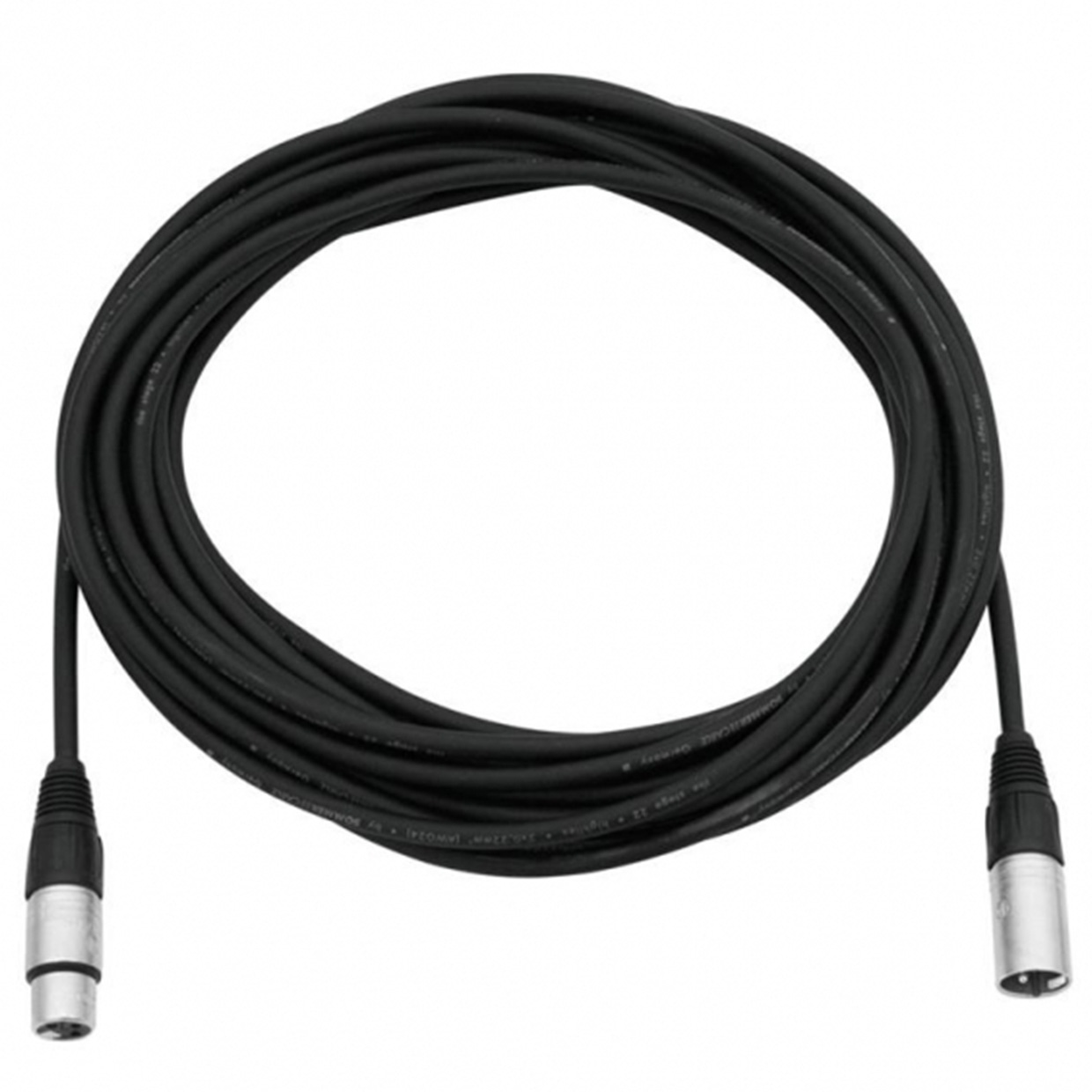

12V/24V high-capacity battery power cable set to connect a 12V/24V block battery to the 360 EVO, SRH-3 and SRH-360.includes:K2.0019306 1x SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ftK2.0021429 1x SRH High-Capacity Battery Power Cable 24V, 3-pin XLR, 20m/66ftK2.0021430 1x SRH High Capacity Battery Power Cable 12V, 4-pin XLR, 20m/66ftLength: 20m/66ftFor 360 EVO and SRH-3 and SRH-360
12V/24V high-capacity battery power cable set to connect a 12V/24V block battery to the 360 EVO, SRH-3 and SRH-360.includes:K2.0019306 1x SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ftK2.0021427 1x SRH High-Capacity Battery Power Cable 24V, 3-pin XLR, 10m/33ftK2.0021428 1x SRH High-Capacity Battery Power Cable 12V, 4-pin XLR, 10m/33ftLength: 10m/33ftFor 360 EVO and SRH-3 and SRH-360

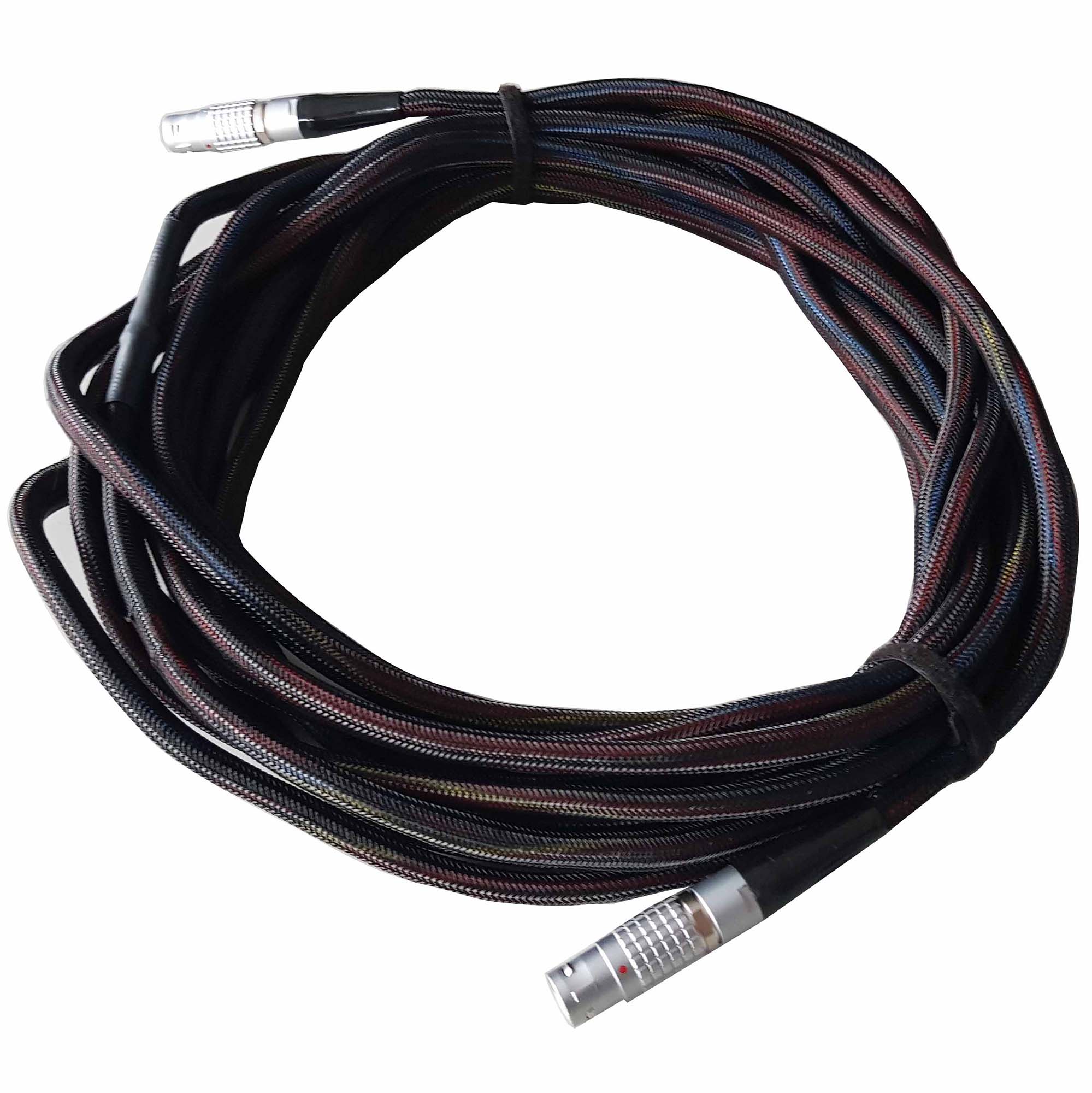

Power and data cable to power the Stabilized Remote Head 360 EVO, SRH-3 and SRH360 from the 600 W SRH Power Supply K0.0019478 with 12 V and 24 V.12V/24V high-capacity camera power, plus FS CAN bus.Length: 20m/65.6ftFor 360 EVO and SRH-3 and SRH-360

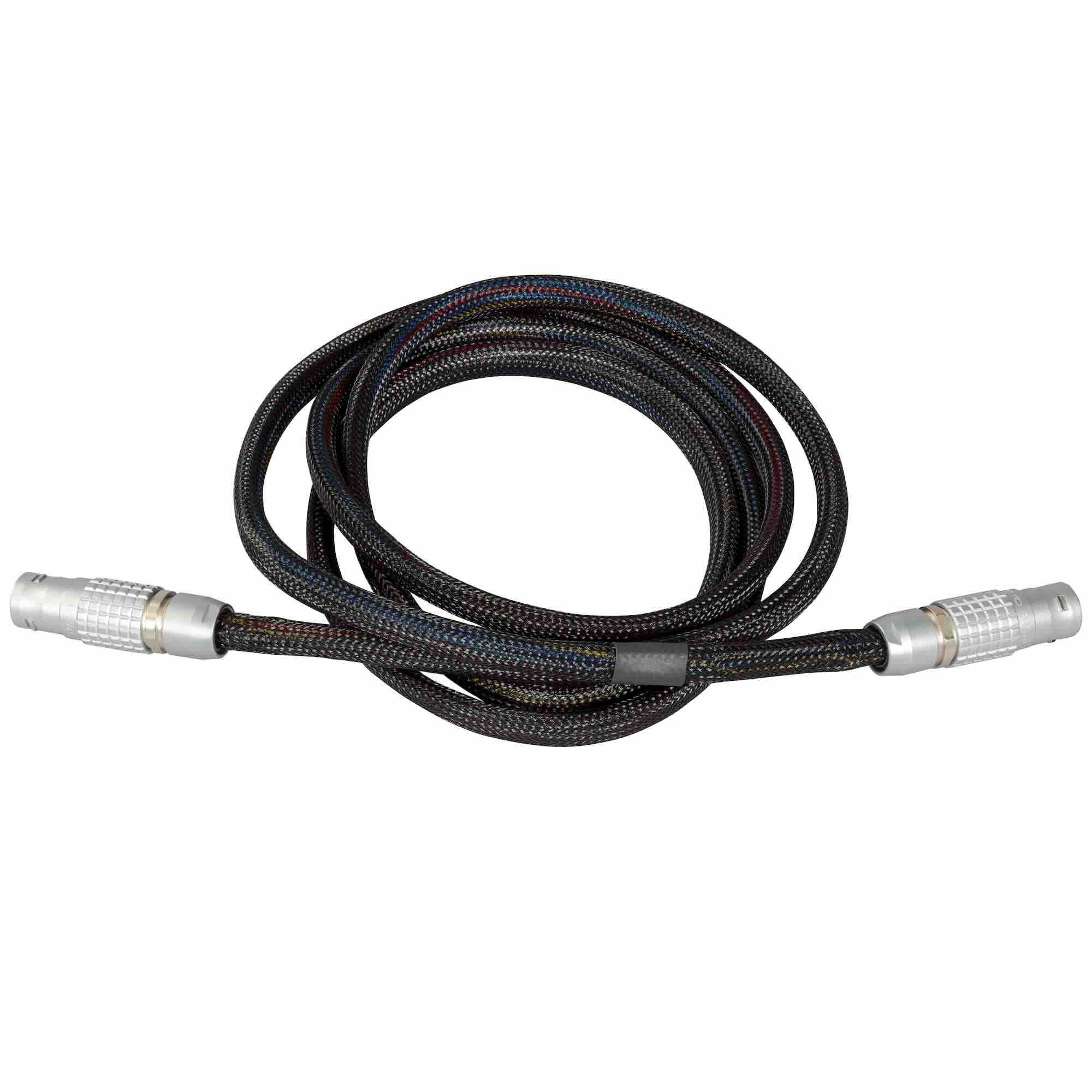

Super Post main cable for ARTEMIS 2 and TRINITY 2.Lemo 3B 16-pin to Lemo 3B 16-pinHigh-capacity 12V/24V, 2 x 12G video, LBUS, Can Bus, tallyFor ARTEMIS 2 and TRINITY 2

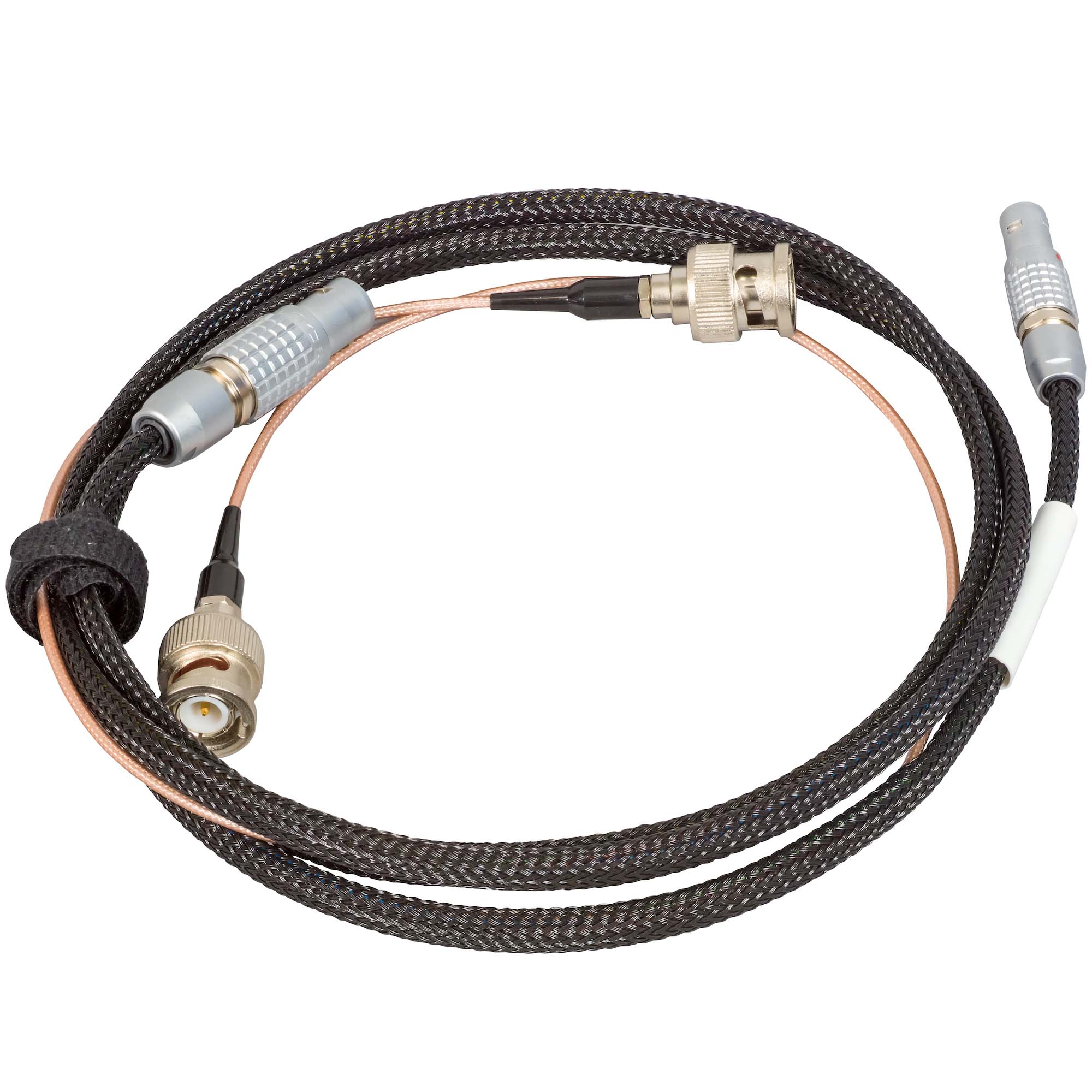

Analog joystick cable to connect the analog TRINITY Gen. 1 Joystick with TRINITY 2Lemo 1B 8-pin to Lemo 0B 7-pin, no video, 12VTRINITY 2 only!
Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.0033758 to the SRH remote control panel and remote head. Extension cable to connect the ERM-LCS to the WCU-4, SXU-1, EXT and LBUS compatible products.Length: 25m/82ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

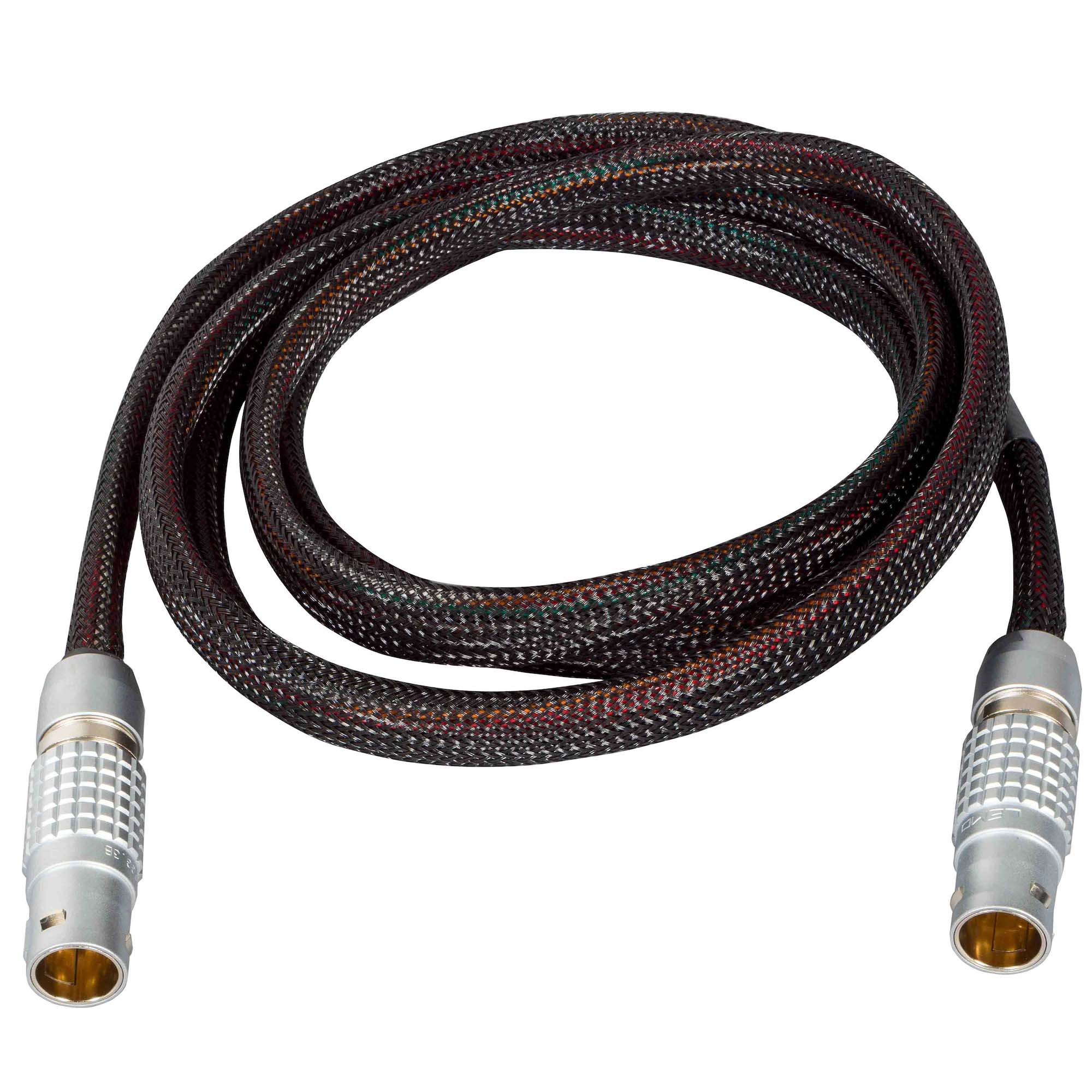

Super Post main cable for artemis Gen.1 and TRINITY Gen.1.High-capacity 12V/24V, 2x 4G video, tallyLemo 3B 10-pin to Lemo 3B 1-0pinFor artemis Cine and TRINITY Gen.1 only!

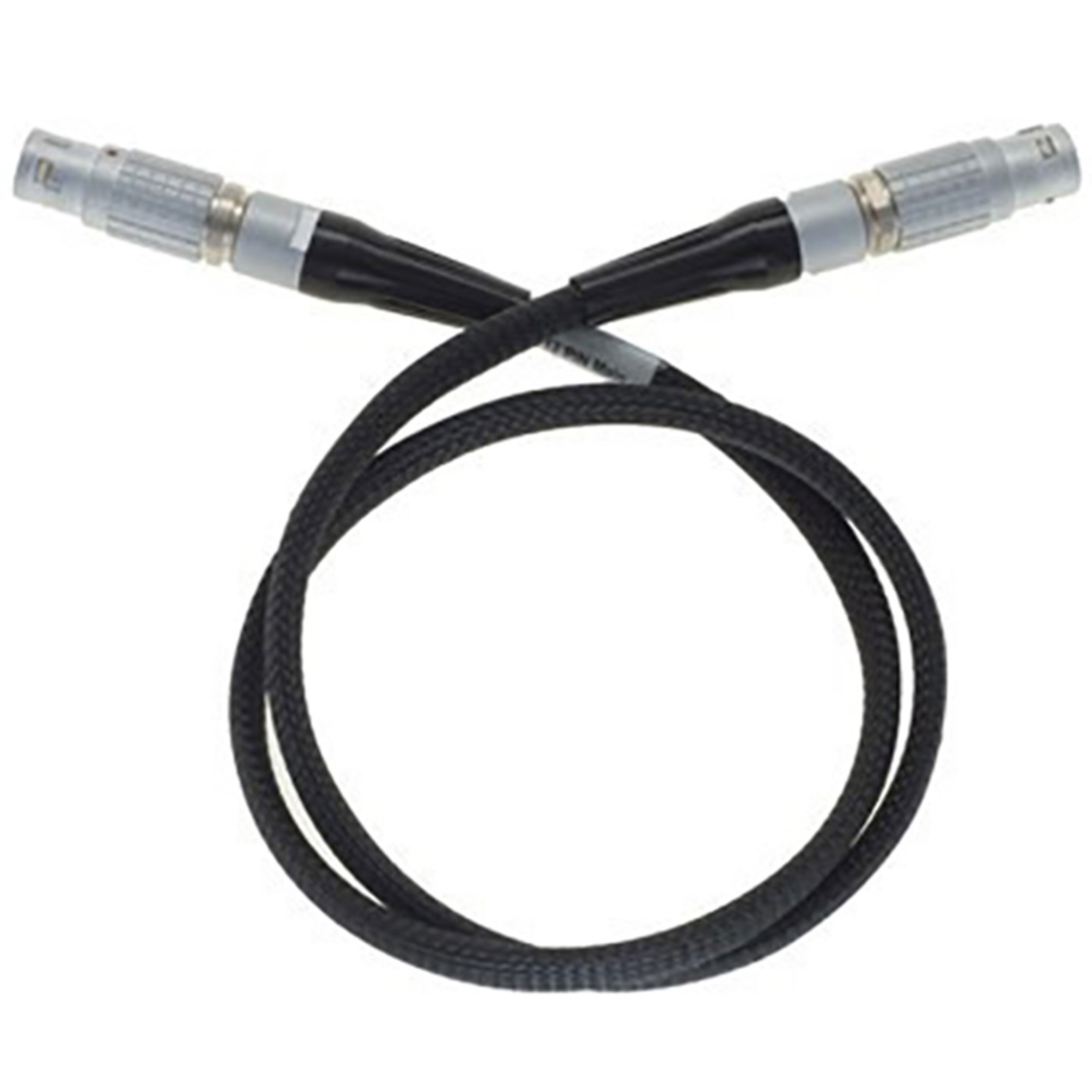

Main cable for artemis Gen.1 and TRINITY Gen.1.Lemo 3B 10-pin to Lemo 3B 10-pinHigh-capacity 12V / 24V, 2x 4G Video, TallyFor artemis Gen.1 and TRINITY Gen.1 only!

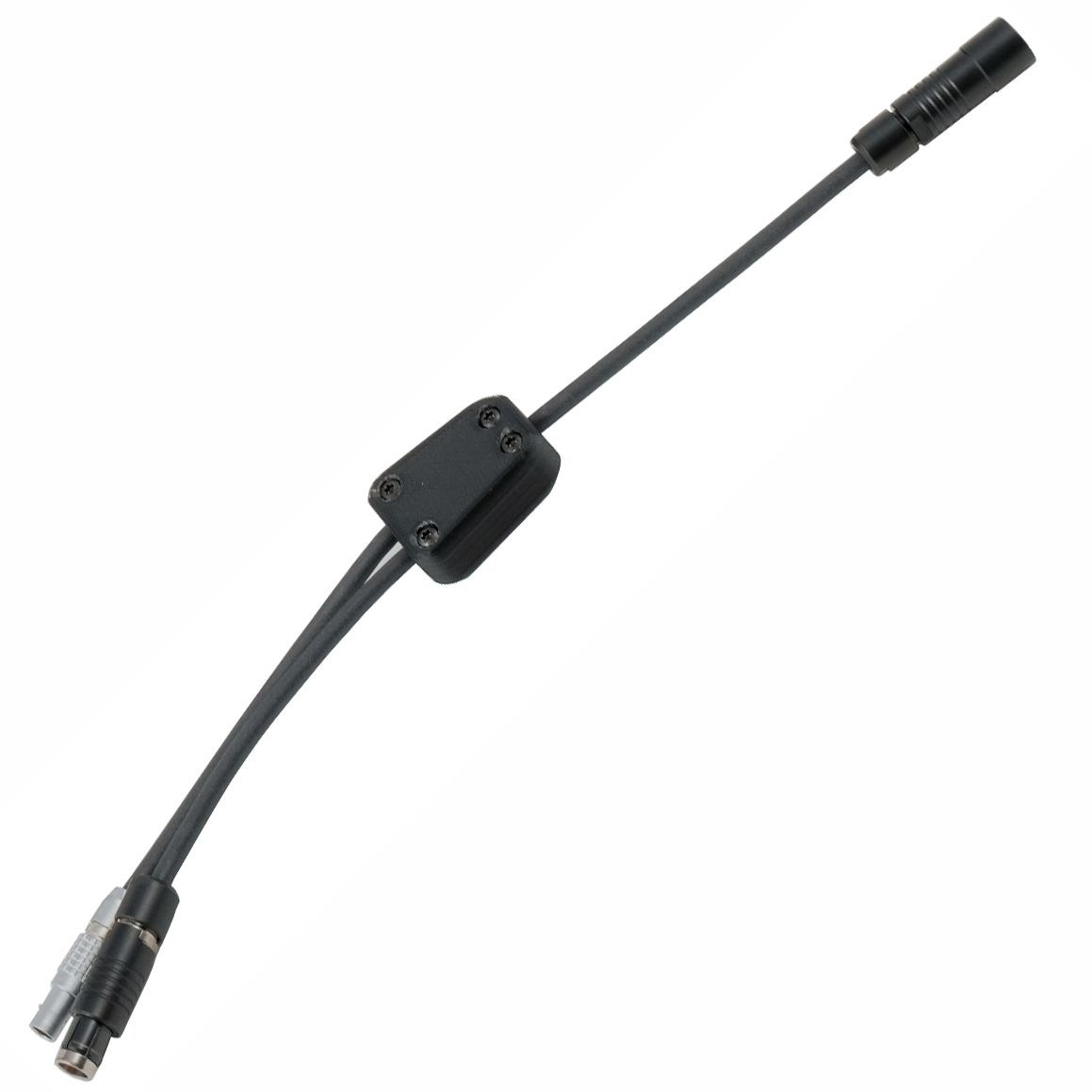

Spare ERM Power Cable for ERM-2400 & ERM-900Length: 30cm / 11.8in

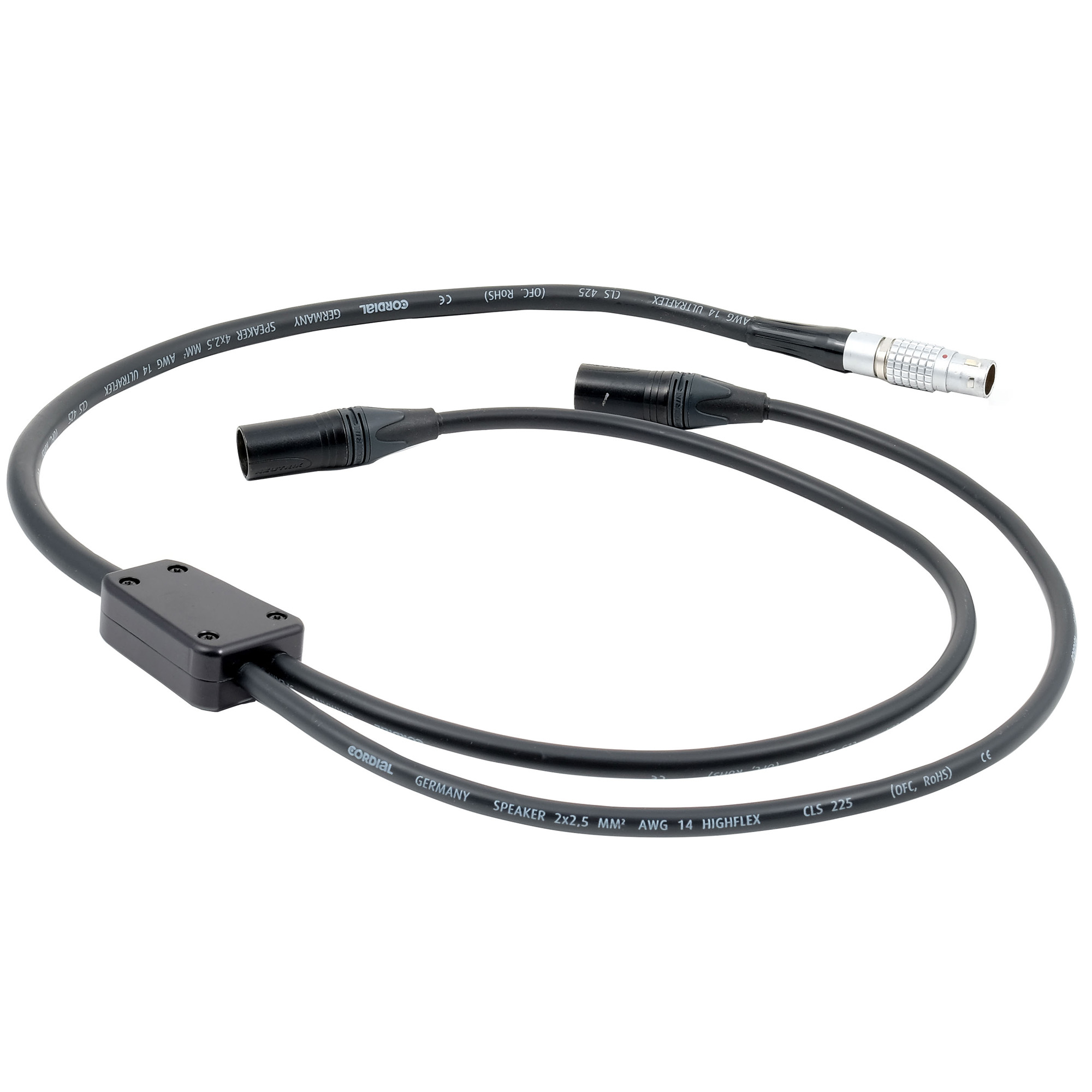

Power cable to power the Stabilized Remote Head 360 EVO, SRH-3 and SRH-360 with 12 V and 24 V power from a high-capacity battery providing 12 V and 24 V power.12 V 4-pin XLR and 24 V 3-pin XLRLength: 0.5 m/1.64ftFor 360 EVO and SRH-3 and SRH-360

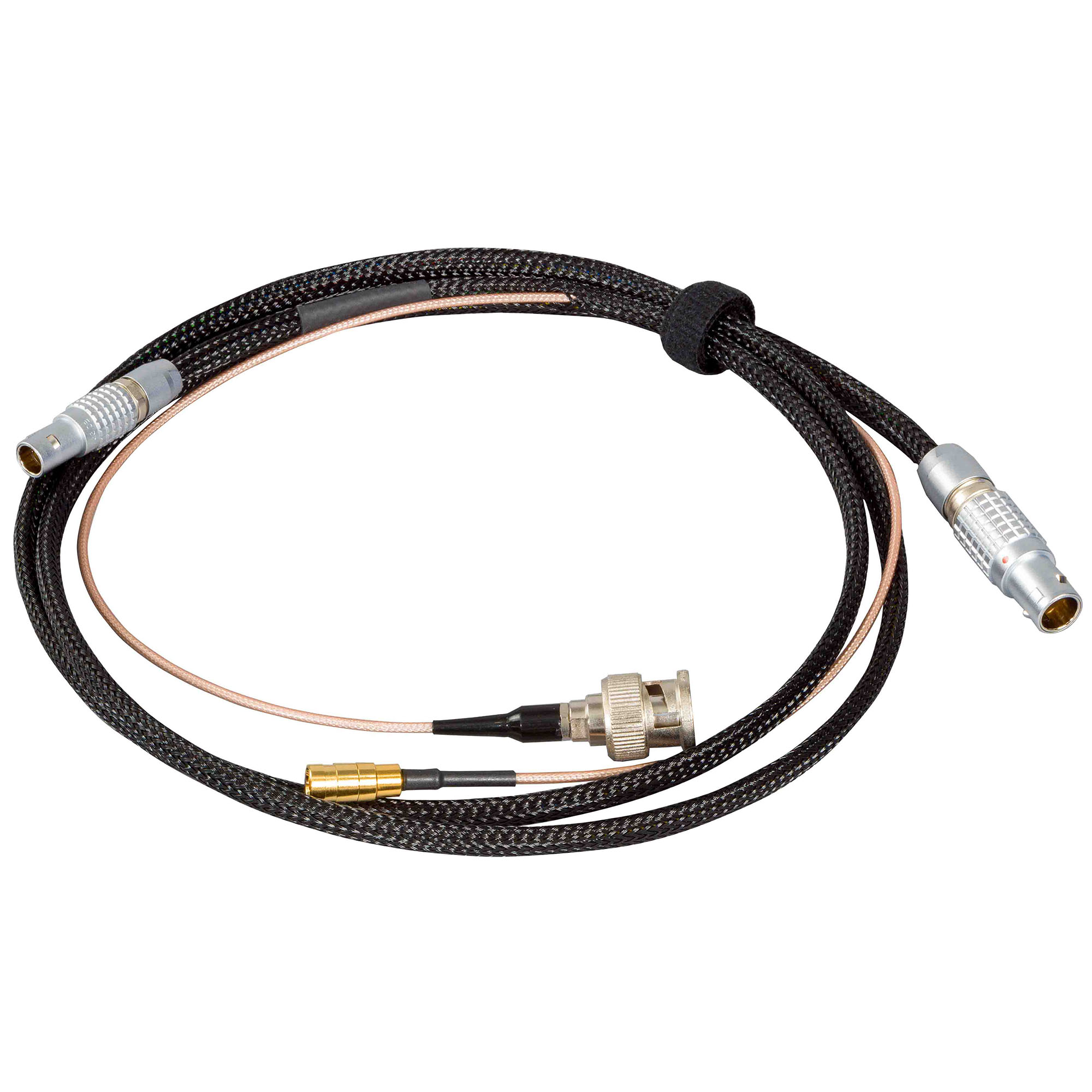

TRINITY Gen. 1 Joystick Main Cable including the BNC-SMB CableLemo 1B 8-pin to Lemo 0B 7-pin, 12VFor TRINITY Gen. 1 only!

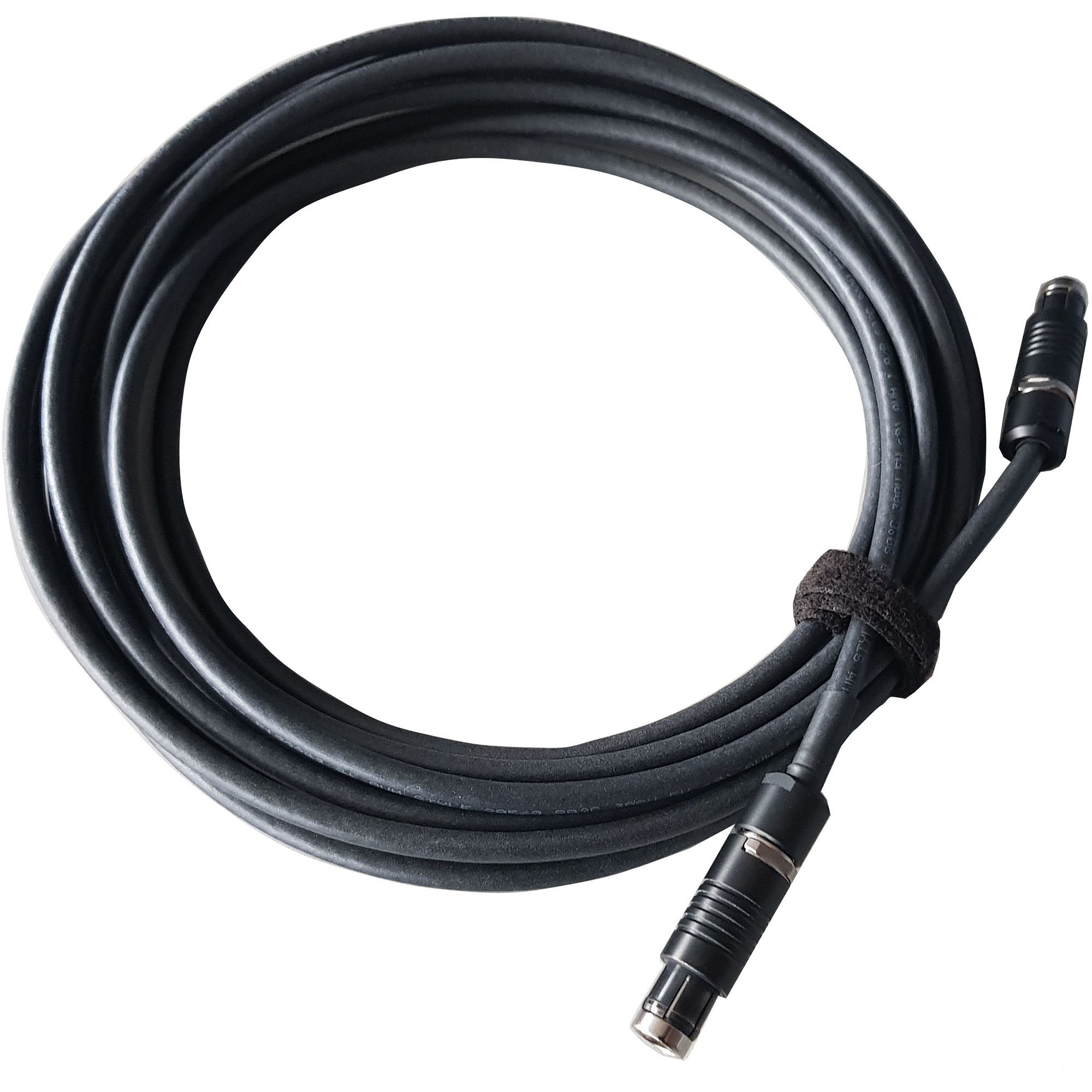

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.0033758 to the SRH remote control panel and remote head. Extension cable to connect the ERM-LCS to the WCU-4, SXU-1, EXT and LBUS compatible products.Length: 10m/32.8ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

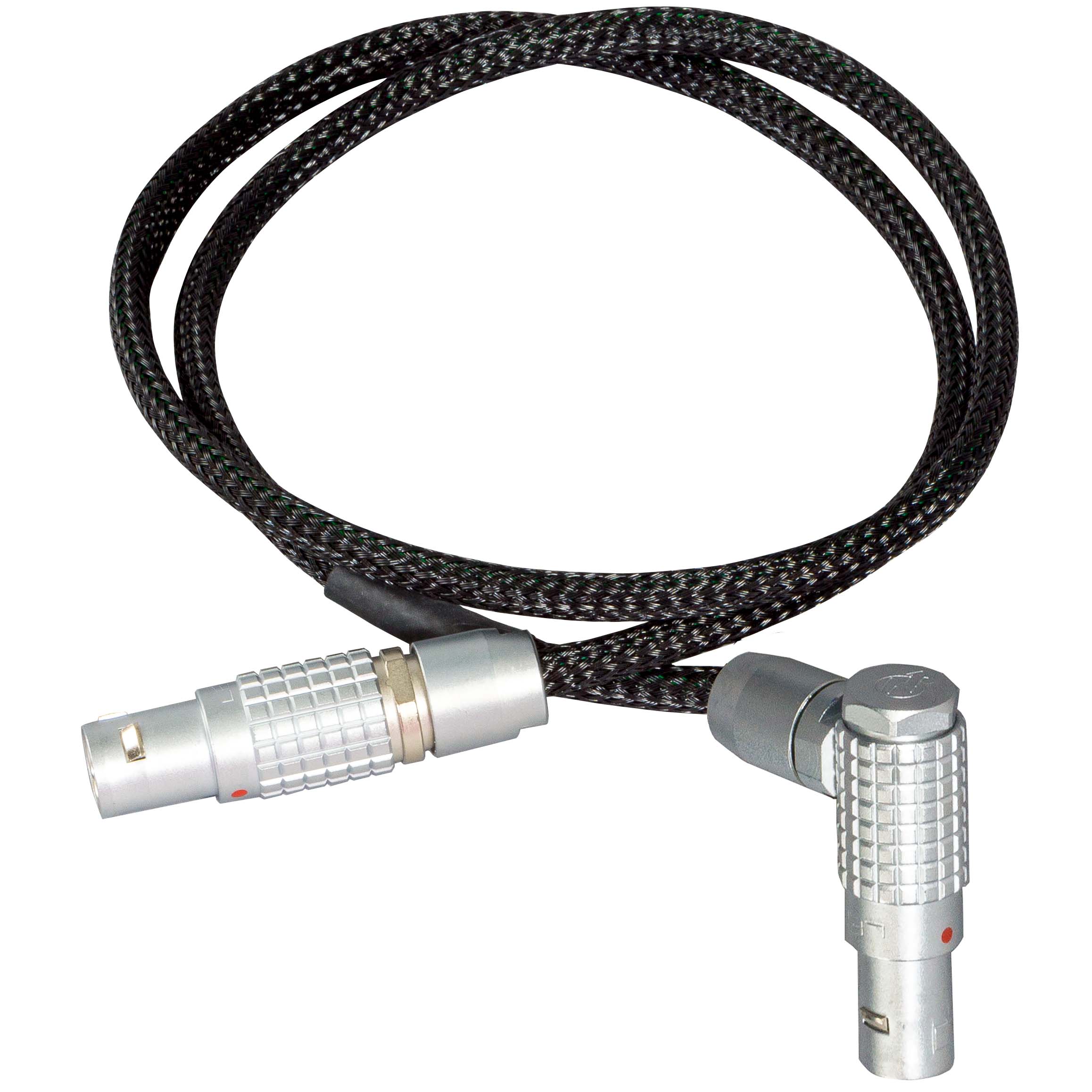

Extra long flexible main cable to connect the outer ring of the TRINITY 2 to the inner ring.High-capacity 12v/24V, Data, 1 x 12G video, LBUS, Can Bus, tally Length: 0,65m/26inFor TRINITY 2, 360 EVO

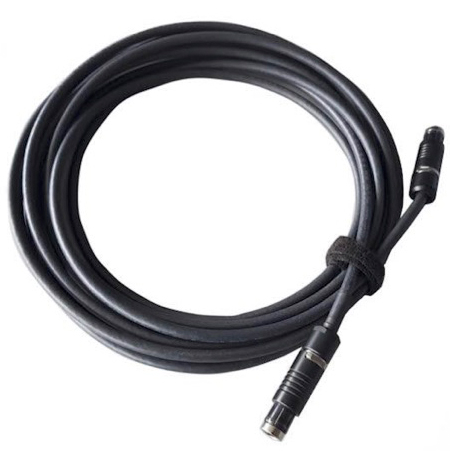

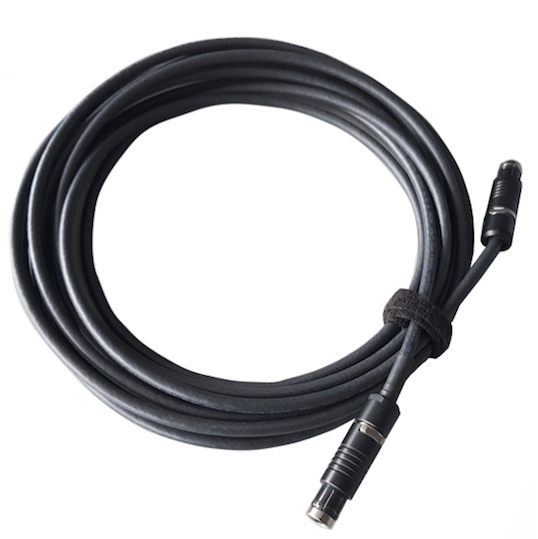

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.0033758 to the SRH remote control panel and remote head. Extension cable to connect the ERM-LCS to the WCU-4, SXU-1, EXT and LBUS compatible products.Length: 5m/16.4ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

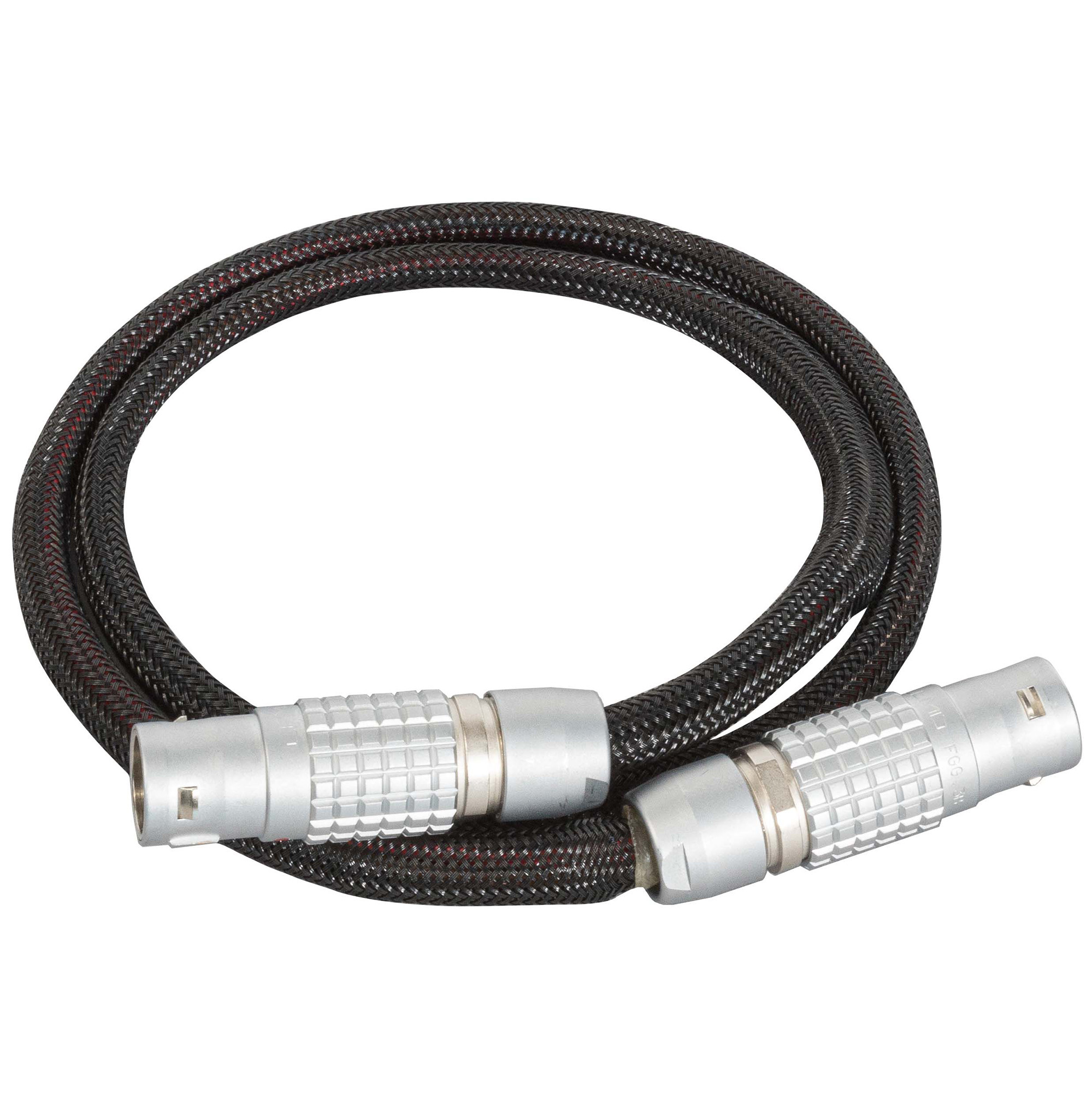

Main cable for ARTEMIS 2 and TRINITY 2.High-capacity 12V/24V, Data, 2 x 12G video, LBUS, Can Bus, tallyLemo 3B 16-pin to Lemo 3B 16-pinFor ARTEMIS 2 and TRINITY 2, TRINITY 2 Pan Axis Module

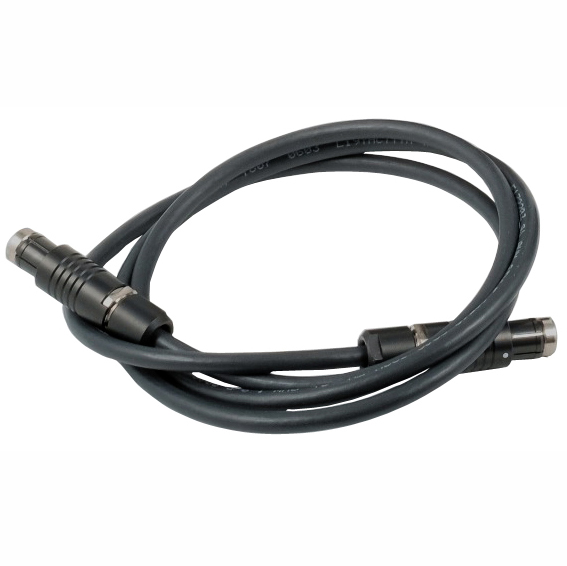

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.0033758 to the SRH remote control panel and remote head. Extension cable to connect the ERM-LCS to the WCU-4, SXU-1, EXT and LBUS compatible products.Length: 1m/3.2ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

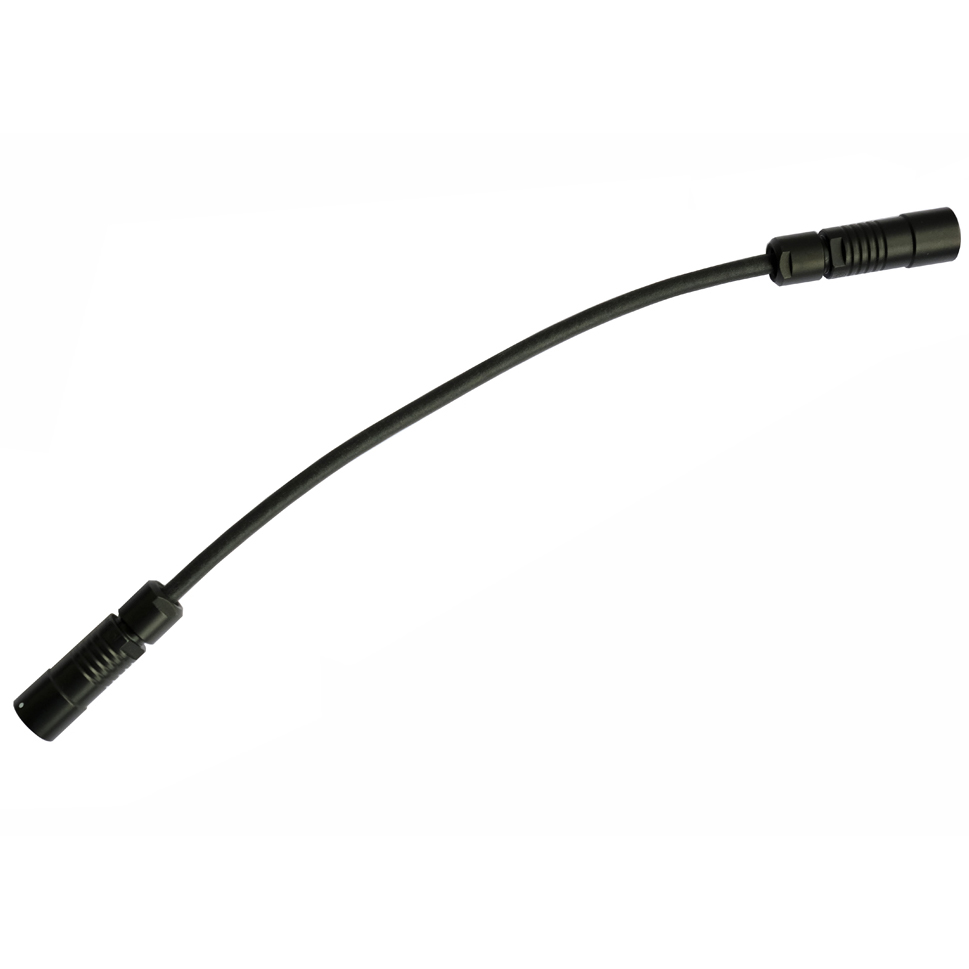

Coupler to extend SRH FS CAN Bus cables like:SRH FS CAN Bus Cable, 1 m/3.2' (K2.0033762) SRH FS CAN Bus Cable, 10 m/32.8' (K2.0019302) SRH FS CAN Bus Cable, 25 m/82' (K2.0019301)Length: 0.2m/0.65ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

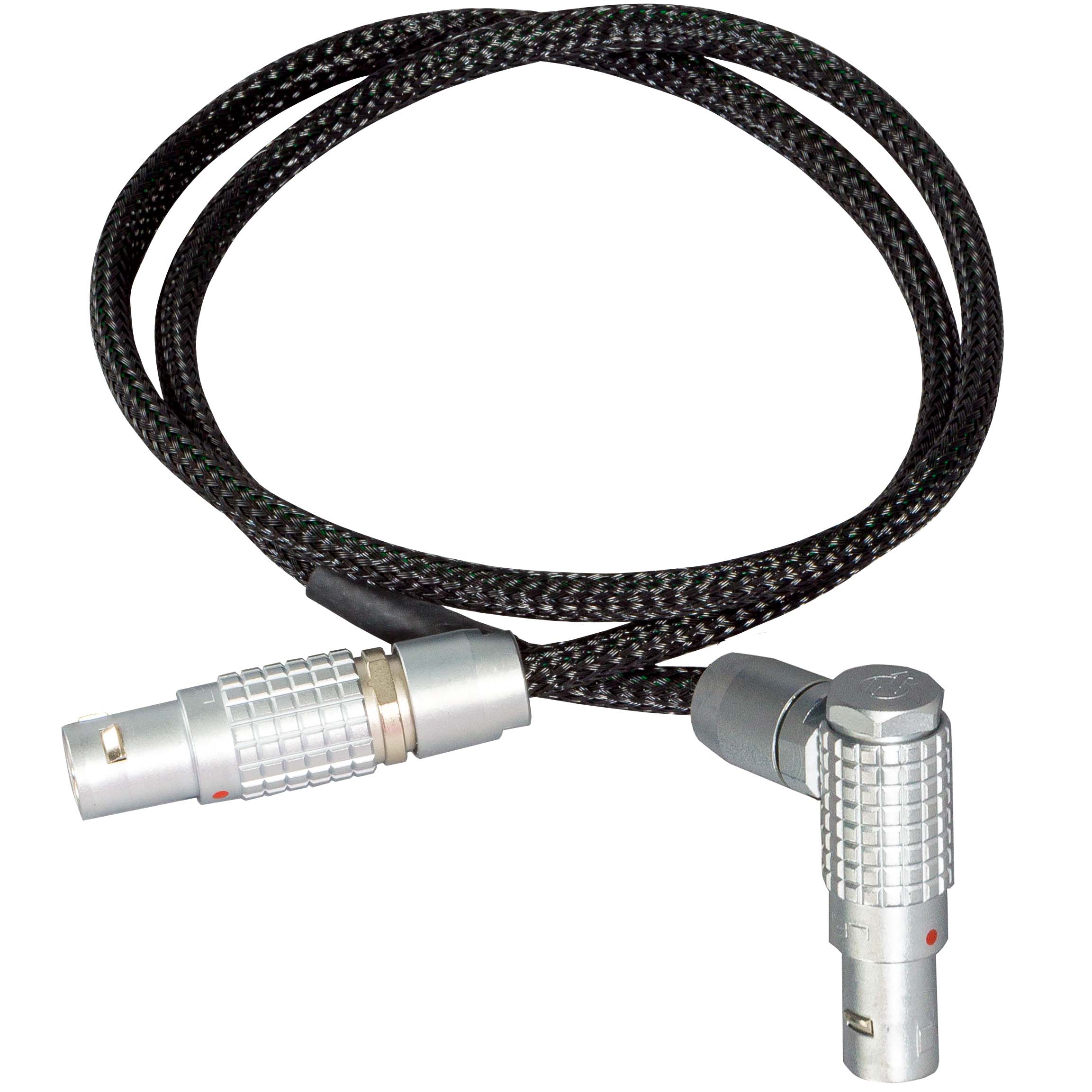

Flexible standard main cable to connect the outer ring of the TRINITY 2 to the inner ring.High-capacity 12V/24V, Data, 1 x 12G Video, LBUS, Can Bus, tallyLength: 0,65m/25,5inFor TRINITY 2, 360 EVO
24V high-capacity extension cable to connect a block battery with the SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ft (K2.0019306)24V high-capacity, 3-pin XLR Length: 20m/66ftFor 360 EVO and SRH-3 and SRH-360

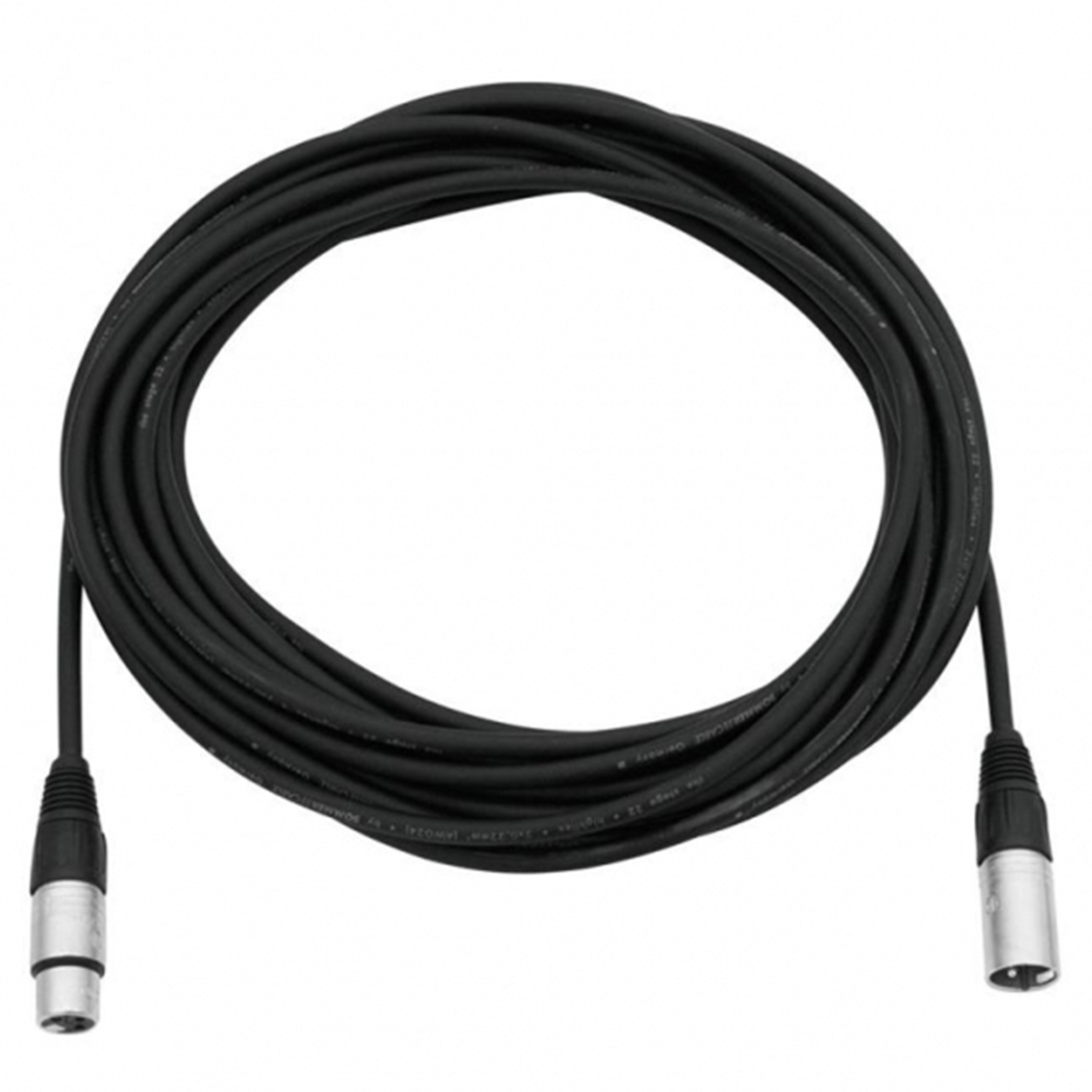

12V high-capacity extension cable to connect a block battery with the SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ft (K2.0019306)12V high-capacity, 4-pin XLRLength: 20m/66ftFor 360 EVO and SRH-3 and SRH-360

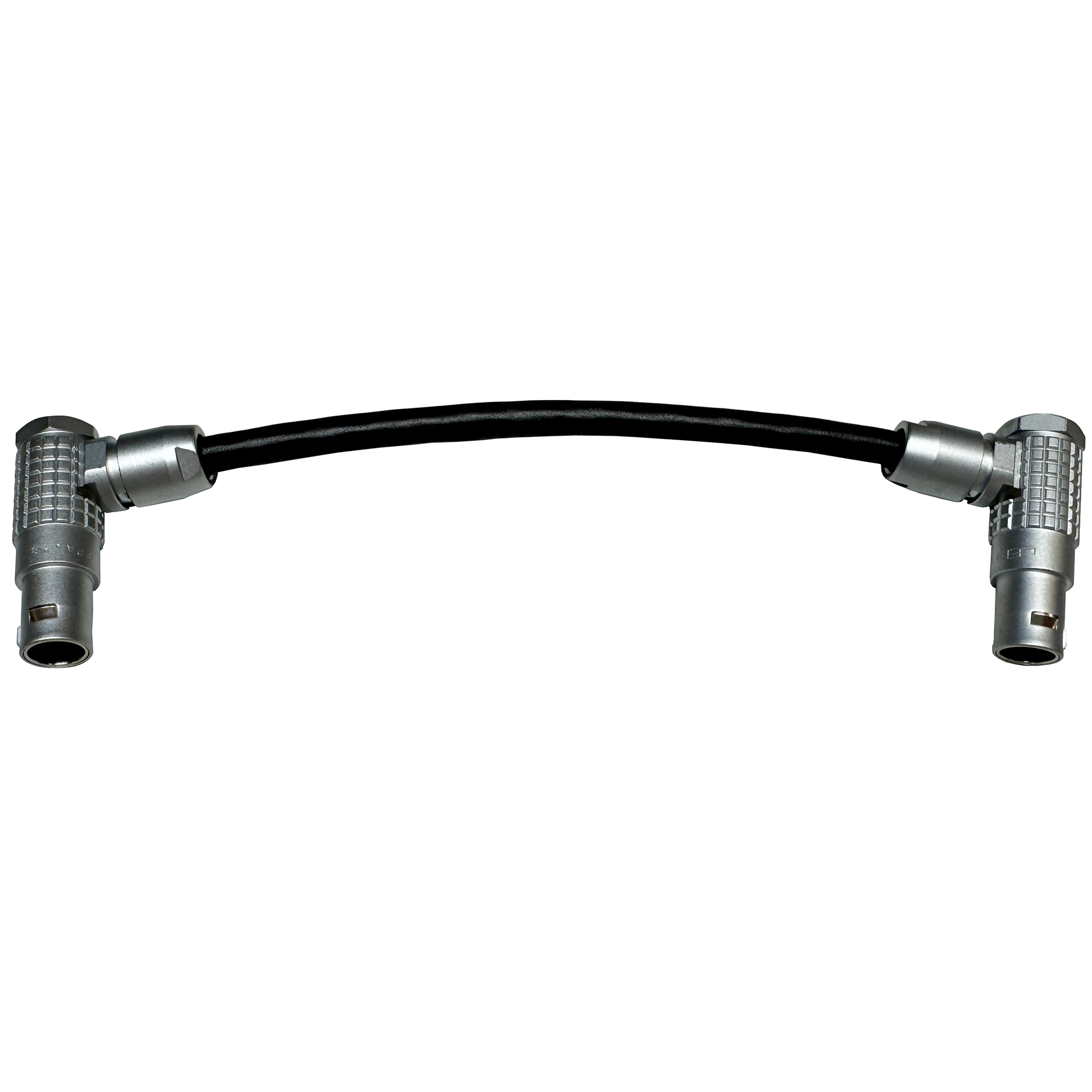

Communication Cable between TRINITY 2 head and Pan Axis ModuleNOTE:TRINITY 2 / Pan Axis Module Only

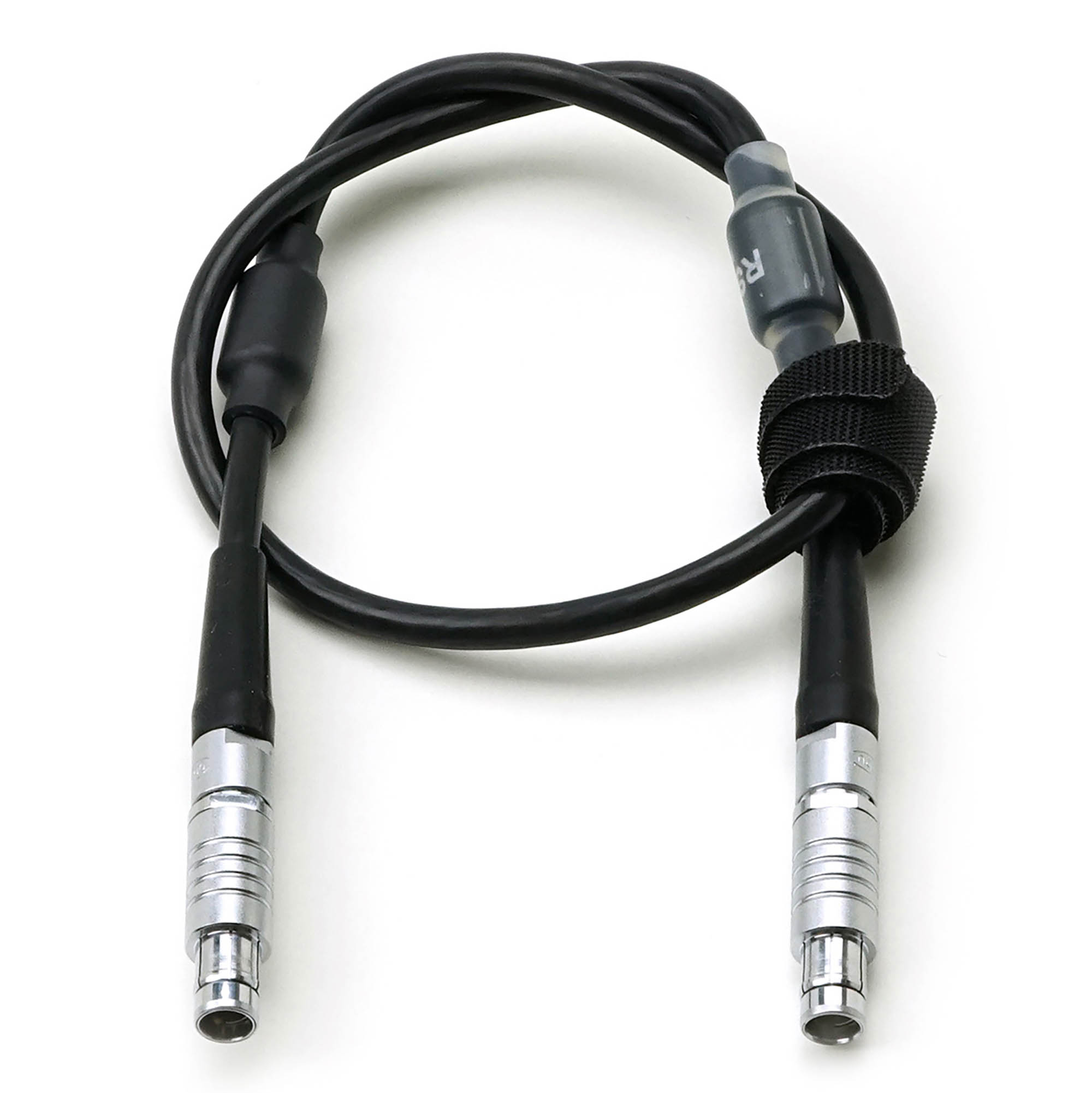

RS power cable. Provides power and RUN/STOP function. Can be used to power a WVT-1, WVR-1 or UMC-4 from a camera.Fischer-type 3pin (male) to PWR IN/RS Fischer-type 3pin (female), 0.5m/1.6ftARTEMIS 2, TRINITY 2, SRH-3, SRH-360

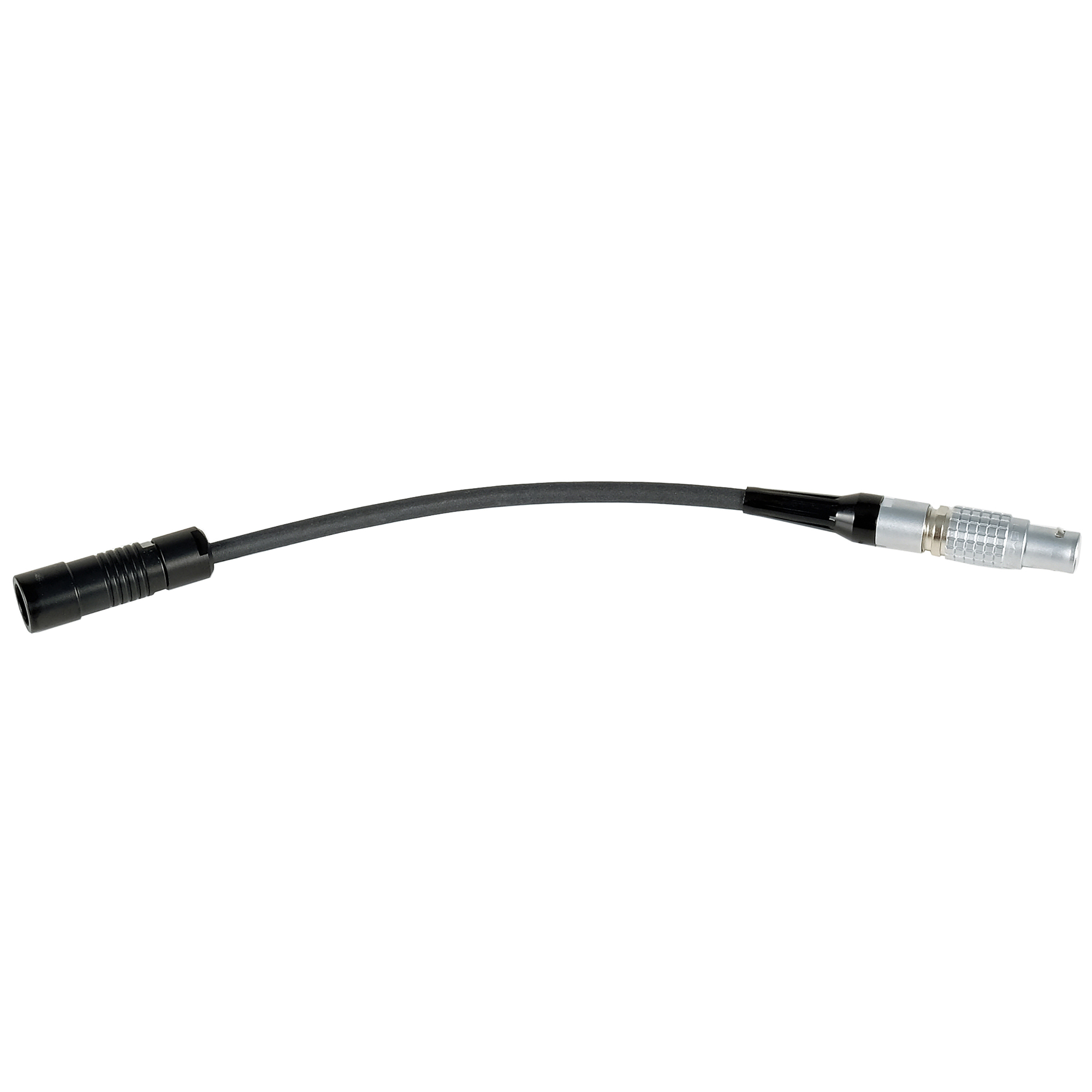

Adapter cable to connect the ERM LCS to ALEXA Mini, ALEXA Mini LF and Amira via the EXT. socket.Recommended and required optional extension cables:SRH FS CAN Bus Cable, 1m/3.2ft (K2.0033762)SRH FS CAN Bus Cable, 10m/32.8ft (K2.0019302)SRH FS CAN Bus Cable, 25m/82ft (K2.0019301For ERM LCS only

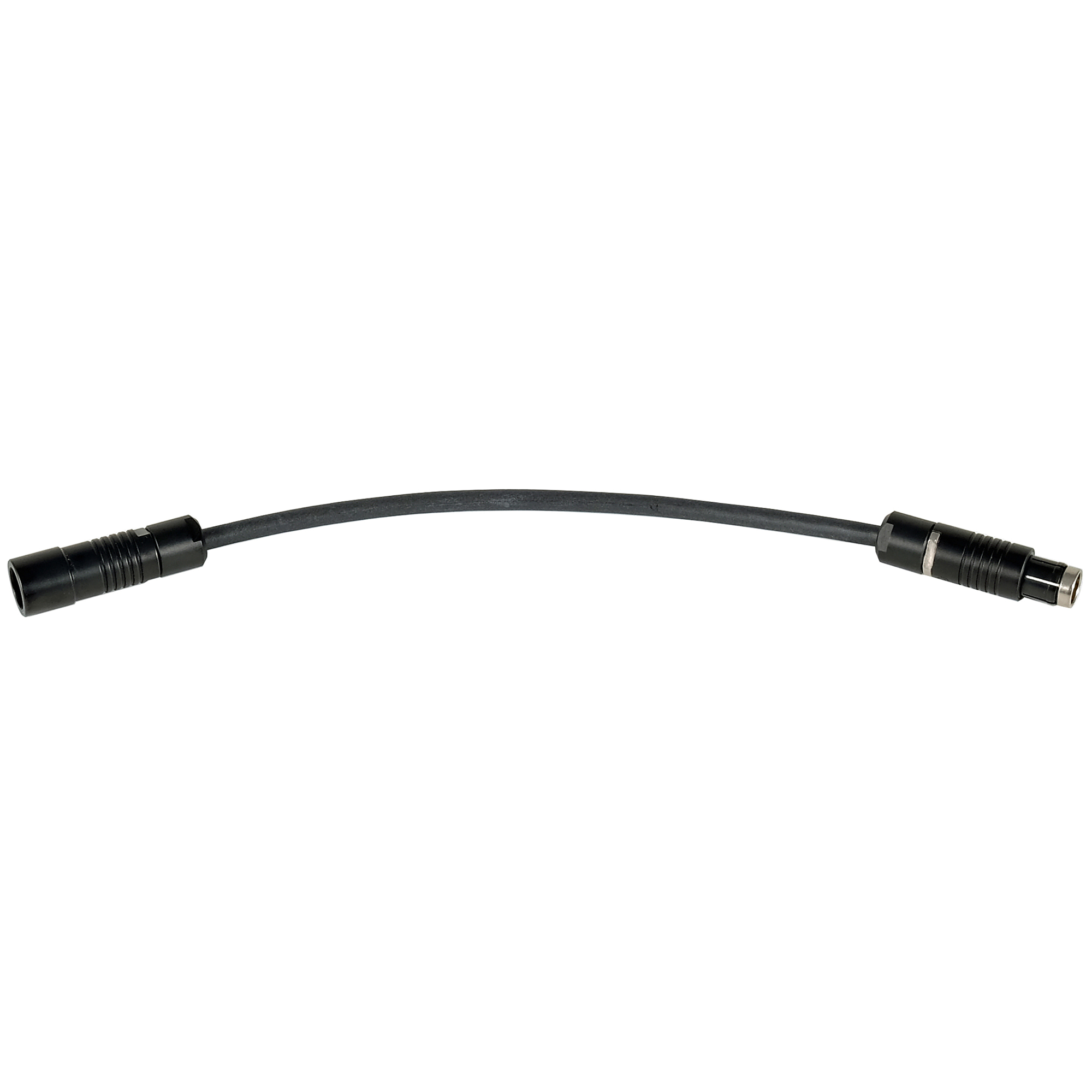

Adapter cable to connect the ERM LCS to Master Grips, OCU-1, DRW-1 and DEH-1 via the LBUS socket.Recommended and required optional extension cables:SRH FS CAN Bus Cable, 1m/3.2ft (K2.0033762)SRH FS CAN Bus Cable, 10m/32.8ft (K2.0019302)SRH FS CAN Bus Cable, 25m/82ft (K2.0019301For ERM LCS only

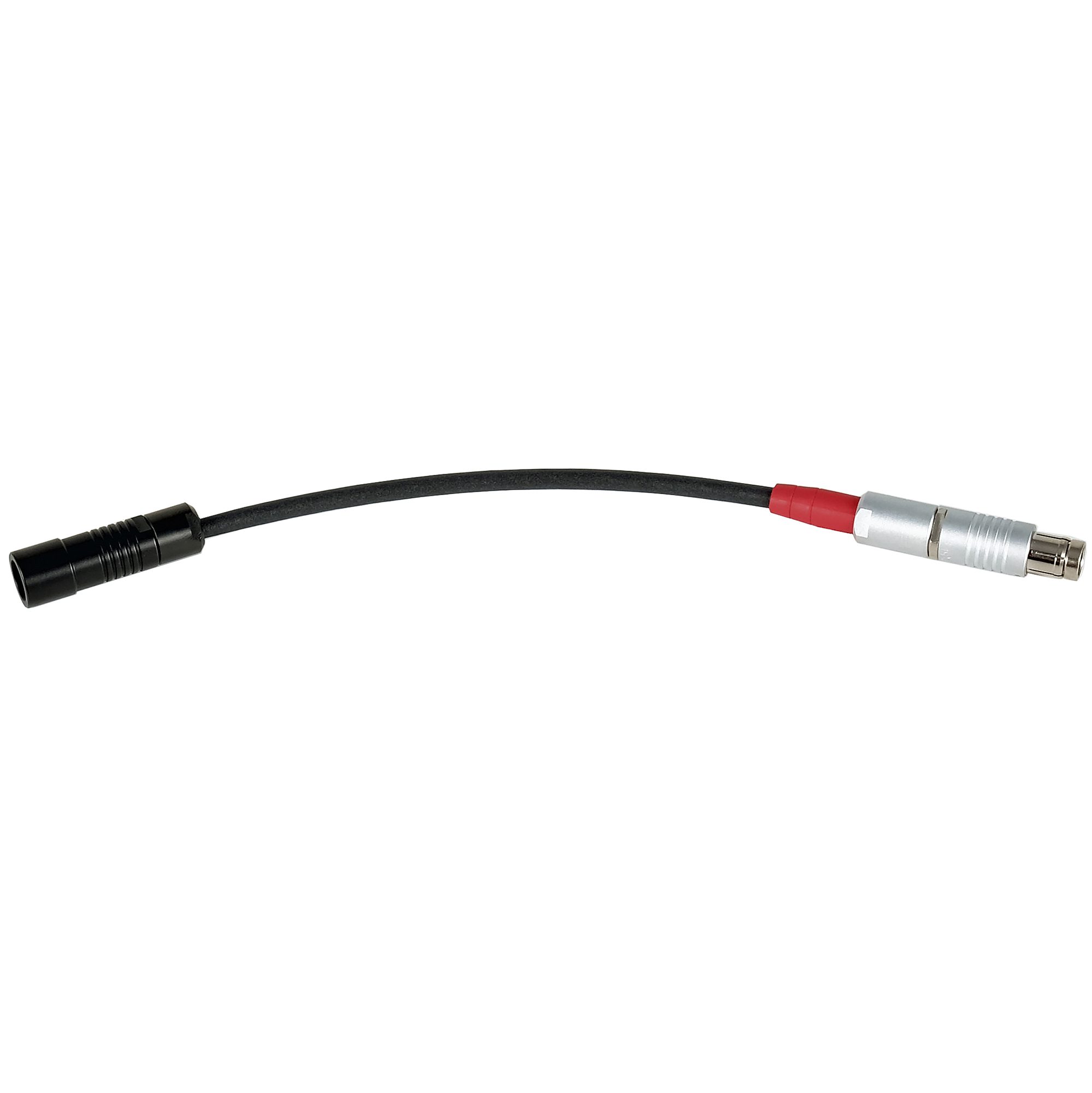

Adapter cable to connect the ERM LCS to the WCU-4, SXU-1 UMC-4 and ALEXA Plus camera via the LCS socket.Recommended and required optional extension cables:SRH FS CAN Bus Cable, 1m/3.2ft (K2.0033762)SRH FS CAN Bus Cable, 10m/32.8ft (K2.0019302)SRH FS CAN Bus Cable, 25m/82ft (K2.0019301For ERM LCS only

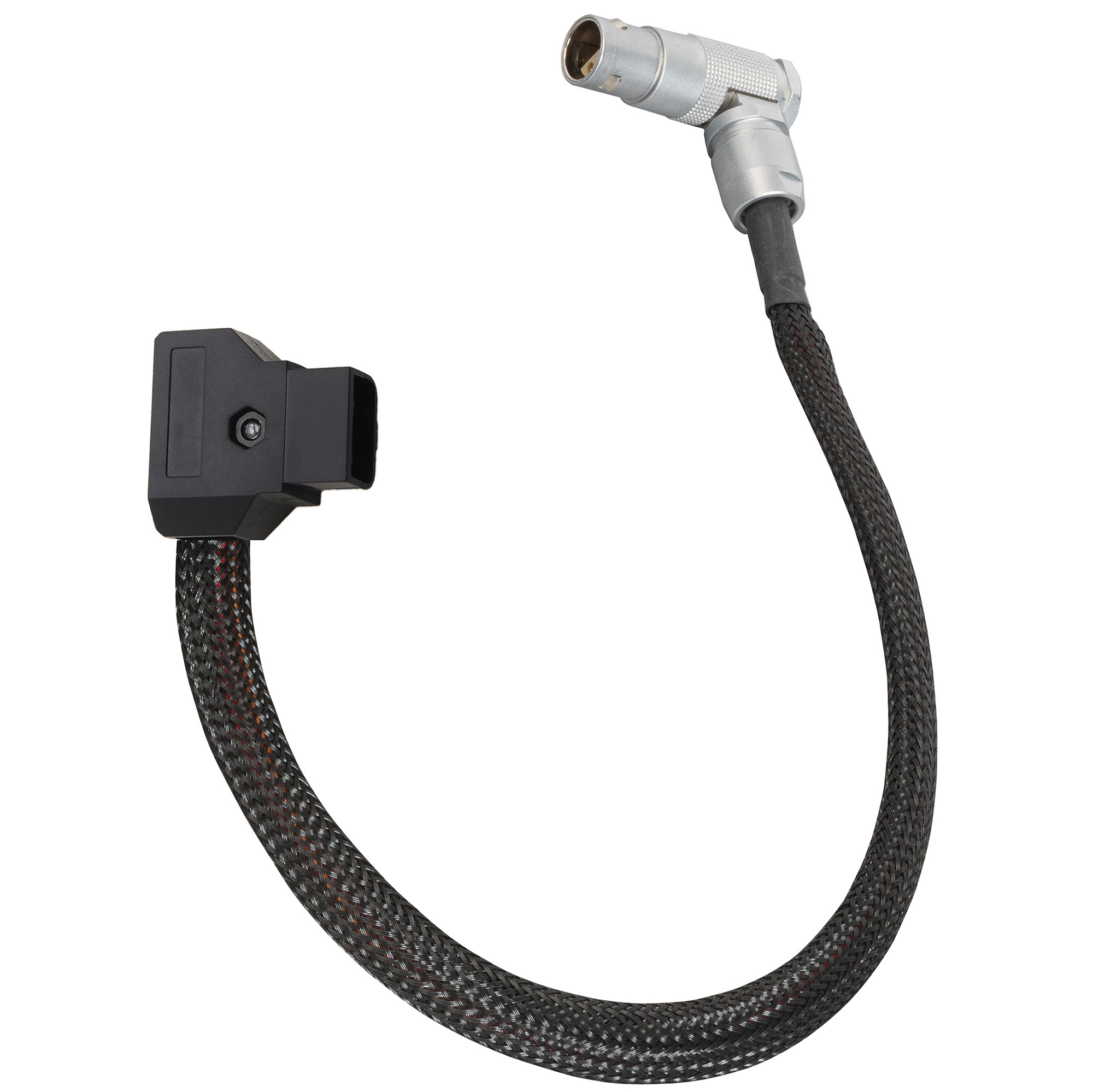

This D-Tap cable allows the user of a 24V B-Mount or Anton Bauer Dionic 26V battery to tap an additional 12V from the D-Tab socket, in addition to the nominal 24V. This D-Tap cable allows the user of a 24V B-Mount or Anton Bauer Dionic 26V battery to tap an additional 12V from the D-Tab socket, in addition to the nominal 24V. This means that the entire ARTEMIS 2 Live can be operated with just one battery.
Power cable to connect the Transvideo Starlight, or Small HD 503 monitor to the TRINITY Gen. 1 Joystick Monitor Mount.Lemo 0B 5-pin 90° elbow to Lemo 0B 2-pin, 12VFor TRINITY Gen. 1 only!

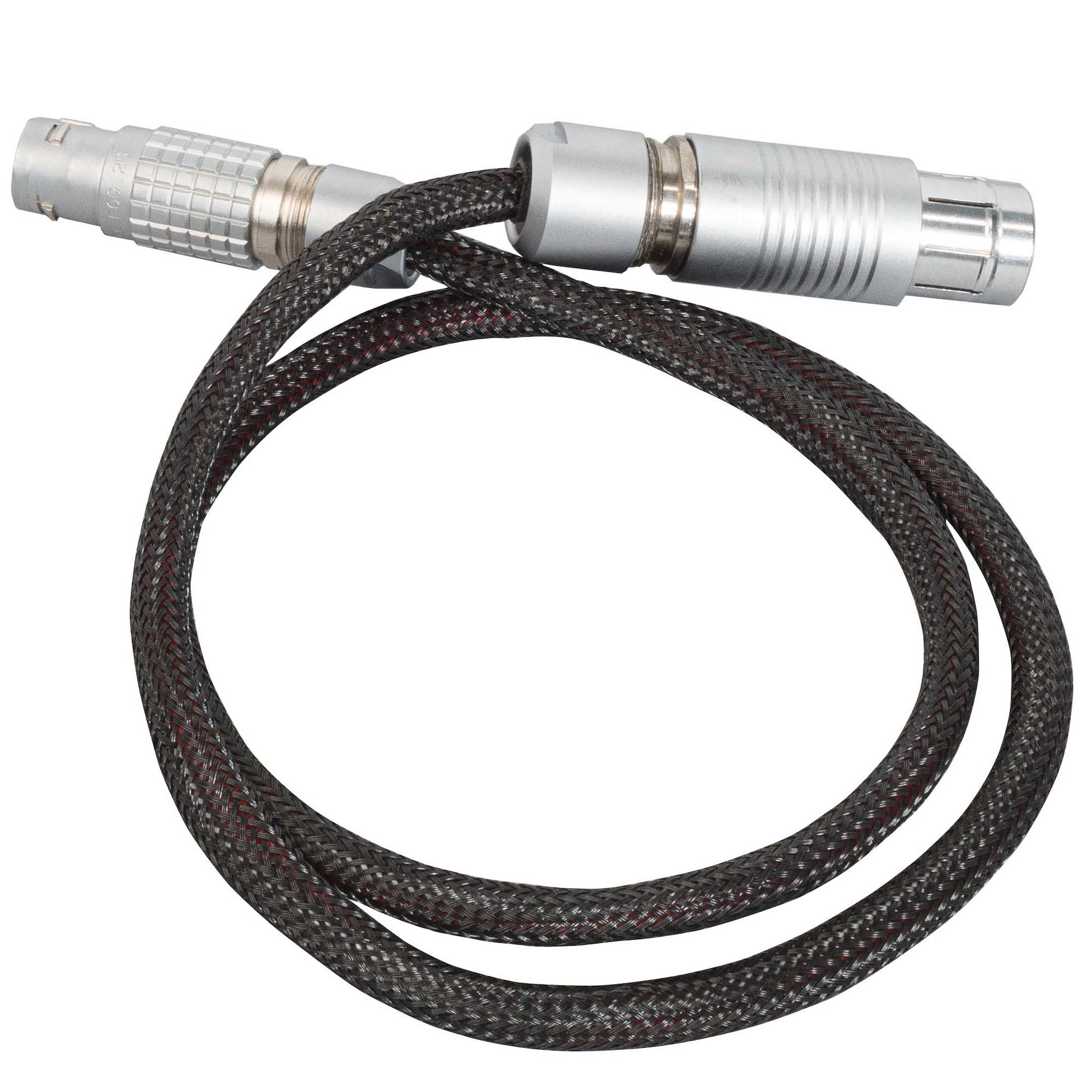

24V high-capacity camera power cable.Lemo 2B 7-pin to Fischer 2-pin, 0.7m / 2.3ftALEXA LF, 24VFor ARTEMIS 2 and TRINITY 2

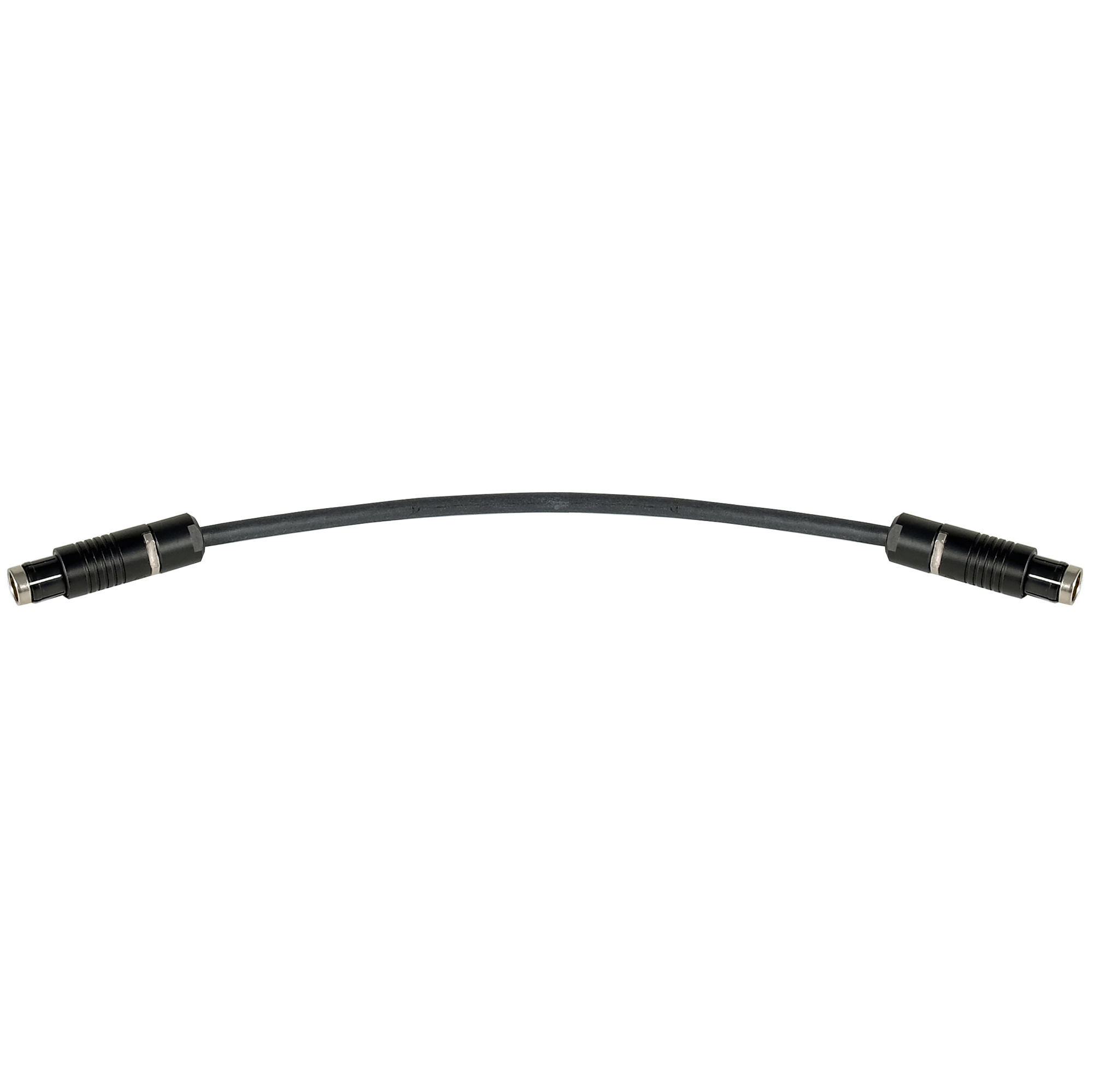

Power and data cable to connect the RCP-3 remote control to the TRINITY2 system.Fischer 4-pin to Fischer 4-pin, 12v, 25cm/10inFor TRINITY 2, RCP-3

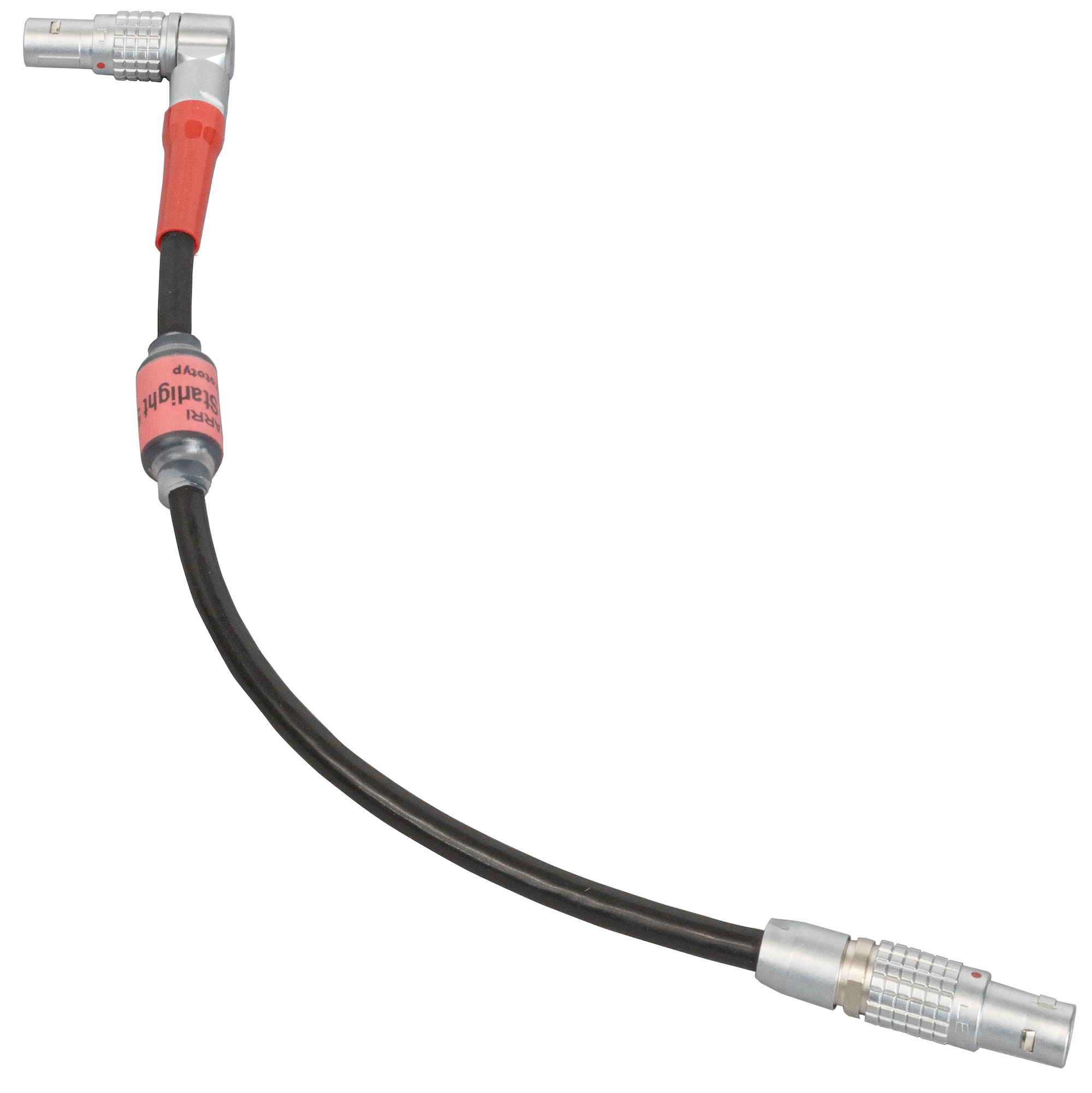

Power cable to connect the ARRI Starlight monitor to the TRINITY Gen.1 Joystick Monitor Mount.Lemo 0B 5-pin 90° elbow to Lemo 0B 5-pin, 12VFor TRINITY Gen.1 only!

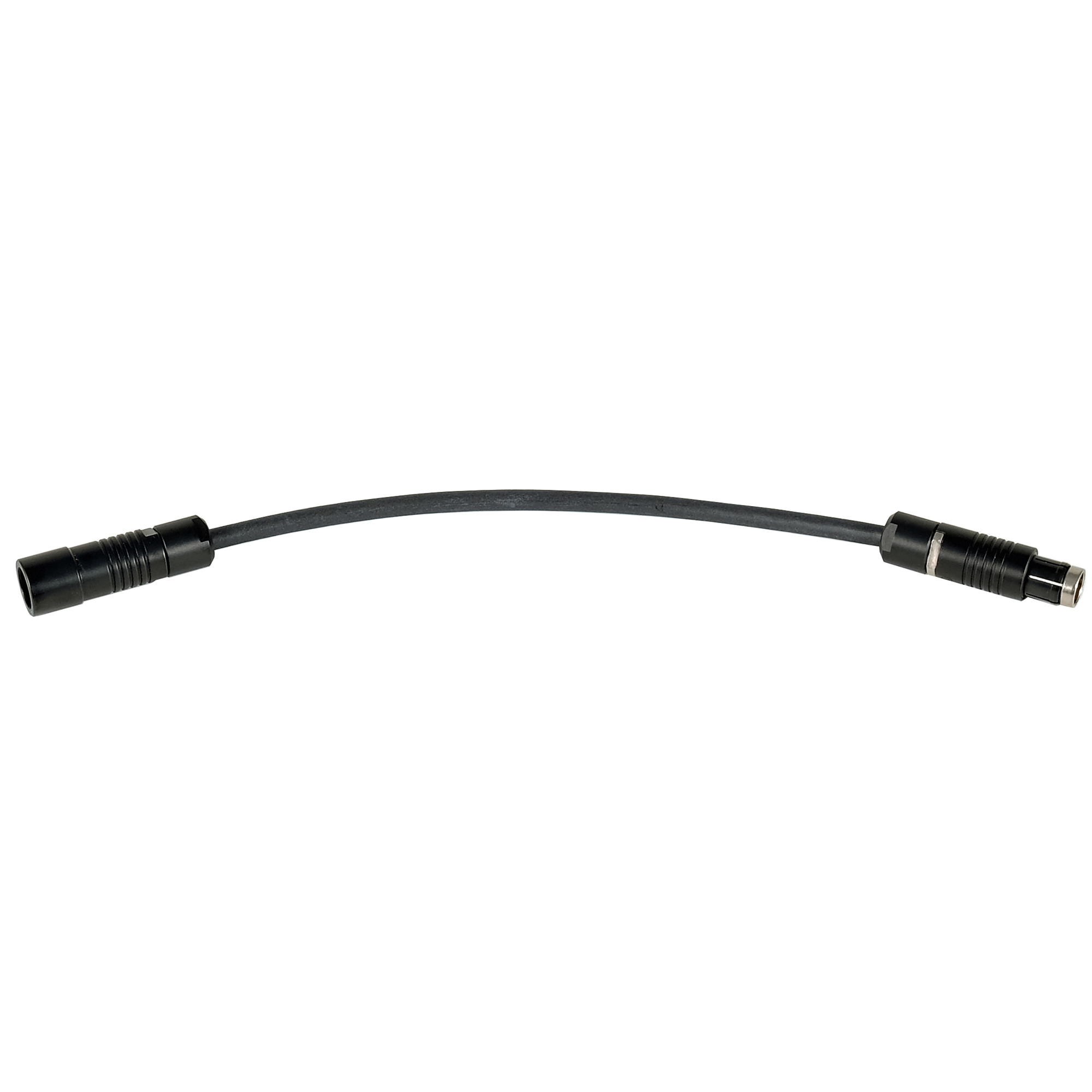

Extension cable to connect the SRH remote control panel and the SRH remote head. Extension cable to connect the ERM-2400 (2.4GHz) K2.0033757 and ERM-900 (900 MHz) K2.0033758 to the SRH remote control panel and remote head. Extension cable to connect the ERM-LCS to the WCU-4, SXU-1, EXT and LBUS compatible products.Length: 0,3m/0,98ftFor 360 EVO, SRH-3, SRH-360, ERM-LCS

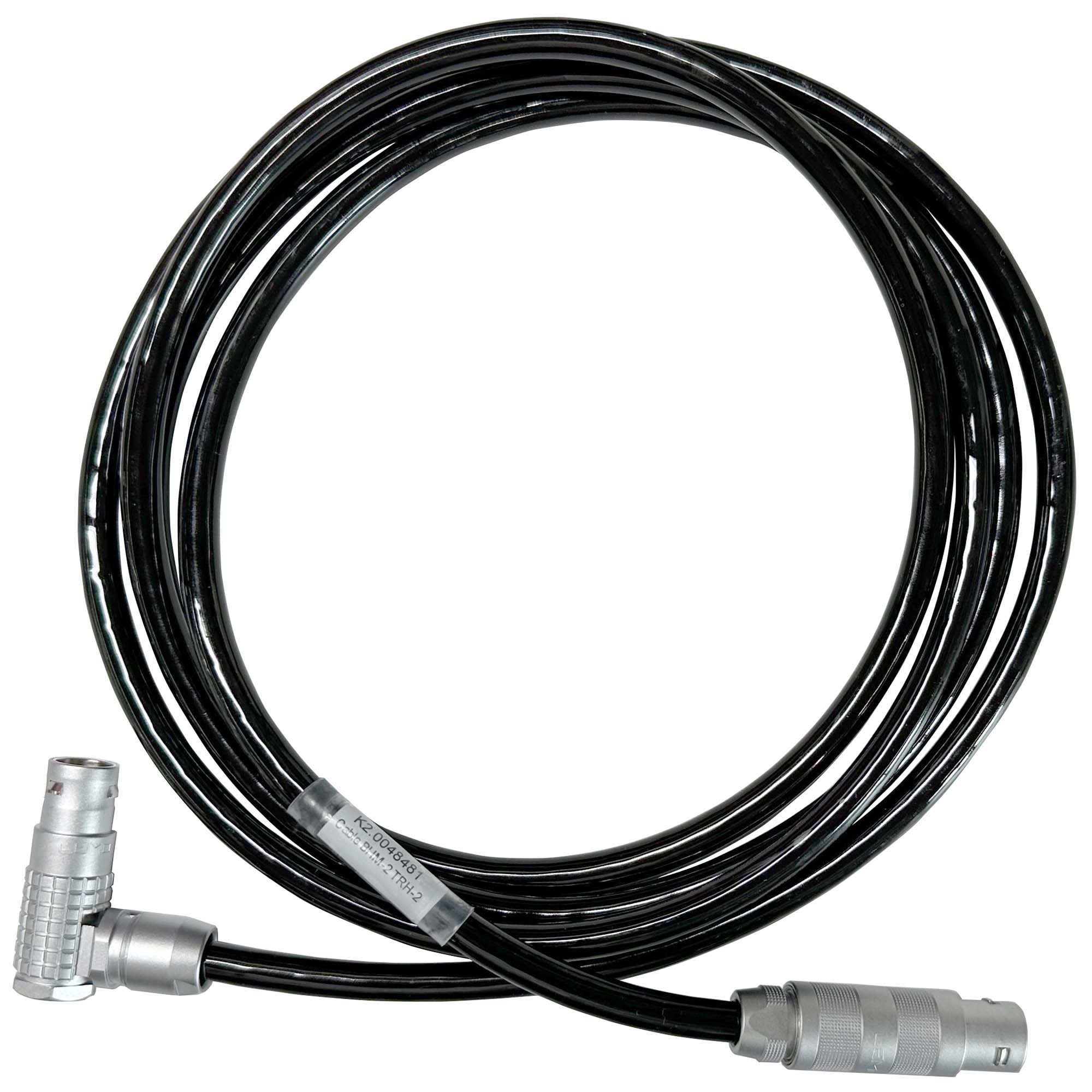

This external power cord allows the TRINITY 2 head to be powered when used as a standalone stabilizer mounted on the MSP-1 (K2.0015385) through the Battery Hanger Module (BHM-2), which was also detached from the rig.Lemo 2B 7pinLength: 2m / 6.5ftTRINITY 2 only!

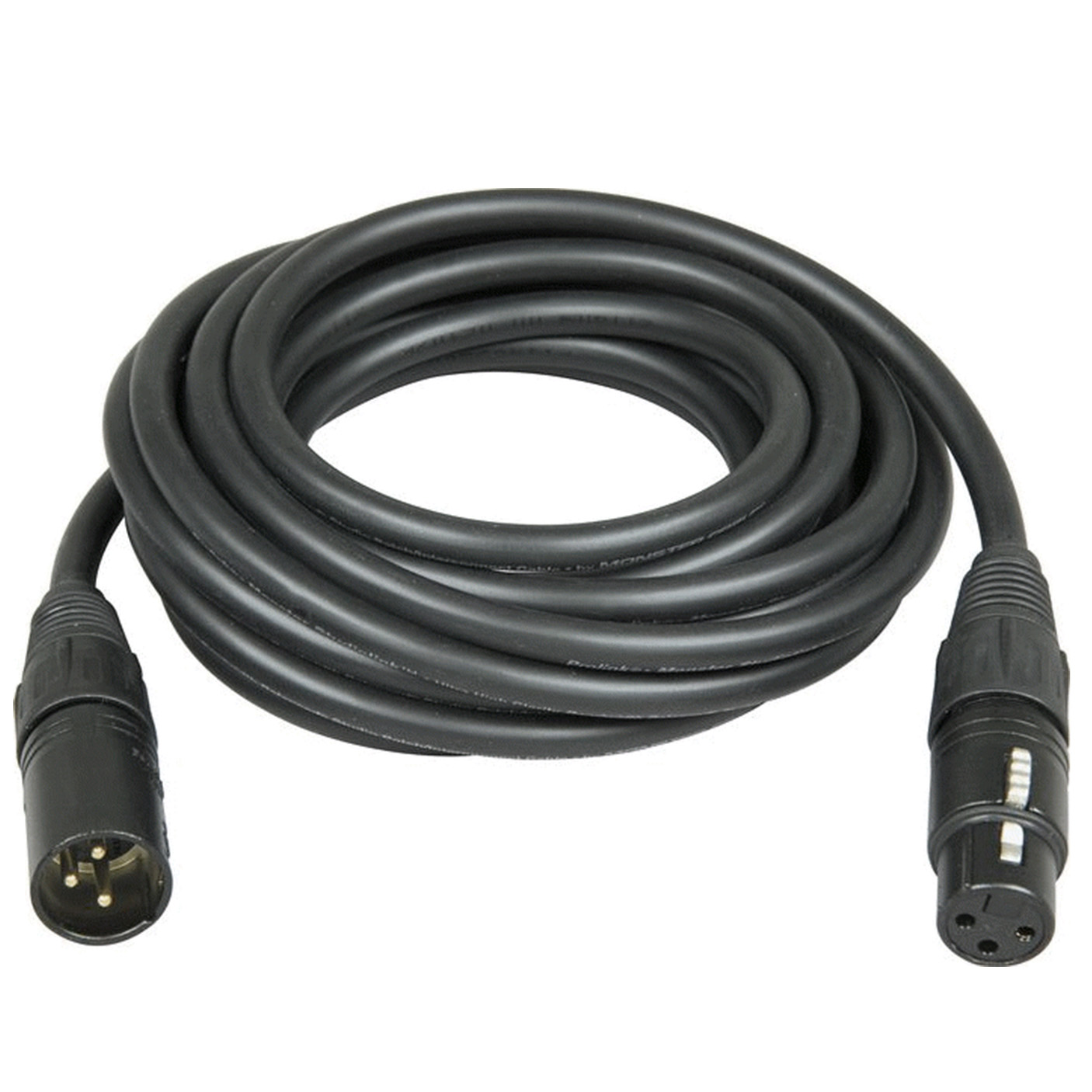

24V high-capacity extension cable to connect a block battery with the SRH High Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ft (K2.0019306).24V high-capacity, 3-pin XLRLength: 10m/33ftFor 360 EVO and SRH-3 and SRH-360

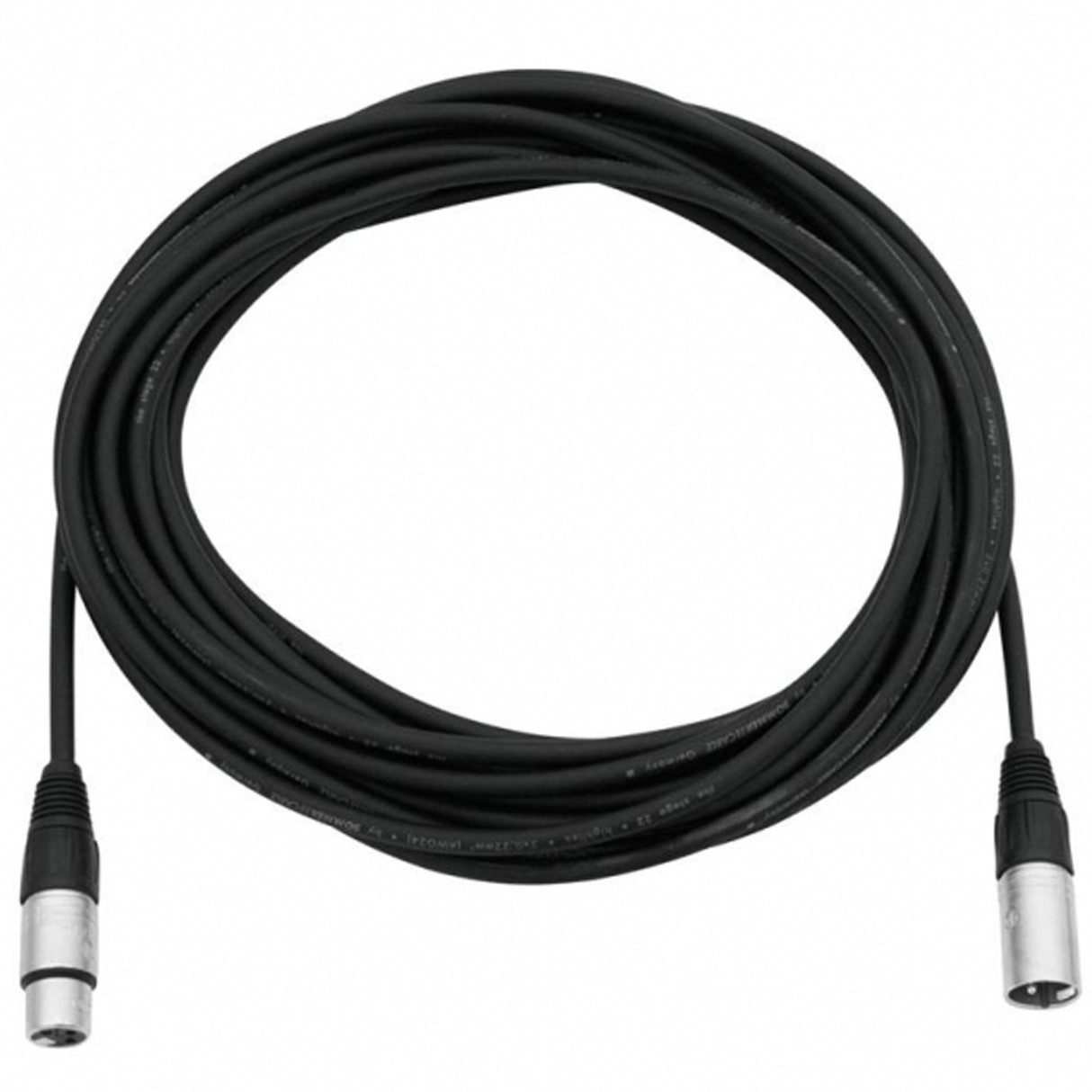

12V high-capacity extension cable to connect a block battery with the SRH High-Capacity Battery Power Cable, 12V/24V, 0.5m/1.64ft (K2.0019306)12V high-capacity, 4-pin XLRLength: 10m/33ftFor 360 EVO and SRH-3 and SRH-360

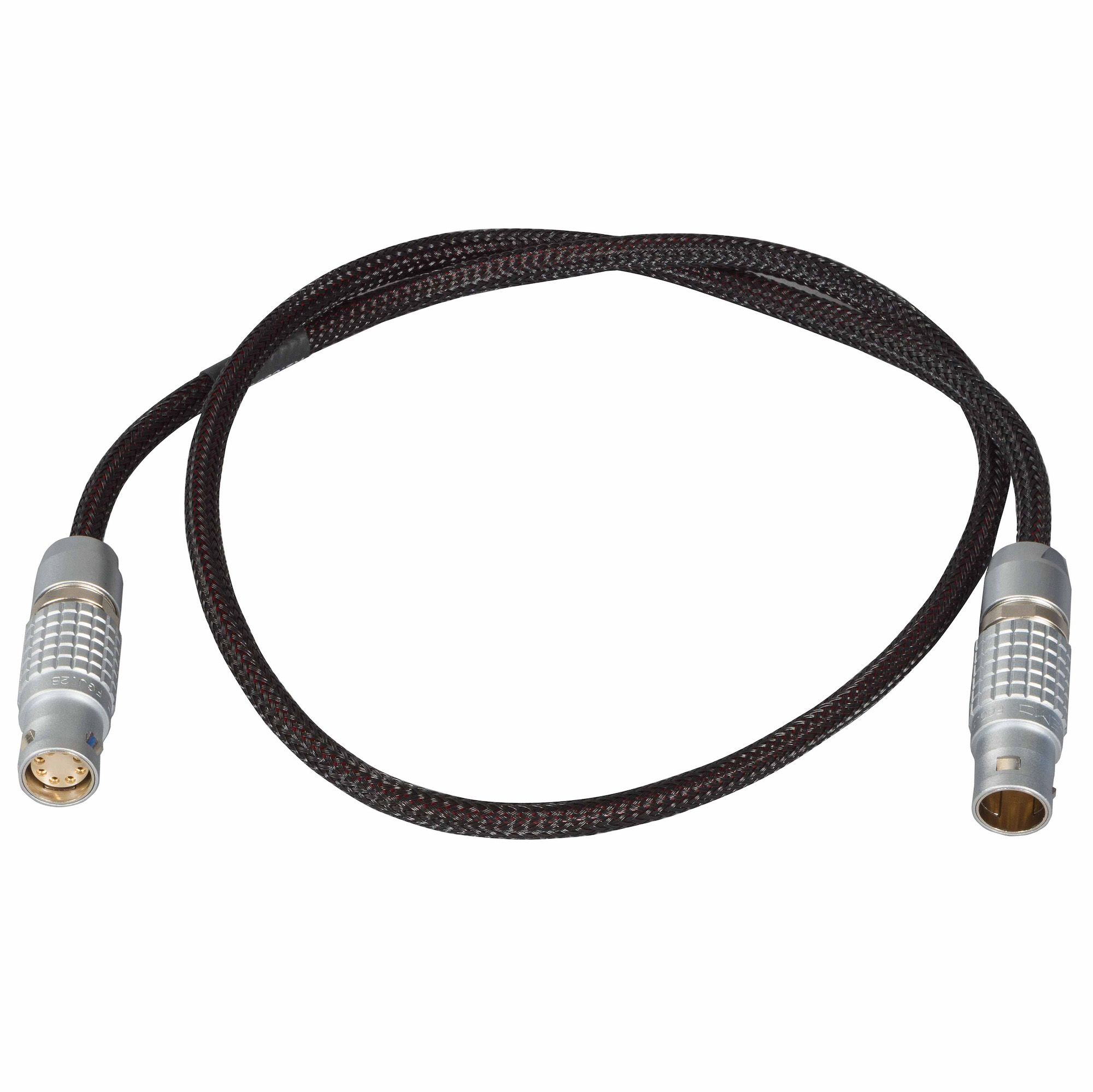

24V high-capacity camera power cable.Lemo 2B 7-pin to Lemo 2B 8-pin, 0.7m / 2.3ftALEXA 35, Mini, Mini LF, AMIRAFor ARTEMIS 2 and TRINITY 2

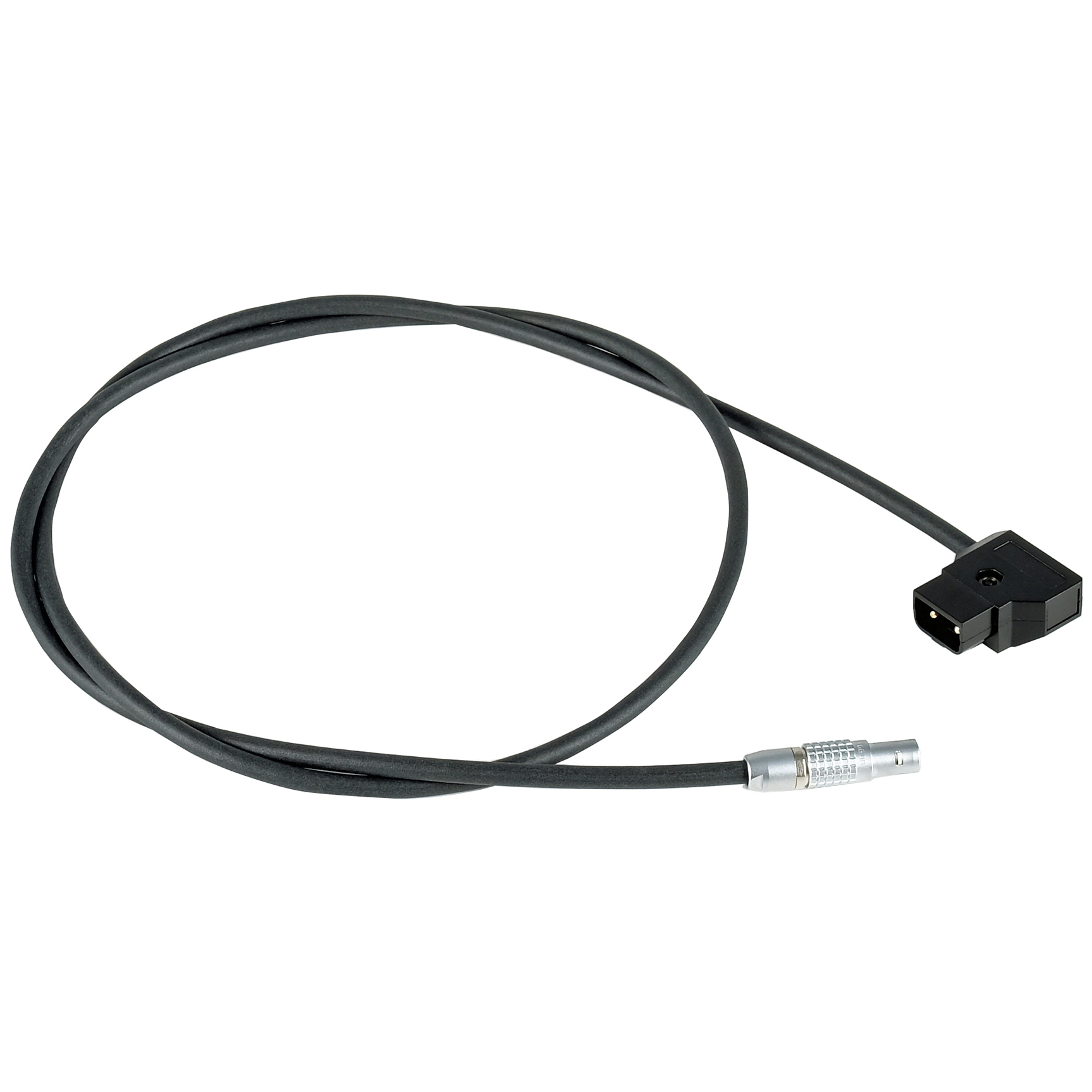

Power cable D-Tap to 2-pin Lemo 0B.Length: 1m/3.2ftFor ERM SRH, ERM LCS

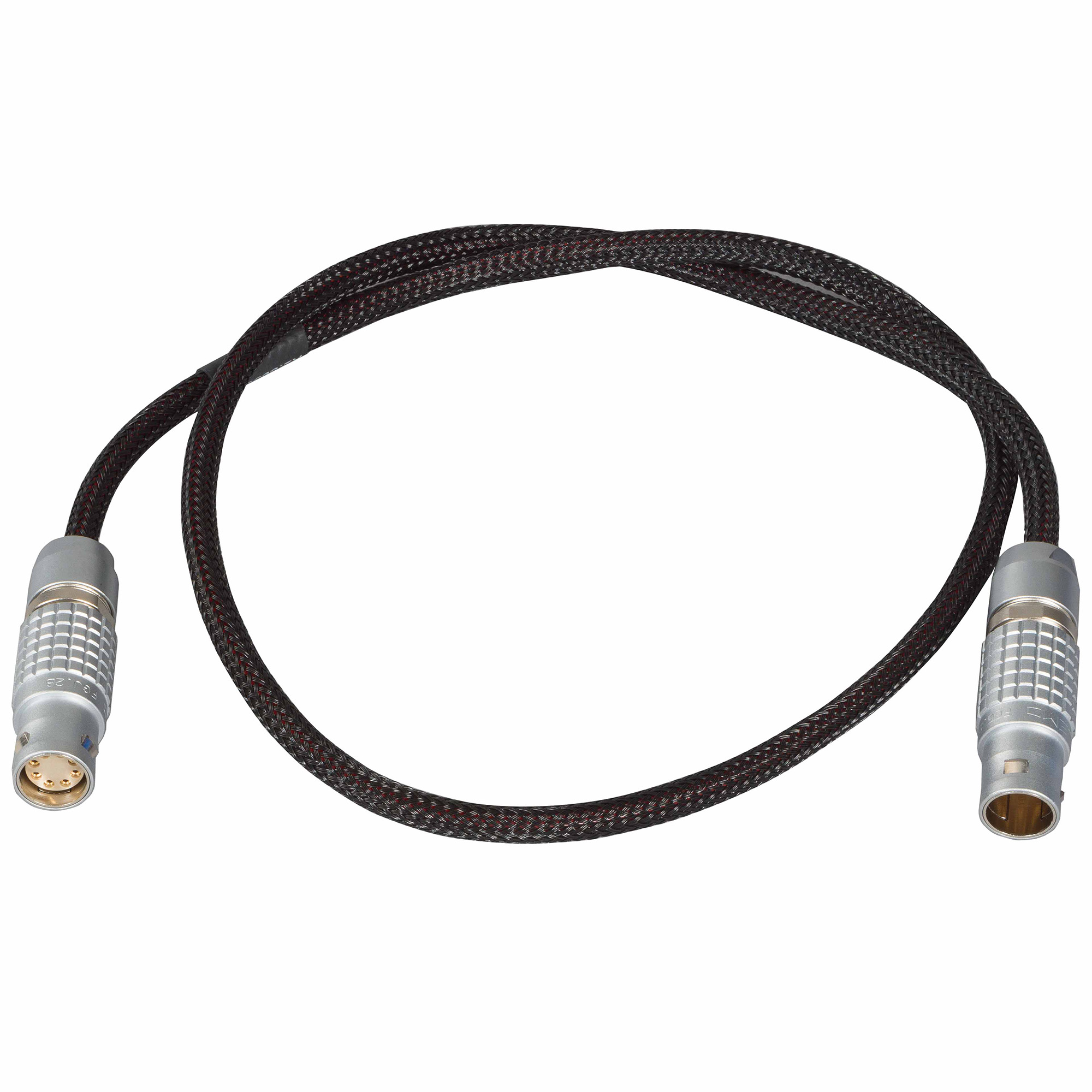

12V high-capacity camera power cable.Lemo 2B 7-pin to Lemo 2B 8-pin, 0.7m / 2.3ftAlexa Mini, Amira, 12VFor ARTEMIS 2 and TRINITY 2

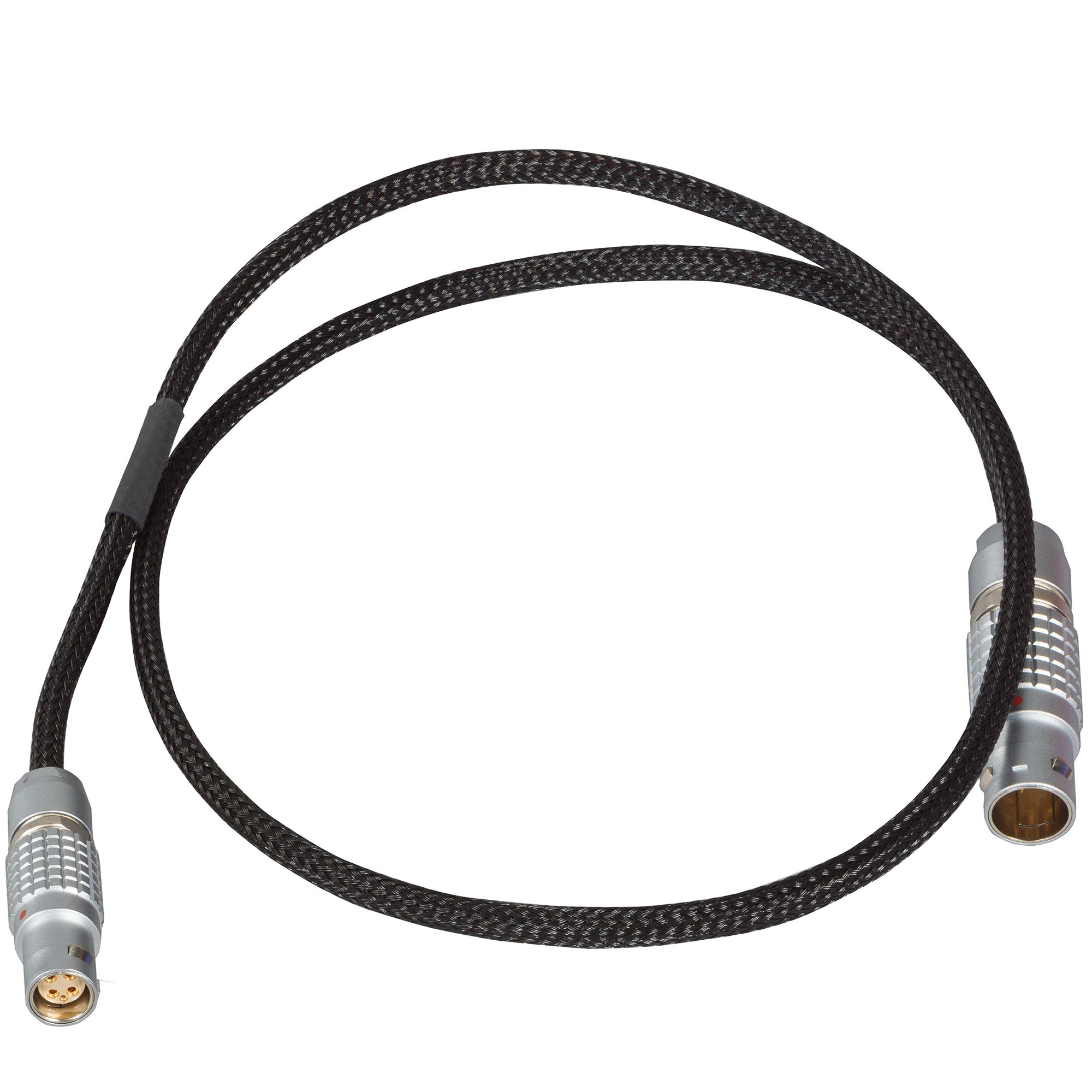

12V high-capacity camera power cable.Lemo 2B 7-pin to Lemo 1B 6-pin, 0.7m / 2.3ftRED Monstro, 12VFor ARTEMIS 2 and TRINITY 2

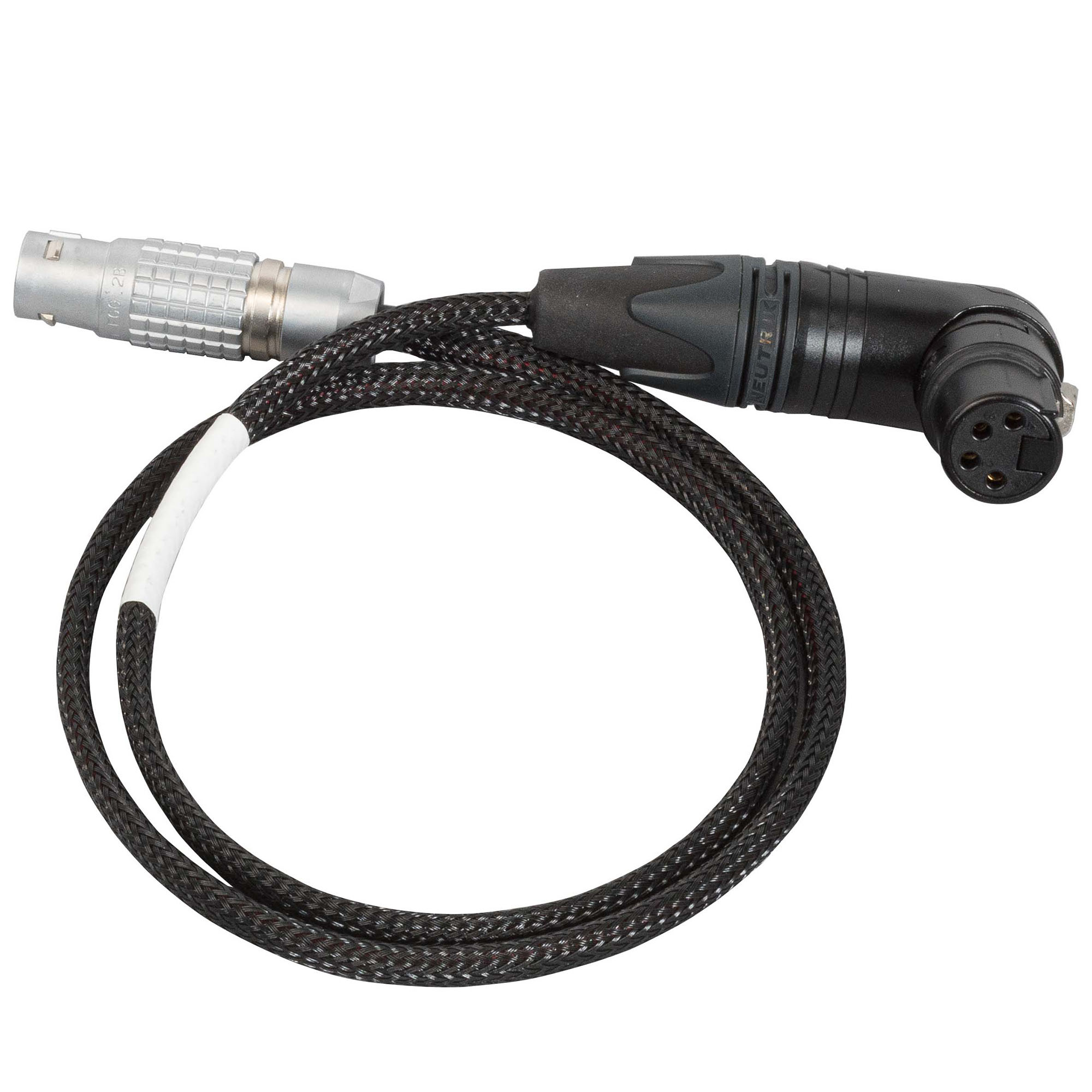

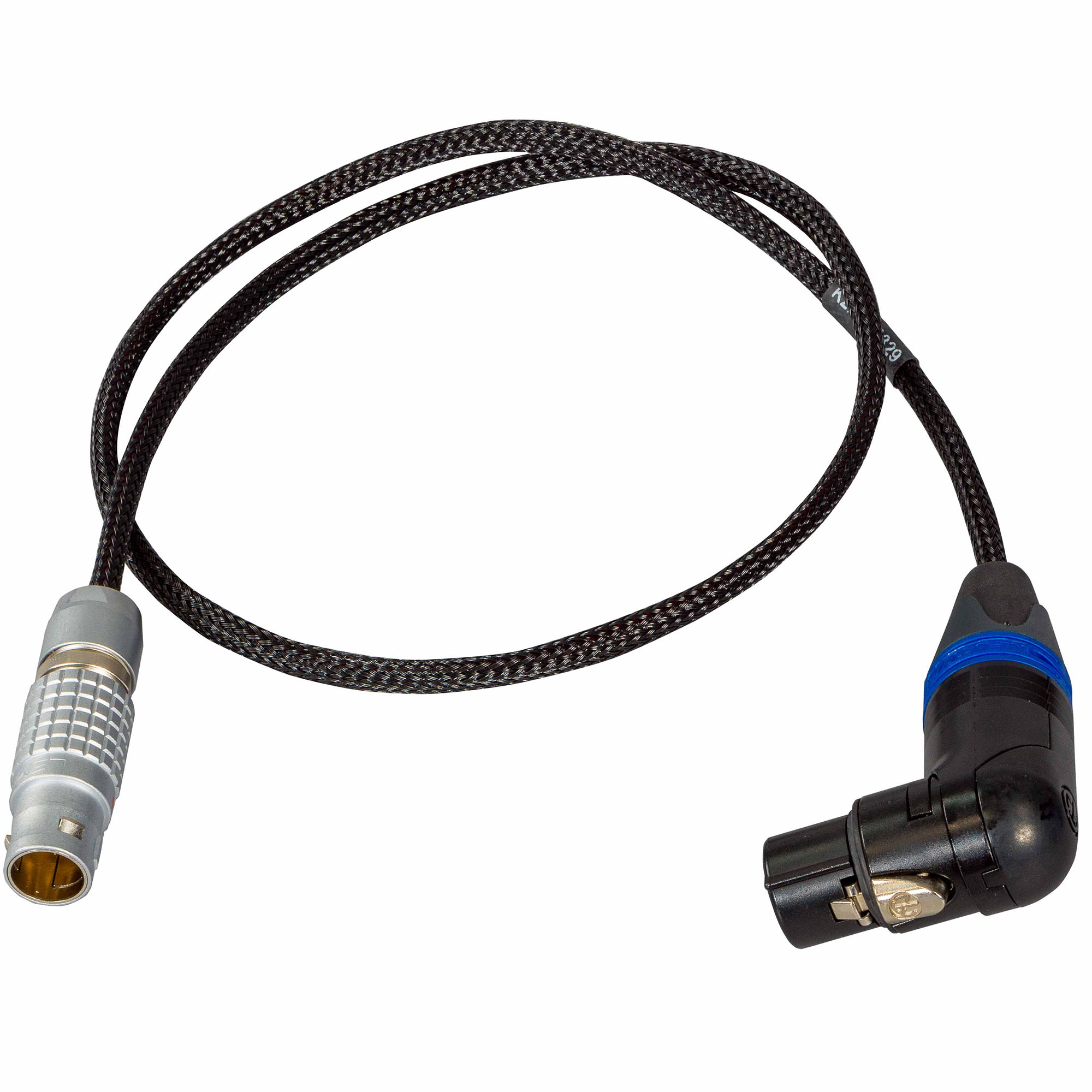

12V high-capacity camera power cable.Lemo 2B 7-pin to XLR 4-pin, right-angled elbow, 0.7m / 2.3ftBroadcast cameras XLR, 12VFor ARTEMIS 2 and TRINITY 2

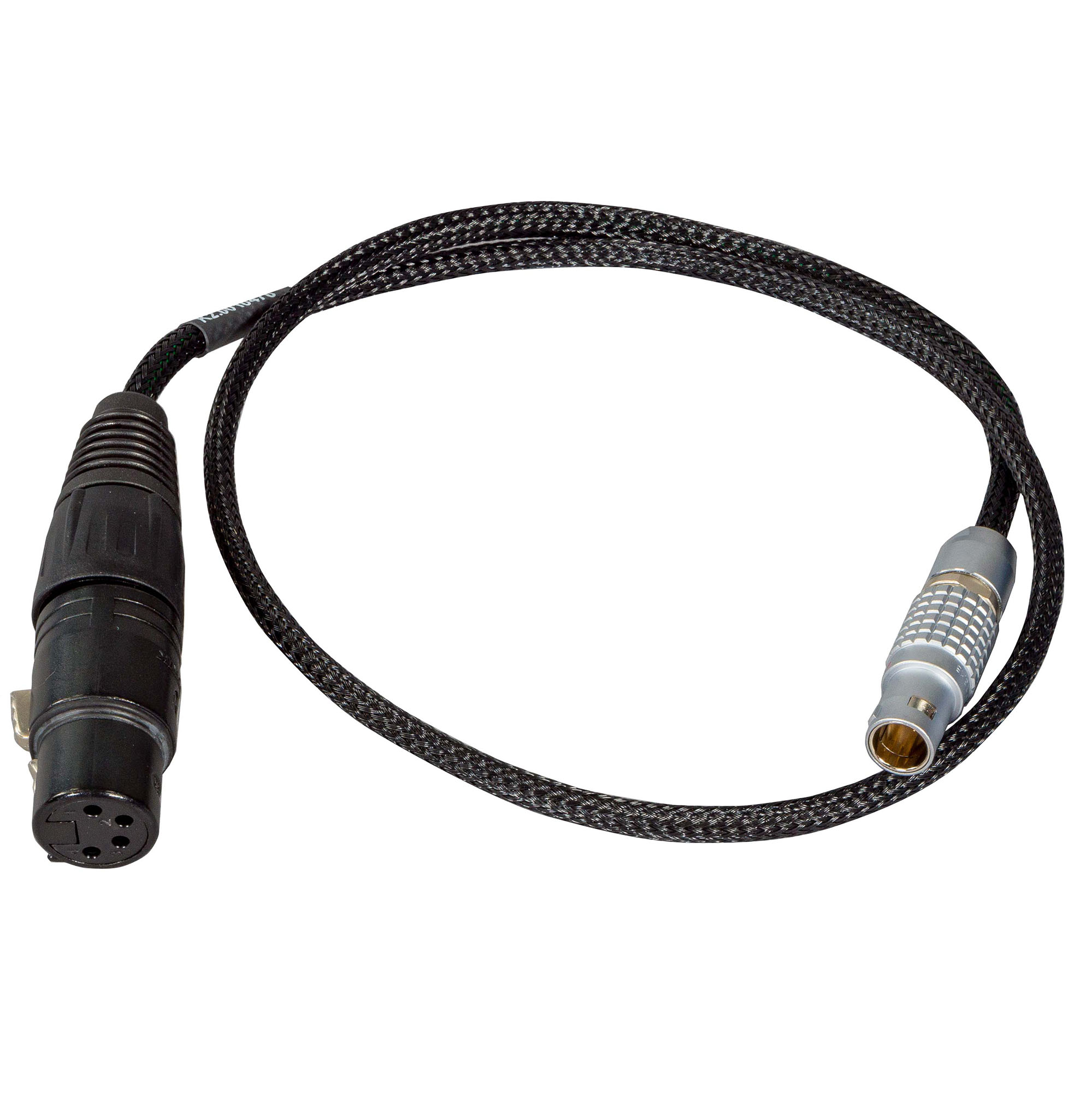

12V XLR high-capacity camera power cable, Lemo 1B 4-pin to XLR 4-pin, for video cameras, ARRIFLEX 16SR I, ARRI 16SR II, Aaton and other devices using a 4-pin XLR socket.LEMO 4-pin, 12V, high capacityBroadcast cameras XLR, 12VFor ARTEMIS 2, artemis Gen.1, TRINITY 2, TRINITY Gen.1, 360 EVO, SRH-3, SRH-360, MAXIMA

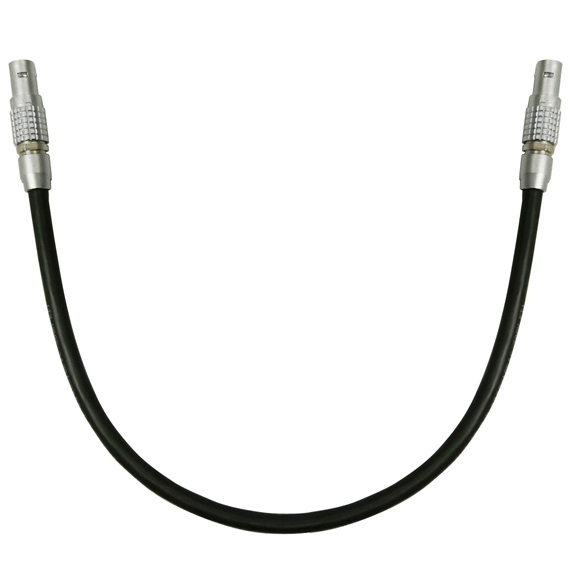

Power cable to power the Volt™ Control Box from the ARTEMIS Gen. 2 top stage.Lemo 0B 3-pin - Fischer 3-pin, 12v, Length: 0.3m/0.9ftFor ARTEMIS 2

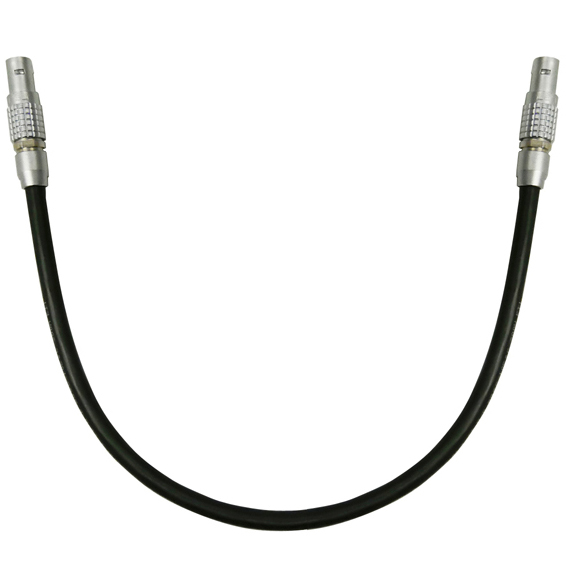

Power cable to power the Volt™ Control Box from the ARTEMIS top stage.Lemo 0B 3-pin - Lemo 0B 2-pin, 12V, Length: 0.4m/1.3ftFor ARTEMIS 2 and artemis Gen. 1

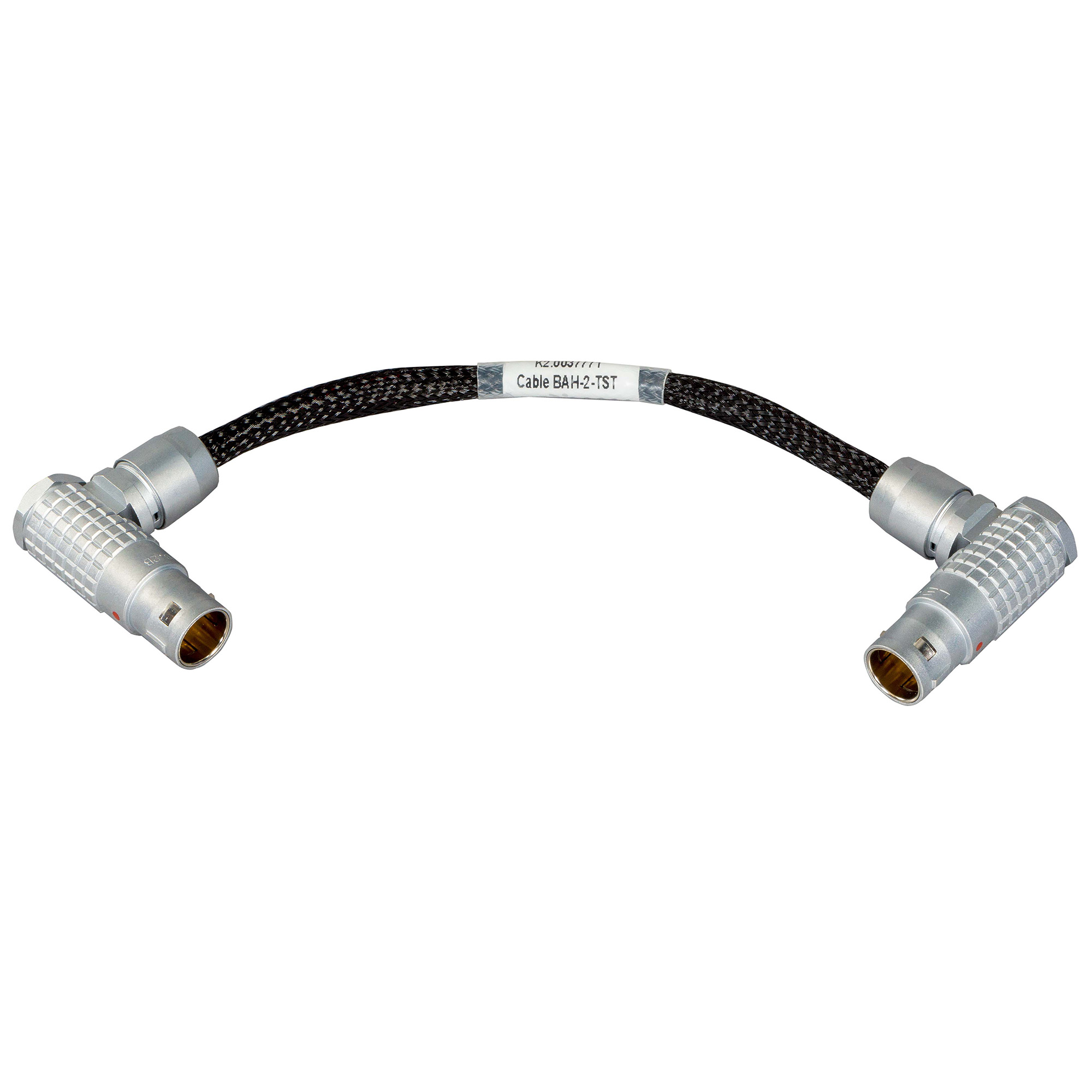

High-capacity 12 V/24 V power cable to connect the Battery Hanger Module with the Top Stage or Bottom Stage Gen.2.Lemo 2B 7-pin to Lemo 2B 7-pin, 12V/24VARTEMIS 2, TRINITY 2

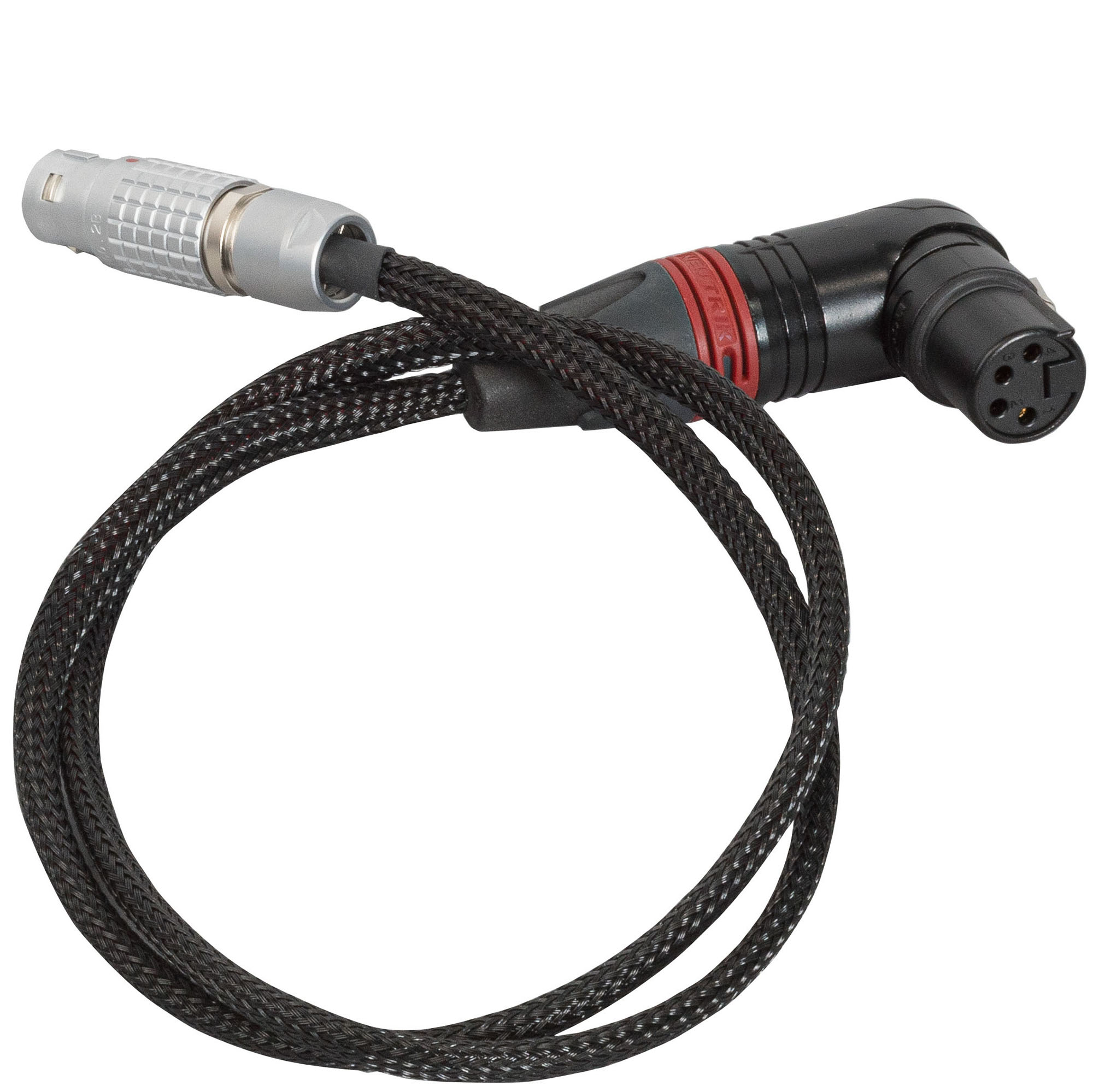

24V high-capacity camera power cable.Lemo 2B 7-pin to XLR 4-pin, 0.7m / 2.3ftSony Venice, XLR, 24VFor ARTEMIS 2 and TRINITY 2
Power cable to power the Volt Control Box from the artemis Cine Gen.1 top stage.Lemo 0B 3-pin - Lemo 0S 4-pin, Length: 0.3m/0.9ft, 12VFor artemis Gen. 1

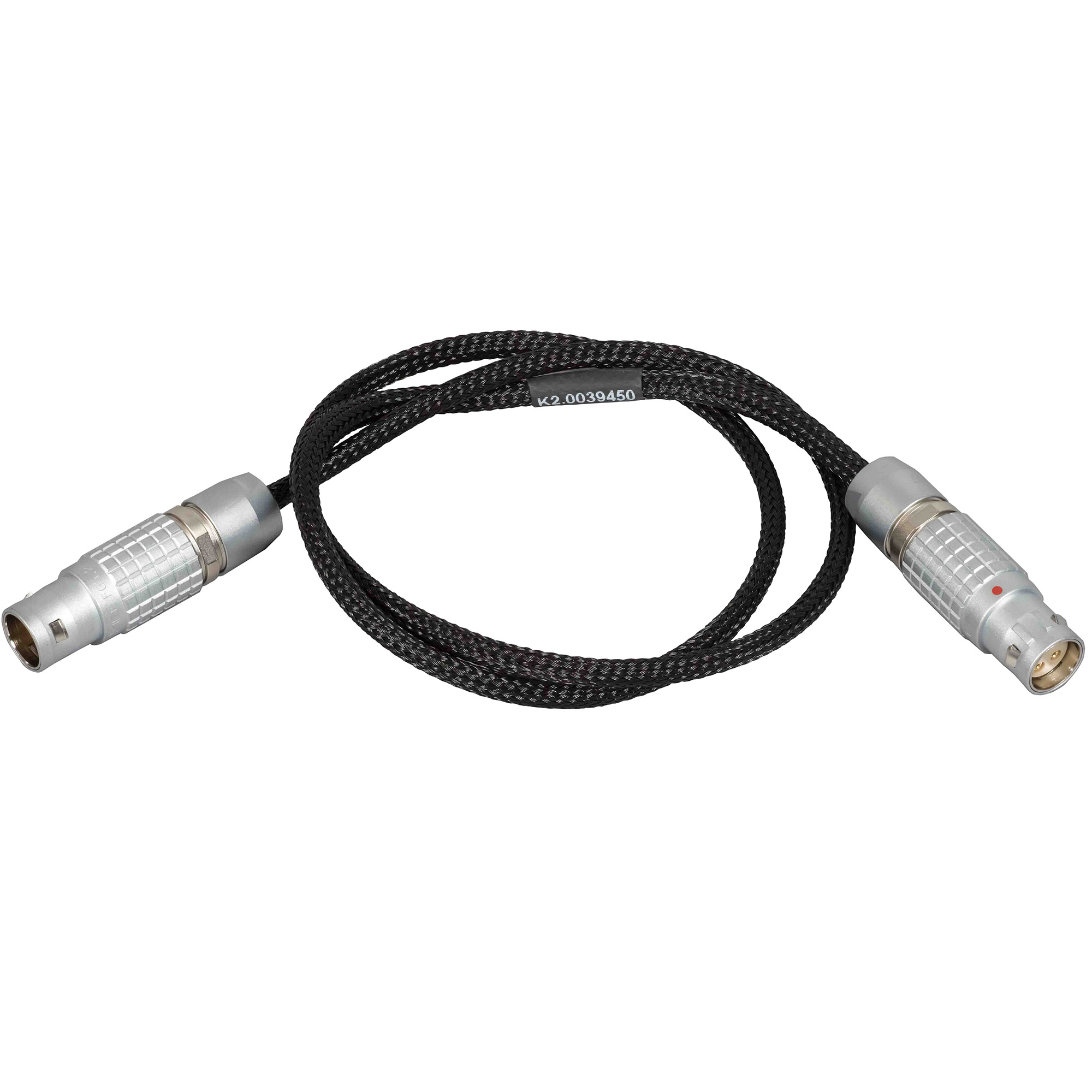

24V high-capacity camera power cable.Lemo 2B 7-pin to Lemo 2B 4-pin, 0.7m / 2.3ftRED Ranger, 24VFor ARTEMIS 2 and TRINITY 2

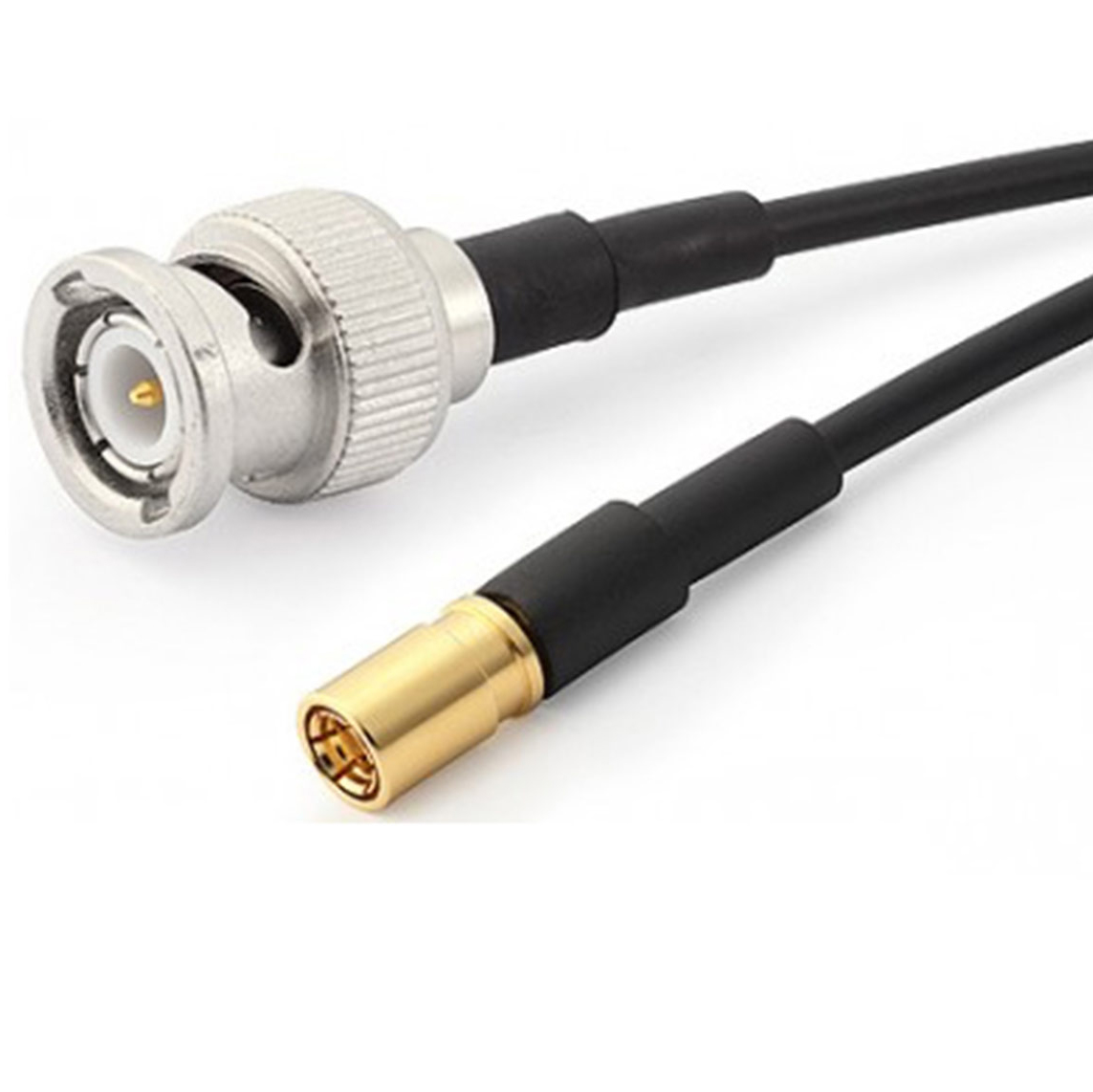

Spare BNC-SMB cable for the TRINITY Joystick Main CableFor TRINITY Gen. 1only

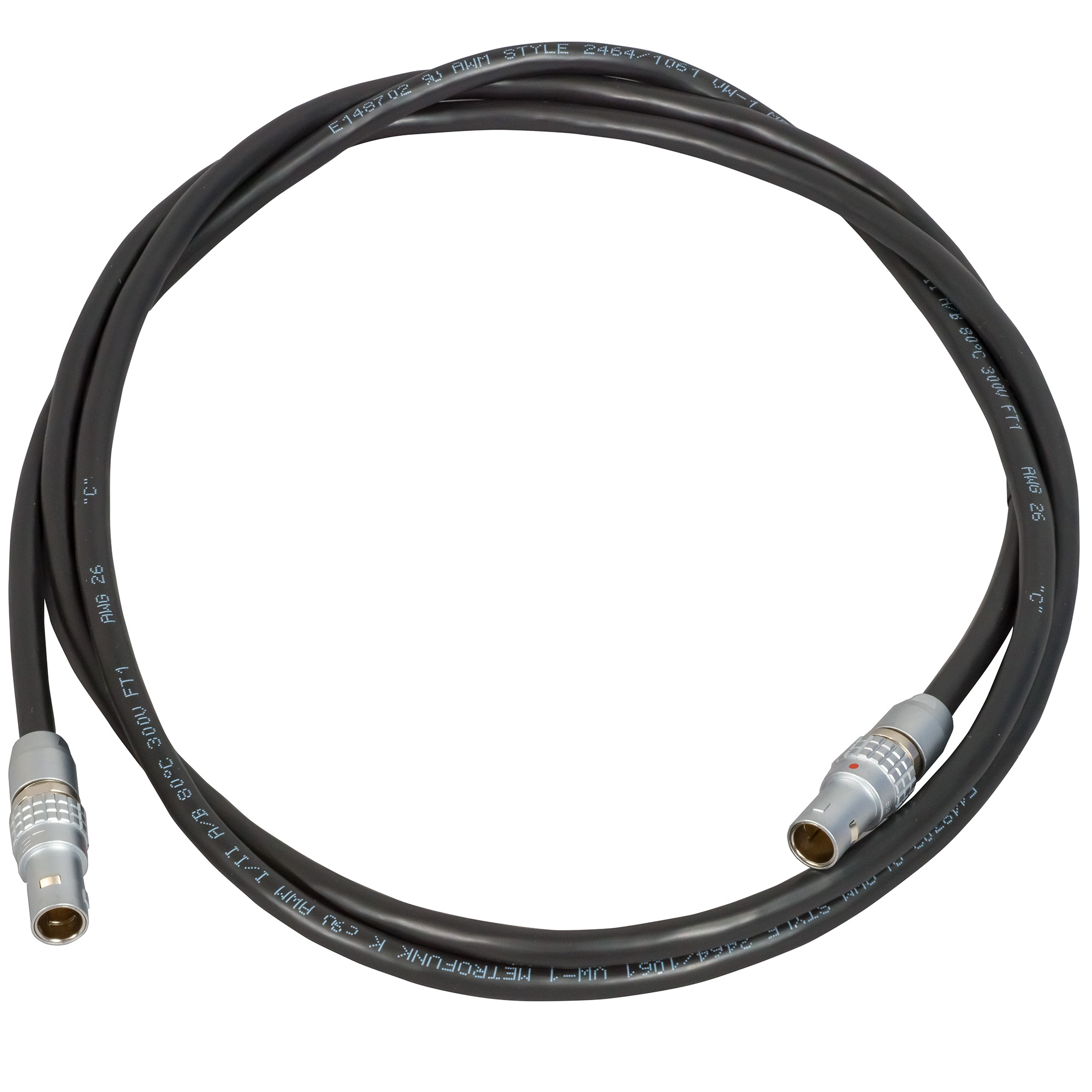

Flexible joystick cable to connect the Master Grip TRINITY to the TRINITY 2 head when the rig is fully extended or when using a Super Post.Lemo 0B 4-pin to Lemo 0B 4-pin, 24V, 125cm/49inTRINITY 2 only!

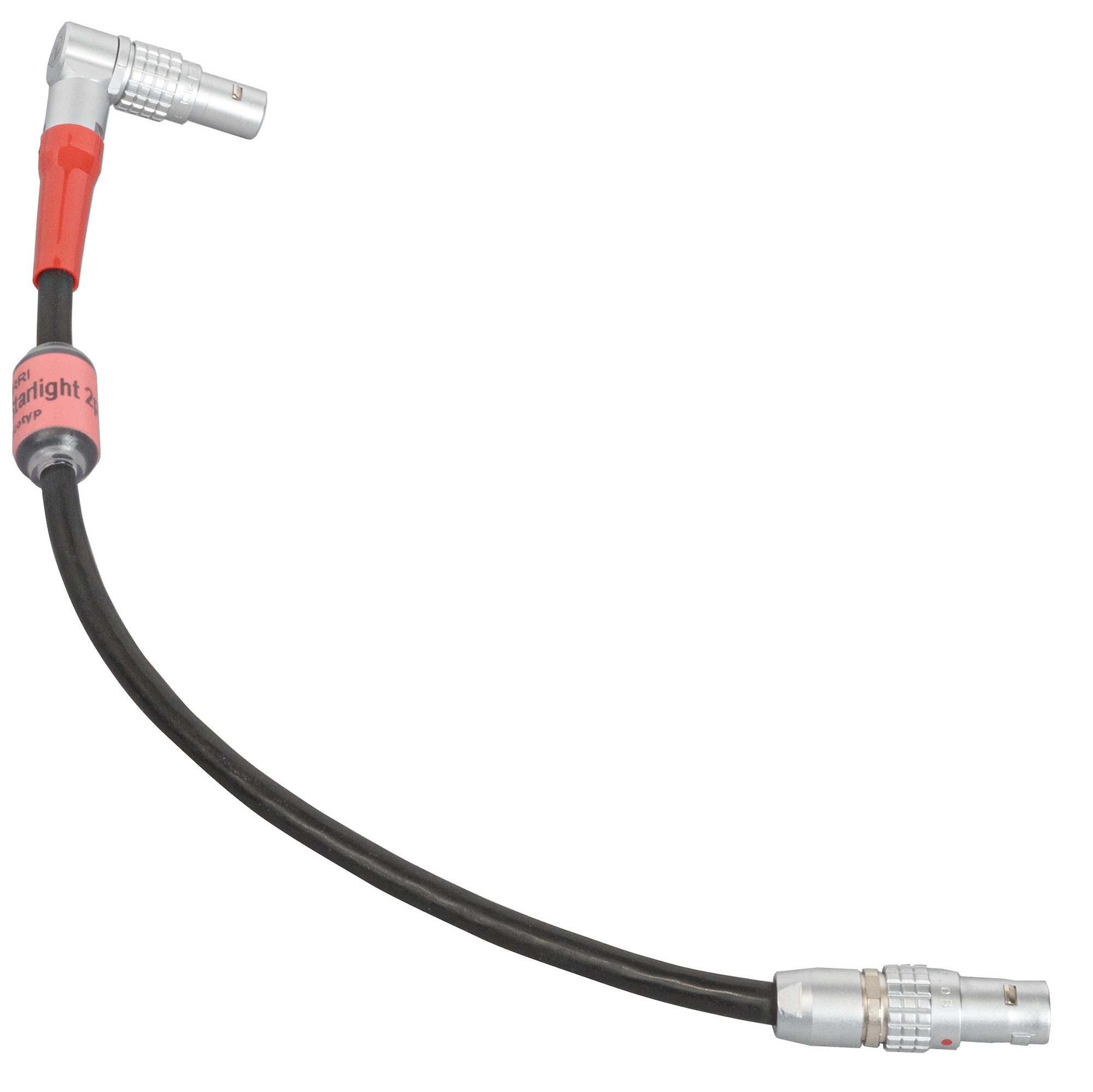

Power cable to power a Transvideo Starlight, or SmallHD 503 monitor from the Master Grip TRINITY 2.Lemo 0B 4-pin to Lemo 0B 2-pin, 24VFor MGT-1, MGT-2, TRINITY 2

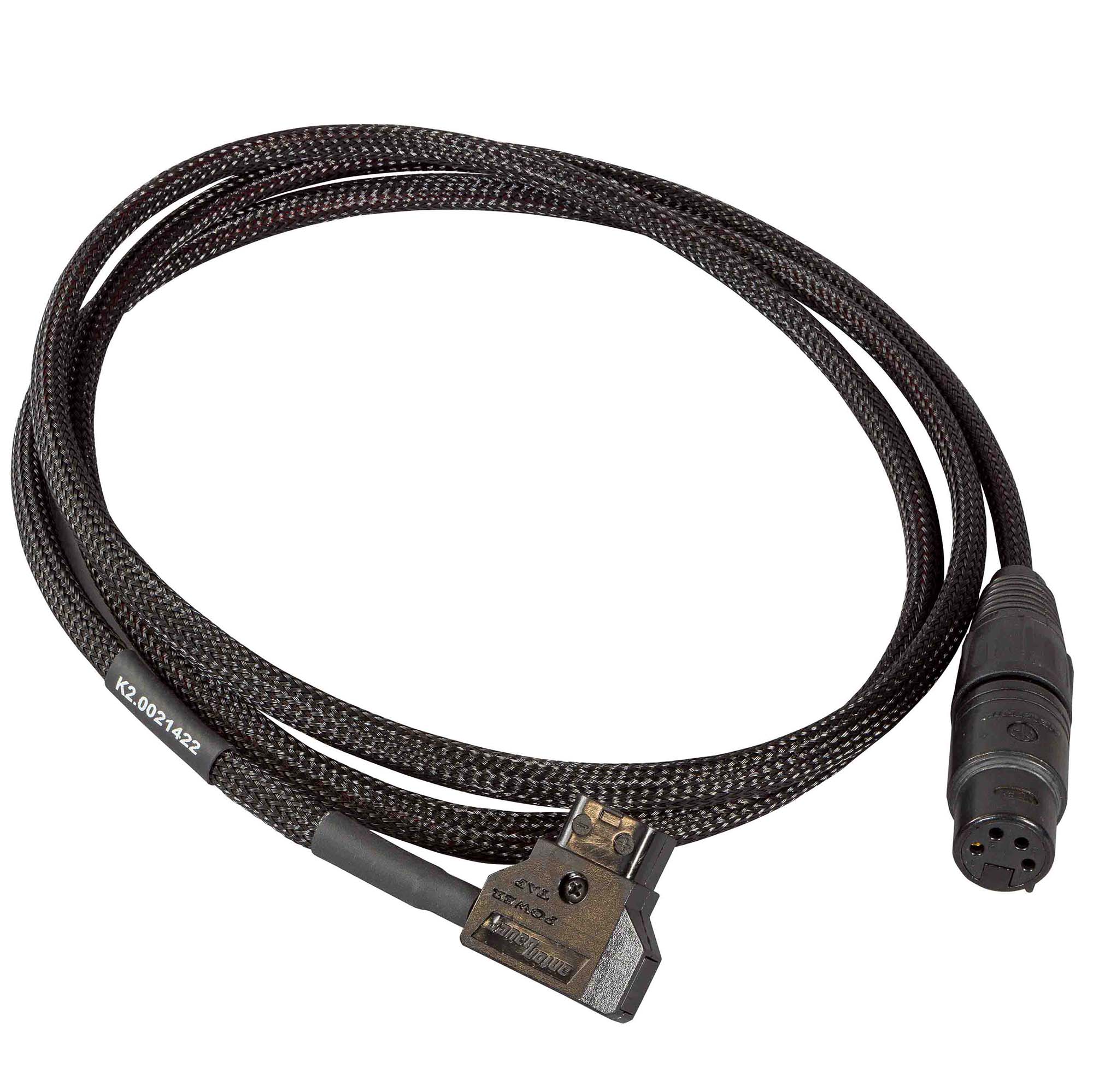

12 V power cable to power the 360 EVO, SRH-3 and SRH-360 remote control panel, or a monitor via D-Tab.D-Tab to 4-pin XLR, 1,5m/5ft, 12VFor Remote Control Panel (RCP-2) of the 360 EVO, SRH-3 and SRH-360
12V high-capacity camera power cable.Lemo 2B 7-pin to XLR 4-pin, 0.7m / 2.3ftBroadcast cameras XLR, 12VFor ARTEMIS 2 and TRINITY 2

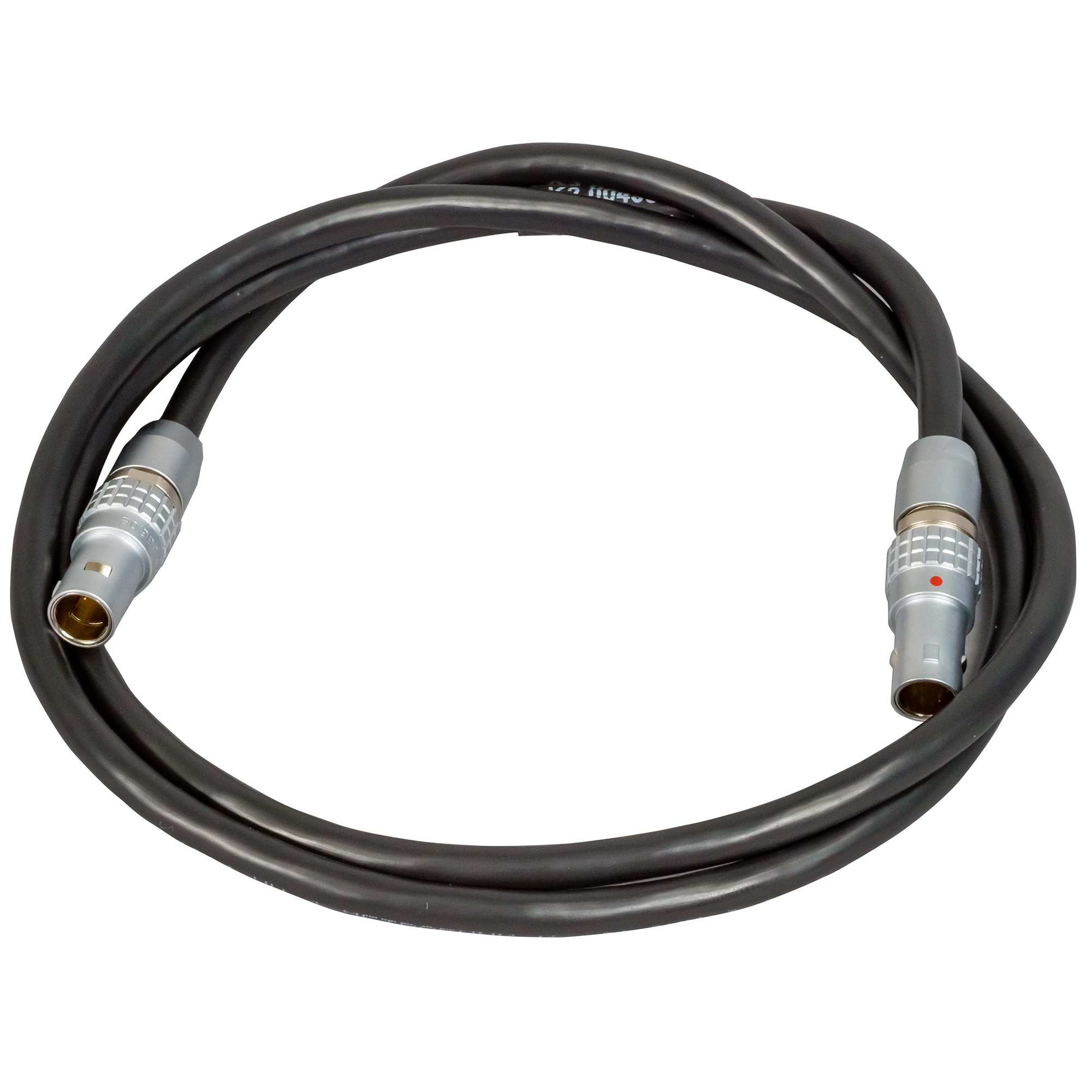

Flexible joystick cable to connect Master Grip TRINITY with the TRINITY 2 head.Lemo 0B 4-pin to Lemo 0B 4-pin, 24V, 75cm/29.5inTRINITY 2 only!
Power cable to power a ARRI Starlite monitor from the Master Grip TRINITY 2.Lemo 0B 4-pin to Lemo 0B 5-pin, 24VFor MGT-1, MGT-2, TRINITY 2

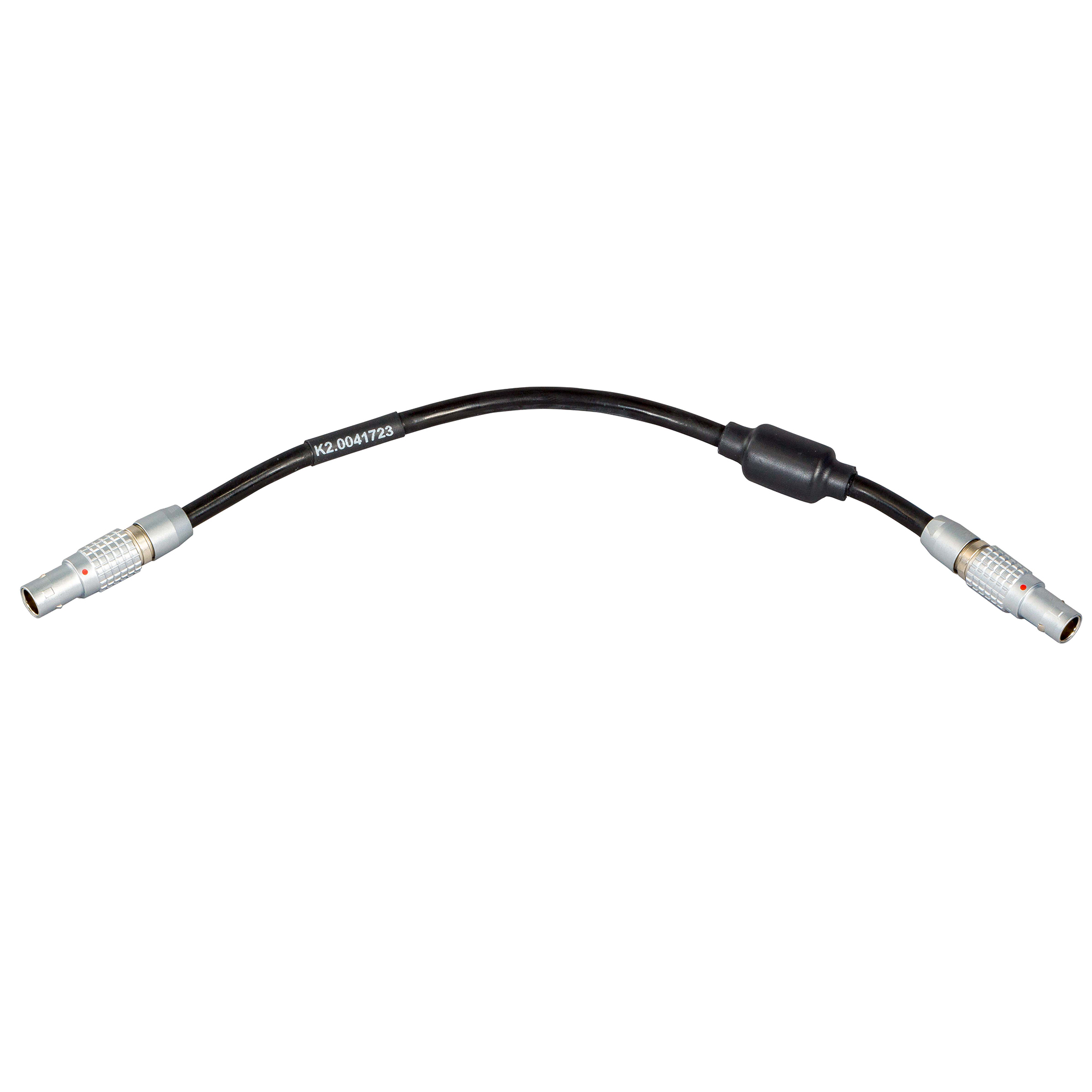

Short 12 V power cable to power a second Transvideo Starlite or SmallHD monitor from the Tally System Gen.2 host module.Lemo 0B 2-pin to Lemo 0B 2-pin, 12VFor tally system Gen.2

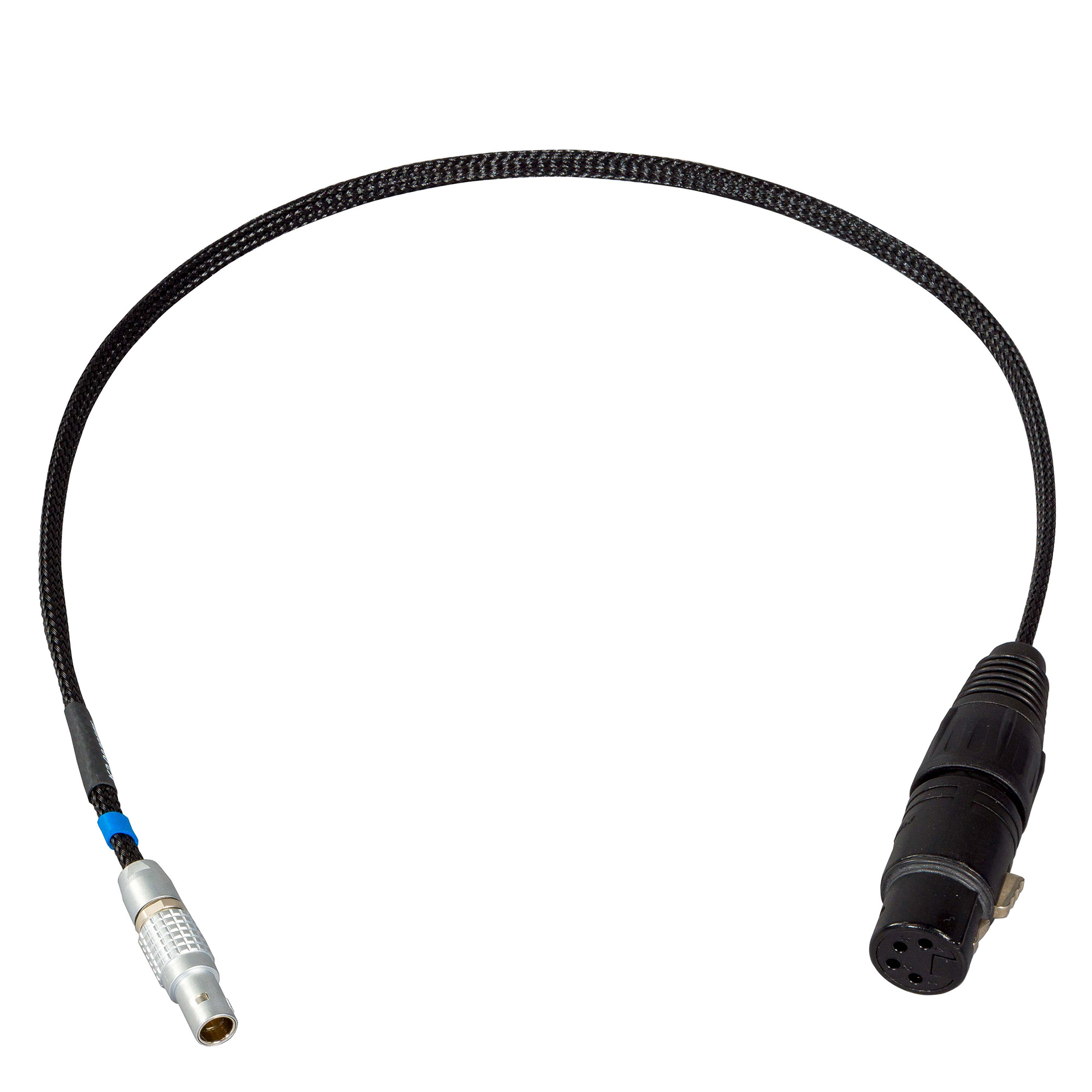

12V monitor power cable.Lemo 0B 2-pin to XLR 4-pin, 12VFor ARTEMIS 2, artemis Gen.1, TRINITY 2, TRINITY Gen.1, 360 EVO, SRH-3, SRH-360, MAXIMA

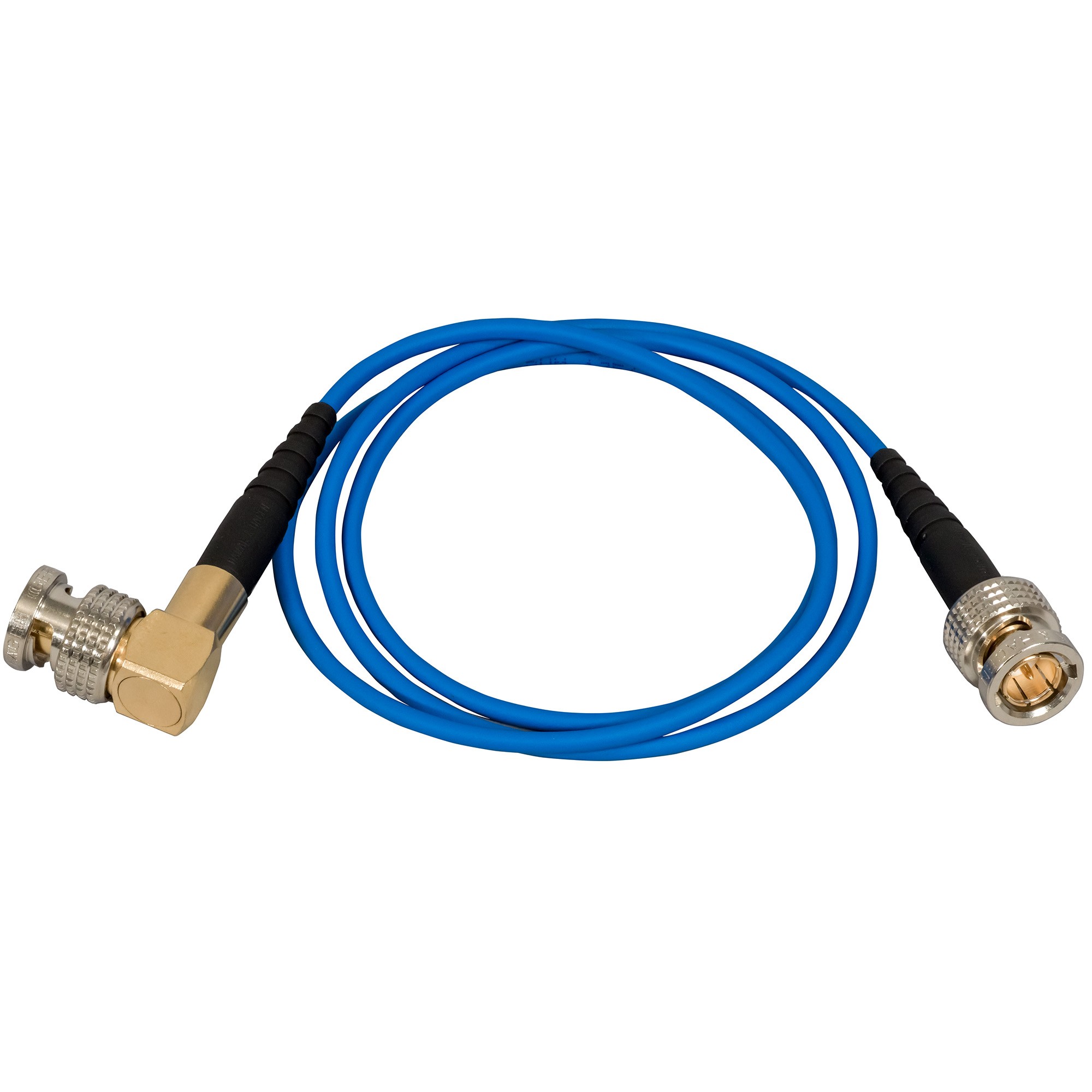

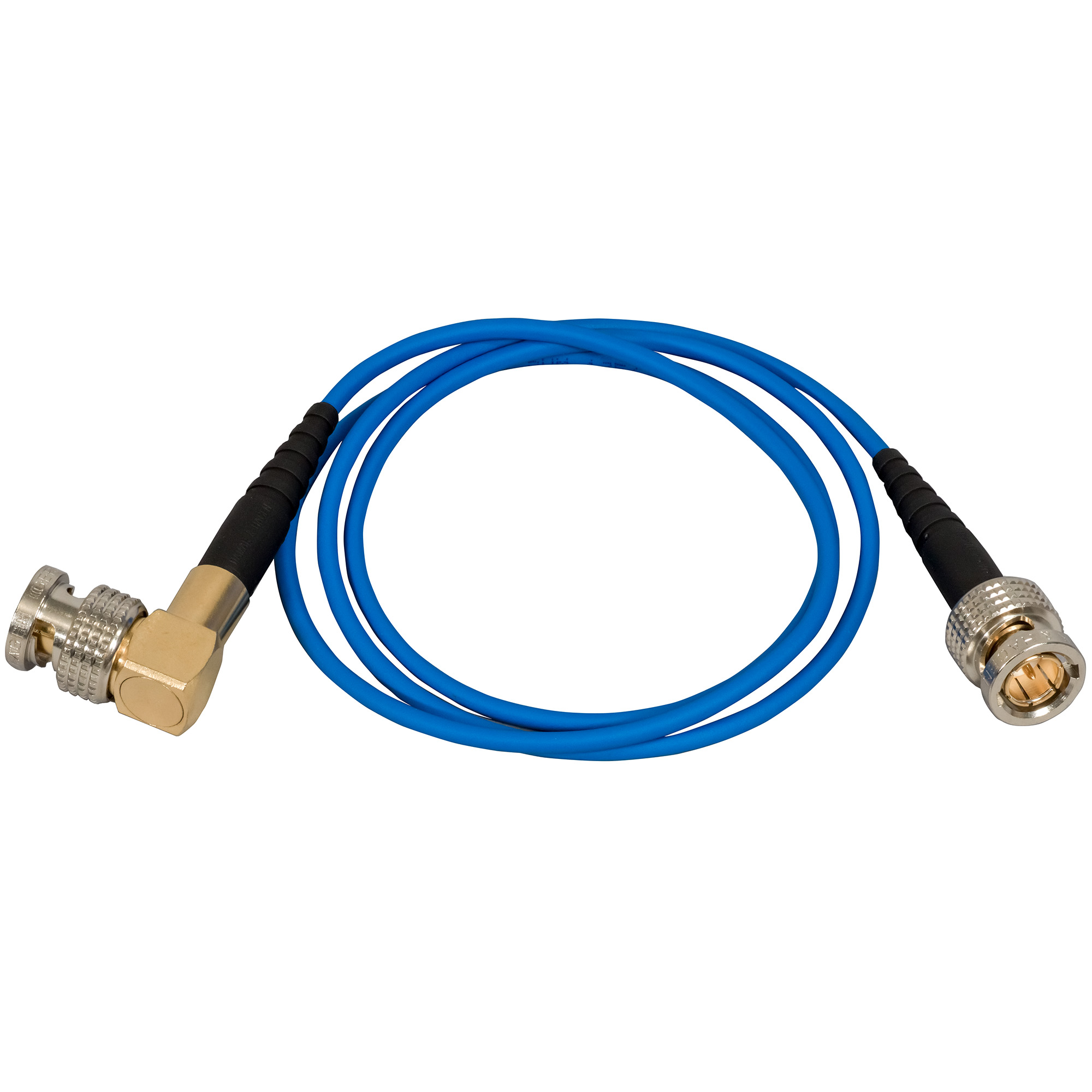

12G HD SDI BNC CableLength: 0,84m/33inFor ARTEMIS 2, TRINITY 2

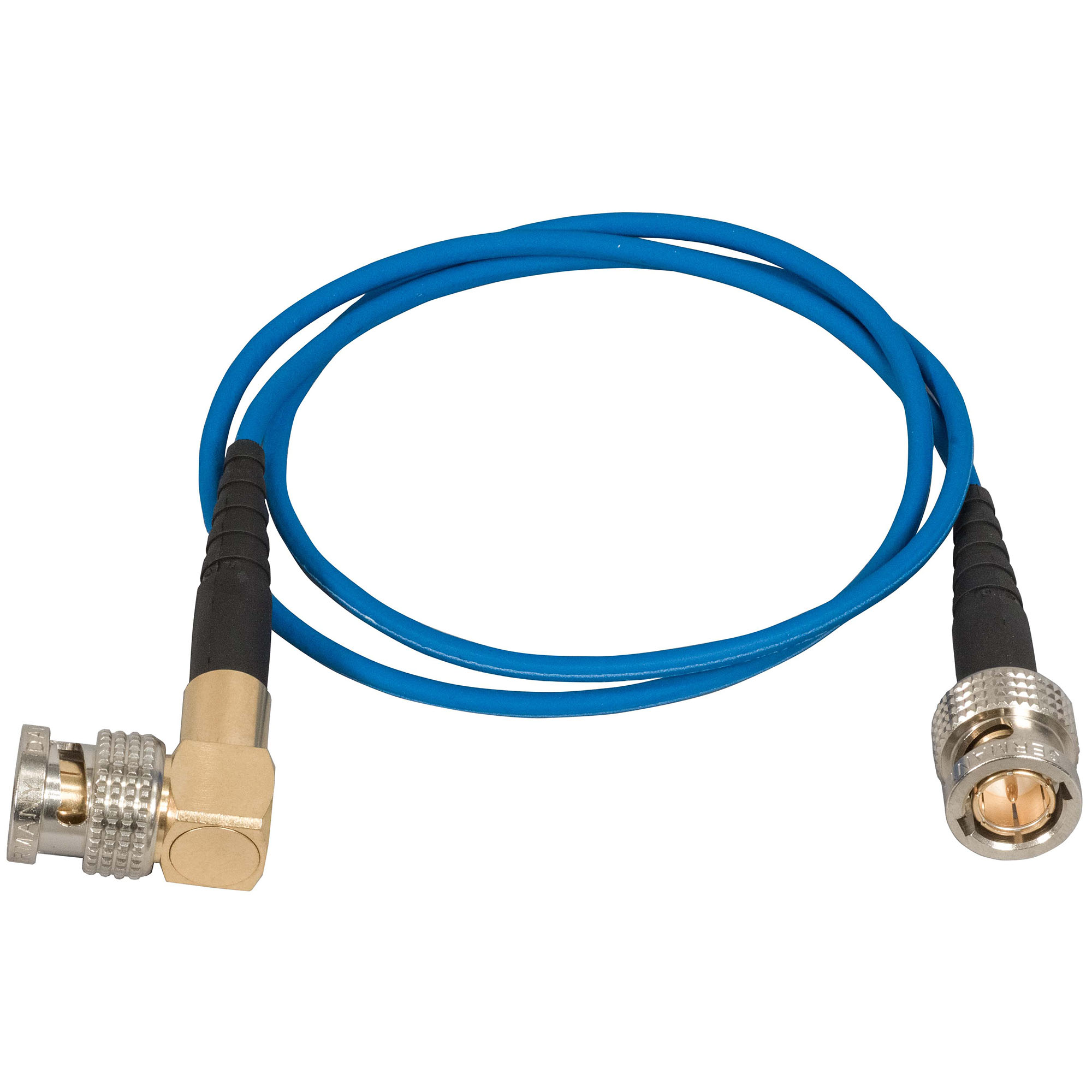

12G HD SDI BNC CableLength: 0,63m/25inFor ARTEMIS 2, TRINITY 2
