Camera Stabilizer Systems - Monitor Sets

Set including a 7in SmallHD 703 monitor and all needed adapters.includes:K2.0041765 1x SmallHD 703 MonitorK2.0042710 1x K2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pinK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0042710 1x Monitor Bracket, Gen.2, 7in, SmallHDARTEMIS 2, artemis Gen.1 NOTE To complete the initial order, it is recommended to order one of the monitor sets or monitor brackets.

7in 3G-SDI Hyper Bright monitor with up to 3200 nits. IPS screen with protection glass and special anti-reflective coating. Adaptive Backlight Management to always offer the best brightness based on outer environment. The center of gravity is perfectly balanced with the new monitor yoke. The new MMA-1 allows the monitor yoke to be mounted directly to the center post.includes:K2.0052052 1x SM7 Pro 3G Monitor, 7in, 3200 NitsK2.0051225 1x Monitor Yoke SM7 ProK2.0051654 1x MMA-1, Main Monitor Mounting AdapterK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pin

7in 3G-SDI Hyper Bright monitor with up to 3200 nits. IPS screen with protection glass and special anti-reflective coating. Adaptive Backlight Management to always offer the best brightness based on outer environment. The center of gravity is perfectly balanced with the new monitor yoke. The new MMA-2 allows the monitor yoke to be mounted directly onto the 19mm rods. This results in a very low center of gravity and weight distribution for perfect dynamic balance.includes:K2.0052052 1x SM7 Pro 3G Monitor, 7in, 3200 NitsK2.0051225 1x Monitor Yoke SM7 ProK2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0049885 1x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pin

Set including a 7in Small HD 703 monitor and all needed adapters.includes:K2.0041765 1x SmallHD 703 MonitorK2.0052172 1x Monitor Yoke SmallHD 7inK2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0049885 1x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0041984 1x 12G HD SDI BNC Cable, 0,63m/25inK2.0041723 1x Monitor Power, 12V, Lemo 0B 2-pin to 0B 2-pinK2.0010436 1x Hex Key 2mmARTEMIS 2 and ARTEMIS 2 Live

Set including Small HD Cine 5 monitor and the new articulating arm with a 19mm clamp adapter for the MGT-2. K0.0044362 & K0.0044363)NOTETo complete the initial order, at least one of the mandatory monitor or monitor mounting sets must be ordered.Includes:K2.0048548 1x SmallHD Cine 5 Monitor, 5inK2.0048648 1x Adapter 19mm with 1/4in threadK2.0048700 1x Articulating arm, 5inTRINITY 2 only!

Set including 5in Transvideo Starlite monitor and the new articulating arm with a 19mm clamp adapter for the MGT-2. (K0.0044362 & K0.0044363)NOTETo complete the initial order, at least one of the mandatory monitor or monitor mounting sets must be ordered.Includes:K2.0006960 1x Transvideo StarliteHD5-ARRI OLED MonitorK2.0048648 1x Adapter 19mm with 1/4in threadK2.0048700 1x Articulating arm, 5inTRINITY 2 only!

With this monitor yoke, the SmallHD 7in monitor can be mounted in existing monitor brackets.NOTEThe monitor yoke only fits monitor brackets from 2022!

With this monitor yoke, theTransvodeo Stargate 7in monitor can be mounted in existing monitor brackets.NOTEThe monitor yoke only fits monitor brackets from 2022!

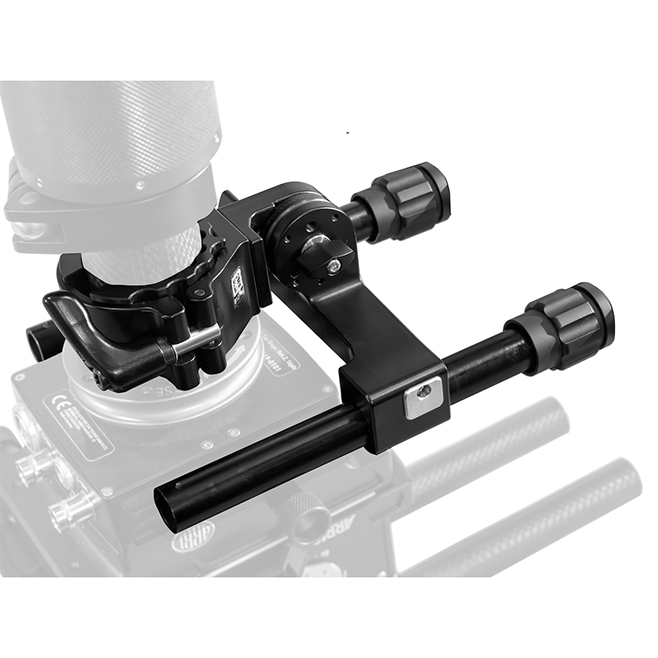

The MMA-1 allows the classic attachment of a monitor yoke to the 1.8in and 1.5 in post.Monitor Yoke SM7 Pro K2.0051225Monitor Yoke SmallHD 7in K2.0052172Monitor Yoke Transvideo K2.0052173Monitor brackets purchased before 2022 do not fit in the MMA-1 and MMA-2.These monitor brackets can be retrofitted via K2.0042718Monitor bracket extension retrofit kit, 6in K2.0044389Monitor bracket extension retrofit kit, 8in can be upgraded.

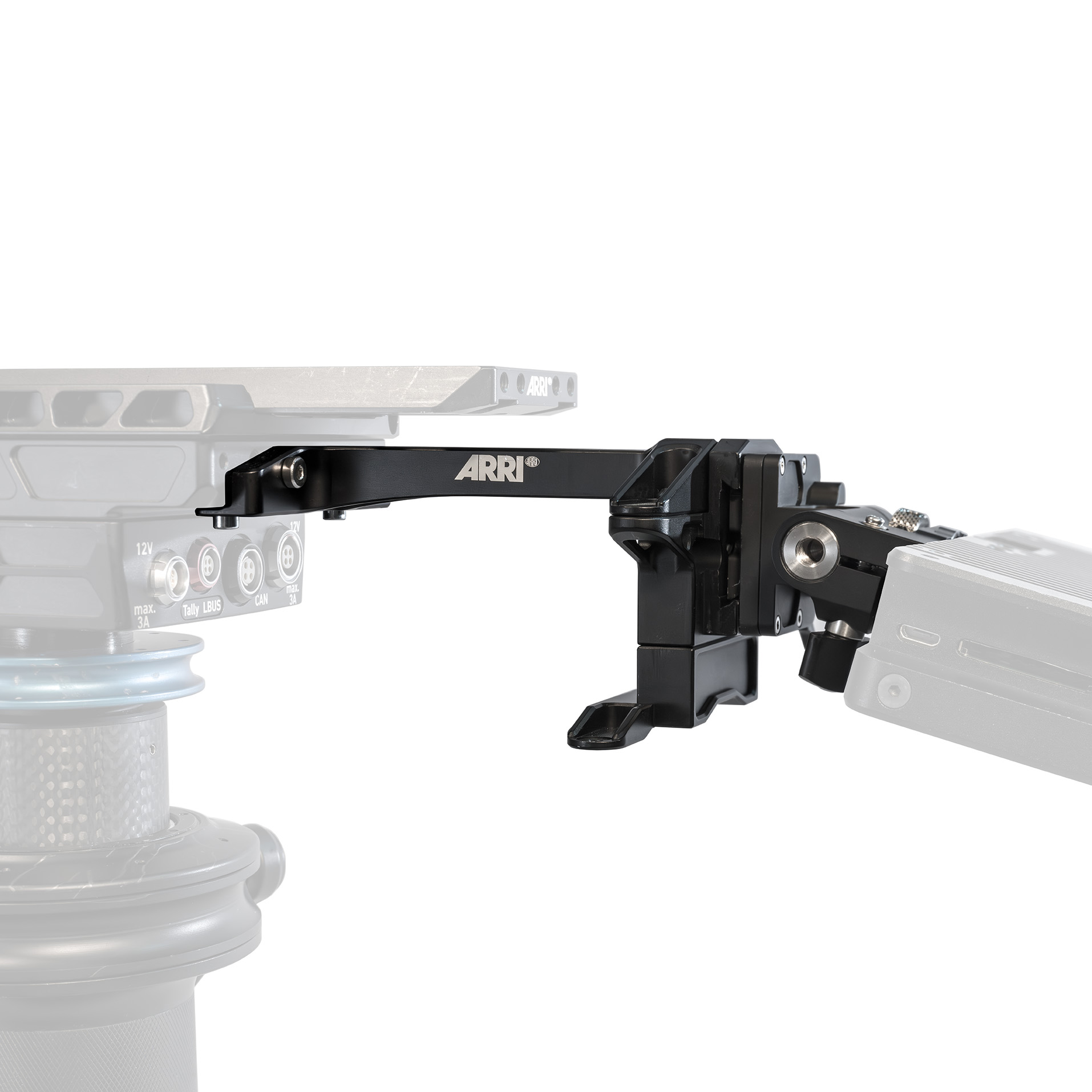

This set allows to mount a second 5in monitor for low moder operation at the top stage.Includes:K2.0050573 1x MMA-4, Low Mode Monitor Mounting AdapterK2.0037912 1x SSB-3, Stabilizer System Bracket for TRINITY, MAXIMA, SAM platesK2.0048510 1x Viewfinder Adapter VFA-4NOTEOnly ARTEMIS 2 Live

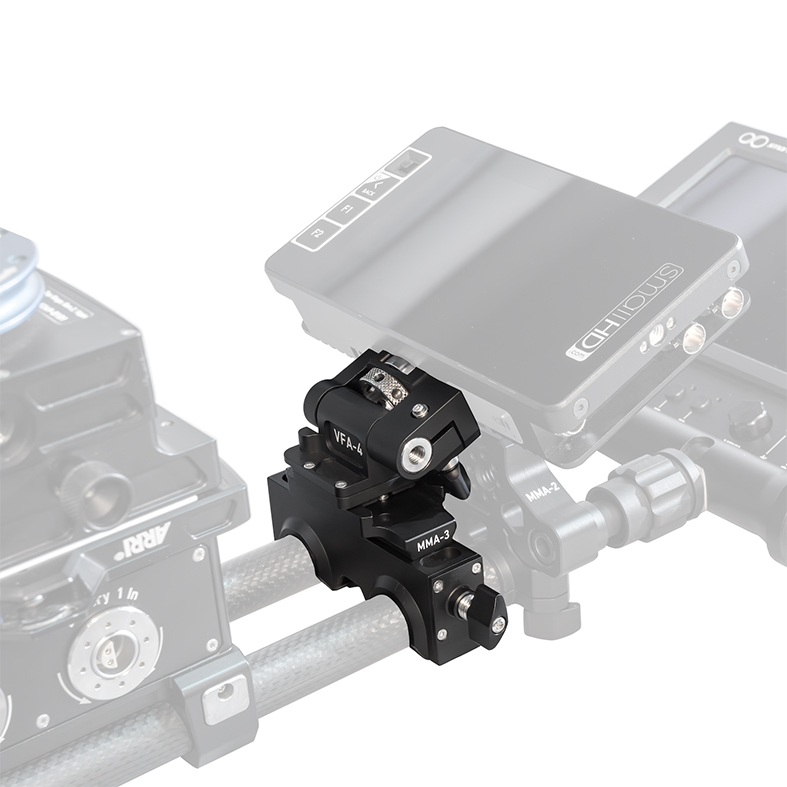

This set allows to mount a second 5in monitor onto the 19 mm rods of the lower sled.includes:K2.0050825 1x MMA-3 Monitor Mounting Adapter 3K2.0049885 1x CCB-2, CSS Clamp Bridge-2, 52, 19mmK2.0048510 1x Viewfinder Adapter VFA-4NOTEOnly ARTEMIS 2 Live

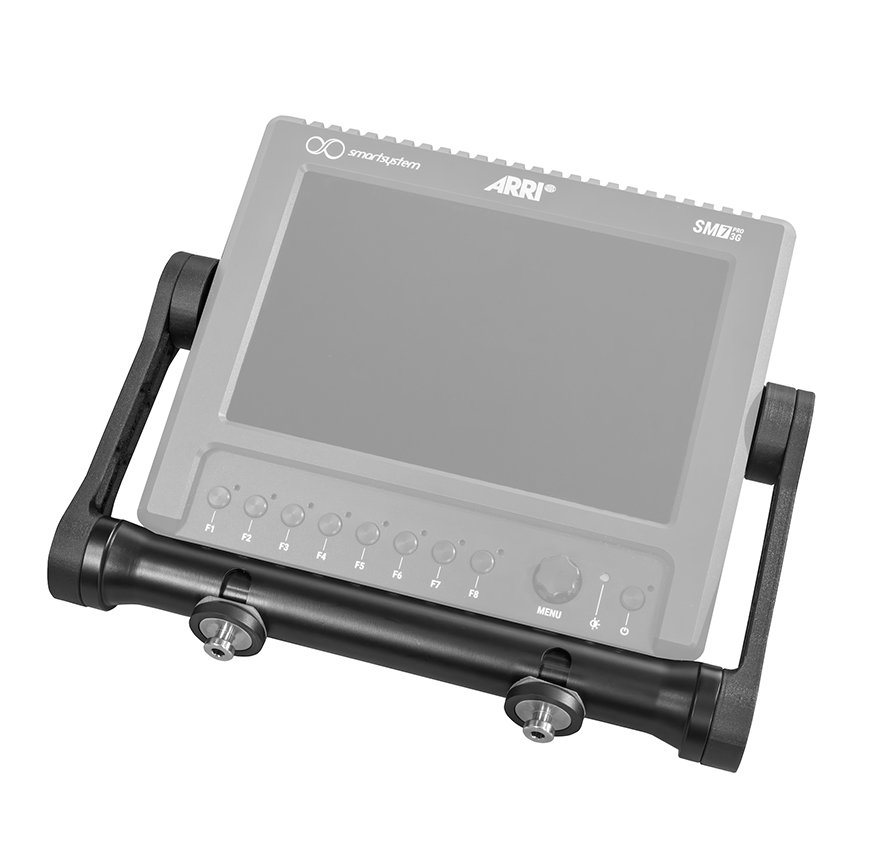

With this new monitor yoke, the Smart Systems SM7 Pro monitor can be mounted in existing monitor brackets.NOTEThe monitor yoke only fits monitor brackets from 2022!

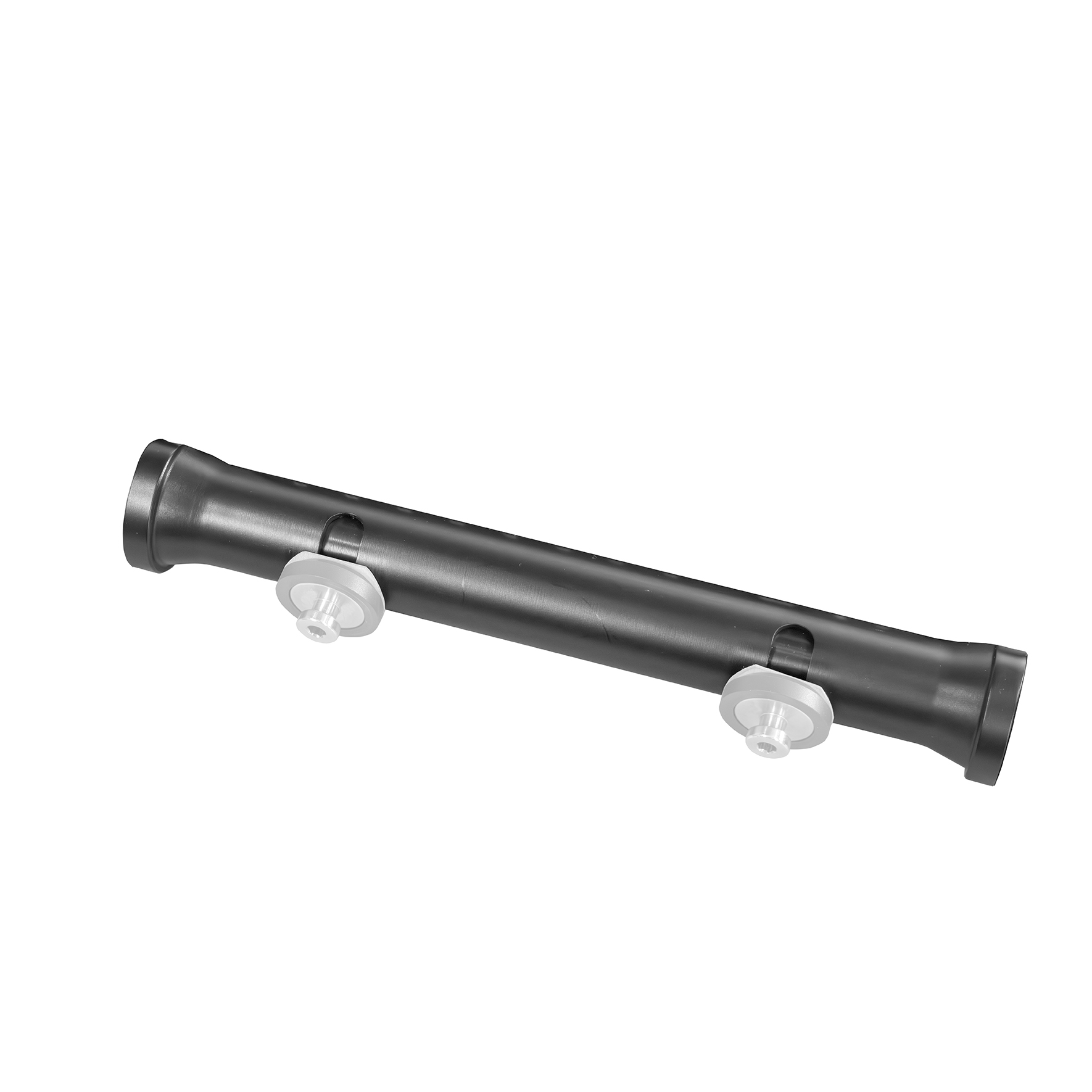

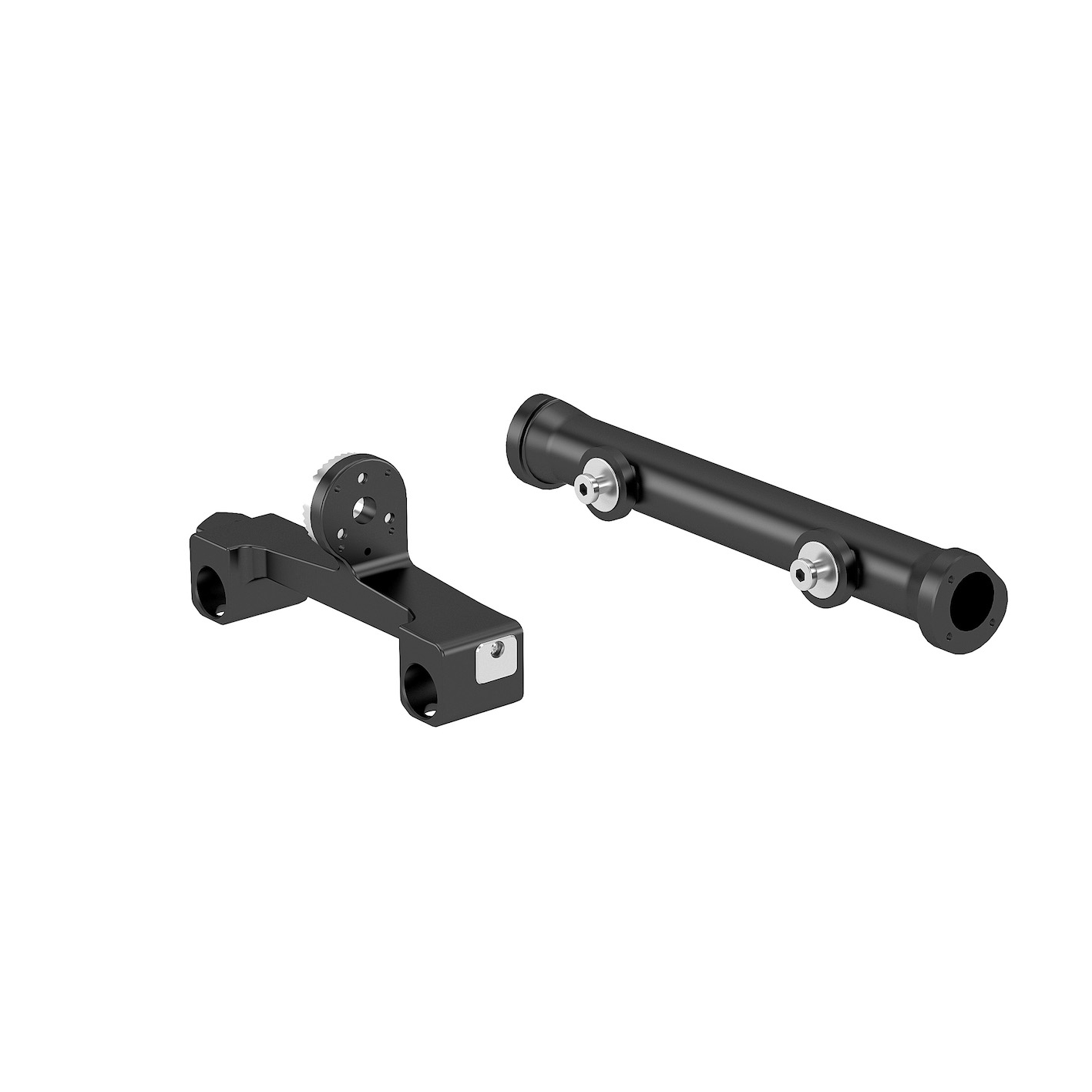

Monitor brackets purchased before 2022 can be adapted to the wider spacing of the rods of the new MMA-1 and MMA-2 using the 6 in and 8 in retro fit kits.

Monitor brackets purchased before 2022 can be adapted to the wider spacing of the rods of the new MMA-1 and MMA-2 using the 6 in and 8 in retro fit kits.

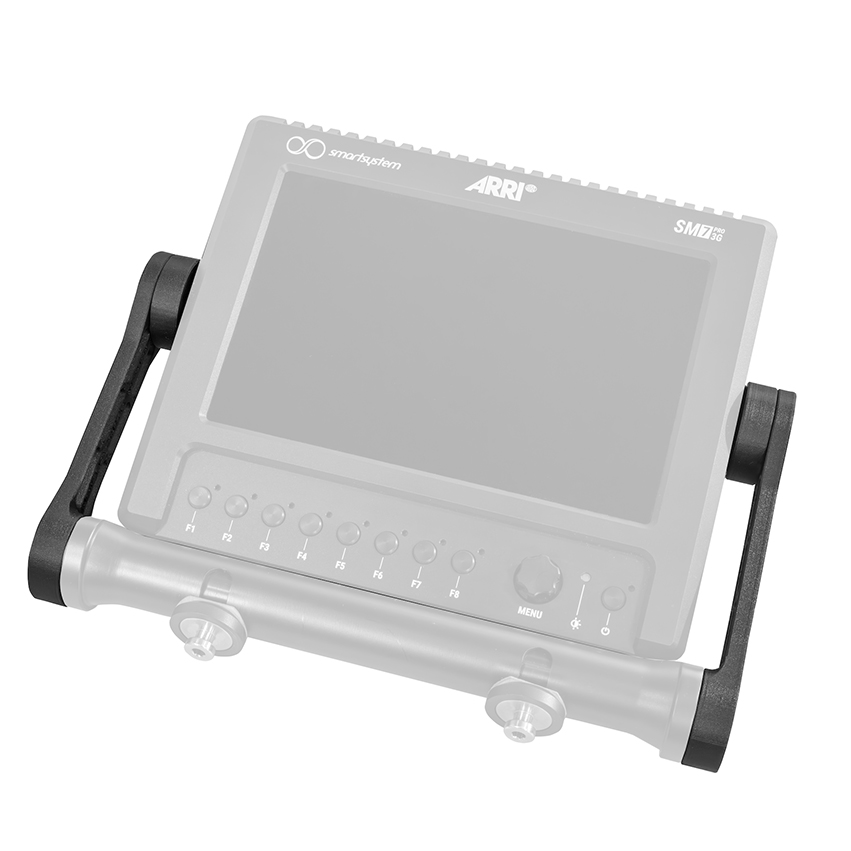

With this set of side brackets, existing 6in monitor brackets can be adapted to the new Smart Systems SM7 Pro monitor.NOTEOnly für 6 in monitor brackets

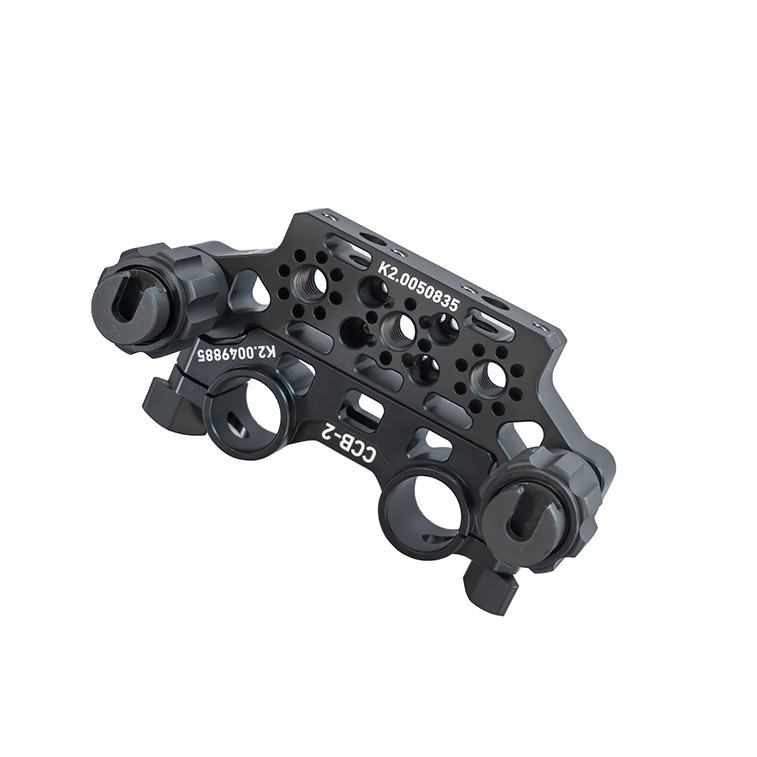

This set enables monitor yokes, such as those from SmallHD 7, Transvideo Stargate and the new Smart Systems SM7, to be mounted directly onto the 19mm rods. This results in a very low center of gravity and weight distribution for perfect dynamic balance.includes:K2.0050835 1x MMA-2 Monitor Mounting Adapter 2K2.0049885 1x CCB-2, CSS Clamp Bridge-2, 52, 19mmMonitor brackets purchased before 2022 do not fit in the MMA-1 and MMA-2. These monitor brackets can be retrofitted via K2.0042718 Monitor bracket extension retrofit kit, 6in K2.0044389 Monitor bracket extension retrofit kit, 8in can be upgraded.

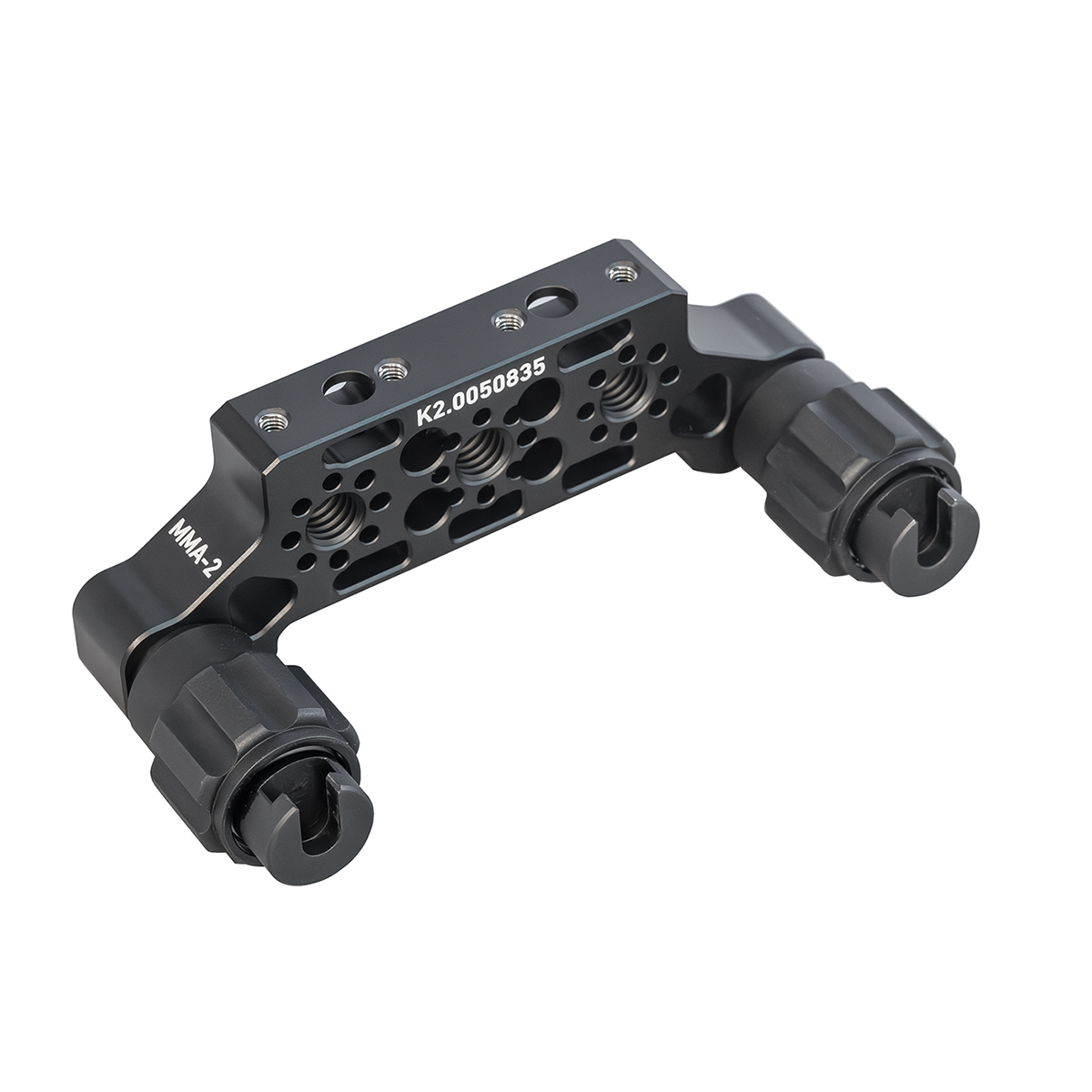

The MMA-2 enables monitor yokes, such as those from SmallHD 7, Transvideo Stargate and the new Smart Systems SM7, to be mounted directly onto the 19mm rods. This results in a very low center of gravity and weight distribution for perfect dynamic balance.NOTEK2.0049885 CCB-2, CSS Clamp Bridge-2, 52, 19mmis also required for mounting.NOTEOnly ARTEMIS 2 Live

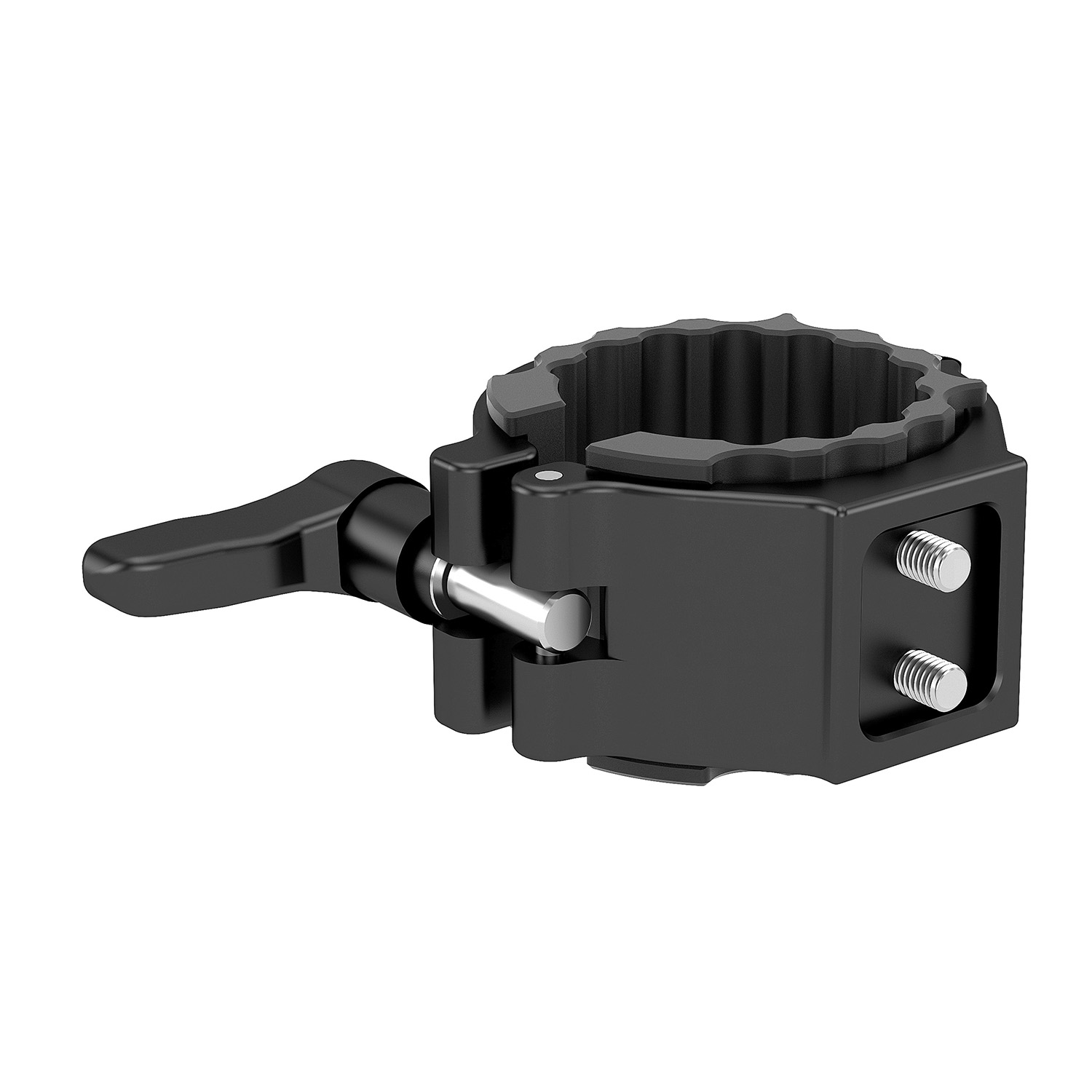

Redesigned and improved post clamp that clamps onto the 1.5in inner post and directly onto the 1.8in outer post with an insert. The use of two bolts holding the rosette block ensures maximum rigidity.NOTEARRI RossetteFor monitor brackets Gen. 2 only (from 2022)

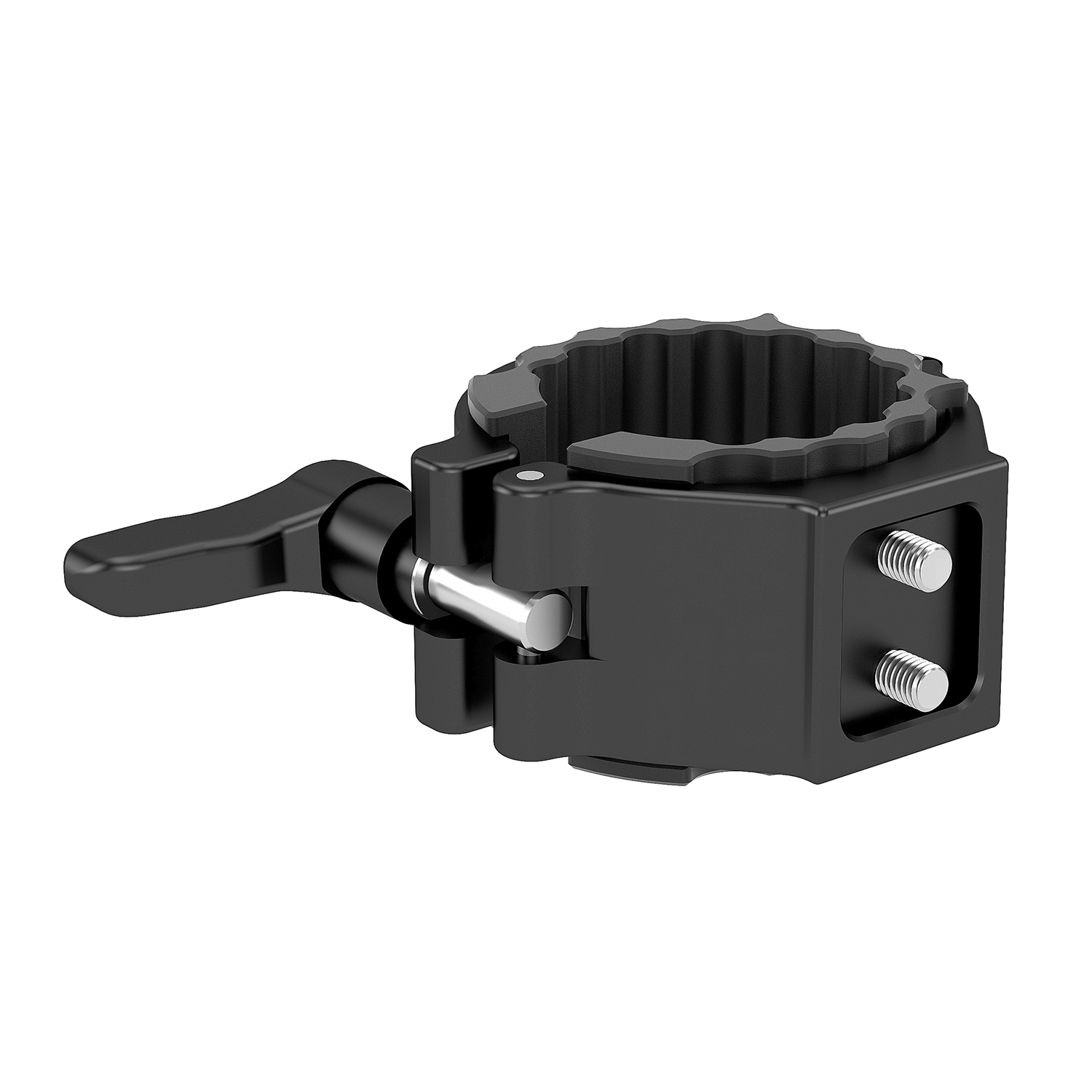

Redesigned and improved post clamp that clamps onto the 1.5in inner post (with an insert) and directly onto the 1.8in outer post. The use of two bolts holding the rosette block ensures maximum rigidity.NOTESachtler Rosettefor monitor bracket Gen. 1 (before 2022)

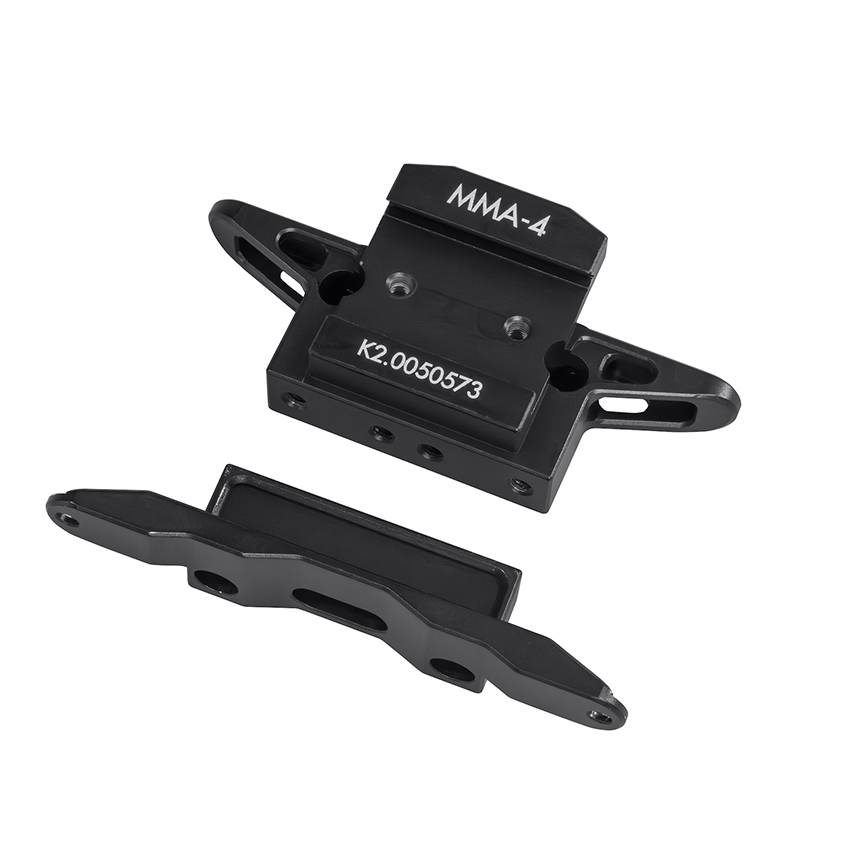

The MMA-4 allows to mount a 5in monitor for low moder operation via the VFA-4, Viewfinder Adapter K2.0048510 to existing SSB-3, Stabilizer System Bracket K2.0037912. It is also possible to still mount the TIFFEN Volt brain.NOTEK2.0048510 VFA-4, Viewfinder AdapterK2.0037912 SSB-3, Stabilizer System Bracket is required for mounting.NOTEOnly ARTEMIS 2, ARTEMIS 2 Live

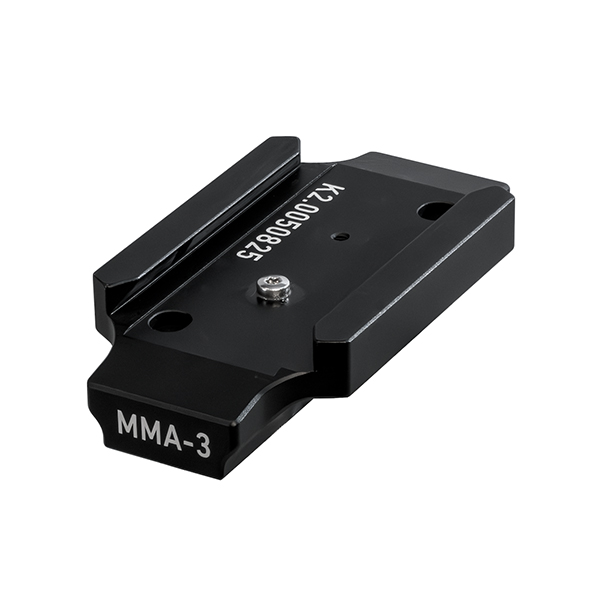

The MMA-3 allows to mount a 5in monitor via the K2.0048510 VFA-4, Viewfinder Adapter to K2.0042837 1x CSS Clamp Bridge 52, 19mm, or K2.0049885 CCB-2, CSS Clamp Bridge-2, 52, 19mm.NOTEK2.0048510 VFA-4, Viewfinder AdapterK2.0042837 1x CSS Clamp Bridge 52, 19mmK2.0049885 CCB-2, CSS Clamp Bridge-2, 52, 19mmis also required for mounting.NOTEOnly ARTEMIS 2 Live

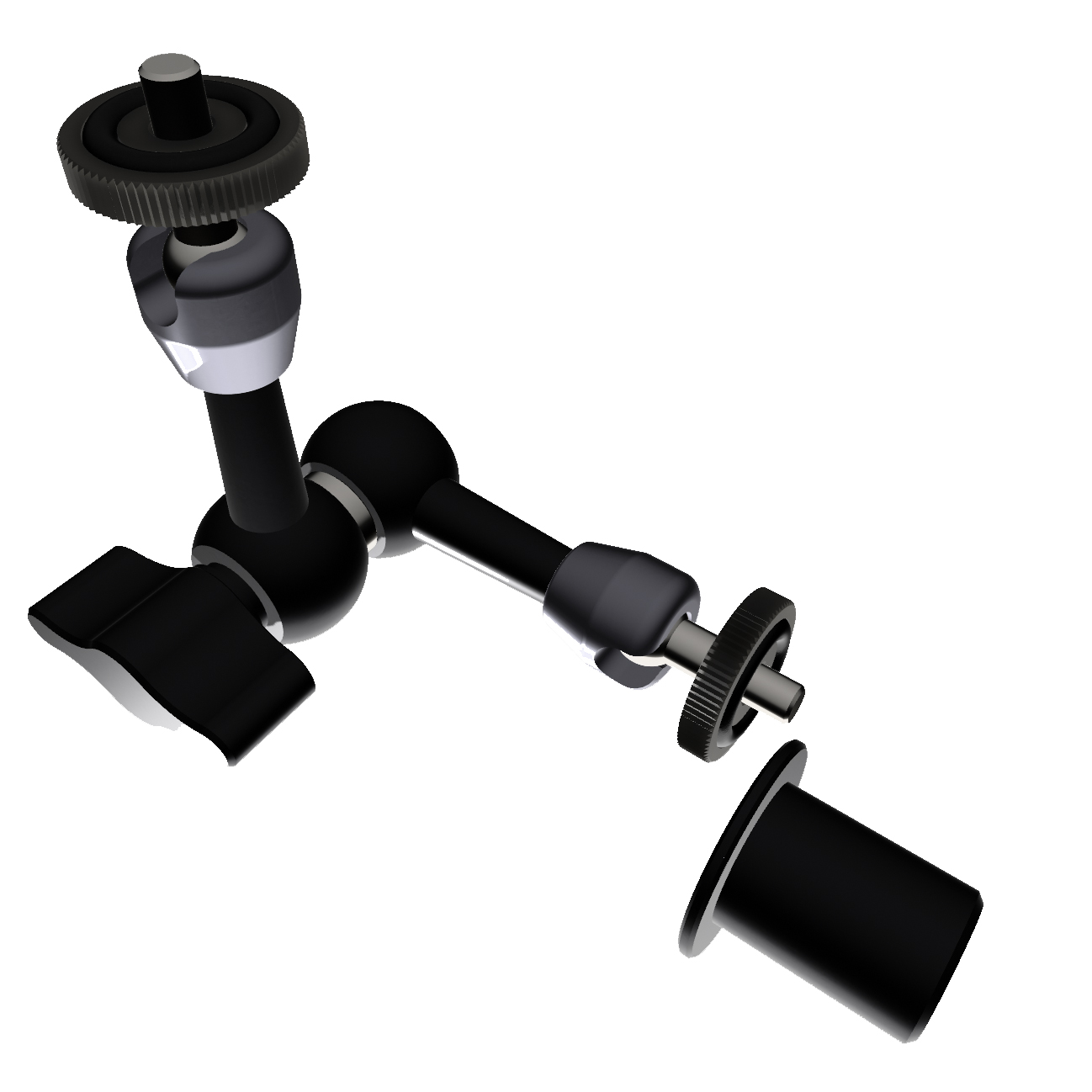

Set including articulating arm with a 19mm clamp adapter for the MGT-2 (K0.0044362 & K0.0044363) and TRINITY 2 analog Joystick Set (K0.0044366) and TRINITY Gen. 1 Joystick Monitor Mount (K2.0010287).NOTETo complete the initial order, at least one of the mandatory monitor or monitor mounting sets must be ordered.Includes:K2.0048648 1x Adapter 19mm with 1/4in threadK2.0048700 1x Articulating arm, 5inTRINITY 2
